Spectra A-100 User manual

This manual provides the operating instructions for Spectra Therapy’s
LASERwrap
®
product line for use with the IMPULSE Laser unit, Model A-100.
It incorporates proven Low Level Laser Therapy (LLLT) technology.
The LASERwrap
®
bends photonic energy and contours the healing power of
light to the application area. The wrap, which delivers low-level laser therapy
(LLLT), energizes the blood and improves circulation, which accelerates
the healing of conditions such as edema, connective tissue tears and strains,
wounds and bone injuries. LLLT is effective at relieving pain and inflammation,
relaxing tight muscles and relieving muscle spasms associated with exercise
and/or acute or chronic conditions such as arthritis.
Product Description/Registration
3
The Spectra Therapy LASERwrap
®
products are designed to be fully
wearable portable systems providing temporary relief of pain, increase
circulation and reduction of edema. This one-size-fits-all device is de-
signed to lessen pain by using laser photon energy to decrease the local
viscosity of fluids which provide therapeutic effect. It is important to
emphasize that therapy with the Spectra Therapy LASERwrap
®
does
not exclude other conventional medical treatment. Effectiveness of this
treatment is dependent upon correct use. There are no known side
effects from this therapy. If treatment times are exceeded, the therapy
may not provide more positive results.
BENEFITS: Programmable and wearable LLLT treatments make it
practical to turn temporary pain relief and temporary improvement of
circulation into consistent pain relief and continual stimulation of the
circulatory system. Spectra Therapy’s LASERwrap
®
make treatment
easy throughout the day and night.
• Treatment with the Spectra Therapy’s LLLT can be combined with
treatment via conventional medicine.
• Repetitive treatment times of 7 or more minutes are most effective.
The interval time between treatments is important as it allows time for
the body’s own lymph system to activate and cleanse the area.
• Most patients should expect to feel pain relief and/or muscle relax-
ation after 2-3 days of Spectra Therapy LLLT treatment.
• Some patients may feel a noticeable reduction of pain immediately
after their first treatment and relaxation of stiff muscles after one day of
treatment.
Fully Portable, Battery Powered - The Spectra Therapy LASER-
wrap
®
is a truly portable laser unit that does not confine you to cords
or stationary lamp type holders for use.
To register your unit online go to Spectra Therapy.com, or com-
plete the enclosed registration card and return by mail.
Product Introduction
The Spectra Therapy LASERwrap
®
system contains lasers. Prior to
operating this apparatus, it is recommended that you read this manual
thoroughly, including all instructions and cautions, and adhere to important
safety precautions:
• Laser beams can cause optical damage. Do not irradiate eyes directly.
• The apparatus should be placed beyond the reach of children to prevent
optical damage. The therapy apparatus is not recommended for children.
WARNINGS: Reasonable dietary structure, sufficient nutrition and
proper physical exercise can improve the metabolism and promote the
treatment effect.
• It is not advisable to privately reduce the medicine dosage or stop ad-
ministering medicine while using the therapy apparatus.
• Only when the related symptoms improve remarkably can the patient
change the medicine dosage as directed by a doctor.
WRONG SETTING WARNING: Each patient may react differently
to various settings. Refer to contraindications. If there are no known
adverse effects, continue to use settings as provided, one may increase or
decrease unless advised by a doctor to the contrary.
CONTRAINDICATIONS: This therapy apparatus is contraindicated in
pregnancy and patients with cancer or internal hemorrhaging.
Disclaimer - The information is not intended to replace a one-on-one
relationship with a qualified doctor. It is intended as a sharing knowledge
and information from the research and experience of Spectra Therapy,
LLC and requires you to make your own decisions regarding your animal’s
health based upon your own research and in partnership with your doc-
tor. The Spectra Therapy LASERwrap
®
offers the user a simple means
to determine the type of pain encountered and identify an area where
improved circulation is desired. After reviewing the instructions, the user
may promptly try the therapy.
4
Table of Contents
Table of Contents .........................................2
Product Description/Registration ..............................3
Product Introduction, Contraindications and Warnings ............4
Summary of Low Level Laser Therapy ..........................5
Treatments with LASERwrap
®
................................6
System & Device Description ................................7
Operating Instructions ......................................8
Attachment/Blue & Green Mode Definition .....................9
System Operation & Schematic ..............................10
LASERwrap
®
Conical Applications ...........................11
Dual Filament LASERwrap
®
Use and Applications ...............12
LASERwrap
®
Dog Coat & Canine/Feline Mat ..................13
Programming Options - Multiple Applications ...................14
Technical Information/Specifications and Body LASERwrap
®
........14
Cleaning, Care & Troubleshooting ...........................15
Warranty ...............................................16
Spectra Therapy’s IMPULSE Laser unit is FDA cleared.
The equine kit is intended for large or small animal use only.
Always seek medical advice if there is any doubt of how to use on an
animal.
See WARNINGS and CONTRAINDICATIONS on page 4 of this manual.
Complete the product registration online at www.SpectraTherapy.com.
Spectra Therapy, Troy, MI 48085-3157 USA, 248-524-6300
LASERwrap
®
, LASERpad™, LASERstrip™, and Neck LASERwrap™
are trademarks and the product is patented and is patent pending
property of Spectra Therapy, LLC.
Patented and Patent Pending - Spectra Therapy
©2008-2017 Spectra Therapy LLC. All rights reserved.
2
CF-G10/10-B12/2SEPT 2017
Canine/Feline
User Manual

The therapy is light energy absorbed into the patient’s tissue which triggers
biological changes at a cellular level to provide topical healing for the tem-
porary increase in local blood circulation; temporary relief of minor muscle
and joint aches, pains and stiffness; relaxation of muscles and relief of muscle
spasms; as well as temporary relief of minor pain and stiffness associated with
arthritis. The dose and frequency of treatment can be adjusted to produce
the desired effect by selecting a treatment guideline.
The Physiological Effects of LLLT are:
1. Bio-stimulation
· Improved metabolism
· Increase of cell metabolism
2. Improved blood circulation and vasodilation
3. Reduces or eliminates pain
4. Anti-inflammatory and anti-edematous effects
5. Stimulation of wound healing
6. Reduces muscle spasms
How has LLLT worked for others?
• Reduces inflammation
• May relieve certain acute and chronic pains
• Increases the speed, quality and tensile strength of tissue repair
• Increases blood supply
• Stimulates the immune system and nerve function
• Develops collagen and muscle tissue in certain cases
• Helps generate new and healthy cells and tissue
• Promotes faster wound healing and clot formation
• Enhances athletic performance
• Minimizes stocking up
Summary of LLLTs
5
The LASERwrap
®
product line is unique as unlike other lasers that treat
only a point of interest per single application, per attendant, Spectra
treats the entire surrounding area repetitively and unattended. LASER-
wrap
®
, via the automatic cycles, repeatedly improves the transfer of
liquid in and out of the body’s cells, helping them to absorb oxygen and
flush the lactic acid and other inflammatory enzymes. When wrapped
around an extremity a wearable chamber is created, similar to an
incubator treating soft tissues, bones, arteries, veins and meridians.
Treatments with LASERwrap®
6
The Spectra Therapy laser system has been designed to be durable, compact
and easy to use. The unit has a smart charging circuit that prevents over-
charging. Using the USB cable provided, plug the mini USB on one end into
the IMPULSE Laser unit and the other end into the charger provided or into
a computer USB port. The maximum time needed to charge a unit is 3 hours
and 10 minutes. Charge the IMPULSE unit until the RED mode indicator LED
no longer blinks. Depending on the program selected, the unit can deliver up
to 8 hours of treatment on a charge, or 3 hours of continuous active
dual laser therapy.

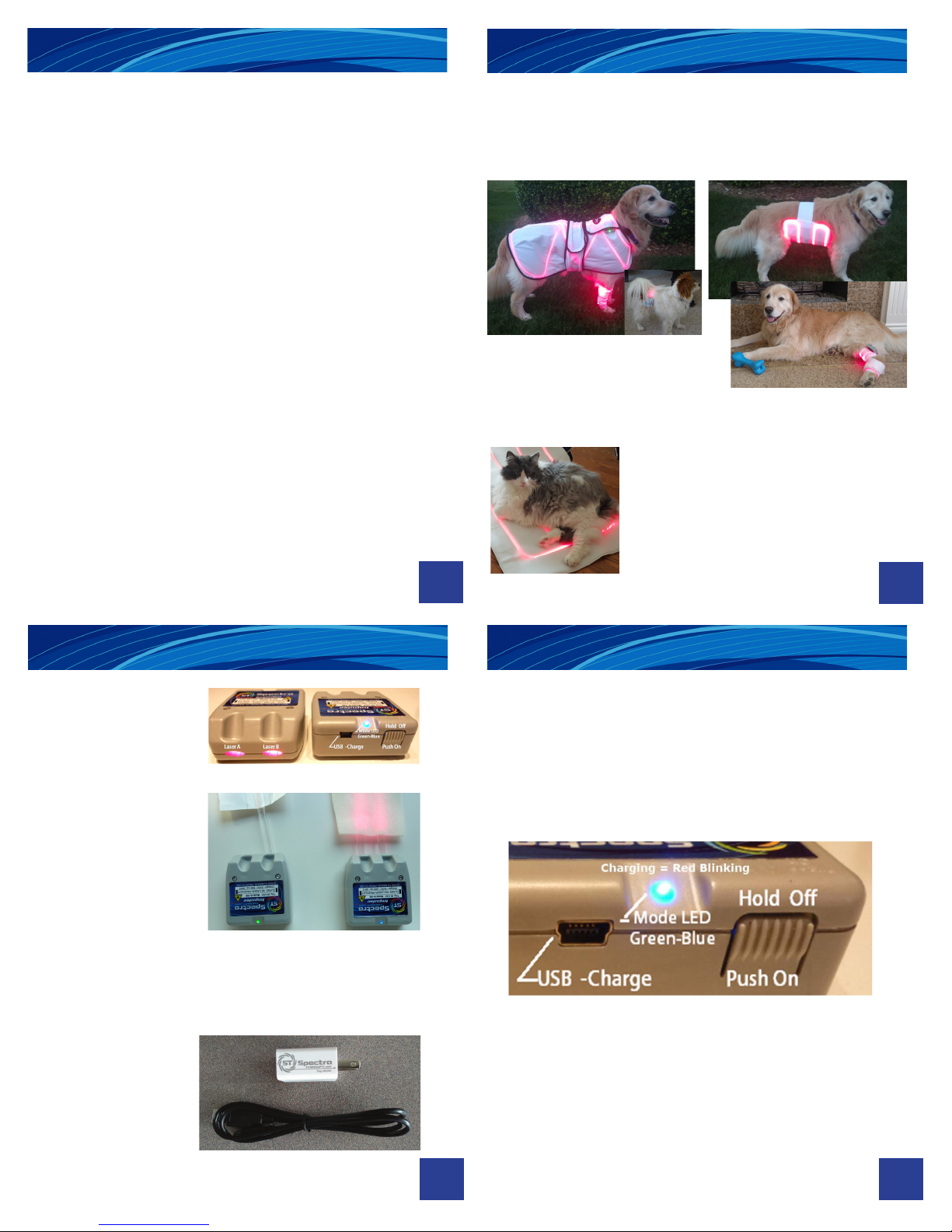

Operating Instructions
8
To turn the unit on, hold the unit like a stop watch, push the ON/Select/
OFF button located on the back of the unit momentarily. Notice that
either the GREEN or BLUE mode LED will illuminate and the lasers
will activate for the duration of the therapy. When a therapy mode ends
and the interval timer begins, the standby status will be indicated by the
flashing of either the GREEN or BLUE mode LED. If you want to end a
therapy session and turn the unit off, hold the button down for more than
two seconds and the mode LED will turn off. To change between BLUE
and GREEN modes, with the unit off, toggle the On/Select/OFF button
quickly and stop when desired BLUE or GREEN indicator appears.
System & Device Description
The LASERwrap
®
System is
comprised of the following
components:
• A-100 IMPULSE pre-
programmed Laser unit with
USB cord and charger
• LASERwraps
®
provide
porosity and comfort. They
are made of machine
washable fabrics.
• Body, extremity, stretch
wrap, neoprene outer wraps
or elastic straps to secure
the IMPULSE unit and
LASERwrap
® to the body.
• User’s manual
• Product warranty, registra-
tion card and storage case.
IMPULSE Dual Laser Unit
The IMPULSE Laser unit
should be charged with
only the charger and USB
cable provided.
Use of any other chargers
may damage the unit and
void the warranty.
The light transmitting laser filaments are
inserted into the IMPULSE unit until snug.
7
A blinking RED indicator will flash until unit is fully charged, then
indicator will stop blinking and stay on full RED.
Use the LASERwrap® Dog Coat for treating the overall body, treating several areas
simultaneously. Greatly improve circulation to effectively treat acute and chronic condi-
tions, injuries and wounds. The overall body laser treatment, charges muscles with oxygen,
improves flexibility, mobility and function, helping your dog to feel their best.
For anxiety, the coat can have a calming effect on the dog.
Within a minute, your dog or cat can be receiving laser therapy in the area specific to its
needs. Choose the best wrap for the application.
All wraps and pads are machine washable.
The LASERwrap® Canine/Feline Mat
can be used for anxiety, travel, arthritis pain,
improves dogs and cats overall circulation.
The LASERwrap®Dual Filament Strips,
which are available in 2.75” x 12”, 24” and 40”
sizes, can be used to treat various size dogs and
cats in numerous locations, such as abdomen,
hind quarter and lower extremities. Dual Fila-
ment Strips are ideal for treating smaller dogs
and cats.
The LASERwrap® Conical Short can be
used to treat various size dogs’ hip, back
hind quarter, abdomen, chest, back and
shoulder areas.
All wraps and pads should be applied directly on the body so the
light can be absorbed. The wraps and pads are not sterile and
should not be placed directly on an open wound. A sterile gauze
with the proper topographic medication should be applied on
the wound, then apply the wrap and treat through the gauze.

Dual Filament LASERwrap
®
Use/ApplicationLASERwrap
®
Conical Use/Application
LASERwrap® Conical Short is a universal type
pad used to treat various size dogs’ hips, back hind
quarter, abdomen, chest, back and shoulder areas.
Connect IMPULSE laser to the wrap, snug up around the treatment area and
activate the laser in either mode to begin treatments. Re-adjust the wrap so it
fits firmly, then tighten with th elastic strap(s). In the BLUE mode, a 12.5 minute
treatment will be delivered with a 20-minute rest interval between treatments.
On a single charge, this will treat for 8 hours.
10
System Operation
YES
NO
Press the start button to turn “ON” the unit.
A>The red filament will glow red < A and either the
GREEN or BLUE indicator will turn on fully.
If the
alternate mode
is desired
Turn unit
OFF?
Lasers operate as programmed. Upon completion, filament
red light will turn off with GREEN or BLUE indicator flashing,
indicating the IMPULSE unit is in its interval timer mode.
When interval time is reached, operation
will resume to > A
Hold the button for >2 sec-
onds and the unit will turn
off the red filament lasers and
BLUE or GREEN indicators.
Green Blue modes will
alternate. Press again.
Stop with desired mode.
Briefly press the
start button
“ON” for a second.
NO
OFF
To improve circulation and receive temporary pain relief
position and secure a filament wrap or pad onto the point of interest.
Next, connect the filament[s] to the Spectra Therapy LASERwrap
®
IMPULSE Laser unit.
Alternative Modes Available
Clinical Application & Course
Treatment
LASERwrap
®
/ LASERpad
TM
Attachment
9
The Spectra Therapy IMPULSE Laser unit, model A-100 is designed to
have laser filaments inserted into the slots on the front of the unit.
To affix LASERwrap
®
unit, slide the clear filament into the unit until firm.
Then increase force for the last 1/4”. User will feel the tube fit snugly and
then stop. LASERwraps
®
and LASERpadsTM are not sterilized.
HEALING & PERFORMANCE
BLUE (continuous cycle)
on - 12.5 min
off - 20 min
battery life - 8 hrs
Treatment Guidelines:
1. Use to kickstart the
healing process.
Apply for 2 hours 2-3 times
per day for 3 or more days
until wound closes or
 inammationclears.
Continue at least once
daily for a period of time.
2. Use for maintenance pre-
vention, and performance
enhancement.
leave on all day or
leave on overnight
GREEN (continuous cycle)
on - 10 min
off - 10 min
battery life - 5 hrs
Treatment Guidelines:
Quick Response-Higher
Intensity
1. Apply 2-3 times per day
for a 1 hour period, for
a minimum of 3 days, then
reduce to 1-2 times daily.
2. For ongoing treatment.
Apply 1-2 times per day
for 1 hour period as
needed.
11
LASERwrap®Dual Filament Strip - Universal type LASERwrap® Strips,
available in 2.75” x 12”, 24” & 40” sizes, can be used to treat various size
dogs and cats in numerous locations, such as abdomen, hind quarter and
lower extremities. Ideal for treating the smaller dogs and cat’s overall body.
With dog or cat laying on their side
1). Connect IMPULSE laser to dual filament with Laser bottom
facing up.
2). Extend from shoulder, down leg to above paw.
3). Wrap above paw under leg as shown.
Simply insert the dual filament into the laser unit,
wrap in the treatment area with the hook center
facing up, secure with the elastic strap(s), and ac-
tivate the laser. An optional stretchable neoprene
wrap, Slim Wrap, is available in 25” and 50” sizes
to secure and cover the laser and filament strip if
desired.
Leg Applications
12
4). Continue until end
 of40˚dualfilament
is reached.
2.) Continue
up the leg
5).Flip down as shown
on right.
6). Secure with
elastic velcro
strap to
complete.
Treats stifle and hock
1). Connect IMPULSE laser to dual
filament
3). Adjust on
the leg

14
15
Care & Cleaning
Troubleshooting
If the Spectra Therapy LLLT is operating properly, the patient may or may
not feel a gentle warming of the skin surface in the area when receiving
treatment.
• The GREEN and BLUE indicator LEDs will be lit depending which mode
is running in standby, RED LED will flash if battery condition is low and will
be fully lit if connected to a power source.
• The model A-100 unit has 2 lasers. Do not look directly at the emit-
ter openings even though the reflected light has less than 5 mw/cm2 (Laser
Class 1 rated).
• Device failure _ If the Spectra Therapy model A-100 emitter will not turn
on, or fails during treatment, first plug the unit into a charger using the USB
Cable to recharge the battery. If the emitter does not shut off at the end of
the treatment session, the user should position the unit so that the emitter
cannot cause vision irritation. The typical battery life is one year and
battery replacement may be required.
Contact Spectra Therapy for further instruction 248-524-6300.
• No maintenance is required on the Spectra Therapy IMPULSE Laser unit other than keeping
the product clean and stored in the proper environment. The user should ensure that all com-
ponents are dry prior to use. Do not expose the unit to extreme temperatures, humidity or
direct sunlight in an enclosed area. Do not allow the emitter or the connecting port for the
power adaptor to become wet. If the emitter or connecting port does become wet,
please contact the manufacturer, Spectra Therapy at 248-524-6300, prior to continuing use.
• To clean the body of the laser unit, unplug the unit from the power adaptor and use only a
soft dry cloth. Wipe the body with an alcohol swab or cotton moistened with 70% isopropyl
alcohol. Never use an abrasive cleanser or submerge the laser unit in water or any other liquid.
• To clean the wraps and pads; hand or machine wash separately in warm or cool water with
mild detergent. Rinse thoroughly and hang or lay flat to dry. Keep the Velcro hook and loop
free of debris and hair.
• All repair and/or service to the Spectra Therapy IMPULSE Laser unit must be done by the
manufacturer. Any opening or disassembly of the unit immediately voids the warranty.
• Contact Spectra Therapy with any questions at [e-mail] or call us
at 248-524-6300.
Warranty
16
Spectra Therapy, LLC , hereinafter called the Company, guarantees that the Spectra
Therapy IMPULSE Laser unit will operate in the manner described in this manual for a
period of 12 months from the date of purchase, when used and maintained in accor-
dance with the instructions herein. Defects or damage to the laser unit due to misuse
or abuse are not covered by this warranty. Please have this warranty information
available, along with the date of purchase. Wraps and pads, which are consumables,
are excluded from the 12 month warranty. The Company shall not be liable in any
manner in respect to bodily injury and/or property damage arising from the use of the
Spectra Therapy LLLT, where such use is not in strict compliance with the instructions
and safety precautions contained in the Spectra Therapy LLLT User’s Manual, including
all supplements thereto, in all product labels, and according to the terms of warranty
and safety of this equipment, nor if any changes unauthorized by the Company are
made to the Spectra Therapy LLLT. This warranty does not cover any malfunction or
failure of the product caused by product misuse, including, but not limited to, dropping
the unit, using chargers or power cords not provided by Spectra and failure to provide
reasonable and necessary maintenance or any use that is inconsistent with the user’s
manual.
• Replacement parts or labor furnished by anyone other than the Company, the
selling dealer or a certied Company service technician voids warranty.
• Defects or damage caused by labor furnished by someone other than Company,
the selling dealer or a certied Company service technician voids warranty. Company
shall not be liable in any event for incidental or consequential damages. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
To obtain service from Company or the selling dealer under this warranty:
1. A written claim must be made within the warranty period to the Company or the
selling dealer. Written claims made to the Company should be sent to: service@spec-
tratherapy.com or call 248-524-6300 to receive an RMA prior to returning units.
2. The product must be returned to the company directly by the owner to an address
provided at time of issuing the RMA. This warranty gives you specic legal rights and
you may also have other rights, which vary from state to state or location to location.
The Company does not authorize any person or representative to create for it any other
obligation or liability in connection with the sale of the Product. Any representation or
agreement not contained in the warranty shall be void.
3. Extended warranty and product protection plans are available for purchase directly
from Spectra Therapy.
CF-G10/10-B12/2SEPT 2017
Programming Options - Multiple Applications
The laser unit(s) are delivered pre-programmed with two of the most common and
effective programs. However, the programmable IMPULSE Laser unit can be cus-
tomized based on special needs. The wearable LASERwrap®can provide frequent
short photonic treatments that are long lasting, which are dispersed systematically
throughout the day and night. Basic treatments greatly improve circulation that
energizes the horse’s metabolism, though if specialized protocols are needed,
Spectra Therapy can accommodate them. For additional programs contact Spectra
Therapy via email, [e-mail] or phone, 248.524.6300.
PROGRAMMED
• Frequency specific protocols
• Therapy durations
• Stimulation time intervals
LASERwrap® Dog Coat
Secure install laser(s) in the
protective pocket. Facing the
dog with the head on the left,
apply dog coat and secure with
front closure, positioning the
top of the coat so that the two
strips of filament run along the
spine. Attach the belly band
and pull over the top of the
back and secure for a snug
fit. Readjust coat as needed
including the hip area. Activate
laser(s) in desired mode and
close pocket securely.
Technical Info & Specifications
IMPULSE Laser Unit (Model A-100)
Average Power: 1-2 - 200 mw Red laser 1-2 - 100 mw 1R laser
Measures: .8 MW/CM2 10 CM from surface
Wavelength of: 1-660nm Red 1-810nm IR (Infra-Red)
Power Source: Medical Grade Switching Power
Adaptor (supplied) Input: 100-204 V 50/60 Hz, 0.55-03A Output: 5V max. 0.5A
Class II Equipment Applied Part Type: Laser Class IM (I 60825-1)
Supply Ratings: 5 VDC; max. 0.5A Mode of Operation: Continuous Operation
Inherent safe unit being battery operated. Supply ratings apply to charging of unit.
Operating Temperature for Charging: 0oC to 45oC or 32oF to 113oF
Do not charge units in environments below freezing and above 45
oC
or 113
oF
Operating & Storage Environment: -10oC to 50oC or 14oF to 125oF
Use of device in colder temperatures may result in decreased battery life. As with
other electronic devices, do not leave unit exposed to direct sunlight.
Humidity: 15-95% RH Weight: 2 oz./57g
Dimensions: 2.55” W x 2.17” L x .874” D [55W x 6.5 L x 21.5 D] cm
LASERwrap® Canine/Feline Mat
The dog coat was designed to greatly improve circulation
and effectively treat acute and chronic condition, injuries and
wounds. The overall body laser treatment, charges muscles
with oxygen, improves flexibility, mobility and function, help-
ing your dog to feel their best. For anxiety, the coat can have
a calming effect on the dog.
13
Install laser(s) in protective pocket, activate in desired mode and close securely.
Use in animal bed, travel crate, couch, car seat……
