Mobile Base
Assembly Guide
Spectur Guide for STA6 Installation
1300 802 960 | www.spectur.com.au
2
Contents
Getting Started ................................................................................................................................. 2
What you need .............................................................................................................................. 2
Step 1: ............................................................................................................................................. 2
Step 2: ............................................................................................................................................. 3
Step 3: ............................................................................................................................................. 3
Step 4: ............................................................................................................................................. 4
Getting Started
What you need
○ 40 x M5x10 Screws
○ 2 x Bottom panels
○ 4 x Side panels
○ 1 x Mobile base frame
○ 4 x Warning stickers
○ 4 x Spectur stickers
○ 4 x Pyramid sides
Step 1:

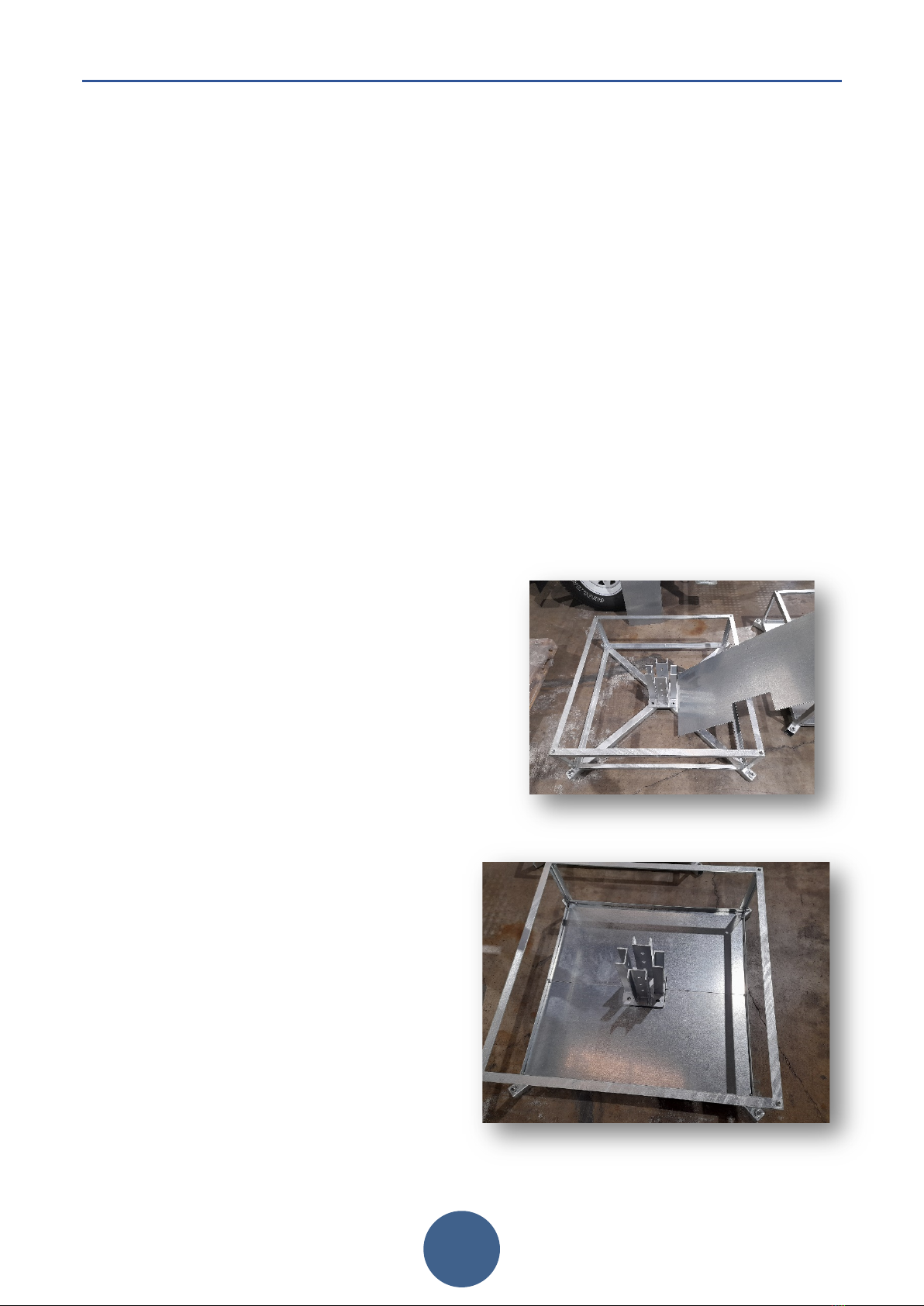

Place the bottom panels on the bottom of
the mobile base frame.
Spectur Guide for STA6 Installation
1300 802 960 | www.spectur.com.au
3
Step 2:
Using 10 M5x10 screws on each of the sides, secure the side panels to each side of the
mobile base frame.
Step 3:
Apply Warning sticker to each side of the mobile base. Ensure when applying the sticker that
the sticker is has no bubbles and is parallel to the top of the base.
Spectur Guide for STA6 Installation
1300 802 960 | www.spectur.com.au
4
Step 4:
Apply a Spectur sticker to each of the pyramid sides. Use a spray bottle to lubricate the
sticker and the pyramid side. Use a squeegee to remove bubbles from the sticker.
With the completion of this step the mobile base is ready to be used for installations. For
information on how to conduct installations with the mobile base refer to either the HD5
installation manual or the STA6 installation manual.
