Speedwolf PM630-A User manual

SPEEDWOLF
PM630
SHENZHEN SPEEDWOLF TECHNOLOGY CO.,LTD
(V2018.1.2)
OPTICAL POWER METER
USER’S MANUAL

SPEEDWOLF —Optical Power Meter—PM630 User’s Manual
Shenzhen SPEEDWOLF Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
Email: [e-mail] / [e-mail] whatsapp:[phone] skype:speedwolf_8
1. Model Introductions
PM630-A:
Measurement range: -70~+10dBm，calibrated wavelength：850nm、1300nm、1310nm、1490nm、1550nm、
1625nm
PM630-C:
Measurement range: -50~+26dBm，calibrated wavelength：850nm、1300nm、1310nm、1490nm、1550nm、
1625nm
2. Features
High measurement accuracy and display resolution
Quick response and measurement: It can display fast-tracking and real-time measurement of
optical power when output power changes
Wide measurement range: it can provide 80dB of optical power measurement range
Six calibrated wavelength: 850nm、1300nm、1310nm、1490nm、1550nm and 1625nm(other
wavelength can be provided according to customer’s request)
Provide absolute optical power measurement and relative power measurement.
Real-time monitoring and displaying the battery level
Warning notice is available when the battery is low
Auto-off function
Backlight LCD display
AAA batteries which is more convenient to carry
User self-calibration function
3. Technical Specifications
Item
PM630-A
PM630-C
Measurement range dBm
-70～+10 dBm
-50～+26 dBm
Wavelength range（nm）
800～1700
Calibrated wavelength
850nm、1300nm、1310nm、1490nm、1550nm、1625nm
（velength will be on request）
Detector
InGaAs
Accuracy
<±3% （-10dBm、22℃）
Resolution
Linearity：0.1%，Non-linearity：0.01dBm
Working temperature
-10℃～+50℃
Storage temperature
-20℃～+70℃
Relative humidity
90%（＋30℃）
connector
FC/PC SC/PC，(2.5mm universal interface)( ST as Optional)
Power supply
3pcs AAA batteries
DC power supply
Optional accessory which require special order
Support wide range power input work (AC 90-240)
Working hours
>120 hours（without backlight）
Weight(g)
160g
Dimension(mm)
130×66×27

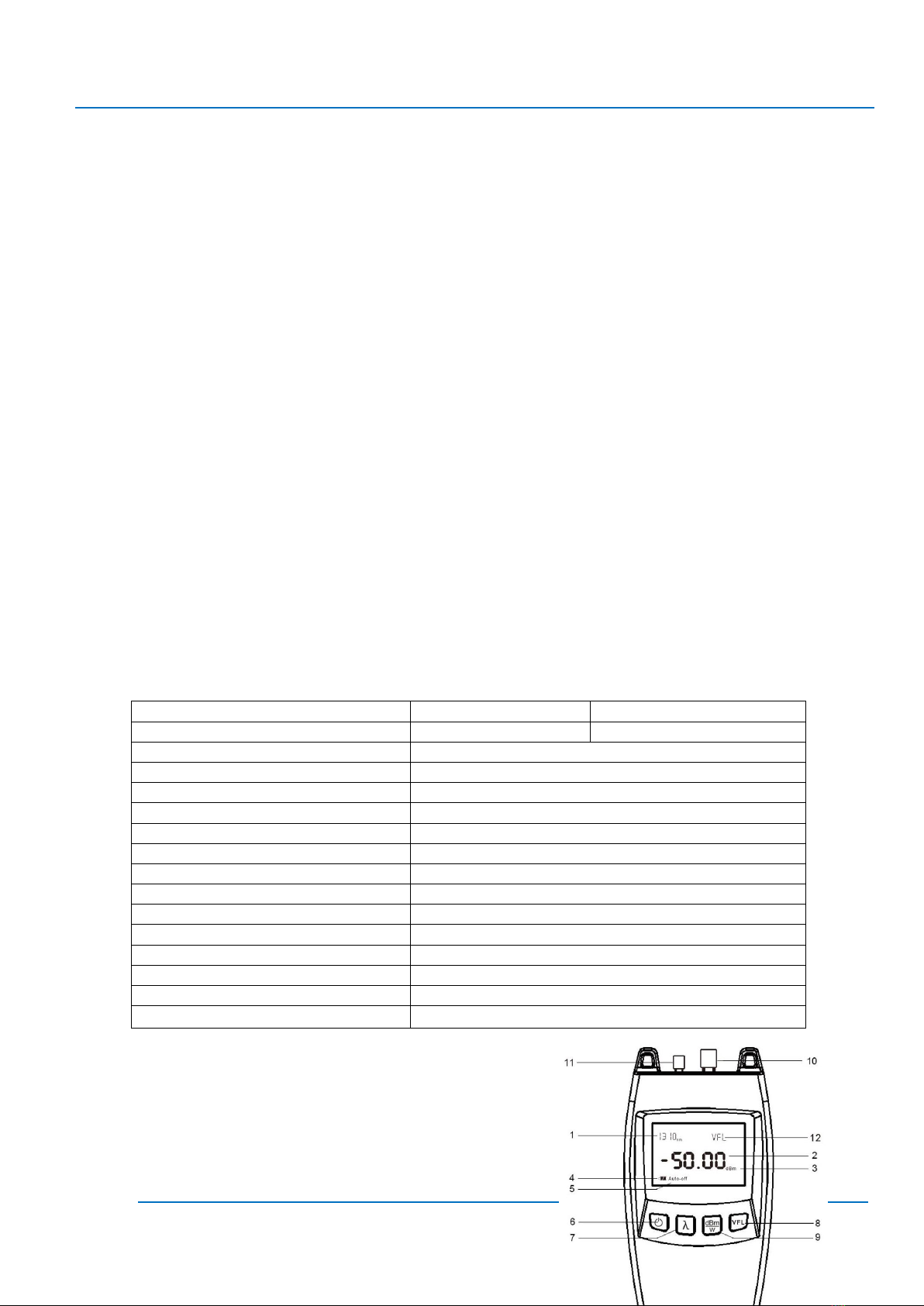

4. Layout
1. Wavelength ：Display the wavelength, such as
850nm、1300nm、1310nm、1490nm、1550nm
and 1625nm.
2. Power value：Displays the current output power

SPEEDWOLF —Optical Power Meter—PM630 User’s Manual
Shenzhen SPEEDWOLF Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
Email: [e-mail] / [e-mail] whatsapp:[phone] skype:speedwolf_8
under absolute test mode
3. Unit：mW、uW、nW、dBm、dB.
4. Battery level : Indicate the current battery level.
When the icon is blank, it means the power is too low, please change the batteries.
5. Auto-off ：Activate the 10-minute auto off function
6. ON/OFF
7. Wavelength select
8. VFL：VFL status
9. DBm/w: Absolute power
10. Optical detector
11. Visual Laser（650nm）
12. VFL display
5. Function Keys
1) ON/OFF：press ON/OFF to turn it on. And press it for 3 seconds to turn it off. Under power-on
mode, press this key shortly to activate or deactivate the 10-minute auto off function. The default
setting is auto-off function ON when start the meter. Operators can press ON/OFF shortly to close
the auto-off function.
2) dBm/W：press dBm/W to enter absolute measurement mode. Press it repeatly to switch the display
power unit between W and dBm
3) λ：Switch the wavelength from 6 calibrated wavelengths, the current choice of wavelength will
appears on the LCD
4) VFL ：press VFL to switch the VFL status, ON Glint or OFF. At the same time, the VFL status will
be simultaneously displayed in the upper right corner of the LCD screen.
5) Backlit is on when turning on the unit. It will turn off one minute later. Operators can press any key to
make backlit for another one minute.
6. Operation
6.1 Turn on/off
Press ON/OFF shortly to turn on the unit. Press ON/OFF for a few seconds to turn it off and press
this key slightly to activate or deactivate the auto-off function.
6.2 Absolute power measurement
Insert optical signal (Insert the pigtail properly), turn on the meter
Choose the wavelength via λkey. If the tested wavelength is not exactly same to the one in the
power meter, then choose a close one from the power meter. For example, 1300nm wavelength is
near to 1310nm, we can choose 1310nm to substitue 1300nm.
Press dBm/W to choose the display unit. The default wavelength is 1310nm and working mode is
dBm.
After the above steps, the LCD will show the test power value.
6.3 User self-calibration function
During the operation, when operators need to calibrate the meter to be accordance with other meters. So
our product offers operators self-calibration function, the following steps will tell you how to do:
Press power key & dBm key at the same time,the instrument goes into manual calibration mode (at

SPEEDWOLF —Optical Power Meter—PM630 User’s Manual
Shenzhen SPEEDWOLF Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
Email: [e-mail] / [e-mail] whatsapp:[phone] skype:speedwolf_8
this time the four row units are all displayed).
Press λkey to choose the wavelength for calibration.
Now connect it with a pigtail which we already know its power and press REF or dBm/W to increase
or decrease the power value by 0.05d every time. Until the LCD display the pigtail’s power (Or the
difference gap less than 0.3db).
Short press power key to save calibration data (backlight will flash once).
Repeat above operation for other wavelength.
After recalibrate each wavelength, long press power key to exit calibration mode.
6.4 Auto off function
The auto off is on when turning on the meter. Press ON/OFF to activate or deactivate this function.
6.5 Visual Fault Locator function
Press VFL key, the VFL indicator is on, the locator output 650nm red laser.
Press the VFL key again, the locator and indicator are blinking at the same time, the frequency is
about 2Hz, which is convenient to check line faults.
Press the VFL key the third time, then the VFL indicator is off, and the locator laser is off.
6.5 Replace battery
If the battery level is very low, please turn off the unit immediately and replace the batteries
Take out the batteries if not in use for a long period of time (like one month)
NOTE: do not charge the non-rechargeable battery, dangerous!
7. Maintenance
1) Keep all optical connectors and surfaces free from oil, dirt or other contamination to ensure
proper operation.
2) Keep using the same type of connector
3) Please cover the dust cap when not in use to keep the connector clean.
4) Carefully plug in or out the adapter
5) Regularly clean the connector.
6) Take out the battery when not in use for a period of time.
8. Trouble-Shootings
Problem
Reason
Solution
Faint LCD screen
Lower power
Replace battery
No backlight
Lower power
Replace battery
No display when turning on
Lower power/other
Turn on again or replace battery
Fail to turn on
Lower power
Replace battery
No changing on LCD screen
Lower power
Replace battery
In sensitive LCD screen
Dirty or polluted connector
Use the correct connector and clean it.
Warranty Period：
12 months from the purchasing date
Warranty clause：
1. Under the warranty, we would repair the problems caused under the normal operation free of charge.
Note: remember to show us the warranty card when repair
2. For the following situation, we have to charge certain cost：
1) Out of the warranty；

SPEEDWOLF —Optical Power Meter—PM630 User’s Manual
Shenzhen SPEEDWOLF Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
Email: [e-mail] / [e-mail] whatsapp:[phone] skype:speedwolf_8
2) Fail to provide the warranty card
3) Alter and omit the warranty card
4) Wrong operation including the problem caused by human actors, abnormal working
environment and so on.
5) Problems or damages are not caused by the products quality
6) Do not operate it according to this manual.
3. For the following situation, we do not repair it
1) Damaged seal label.
2) Take apart it without permission
3) Products from other manufacture
Packing List
1) PM630 Optical Power Meter …………………………………………………………………1pc
2) Soft case ……………………………………………………………………………………… 1pc
3) User Manual …………………………………………………………………………………1pc
4) Battery(AAA, transportation permit) ………………………………………………………3pcs
Quality Certificate
Product name：Optical Power Meter Product model：PM630
Serial number：Date of production：
Inspection ：
