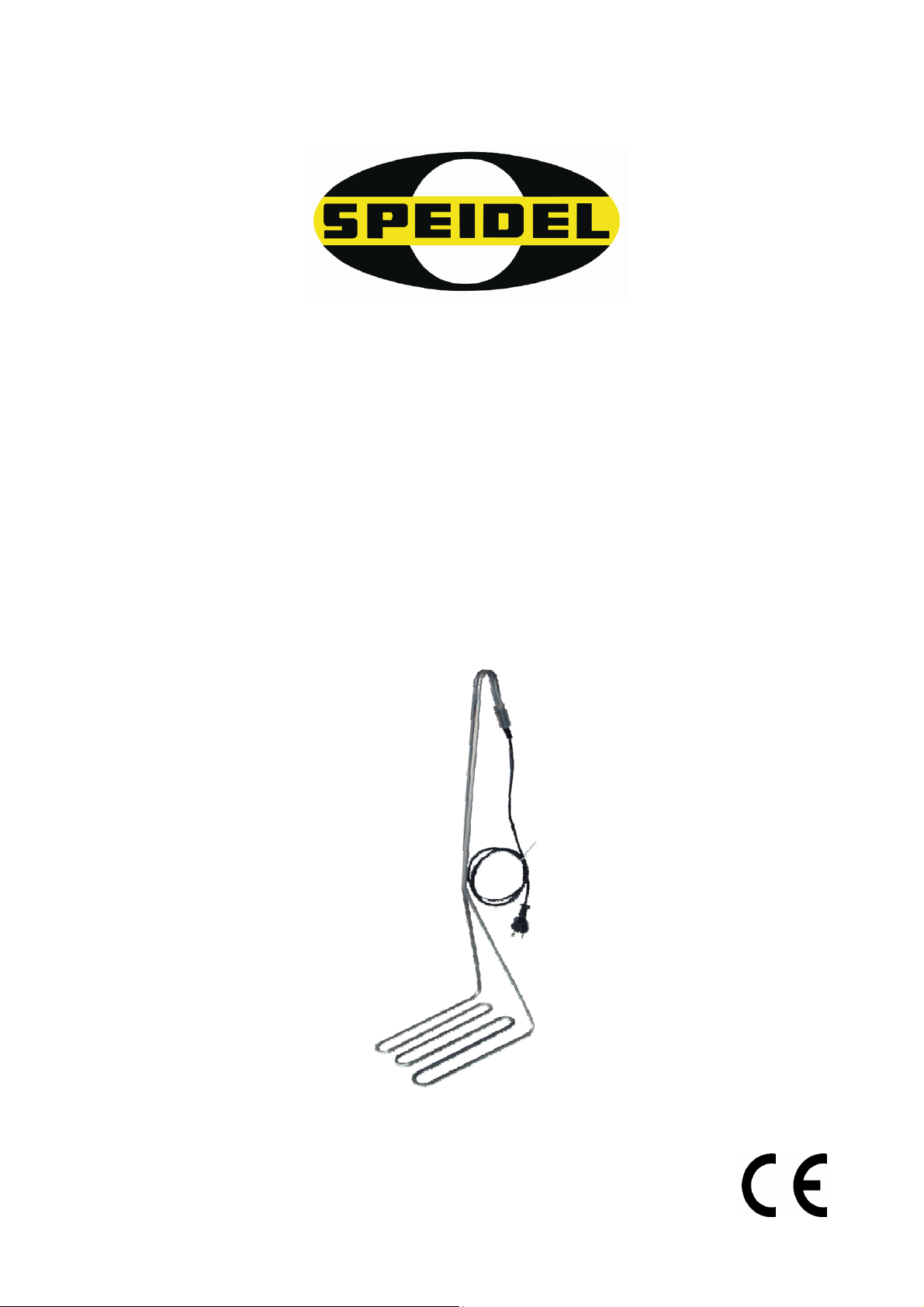

Speidel 47059 User manual

Translated from original
Operating Instructions
for
Immersion Heater
Item no.: 47059
Version June 2011

1 GENERAL ......................................................................................................... 3
2 SAFETY NOTES................................................................................................ 3
3 OVERVIEW OF PARTS/ SCOPE OF DELIVERY ............................................. 4
4 TECHNICAL SPECIFICATIONS ....................................................................... 4
5 PRIOR TO FIRST USE ...................................................................................... 5
6 OPERATING THE DEVICE ............................................................................... 5
7 CLEANING AND MAINTENANCE .................................................................... 5
8 REMEDYING OF FAULTS ................................................................................ 5
9 DISPOSAL......................................................................................................... 6
10 GUARANTEE CONDITIONS, HANDLING A GUARANTEE ............................. 6

Immersion heater
Page 3 of 8
1General
Dear Customer,
You have acquired a new device from our company. We thank you for your trust. Quality
and functionality of our products rate high on our list of priorities.
Application:
The immersion heater has been designed for heating apple juice in quantities of approx.
65 l to 170 l contained in juice vats manufactured by us. This device is not intended for
commercial use.
Operating instructions:
These operating instructions have been compiled to ensure reliable and safe
commissioning and operation of the immersion heater right from the start. Please read
these instructions carefully and in full before using the device. Compliance with these
notes and instructions will ensure that the immersion heater operates to your utmost
satisfaction, and has a long lifespan. Should you pass the device to third parties, please
include the operating instructions.
Conformity declaration:
SPEIDEL Tank- und Behälterbau GmbH hereby declares that the “immersion heater”
product mentioned in these instructions and to which this declaration applies, complies
with the provisions of the following European guidelines:
EMC 2004/108/EC, Low Voltage 2006/95/EC
Distributor:
Speidel Tank- und Behälterbau GmbH
Krummenstrasse 2
72131 Ofterdingen
Germany
www.speidels-hausmosterei.de
www.speidel-behaelter.de
2Safety notes
General safety notes:
•Always disconnect the plug from the socket (pull the plug, not the cable) if you no
longer wish to use the device, for cleaning or in the event of a fault.
•Do not operate the device without supervision.
•The device and mains cable must be inspected regularly for any signs of damage. In
the event of signs of damage, the device may no longer be used.
•Ensure that the mains cables are never placed on hot surfaces.
•Ensure that you lay the mains cable such that it does not come into contact with sharp
objects. The cable must be fully unwound.
•Where extension cables are used, these should have a wire cross-section of at least
1.5 mm². Extension cables should also be fully unwound. Do not use multi sockets as
the output of this device is too high. Fire hazard!
•Take note of the following “Special safety notes”.

Immersion heater
Page 4 of 8
Children and frail persons:
•For the safety of your children, do not allow packaging parts (cartons, polystyrene
etc.) to be readily accessible. Do not allow small children to play with foil. A risk of
suffocation exists!
•This device is not meant to be handled by persons (including children) with limited
physical, sensory or mental capabilities, or lack of experience and/or know-how,
unless they are being supervised by a person responsible for their safety or have
received instructions on how to use the device.
•Children should be supervised to ensure that they are kept away from the device and
do not play with the device.
Special safety notes for this device:
•The heating process starts as soon as the device is plugged in. Only plug the device in
once the immersion heater is submerged in the juice.
•Only remove the immersion heater once it has been unplugged and is cool.
•Place the juice vat on an even and stable surface before submersing the immersion
heater.
•The device may not be operated using a timer switch for the current supply.
•Only use the device in conjunction with the filled juice vat.
•Take note of the minimum and maximum immersion depth.
•The device and the surfaces of the juice vat containing the juice to be heated reach
extreme temperatures. Risk of burning! Hot steam may escape when opening the lid.
Risk of scalding!
•Do not place a hot immersion heater on flammable surfaces. Risk of burning!
•Handle the supplied thermometer with care. It consists of glass – risk of breakage.

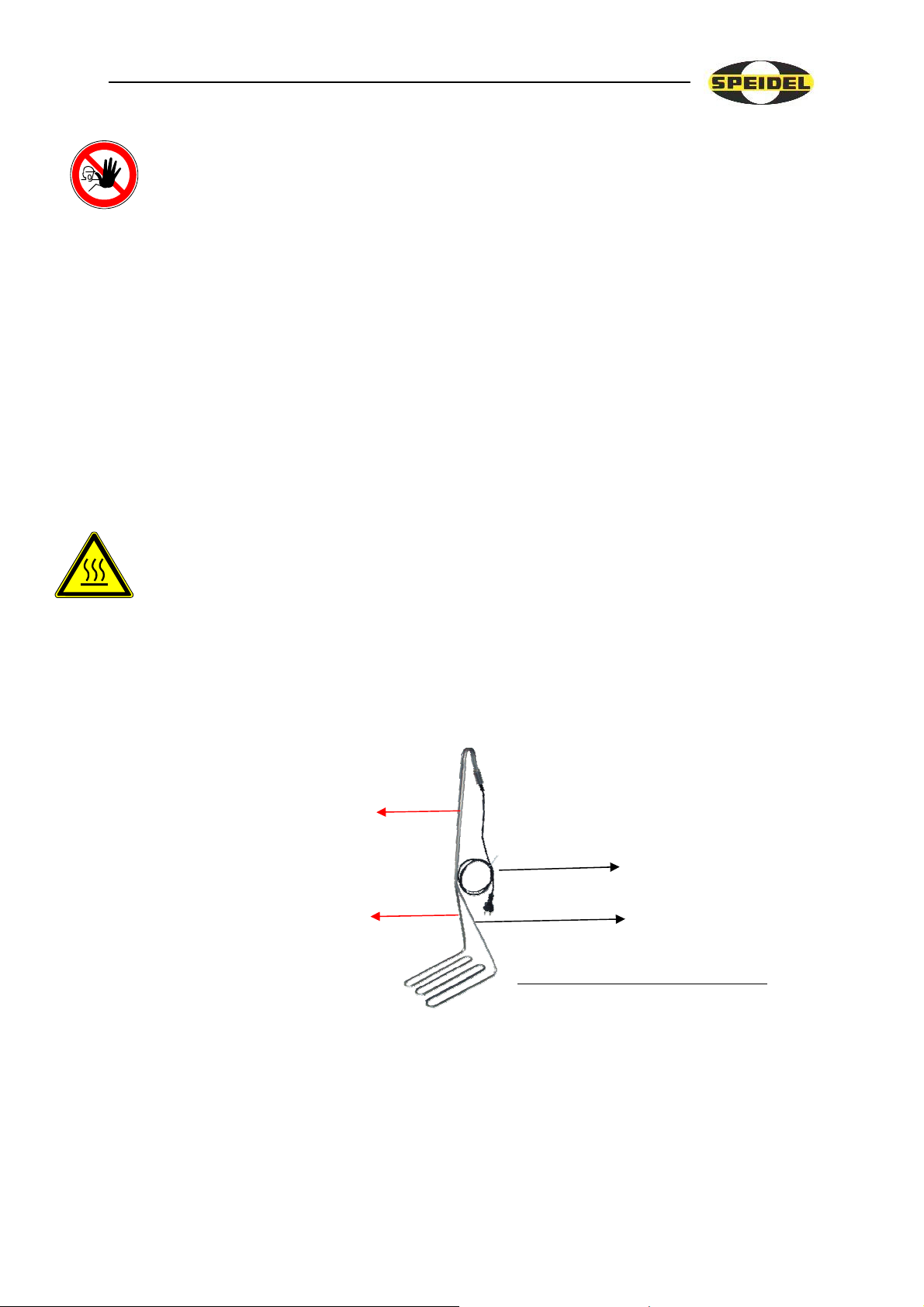

3Overview of parts/ scope of delivery
4Technical specifications
Weight: 1.2 kg
Heat output: 3.2 kW
Voltage: 230 V - 50 Hz
Minimum fuse: 16 A
Cable with plug
Stainless steel
heating tube
Minimum immersion
depth
Maximum immersion
depth
Included in the scope of delivery:
Glass thermometer for temperature
determination of juice

Immersion heater
Page 5 of 8
5Prior to first use
Carefully remove the cable tie from the cable. Clean the surfaces of the immersion heater
thoroughly using lukewarm water.
6Operating the device
Preparation of heat-sterilised fruit juice (alcohol-free):
•Use a sieve to fill the freshly pressed juice into a juice vat, or allow sedimentation in a
different container for 3-4 hours after pressing to separate turbidity from the juice.
•Then suspend the immersion heater in the filled juice vat and plug in. Immediately
heat the juice to an even temperature of 85 – 90°C by means of the immersion heater.
For checking the temperature, use only the supplied thermometer. Any yeast cells in
the juice become inactive through this process. The vat reaches extremely hot
temperatures – risk of burning!
•Stir the juice several times during the heating-up phase. Finally tap a bucket (sterile)
from the bottom and pour back into the top; this ensures that the bottom of the vat is
also heated to 85 – 90°C, which is important for the shelf life of the juice.
•Then unplug the immersion heater and wait a few minutes until it is a little cooler.
Remove the device. The immersion heater will however still be hot. Risk of burning!
•Foam forms on the liquid surface. This must be removed by means of a sterile cooking
spoon. Then place the oil floating lid on the still-hot juice and seal using vaseline oil
(keeps oxygen out). Vaseline oil is food-safe and does not mix with the beverage.
•Only place the push-on lid on the juice once it has cooled. You can now tap your daily
“vitamin injection”.
•Additional information on the preparation of heat-sterilised fruit juice can be found in
the “Juice Vat” operating instructions.
7Cleaning and maintenance
After use, simply clean the immersion heater with a damp cloth. Do not use a wire brush
or any other abrasive items.
Also do not use any sharp or abrasive cleaning agents.
Always switch off the device before cleaning and disconnect from the mains. Wait until
the device has cooled. Under no circumstances submerge the device fully in water for
cleaning. This could result in an electrical shock or fire.
8Remedying of faults
Do not perform repairs to the device yourself - rather seek out an authorised professional.
To avoid any risks, a defective mains cable may only be replaced with an equivalent
cable by the manufacturer, our customer service or a person qualified in this regard.

Immersion heater
Page 6 of 8
9Disposal
Meaning of the “refuse bin” symbol on the pomaceous fruit grinder: Protect our
environment. Electrical devices should not be disposed of as household refuse. Make
use of collection points for disposal of electrical devices and hand in all electrical
devices that you no longer wish to use at these points. In this manner, you can avoid a
potential impact on the environment and human health caused by incorrect disposal.
This is your contribution to recycling and other forms of use of waste electrical and
electronic equipment. You can find information on where to dispose of the devices
from your district or municipal administration.
10 Guarantee conditions, handling a guarantee
Conditions:
•Statutory guarantee conditions apply. The guarantee period for users is reduced to the
regulations applicable to commercial customers to the extent that they are making use
of a device suitable for commercial use, including in part.
•Transmission of a copy of proof of purchase is a prerequisite for guarantee claims
against us or one of our dealers. For verification of the guarantee refer to the note on
handling a guarantee below.
•For quick processing of guarantee claims, please inform us immediately in writing
upon noticing defects, and include a fault description and photos where applicable.
•No guarantee is given for defects due to non-adherence to the operating instructions,
improper treatment or normal wear and tear of the device. Guarantee claims are also
excluded in terms of fragile components or expendables such as seals or similar.
Finally, guarantee claims are excluded where work is performed on the device by non-
authorised parties.
Handling:
Should your device display any defects within the guarantee period, please inform us of
your guarantee claim. The fastest and most convenient option is to return the device or
the notice of defect to the dealer/agent responsible or directly to us:
email to: [email protected]
or fax to: 0049 – (0)7473 -9462-99
Please provide us with your full address including contact details. In addition we
require the type designation of the device in question, a short fault description
including photos, where applicable, the purchase date (copy of invoice) and the
dealer from whom you purchased the new device.
After verifying your notification of defect, we will contact you as soon as possible to
agree the next step. Please, under no circumstances, send us your device by Carriage
Forward.

Immersion heater
Page 7 of 8

Immersion heater
Page 8 of 8
