Spektrum S1200 User manual

Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
S1200 DC Smart Charger (1×200W)

WARNING: Read the ENTIRE instruction manual to become familiar
with the features of the product before operating. Failure to operate
the product correctly can result in damage to the product, personal property
and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution
and common sense and requires some basic mechanical ability. Failure to
operate this product in a safe and responsible manner could result in injury
or damage to the product or other property. This product is not intended for
use by children without direct adult supervision. Do not attempt disassembly,
use with incompatible components or alter product in any way without
the approval of Horizon Hobby, LLC. This manual contains instructions for
safety, operation and maintenance. It is essential to read and follow all the
instructions and warnings in the manual, prior to assembly, setup or use, in
order to operate correctly and avoid damage or serious injury.
WARRANTY REGISTRATION
Visit www.community.spektrumrc.com today to register your product.
The following terms are used throughout the product literature to indicate
various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability
of property damage, collateral damage, and serious injury OR create a high
probability of supercial injury.
CAUTION: Procedures, which if not properly followed, create the probability
of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of
physical property damage AND little or no possibility of injury.
NOTICE
All instructions, warranties and other collateral documents are subject to change
at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit
horizonhobby.com and click on the support tab for this product.
Meaning of Special Language
Age Recommendation: Not for children under 14 years. This is not a toy.
2
EN

WARNING: Read the ENTIRE instruction manual to become familiar
with the features of the product before operating. Failure to operate
the product correctly can result in damage to the product, personal property
and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution
and common sense and requires some basic mechanical ability. Failure to
operate this product in a safe and responsible manner could result in injury
or damage to the product or other property. This product is not intended for
use by children without direct adult supervision. Do not attempt disassembly,
use with incompatible components or alter product in any way without
the approval of Horizon Hobby, LLC. This manual contains instructions for
safety, operation and maintenance. It is essential to read and follow all the
instructions and warnings in the manual, prior to assembly, setup or use, in
order to operate correctly and avoid damage or serious injury.
WARRANTY REGISTRATION
Visit www.community.spektrumrc.com today to register your product.
Meaning of Special Language
3
EN

Table of Contents
S1200 Warnings and Safety Tips ..................................................................5
Specications ..............................................................................................6
Layout.........................................................................................................7
General Charging Warnings ..........................................................................8

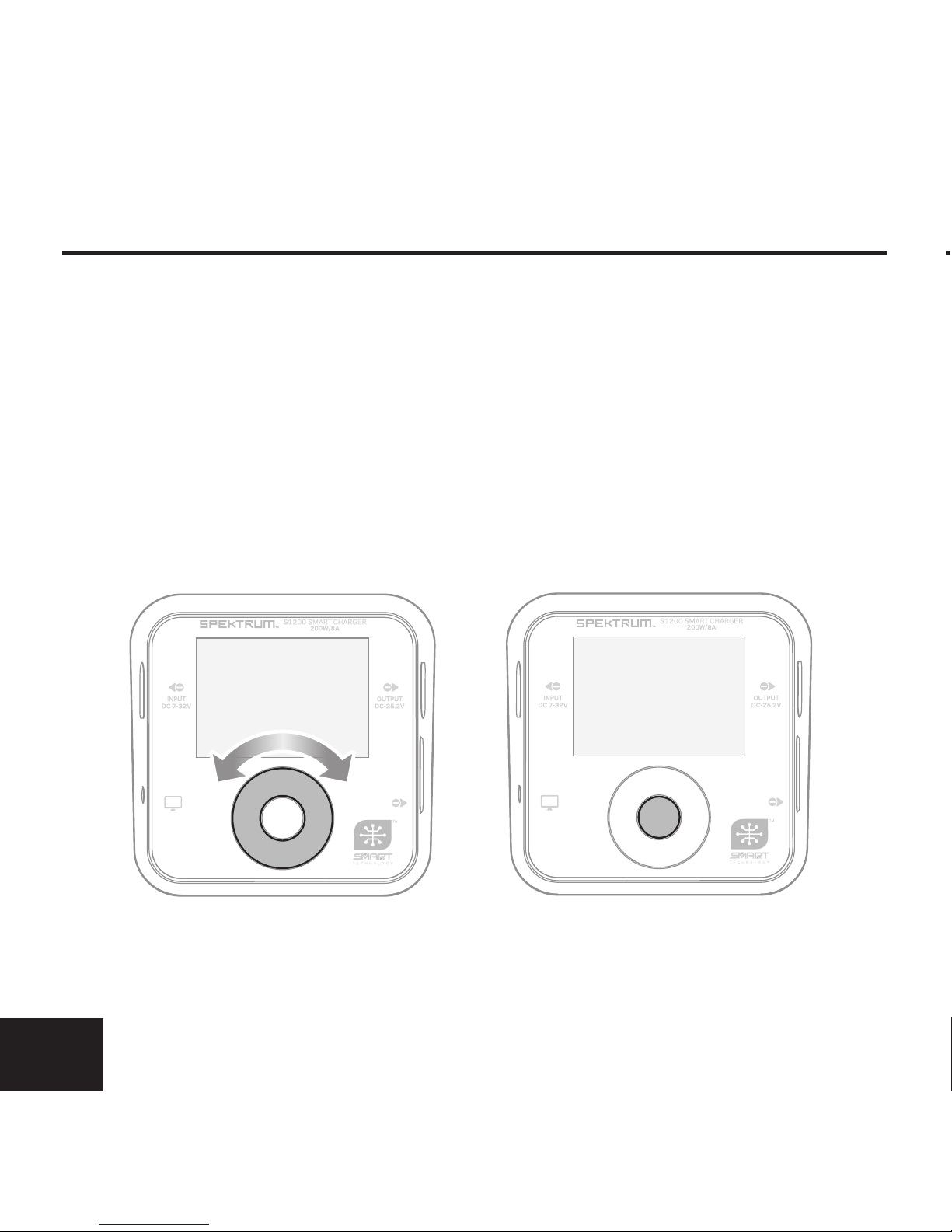

Navigating the Charger...............................................................................10
Operating the Charger................................................................................11
Charge Screen...........................................................................................14
System Setting Menu .................................................................................15
Charger Errors...........................................................................................16
Optional Parts............................................................................................17
Limited Warranty........................................................................................17
Warranty and Service Contact Information ...................................................21
Compliance Information for the European Union...........................................22
4
EN
WARNING: Failure to exercise caution while using this product and
comply with the following warnings could result in product malfunction,
electrical issues, excessive heat, FIRE, and ultimately injury and property damage.
• Keep the charger away from dust, humidity, rain and high temperature.
Avoid direct exposure to the sun and intense vibration.
• Only use the charger on heat-resistant, non-ammable surfaces. Do not
use the charger on car seats, carpet or near other ammable objects.
• Do not block the heat vent on the bottom of the charger to ensure proper
cooling during use.
• Always read and understand battery specications prior to charging.
Charging parameters may differ for each battery. Incorrect charging
parameters may result in damage to the charger or battery, which could
result in a re.
• When charging or discharging is completed press the menu button to
terminate current task and remove the battery when the charger shows
the standby screen.
S1200 Warnings and Safety Tips

Table of Contents
S1200 Warnings and Safety Tips ..................................................................5
Specications ..............................................................................................6
Layout.........................................................................................................7
General Charging Warnings ..........................................................................8
Navigating the Charger...............................................................................10
Operating the Charger................................................................................11
Charge Screen...........................................................................................14
System Setting Menu .................................................................................15
Charger Errors...........................................................................................16
Optional Parts............................................................................................17
Limited Warranty........................................................................................17
Warranty and Service Contact Information ...................................................21
Compliance Information for the European Union...........................................22
5
EN
WARNING: Failure to exercise caution while using this product and
comply with the following warnings could result in product malfunction,
electrical issues, excessive heat, FIRE, and ultimately injury and property damage.
• Keep the charger away from dust, humidity, rain and high temperature.
Avoid direct exposure to the sun and intense vibration.
• Only use the charger on heat-resistant, non-ammable surfaces. Do not
use the charger on car seats, carpet or near other ammable objects.
• Do not block the heat vent on the bottom of the charger to ensure proper
cooling during use.
• Always read and understand battery specications prior to charging.
Charging parameters may differ for each battery. Incorrect charging
parameters may result in damage to the charger or battery, which could
result in a re.
• When charging or discharging is completed press the menu button to
terminate current task and remove the battery when the charger shows
the standby screen.
S1200 Warnings and Safety Tips

Specifications
6
EN
Layout
APower Input Port (iC3, EC3)
BBattery Output Port (iC3, EC3)
CIPS Display
Input/Output Port Connector iC3 (EC3 compatible)
Input Voltage (required power supply) DC 7–32V
Output Voltage 0–30V
Charge Current 0.1–8.0A
Discharge Current 0.1–3.0A
Max. Charge Power 200W
Max. Discharge Power 5W
Balance Current 1A/cell
Balance Cells 1–6S
Supported Battery Types
(cell count)
LiFe/LiIon/LiPo/LiHv (1–6S)
NiMH/Cd (1–16S)
Pb (1–12S)
Display 2.4” 320 × 240 IPS LCD
Operating Temperature 0–40°C (32–104°F)

B
2S
3S
4S
5S
6S
D
C
E
F
G
H
D
A B
A G F B
C
E
Specifications
7
EN
Layout
APower Input Port (iC3, EC3)
BBattery Output Port (iC3, EC3)
CIPS Display
DTouch Menu Scroll Wheel
EMenu Button
FBalance Port
GUpdate Port
Input/Output Port Connector iC3 (EC3 compatible)
Input Voltage (required power supply) DC 7–32V
Output Voltage 0–30V
Charge Current 0.1–8.0A
Discharge Current 0.1–3.0A
Max. Charge Power 200W
Max. Discharge Power 5W
Balance Current 1A/cell
Balance Cells 1–6S
Supported Battery Types
(cell count)
LiFe/LiIon/LiPo/LiHv (1–6S)
NiMH/Cd (1–16S)
Pb (1–12S)
Display 2.4” 320 × 240 IPS LCD
Operating Temperature 0–40°C (32–104°F)

• Always connect the positive red leads (+) and negative black leads (–) correctly.
• Always disconnect the battery after charging, and let the charger cool
between charges.
• Always charge in a well-ventilated area.
• Always terminate all processes and contact Horizon Hobby if the product
malfunctions.
WARNING: Never leave charger unattended, exceed maximum charge
rate, charge with non-approved batteries or charge batteries in the wrong
mode. Failure to comply may result in excessive heat, re and serious injury.
WARNING: Always check charging parameters before initiating the
charge process. Charging any battery with improper settings, including
charging a battery in the wrong mode, can result in property damage and re.
CAUTION: Always ensure the battery you are charging meets the
specications of this charger and that the charger settings are correct.
Not doing so can result in excessive heat and other related product
malfunctions, which can lead to user injury or property damage. Please contact
Horizon Hobby or an authorized retailer with compatibility questions.
General Charging Warnings
• NEVER LEAVE CHARGING BATTERIES UNATTENDED.
• NEVER CHARGE BATTERIES OVERNIGHT.
• Never attempt to charge dead, damaged or wet battery packs.
• Never attempt to charge a battery pack containing different types of batteries.
• Never allow children under 14 years of age to charge battery packs.
• Never charge batteries in extremely hot or cold places or place in direct sunlight.
• Never charge a battery if the battery leads have been pinched or shorted.
• Never plug in a charger if the power cable has been pinched or shorted.
• Never connect the charger to an automobile 12V battery while the vehicle is running.
• Never attempt to dismantle the charger or use a damaged charger.
• Never attach your charger to both an AC and a DC power source at the same time.
• Never connect the input jack (DC input) to AC power.
• Always use only rechargeable batteries designed for use with this type of charger.
• Always charge batteries in the correct program mode according to the battery type.
• Always inspect the battery before charging.
• Always charge batteries on a heat-resistant surface and clear of ammable materials.
• Always monitor the charging area and have a re extinguisher available at all times.
• Always end the charging process if the battery becomes hot to the touch or
starts to change form (swell) during the charge process.
• Always connect the charge cable to the charger rst, then connect the
battery to avoid short circuit between the charge leads. Reverse the
sequence when disconnecting.
8
EN

• Always connect the positive red leads (+) and negative black leads (–) correctly.
• Always disconnect the battery after charging, and let the charger cool
between charges.
• Always charge in a well-ventilated area.
• Always terminate all processes and contact Horizon Hobby if the product
malfunctions.
WARNING: Never leave charger unattended, exceed maximum charge
rate, charge with non-approved batteries or charge batteries in the wrong
mode. Failure to comply may result in excessive heat, re and serious injury.
WARNING: Always check charging parameters before initiating the
charge process. Charging any battery with improper settings, including
charging a battery in the wrong mode, can result in property damage and re.
CAUTION: Always ensure the battery you are charging meets the
specications of this charger and that the charger settings are correct.
Not doing so can result in excessive heat and other related product
malfunctions, which can lead to user injury or property damage. Please contact
Horizon Hobby or an authorized retailer with compatibility questions.
General Charging Warnings
• NEVER LEAVE CHARGING BATTERIES UNATTENDED.
• NEVER CHARGE BATTERIES OVERNIGHT.
• Never attempt to charge dead, damaged or wet battery packs.
• Never attempt to charge a battery pack containing different types of batteries.
• Never allow children under 14 years of age to charge battery packs.
• Never charge batteries in extremely hot or cold places or place in direct sunlight.
• Never charge a battery if the battery leads have been pinched or shorted.
• Never plug in a charger if the power cable has been pinched or shorted.
• Never connect the charger to an automobile 12V battery while the vehicle is running.
• Never attempt to dismantle the charger or use a damaged charger.
• Never attach your charger to both an AC and a DC power source at the same time.
• Never connect the input jack (DC input) to AC power.
• Always use only rechargeable batteries designed for use with this type of charger.
• Always charge batteries in the correct program mode according to the battery type.
• Always inspect the battery before charging.
• Always charge batteries on a heat-resistant surface and clear of ammable materials.
• Always monitor the charging area and have a re extinguisher available at all times.
• Always end the charging process if the battery becomes hot to the touch or
starts to change form (swell) during the charge process.
• Always connect the charge cable to the charger rst, then connect the
battery to avoid short circuit between the charge leads. Reverse the
sequence when disconnecting.
9
EN

10
EN
Before operating the charger, know your battery’s specifications and any
battery-specific safety warnings.
1. Connect an appropriate power supply to the INPUT side of the charger.
Refer to the Input Voltage in the Specications table for more information.
The charger will initialize and display the home screen, indicating the
charger is ready to charge.
2. Connect the battery to be charged to the OUTPUT side of the charger.
3. Connect the battery balance lead, if available, to the charger balance port.
4. Press and release the menu button to display the Task Settings list:
Task Settings
Task Charge, Discharge, Storage
Battery Type Select the appropriate battery chemistry
Battery Voltage Set the individual cell ending voltage
Cell Count
Set the number of cells in the battery (this value auto-
detects if using a Spektrum™Smart Connector equipped
battery or if the battery balance lead is connected to the
balance port)
Current Set the charge current
Start Start the task cycle
Back Return to the home screen
Operating the Charger
Basic navigation of the charger menus is accomplished using the touch menu scroll
wheel and menu button.
• Slide your nger clockwise around the touch menu scroll wheel to scroll down
a menu list.
• Slide your nger counter-clockwise to scroll up a menu list.
• Press and release the menu button to select a menu item.
• While on the home screen, press and hold the menu button to enter the
system settings menu.
Navigating the Charger
Touch menu scroll wheel Menu button
