C T 900ENT TREADMILL
OWNER’S MANUAL

Spirit Fitness

www.spirittness.com

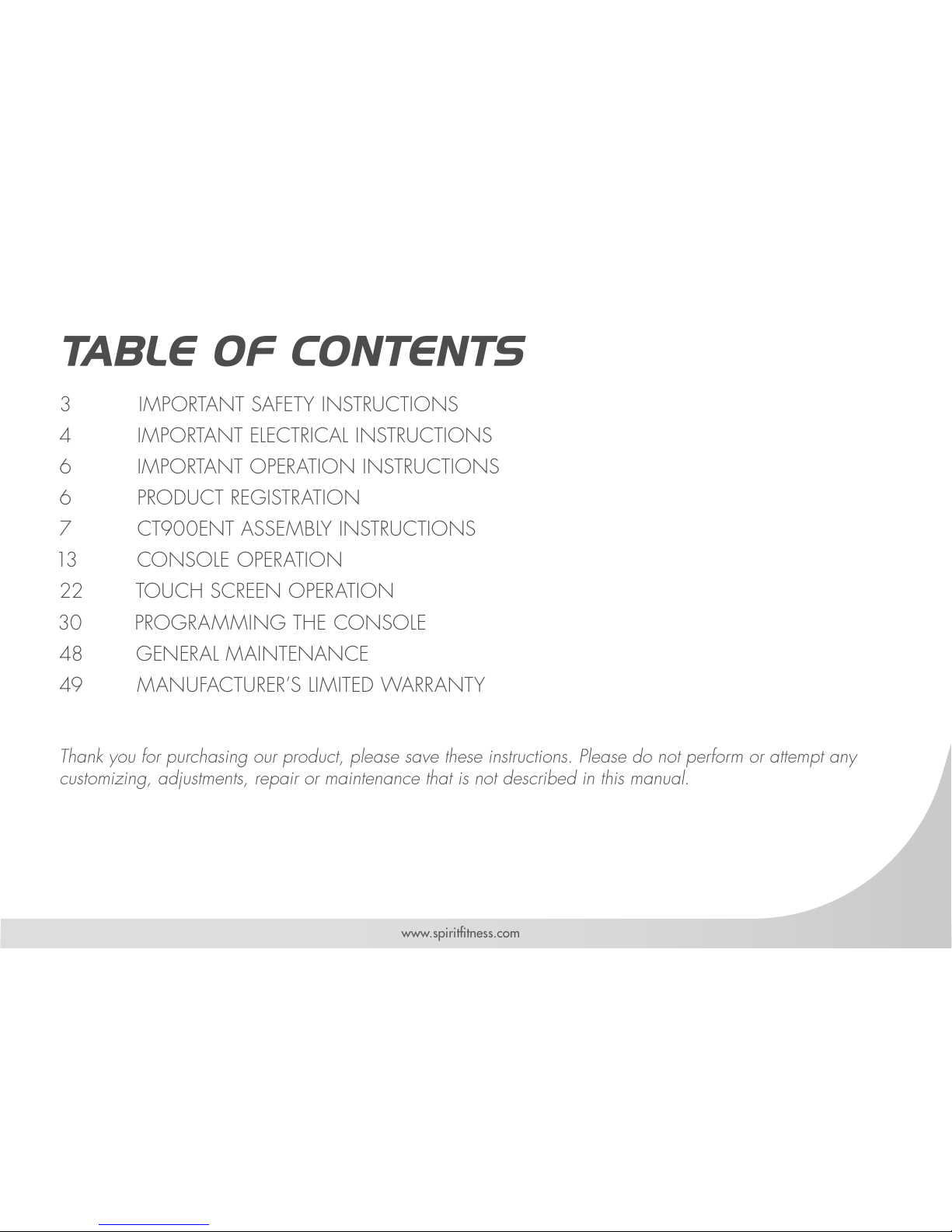

TABLE OF CONTENTS
3 IMPORTANT SAFETY INSTRUCTIONS
4 IMPORTANT ELECTRICAL INSTRUCTIONS
6 IMPORTANT OPERATION INSTRUCTIONS
6 PRODUCT REGISTRATION
7 CT900ENT ASSEMBLY INSTRUCTIONS
13 CONSOLE OPERATION
22 TOUCH SCREEN OPERATION
30 PROGRAMMING THE CONSOLE
48 GENERAL MAINTENANCE
49 MANUFACTURER’S LIMITED WARRANTY
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.

2
Spirit Fitness
Congratulations on your new treadmill and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality treadmill from Spirit Fitness. Your new treadmill was
manufactured by one of the leading tness manufacturers in the world and is backed by one of
the most comprehensive warranties available. Through your dealer, Spirit Fitness will do all we
can to make your ownership experience as pleasant as possible for many years to come. If not
purchased directly from Spirit Fitness, the local dealership where you purchased this treadmill is your
administrator for all Spirit Fitness warranty and service needs. Their responsibility is to provide you
with the technical knowledge and service personnel to make your experience more informed and any
difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the
date of purchase below to make any future, needed contact easy. We appreciate your support and we
will always remember that you are the reason we are in business.
Yours in health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________

3
www.spirittness.com
IMPORTANT SAFETY
INSTRUCTIONS
DANGER —To reduce the risk of electric shock,
always unplug this treadmill from the electrical
outlet immediately after using and before cleaning.
WARNING
To reduce the risk of burns, re electric shock, or
injury to persons:
• Before beginning this or any exercise program,
consult a physician. This is especially important for
persons over the age of 35 or persons with pre-
existing health conditions.
• Keep children away from the treadmill. There are
obvious pinch points and other caution areas that
can cause harm.
• Keep hands away from all moving parts.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• Do not attempt to use your treadmill for any purpose
other than for the purpose it is intended.
• The hand pulse sensors are not medical devices.
Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The
pulse sensors are intended only as exercise aids in
determining heart rate trends in general.
• Wear proper shoes. High heels, dress shoes,
sandals, or bare feet are not suitable for use on your
elliptical. Quality athletic shoes are recommended to
avoid leg fatigue.
• Maximum User Weight: 450 lbs,
• This appliance is not intended for use by persons
with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Keep children under the age of 13 away from this
machine.
• Never operate this treadmill if it has a damaged
cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water.
• Keep the cord away from heated surfaces.
• Do not operate where aerosol (spray) products are
being use or where oxygen is being administered.
• Connect this treadmill to a properly grounded outlet
only. See Grounding Instructions.

4
Spirit Fitness
• ASTM F2115-05 Specications 6.1.2.11—The recommended minimum clearance required around each
treadmill for access to, passage around, and emergency dismount shall be stated. The minimum dimensions are
to be: 0.5 m (19.7 in.) on each side of the treadmill, and 1 m (39 in.) behind the machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL INSTRUCTIONS
WARNING
NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any appliance with
a large motor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill
including the elevation mechanism and transport wheels.
NEVER remove any cover without rst disconnecting AC power. If voltage varies by ten percent (10%) or
more, the performance of your treadmill may be affected. Such conditions are not covered under your
warranty. If you suspect the voltage is low, contact your local power company or a licensed electrician for
proper testing.
NEVER expose this treadmill to rain or moisture. This product is NOT designed for use outdoors, near a pool
or spa or in any other high humidity environment. The operating temperature specication is 40 to 120
degrees Fahrenheit, and humidity is 95% non-condensing (no water drops forming on surfaces).
Circuit Breakers: Some circuit breakers are not rated for high inrush currents that can occur when a treadmill
is rst turned on or even during use. If your treadmill is tripping the circuit breaker (even though it is the proper
current rating) but the circuit breaker on the treadmill itself does not trip, you will need to replace the facility

5
www.spirittness.com
breaker with a high inrush type. This is not a warranty defect. This is a condition we as a manufacture have
no ability to control. This part is available through most electrical supply stores. The electrical outlet used
should have a dedicated 20 amp circuit breaker.
GROUNDING INSTRUCTIONS
This product must be grounded. If the treadmill should malfunction or break down, grounding provides a path
of least resistance for electric current, reducing the risk of electric shock. This product is equipped with a cord
having an equipment-grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product if it will not t the outlet; have a proper outlet
installed by a qualied electrician.
This product is for use on a nominal 110 volt/20 amp dedicated circuit, and has a grounding plug that
looks like the plug illustrated below. A temporary adapter that looks like the adapter illustrated may be used
to connect this plug to a 2-pole receptacle as shown if a properly grounded outlet is not available. The
temporary adapter should be used only until a properly grounded outlet can be installed by a qualied
electrician. The green colored rigid ear-lug, or the like, extending from the adapter, must be connected to a
permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be
held in place by a metal screw.

6
Spirit Fitness
IMPORTANT OPERATION INSTRUCTIONS
• NEVER operate this treadmill without reading and completely understanding the results of any operational change you
request from the computer console.
• Understand that changes in speed or incline do not occur immediately. Set your desired speed or incline level on the
computer console and release the adjustment key. The computer will obey the command gradually.
• Use caution while participating in other activities while on your Treadmill; such as watching television, reading, etc.
These distractions may cause you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control keys. They are precision-set to function properly with little
nger pressure.
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space provided below. The serial number is located
at the front of the treadmill by the Power switch.
SERIAL NUMBER:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You can also
go to www.spirittness.com/commercialwarrantyregistration.html under the Support tab to register online.

7
www.spirittness.com
CT900ENT PRE-ASSEMBLY
TOOLS INCLUDED:
8mm Allen Wrench
2 Phillips Screwdrivers
PARTS INCLUDED:
1 Main Frame
2 Uprights
1 Main Panel
1 Console
1 Console Bracket Cover
4 Handrail Covers
2 Upright Covers
2 End Caps
UNPACKING
1. Cut the straps and open box.
2. Locate the hardware package. The hardware is separated into four steps. Remove
the tools rst. Remove the hardware for each step as needed to avoid confusion.
The numbers in the instructions that are in parenthesis (#) are the item number from
the assembly drawing for reference.

8
Spirit Fitness
CT900ENT STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
65 BOLT M10x1.5x60mm 10
79 LOCK WASHER 10 10
1. Loosen the 8 screws holding the motor cover in
place and remove the cover.
2. Uncoil wiring harness and run wires through the
RIGHT UPRIGHT (7).
3. Use 5 BOLTS (65) and 5 LOCK WASHERS (79)
to attach the RIGHT UPRIGHT (7) to the MAIN
FRAME (1). Do not pinch wires. Do not tighten
before putting the console on.
4. Use 5 BOLTS (65) and 5 LOCK WASHERS (79)
to attach the LEFT UPRIGHT (8) to the MAIN
FRAME (1). Do not tighten before putting the
console on.
65
79
65
79
7
8
