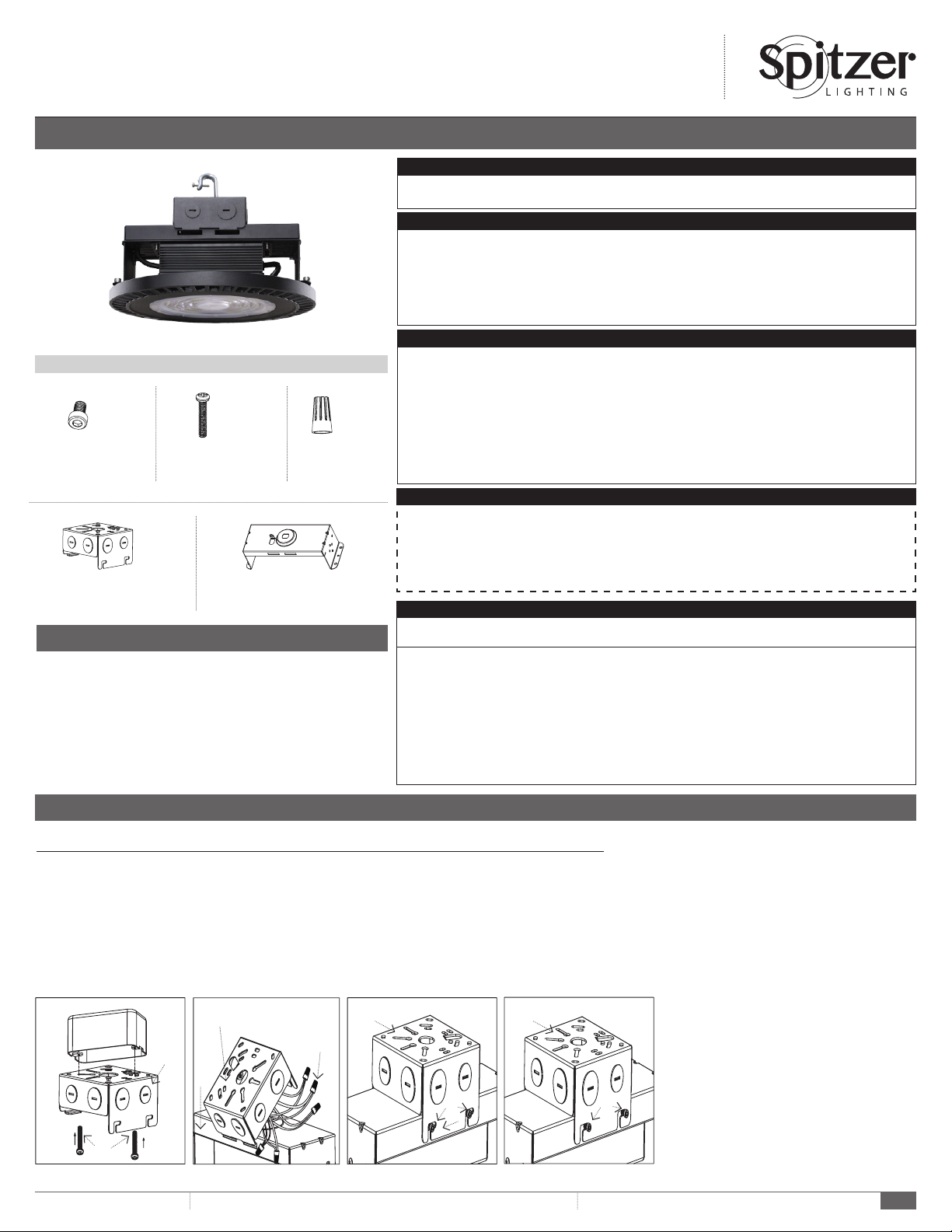

INSTALLATION MANUAL
www.spitzerlighting.com 702 Interchange Blvd., Newark, DE 19711 • Toll Free: 844-312-4574 Specication is subject to change without notice 1/2
LED UFO HIGH BAY
HB08A-150W-50K-277V-9NS / HB08A-240W-50K-277V-9NS
Figure 2 Figure 3 Figure 4 Figure 5
INSTALLATION (CAUTION: BEFORE BEGINNING INSTALLATION TURN OFF THE CIRCUIT BREAKER AND LIGHT SWITCH.)
HARDWARE INCLUDED (For Surface Mounted)
CC:
Wire nuts (5)
BB:
Machine screws (2)
A:
Supporter
AA:
Machine screws (2)
DD:
Mounting plate (1)
SAFETY INFORMATION
WARNING
CAUTION:
PRE-INSTALLATION
PLEASE READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE ATTEMPTING TO ASSEMBLE,
OPERATE OR INSTALL THE PRODUCT.
• Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse or switching off
circuit breaker.
• Be careful not to damage or cut the wire insulation (covering) during xture installation. Do not permit wires to contact any
surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury or death from
electric shock.
• LED electronics can be damaged by electro static discharge (ESD) shock. Before installation, discharge yourself by touching a
grounded bare metal surface to remove this hazard. To avoid damage, do not touch the LED module.
• All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
• Contact your municipal building department to learn about your local codes, permits and/or inspections.
• RISK OF FIRE – most dwellings built before 1985 have supply wire rated for 140°F/60ºC.Consult a qualied electrician before
installation.
• Do not connect this xture to an electrical system that does not provide a means for equipment grounding. Never use a xture
in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means, do not attempt to
install this xture. Contact a qualied, licensed electrician for information with regards to proper grounding methods as required
by the local electrical code in your area.
• If a dimmer control switch is used with this xture, obtain professional advice to determine the correct type and electrical rating
required.
• BEFORE BEGINNING ASSEMBLY, INSTALLATION OR OPERATION OF PRODUCT, MAKE SURE ALL PARTS ARE PRESENT.
COMPARE PARTS WITH PACKAGE CONTENTS LIST AND DIAGRAM ON PREVIOUS PAGE. IF ANY PART IS MISSING OR
DAMAGED, DO NOT ATTEMPT TO ASSEMBLE, INSTALL OR OPERATE THE PRODUCT. CONTACT CUSTOMER SERVICE FOR
REPLACEMENT PARTS.
• TOOLS REQUIRED FOR ASSEMBLY (NOT INCLUDED): SCREWDRIVER, PHILLIPS SCREWDRIVER, PLIERS, ELECTRICAL TAPE,
WIRE CUTTERS, SAFETY GLASSES, LADDER, WIRE STRIPPER.
• NON-REPLACEABLE LEDS.
• IF YOU ARE NOT FAMILIAR WITH STATE AND LOCAL ELECTRICAL CODES, IT IS
RECOMMENDED THAT YOU CONSULT WITH A QUALIFIED ELECTRICIAN.
• SUITABLE FOR WET LOCATIONS, USE INDOORS AND OUTDOORS.
• CAUTION: LEDS EMIT BRIGHT LIGHT. AVOID LOOKING DIRECTLY INTO THE LIGHT
SOURCE FOR PROLONGED PERIODS TO AVOID EYE DAMAGE.
• DIMMABLE WITH 0~10V DIMMER (SOLD SEPARATELY).
• MULTI-VOLT (100~277 VOLT OR 277-480 VOLT ACCORDING TO THE MARKING ON
THE FIXTURE) FOR COMMERCIAL OR RESIDENTIAL USE.
ASSEMBLY INSTRUCTIONS
FCC WARNING:
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void
the user authority to operate the equipment.
NOTES: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
OPTION 1 : SURFACE MOUNTED
1. Secure the Mounting Plate (Part DD) to the Junction box (recessed into ceiling) by tightening 2 pcs Machine Screws (Part BB).
(Figure 2)
2. Holding the xture in an angle depends on the xation between the Mounting plate (Part DD) and the Supporter (Part A) .
(Figure 3)
3. Make wire connections in accordance with local codes by using the Wire Nuts (Part CC) to secure wiring connection. (Figure 3)
4. Rotate the xture to match the Supporter (Part A) and the Mounting Plate (Part DD) and slide the xture left.(Figure 4)
5. Tighten the Machine Screws (Part AA). (Figure 5)
6. Turn on the power at fuse or circuit box.
BB
DD
JUNCTION
BOX
DD
CC
AA
DD DD
A
AA

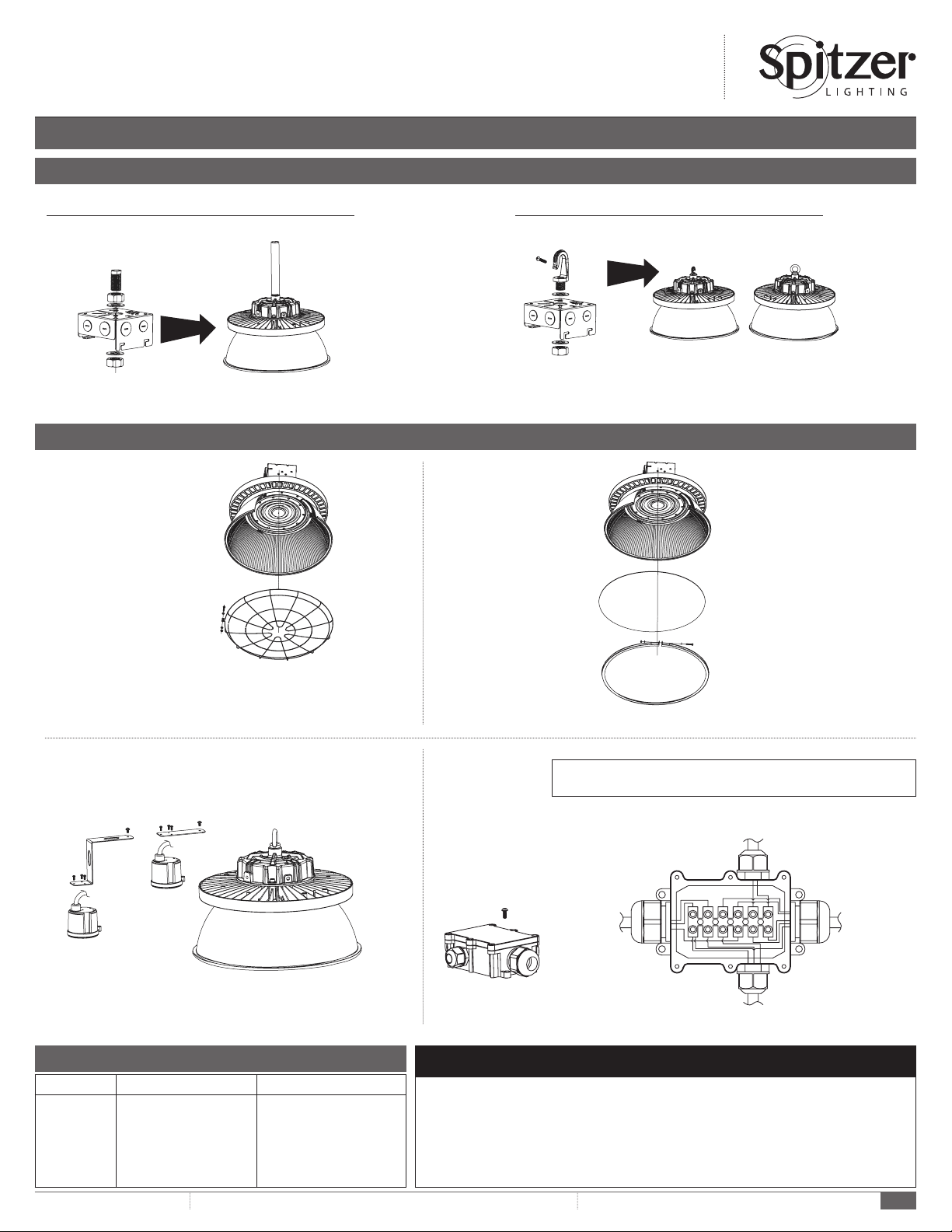

INSTALLATION MANUAL
www.spitzerlighting.com 702 Interchange Blvd., Newark, DE 19711 • Toll Free: 844-312-4574 Specication is subject to change without notice
LED UFO HIGH BAY
HB08A-150W-50K-277V-9NS / HB08A-240W-50K-277V-9NS
2/2
INSTALLATION (CAUTION: BEFORE BEGINNING INSTALLATION TURN OFF THE CIRCUIT BREAKER AND LIGHT SWITCH.)
ACCESSORIES
PROBLEM POSSIBLE CAUSE SOLUTION
Light will not
come on
A. Light switch is turned off.
B. Fuse is blown or circuit
breaker is turned off.
C. Incorrect circuit wiring.
A. Turn light switch on.
B. Replace fuse or turn circuit
breaker on.
C. Verify that xture is wired
properly.
TROUBLE SHOOTING
CAUTION: Before attempting to clean the xture, disconnect the power to the xture by
turning the breaker off or removing the fuse from the fuse box. This LED light xture is made
from quality materials that will last many years with minimum care and maintenance. You
may want to clean the xture with a soft cloth periodically. To maintain the best appearance
of the xture, do not use cleaners with chemicals, solvents or harsh abrasivers. Do not use
liquid cleaner on the LEDs, LED driver, or wiring inside the light xture.
The wiring scheme is suitable for 1-10V dimmable power supply
with microwave motion sensor to achieve 3-step dimming function.
CARE AND MAINTENANCE
OPTION 2 : PENDANT MOUNTED
Option 2 is pendant mounted by a suspender. showed as Figure 2-1.
OPTION 1 :
COVER + WIRE MESH
OPTION 2 :
COVER + CLEAN LENS
OPTION 3 :
MICROWAVE MOTION SENSOR
OPTION 4 :
JUNCTION BOX
OPTION 3 : SUSPENDED MOUNTED
Option 3 is suspended mounted by lifting hook. showed as Figure 2-2
Figure 2-1 Figure 2-2
From Dimmable Luminaire
DIM-/DIM+
From Dimmable Luminaire
N/GND/L
Main Input
GND
N
L
Motion Sensor
L - Out
L - In
DIM+
DIM-
N
