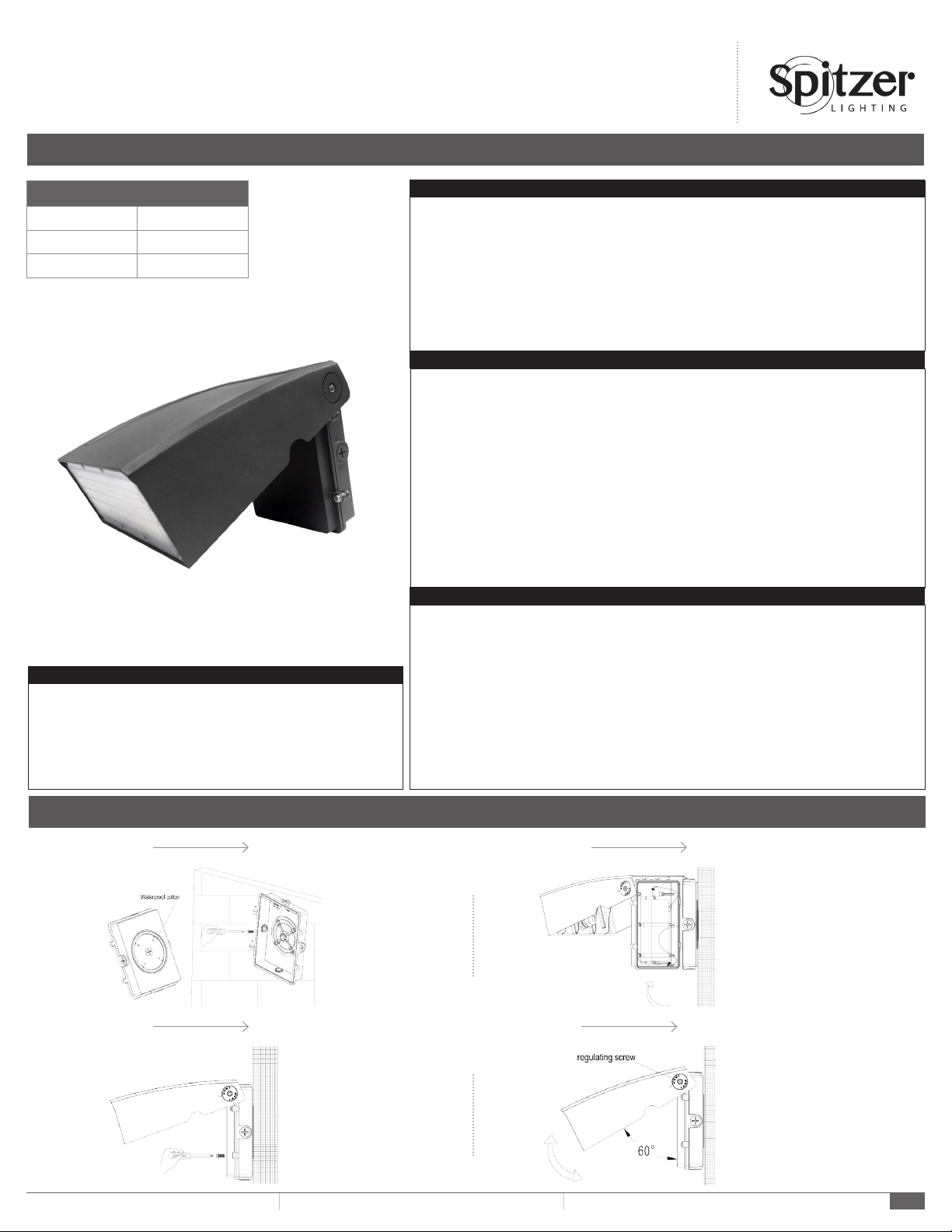

Spitzer WALL PACK Series User manual

WALL PACK SERIES
WPA-27L / WPA-58L / WPA-91L / WPA-131L
INSTALLATION MANUAL
SAFETY INFORMATION
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to power off. Do not perform
any operations while this unit is powered on. The electrical system you want to connect the device to must be
grounded. Read the instructions before using or powering this device. The safety instructions must remain with
the unit in case of transfer. Any damage to the device linked to an inappropriate use is excluded from support by
the warranty. Before connecting, make sure that the current and voltage are compatible with this device. We highly
recommend that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by any means for
the use or misuse of the following information. We are NOT responsible in whole or part for any harm or damage
that may or may not be caused. We reserve the right to revise the components of any product, due to part availability
or change ETL, CUL, UL standards without assuming any obligation or liability to modify any products previously
manufactured and without notice. These instructions do not cover all details of variations in equipment, nor do they
provide every possible contingency to be met. Turn off / unplug power when installing or service device.
WARNING: Read all saftey precautions and installation instructions carefully before installing or servicing this
xture. Failure to comply with these instructions could result in a potentially fatal electric shock, re, and/or
property damage.
•To reduce the risk of electric shock or other personal injury which could be hazardous or fatal, ensure power is
turned OFF at the fuse or breaker box before making any electrical connections or removing the old xture.
•Changes or modications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
•To prevent personal injury or product damage only licensed electricians should install.
This product must be installed in accordance with the national electrical code (NEC) and all applicable federal, state
and local electrical codes and safety standards.
•Disconnect product and allow cooling prior to servicing.
•Any alteration or modication of this product is expressly forbidden as it may cause serious personal injury, death,
property damage and/or product malfunction.
•To prevent product malfunction and/or electrical shock this product must be properly grounded.
•This luminaire is designed to operate in ambient temperatures ranging from -22°F to 113°F and to be horizontally
mounted with the LEDs facing down.
WARNING
FCC WARNING
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance
could void the user authority to operate the equipment.
NOTES: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
PRE - INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts
are present. Compare parts with package contents list and diagram on previous
page. If any part is missing or damaged, do not attempt to assemble, install or
operate the product. Contact customer service for replacement parts.
•Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers,
electrical tape, wire cutters, safety glasses, ladder, wire stripper.
WALL PACK INSTALLATION (Caution: Before beginning installation turn off the circuit breaker and light switch)
PRODUCT PARAMETER
INPUT VOLTAGE 120 - 277V
DRIVER NOVBO DRIVER
MATERIAL CAST ALUMINUM
STEP 1 STEP 2
Stick the waterproof cotton
on the bottom of the lower
cover, and the lower cover
is xed on the wall with
screws. The light control
is assembled to the lower
cover of the power supply
box. (as shown)
After the AC power cord
is connected, the upper
cover and the lower cover
are locked by screws (as
shown)
Customer adjust the two
adjusting screw of the
lamp according to their
own needs xed angle of
the lamp (as shown)
The upper cover and the
radiator (assembly) are
assembled into the shaft
hole through the rotating
shaft. Connect the AC
power line. (as shown)
STEP 3 STEP 4
www.spitzerlighting.com 702 Interchange Blvd., Newark, DE 19711 Specication is subject to change without notice 1/2

WALL PACK SERIES
WPA-27L / WPA-58L / WPA-91L / WPA-131L
INSTALLATION MANUAL
PHOTOCELL INSTALLATION (Caution: Before beginning installation turn off the circuit breaker and light switch)
www.spitzerlighting.com 702 Interchange Blvd., Newark, DE 19711 Specication is subject to change without notice 2/2
STEP 1 STEP 2
Pick a 1/2” cap of either
side of the product and
install the photocell (as
shown)
Complete the photocell
system after installing the
photocell.
AFTER INSTALLATION
1. Do all the wires connect in a correct way? As shown in the pictures.
2. Is the ground lead installed appropriately?
3. Make sure the photocell functions well.
CARE AND MAINTENANCE
CAUTION: Before attempting to clean the xture, disconnect the power to the xture by turning the breaker off or
removing the fuse from the fuse box. This LED light xture is made from quality materials that will last many years
with minimum care and maintenance. You may want to clean the xture with a soft cloth periodically. To maintain
the best appearance of the xture, do not use cleaners with chemicals, solvents or harsh abrasives. Do not use
liquid cleaner on the LEDs, LED driver, or wiring inside the light xture.
TROUBLE SHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Light will not come
on
A. Light switch is
turned off.
B. Fuse is blown or
circuit breaker is
turned off.
C. Incorrect circuit
wiring
A. Turn light switch
on
B. Replace fuse or
turn circuit breaker
on
C. Verify that xture
is wired properly
