Spraying Systems AutoJet AccuCoat HD15 User manual

AccuCoat® HD15
In-Line Heater
OWNERS MANUAL
spray.com
ML00HD15

2
TABLE OF CONTENTS
1. Preface········································································································································ 3
1.1 Important······································································································································· 3
1.2 How to Use this Manual················································································································· 3
2. Safety·········································································································································· 4
2.1 General Safety Informaon ··········································································································· 4
2.2 Unpacking the System ··················································································································· 5
3. AccuCoat® HD15 Overview··········································································································· 6
3.1 Product Features···························································································································· 6
3.2 Specicaons ································································································································· 6
3.3 System Mounng··························································································································· 8
3.4 Spray Control Panel Opons·········································································································· 9
4. System Start-Up and Operaon ··································································································10
4.1 System Operaon ························································································································ 10
4.2 System Start-Up ··························································································································· 10
4.3 Using the Watlow Control Panel·································································································· 11
5. Troubleshoong ·························································································································15
6. Reference Materials ···················································································································16
7. Suggested System Maintenance ·································································································17
8. Spare Parts List···························································································································17

3
SECTION 1
PREFACE
1.1 Important
The AccuCoat® HD15 In-Line Heater and all components are produced, tested and checked at the factory. The sys-
tem can be dangerous if used incorrectly. Read this manual carefully and read any safety instrucons.
Operators must always follow the general safety instrucons in the working area and aim to prevent accidents.
The manufacturer reserves the right to make changes in standard construcon without prior nocaon.
Images and diagrams in this manual may not be exact representaons of your system conguraon.
1.2 HOW TO USE THIS MANUAL
This manual is intended to be a source of informaon for the operators and technicians who may be installing, inter-
acng with, or servicing/maintaining Spraying Systems Co.® systems and components.
This manual contains important safety warnings, installaon instrucons, operang instrucons, troubleshoong,
and maintenance informaon.
ICONS
WARNING: The user can be seriously injured, damage their health, and/or damage the system.
CAUTION: Product, process, or environment can be damaged or be in danger if the instrucons
are not followed correctly.
ATTENTION: Supplementary informaon for the user draws aenon to possible problems.

4
SECTION 2
SAFETY
2.1 GENERAL SAFETY INFORMATION
READ AND FOLLOW INSTRUCTIONS
All safety related and operang instrucons should be read before the system is operated. Follow all operang instruc-
ons.
SERVICING
Do not aempt to service this system unless you have been trained or authorized to conduct repairs. Only authorized
and qualied service personnel should aempt to service this system. Service by unauthorized personnel will void any
warranes.
WARNING: Before performing any maintenance, make sure all components are completely cool,
electrical power is o, and any air/liquid pressure is bled from the system.
REPLACEMENT PARTS
This system has been designed with components that work together to provide the best system performance. When
replacement parts are required, only Spraying Systems Co.® recommended components should be used to maintain
proper system operaon, electrical, and pneumac safety. The use of any unauthorized replacement parts will void
any warranes.
UNINTENDED USE
Use of Spraying Systems Co.® equipment in ways other than those described in the documentaon supplied with the
equipment may result in injury to persons or damage to property. Examples of unintended use of equipment would
be:
• Using incompable materials
• Making unauthorized modicaons
• Removing or bypassing safety guards or interlocks
• Using incompable or damaged parts
• Using unapproved auxiliary equipment
• Operang equipment in excess of maximum rangs
REGULATIONS AND APPROVALS
Make sure all equipment is rated and approved for the environment in which it is used. Any approvals obtained for
Spraying Systems Co. equipment will be voided if instrucons for installaon, operaon, and service are not followed.
All phases of equipment installaon must comply with federal, state, and local codes.
PERSONAL PROTECTIVE EQUIPMENT
Spraying Systems Co. strongly recommends the use of appropriate safety equipment when working in potenally haz-
ardous environments and chemicals. This safety equipment includes, but is not limited to, the following:
• Protecve hat
• Safety glasses or face shield
• Chemical-resistant safety gloves and apron
• Long sleeve shirt and long pants
Users of this product should never place themselves in the path of the resulng spray. Users should consult and follow
the recommendaons of the Safety Data Sheet (SDS) of any chemical or uid sprayed using this system.

5
PRESSURIZED SYSTEMS
It is important to recognize proper safety precauons when using a pressurized spray system. When dealing with
pressure applicaons, the system pressure should never exceed the lowest rated component. Always know your sys-
tem and all component capabilies, maximum pressures, and ow rates.
WARNING: Fluids under pressure can penetrate skin and cause severe injury.
ATTENTION: Always remember to carefully read the chemical manufacturer's labels, follow SDS,
and all direcons.
WARNING OF SHOCK HAZARD
To reduce the risk of electric shock, do not open the cover on electrical control panel. For service contact
Spraying Systems Co.® at 1-866-321-2250.
WARNING: Plug panels into A GFCI outlet.
WARNING: To prevent injury, avoid contact with potenally hot parts. Components can cause
severe burns. Do not aim the spray at any person or part of the body. Do not place any part of your
body in the spray paern.
CHEMICAL COMPONENTS
The use of any chemicals requires careful control of all worker safety.
Spraying Systems Co.® does not manufacture or supply any of the chemical components used in this equipment and is
not responsible for their eects. Because of the large number of chemicals that could be used and their dierent
chemical reacons, the buyer and user of this equipment should determine compability of the materials used and
any of the potenal hazards involved.
WATER AND MOISTURE
The control panels are rated NEMA 4, unless otherwise specied. The rang is only with the door closed and properly
locked. Being NEMA 4 rated, the control panels can withstand streams of water directed at them; however we sug-
gest avoiding spraying on the unit externally if possible.
2.2 UNPACKING THE SYSTEM
The system components come carefully packaged to protect them from damage. Use cauon when opening the
crate. The crate will contain all parts needed to install the unit. Parts of the unit may be wrapped in bubble wrap. Re-
move all of the packaging material wrapping the system.
CAUTION: The packaging may contain exposed cables, hoses, or other components. Always exer-
cise cauon when opening boxes to avoid accidental damage or slicing of various components.
Once unpacked and removed the from the crate, the system is ready for installaon and connecon.

6
3.1 PRODUCT FEATURES
The AccuCoat® HD15 In-Line Heater is an add-on unit that can be paired with many of the Precision Spray Controllers
oered by Spraying Systems Co.® such as AutoJet Technologies 1750+ and 2150+ spray control panels to provide heat
to your spray applicaon. The HD15 comes available in a threaded version with push-tube ngs or a sanitary version
with clamp-style connecons. All weed parts are constructed of 316 stainless steel and VITON® seals.
The in-line construcon allow heang to be achieved only on-demand for opmal response and energy eciency. The
heater is made with food contact materials to ensure food safety. It can be used with light oils, sugars, syrups or re-
lease agents to help achieve consistent, uniform coverage, minimize clogging problems, and ensure the proper volume
of coang to the target. The system should not be used with uids that solidify at room temperature.
WARNING: Do not enable heang without uid in the system.
SYSTEM USAGE
The HD15 heater can be used to feed the nozzle directly or use a liquid recirculang system through nozzle or outlet
bypass. The system is designed for opmum performance using the recirculaon feature of the AutoJet SCS Series
Pump System or Coang Supply Unit. This will ensure consistent temperatures and uniform spray.
Heang capabilies are a factor of the heater, ow rate, and the properes of the uid (specic heat Cp, density, inlet
temperature, etc.).
RESPONSE LIGHT
Light is illuminated when power is being provided to the heater. The temperature controller ulizes a PID control loop
to control the heater. This means that during the course of operaon the light (indicang power to the heater) will
vary from fully on, blinking quickly, intermient pulses, or o for a duraon of me even when the system is heang.
3.2 SPECIFICATIONS
CONTROL PANEL SPECIFICATIONS
• Maximum temperature controller seng is 130°F (54°C).
• Power required 120 Vac/60 Hz., 1 ph., 15 A., 1.5 kW +/- manufacturer’s tolerances, into a grounded GFCI outlet
• NEMA 4 stainless steel proof (Non-Ex).
• Power OFF/ON/START illuminated switch - When started, switch will turn to ON and illuminate the control panel.
(If power is interrupted, restart system again.)
• Power cord - 9’ 10” (3 m) length.
• Ambient temperature rangs for electric control panel:
- 32°F Minimum (5°C)/103°F Maximum (40°C) - Liquid must not solidify at room temperature
HEATING UNIT SPECIFICATIONS
• 1.5 kW heater with built in K-type thermocouple.
• Helical grooved thermowell.
• Two RTD temperature sensors for process control and high limit.
• Watlow temperature controller that displays the current/setpoint temperature.
SECTION 3
ACCUCOAT® HD15 OVERVIEW

7
HEATER CONTROL PANELS USED IN KITS:
Threaded - 04CHICP1K5301W0—120VAC/1Ph/60Hz, 15A
- 04CHICP1K5301W5—230VAC/1Ph/50Hz, 8A
Sanitary - 04CHIE115401W0—120VAC/Ph/60Hz, 15A
- 04CHIE11K5401W5—230VAC/1Ph/50Hz, 8A
STANDARD ENVIRONMENTAL SPECIFICATIONS:
• To be installed indoors.
• Max. humidity: 90%
• Not explosion proof (Non-Ex)
• NEMA 4
• Height above sea level: < 3,280 .
CONSTRUCTION DETAILS
• Liquid Connecons:
- Threaded: Liquid inlet/outlet: 1/2” NPT
- Sanitary: Liquid inlet/outlet: 3/4” Tri-Clamp sanitary connecon
• Dimensions:
- Width: 15” (381 mm)
- Depth: 8” (203.2 mm)
- Height: 20” (508 mm)
- Weight: < 40 lb. (18.1 kg)
Note: An area of 24” (609.6 mm) around the unit should be kept free for maintenance purposes.
OPERATING PARAMETERS
• Pressure: 100 psi (7 bar) Maximum capable.
• Flow Rate: 0.5 GPM (1.9 lpm/min.) maximum suggested.
Heang Example 1:
Heang vegetable oil (Cp=0.40 Btu/lb. *°F (1.67 KJ/Kg *K)) without recirculaon at a ow rate of 0.5 GPM (1.9 l/min.).
Temperature Increase: 50°F (27.8°C) (Heang from 70°F to 120°F (21°C to 49°C))
Heang Example 2:
Heang water (Cp=1.0 Btu/lb*°F (4.19 KJ/Kg *K)) without recirculaon at a ow rate of 0.25 GPM (0.95 l/min.).
Temperature Increase: 35°F (27.2°C) (Heang from 70°F to 105°F (21°C to 41°C))
Note: Even though the owrate is lower, the specic heat is signicantly higher so the temperature increase
is lower than example 2.

8
3.3 SYSTEM MOUNTING
The HD15 In-Line Heater should be mounted in a convenient locaon near the spray applicaon. A properly grounded
power outlet must be easily accessible.
Install wall anchors that are designed to support at least 50 lbs. (22.68 kg) according to the anchor manufacturers’
specicaons.
LIQUID CONNECTIONS
The liquid connecons have stainless steel 1/2” NPT ports for both the inlet/outlet connecons (or 3/4” inlet/outlet
Tri-Clamp sanitary connecon). Push connect ngs and tubing will be supplied separately with the system. The uid
supply connects to the HD15 inlet. The outlet connects to the spray nozzle (s) or liquid distribuon manifold.
Liquid
Inlet
Liquid
Outlet

9
3.4 SPRAY CONTROL PANEL OPTIONS
Spray control modules pair with the oponal variable spray mount and provides the means to set operang parame-
ters and control the funconing of the automac spray nozzles. AutoJet® oers three updated panel models to choose
from. The controllers are designed to run electric actuated spray nozzles.
Note: Controllers not included with this system package. These are suggested controllers to use with this AutoJet® In-
Line Heater.
Features AutoJet 1000+ AutoJet 1750+ AutoJet 2150+
HMI Touch Screen 4.3” 4.3” 7”
Power Input 110-240 VAC,
50/60, 1Ph., 3A
110-240 VAC,
50/60 1 ph., 5A
120 VAC, 50/60,
1Ph., 8A
Washdown Closure ✓✓✓
Recipes ✓✓✓
Trigger Input ✓✓✓
Global Compability, mul-✓✓✓
Stainless Steel Control Panel ✓✓✓
Power On/O Switch ✓✓✓
Level Switch ✓✓✓
Dual Channel ✓×✓
HMI Wi-Fi Access ×✓✓
2300 Series Controls ×✓✓
Precision Spray Control ×✓✓
Encoder Input ××✓
Flow Monitoring ××✓
Pressure Input Sensor ××✓
Flow Monitoring ××✓
Ethernet IP ××✓
High Capacity ××✓

10
SECTION 4
SYSTEM START-UP AND OPERATION
For opmum performance, a recirculang system is required, such as that of the AutoJet® SCS Series Pump System or
Coang Supply Unit. This will result in more consistent temperature and ow rate which will produce more con-
sistent spray paerns.
While it is suggested to use a recirculang system, the AccuCoat® HD15 In-Line Heater can also be used to feed the
nozzle directly. This works best for applicaons which have consistent, connuous spray with minimal interrupons.
4.1 SYSTEM OPERATION
OPERATION WITH A RECIRCULATING SYSTEM
Once uid is recirculang and the system has reached the desired temperature, use the system as normal. Follow the
spray controller manual for adjusng and controlling all aspects of the applicaon aside from heang.
It is suggested that should the system need to be turned o for any duraon of me, the heater should be powered
o then the uid should connue to be recirculated for several minutes. This will dissipate the heat that the mass of
the heater assembly contains, prevenng the temperature of the staonary uid inside the heater assembly from
climbing above the desired setpoint. This is especially important for uids that may break down or become damaged
at higher temperatures.
CAUTION: The heater should never be enabled when the system does not contain uid.
OPERATION WHEN FEEDING THE NOZZLE DIRECTLY
Once the system has reached the desired temperature, use the AccuCoat HD15 In-Line Heater as normal. Follow the
spray controller manual for adjusng and controlling all aspects of the spray applicaon aside from heang.
During the course of any spray operaon, it is common for there to be short periods when the system is not being
used to spray. When feeding the nozzle directly without recirculaon, it is normal that the temperature of the sta-
onary uid inside the heater assembly rise above the setpoint. However, once spray resumes the temperature will
quickly return to normal.
It is suggested that should the system need to be turned o for any duraon of me, the heater should be powered
o, and then the uid should connue to pass through the system for several minutes. This will dissipate the heat
that the mass of the heater assembly contains, prevenng the temperature of the staonary uid inside the heater
assembly from climbing above the desired setpoint. This is especially important for uids that may break down or
become damaged at higher temperatures.
4.2 SYSTEM START-UP
Before starng the system, make sure all uid and electrical connecons have been made and are secure.
START-UP WITH A RECIRCULATING SYSTEM
) To begin using the system, power up the HD15 In-Line Heater by turning the green “POWER OFF/ON/START”
switch to “START.”
) The switch will turn “ON” and become illuminated.
) Prime and begin recirculang uid through the system per the instrucon manual of the spray controller
(AutoJet SCS Series Pump System or Coang Supply Unit).
) Adjust the temperature setpoint to the desired value.
5) The system ulizes a ramping funcon to minimize severe over-shoong of the temperature setpoint. Every me
the system is powered on or the temperature setpoint changes, a controlled ramp rate from the current temper-
ature to the temperature setpoint takes place. This allows the system to achieve its temperature in a steady
manner.

11
1) During the ramp cycle, the temperature controller will alternate the display between the normal state and the
ramping nocaon. The ramping nocaon displays “An” in the lower display and “rP1” in the upper display
(“Aenon; Ramping”).
2) Indicator will become illuminated when power is being provided to the heater. The temperature controller uliz-
es a PID control loop to control the heater. This means that during the course of operaon the light (indicang
power to the heater) will vary from fully on, blinking quickly, intermient pulses, or even o for a duraon of
me even when the system is heang.
3) Depending on the uid being heated and the ow rate, it may take several minutes for the displayed current
temperature to begin to rise.
) Once the system has reached the desired temperature, the system is ready to spray.

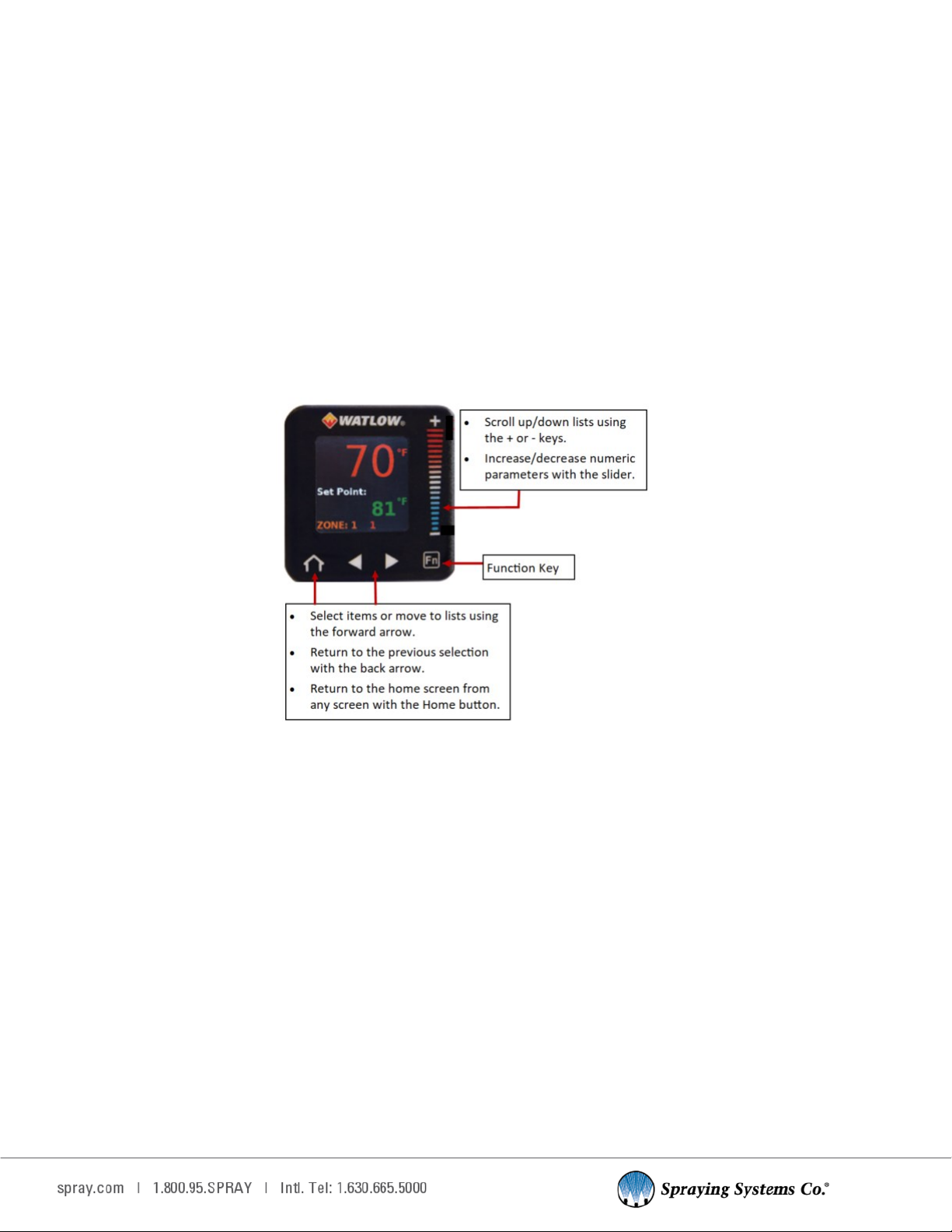

4.3 USING THE WATLOW CONTROL PANEL
The HD15 Heater ulizes an EZ-Zone® series Watlow temperature controller. The gure below shows the key buons
and displays of the controller. For more detail, reference the complete manual for the Watlow Temperature Control-
ler.
MOUNTING TO PANEL
1. Make the panel cutout using the measurements in gure 1.
2. Remove the green terminal connectors and the mounng collar assembly.
3. Insert the controller into the panel cutout from the front.
4. Orient the collar base so the at side faces front and the screw openings are on the sides (see gure 2), then
slide the base over the back of the controller.
5. Slide the mounng bracket over the controller with the screws aligned to the collar base. Push the bracket gently
but rmly unl the hooks snap into the slots in the case.
6. Tighten the two #6-19 x 1.5” screws with a Phillips screwdriver unl the device is ush to the panel (3 to 4” lbs.
torque).
7. Reinstall the terminal connectors to their original locaons. (Or rst connect eld wiring as indicated in this
guide and then reinstall the connectors).

12
SET UP ALARM TYPES/SIDES
Alarm Types:
• process: alarm set points are set directly
• deviaon: alarm set points are relave to the control loop’s set point.
• O: no alarm occurs
Alarm Sides:
Alarm sides allow you to set a high alarm, a low alarm, or both.
• high: alarm when process is above high alarm set point.
• low: alarm when process is below low alarm set point.
• both: high and low alarms are acve.
SETTING UP ALARM TYPE
1. From Home, tap the forward arrow to go to Operaons, then scroll to and select Setup.
2. Scroll to and select Alarm.
3. Scroll to and select Alarm 1, 2, 3, or 4.
4. Scroll to and select Alarm Type.
5. Scroll to and select the type: process, deviaon, or o
SETTING UP ALARM SIDES
1. Use the back arrow to return to Alarm 1, 2, 3, or 4.
2. Scroll to and select Alarm Sides.
3. Scroll to and select the desired sides opon: high, low, or both.
4. Use the back arrow to return to the Alarm list.
5. Scroll to the Alarm High Set Point or Alarm Low Set Point, as necessary for your sides selecon.
-Repeat steps for remaining alarms
• During normal operaon, the temperature controller will display the current temperature in the Upper Display
and the current temperature setpoint in the lower display. Use the Up and Down Arrows to adjust the tempera-
ture setpoint.
Alarm Types
Alarm Sides
Figure 1 Figure 2

13
RAMPING—The system ulizes a ramping funcon to minimize over-shoong the temperature setpoint. Every me
the system is powered on or the temperature setpoint is changed, a controlled ramp rate from the current tempera-
ture to the temperature setpoint takes place. This allows the system to achieve its temperature in a steady manner.
- During the ramp cycle, the temperature controller will alternate the display between the normal state and the
ramping nocaon. The ramping nocaon displays “An” in the lower display and “rP1” in the
upper display (“Aenon; Ramping”).
- The temperature controller accomplishes the ramping cycle by seng an “internal setpoint” that takes precedence
over the main setpoint when ramping. At the start of the ramp cycle, the “internal setpoint” is then set equal to
the current temperature and increased by 1°F every 15 seconds (4°F per minute) unl the “internal setpoint” is
equal to the actual setpoint. Please note that though the ramping cycle has been completed, it sll may take a few
moments for the uid to reach the setpoint.
• Press the “RIGHT ARROW” to display the Operaons menu. Press the “LEFT ARROW” at any me to return to the
main display.
• Use the numeric slide or the +/- keys to toggle between menu items
• Use RIGHT ARROW to select menu item
• Press HOME buon at anyme to return to Home screen.
• Press the “FN Buon” to eecvely pause the heang operaon. Press the “FN Buon” again to resume normal
operaon.
- This heater pause is achieved by changing the control mode to Manual and locking the heater output at 0%. This
can be seen by cycling to the heater power display as described above.
AUTOTUNE—The temperature controller has been enabled with an Autotune funcon.
The Autotune funcon is an automac sequence that opmizes the heang PID parameters to the specic system
and uid. During this sequence, the controller learns how the system reacts and adjusts the control loop to result in a
beer heater response.
• The system response is dependent on many things. Including:
 Fluid type
 Flow rate
 Ambient temperature
 Overall system conguraon.
• Before enabling the Autotune sequence, make sure the system is operang as it normally would during the spray
applicaon.
Note: If the uid being heated is extremely temperature sensive, before enabling the Autotune sequence it is sug-
gested to lower the temperature setpoint below the maximum uid temperature.
• During the Autotune sequence, the temperature controller will intenonally overshoot the temperature setpoint
and then drop below the setpoint. This may happen several mes.
• During the Autotune sequence, the display will ash and . Once the Autotune is complet-
ed, the display will return to its normal state.
• Allow the controller to complete the full Autotune sequence before adjusng the temperature or turning o the
controller.

14

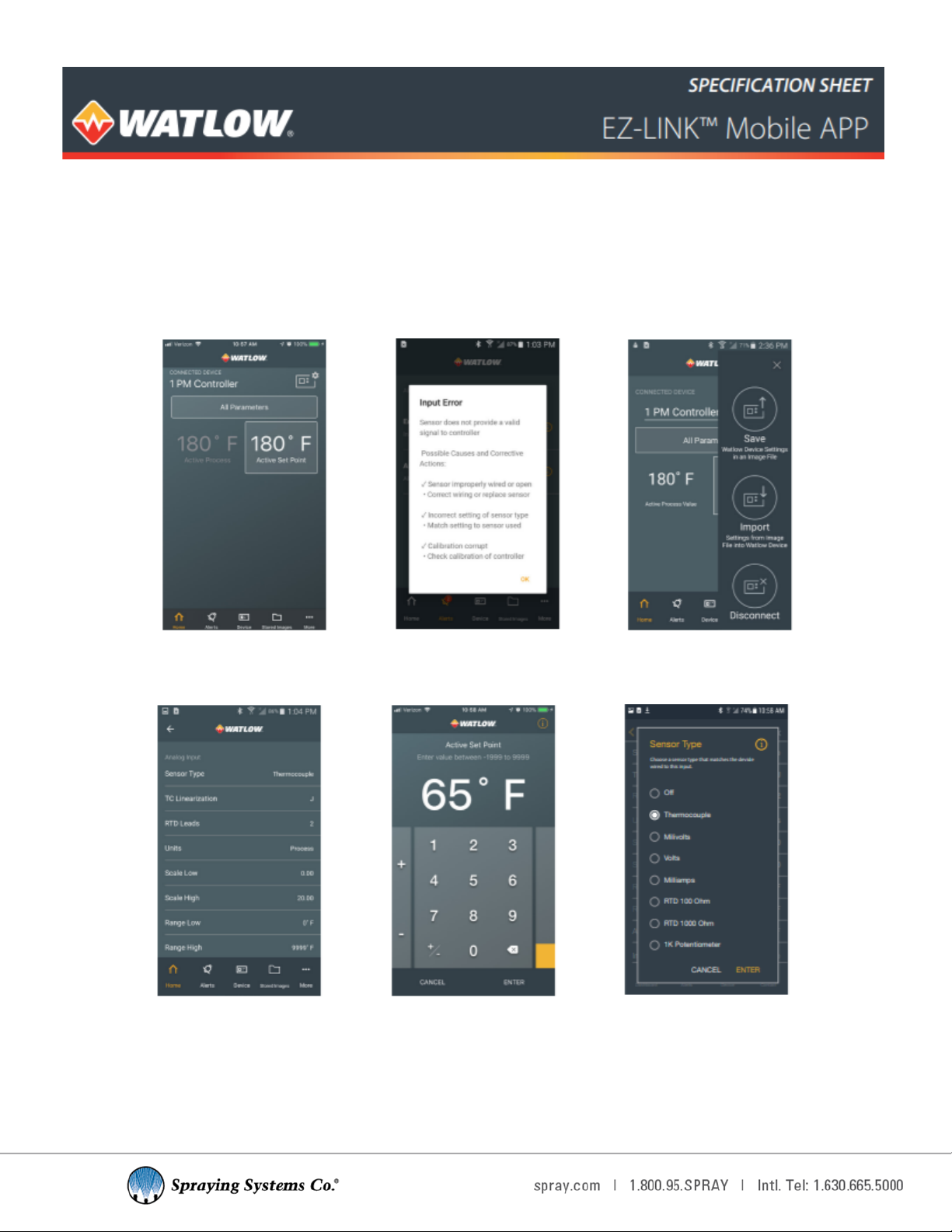

Watlow’s EZ-LINK™ mobile app allows users to easily set up and monitor Watlow® PM PLUS™ and EZ-ZONE® PM
controllers via Bluetooth® wireless technology. The app is available free-of-charge from the app stores for phones
and tablets, and provides access to the controller’s parameters with fully spelled out names in plain text with help
topics that explain each parameter and opon. The EZ-LINK mobile app provides many other benets to the user
including password protecon, alarm and error indicators, connecon to Watlow for feedback and support and
accessing device informaon such as rmware version, part number and serial number.
Provides access to controller’s
home page parameters
Decodes alarms, errors
and messages
Save and import system
image les via Bluetooth
Readable text for easy setup Easy operaon Help with each parameter

15
SECTION 5
TROUBLESHOOTING
If these troubleshoong steps are followed and the system sll does not funcon please contact your local Sales Engi-
neer by calling 1-800-95-SPRAY (1-800-957-7729) or call corporate support toll free 1-866-321-2250.
1) CONTROLLER WILL NOT POWER UP – MAIN POWER INDICTOR SWITCH DOES NOT ILLUMINATE.
a. Check to insure power cord is plugged into controller and power outlet and power switch has been turned to
“START” and is in the “on” posion.
b. Check fuse on internal power rail. To do this follow these steps:
• Unplug the system.
• Check the panel for any loose wires.
• Locate the 2 Amp MDA fuse holder on the top rail on the le hand side and li up on the tab on the top of the fuse
holder exposing the fuse.
• Due to the type of fuse used, have a qualied electrical technician test the fuse and replace if necessary (see spare
parts list).
• Replace faceplate to its original posion.
2) CONTROLLER POWERS UP, YET HEAT DOES NOT TURN ON – HEATER RESPONSE INDICATOR DOES NOT ILLUMI-
NATE/FLASH.
a. Check to insure power cord is plugged into controller and power outlet. Turn power switch to “START” and the
“ON” posion, and is illuminated.
b. Check temperature controller for error messages. The most common error codes are listed below, see tempera-
ture controller manual for details.
- High limit has been tripped.
1. Allow system to cool.
2. Ensure uid is present in the system
3. Press blue reset key on temperature controller.
4. If system connues to trip the high limit, contact your local Sales Engineer by calling 1-800-95-SPRAY
(1-800-957-7729).
- Error, Input 1. Process temperature RTD.
1. Unplug the system.
2. Check the panel for any loose wires (See electrical drawings for RTD connecons).
- Error, Input 2. High Limit temperature thermocouple.
1. Unplug the system.
2. Check the panel for any loose wires (See electrical drawings for thermocouple connecons).

16
3) CONTROLLER POWERS UP, HEATER RESPONSE INDICATOR ILLUMINATES, YET SYSTEM DOES NOT HEAT.
Check to insure power cord is plugged into controller and power outlet and power switch has been turned to
“START”, is in the “ON” posion, and is illuminated.
Check fuse on internal power rail. To do this follow these steps:
1. Unplug the system.
2. Check the panel for any loose wires.
3. Locate the 15 Amp Class CC fuse holder on the top rail on the le hand side and li up on the tab on the
top of the fuse holder exposing the fuse.
4. Test the fuse and replace if necessary (see spare parts list).
5. Replace faceplate to its original posion.
DRAWINGS
04CHICP1K5301W0 HD15 Main Assembly (Threaded)
04CHICP1K5301W0_SU01 HD15 Control Box (Threaded)
04CHICP1K5301W0_SU01E HD15 Electrical Drawing (Threaded)
04CHICP1K5301W0_SU02 HD15 Heater Unit Assembly (Threaded)
04CHIE11K5401W0 HD15 Main Assembly (Sanitary)
04CHIE11K5401W0_SU01 HD15 Control Box (Sanitary)
04CHIE11K5401W0_SU01E HD15 Electrical Drawing (Sanitary)
04CHIE11K5401W0_SU02 HD15 Heater Unit Assembly (Sanitary)
MANUALS
Please reference your Spray Controller Manual
IA00PM6C1CHALCJ Temperature Controller Manual
SECTION 6
REFERENCE MATERIALS

17
SECTION 8
SPARE PARTS LIST
THREADED—04CHICP1K5301W0
Part Number Descripon
FU0071385K517 Fuse, 2 Amp MDA Style
FU00LPCC15 Fuse, 15 Amp Class CC
IA00PM6C1CHALCJ Temperature Controller
FRMM5044K17 3” Tri-Clamp Gasket
CL004322K155 3” Tri-Clamp Clamp
HT00EM75975 1.5 kW Heater
OR005577K144 O-Ring
TE00R1T185L483 +
PL00SSLK14-14
4.125” RTD Temperature Sensor and Compression ng
TE00R1T18500515 +
PL00SSLK14-14
5” RTD Temperature Sensor and Compression ng
SANITARY—04CHIE11K5401W0
Please contact your local Spraying Systems Co.® sales oce to purchase replacement parts.
Part Number Descripon
FU0071385K517 Fuse, 2 Amp MDA Style
FU00LPCC15 Fuse, 15 Amp Class CC
IA00PM6C1CHALCJ Temperature Controller
FRMM5044K17 3” Tri-Clamp Gasket
CL004322K155 3” Tri-Clamp Clamp
HT00EM75975 1.5 kW Heater
OR005577K144 O-Ring
PL00RDPT75B024 Sanitary RTD Temperature Sensor – RTD #2 (High Limit)
PL00RDPTCUSTOM Sanitary RTD Temperature Sensor – RTD #1 (Process)
WR00EVT004 Cable for RTD, orange right angle, M12, 5 meter length
CL004759K61 1/2" to 3/4" Tri-Clamp Clamp
FRMM5044K12 3/4" Tri-Clamp Gasket
Note: Any long term shut-down requires that all liquid lines, liquid components, pumps, spray nozzles be
ushed and cleaned thoroughly.
SECTION 7
SUGGESTED SYSTEM MAINTENANCE
Monthly Maintenance
Pneumac Check all pneumac connecons for leaks and ghten.
Liquid • Check all liquid connecons for leaks and repair.
• Check all tubes and/or hoses for leaks and repair.
• Check liquid components for leaks and repair.
Electric Check control panel for lose or corroded wires.

ML00HD15 Rev. 3 3/2022 © Spraying Systems Co. 2022. Printed in the U.S.A.
Under copyright laws, this manual may not be reproduced in any form, in whole, or in part, without prior wrien permission from
Spraying Systems Co®. This revision supersedes all previous revisions. Every eort has been made to ensure that the informaon in
this manual is accurate at the me of prinng.
However, Spraying Systems Co. assumes no liability for errors or omissions and reserves the right to make changes without noce
to any products described herein to improve reliability, funcon, or design. Other company and product names may be trade-
marks of their respecve companies.
Warranty is one (1) year on non-wear parts from ship date. Wear items are covered for manufacturing defect only for a period of
one (1) year. Wear items include, but may not be limited to, Liquid pump and Liquid regulator. Seller warrants that its products will
conform to and perform in accordance with the products’ specicaons.
Seller warrants that the products do not infringe upon any copyright, patent, or trademark.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
THOSE CONCERNING MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
North Avenue and Schmale Road, P.O. Box 7900,
Wheaton, IL 60187-7901
Tel: 1.800.95.SPRAY Intl. Tel: [phone]
Fax: 1.888.95.SPRAY Intl. Fax: [phone]
www.spray.com
