Sprout SWLCHG300BSR User manual

WIRELESS
CAR CHARGER
PRODUCT MANUAL

WE PUT MORE INTO
OUR TECH, SO YOU CAN
GET MORE OUT OF LIFE.
At Sprout, our purpose is to help
you unlock the potential of your
technology. We’re an Australian
brand, and we design all of our
products locally to ensure they
are uniquely suited to your lifestyle.

01. What’s in the box?
02. Product overview
03. Quick star guide
04. Specifications
05. Imporant safety info
06. Disposal instructions
07. Consumer guarantee
2
3
4
11
12
13
14
CONTENTS
Scan the QR code
to access an online
version of this manual
1

1. WHAT’S IN THE BOX?
Thank you for choosing the Wireless Car Charger
by Sprout.
For optimum perormance and safety,
please read instructions carefully before usage.
Please keep this manual for future reference.
1 x Wireless Car Charger
1 x Windscreen mount
1 x Air-vent clip
Wireless Car Charger
Air-vent clip
Windscreen mount
USB-A to Micro-USB cable Product manual
Dashboard connector
1 x Dashboard connector
1 x USB-A to Micro-USB cable
1 x Product manual
2

1. Wireless charging pad
2. Adjustable side arms
3. Adjustable botom arm
4. Side arm release buton
5. Windshield mount/air-vent clip screw fastening
6. Micro-USB power input
FRONT
BACK
2. PRODUCT OVERVIEW
1
4
5
6
2
3
3

INSTALLING YOUR WIRELESS CAR CHARGER
Connecting to a power source
1. Connect the Micro-USB end of the charging
cable to the power input on the back of the
wireless charger. Connect the USB-A end of the
cable into a power source*
2. To achieve a 10W fast charge, a quick charge car
charger must be used for the power output
*Power source options include a car charger or buil-in USB-A
input in your car.
3. QUICK START GUIDE
1
2
3
4
4

MOUNTING ON VENT, WINDOW OR DASH
All mounting options connect to
the charger with a ball and screw
fastening. To use your chosen mount:
1. Loosen the screw fastening by
turning it lef
2. Place the ball mount of your chosen option into
the fastening
3. Tighten the screw fastening by turning it right
VENT MOUNT
1. Connect the air vent clip to the screw fastening
as shown above
2. Slide the air-vent clip over the vehicle vent louvre.
The air-vent clip is designed to be rotated to fit
onto diferent louvre thicknesses
3. QUICK START GUIDE
5

3. QUICK START GUIDE
DASH MOUNT
1. Connect the air vent clip to the screw fastening
as shown previously
2. Slide the air-vent clip into the dashboard
connector
3. Stick the mount onto the dashboard as shown
below
1. Connect the air vent clip to the screw fastening
as shown above
2. Slide the air-vent clip into the dashboard
connector
3. Stick the mount onto the dashboard as
shown below
Quick Start Guide
03.
Connecting to dash
08
Air vent clip
3M adhesive
6

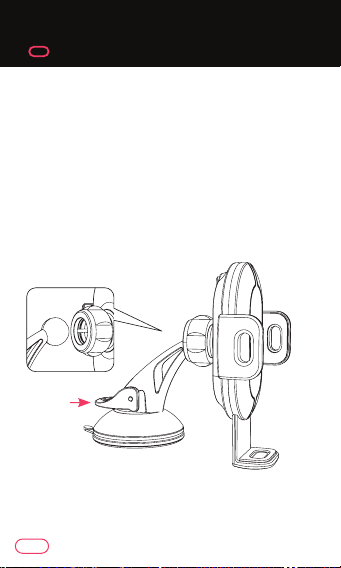

WINDSCREEN MOUNT
1. Connect the windshield mount to the screw
fastening as shown previously
2. Stick the windshield mount to the desired position
on your windshield
3. Use the lever to tighten in place
3. QUICK START GUIDE
09
Lever
7

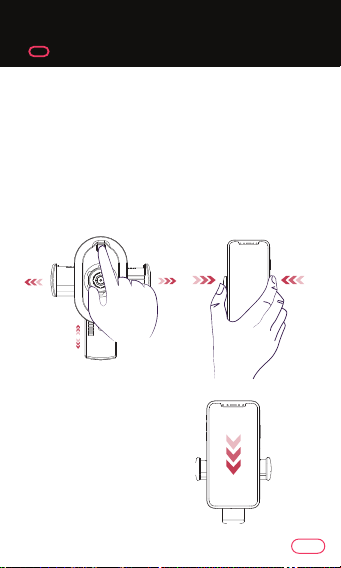

POSITIONING YOUR DEVICE
Sprout’s Wireless Car Charger can be adjusted to
suit your device’s wireless charging location. This
location varies by device.
• To adjust the side arms, press the release buton
on the back of the charger to exend them fully.
Then position your device and press the arms
back in to place
• To adjust the botom
arm, gentle pull or push
it into place
3. QUICK START GUIDE
10
8

3. QUICK START GUIDE

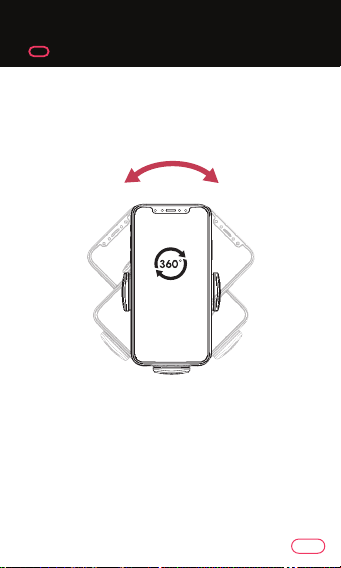

Sprout’s Wireless Car Charger is designed for
verical and horizontal viewing.
11
360-Degree
Universal
Rotation
9

3. QUICK START GUIDE
INDICATOR LIGHT
• Red and blue lights will flash alernately when the
Wireless Car Charger is first connected to power
• The blue light will stay illuminated when the
charging pad begins to charge the phone
• For Samsung devices, the light will turn red when
the phone is fully charged and charging will stop
• For iPhones, the light will remain blue and
continue charging. iPhones will manage their
batery levels to prevent overcharging
• The blue light will flash continuously and stop
charging if a foreign body (eg magnetic pad,
metal case, incompatible phone) is on the
charging pad
NOTE If you are charging your phone in a case, the
charging speed may be impacted and even resul in
intermitent or discontinued charging. Cases with a
thickness of more than 5mm or containing metal or
magnets should be removed prior to charging.
10

4. SPECIFICATIONS
• Unit size: 123x 95x 20mm (L x H x W)
• Unit weight: 136g
• Input power: DC 5V⎓2A. 9V⎓1.8A
• Output power: DC 5V⎓1A. 9V⎓1.1A
• Operating temperature: 0-40°C
11

5. IMPORTANT SAFETY INFO
Read all instructions and warnings prior to using this
product. Improper use of this product may resul in
product damage, excess heat, toxic fumes, fire or
explosion.
• Imporant: Do not use the heater when the
Sprout Wireless Car Charger is atached to the
vent. Alernatively, re-direct heat to other vents
to avoid hot air being blown onto the Wireless
Car Charger
• Do not use the Wireless Car Charger near an
open fire, heat source or excessive heat
• Do not atempt to power this device using any
method, apparatus, or connection other than the
device’s Micro-USB connector. For questions or
instructions on how to power the device refer to
the illustrations in this user manual
• Do not disassemble this device or atempt to
modify it in any manner
• Do not put metal objects or magnets between
the mobile device and the wireless charging
surace
All Sprout products go through thorough quality
assurance inspections. If you find that your device
is excessively hot, is emiting odour, is deformed,
abraded, cut or is experiencing or demonstrating an
abnormal phenomenon, immediately stop all product
use and contact Sprout.
12

6. DISPOSAL INSTRUCTIONS
At the end of the useful life of your Wireless Car
Charger, please recycle through your local e-waste
collection point. If you are unsure of your local
e-waste collection point, please consul your local
council for details.
13

Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure
and compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to
a major failure. If you have any questions about your
rights in relation to this product, please return it to point
of sale or contact us at [e-mail].
This warranty does not afect your legal statutory
rights under the Australian Consumer Law. For more
information about your rights under Australia Consumer
Law go to .accc.gov.au.
Your Wireless Car Charger is warranted to the
original owner for 24 months from the date
of purchase against defects in material and
workmanship under normal use and service.
The warranty does not cover misuse of this product
and liability will not exceed the purchase price of
the product.
If you have any problems while using the product,
please do not hesitate to contact our customer
suppor team.
For warranty and technical suppor please visit
sproutinc.com.au or email [e-mail].
Thank you for choosing a Sprout product.
6. CONSUMER GUARANTEE
14

Sprout Accessories Pty Ltd
W: Sproutinc.com.au | E: [e-mail]
