Sprout Invoke User manual

Invoke Bluetooth
Headphones
INSTRUCTION MANUAL
Sprout Accessories Pty Ltd
W: www.sproutinc.com.au
E: [email protected]

01. PRODUCT OVERVIEW 04
02. WHAT’S IN THE BOX? 05
03. QUICK START GUIDE 06
04. TROUBLESHOOTING 10
05. SPECIFICATIONS 11
06. IMPORTANT SAFETY INFO 12
07. DISPOSAL INSTRUCTIONS 13
08. CONSUMER GUARANTEE 14
CONTENT
Sprout is an Australian brand
that develops technology
accessories to enhance your
world, now and into the
future. From maximising your
productivity at work and while
you study to enriching your
downtime and recreational
activities, we develop accessories
that add value to your way of life.
Scan the QR code
to access an online
version of this manual
03

01. PRODUCT OVERVIEW 04
02. WHAT’S IN THE BOX? 05
03. QUICK START GUIDE 06
04. TROUBLESHOOTING 10
05. SPECIFICATIONS 11
06. IMPORTANT SAFETY INFO 12
07. DISPOSAL INSTRUCTIONS 13
08. CONSUMER GUARANTEE 14
CONTENT
Sprout is an Australian brand
that develops technology
accessories to enhance your
world, now and into the
future. From maximising your
productivity at work and while
you study to enriching your
downtime and recreational
activities, we develop accessories
that add value to your way of life.
Scan the QR code
to access an online
version of this manual
03

Product Overview
01.
1. Power on/off
2. AUX input
3. USB-C charging input
4. LED indicator
5. Multi-function button
6. Volume control
What’s in the box?
Thank you for choosing Invoke Bluetooth
Headphones by Sprout.
For optimum performance and safety,
please read instructions carefully before usage.
Please keep this manual for future reference.
1x Invoke Bluetooth Headphones
1x USB A to USB C cable (Black)
1x AUX cable
1x Product manual
02.
2
4
5
6
3 1
0504

Product Overview
01.
1. Power on/off
2. AUX input
3. USB-C charging input
4. LED indicator
5. Multi-function button
6. Volume control
What’s in the box?
Thank you for choosing Invoke Bluetooth
Headphones by Sprout.
For optimum performance and safety,
please read instructions carefully before usage.
Please keep this manual for future reference.
1x Invoke Bluetooth Headphones
1x USB A to USB C cable (Black)
1x AUX cable
1x Product manual
02.
2
4
5
6
3 1
0504

Quick Start Guide Quick Start Guide
03. 03.
Charging your Invoke Bluetooth Headphones:
1. Insert the USB-C end of the charging cable into
the charging input as shown.
2. Insert the USB-A end of the cable into a power
source* to charge. The LED indicator will be red
while charging is in progress. The LED indicator
will be blue when charging is complete. A full
charge will take approximately 2.5 hours.
* Using a USB Type C charging cable to connect to a
5V-2A (10W) adapter is recommended. Adapters with
larger wattage can also be used (maximum 24W). Car
chargers, power banks or docking stations may have
fluctuating output. Charging using these devices is
not recommended.
Connecting to your Invoke Headphones via Bluetooth:
• Your mobile device needs to be within 10 meters
of the Invoke Headphones
• Make sure your Invoke Headphones’ battery has
a sufficient charge
• Compatible with iOS, Android and other
Bluetooth devices
To pair your device:
1. To enter into pairing mode from power off, press
and hold the power button until you hear “power
on”. The LED indicator will flash blue and red when
your Invoke Headphones are in pairing mode.
2. Turn on Bluetooth on your mobile phone/music
device.*
3. ‘Invoke BT Headphones’ will appear on your mobile
phone/music device. Select ‘Invoke BT Headphones’
to pair. The LED indicator will flash blue every 5
seconds when pairing is successfully complete.
4. Enjoy your music.
5. After the initial pairing, the headphones will
always automatically pair with the previously
paired device.
* If you are not familiar with Bluetooth pairing for
your mobile phone or music device, refer to the
user guide for your mobile phone/music device for
instructions to pair a new device using Bluetooth.
0706

Quick Start Guide Quick Start Guide
03. 03.
Charging your Invoke Bluetooth Headphones:
1. Insert the USB-C end of the charging cable into
the charging input as shown.
2. Insert the USB-A end of the cable into a power
source* to charge. The LED indicator will be red
while charging is in progress. The LED indicator
will be blue when charging is complete. A full
charge will take approximately 2.5 hours.
* Using a USB Type C charging cable to connect to a
5V-2A (10W) adapter is recommended. Adapters with
larger wattage can also be used (maximum 24W). Car
chargers, power banks or docking stations may have
fluctuating output. Charging using these devices is
not recommended.
Connecting to your Invoke Headphones via Bluetooth:
• Your mobile device needs to be within 10 meters
of the Invoke Headphones
• Make sure your Invoke Headphones’ battery has
a sufficient charge
• Compatible with iOS, Android and other
Bluetooth devices
To pair your device:
1. To enter into pairing mode from power off, press
and hold the power button until you hear “power
on”. The LED indicator will flash blue and red when
your Invoke Headphones are in pairing mode.
2. Turn on Bluetooth on your mobile phone/music
device.*
3. ‘Invoke BT Headphones’ will appear on your mobile
phone/music device. Select ‘Invoke BT Headphones’
to pair. The LED indicator will flash blue every 5
seconds when pairing is successfully complete.
4. Enjoy your music.
5. After the initial pairing, the headphones will
always automatically pair with the previously
paired device.
* If you are not familiar with Bluetooth pairing for
your mobile phone or music device, refer to the
user guide for your mobile phone/music device for
instructions to pair a new device using Bluetooth.
0706

Connecting via AUX:
Connect your Invoke Headphones to a
smartphone, tablet or other audio device
using the AUX cable provided.
Quick Start Guide Quick Start Guide
03. 03.
Media Controls
Increase volume Short press the volume increase
button
Decrease volume Short press the volume decrease
button
Next track Press the volume increase button
for 1 second
Previous track Press the volume decrease button
for 1 second
Play / pause Short press the multi-function
button
Phone Calls
Accept call Short press multi-function button
End call Short press multi-function button
when on a call
Reject call Long press multi-function button
LED Indicator
Charging Red light stays on
Fully charged Red light turns off
Pairing mode Red and blue light flash
alternately
Pairing successful Blue light flashes every 5 seconds
Power off Red light stays on for 2 seconds
0908

Connecting via AUX:
Connect your Invoke Headphones to a
smartphone, tablet or other audio device
using the AUX cable provided.
Quick Start Guide Quick Start Guide
03. 03.
Media Controls
Increase volume Short press the volume increase
button
Decrease volume Short press the volume decrease
button
Next track Press the volume increase button
for 1 second
Previous track Press the volume decrease button
for 1 second
Play / pause Short press the multi-function
button
Phone Calls
Accept call Short press multi-function button
End call Short press multi-function button
when on a call
Reject call Long press multi-function button
LED Indicator
Charging Red light stays on
Fully charged Red light turns off
Pairing mode Red and blue light flash
alternately
Pairing successful Blue light flashes every 5 seconds
Power off Red light stays on for 2 seconds
0908

• Driver: 32Ω, 40mm
• Bluetooth V5.1
• Operation range - 10m
• Actions 3015 Chipset
• Rechargeable Battery
• 90 hours play time at 50% volume/ 50 hours play
time at 70% volume
• 800 mAh lithium polymer battery
• Type C USB charging input (5V 600mA)
• Microphone sensitivity: -43dB±3dB@1KHz
• Sensitivity: 118dB±3dB@1KHz
• Charging time: 2.5 hours
Turning your device on and off
If you are having trouble turning your device on and off:
• Ensure that the battery is charged, press and
hold the power button
• Ensure that there is no damage to the product.
If there is no damage, please contact
customer service
Using buttons and controls:
Invoke’s buttons are designed to give tactile feedback:
• Once a button is pressed, you will feel it pop back
up. If you do not feel the button pop back up,
please repeat
Specifications
05.
Troubleshooting
04.
1110

• Driver: 32Ω, 40mm
• Bluetooth V5.1
• Operation range - 10m
• Actions 3015 Chipset
• Rechargeable Battery
• 90 hours play time at 50% volume/ 50 hours play
time at 70% volume
• 800 mAh lithium polymer battery
• Type C USB charging input (5V 600mA)
• Microphone sensitivity: -43dB±3dB@1KHz
• Sensitivity: 118dB±3dB@1KHz
• Charging time: 2.5 hours
Turning your device on and off
If you are having trouble turning your device on and off:
• Ensure that the battery is charged, press and
hold the power button
• Ensure that there is no damage to the product.
If there is no damage, please contact
customer service
Using buttons and controls:
Invoke’s buttons are designed to give tactile feedback:
• Once a button is pressed, you will feel it pop back
up. If you do not feel the button pop back up,
please repeat
Specifications
05.
Troubleshooting
04.
1110

Important Safety Information
06.
Read all instructions and warnings prior to using
this product. Improper use of this product may
result in product damage, excess heat, toxic fumes,
fire or explosion.
• Do not use your Invoke Bluetooth Headphones
near an open fire, heat source or excessive heat
• Do not use your Invoke Bluetooth Headphones
near water
• Do not use your Invoke Bluetooth Headphones
while charging
• Protect your charging cable from being pinched
particularly at the connectors
• Unplug your charging cable during lightning storms
or when unused for long periods of time
• Avoid listening at excessive volume levels or for
prolonged periods.
• Do not disassemble this device or attempt to
modify it in any manner
• All Sprout products have gone through a thorough
quality assurance inspections. If you find that
your device is excessively hot, is emitting odour,
is deformed, abraded, cut or is experiencing
or demonstrating an abnormal phenomenon,
immediately stop all product use and contact Sprout
Disposal Instructions
07.
At the end of the useful life of your Invoke Bluetooth
Headphones, please recycle through your local e-waste
collection point. If you are unsure of your local waste
collection point, please consult your local council
for details.
1312

Important Safety Information
06.
Read all instructions and warnings prior to using
this product. Improper use of this product may
result in product damage, excess heat, toxic fumes,
fire or explosion.
• Do not use your Invoke Bluetooth Headphones
near an open fire, heat source or excessive heat
• Do not use your Invoke Bluetooth Headphones
near water
• Do not use your Invoke Bluetooth Headphones
while charging
• Protect your charging cable from being pinched
particularly at the connectors
• Unplug your charging cable during lightning storms
or when unused for long periods of time
• Avoid listening at excessive volume levels or for
prolonged periods.
• Do not disassemble this device or attempt to
modify it in any manner
• All Sprout products have gone through a thorough
quality assurance inspections. If you find that
your device is excessively hot, is emitting odour,
is deformed, abraded, cut or is experiencing
or demonstrating an abnormal phenomenon,
immediately stop all product use and contact Sprout
Disposal Instructions
07.
At the end of the useful life of your Invoke Bluetooth
Headphones, please recycle through your local e-waste
collection point. If you are unsure of your local waste
collection point, please consult your local council
for details.
1312

Consumer Guarantee
08.
Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and compensation for any other
reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure
does not amount to a major failure. If you have any
questions about your rights in relation to this product,
please return it to point of sale or contact us at
www.sproutinc.com.au. This warranty does not
affect your legal statutory rights under the Australian
Consumer Law. For more information about your rights
under Australia Consumer Law go to www.accc.gov.au.
Your Invoke Bluetooth Headphones are warranted to
the original owner for 24 months from the date of
purchase against defects in material and workmanship
under normal use and service. The warranty does
not cover misuse of this product and liability will not
exceed the purchase price of the product.
If you have any problems while using the product,
please do not hesitate to contact our customer
support team.
For warranty and technical support please visit
www.sproutinc.com.au or contact us at
275 George Street, Brisbane, QLD, 4000
E [email protected]
Thank you for choosing a Sprout product.
1514

Consumer Guarantee
08.
Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and compensation for any other
reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure
does not amount to a major failure. If you have any
questions about your rights in relation to this product,
please return it to point of sale or contact us at
www.sproutinc.com.au. This warranty does not
affect your legal statutory rights under the Australian
Consumer Law. For more information about your rights
under Australia Consumer Law go to www.accc.gov.au.
Your Invoke Bluetooth Headphones are warranted to
the original owner for 24 months from the date of
purchase against defects in material and workmanship
under normal use and service. The warranty does
not cover misuse of this product and liability will not
exceed the purchase price of the product.
If you have any problems while using the product,
please do not hesitate to contact our customer
support team.
For warranty and technical support please visit
www.sproutinc.com.au or contact us at
275 George Street, Brisbane, QLD, 4000
E [email protected]
Thank you for choosing a Sprout product.
1514

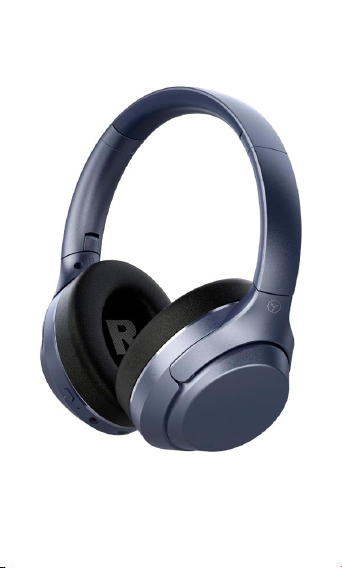

Invoke Bluetooth
Headphones
INSTRUCTION MANUAL
Sprout Accessories Pty Ltd
W: www.sproutinc.com.au
E: [email protected]
