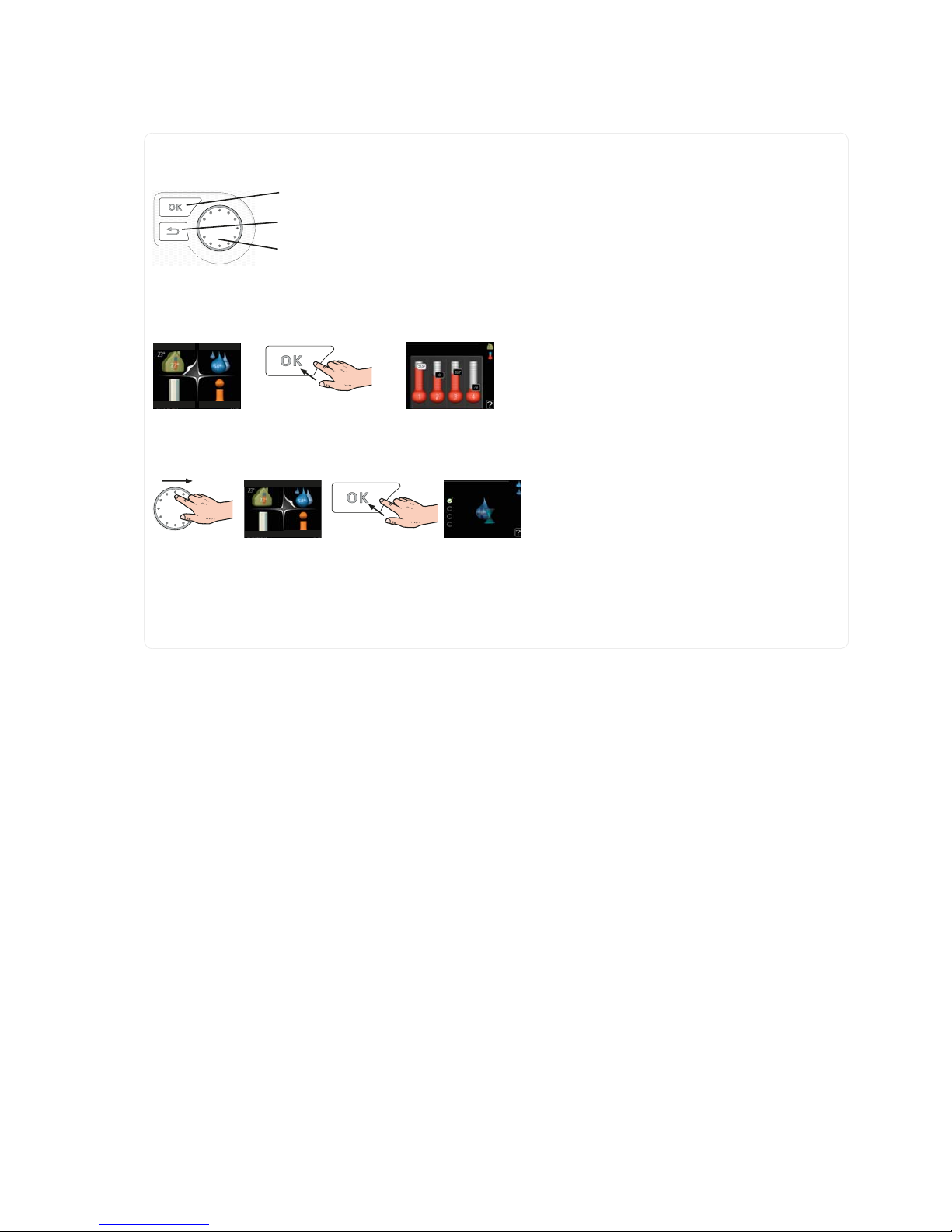

2N EXWWRQ FRQILUPVHOHFW
%DFN EXWWRQ EDFNXQGRH[LW
&RQWURO NQRE PRYHLQFUHDVHUHGXFH
A detailed explanation of the button functions can be found on page 33.
How to scroll through menus and make different settings is described on page 35.
6HW WKH LQGRRU FOLPDWH
;
0< ,167$//$7,21
,1'225 &/,0$7( +27 :$7(5
,1)2
The mode for setting the indoor temperature is reached, when in the start mode in the main menu, by pressing
the OK button twice. Read more about the settings on page 37.
,QFUHDVH KRW ZDWHU YROXPH
;
; ,1'225 &/,0$7( +27 :$7(5
0< ,167$//$7,21 ,1)2
To temporarily increase the amount of hot water, first turn the control knob to mark menu 2 (water droplet) and
then press the OK button twice. Read more about the settings on page 42.
In event of disturbances in comfort
If a disturbance in comfort of any type occurs there are some measures that can be taken before you need to
contact your installer. See page 58 for instructions.

Table of Contents
1 Important information 2
Safety information 2
2 Delivery and handling 5
Transport 5
Assembly 5
Supplied components 6
Removing the covers 7
3 Indoor module's design 8
4 Pipe connections 10
General pipe connections 10
Dimensions and pipe connections 12
Installation alternative 13
5 Electrical connections 19
General 19
Connections 22
Settings 24
Optional connections 26
Connecting accessories 28
6 Commissioning and adjusting 29
Preparations 29
Filling and venting 29
Connecting the circulation pumps 30
Start-up and inspection 31
7 Control - Introduction 33
Display unit 33
Menu system 34
8 Control - Menus 37
Menu 1 - INDOOR CLIMATE 37
Menu 2 - HOT WATER 42
Menu 3 - INFO 44
Menu 4 - MY SYSTEM 45
Menu 5 - SERVICE 50
9 Service 55
Service actions 55
10 Disturbances in comfort 58
Info-menu 58
Manage alarm 58
Troubleshooting 58
11 Accessories 60
12 Technical data 61
Dimensions and setting-out coordinates 61
Hot water capacity 62
Technical specifications 63
Electrical circuit diagram, 3 x 400V 65
Item register 70
1Table of Contents |NIBE™ VVM 310

Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Chil-
dren shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children without super-
vision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2013.
Symbols
NOTE
This symbol indicates danger to machine or
person.
Caution
This symbol indicates important information
about what you should observe when main-
taining your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
VVM 310 is CE marked and fulfils IP21.
The CE marking means that NIBE ensures that the
product meets all regulations that are placed on it
based on relevant EU directives. The CE mark is obligat-
ory for most products sold in the EU, regardless where
they are made.
IP21 means that the product can be touched by hand,
that objects with a diameter larger than or equivalent
to 12.5 mm cannot penetrate and cause damage and
that the product is protected against vertically falling
drops.
Serial number
The serial number can be found at the bottom right of
the front cover and in the info menu (menu 3.1).
6HULDO QXPEHU
Caution
Always give the product's serial number (14
digits) when reporting a fault.
Country specific information
Installer manual
This installer manual must be left with the customer.
NIBE™ VVM 310Chapter 1 | Important information2
1 Important information

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person. Fill in the page for information about installation data in the User
manual.
DateSignatureNotesDescription
✔
Heating medium (page 15)
System flushed
System vented
Expansion vessel
Particle filter
Safety valve
Shut off valves
Boiler pressure
Connected according to outline diagram
Hot water (page 15)
Shut off valves
Mixing valve
Safety valve
Electricity (page 19)
Connected communication
Circuit fuses
Fuses, indoor module
Fuses property
Outside sensor
Room sensor
Current sensor
Safety breaker
Earth circuit-breaker
Setting of emergency mode thermostat
Miscellaneous
Docked to
3Chapter 1 | Important informationNIBE™ VVM 310

Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.volundvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
Puh: 09-274 697 0 Fax: [phone] E-mail: inf[email protected] www.nibe.fi
AIT France, 10 rue des Moines, 67000 HaguenauFR
Tel : [phone] Fax : [phone] E-mail: inf[email protected] www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 2, NL-4797 ZG WILLEMSTAD (NB)NL
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO
Tel. sentralbord: [phone] E-mail: [email protected] www.nibeenergysystems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
Tel./fax [phone] E-mail: [email protected] www.nibe-evan.ru
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.
NIBE™ VVM 310Chapter 1 | Important information4

Transport
VVM 310 should be transported and stored vertically
in a dry place. The VVM 310 may, however, be carefully
laid on its back when being moved into a building.
R
0
R
0
Assembly
႑Position VVM 310 on a firm base that can take the
weight, preferably on a concrete floor or foundation.
Use the product's adjustable feet to obtain a horizont-
al and stable set-up.
30 - 50 mm
႑The area where VVM 310 is located must be
equipped with floor drainage.
Installation area
Leave a space of 500 mm in front of the product. All
service on VVM 310 can be carried out from the front.
500
NOTE
Leave 10-25 mm free space between the in-
door module and the wall behind for routing
of cables and pipes.
5Chapter 2 | Delivery and handlingNIBE™ VVM 310
2 Delivery and handling

Supplied components
Room sensorOutside sensor
LEK
LEK
LEK
Current sensor
Location
The kit of supplied items is placed on top of the
product.
NIBE™ VVM 310Chapter 2 | Delivery and handling6

Removing the covers
Front cover
1
2
LEK
LEK
1. Remove the screws from the lower edge of the
front cover.
2. Lift the cover out at the bottom edge and up.
Side covers
LEK
LEK
LEK
The side covers can be removed to facilitate the install-
ation.
1. Remove the screws from the upper and lower
edges.
2. Twist the cover slightly outward.
3. Move the cover backwards and slightly to the side.
4. Pull the cover to one side.
5. Pull the cover forwards.
7Chapter 2 | Delivery and handlingNIBE™ VVM 310

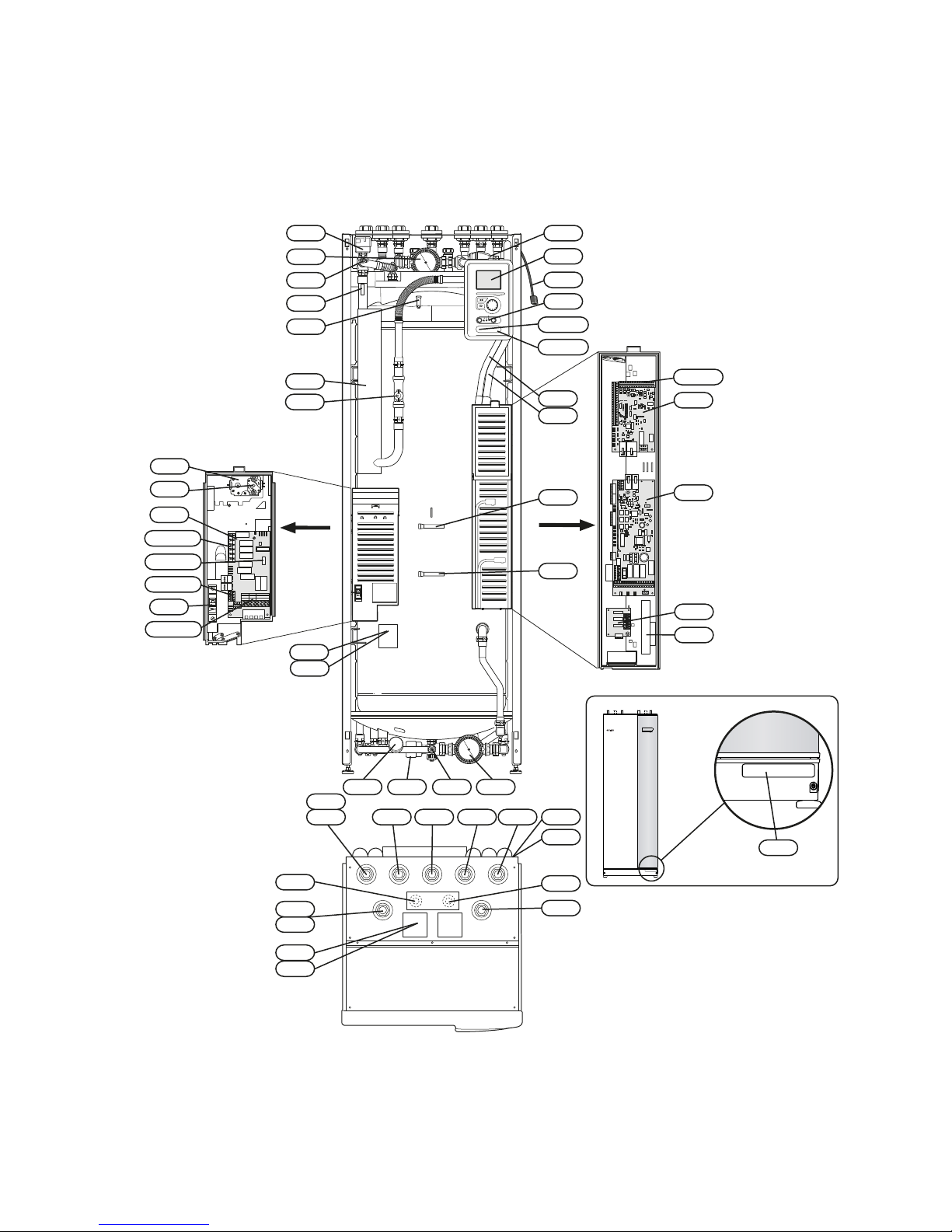

VVM 310
VVM 310
AA3
QM1
EB1
FD1
FA1
PF3
PF1
GP1
QM20
AA2
SF1
UB1
AA4-XJ3
AA4
AA4-XJ3
GP12
BT63
UB2
BF1*
BT6
BT54
XL30
AA7
XL18
XL3XL4 XL9
XL8
XL19
QN11QN10
BT7
PF3
PF1
AA1-X3
BT30
AA1-X1
AA1-X7
AA1-SF1
AA1
AA3-X4
BP5 QN35
UB1
UB2
K1
PF3
XL1
XL2
BT3
BT2
W130
*Applies to Germany, Switzerland and Austria Available as accessory EMK 310 in other markets.
NIBE™ VVM 310Chapter 3 | Indoor module's design8
3 Indoor module's design

Pipe connections
Connection, heating medium flow line G20 int.XL1
Connection, heating medium return line G20 int.XL2
Connection, cold water G20 int.XL3
Connection, hot water G20 int.XL4
Connection, docking in heating medium G20 int.XL8
Connection, docking out heating medium G20
int.
XL9
Connection, docking in high temp Ø22 mmXL18
Connection, docking out high temp Ø22 mmXL19
Connection, expansion vessel G20 int.XL30
HVAC components
Circulation pumpGP1
Charge pumpGP12
Drain valve, climate systemQM1
Mixing valve, additionQN11
Venting, climate systemQM20
Reversing valve, climate system/water heating,
flow line
QN10
Reversing valve, climate system/water heating,
return line
QN35
Sensors etc.
Manometer, heating systemBP5
Temperature sensor, heating medium flow (not
visible in image)
BT2
Temperature sensor, heating medium return (not
visible in image)
BT3
Temperature sensor, hot water, chargingBT6
Temperature sensor, hot water, topBT7
Thermostat, standby modeBT30
Temperature sensor, external dockingBT54
Temperature sensor, heating medium supply
after immersion heater
BT63
Electrical components
Immersion heater cardAA1
AA1-SF1 Dipswitch
AA1-X3 Terminal block, immersion heater
AA1-X7 Terminal block, immersion heater
Base cardAA2
Input circuit boardAA3
AA3-X4 Terminal block, current sensors
Display unitAA4
AA4-XJ3 USB socket
AA4-XJ4 Service socket
Extra relay circuit boardAA7
Energy meterBF1*
Immersion heaterEB1
Miniature circuit-breakerFA1
Temperature limiterFD1
Auxiliary relay, emergency mode.K1
SwitchSF1
Network cable for NIBE UplinkTM
W130
Miscellaneous
Rating platePF1
Serial number platePF3
Cable glandUB1
Cable glandUB2
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
*Applies to Germany, Switzerland and Austria Available as accessory EMK 310 in other markets.
9Chapter 3 | Indoor module's designNIBE™ VVM 310

General pipe connections
Pipe installation must be carried out in accordance with
current norms and directives.
The system requires a low-temperature design of the
radiator circuit. At lowest dimensioned outdoor tem-
perature the highest recommended temperatures are
55 °C on the flow line and 45 °C on the return line, but
VVM 310 can handle up to 65 °C.
NOTE
Equip the product with a safety valve on both
the boiler side and domestic coil.
Overflow water from the safety valve goes via overflow
cups to a drain so that hot water splashes cannot cause
injury. The entire length of the overflow water pipe
must be inclined to prevent water pockets and must
also be frost proof.
NIBE recommends installing VVM 310 as close to the
heat pump as possible for optimum comfort. For further
information about the location of different compon-
ents, see section "Installation alternatives" in this
manual.
NOTE
Any high points in the climate system, must
be equipped with air vents.
NOTE
The pipe systems need to be flushed out be-
fore the indoor module is connected so that
any debris cannot damage component parts.
NOTE
Switch (SF1) must not be moved to ""or" "
until VVM 310 has been filled with water.
Otherwise the temperature limiter, thermostat
and the immersion heater etc can be dam-
aged.
Maximum boiler and radiator volumes
H
Internal volume in VVM 310
for calculating expansion
vessel is 250 l. The expansion
vessel's volume must be at
least 5 % of the system's total
volume.
Example table
Volume (l)
expansion
vessel
Total
volume (l)
(indoor
module and
climate sys-
tem)
25500
35700
Volume (l) expansion
vessel
Total volume (l) (indoor
module and climate sys-
tem)
501000
NOTE
Expansion vessel not supplied with the
product. Equip the product with an expansion
vessel.
The initial pressure of the pressure expansion vessel
must be dimensioned according to the maximum
height (H) between the vessel and the highest posi-
tioned radiator, see figure. An initial pressure of 0.5
bar (5 mvp) means a maximum permitted height differ-
ence of 5 m.
If the standard initial pressure in the pressure vessel is
not high enough it can be increased by filling via the
valve in the expansion vessel. The expansion vessel's
standard initial pressure must be entered in the check
list on page 3.
Any change in the initial pressure affects the ability of
the expansion vessel to handle the expansion of the
water.
System diagram
VVM 310 consists of domestic coil for water heating,
immersion heater, circulation pumps, buffer vessel and
control system. VVM 310 connects to the climate sys-
tem.
VVM 310 is designed for connection and communica-
tion with F2025/F2026/F2030/F2040/F2300.
F2025/F2026/F2030/F2040/F2300 and VVM 310 to-
gether make up a complete heating installation.
VVM 310 covers most of the heating and hot water
requirement down to the heat pump stop temperature.
When it is cold outdoors
F2025/F2026/F2030/F2040/F2300 works with VVM
310 and if the outdoor air temperature falls below the
heat pump stop temperature, all heating is carried out
by VVM 310.
NOTE
Applies to NIBE F2025 and later models or
program version 51 and later versions.
-FL2
-CM1
-EB15
-FL1
-QM40-RM1
-RN10
-EB101
XL2
XL1 -HQ1
-QM1
-QM41
-FL10
-QM40
-EB101
NIBE™ VVM 310Chapter 4 | Pipe connections10
4 Pipe connections

Symbol key
MeaningSymbol
Shut-off valve
Tapping valve
Non-return valve
Shunt / shuttle valve
Safety valve
Thermometer
T
Trim valve
Temperature sensor
Expansion vessel
Pressure gauge
P
Circulation pump
Particle filter
Flow meter EMK 310
Heat exchanger
11Chapter 4 | Pipe connectionsNIBE™ VVM 310

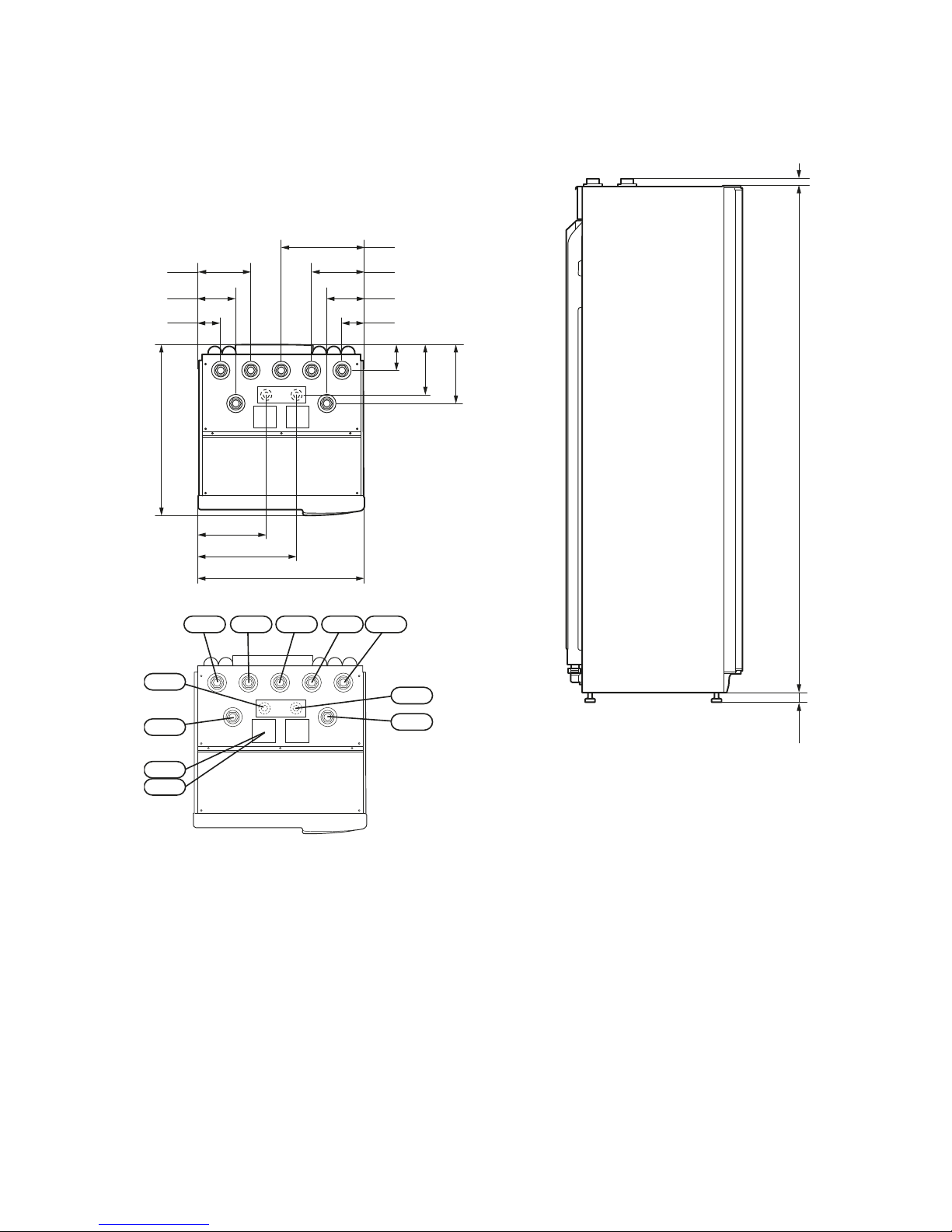

Dimensions and pipe connec-
tions
600
355
245
615
95
185
215
80
135
190
80
135
190
300
XL1
XL30XL2
XL18
XL3XL4 XL9
XL8
XL19
PF1
PF3
20
178030-50
Pipe connections
Connection, heating medium flow line G20 int.XL1
Connection, heating medium return line G20 int.XL2
Connection, cold water G20 int.XL3
Connection, hot water G20 int.XL4
Connection, docking in heating medium G20 int.XL8
Connection, docking out heating medium G20
int.
XL9
Connection, docking in high temp Ø22 mmXL18
Connection, docking out high temp Ø22 mmXL19
Connection, expansion vessel G20 int.XL30
NIBE™ VVM 310Chapter 4 | Pipe connections12

Installation alternative
Compatible NIBE air/water heat pumps
Compatible NIBE air/water heat pumps must be
equipped with a control card with display that has the
software version given in the following list as a minim-
um. The control card version is displayed in the heat
pump's display upon start-up.
Software versionProduct
55F2015
55F2016
55F2025
55F2026
all versionsF2030
all versionsF2040
55F2300
VVM 310 can be connected to extra water heater, see
below.
Further option information is available at www.nibe.eu
and in the respective assembly instructions for the ac-
cessories used. See page 60 for a list of the accessories
that can be used with VVM 310.
Extra hot water heaters
Water heater with immersion heater
If it is possible to use a water heater with an immersion
heater, NIBE COMPACT or EMINENT type water heaters
can be used.
If the heater is equipped with a valve connector Ø 15
mm this should be replaced with a corresponding Ø
22 mm.
Kv
Vv från värmepump
Backventil
Blandningsventil
+: IURP 990 
&:
1RQUHWXUQ YDOYH
+:
0L[LQJ YDOYH
13Chapter 4 | Pipe connectionsNIBE™ VVM 310

Explanation
Pool kitCL11
Unit boxAA25
Temperature sensor, poolBT51
Exchanger, poolEP5
Pool, pumpGP9
Particle filterHQ4
Three way valve, poolQN19
VVM 310EB15
Energy meterBF1*
Connection, heating medium, flow 1XL1
Connection, heating medium, return 1XL2
Connection, cold waterXL3
Connection, hot waterXL4
Connection, docking, in heating mediumXL8
Connection, docking, out heating mediumXL9
Connection, solar system, flowXL13
Connection, solar system, returnXL14
Connection, accessory, outXL39
Heat pumpEB101
Safety valveFL10
Particle filterHQ1
Trim valveRN10
Tapping valveQM1
Shut-off valveQM40
Shut-off valveQM41
External heat source (Oil, gas, pellets or wood
fired boiler with shunt valve)
EM1
Unit boxAA25
Temperature sensor, boilerBT52
Charge pump, external heat sourceGP15
Climate system 2EP21
Unit boxAA25
Temperature sensor, heating medium, flowBT2
Temperature sensor, heating medium, returnBT3
Circulation pump, heating medium, lower shuntGP20
Mixing valve, additionQN11
Solar kitEP30
Unit boxAA25
Temperature sensor, solar panelBT53
Expansion vesselCM5
Solar panelEP8
Pump station SPS 10, SPS20GP30
Pump station SPS 10, SPS 20GP30
Safety valve, solarFL4
Pump, solarGP4
Shut-off valveQM43
Shut-off valveQM44
Shut-off valveQM45
Non-return valveRM3
Non-return valveRM4
Miscel-
laneous
Flow sensor EMK 310BF1
Flow sensor EMK 300BF2
Expansion vessel closed, heating mediumCM1
Electric heater ELKEB1
Safety valve, hot waterFL1
Safety valve, heating mediumFL2
Circulation pump, for cooling poolGP14
Shut-off valveQM40
Non-return valveRM1
*In Germany, Switzerland and Austria energy meter (BF1) in-
cluded.
NIBE™ VVM 310Chapter 4 | Pipe connections14

Connecting to heat pump
All outdoor pipes must be thermally insulated with at
least 20mm thick pipe insulation.
VVM 310 is not equipped with shut off valves; these
must be installed outside the indoor module to facilit-
ate any future servicing.
NOTE
The charge circuit is supplied with trim valve
for basic setting of the charge flow.
-FL2
-CM1
-EB15
-XL8
-XL9
-RN10
-EB101
XL2
XL1 -HQ1
-QM1
-QM41
-FL10
-QM40
-EB101
Connection as electric boiler
Connect the pipe for docking in from the heat pump
(XL8) with the pipe out to the heat pump (XL9).
-FL2
-CM1
-EB15
-XL8 -XL9
Connecting cold and hot water
The mixing valve must be installed if the factory setting
is changed so that the temperature can exceed 60 °C.
If the factory setting is changed, national regulations
must be observed. The setting is made in menu 5.1.1
(See page 51).
-FL2
-XL4
-XL3
-CM1
-EB15
-FL1
-QM40-RM1
Connecting the climate system
When connecting to a system with thermostats on all
radiators/underfloor heating coils, a relief valve must
be fitted, or a thermostat must be removed to ensure
sufficient flow.
-FL2
-CM1
-EB15
-XL1
-XL2
15Chapter 4 | Pipe connectionsNIBE™ VVM 310

Two or more climate systems
When more than one climate system is to be heated,
the following connection can be used.
The ECS 40/ECS 41. accessory is required for this con-
nection.
-FL2
-CM1
-EB15
-XL1
-XL2
-GP20
-BT3
-BT2
-QN25
-EP21
-AA25
Connection of external heat source
For connection to a gas/electric/oil boiler, the DEH 310
accessory is required, see "Accessories" on page 60.
-FL2
-CM1
-EB15
-XL18
-XL19
-BT52
-EM1
-AA25
-EM1
-GP15
Connection of extra electrical addition
For connection of extra electrical addition, in one step,
in event of a stoppage because of cold outdoor air.
-FL2
-CM1
-EB15
-XL8
-XL9
-RN10
-EB101
XL2
XL1 -HQ1
-QM1
-QM41
-FL10
-QM40
-EB101
EB1
Connecting EMK 310
Installing energy measurement kit EMK 310* (BF1) to
VVM 310.
-FL2
-CM1
-EB15
-XL8
-XL9
-RN10
-EB101
XL2
XL1 -HQ1
-QM1
-QM41
-FL10
-QM40
-EB101
BF1
*EMK 310 is included in VVM 310 for Germany,
Switzerland and Austria. Available as accessory in other
markets.
Connecting EMK 300
Installing energy measurement kit EMK 300 (BF2) to
VVM 310.
-FL2
-CM1
-EB15
-XL8
-XL9
-RN10
-EB101
XL2
XL1 -HQ1
-QM1
-QM41
-FL10
-QM40
-EB101
-BF2
NIBE™ VVM 310Chapter 4 | Pipe connections16

Connecting hot water circulation
To reduce the risk of bacterial growth in systems with
hot water circulation, the temperature of the circulating
water should not fall below 50 °C. There should not be
any non-circulatory hot water pipes. Adjust the hot
water system so that the temperature does not fall
below 50 °C at the ends of the system.
-FL2
-CM1
-EB15
-FL1
-QM40-RM1
-GP9
XL3
XL4
17Chapter 4 | Pipe connectionsNIBE™ VVM 310

Connecting to solar installation
For connection to solar installation, the SCA 35 accessory is required, see "Accessories" on page 60.
-FL2
-CM1
-EB15
-XL18
-XL19
-BT53
-EP8
-AA25 -CM5
-GP4
-GP4
-QM45
-RM3
-QM43
-QM44
TP
-FL4
-RM4 T
-GP30
-EP30
-EP5
-RN10
-EB101
XL2
XL1 -HQ1
-QM1
-QM41
-FL10
-QM40
-EB101
Connecting pool
Charging of the pool is controlled by the pool sensor. In the case of low pool temperatures, the reversing valve reverses
direction and opens towards the pool exchanger. The POOL 310 accessory is required for this connection.
-FL2
-CM1
-EB15
-RN10
-EB101
XL2
XL1 -HQ1
-QM1
-QM41
-FL10
-QM40
-EB101
-GP9 -BT51 -HQ4
-EP5
-AA25
-CL11
-CL11-QN19
-CL11
-GP12
NIBE™ VVM 310Chapter 4 | Pipe connections18
