SRAM Quarq AXS Operating and installation instructions

BASIC TROUBLESHOOTING
GEN.0000000005113 Rev C © 2019 SRAM, LLC
Power MeterPower Meter

SRAM®LLC WARRANTY
EXTENT OF LIMITED WARRANTY
Except as otherwise set forth herein, SRAM warrants its products to be free from defects in materials or workmanship for a period of two years after
original purchase. This warranty only applies to the original owner and is not transferable. Claims under this warranty must be made through the
retailer where the bicycle or the SRAM component was purchased. Original proof of purchase is required. Except as described herein, SRAM makes
no other warranties, guaranties, or representations of any type (express or implied), and all warranties (including any implied warranties of
reasonable care, merchantability, or fitness for a particular purpose) are hereby disclaimed.
LOCAL LAW
This warranty statement gives the customer specific legal rights. The customer may also have other rights which vary from state to state (USA), from
province to province (Canada), and from country to country elsewhere in the world.
To the extent that this warranty statement is inconsistent with the local law, this warranty shall be deemed modified to be consistent with such law,
under such local law, certain disclaimers and limitations of this warranty statement may apply to the customer. For example, some states in the United
States of America, as well as some governments outside of the United States (including provinces in Canada) may:
a. Preclude the disclaimers and limitations of this warranty statement from limiting the statutory rights of the consumer
(e.g. United Kingdom).
b. Otherwise restrict the ability of a manufacturer to enforce such disclaimers or limitations.
For Australian customers:
This SRAM limited warranty is provided in Australia by SRAM LLC, 1000 W. Fulton Market, 4th Floor, Chicago, IL, 60607, USA. To make a warranty claim
please contact the retailer from whom you purchased this SRAM product. Alternatively, you may make a claim by contacting SRAM Australia, 6 Marco
Court, Rowville 3178, Australia. For valid claims SRAM will, at its option, either repair or replace your SRAM product. Any expenses incurred in making
the warranty claim are your responsibility. The benefits given by this warranty are additional to other rights and remedies that you may have under
laws relating to our products. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have
the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
LIMITATIONS OF LIABILITY
To the extent allowed by local law, except for the obligations specifically set forth in this warranty statement, in no event shall SRAM or its third party
suppliers be liable for direct, indirect, special, incidental, or consequential damages.
LIMITATIONS OF WARRANTY
This warranty does not apply to products that have been incorrectly installed and/or adjusted according to the respective SRAM user manual. The
SRAM user manuals can be found online at sram.com, rockshox.com, avidbike.com, truvativ.com, or zipp.com.
This warranty does not apply to damage to the product caused by a crash, impact, abuse of the product, non-compliance with manufacturers
specifications of usage or any other circumstances in which the product has been subjected to forces or loads beyond its design.
This warranty does not apply when the product has been modified, including, but not limited to any attempt to open or repair any electronic and
electronic related components, including the motor, controller, battery packs, wiring harnesses, switches, and chargers.
This warranty does not apply when the serial number or production code has been deliberately altered, defaced or removed.
This warranty does not apply to normal wear and tear. Wear and tear parts are subject to damage as a result of normal use, failure to service
according to SRAM recommendations and/or riding or installation in conditions or applications other than recommended.
Wear and tear parts are identified as:
• Dust seals
• Bushings
• Air sealing o-rings
• Glide rings
• Rubber moving parts
• Foam rings
• Rear shock mounting hardware
and main seals
• Upper tubes (stanchions)
• Stripped threads/bolts
(aluminium, titanium, magnesium
or steel)
• Brake sleeves
• Brake pads
• Chains
• Sprockets
• Cassettes
• Shifter and brake cables (inner
and outer)
• Handlebar grips
• Shifter grips
• Jockey wheels
• Disc brake rotors
• Wheel braking surfaces
• Bottomout pads
• Bearings
• Bearing races
• Pawls
• Transmission gears
• Spokes
• Free hubs
• Aero bar pads
• Corrosion
• Tools
• Motors
• Batteries
Notwithstanding anything else set forth herein, the battery pack and charger warranty does not include damage from power surges, use of improper
charger, improper maintenance, or such other misuse.
This warranty shall not cover damages caused by the use of parts of dierent manufacturers.
This warranty shall not cover damages caused by the use of parts that are not compatible, suitable and/or authorised by SRAM for use with SRAM
components.
This warranty shall not cover damages resulting from commercial (rental) use.

SAFETY FIRST!
We care about YOU. Please, always wear your safety glasses and
protective gloves when servicing Quarq products.
Protect yourself! Wear your safety gear!

TABLE OF CONTENTS
POWER METER IDENTIFICATION .....................................................................................................................................................................5
QUARQ POWER METER TROUBLESHOOTING ..............................................................................................................................................6
AXS, DZERO, AND LEGACY POWER METER BATTERY COMPARTMENT SERVICE ................................................................................7
PARTS, TOOLS, AND SUPPLIES..................................................................................................................................................................................................................7
BATTERY COMPARTMENT SERVICE.........................................................................................................................................................................................................7
POWER METER REBOOT.............................................................................................................................................................................................................................10
LEGACY POWER METER SPIDER INSPECTION SERVICE........................................................................................................................... 13
LEGACY BATTERY COMPARTMENT EXPLODED VIEW..................................................................................................................................................................... 13
PARTS, TOOLS, AND SUPPLIES................................................................................................................................................................................................................ 13
BATTERY COMPARTMENT REMOVAL LEGACY POWER METERS ONLY .................................................................................................................................. 14
BATTERY COMPARTMENT INSTALLATION LEGACY POWER METERS ONLY.........................................................................................................................16

5Power Meter Identification
Power Meter Identification
NOTICE
Identify the power meter platform before proceeding with any
troubleshooting.

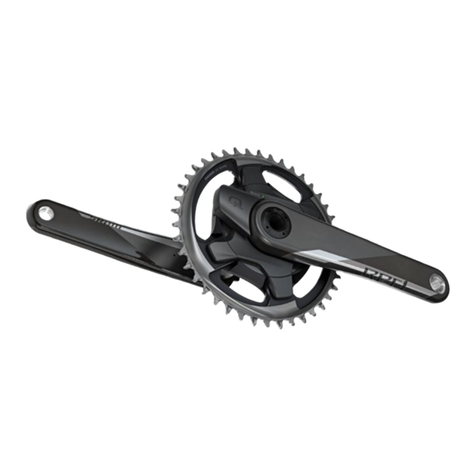

AXS Power Meter : The AXS logo is printed near the battery
compartment.

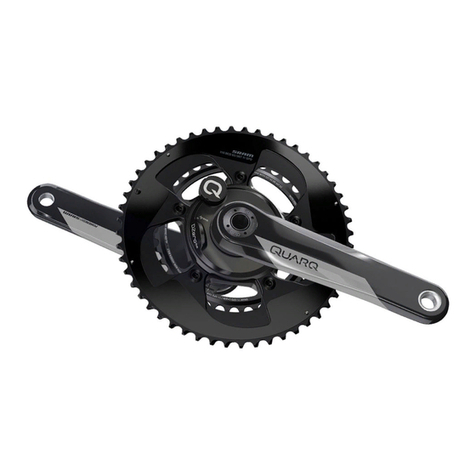

DZero Power Meter : Model name printed on power meter as either
DZero or DFour. DZero platform power meters include, but are not
limited to DZero, DFour, and XX1 Eagle power meters.
All AXS and DZero platform power meters feature a green LED that
blinks on: when the power meter turns on, and when a zero oset is
performed (calibration).

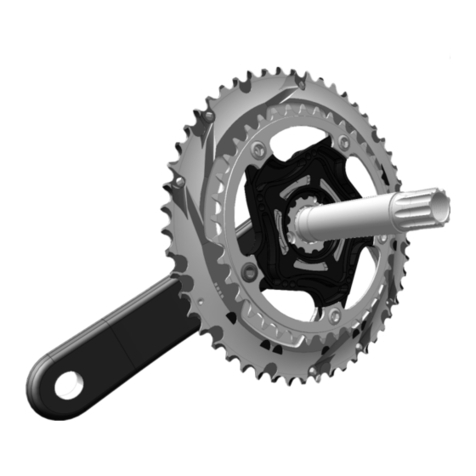

Legacy Power Meter: All Legacy Platform power meters are found in
the Quarq product archive.
Legacy platform power meters include:
• Riken AL, Riken R, Elsa R and Elsa RS
• SRAM RED and SRAM XX1
• Specialized and Cannondale power meter spiders.
All Legacy platform power meters feature a red LED that blinks on:
when the power meter turns on, and when a zero oset is performed
(calibration).
AXS
DZero
Identification DZero
MTB DZero
DZero
Red LED Legacy Power Meter

6Quarq Power Meter Troubleshooting
Quarq Power Meter Troubleshooting
Information contained in this publication is subject to change at any time without prior notice. For the latest technical information, please visit our
website at www.quarq.com.
Your product‘s appearance may differ from the pictures/diagrams contained in this publication.
If the power meter is exhibiting any of the symptoms below, then perform the steps in this troubleshooting guide.
Battery & Battery Compartment Issues
• The power meter battery drains quicker than it should.
• LED light is on continuously. Power meter will not pair.
Firmware Related Issues
• LED light is continually flashing. Power meter will not pair to head unit.
Data Reporting & Pairing Issues
• Power meter will not calibrate (zero offset).
• There are gaps in cadence and power data.
• The power meter will not pair to the head unit.
• The power meter will pair to my head unit, but shows no cadence or power data.
• The power meter is reporting cadence but not power.
Power Measurement & Zero Offset Issues
• The power meter is giving very high or low power readings.
• The zero offset value is greater than +/-1500.
• The zero offset value is frequently changing by more than +/-50 points.

7AXS, DZero, and Legacy Power Meter Battery Compartment Service
AXS, DZero, and Legacy Power Meter Battery Compartment Service
Parts, Tools, and Supplies
Parts
• CR2032 coin cell battery
Safety and Protection Supplies
• Apron
• Clean, lint-free rags
• Isopropyl alcohol
• Nitrile gloves
• Safety glasses
Lubricants and Fluids
• SRAM Butter grease
Common Tools
• 2 mm hex wrench
• 2 mm hex bit socket
• Flat blade screwdriver
• Needle-nose pliers or 2 coins
• T10 TORX® wrench
• T10 TORX bit socket
• Torque wrench
Battery Compartment Service
AXS Power Meters only: Use your fingers to lift up the outer battery
cover and remove.
Use your fingers to rotate the battery compartment lid
counter-clockwise and remove the lid. Remove the battery and
set it aside.
NOTICE
Do not use any tools to remove the battery lid. Tools can permanently
damage the power meter making it inoperable.
⚠WARNING
Consult the battery manufacturer for safe handling instructions. Keep
the battery out of reach of children. Do not put the battery in your
mouth. If ingested, seek medical attention immediately. Do not use
sharp objects to remove batteries.
1
AXS
AXS
2

8Battery Compartment Service
Loosen the battery compartment screw a 1/4 turn, then tighten the
battery compartment screw.
Apply gentle pressure to the battery compartment as you tighten it.
NOTICE
If the battery compartment screw is not tight, the base of the battery
compartment may not make a good connection with the spider, and
cause an intermittent signal.
Lift the battery contact prongs upward.
NOTICE
If the battery contacts are flattened, the battery may move around the
compartment, and cause an intermittent signal.
Check for proper battery height. Install a new CR2032 coin cell battery
into the battery compartment, positive side facing outward. When the
battery contact prongs are properly adjusted, the top of the battery will
protrude above the lip of the battery compartment.
⚠WARNING
Consult the battery manufacturer for safe handling instructions. Keep
the battery out of reach of children. Do not put the battery in your
mouth. If ingested, seek medical attention immediately. Do not use
sharp objects to remove batteries.
3
2 mm or T10
2 mm or T10 1.0 N·m (9 in-lb)
4
Flat blade screwdriver
5

9Battery Compartment Service
Install the battery compartment lid until it is handtight. Watch for the
LED to blink on; green for AXS and DZero power meters, and red for
Legacy power meters.
AXS Power Meters only: Use your fingers to install the outer battery
cover.
If the LED blinks on, connect the power meter to the SRAM AXS App,
Qalvin BLE, or Qalvin Legacy and update the power meter firmware, if
needed.
Perform a Manual Zero Oset according to the power meter user manual's instructions.
If the LED does not blink on and the power meter will not pair to a head unit or Qalvin, then perform the Power Meter Reboot steps or
contact Quarq customer support or your Quarq dealer.
This completes the troubleshooting for the Battery Compartment service.
Green LED AXS
Green LED DZero
Red LED Legacy
6
AXS
AXS
7
8

10Power Meter Reboot
Power Meter Reboot
A power meter reboot drains voltage stored in the electronics, and resets the power meter operation.
AXS Power Meters only: Use your fingers to lift up the outer battery
cover and remove the cover.
Use your fingers to rotate the battery compartment lid
counter-clockwise and remove the lid. Remove the battery and
set it aside.
NOTICE
Do not use any tools to remove the battery lid. Tools can permanently
damage the power meter making it inoperable.
⚠WARNING
Consult the battery manufacturer for safe handling instructions. Keep
the battery out of reach of children. Do not put the battery in your
mouth. If ingested, seek medical attention immediately. Do not use
sharp objects to remove batteries.
AXS
AXS
1
2

11Power Meter Reboot
Use pliers to make contact on the battery compartment screw and the
threads on the battery compartment at the same time. Hold the pliers
in place 3-5 seconds, then remove.
Alternative method: Install two coins into the battery compartment.
Install the battery compartment lid. Wait 3-5 seconds, then remove the
battery compartment lid and coins.
NOTICE
The height of the coins must equal the height of the CR2032 battery.
The reboot will not be successful if the coins used are not the same
height as the battery.
Install a new CR2032 coin cell battery into the battery compartment,
positive side facing outward.
⚠WARNING
Keep the battery out of reach of children. Do not put the battery in
your mouth. If ingested, seek medical attention immediately. Do not
disassemble, damage, or puncture the battery. Consult the battery
manufacturer for safe handling instructions.
3
Needle-nose pliers
4
CR2032

12Power Meter Reboot
Install the battery compartment lid until it is handtight. Watch for the
LED to blink on; green for AXS and DZero power meters, and red for
Legacy power meters.
AXS Power Meters only: Use your fingers to install the outer battery
cover.
If the LED blinks on, connect the power meter to the SRAM AXS App, Qalvin BLE, or Qalvin Legacy and update the power meter
firmware, if needed.
If the LED does not blink on and the power meter will not pair to a head unit, SRAM AXS App, or Qalvin:
AXS and DZero Power Meter: Contact Quarq® customer support or your Quarq® dealer.
Legacy Power Meter: Perform the Spider Inspection steps in the following section.
This completes the troubleshooting for the Power Meter Reboot service.
Red LED Legacy
Green LED AXS
Green LED DZero
5
AXS
AXS
6
7

13Legacy Power Meter Spider Inspection Service
Legacy Power Meter Spider Inspection Service
Legacy Battery Compartment Exploded View
Parts, Tools, and Supplies
Parts
• CR2032 coin cell battery
Safety and Protection Supplies
• Apron
• Clean, lint-free rags
• Isopropyl alcohol
• Nitrile gloves
• Safety glasses
Lubricants and Fluids
• SRAM® Butter grease
Common Tools
• 2 mm hex wrench
• 2 mm hex bit socket
• Flat blade screwdriver
• T10 TORX® wrench
• T10 TORX bit socket
• Torque wrench
Clocking pin
O-ring
Clocking pin hole
Battery compartment hole
Spider
Battery compartment
Battery compartment screw assembly
Battery compartment lid
CR2032 coin cell battery

14Battery Compartment Removal (Legacy Power Meters Only)
Battery Compartment Removal (Legacy Power Meters Only)
NOTICE
The following section, Spider Inspection, should only be performed
on a Legacy power meter. Do NOT perform the spider inspection
service on an AXS or DZero platform power meter. AXS platform
power meters have a AXS logo next to the battery compartment.
DZero platform power meters include, but are not limited to DZero,
DFour, and XX1 Eagle power meters.
If you remove the battery compartment on an AXS or DZero platform
power meter, you will damage the unit and void the warranty.
Use your fingers to rotate the battery lid counter-clockwise and remove
the lid. Remove the battery and set aside.
⚠WARNING
Consult the battery manufacturer for safe handling instructions. Keep
the battery out of reach of children. Do not put the battery in your
mouth. If ingested, seek medical attention immediately. Do not use
sharp objects to remove batteries.
NOTICE
Do not use any tool to remove the battery lid. Tools can permanently
damage the power meter making it inoperable. The lid should be
loosened by hand.
Remove the battery compartment screw. Remove the battery
compartment screw assembly and battery compartment, and set them
aside.
NOTICE
Do NOT remove the battery compartment on an AXS or DZero
platform power meter, you will damage the unit and void the warranty.
The AXS and DZero platform power meter has a green LED blink on
when awake. Do not proceed if a green LED blinks on.
A Legacy power meter has a red LED blink on when the power meter
is awake.
Red LED Legacy Power Meter
1
2
T10

15Battery Compartment Removal (Legacy Power Meters Only)
Remove the o-ring between the battery compartment and
the spider.
Inspect the clocking pin hole under the battery compartment location
for damage, such as gouging or scarring.
If damage to the clocking pin hole is present, the power meter will
require inspection by Quarq. Contact Quarq customer support or your
Quarq dealer.
Inspect the battery compartment clocking pin for damage. If the
clocking pin is worn down or broken, contact Quarq customer support
or your Quarq dealer.
3
Good condition
space between frames
space between steps
4
Damaged
Damaged
space between frames
space between steps
Good condition
5

16Battery Compartment Installation (Legacy Power Meters Only)
Battery Compartment Installation (Legacy Power Meters Only)
Spray isopropyl alcohol on the battery compartment and spider and
clean them with a rag.
Apply SRAM Butter grease to the o-ring and install it onto the base of
the battery compartment.
Install the battery compartment onto the spider lens. Slowly rotate the
battery compartment until you feel the clocking pin enter the hole on
the spider. Rotate the compartment back and forth to verify it is fully
seated.
NOTICE
Failure to seat the clocking pin into the hole will prevent the power
meter from working properly and/or cause damage to the spider.
Use your fingers to install the battery compartment screw assembly.
Tighten the battery compartment screw.
Apply gentle pressure to the battery compartment as you tighten it to
prevent the clocking pin from becoming unseated.
1
2
space between frames
space between steps
3
2 mm or T10 1.0 N·m (9 in-lb)
4

17Battery Compartment Installation (Legacy Power Meters Only)
Lift the battery contact prongs upward.
⚠WARNING
Keep the battery out of reach of children. Do not put the battery in
your mouth. If ingested, seek medical attention immediately. Do not
disassemble, damage, or puncture the battery. Consult the battery
manufacturer for safe handling instructions.
NOTICE
If the battery contacts are flattened, the battery may move around the
compartment and cause an intermittent signal.
Check for proper battery height. Install a new CR2032 coin cell battery
into the battery compartment, positive side facing outward. When the
battery contact prongs are properly adjusted, the top of the battery will
protrude above the lip of the battery compartment.
Install the battery compartment lid until it is handtight. Watch for the red
LED to blink on.
If the LED blinks on, connect the power meter to Qalvin Legacy and update the power meter firmware, if needed.
If the LED does not blink on and the power meter will not pair to a head unit or Qalvin, then perform the Power Meter Reboot steps or
contact Quarq customer support or your Quarq dealer.
Perform a Manual Zero Oset according to the power meter user manual's instructions.
This completes the troubleshooting for the Legacy Power Meter Spider Inspection service.
5
Flat blade screwdriver
6
7
8
9

These are registered trademarks of SRAM, LLC:
1:1®, Accuwatt®, Avid®, Bar®, Blackbox®, BoXXer®, DoubleTap®, Elita®, eTap®, Firecrest®, Firex®, Grip Shift®, GXP®, Hammerschmidt®, Holzfeller®,
Hussefelt®, i-Motion®, Judy®, Know Your Powers®, NSW®, Omnium®, Pike®, PowerLock®, Quarq®, Qollector®, RacerMate®, Reba®, Rock Shox®,
Ruktion®, Service Course®, ShockWiz®, SID®, Single Digit®, Speed Dial®, Speed Weaponry®, Spinscan®, SRAM®, SRAM APEX®, SRAM EAGLE®,
SRAM FORCE®, SRAM RED®, SRAM RIVAL®, SRAM VIA®, Stylo®, Torpedo®, The Power of Bicycles®, Truvativ®, Varicrank®, Velotron®,
World Bicycle Relief®, X0®, X01®, X-SYNC®, XX1®, Zed tech®, ZIPP®
These are registered logos of SRAM, LLC:
These are trademarks of SRAM, LLC:
10K™, 1X™, 202™, 30™, 302™, 303™, 404™, 454™, 808™, 858™, ABLC™, AeroGlide™, AeroBalance™, AeroLink™, Airea™, Air Guides™, AKA™, AL-
7050-TV™, Automatic Drive™, Automatix™, AxCad™, Axial Clutch™, AXS™, BB5™, BB7™, BB30™, Bleeding Edge™, Blipbox™, BlipClamp™,
BlipGrip™, Blips™, Bluto™, Bottomless Tokens™, Cage Lock™, Carbon Bridge™, Centera™, Charger 2™, Charger™, Clickbox Technology™, Clics™,
Code™, Cognition™, Connectamajig™, Counter Measure™, DD3™, DD3 Pulse™, DebonAir™, Deluxe™, Deluxe Re:Aktiv™, Descendant™, DFour™,
DFour91™, Dig Valve™, DirectLink™, Direct Route™, DOT 5.1™, Double Decker™, Double Time™, Dual Flow Adjust™, Dual Position Air™, DUB™,
DZero™, E300™, E400™, Eagle™, E-Connect4™, E-matic™, ErgoBlade™, ErgoDynamics™, ESP™, EX1™, Exact Actuation™, Exogram™, Flow
Link™, FR-5™, Full Pin™, Guide™, GX™, Hard Chrome™, Hexfin™, HollowPin™, Howitzer™, HRD™, Hybrid Drive™, Hyperfoil™, i-3™, Impress™, Jaws™,
Jet™, Kage™, Komfy™, Level™, Lyrik™, MatchMaker™, Maxle™, Maxle 360™, Maxle DH™, Maxle Lite™, Maxle Lite DH™, Maxle Stealth™, Maxle
Ultimate™, Micro Gear System™, Mini Block™, Mini Cluster™, Monarch™, Motion Control™, Motion Control DNA™, MRX™, Noir™, NX™, OCT™,
OmniCal™, OneLoc™, Paragon™, PC-1031™, PC-1110™, PC-1170™, PG-1130™, PG-1050™, PG-1170™, Piggyback™, Poploc™, Power Balance™, Power
Bulge™, PowerChain™, PowerDomeX™, Powered by SRAM™, PowerGlide™, PowerLink™, Power Pack™, Power Spline™, Predictive Steering™,
Pressfit™, Pressfit 30™, Prime™, Qalvin™, R2C™, RAIL™, Rapid Recovery™, Re:Aktiv ThruShaft™, Recon™, Reverb™, Revelation™, Riken™, Rise™,
ROAM™, Roller Bearing Clutch™, RS-1™, Sag Gradients™, Sawtooth™, SCT - Smart Coasterbrake Technology, Seeker™, Sektor™, SHIFT™,
ShiftGuide™, Shorty™, Showstopper™, Side Swap™, Signal Gear Technology™, SL™, SL-70™, SL-70 Aero™, SL-70 Ergo™, SL-80™, Sl-88™, SLC2™,
SL SPEED™, SL Sprint™, Smart Connect™, Solo Air™, Solo Spoke™, SpeedBall™, Speed Metal™, SRAM APEX 1™, SRAM Force 1™, SRAM RIVAL
1™, S-series™, Stealth-a-majig™, StealthRing™, Super-9™, Supercork™, Super Deluxe™, Super Deluxe Coil™, SwingLink™, TaperCore™, Timing
Port Closure™, Tool-free Reach Adjust™, Top Loading Pads™, Torque Caps™, TRX™, Turnkey™, TwistLoc™, Tyrewiz™, VCLC™, Vivid™, Vivid Air™,
Vuka Aero™, Vuka Alumina™, VukaBull™, Vuka Clip™, Vuka Fit™, Wide Angle™, WiFLi™, X1™, X5™, X7™, X9™, X-Actuation™, XC™, X-Dome™, XD™,
XD Driver Body™, XDR™, XG-1150™, XG-1175™, XG-1180™, XG-1190™, X-Glide™, X-GlideR™, X-Horizon™, XLoc Sprint™, XX™, Yari™, Zero Loss™
Specifications and colors subject to change without prior notice.
© 2019 SRAM, LLC

ASIAN HEADQUARTERS
SRAM Taiwan
No. 1598-8 Chung Shan Road
Shen Kang Hsiang, Taichung City
Taiwan R.O.C.
WORLD HEADQUARTERS
SRAM LLC
1000 W. Fulton Market, 4th Floor
Chicago, Illinois 60607
U.S.A.
EUROPEAN HEADQUARTERS
SRAM Europe
Paasbosweg 14-16
3862ZS Nijkerk
The Netherlands
