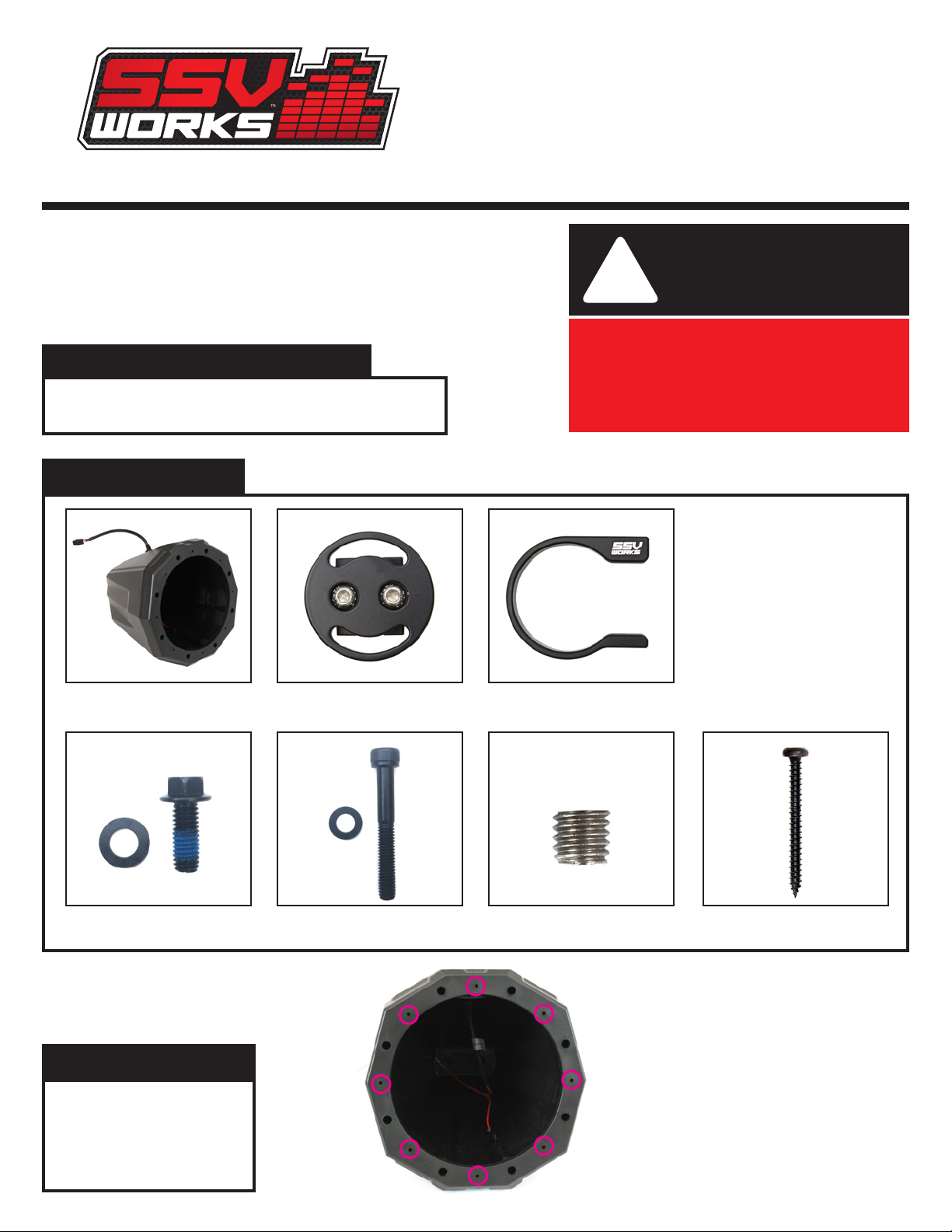

SSV Works US2-C8 User manual

!
Please read and understand these
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in material or
workmanship. All SSV Works Electronics are covered by a limited 1 year warranty against defects
in material or workmanship. Labor for replacement of defective components is not covered. All
SSV Works Speakers are covered by a limited 1 year warranty against defects in material or
workmanship. Contact SSV Works for further warranty information.
INSTALLATION NOTES
It is recommended to wrap the
bag that the clamps come in
around the cage before you
slide the clamp onto the cage to
prevent scratching.
SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com | Phone: [phone] | Fax: [phone]
TOOLS NEEDED FOR INSTALLATION
PARTS LIST IMAGES
1. US2-C8 Enclosures (1 pair)
4. M6x1.0x20mm (8mm Hex
Head) Screws & Washers x4
5. M6x1.0x45mm (5mm Allen
Head) Screws & Washers x4
3. Ring Clamp x 4
6. M6x1.0x6mm (3mm Allen
Head) Screws x4
7. #7 Screws x 8
(comes with unloaded pods only)
2. Dual Mounting Ring
Adapter x 2
- 5mm Allen Key
- 3mm Allen Key
- 8mm Open End Wrench
- #2 Phillips Screwdriver
Placement of the pod depends on what type of roll
cage you have (factory or aftermarket) and your
preference of where you want the pods to be installed.
In these instructions, we have installed them on the
outside vertical bars at the back of the roll cage.
US2-C8
Universal Cage Mount
SSV Works 8” Speaker Enclosures
FOR UNLOADED ENCLOSURES:
If using an alternative brand speaker, rst see if
the speaker holes line up with the screw bosses
(circled in pink on Figure 1). Use the supplied (8)
SSV Works #7 screws when installing your own
speaker.
Figure 1

D. Position the speaker to your liking and tighten the
M6x1.0x20mm screws.
E. Route the speaker wire away from any moving parts and any
sharp metal, then connect to the amplier.
D E
A. Find your desired orientation for the US-C8 on your roll
cage and fasten the set screws with a 3mm allen key in the
opposite holes of where the clamp will install.
B. Loosely install the clamp base to the US-C68 with (2)
M6x1.0x20mm screws and washers using a 8mm open-ended
wrench. Position the clamp base to your desired position and
tighten the (2) M6x1.0x20mm screws.
A B
C. Wrap a plastic bag around the roll cage to prevent scratching. Press the clamps onto the roll cage over the plastic bag. Place the (2) M6x1.0x45mm screws
and washers through the clamp and clamp base. Secure the clamps to the roll cage with a 5mm allen key.
C C C
© 2019 SSV Works, Oxnard, CA 93030 US2-C8 Rev. A 11-25-19
Connecting the US2-C8 using the pre-installed will require an optional SSV Works plug-&-play harness (B-H2195 - sold separately).
If you are not using the B-H2195 harness, simply cut off the two-pin connector and follow the wiring instruction below.
WIRING INSTRUCTIONS
For proper sound, ensure the speaker polarity is correct connect
the “+” to the “+” and the “-“to the “-“from the speaker wire to the
amplier. If using with an SSV Works complete system refer to the
amplier wiring instructions for more detailed wiring information.
“+”
“+”
“ - ”
“ - ”
