Stanley ST-70TW-KFA-E User manual

ST-45-KFA-E / ST-70T-KFA-E /ST-70TW-KFA-E /
ST-125T-KFA-E / ST-175T-KFA-E / ST-215T-KFA-E
NEVER LEAVE HEATER UNATTENDED WHILE BURNING, OR WHILE
CONNECTED TO A POWER SOURCE.
THIS PRODUCT IS NOT SUITABLE FOR PRIMARY HEATING PURPOSES.
STKB-480

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
1
© 2020, Obelis S.A Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY
BEFORE USING THE APPLIANCE.
- This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
- Children of less than 3 years should be kept away unless continuously supervised. Children aged
from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been
placed or installed in its intended normal operating position and they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the
appliance or perform user maintenance.
-CAUTION: Some parts of this product can become very hot and cause burns. Particular attention
has to be given where children and vulnerable people are present.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualied persons in order to avoid a hazard.
- The heater must not be located immediately below a socket-outlet.
- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
- This heater is lled with a precise quantity of special oil. Repairs requiring opening of the oil
container are only to be made by the manufacturer or his service agent who should be contacted if
there is an oil leak.
- When scrapping the heater, follow the regulations concerning the disposal of oil. Do not dispose
of the heater in household waste and recycle the heater where local facilities exist for electrical
goods and oil
- Place the appliance on a at, stable, heat-resistant surface. Operating the product in any other
position could cause a hazard.
- There may be trace of odour during the rst few minutes of initial use. This is normal and will
quickly disappear.
- Do not attempt to repair, disassemble or modify the appliance. There are no user-serviceable
parts inside.
-CAUTION: if using an extension lead please ensure you do not exceed the maximum rated
running wattage/load of the extension lead.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
2
© 2020, Obelis S.A Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
Read The Instruction manual: When this symbol is marked on a product,
it means that the instructon manual must be read.
WARNING! Never touch heater until heater has cooled off.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
5
3
4
6
2
8
9
17
19
7
118
12
110
19
11
7
6
3
16
13
4
5
8
9
14
2
15
ST-70T-KFA-E
ST-45-KFA-E
ST-125T-KFA-E
ST-175T-KFA-E
ST-215T-KFA-E
*ST-70T-KFA-E, ST-125T-KFA-E, ST-175T-KFA-E, ST-215T-KFA-E only
1. AIR OUTLET
2. FUEL TANK
3. FUEL GAUGE
4. FUEL CAP
5. POWER CORD
6. PRESSURE GAUGE (OPTIONAL)
7. AIR INLET
8. OPERATING SWITCH
9. *THERMOSTAT KNOB
10. FRONT HANDLE
11. REAR HANDLE
12. DISPLAY
13. LED FUEL GAUGE
14. STORAGE DRAWER
15. DRAIN BOLT
16. WHEEL SUPPORT FRAME
17. HANDLE
18. SCREWS
19. CORD WRAP (OPTIONAL)

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
3
© 2020, Obelis S.A Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
Model # ST-45-KFA-E ST-70T-KFA-E ST-125T-KFA-E ST-175T-KFA-E ST-215T-KFA-E
HEATING AREA (m3)104 158 288 400 492
THERMAL POWER (kW) 13.2 20.5 36.6 51.2 63.0
FUEL CONSUMPTION (L/H) 1.3 2.0 3.6 5.07 6.2
TANK CAPACITY (L) 19 19 38 L 49 49
MAX OPERATING HOURS 14 9 10 9.5 8
VOLTAGE (AMPS)
230V/50Hz 1.4 1.5 2.3 2.7 2.8
MOTOR AMPS 0.5 0.5 0.9 1.1 1.1
MOTOR PHASE SINGLE SINGLE SINGLE SINGLE SINGLE
HEATER HEAT OUTPUT (ºC) 388 393 404 516 649
AIRFLOW (CMH) 289 408 918 1070 1138
PUMP PRESSURE (BAR) 0.21 0.26 0.31 0.45 0.55
MINIMUM/MAXIMUM RECOMMEND-
ED OPERATING AMBIENT TEMPERA-
TURE
-12 ºC/24 ºC -12 ºC/24 ºC -12 ºC/24 ºC -12 ºC/24 ºC -12 ºC/24 ºC
PRODUCT DIMENSIONS (cm) 76 x 34 x 39 76 x 34 x 40 105 x 56 x 65 115 x 65 x 70 111 x 66 x 61
HEATER WEIGHT (Kg) 12.7 14.1 26.2 30 29.3
ALLOWED FUEL TYPES Parafn/Diesel Parafn/Diesel Parafn/Diesel Parafn/Diesel Parafn/Diesel
POWER INPUT (W) 160 160 252 298 298
SPECIFICATIONS
Specications subject to change without notice
WIRING DIAGRAM
1
WT
BK
OR
BK 4
2
12
13
GN
7
GN
7
11
10
BK
9
BR
BK
BK
BL
BL
8
5
3
6
15
14
BK
RD
RD
BK
PK
BK
BL
YL
BK
CN1
RD
10
11
12
13
1
RD
RD
PK
OR
WT
BK
3
4
5
GN
7
6
8RD
BL
9
GN
7
BR
BL
14
BK
BK
BK
15
20
RD
BK
BK
16
17
18
19
2
10 UF/250 VAC
1
RD
WT
RD
OR
BK
BK
WT
BK
BK
BK
BK
PK
BK
4
2
12
13
GN
GN
7
7
11
10 98
5
3
6
WT
YL
GN
7
WT
8 A/125 AVC
ST-45-KFA-E ST-70T-KFA-E ST-125T-KFA-E, ST-175T-KFA-E
ST-215T-KFA-E
*125T/175T/215T only
1. PANEL PCB
2. OPERATION LAMP/DIGITAL
DISPLAY*
3. IGNITOR
4. SPARK PLUG
5. PUMP
6. CAPACITOR
7. EARTH
8. FUSE
9. LIMIT CONTROL
10. OPERATING SWITCH
11. PHOTOCELL
12. POWER PLUG
13. AC 230V/ 50 Hz
14. ROOM SENSOR
15. THERMOSTAT
16. TEMPERATURE
17. RUN TIME
18. FULL
19. EMPTY
20. LEVEL SWITCH
BL. BLUE
RD. RED
BK. BLACK
WT. WHITE
GN. GREEN
BR. BROWN
YL. YELLOW
OR. ORANGE
PK. PINK

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
4
© 2020, Obelis S.A Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
WHAT’S IN THE BOX (45-KFA / 70T-KFA)
- Remove the heater and all packaging materials
from the shipping carton
Shown With Optional
Cord Wraps
Cord Wraps (Optional) Carry Handle (1)
10 mm Screws (2) 15 mm Screws (2) Fuse (1)
WHAT’S IN THE BOX (125T-KFA / 175T-KFA / 215T-KFA)
Tools Needed:
- Phillips Head Screw Driver
- 8 mm open end wrench
- 19 mm open end wrench
Tip: Be sure to remove the axle from the side of
the Styrofoam packaging.
Tip: Use a power screwdriver and locking wrench
for easier assembly.
Front Handle
Axle
Rear Handle
Wheel Support Frame
50 mm Screws (8) 30 mm Screws (4) 8 mm Nuts (12) Wheels (2) Fuse (1)
Axle Nuts (2) Bushings (2) Cord Wraps (2)
Heater (1)
Heater (1)
Y-Frame (2)
15 mm Screws (4)

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
5
© 2020, Obelis S.A Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
Safety Information
This is a parafin, direct-fired, forced air heater. It is primarily
intended for use for temporary heating of buildings under
construction, alteration or repair. This appliance produces small
amounts of carbon monoxide. WARNING! Risk of indoor air
pollution! Use this heater only in well ventilated areas! Provide at
least a 2,800 sq cm opening of outside air for every 29,3 kw/hr or
100,000 BTU/hr of heater rating. Provide a larger opening if more
heaters are being used.
Risk of burns / fire / explosion! NEVER
use fuel such as gasoline, benzene, alcohol,
white gas, camp stove fuel, paint thinners, or other oil compounds
in this heater (THESE ARE VOLATILE FUELS THAT CAN
CAUSE A FIRE OR EXPLOSION).
Minimum clearance from Combustibles:
- NEVER refill the heater’s fuel tank while heater is operating or
still hot. This heater is EXTREMELY HOT while in operation.
- Keep all combustible materials away from this heater.
- NEVER block air inlet (rear) or air outlet (front) of heater.
- NEVER use duct work in front or at rear of heater.
- NEVER move or handle heater while still hot.
- NEVER transport heater with fuel in its tank.
- If equipped with a thermostat, the heater may start at
any time.
- ALWAYS locate heater on a stable and level surface.
- ALWAYS keep children and animals away from heater.
- Bulk fuel storage should be a minimum of 7.6m (25 ft). from
heaters, torches, portable generators, or other sources of
ignition.
- ALWAYS unplug the heater when not in use.
- Not for use in homes or recreational vehicles.
- Never use this heater in living or sleeping areas.
- NEVER use heater where flam mable vapors may be present.
- Use only the electrical power (voltage and frequency)
specified on the model plate of the heater.
- ALWAYS install the heater so that it is not directly exposed to
water spray, rain, dripping water, or wind.
- NEVER store fuel in direct sunlight, indoors, or near a source
of heat.
- NEVER use fuel that has been stored from one season to the
next. Fuel deteriorates over time. OLD FUEL WILL NOT
BURN PROPERLY IN THIS HEATER.
Assembly
MODELS ST-45/70T-KFA-E
- Tools required: Medium phillips screw driver.
1. Align the holes in the upper housing with the 2 holes in the
handle.
2. Insert and tighten screws securely with screw driver.
3. Insert tabs on cordwrap into slots in shell support, lining up the
holes on the cordwrap with those on the side cover.
4. Insert and tighten screws securely with screw driver.
MODELS ST-70TW/ST-125T/175T/215T-KFA-E
- Tools required: Medium phillips screw driver, 8mm open end
or adjustable wrench, needle nose pliers.
1. Slide axle through holes in Wheel Support Frame.
2. Slide bushing onto each end of axel, outside of
support frame.
3. Slide wheels on to each axle.
4. Attach nut to axle and tighten.
5. Place heater on the assembled frame, making sure that the
air inlet end is by the wheels, and the mounting holes on the
tank flange of the heater align with holes in frame.
6. Take the front handle and align the mounting holes with the
corresponding holes in the tank flange/wheel frame. Slide a
screw (A) through the holes and loosely attach a nut. Repeat
for the other 3 holes, then fully tighten all 4 screws and nuts.
7. Repeat this process with the rear handle.
8. Attached cord wraps on both rear handles with 2 screws and
2 nuts, see Figure 1.
9. Attach "Y" frame to both sides of heater by aligning 2 holes
with holes on front and rear handles and tighten 2 screws.
Slide the "Y" cover clip up the handle to cap the end, see
Figure 2.
WARNING
Carbon Monoxide poisoning may lead to
death!
DANGER
NEVER REFUEL THIS
HEATER WHILE IT IS
HOT OR OPERATING.
FIRE OR EXPLOSION
COULD RESULT.
WARNING
NEVER FILL THE
FUEL TANK INDOORS.
ALWAYS FILL THE
TANK OUTDOORS.
BE SURE THAT THE
HEATER IS ON LEVEL
GROUND WHEN FUEL-
ING, AND NEVER
OVERFILL THE FUEL
TANK.
CAUTION

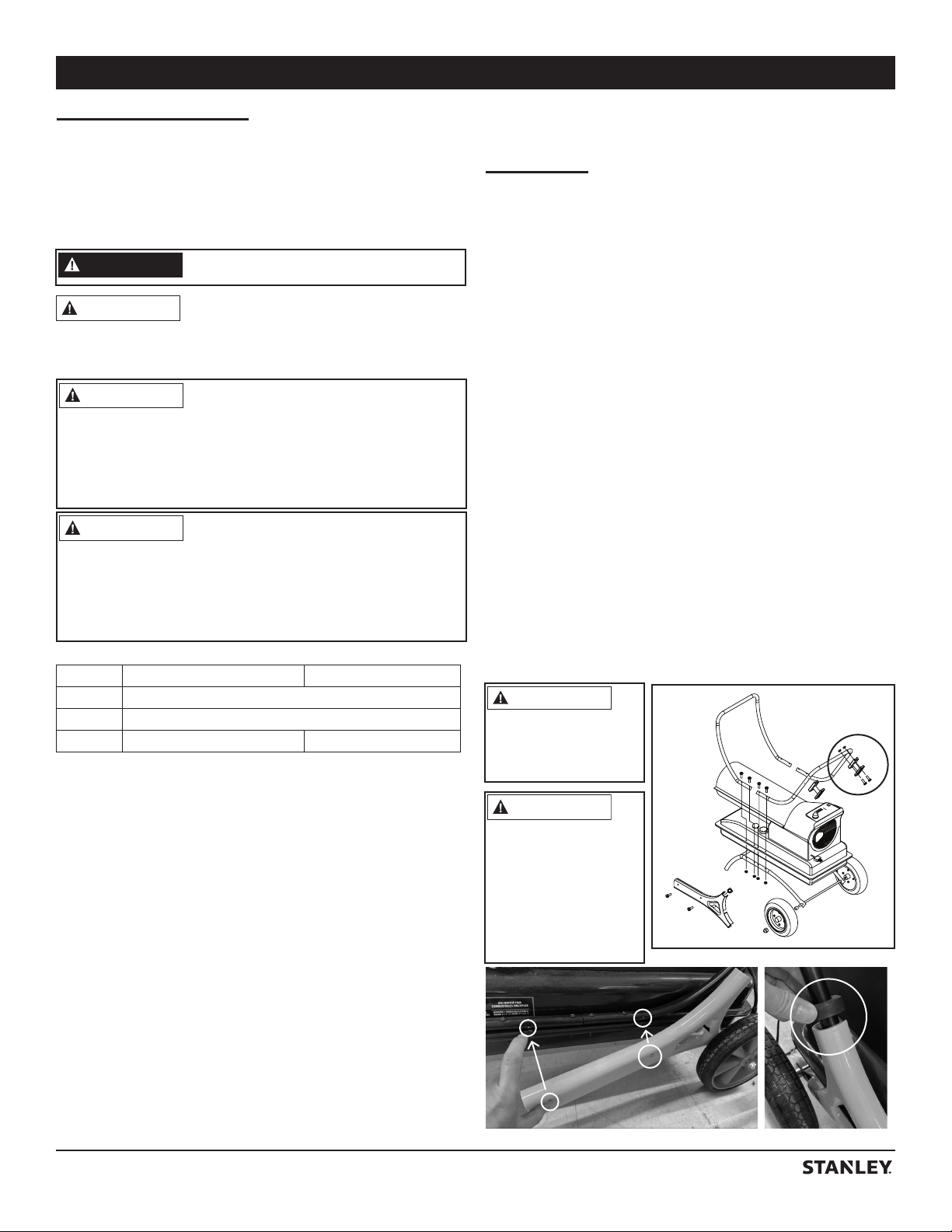

Figure 1. Handle Assembly
Figure 2 "Y" Frame Assembly
Do not operate this heater until you have
read, and thoroughly understand these
safety and operating instructions. Failure to comply with the
precautions and instructions provided with this heater can result
in death, serious bodily injury, property loss or damage from the
hazards of fire, soot production, explosion, burns, asphyxiation
or carbon monoxide poisoning. Only persons who can read and
understand these instructions should use or service this heater.
Retain this manual for your reference.
WARNING
Fire, burn, inhalation, and explosion
hazard. Keep combustibles a safe distance
away from the heater as recommended by these instructions.
Never use the heater in spaces which contain products such
as gasoline, solvents, paint thinners, dust particles, volatile or
airborne combustibles, or any unknown chemicals. This is an
unvented portable heater. It uses air (oxygen) from the area in
which it is used. Adequate combustion and ventilation air must
be provided.
WARNING
45-70T-70TW-125T-175T 215T
Top 4ft / 1.22m
Sides 4ft / 1.22m
Front 8ft / 2.44m 10ft / 3.05m

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
6
© 2020, Obelis S.A Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
Operation
This heater is factory-tested for use with 1-K kerosene/paraffin,
no. 1 & no. 2 diesel, JP8/Jet A Fuel, and no. 1 & no. 2 fuel oil.
TO START THE HEATER:
1. Fill the tank with paraffin until fuel gauge points to “F”.
2. Be sure fuel cap is secure.
3. Plug power cord into electrical outlet.
4. Turn thermostat control knob to desired temperature setting
(70/125/175/215 only). The setting range is from 5°C to 45°
C. Push the Power switch to the “ON” position. The power
indicator lamp and room temperature display (125/175/215
only) will light and the heater will start.
Optimum pressure occurs when the nose cone is cherry red
and there are no extending flames from the heater.
NOTE: The room temperature display (125/175/215 only) will
indicate the following:
- When temperature is less than -17° C, display says “LO”.
- When temperature is above 37° C, display says “HI”.
- Between -17°and 37°C display shows actual temperature.
TO STOP THE HEATER: Turn the Temp. Setting Knob to left,
turn the Power Switch to “OFF” position, and unplug the Power
Cord.
TO RESTART THE HEATER
1. Wait ten seconds after shutting off heater.
2. Turn the Power Switch to “ON” position.
3. Be sure to follow all starting procedure precautions.
LONG TERM STORAGE
Drain Fuel Tank
1. For models ST-45/70T/70TW-KFA-E, drain fuel through the
fuel cap opening using an approved siphon. For models
ST-125/175/215-KFA-E, drain fuel through the Drain Plug at
the bottom of the Fuel Tank.
2. To remove the Drain Plug (125/175/215), pull the Plug Grip
downward and remove seal head from drain hole in tank.
3. Rinse and completely empty the tank.
4. To replace, push the drain head fully into the drain hole and
secure by pushing the seal cap fully into the head hole.
IMPORTANT: Never store leftover fuel over the summer.
Using old fuel can damage your heater.
Store heater in a dry, well-ventilated area! If your heater
cannot be stored indoors, a tarp or weatherproof cover must be
used to protect the heater.
Be sure that the storage area is free of dust and corrosive
vapors. Repack the heater in the original shipping material. Keep
the Users Manual in an easily accessible place.
Maintenance
Always service heater in a clean, flat, dry area. Never service
heater while it is plugged in or while hot!
Never service heater in wet conditions. In an emergency, be
sure heater has completely cooled before servicing using a
tarp or weatherproof cover, to ensure heater or electronics
inside heater are not exposed to wet conditions. Do not
service heater while plugged in under any circumstance.
FUEL/FUEL TANK: Flush every 200 hours of operation or as
needed with paraffin.
AIR FILTERS: Open heater lid to access filters. Filters should
be replaced every 500 hours of operation, or less, depending on
conditions. See figure 7.1 on page 7 for detailed view.
FAN BLADES: Open heater lid to access fan blades. Blades
should be cleaned at least once per heating season. See figure
6.1 on page 7 for detailed view.
NOZZLES: Open heater lid and remove burner head to access
nozzle. Nozzles should be cleaned or replaced at least once per
heating season. See figure 3.1 on page 7 for detailed view.
SPARK PLUG: Open heater lid to access spark plug. Clean and
re-gap every 600 hours of operation, or replace as needed.
Re-gap the terminals to 3.5mm. See figure 3.1 on page 7 for
detailed view.
PHOTOCELL: Open heater lid to access photocell. The Photocell
should be cleaned at least once per heating season or more
depending on conditions. See figures 4.1 and 5.1 on page 7 for
detailed view.
After servicing your heater you should perform the following
function check before commissioning this heater:
- check the air and fuel lines for leaks using a 50/50 soap
solution
- check extension cord for wear, cracks or cuts
- check to see igniter lines are connected securely to spark plug
Improper maintenance can lead to poor combustion and
soot production. Never alter or modify the heater. Use
only genuine parts from the manufacturer or sales agent
for repair and maintenance on your heater, and contact the
manufacturer or sales agent before replacing parts other
than those specified or recommended.
PUMP PRESSURE ADJUSTMENT:
While heater is operating, turn relief valve clockwise to increase,
counterclockwise to decrease. Use flat blade screwdriver to turn
valve. Correct pump pressure is on page 2.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with the
appliance.
If the power cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Figure 2. Start The Heater
On / Off Switch
LED Operating
Time/ Temp
Temp Setting Knob
LED - Fuel Gauge

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
7
© 2020, Obelis S.A Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
TROUBLESHOOTING GUIDE
Problem Possible Cause Solution
Heater fires, but Main PCB shuts
heater off after a short period of time.
Lamp is flickering, and LED display
shows “E1”
1. Incorrect pump pressure
2. Dirty Input, Output or Lint Filter
3. Dirty Fuel Filter
4. Nozzle is Dirty
5. Photocell lens is Dirty
6. Photocell not installed properly
7. Photocell Defective
8. Improper electrical connection
between Main PCB and Photocell
1. Adjust Pump Pressure
2. Clean/replace Air Filter
3. Clean/replace Fuel Filter
4. Clean/replace Nozzle
5. Clean/replace Photocell
6. Adjust Photocell position
7. Replace Photocell
8. Check wiring connections (See Wiring
Diagrams, Page 7)
Heater will not operate, or motor runs
for short time. Lamp flickers and LED
display shows “E1”
1. No paraffin in fuel tank
2. Incorrect pump pressure
3. Corroded Spark Plug or incorrect plug
gap.
4. Dirty Fuel Filter
5. Dirty Nozzle
6. Moisture in Fuel/Fuel Tank
7. Improper electrical connection
between Transformer and Circuit
Board
8. Ignitor Wire not connected to Spark
Plug
9. Defective Ignitor
1. Fill tank with fresh paraffin
2. Adjust Pump Pressure
3. Clean/replace Spark Plug
4. Clean/replace Fuel Filter
5. Clean/replace Nozzle
6. Rinse out fuel tank with clean fresh
paraffin
7. Inspect all electrical connections. See
Wiring Diagrams
8. Re-attach Ignitor wire to Spark Plug
9. Replace Ignitor
Fan does not operate when heater is
plugged in and Power Switch is in the
“ON” position. The lamp is flickering
or on and LED Display shows “E1” or
“E2”
1. Thermostat is set too low (Does not
apply to ST-45-KFA-E)
2. Broken electrical connection between
Main PCB and motor
1. Rotate thermostat to a higher setting
2. Inspect all electrical connections. See
Wiring Diagrams (Page 7)
Lamp is flickering, and LED display
shows “E3” 1. Thermostat Switch has failed 1. Replace Thermostat Switch
Poor Combustion and / or excess soot
production
1. Dirty Input, Output or Lint Filter
2. Dirty Fuel Filter
3. Poor quality of fuel
4. PSI is too high or too low
1. Clean/replace Air Filter
2. Clean/replace Fuel Filter
3. Be sure fuel is not contaminated or old
4. Use proper pressure
Heater does not turn on and the lamp
is not lit
1. Temperature limit sensor has
overheated
2. No electrical power
3. Fuse Blown
4. Improper electrical connection
between Temperature Limit Sensor
and Circuit Board
1. Push Power Switch to “OFF” and allow
heater to cool for 10 minutes. Push
Power Switch to back to “ON”
2. Check power cord and extension cord
to insure of proper connection. Test
power supply
3. Check/replace Fuse
4. Inspect all electrical connections.
Wiring Diagrams (Page 7)

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
8
© 2020, Obelis S.A Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
PART MAINTENANCE
15
16
17
18
12
14
13
X
X
10 11
10
20
2
5
19
1
2
3
4
5
6
7
13
9
8
5.1
7.1
3.1
4.1
6.1
8.1
1. BURNER HEAD
2. SCREW
3. SPARK PLUG
4. IGNITOR WIRE
5. FUEL HOSE
6. AIR HOSE
7. NOZZLE
8. AIR LINE FITTING
9. FUEL LINE FITTING
10. PHOTOCELL
11. PHOTOCELL LENS
12. SET SCREW
13. MOTOR SHAFT
14. FAN BLADE
15. OUTPUT FILTER
16. INTAKE FILTER
17. END FILTER COVER
18. LINT FILTER
19. FUEL FILTER
20. PCB

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
9
© 2020, Obelis S.A Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
EXPLODED VIEW: ST-125T-KFA-E / ST-175T-KFA-E / ST-215T-KFA-E
41
43
44
45
46
47
48
49
49
50
19
20
21
22 23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
42
51
52

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
10
© 2020, Obelis S.A Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
PARTS LIST
#ST-125T-KFA-E / ST-175T-KFA-E / ST-215T-KFA-E
1Fuel Tank
2Drain Bolt
3Fuel Gauge
4Fuel Filter
5Fuel Cap
6Power Cord
7Power Switch
8Electronic Fuel Gauge
9Thermostat Control Knob
10 Lower Shell
11 Air Line
12 Temperature Limit Switch
13 Combustion Chamber
14 Photocell Bracket
15 Fuel Line
16 Photocell
17 Burner Head
18 Nozzle Assembly
19 Spark Plug
20 Motor
21 Pump Body
22 End Pump Cover
23 Filter Kit (intake, output, and lint filters)
24 End Filter Cover
25 Bolt
26 Pump Adjustment Kit
27 Pump Cover Nipple
28 Capacitor
29 Fan Blade
30 Igniter
31 Right Side Cover
32 Left Side Cover
33 Fan Guard
34 Main PCB
35 5 Amp Fuse
36 Shell Clip
37 Upper Shell
38 Right "Y" Cover
39 Left "Y" Cover
40 "Y" Cover Clip
41 Air Pressure Gauge
42 Cord Bushing
43 Wheel Support Frame (Inside "Y" Covers)
44 Rear Handle
45 Wheel Support Frame (Front Leg)
46 Wheel Axle
47 Wheel
48 Wheel Nut
49 Wheel Bushing
50 Handle
51 Top Cover
52 Cord Wrap

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
11
© 2020, Obelis S.A Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
13
1012
8
11
929
25
3
15
2
4
67
21
23
16
17
18
20 30
19
14
33
32
28
27
5
31
30
24
26
34
22
EXPLODED VIEW: ST-45-KFA-E / ST-70T-KFA-E
1

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
12
© 2020, Obelis S.A Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
PARTS LIST
#ST-45-KFA-E / ST-70T-KFA-E
1Fuel Tank
2Fuel Gauge
3Fuel Filter
4Fuel Cap
5Power Cord
6Power Switch
7Thermostat Control Knob
8Air Line
9Thermostat Limit Control
10 Photocell Bracket
11 Fuel Line
12 Photocell
13 Burner Head Assembly
14 Nozzle Kit
15 Spark Plug Kit
16 Motor
17 Pump Body
18 Rotor Kit
19 End Pump Cover
20 Filter Kit
21 End Filter Cover
22 Pump Adjustment Kit
23 Capacitor
24 Fan
25 Ignitor
26 Fan Guard
27 Main PCB Assembly
28 Fuse
29 Clip Nut
30 Air Pressure Gauge
31 Cord Bushing
32 Handle
33 Cord Wrap
34 Motor Supporter

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE
13
© 2020, Obelis S.A Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
Belgique et Luxemburg
België en Luxembourg
E. Walschaertstraat 14
2800 Mechelen
Belgium
www.stanleyworks.be
[e-mail]
BE-NL= [phone]
BE-FR = [phone]
BE Fax: [phone]
Danmark Roskildevej 22
2620 Albertslund
www.stanleyworks.dk
[email protected]
Fax: [phone]
Deutschland Richard Klinger Str. 11
65510 Idstein
www.stanleyworks.de
[email protected]
Tel: [phone]
Fax: [phone]
Ελλάς HμεροςΤόπος 2 - Χάνι Αδάμ Ασπρόπυργος
-19300 -Αττική - Αττικής
www.stanley.gr
[email protected]
Τηλ: [phone]
Φαξ: [phone]
España Parque de Negocios“Mas Blau”
Edicio Muntadas, c/Bergadá, 1, Of. A6
08820 El Prat de Llobregat (Barcelona)
www.stanleyworks.es
[email protected]om
Tel: [phone]
Fax: [phone]
France 5, allée des hêtres
BP 30084, 69579 Limonest Cedex
www.stanleyoutillage.fr
[email protected]
Tel: [phone]
Fax: [phone]
Schweiz
Suisse
Svizzera
In der Luberzen 42
8902 Urdorf
www.stanleyworks.ch
[email protected]
Tel: 044 - 755 60 70
Fax: 044 - 730 70 67
Ireland 210 Bath Road; Slough, Berks SL1 3YD UK www.stanleytools.co.uk
Tel: [phone]
Fax: [phone]
Italia Energypark–Building 03 sud, Via Energy Park
6 20871Vimercate (MB)
www.stanley.it
Tel. [phone]
Fax [phone]
Nederlands Stanley Black & Decker Netherlands B.V.
Postbus 83
6120 AD Born
www.stanleyworks.nl
[e-mail]
Tel : [phone]
NL Fax: [phone]
Norge Postboks 4613, Nydalen
0405 Oslo
www.stanleyworks.no
[email protected]
Fax: [phone]
Österreich Oberlaaerstrasse 248
A-1230Wien
www.stanleyworks.de
[email protected]
Tel: 01 - 66116 - 0
Fax: 01 - 66116 - 14
Portugal Quinta da Fonte - Edifício Q55 D. Diniz
Rua dos Malhões, 2 e 2A - Piso 2 Esquerdo
2770 - 071 Paço de Arcos
www.stanleyworks.pt
[e-mail]
Tel: [phone]
Fax: [phone]
Suomi PL 47
00521 Helsinki
www.stanleyworks.
customerservice.@sbdinc.com
Puh: 010 400 4333
Sverige Box 94
431 22 Mölndal
www.stanleyworks.se
[email protected]
Fax: [phone]
United Kingdom 210 Bath Road; Slough, Berks SL1 3YD www.stanleytools.co.uk
Tel: [phone]
Fax: [phone]
Hungary Rotel Kft.
1163 Budapest,Thököly út 17.
www.stanleyworks.hu
[email protected]
Tel [phone]
Fax[phone]
Czech Republic BAND SERVIS CZ s.r.o.
K Pasekam 4440
760 01 Zlín, Czech Republic
www.stanleyworks.cz
http://www.bandservis.cz
Tel.: [phone]
Fax.: [phone]
Slovakia BAND SERVIS s.r.o.
Paulinska 22
917 01Trnava, Slovakia
www.bandservis.sk
Tel.: [phone]
Fax.: [phone]
Poland Erpatech
ul. Bakaliowa 26
05-080 Mościska
www.stanleyworks.pl
Tel.: [phone]
Fax.: [phone]
Slovenia G-M&M d.o.o.
Brvace 11
1290 Grosuplje Slovenija
www.g-mm.si
[email protected]
T: [phone]
F: [phone]
Cyprus IOANNOU J.
4A Ath.Diakou street
1046- Nicosia -Cyprus
[email protected]
Τel : [phone]
Fax : [phone]
Bosnia-Herzegovina G-M&M d.o.o.
Brvace 11
1290 Grosuplje
Slovenija
www.g-mm.si
[email protected]
T: [phone]
F: [phone]
Bulgaria TASHEV-GALVING LTD
68 KLIMENT OHRIDSKI BLVD.
1756 Soa, Bulgaria
www.tashev-galving.com
T: [phone]
F: [phone]
Croatia G-M&M d.o.o.
Brvace 11
1290 Grosuplje
Slovenija
www.g-mm.si
[email protected]
T: [phone]
F: [phone]
Estonia ASTallmac
Mustame tee 44,
EE-10621Tallinn
www.tallmac.ee/est
T: [phone]
F: [phone]
Latvia LIC GOTUS SIA
Ulbrokas Str.
LT - 1021 Rīga
www.licgotus.lv
T: [phone]
F: [phone]
Lithuania UAB ELREMTA OU
Neries kr. 16E
LT - 48402 Kaunas
[email protected]
T: [phone]
F: [phone]
Malta Energypark–Building 03 sud,Via Energy Park
6 20871Vimercate (MB)
www.stanley.it
Tel. [phone]
Fax [phone]
Romania Stanley Black & Decker
Phoenicia Business Center
StradaTurturelelor, nr 11A, Etaj 6, Modul 15,
Sector 3 Bucuresti
www.stanleyworks.ro
T: +4021.320.61.04/05
F: +4037.225.36.84
Serbia G-M&M d.o.o.
Brvace 11
1290 Grosuplje
Slovenija
www.g-mm.si
[email protected]
T: [phone]
F: [phone]
SERVICE
STXA-819

Manufactured by:
Pinnacle Climate Technologies, Inc.
Sauk Rapids, MN 56379 USA
EC
REP
Obelis S.A
Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
© 2020 Stanley Black & Decker, Inc.
