Stanley ST-125-OFR-E User manual

CONSUMER: READ AND SAVE THESE INSTRUCTIONS
GENERAL HAZARD WARNING:
READ AND UNDERSTAND ALL OF THE INSTRUCTIONS IN THIS MANUAL
BEFORE ASSEMBLING, STARTING, OR SERVICING THE HEATER. Be sure to comply with the
instructions and warnings provided with this heater. Failure to comply can result in fire or explosion
that can cause property loss, bodily injury, or loss of life. Only persons who can follow and
understand these instructions should operate or service this heater. If you need heater info; such as
an operating manual, labels, etcetera, contact the manufacturer.
DANGER
NOT FOR USE IN RESIDENTIAL LIVING AREAS OR IN ENCLOSED SPACES
WITHOUT ADEQUATE VENTILATION. FOR OUTDOOR USE. INDOOR USE
PERMITTED ONLY FOR: THE TEMPORARY HEATING OF ADEQUATELY VENTILATED
BUILDINGS OR STRUCTURES UNDER CONSTRUCTION, ALTERATION OR REPAIR. This is
an unvented portable heater that uses air (Oxygen) from within the area in which it is used. Failure
to provide adequate combustion and ventilation air will result in asphyxiation, carbon monoxide
poisoning, bodily injury or death. Refer to “Ventilation” on Page 8.
DANGER
Factory ID: 500
Model Numbers
ST-70-SS-E / ST-70T-SS-E / ST-125-OFR-E
STRB-436
This product is not suitable for primary heating purposes.

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
1
Table Of Contents
Safety Information ......................................... 1-2
Features and Specications .......................... 3-4
Assembly....................................................... 5-7
Ventilation......................................................... 8
Operation....................................................... 8-9
Maintenance.............................................. 10-11
Troubleshooting Guide ................................... 12
Wiring Diagrams............................................. 13
Exploded Views ......................................... 14-16
Parts List............................................... 14,15,17
Safety Information
FIRE, BURN, INHALATION AND EXPLOSION HAZARD. Keep combustibles such
as; building materials, paper or cardboard a safe distance away from the heater
as recommended by these instructions. Never use the heater in spaces which contain products
such as; gasoline, solvents, paint thinners, dust particles, volatile or airborne combustibles or any
unknown chemicals. This is an unvented portable heater. It uses air (Oxygen) from the area in
which it is used. Adequate combustion and ventilation air must be provided. Refer to “Ventilation”
on page 6. Bulk fuel storage should be a minimum of 25 feet / 7.6 meters from heater.
WARNING
DO NOT OPERATE THIS HEATER UNTIL YOU HAVE READ AND THOROUGHLY
UNDERSTAND THESE SAFETY AND OPERATING INSTRUCTIONS.
Failure to comply with the precautions and instructions provided with this heater can result in death,
serious bodily injury, property loss or damage from the hazards of fire, soot production, explosions,
burns, asphyxiation or carbon monoxide poisoning. Only persons who can read and understand
these instructions should use or service this heater.
WARNING
Look for this icon throughout the manual for helpful tips on how to
assemble, use and clean your OFR/SS Heater.
DO NOT START THE HEATER WHEN EXCESS OIL HAS ACCUMULATED.
WARNING
DO NOT START THE HEATER WHEN THE CHAMBER IS HOT.
WARNING
THE INSTALLATION OF THIS HEATER SHALL COMPLY WITH THE REGULATIONS OF THE
AUTHORITIES HAVING JURISDICTION.
This appliance should not be used by children 16 years and younger and persons with
reduced physical, sensory, or mental capabilities or lack of experience and knowledge even
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Read The Instruction manual: When this symbol is
marked on a product, it means that the instruction
manual must be read.
WARNING! Never touch heater until heater
has cooled off.

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
2
Safety Information
The products described in this manual are
Parafn/Diesel direct-red, forced air heaters.
Parafn/Diesel forced air heaters are primarily
intended for use for temporary heating of
buildings under construction, alteration or repair.
Direct-red means that all of the combustion
products of the heater enter the heated space.
This appliance is rated at 98% combustion
efciency, but does produce small amounts of
carbon monoxide.
Carbon monoxide is toxic. Humans can tolerate
only small amounts of carbon monoxide and so
precautions should be taken to provide proper
ventilation. Failure to provide proper ventilation
in accordance with the instructions in this manual
can result in death.
People with breathing problems should consult a
physician before using this heater.
Early signs of carbon monoxide poisoning
resemble the u. Symptoms of improper
ventilation / carbon monoxide poisoning are:
Headache • Dizziness • Nausea • Dry Mouth
Sore Throat •Burning of Nose and Eyes
If you experience any of these symptoms:
GET FRESH AIR AT ONCE! Have your heater
serviced and check for proper ventilation. Some
people are more affected by carbon monoxide
than others. These include: pregnant women,
those with heart or lung problems, anemia or those
under the influence of alcohol or at high altitudes.
FOR OUTDOOR USE. INDOOR USE
PERMITTED ONLY FOR: The temporary
heating of adequately ventilated buildings or
structures under construction, alteration or
repair! Provide at least 2,800 sq. cm (3 sq. ft.)
opening of outside air for every 29 kW( 100,000
Btu/Hr) heater rating. Refer to “Ventilation” on
page 8 for further instructions.
ALWAYS use only the electrical power (voltage and
frequency) specified on the model plate of the heater.
ALWAYS use only three-prong, grounded outlet and
extension cord.
ALWAYS use only 14 AWG or better extension cord.
ALWAYS unplug the heater when not in use.
ALWAYS install the heater so that it is not directly
exposed to water spray, rain, dripping water, or wind.
NEVER use fuels such as gasoline, benzine, paint
thinners or other oil compounds in this heater.
NEVER refill the heater’s fuel tank while the
heater is operating or still hot. This heater is
EXTREMELY HOT while in operation.
NEVER block air outlet (front).
NEVER use duct work in front of heater.
NEVER move or handle heater while still hot.
NEVER transport heater with fuel in tank.
NEVER use with an external fuel tank.
Keep all combustible materials away from this heater.
Minimum Clearance From Combustibles
ST-70-SS-E / ST-70T-SS-E ST-125-OFR-E
Top 1.2 m 1.2 m
Sides 1.2 m 1.2 m
Front 2.4 m 2.4 m
ALWAYS locate heater on a stable and level surface.
If your heater is equipped with a thermostat,
once it is plugged in, it can start at anytime in
accordance with the thermostat setting.
RISK OF INDOOR AIR
POLLUTION!
WARNING
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
WARNING
RISK OF BURNS, FIRE AND
EXPLOSION!
WARNING
RISK OF ELECTRIC SHOCK!
WARNING
CAUTION! HOT WHILE IN
OPERATION. DO NOT TOUCH.
KEEP CHILDREN, ANIMALS, CLOTHING AND
COMBUSTIBLES AWAY FROM HEATER.
WARNING

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
3
Specications
Features
Model # ST-70-SS-E / ST-70T-SS-E ST-125-OFR-E
Rating: kW 20,5 36,6
Fuel Consumption: L/Hr 1,9 3.2
Fuel Tank Capacity: L 15,1 53
Max Operating Hours 8 20
Volts: AC/Hz 230VAC / 50Hz 230VAC / 50Hz
Heating Area m2186 290
Specications subject to change without notice.
ST-70-SS-E / ST-70T-SS-E
Figure 1

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
Features
ST-125-OFR-E
Radiant Cone
Front Safety
Guard
Radiant
Visors
Adjustment Knob
Can Tilt Up To 15°
Wheel Drain Bolt
Wheel Frame
Fuel Cap
Handle
4

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
5
Assembly Instructions
ST-70-SS-E / ST-70T-SS-E
What’s In The Box
Carry Handle (1) Black Screws (2)
Carry Handle Assembly
1. Align holes in the upper housing with the 2
holes in the handle as shown in Figure 2.
2. Insert screws and tighten firmly.
Tools Needed:
- Phillips Head Screw Driver
Figure 2
- Remove the heater and all packaging materials
from the shipping carton.
Note: Save the box and packaging materials
for future storage.
Figure 3
Attach the handle while still in the box
for easier unpacking. (See Figure 3)

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
Assembly Instructions
ST-125-OFR-E
- Remove the heater and all packaging
materials from the shipping carton.
Note: Save the box and packaging materials
for future storage.
What’s In The Box
Long Screws (6) Short Screws (4) 8 mm Nuts (6) Tires (2)
Visor (1) 19 mm Axle Nuts (2) Spacers (2) Washers (2) Axle (1)
Safety Guards (Top, Front) Wheel Frame
6

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
Assembly
1. Slide axle through Wheel Frame and attach
wheels, washers and nuts.
2. Place main structure on wheel frame and
fasten with long screws provided.
3. Attach safety guard to front of heater with
screws provided.
4. Attach Radiant Visors to the top and bottom
rear of the Radiant Cone Assembly using extra
screws included.
5. Attach top safety guard using the two
outer-most extra screws on the top of the
radiant cone (See photo).
Note: Save the box and packaging materials for
future storage.
Screws
Radiant
Cone
Assembly
Safety
Guard
Radiant Visor
7

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
Operation
Fueling The Heater:
Parafn
For optimal performance of this heater, it is
strongly suggested that Parafn be used.
Parafn has been rened to virtually eliminate
contaminants, such as sulfur, which can cause
a rotten egg odor during the operation of the
heater. Using diesel fuel can cause excess soot
production. Do not use Bio-Diesel or Farm “red”
diesel as this fuel will damage your heater’s seals
and lter.
Factory tested for use with parafn, no. 1 &
no.2 diesel, JP8/Jet A Fuel, no. 1 and no. 2
fuel oil.
- NEVER use fuel such as, benzene, alcohol, white
gas, camp stove fuel, paint thinners, or other oil
compounds in this heater. THESE ARE VOLATILE
FUELS THAT CAN CAUSE A FIRE OR
EXPLOSION.
- NEVER store Paraffin in the living space. Paraffin
should be stored in a well ventilated area outside
the living area.
- NEVER store Paraffin in direct sunlight or near a
source of heat.
- NEVER use Paraffin that has been stored from one
season to the next. Paraffin deteriorates over time.
OLD Paraffin WILL NOT BURN PROPERLY IN
THIS HEATER.
NOTE: Parafn should only be stored in
a blue container that is clearly marked
“Parafn.” Never store Parafn in a red
container. Red is associated with gasoline.
Ventilation:
- Risk of indoor air pollution and Carbon
Monoxide Poisoning. Use heater only in well
ventilated areas.
- Refer to Safety Information on pages 1-2 for
information about Carbon Monoxide Poisoning.
- ALWAYS provide a fresh air opening in the heated
space of at least 2,800 square centimeters
(3 sq. ft) for each 29 kW (100,000 Btu / Hr.) of
heater output. Provide a larger opening if more
heaters are being used.
Minimum Ventilation Opening Needed
ST-70-SS-E /
ST-70T-SS-E ST-125-OFR-E
1950 cm23484 cm2
NEVER FILL THE FUEL TANK
INDOORS. ALWAYS FILL
THE TANK OUTDOORS. BE SURE THAT
THE HEATER IS ON LEVEL GROUND WHEN
FUELING, AND NEVER OVERFILL THE TANK.
CAUTION
NEVER REFUEL THIS HEATER
WHILE IT IS HOT OR
OPERATING. FIRE OR EXPLOSION COULD
RESULT.
DANGER
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
DANGER
8
DO NOT USE GASOLINE OR
CRANKCASE DRAININGS.
WARNING
This appliance is designed to
operate safely at a minimum
ambient temperature of -20° C.
WARNING
Use caution when servicing in
wet areas. Disconnect power
from the power mains and keep all electrical
components from becoming wet. Only a
qualified technician should service the
heater
WARNING
A qualified technician is
required to install, adjust and
where necessary; convert this heater for use
with other fuel types.
WARNING

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
Operation: ST-70-SS-E / ST-70T-SS-E / ST-125-OFR-E
Starting the Heater: (Ignition)
1. Fill the tank with Paraffin or other approved
fuel until needle on fuel gauge points to “F”.
2. Replace fuel cap and tighten firmly.
NOTE: On first ignition or after refueling,
you may hear a grinding sound just before
ignition. This is the fuel pump removing the
air from the fuel line. Your heater will start up
within seconds. If it does not start repeat
start-up procedures with fuel gauge reading at
least 1/2 tank.
NOTE: Smoking may occur on first ignition.
NOTE: The electrical components of these
heaters are protected by a fuse mounted
in the PC board. If the heater fails to ignite,
check this fuse first and replace if necessary.
Also check the power source to be sure the
proper voltage is being provided to the heater.
1. Complete steps 1-3 above.
2. Push the power switch to the “ON” position.
The power indicator lamp will light and heater
will ignite. (See Figure 5)
Stopping the Heater: (Cool Down)
1. Turn the power switch to the “OFF” position.
Combustion will stop and the Cooling Cycle
will begin.
- ST-70-SS-E / ST-70T-SS-E: approx. 7 mins
- ST-125-OFR-E: approx 3 mins
When the Cooling Cycle is complete the fan
will stop running and it will be safe to unplug
the heater.
NOTE: Unplugging the heater before the
Cooling Cycle has been completed may cause
overheating, possible damage to the heater and
heat plate.
Restarting the Heater:
1. Wait ten seconds after Cooling Cycle has
been completed.
2. Follow all start-up procedures above.
Figure 5
Power Switch
9
DO NOT disconnect heater
from power source before
cooling cycle has been completed.
WARNING

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
Maintenance: ST-70-SS-E / ST-70T-SS-E / ST-125-OFR-E
Long Term Storage:
1. Unscrew the fuel cap.
2. Using an approved siphon, remove the
Parafn or diesel.
3. Using a small amount of Parafn or diesel,
rinse and swirl the fuel inside the fuel tank
NOTE: NEVER MIX WATER WITH FUEL. It will
cause rust inside the tank.
4. Empty the tank completely.
IMPORTANT: Never store leftover Parafn
between seasons, using old fuel can
damage heater.
Store Heater in a dry, well ventilated area.
- Be sure that the storage area is free of dust
and corrosive vapors. Repack the heater
in the original packaging and keep user’s
manual in an easily accessible place.
Service:
DO NOT TAMPER WITH THE UNIT. HAVE AN
EXPERIENCED SERVICEMAN MAKE ANY
NECESSARY ADJUSTMENT OR REPAIRS.
We suggest following a maintenance schedule as
follows:
FUEL / FUEL TANK:
Flush tank every 200 hours of operation or as
needed. DO NOT ush with water, use fresh
Parafn only.

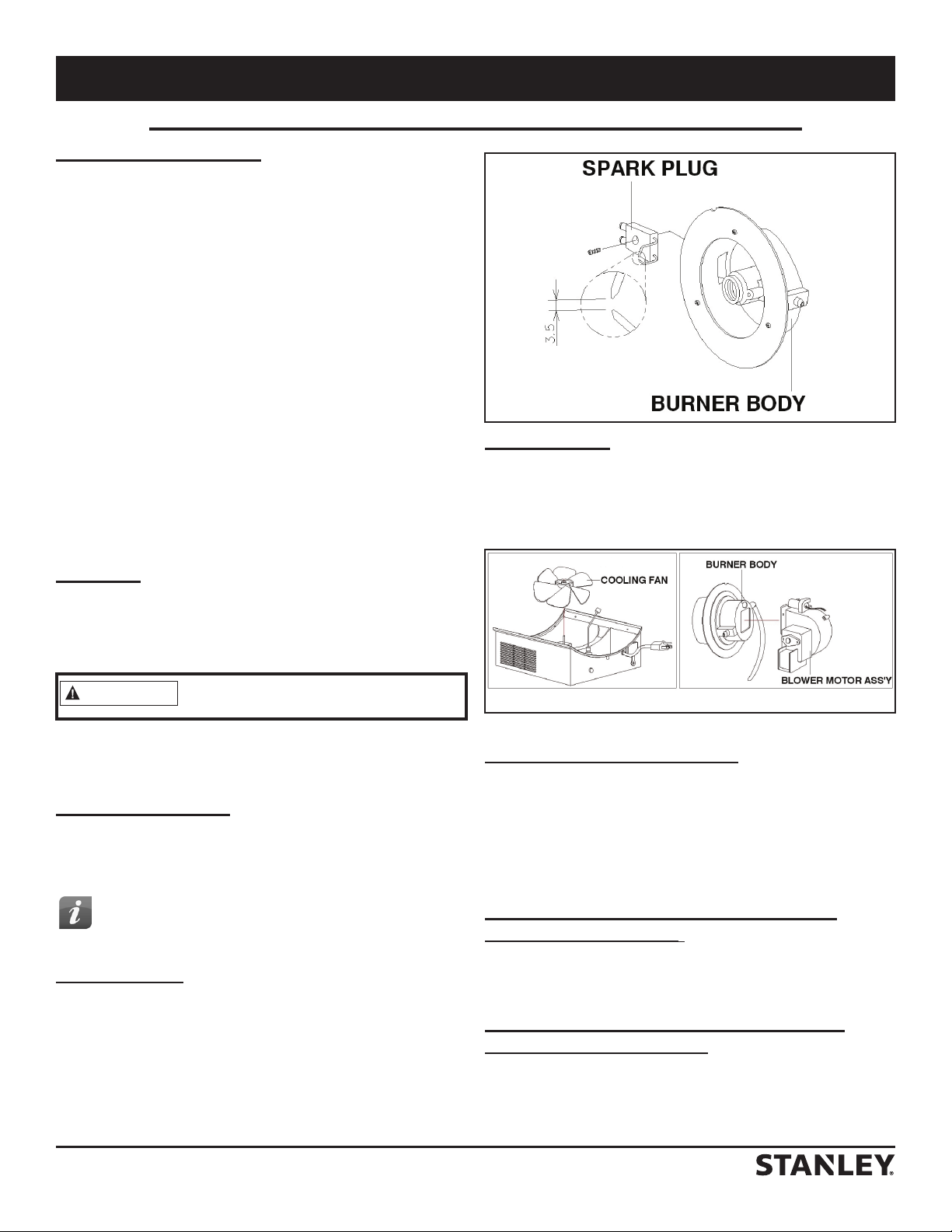

SPARK PLUG:
Clean and re-gap every 600 hours of operation
or replace as needed. After removing the Spark
Plug, clean the terminals with a wire brush.
Re-gap the terminals to 0.140” (3.5mm).
(See Figure 7)
FAN BLADES:
The fan blades should be cleaned at least once
per heating season, depending on conditions.
Remove all accumulated dust and dirt with a
burst of condensed air. (See Figure 8)
PRESSURE ADJUSTMENTS:
Proper pressure is dependent on the fuel type
the unit will be running. When smoking or non-
ignition occurs, remove the lower panel. Locate
the brass screw on the fuel pump to the left of the
fuel line.
If you are experiencing smoking or fuel
dripping from the unit,turn the screw clockwise
1/8 to 1/4 of a turn to increase the fuel pressure
until the unit is operating properly.
If you are experiencing extended flames
from the front of the unit, turn the screw 1/8 to
1/4 of a turn counterclockwise to reduce the air
pressure until the unit is operating properly.
TIP: Follow the long term storage
instructions to ush the tank.
Never service heater while it is
plugged in or hot!
WARNING
Figure 7
Figure 8
ST-70-SS-E / ST-70T-SS-E ST-70-SS-E / ST-70T-SS-E / ST-125-OFR-E
10

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
Maintenance: ST-70-SS-E / ST-70T-SS-E / ST-125-OFR-E
Service (Continued):
NOZZLES:
Nozzles should be cleaned or replaced at least
once per heating season. Contaminated fuel
could make this necessary immediately. To clean
dirt from nozzle, blow compressed air through
nozzle front. It may be necessary to soak nozzle
in clean Parafn or diesel to help loosen any
particles. (See Figure 9)
PHOTOCELL:
The photocell should be cleaned at least once
per heating season or more depending on
conditions. Use a cotton swab and water or
alcohol to clean the lens of the photocell.
Be certain to reinstall the photocell in proper
position as shown below. (See Figure 10)
FILTERS:
The fuel filter and oil filter should be cleaned at
least twice per heating season by rinsing it in
clean Paraffin or diesel. Contaminated or old fuel
could make cleaning necessary immediately.
(See Figure 11)
Figure 9a
Figure 11
Figure 10
Photocell
ST-70-SS-E / ST-70T-SS-E Nozzle
ST-125-OFR-E Nozzle
Figure 9b
11

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
12
Troubleshooting Guide: ST-70-SS-E / ST-70T-SS-E / ST-125-OFR-E
Problem Possible Cause Solution
Heater fires, but shuts down after a
short period of time. Lamp is flicker-
ing, and LED display shows “E1”
1. Dirty Fuel Filter.
2. Nozzle Dirty.
3. Photocell Dirty.
4. Photocell not installed properly.
5. Photocell Defective .
6. Improper electrical connec-
tion between Circuit Board and
Photocell.
7. Cooling Fan is obstructed
8. Improper pressure.
1. Clean/replace Fuel Filter.
2. Clean/replace Nozzle
3. Clean/replace Photocell .
4. Adjust Photocell position.
5. Replace Photocell.
6. Check wiring connections (See
Wiring Diagrams, Page 11).
7. Check to be sure cooling fan is not
obstructed.
8. Adjust pump pressure.
Heater will not operate, or motor
runs for short time. Lamp flickers
and LED display shows “E1”
1. No Paraffin/diesel in fuel tank.
2. Corroded Spark Plug or incorrect
plug gap.
3. Dirty Fuel Filter.
4. Dirty Nozzle.
5. Moisture in Fuel/Fuel Tank.
6. Improper electrical connection
between Transformer and Circuit
Board.
7. Transformer Wires not connected to
Spark Plug.
8. Defective Transformer.
1. Fill tank with fresh Paraffin/diesel.
2. Clean/replace Spark Plug.
3. Clean/replace Fuel Filter.
4. Clean/replace Nozzle.
5. Rinse out fuel tank with clean fresh
Paraffin/diesel.
6. Inspect all electrical connections.
(See Wiring Diagrams, Page 11).
7. Re-attach Transformer wires to
Spark Plug.
8. Replace Transformer.
Fan does not operate when heater
is plugged in and Operating Switch
is in the “ON” position. The lamp
is flickering or on and LED display
shows “E1” or “E2”
1. Broken electrical connection
between Circuit Board and motor.
2. Not enough amps available to power
heater.
1. Inspect all electrical connections on
Wiring Diagrams (Page 11).
2. Use a new extension cord or try
another electrical socket.
Heater makes grinding noise.
1. Air in fuel pump. 1. Sound will stop after 3 seconds. If
grinding sound continues, add fuel to
tank.
Heater does not turn on and the
lamp is not lit.
1. Temperature limit sensor has over-
heated.
2. No electrical power.
3. Fuse break down.
4. Improper electrical connection
between Temperature Limit Sensor
and Circuit Board.
1. Push Operating Switch to “OFF” and
allow heater to cool for 5 minutes.
Push Operating Switch back to “ON”.
2. Check power cord and extension
cord to insure of proper connection.
Test power supply.
3. Check/replace Fuse.
4. Inspect all electrical connections.
(See Wiring Diagrams, Page 11).
Poor combustion and / or soot
production.
1. Pump Pressure.
2. Poor fuel quality.
1. Be sure pump pressure is adjusted
correctly.
2. Be sure Paraffin/diesel is not old or
contaminated.
Lamp is flickering, and LED display
shows “E0”.
1. Faulty Tip Over Switch. 1. Replace Tip Over Switch.

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
13

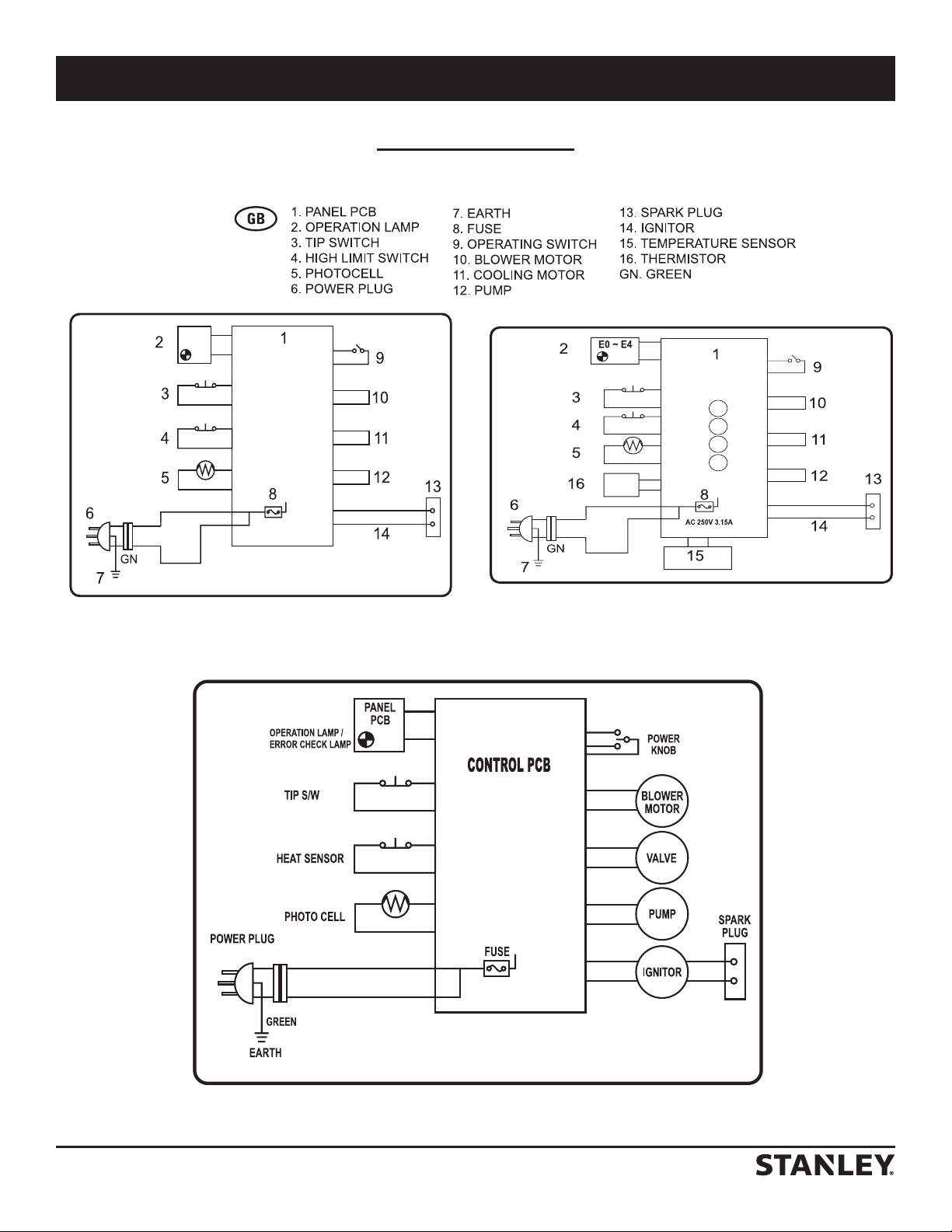

Wiring Diagrams
AC230V/50Hz
250V/3.15A
ST-125-OFR-E
AC 250V 3.15A
ST-70-SS-E ST-70T-SS-E

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE

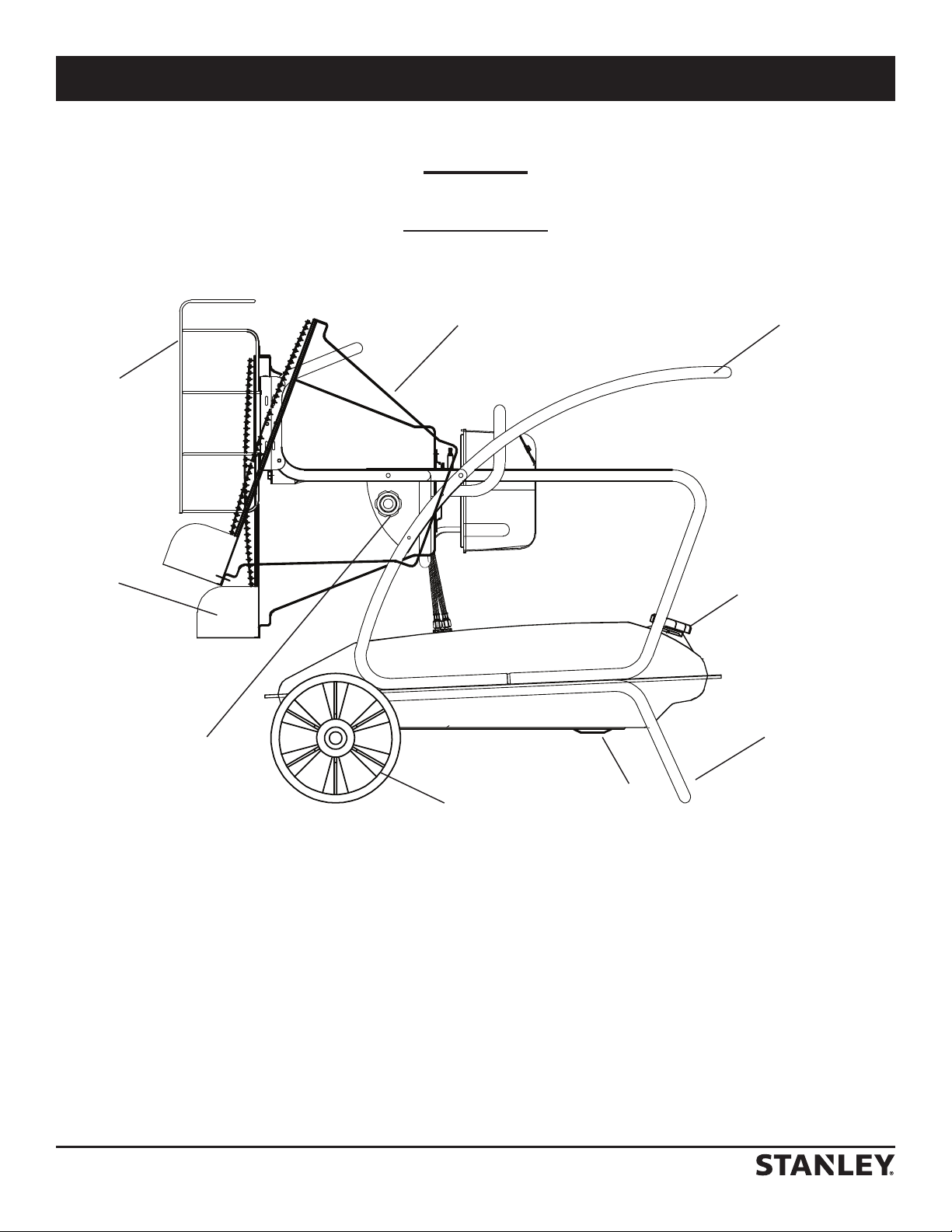

Exploded View
14
ST-70-SS-E
Parts List
25
23
24
9
21
22 2019
26
10
7
28
6
4
3
1
2
27
8
12
13
29
5
1617
18
14
15
11 30
1Fuel Filter
2Fuel Line
3Fuel Gauge
4Fuel Cap
5Cooling Fan Housing / Cooling Fan
Housing Panel
6Operating Switch
7Operating Switch Wire
8Electric Pump
9 Ignitor
10 Main PCB Assembly
11 Tip-Over Sensor
12 Cooling Motor Assembly
13 Cooling Fan
14 Handle
15 Temperature Limit Switch
16 Heat Plate
17 Shell Ring
18 Safety Guard
19 Burner Body
20 Spark Plug
21 Burner Blade
22 Nozzle
23 Nipple
24 Diffusion Cap
25 Blower Motor Assembly
26 Photocell
27 Return Pipe
28 Return Hose
29 Electronic Pump Bracket
30 Fuel Pressure Gauge

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE

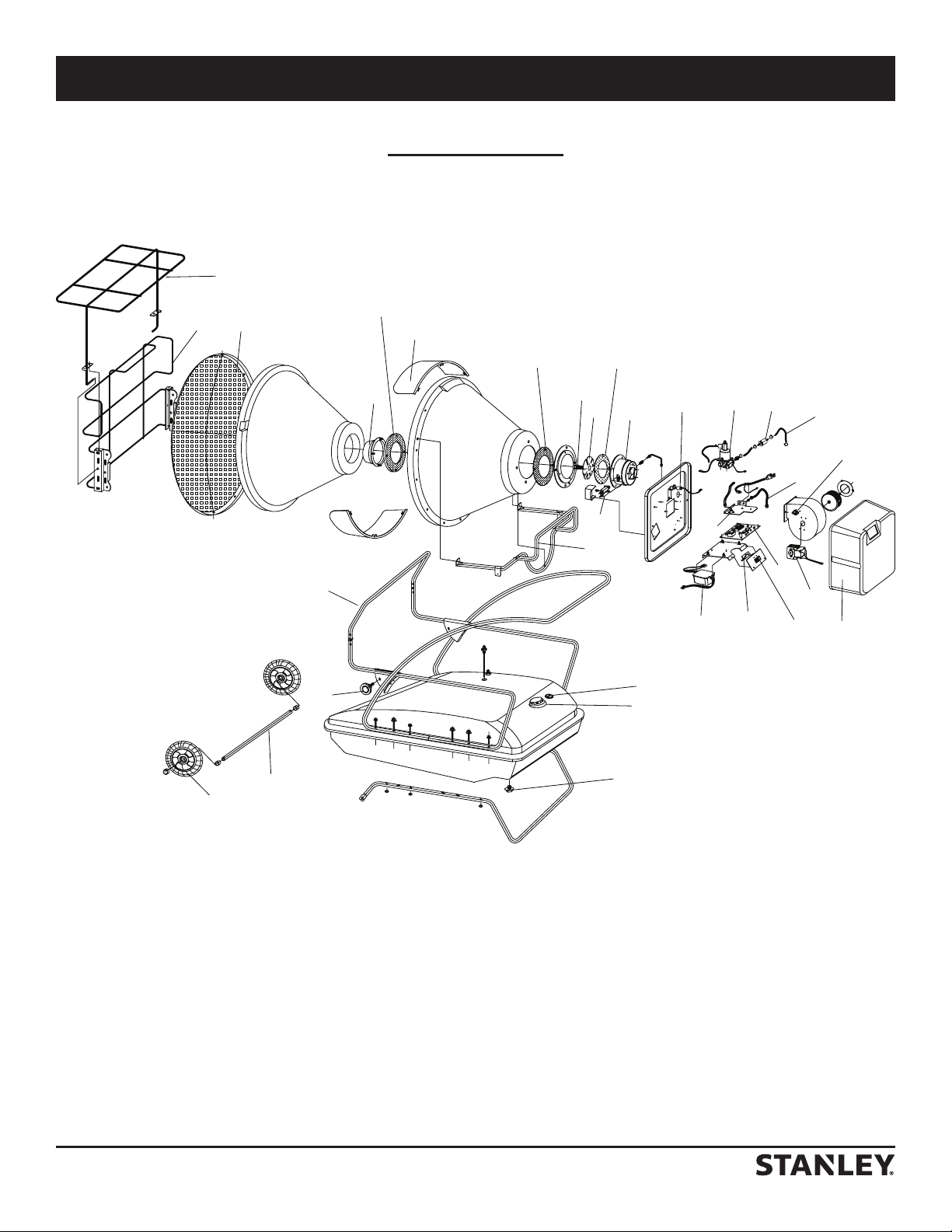

Exploded View
15
ST-70T-SS-E
Parts List
1
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
19
20
21 22 23 24
25 26
27
28
29
30
31
32
33
34
35
36
37
40
42
44
41
38
39
9
43
2
# Part
1Fuel Tank Assembly
2Fuel Filter
3Fuel Pipe Assembly
4Fuel Hose
5Fuel Gauge
6Fuel cap
7Cooling Fan Housing
8Control Knob
9Power Switch wire Assembly
10 Electronic Pump
11 Igniter
12 Main PCB with Thermostat
13 Tip Over Sensor
14 Tip over Sensor Wire Assembly
15 Motor
16 Plastic Fan Blade
17 Outer Shell
18 Handle
19 Burner Body Supporter
20 Temperature Limit Control
21 Chamber Insulator
# Part
22 Shell Insulator
23 Ceramic Fiber
24 Heat Plate
25 Shell Ring
26 Safety Guard
27 Burner Body
28 Spark Plug
29 Burner Blade
30 Nozzle
31 Nipple
32 Diffusion cap
33 Blower Motor
34 Blower Housing / Air Guide / Blower Wheel
(internal parts)
35 Photocell
36 Back Cover
37 Power Cord
38 Return Pipe
39 Return Hose
40 Pump Bracket
41 Display PCB
42 Thermistor
43 Power Switch
44 PCB cable
-Back Panel (not shown)
-Pump Connector (not shown)
-Inlet Tube Assembly (not shown)
-Hose Clamp (not shown)

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
Exploded View
ST-125-OFR-E
16
1
2
4
3
5
6
7
8
9
10
11
12
14 15
16
17
18
24
20
22
21
30
23
26
19
34
27
29
31
31 32
25
28

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
1Fuel Filter
2Fuel Cap
3 Wheel
4 Axle
5Drain Bolt
6Height Adjustment Knob
7Return Fuel Line
8Intake Fuel Line
9Fuel Filter Assembly
10 Fuel Pump
11 Main PCB and Fuse
12 Tip Over Sensor
13 Power Cord
14 Power Switch
15 Back Cover
16 Panel Sub-PCB
17 Blower Motor Assembly
18 Photocell
19 Spark Plug
20 Burner Body
21 Nozzle
22 Burner Blade
23 Diffusion Cap
24 Ignitor
25 Temperature Overheat Sensor
26 Heat Plate
27 Safety Guard
28 Front Frame
29 Top Safety Guard
30 Radiant Visors
31 Radiant Cone Gaskets
32 Burner Housing Assembly
Parts List: ST-125-OFR-E
17

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
Information requirements for liquid fuel local space heaters
Model(s): ST-70-SS-E
Indirect heating functionality: No
Direct heat output: 20,5 (kW)
Indirect heat output: N/A (kW)
Fuel Diesel/Paraffin
Space heating emissions (*)
NOx
Select fuel type
Liquid
126.94 mg/kWh
Item
Symbol
Value
Unit
Item
Symbol
Value
Unit
Heat output
Useful efficiency (NCV)
Nominal heat
output
Pnom 20,5 kW Useful efficiency at nominal
heat output
ηth,nom 100 %
Minimum heat
output (indicative)
Pmin N/A kW Useful efficiency at minimum
heat output (indicative)
ηth,min N/A %
Auxiliary electricity consumption Type of heat output/room temperature control (select
one)
At nominal heat
output
elmax 0,087 kW single stage heat output, no room temperature control Yes
At minimum heat
output
elmin N/A kW two or more manual stages, no room temperature
control
No
In standby mode
elSB
N/A
kW
with mechanic thermostat room temperature control
No
with electronic room temperature control
No
with electronic room temperature control plus day
timer
No
With electronic room temperature control plus week
timer
No
Other control options (multiple selections possible)
room temperature control, with presence detection
No
room temperature control, with open window detection
No
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor
No
Permanent pilot flame power requirement
Pilot flame power
requirement (if
applicable)
Ppilot N/A kW
Contact details
Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium
(*) NOx = nitrogen oxides
Thisproductisnotsuitableformainheatingpurposes.

© 2021 Pinnacle Climate Technologies, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
Information requirements for liquid fuel local space heaters
Model(s): ST-70-SS-E
Indirect heating functionality: No
Direct heat output: 20,5 (kW)
Indirect heat output: N/A (kW)
Fuel Diesel/Paraffin
Space heating emissions (*)
NOx
Select fuel type
Liquid
126.94 mg/kWh
Item
Symbol
Value
Unit
Item
Symbol
Value
Unit
Heat output
Useful efficiency (NCV)
Nominal heat
output
Pnom 20,5 kW Useful efficiency at nominal
heat output
ηth,nom 100 %
Minimum heat
output (indicative)
Pmin N/A kW Useful efficiency at minimum
heat output (indicative)
ηth,min N/A %
Auxiliary electricity consumption Type of heat output/room temperature control (select
one)
At nominal heat
output
elmax 0,087 kW single stage heat output, no room temperature control Yes
At minimum heat
output
elmin N/A kW two or more manual stages, no room temperature
control
No
In standby mode
elSB
N/A
kW
with mechanic thermostat room temperature control
No
with electronic room temperature control
No
with electronic room temperature control plus day
timer
No
With electronic room temperature control plus week
timer
No
Other control options (multiple selections possible)
room temperature control, with presence detection
No
room temperature control, with open window detection
No
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor
No
Permanent pilot flame power requirement
Pilot flame power
requirement (if
applicable)
Ppilot N/A kW
Contact details
Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium
(*) NOx = nitrogen oxides
Thisproductisnotsuitableformainheatingpurposes.
ST-70T-SS-E
No
Yes
