Stanley AeroScout EX5210R User manual

EX5210R RUGGED EXCITER
INSTALLATION & CONFIGURATION GUIDE
DRAFT 1: Updated 2018/10/10

Disclaimer
The information and know-how included in this document are the exclusive property of STANLEY
Healthcare and are intended for the use of the addressee or the user alone. The addressees shall
not forward to another their right of using the information, know-how or document forwarded
herewith, in whole or in part in all matters relating or stemming from or involved therein,
whether for consideration or without consideration, and shall not permit any third party to utilize
the information, know-how or the documents forwarded herewith or copies or duplicates
thereof, unless at the company’s consent in advance and in writing. Any distribution,
advertisement, copying or duplication in any form whatsoever is absolutely prohibited. The
Company reserves the right to sue the addressee, user and/or any one on their behalves, as well as
third parties, in respect to breaching its rights pertaining to the intellectual rights in particular
and its rights of whatever kind or type in the information, know-how or the documents
forwarded by them herewith in general, whether by act or by omission.
This document is confidential and proprietary to STANLEY Healthcare and is not to be distributed
to any persons other than licensed AeroScout Visibility System users or other persons appointed in
writing by STANLEY Healthcare.
Trademark Acknowledgements
AeroScout is a trademark of Stanley Black & Decker, Inc. or its affiliates. Other brand products and
service names are trademarks or registered trademarks of their respective holders. Below is a
partial listing of other trademarks or registered trademarks referenced herein:
Cisco™ is a trademark of Cisco Systems, Inc.
Sun, Sun Microsystems, the Sun Logo, Java, JRE and all other Sun trademarks, logos, product
names, service names, program names and slogans that are referred to or displayed in this
document are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States
and other countries.
This product includes software developed by the Apache Software Foundation
(http://www.apache.org/).
This product includes code licensed from RSA Data Security
Skype, SkypeIn, SkypeOut, Skype Me, the Skype Logo and the S logo and other marks indicated on
Skype’s website are trademarks of Skype Limited or other related companies.
Esper is a trademark of EsperTech, Inc.
Jboss is a trademark of Red Hat Middleware, LLC.
Oracle 10G is a registered trademark of Oracle Corporation and/or its affiliates.
MS SQL Server is a registered trademark of Microsoft Corporation in the United States and/or
other countries.
JasperSoft, the JasperSoft Logo, JasperReports, the JasperReports logo, JasperIntelligence,
JasperDecisions, JasperAnalysis, Scope Center, Scope Designer, and JasperServer are trademarks or
registered trademarks of JasperSoft, Inc. in the United States and other countries.
©2018 STANLEY Healthcare. All rights reserved.
Doc: 0981-xxx-000 REV A. Published: Draft1. KB Article: xxxxx.

EX5210R Exciter Installation & Configuration Guide
3
Table of Contents
Introduction ..................................................................................................5
Exciter Applications and Industry Examples ..............................................6
Theft Prevention ..................................................................................................6
Process Control .....................................................................................................6
Automatic Inventory Management .....................................................................6
Real-Time Alerts ...................................................................................................6
Security applications ............................................................................................6
Exciter Features.............................................................................................7
RFID Detection of STANLEY Healthcare Tags......................................................7
Tag Behavior Modification ..................................................................................7
Message Programming Functions........................................................................8
Network Connectivity ..........................................................................................8
Chaining ...............................................................................................................8
LED Status Indicators....................................................................................9
Exciter Connector Panel .............................................................................10
Wiring the Exciter .......................................................................................12
LF Coverage .................................................................................................13
Network and Power Connections ..............................................................14
Direct Power Supply...........................................................................................15
PoE Switch ..........................................................................................................15
110/220 VAC to 48 VDC PoE Single-Port Injector ..............................................16
Power Connection Summary..............................................................................17
Chaining EX5210R Exciters.........................................................................18
EX5210R Chain Connection................................................................................18
Configuring Chained Exciters ............................................................................19
Configurations for Engine 5.2 and below....................................................................19
Configurations for Engine 5.3 and above ....................................................................21
DHCP.............................................................................................................23

EX5210R Exciter Installation & Configuration Guide
4
Resetting the Exciter IP Address................................................................24
Mounting the Exciter..................................................................................25
Fixing the Exciter to a Wall/Ceiling....................................................................25
Mounting the Exciter to a Poll...........................................................................27
Appendix A: Exciter and Accessories ........................................................28
Appendix B: Exciter Specifications............................................................29

EX5210R Exciter Installation & Configuration Guide
5
Introduction
The EX5210R Rugged Exciter is a component of the STANLEY Healthcare suite of
enterprise-level visibility solutions based on standard Wi-Fi wireless
communications for location- based applications. The EX5210R Exciter is
designed for outdoor mounting, providing robust and sophisticated RFID
detection capabilities.
The EX5210R Exciter triggers tags as they pass through a chokepoint or as they
approach the Exciter. Tags in turn transmit a message to either the AeroScout
Location Receivers or to compatible Access Points within range. The Exciter can
activate or deactivate tags, program them, or even instruct the tags to operate
in a specific way (for example, to blink). This provides instant acknowledgment
that a tagged asset has passed through a gate, doorway, or other specifically
defined area. The detection capabilities of the EX5210R Exciter combined with
the location features of the AeroScout Location Engine, to make the STANLEY
Healthcare suite the most sophisticated enterprise visibility solution, for various
applications.

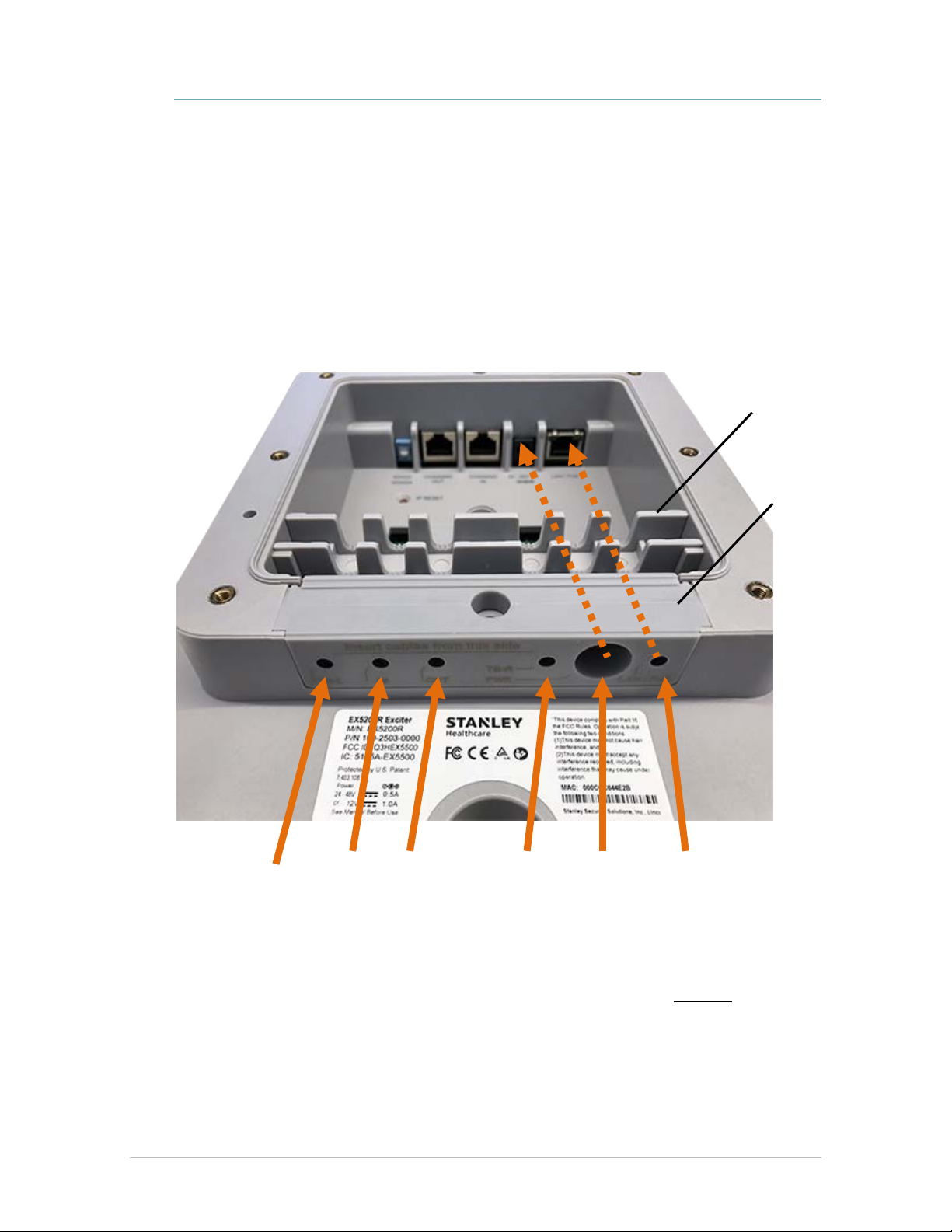

Figure 1: EX5210R Exciter
