Star HPDE1 Owner's manual

HPDE PERISTALTIC
DISPENSER
MODEL
HPDE1, 1H, 1P, 1HP
HPDE2, 2H, 2P, 2HP
HPDE2-P
Installation and
Operation
Instructions
2M-Z7245 REV L (07-23)
HPDE2 shown

2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
without notice. While Star International Holdings Inc., Company exercises
good faith efforts to provide information that is accurate, we are not
responsible for errors or omissions in information provided or conclusions
provided, the user assumes all risks in connection with such use.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance.
Please record the model number, serial number, voltage and purchase date in the area below and have it
ready when you call to ensure a faster service.
SAFETY SYMBOL
Model No.
Serial No.
Voltage
Purchase Date
Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone:
Website:
1-800-264-7827
www.star-mfg.com
Service Help Desk
Authorized Service Agent Listing
Reference the listing provided with the unit
or
for an updated listing go to:
Website: www.star-mfg.com
Mailing Address: Star Manufacturing International Inc.
265 Hobson Street
Smithville, TN 37166
U.S.A

SPECIFICATIONS
HPDE1, HPDE1H, HPDE1P, HPDE1HP
Capacity: Two 6 pound bags (Two 2.7 KG Bags)
Electrical: 120V, 60 hertz, single phase, 820 Watts; 7 amps
230V, 50/60 hertz, single phase, 820 Watts; 3.5 amps
Cord: 6 ft. length
Plug: 120V - NEMA 5-15P
230V - CEE7-7
Dimensions: 9 7/16" W x 20 7/16" D x 26 13/16" H (23.97 W x 51.91 D x 68.10 H cm)
Net Weight: 36 lbs. (16.34 KG)
HPDE2, HPDE2H, HPDE2P, HPDE2HP, HPDE2-P
Capacity: Four 6 pound bags (Four 2.7 KG Bags)
Electrical: 120V, 60 hertz, single phase, 1000 Watts; 8.5 amps
230V, 50/60 hertz, single phase, 1000 Watts; 4.5 amps
Cord: 6 ft. length
Plug: 120V - NEMA 5-15P
230V - CEE7-7
Dimensions: 14 5/16" W x 20 7/16" D x 26 13/16" H (36.35 W x 51.91 D x 68.10 H cm)
Net Weight: 50 lbs. (22.7 KG)
This commercial foodservice dispenser is suitable for self-service applications solely for the purpose of
dispensing the food product contained within the dispenser, provided the owner and operator maintain
the food product at a safe temperature and condition and provide any necessary utensils, trays, or other
apparatus in a safe and convenient location with appropriate instructions. This appliance is not intended
for repair, cleaning, maintenance, loading and unloading of food product, or other uses by non-trained
employees or the general public. This unit is not sold for consumer use in and around the home.
-IMPORTANT-
Read this manual completely before attempting installation.
INSTALLATION
This peristaltic dispenser is equipped for the voltage and wattage indicated on the nameplate mounted
on the back of the unit, and is designed for use on alternating current (AC) only.
DO NOT CONNECT TO DIRECT CURRENT (DC).
GENERAL OPERATING INSTRUCTIONS
This heated dispenser is designed to be used with a 9” x 18” (22.8 x 45.7cm) poly bag with a 1 inch
(2.5cm) outlet tment. The peristaltic dispenser is designed to be used with 1/4 inch ID (.6cm) to
1/2 inch id. (1.3cm) tubing with 1/16 inch (.16cm) wall thickness.
The dispenser is designed with an adjustable thermostat. It is designed to maintain a product
temperature in the range of 145°F to 162°F (60°C to 72°C).
WARNING
CAUTION

Loading Product:
1. Turn the dispenser OFF.
2. Unhook the tension spring from the
catch.
3. Slide the pump block away from the
pump head.
4 Insert the new bag into tray making
sure the tment rests on the block track
and route the
tube around the rollers. (Note: Make
sure the tube is not twisted)
5. Place the end of the tube in the slot of
the bottom bracket.
6. Slide the pump block towards the pump
head.
7. Hook the tension spring onto the catch.
8. Route the tube through the hole in the tube cover leaving 1/2" of the tube below the cover.
9. Dispense a small amount of product to insure the tube is seated correctly, and the
product is owing.
PORTION CONTROL
This dispenser may be supplied with one or two portion control timers. This portion control is based on a time
setting. Variations in product temperature and consistency will a󰀨ect the dispensed amount. To insure a
consistent portion, use product that is at the correct temperature, 145°F to 160° (62°C to 71°C).
To set portion:
1. Load preheated product bag into dispenser.
2. Dispense product until there is a steady ow.
3. Dispense the product into a clean container, and measure the product to verify the dispensed
amount.
4. Using a small screwdriver, turn the control dial located on the back panel clockwise for more
product and counterclockwise for less product.
5. Repeat steps 3 and 4 until the desired amount is reached.
Operation Notes:
The dispenser is a holding cabinet not a warmer. It is intended to hold the food product at no less
than 140°F (60°C) and no more than 165°F (73°C) after the food product has been pre-heated to a
minimun of 140°F (60°C).
The product should be preheated according to the manufacturer's instructions. The product should be
a minimum of 140°F (60°C) before dispensing.
If the product is not preheated, you can expect it take 3 hours for the product to reach 140°F (60°C) if it
starts out at room tempurature. 5 Hours if it is refrigerated, and much longer if frozen.
The digital temperature readout displays the cabinet air temperature and will uctuate during normal
operation. The product temperature should be close to the temperature setpoint, but the actual
product temperature should be checked periodically to ensure proper operation.
CHECKING PRODUCT TEMPERATURE
If the product has not been pre-heated, it will take at 3-5 hours before it will reach 140° (60°C).
1. Dispense at least 3 inches of product into an insulated cup.
2. Without hesitation, insert the thermometer to the bottom of the cup and stir the product gently
with the stem of the thermometer.
3. Position the tip of the thermometer in the center of the product mass.
4. The temperature should read between 140°F (60°C) and 165°F (73°C).
PUMP
HEAD
SPRING
ENGAGED
IL1899
BOTTOM
BRACKET
PUMP
BLOCK
SPRING
RELEASED
BAG

IL1269
CHANGING FACTORY TEMP PRESET
The dispenser is preset at the factory for a temperature of 150°F (65°C). If a di󰀨erent temperature is
required, the setpoint can be changed in a range from 145°F to 162°F (60°C to 72°C).
To change the temperature:
1. Press and hold the SET button for 3 seconds until the display ashes.
2. Using the UP or DOWN buttons, set the temperature to the desired value.
3. Press the SET button to exit the programming mode.
The dispenser is designed to operate 24 hours a day. Once the product is placed in the dispenser it
should not be removed until the bag is empty, or the holding period of the product has expired.
NOTE: To increase the evacuation, open the dispenser and pull the product towards the
bottom of the bag and the outlet tment once or twice during operation.
If the pump drips, or does not dispense
product, check to make sure the tube is
routed correctly, the spring is latched onto
the catch.
NOTE: The tube cover must be in place
for proper operation.
CLEANING INSTRUCTIONS
To clean the peristaltic dispenser:
The stainless steel body is corrosion
resistant, but may corrode if not cleaned
properly. The dispenser should be cleaned
with a soft cloth with mild soap and water
and wiped dry. Do not use detergents,
strong abrasives, or metal scouring pads on
the stainless steel panels.
The pump mechanism should not need
cleaning during normal use. If product should spill onto the pump head, it can be removed for easy
cleaning (see Removal & Cleaning Pump Head). Clean the parts in a solution of mild soap and water
using a soft cloth. Dry parts before reassembling.
The spring can also be removed for cleaning by removing the knob and retaining washer.
To remove and clean the pump head:
1. Open the door.
2. Remove the bag according to the
instructions.
3. Unscrew the knob from the
pump head.
4. Remove the pump head.
5. Slide the pump block out of the track.
6. If needed the rollers can also be
disassembled for cleaning.

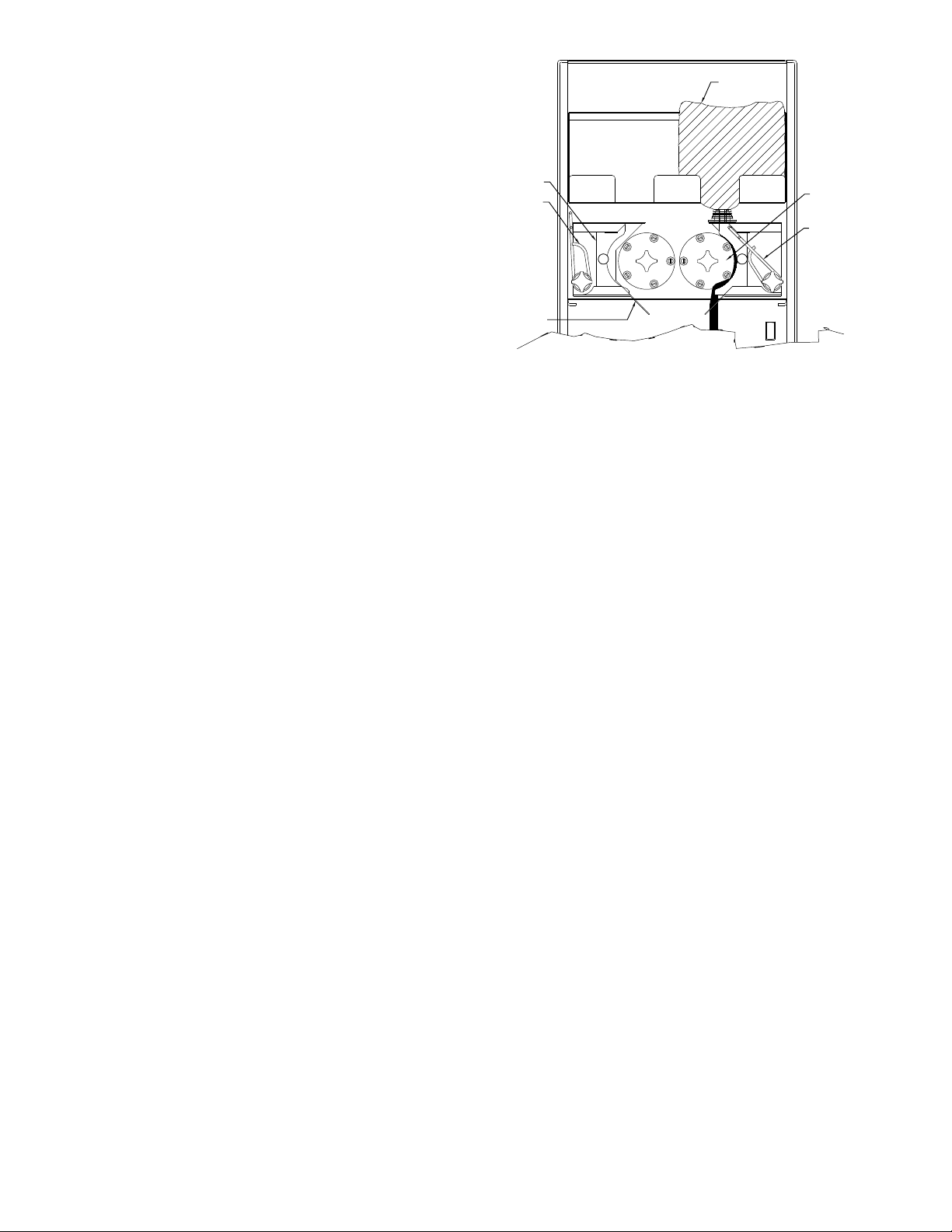

Note: When installing the pump head onto the drive shaft, make sure the pump head is fully
seated onto the square end of the drive shaft before installing the knob.
WARNING: The drive shaft and pump head could be damaged if the pump head is installed
incorrectly.
ALIGN SQUARE SHAFT WITH
PUMP HEAD SQUARE HOLE
SK3179 REV - (07-23)

Star-Holman-TM_WARRANTY 2023 FINAL

Star Manufacturing [as well as its subsidiaries] warrants to the original
purchaser of new Star products to be free from defects in material or
workmanship, under normal and proper use and maintenance service as
specified by Star and upon proper installation and start-up in accordance with
the instructions supplied with each Star unit. Star’s obligation under this
warranty is limited to a period of one [1] year beginning from the date of
original installation. The warranty period begins upon the date of original
installation or up to six [6] months after the original shipment, from the factory,
of the covered product. Defects that occur as a result of normal use, within the
time period and limitations defined in this warranty, will at Star’s discretion
have the parts replaced or repaired by Star or a Star-authorized service agency.


Repairs performed under this warranty are to be performed by a Star
authorized service agency. Star will not be responsible for charges incurred or
service performed by non-authorized repair agencies. In all cases, the nearest
Star-authorized service agency must be used. Star will be responsible for
normal labor charges incurred in the repair or replacement of a warrantied
product within 50 miles (80.5 km) of an authorized service agency. Time and
expense charges for anything beyond that distance will be the responsibility of
the owner. All labor will need to be performed during regular service hours.
Any overtime premium will be charged to the owner. For all shipments outside
the U.S.A. and Canada, please see the International Warranty for specific
details. It is the responsibility of the owner to inspect and report any shipping
damage claims, hidden or otherwise, promptly following delivery. No mileage
or travel charges will be honored on any equipment that is deemed portable.
In general, equipment with a cord and plug weighing less than 50 lb. (22.7 kg)
is considered portable and should be taken or shipped to the closest authorized
service agency, transportation prepaid.


• QCS1, QCS2, and RCS2 toasters
• Condiment dispensers


Should you require any assistance regarding the operation or maintenance of
any Star Manufacturing; phone, email or fax our service department. In all
correspondence provide the model number and serial number of the unit
needing service; include the voltage or gas type.
Normal Business Hours: 8:00 a.m. to 5:00 p.m. Central
Telephone: [phone] Tech Service Option 2
Email: [email protected]
www.Star-Mfg.com

















Star’s sole obligation under this warranty is limited to either repair or
replacement parts, subject to the additional limitations detailed below. This
warranty neither assumes nor authorizes any person to assume obligations
other than those expressly covered by this warranty.
• Any product which has not been used, maintained, or installed in
accordance with the directions published in the appropriate installation sheet
and/or owner’s manual, including incorrect gas or electrical connection. Star
is not liable for any unit which has been mishandled, abused, misapplied,
subjected to harsh chemicals, modified by unauthorized personnel, damaged
by flood, fire, or other acts of nature [or God], or which have an altered or
missing serial number.
• Installation, labor, and job checkouts, calibration of heat controls, air and
gas burner/bypass/pilot adjustments, gas or electrical system checks, voltage
and phase conversions, cleaning of equipment, or seasoning of griddle
surface.
• Replacement of fuses or resetting of circuit breakers, safety controls, or
reset buttons.
• Replacement of broken or damaged glass components, quartz heating
elements, and light bulbs.
• Labor charges for all removable and consumable parts in gas charbroilers
and hotplates, including but not limited to burners, grates, and radiants.
• Any labor charges incurred by delays, waiting time, or operating restrictions
that hinder a service technician’s ability to perform service.
• Replacement of parts that fail or are damaged due to normal wear or labor
for replacement of parts that can be replaced during a daily cleaning routine,
such as but not limited to silicone belts, PTFE non-stick sheets, control labels,
knobs, bulbs, fuses, quartz heating elements, baskets, racks, and grease
drawers.
• Any economic loss of business or profits.
• Non-OEM parts. Use of non-OEM parts without Star’s approval will void the
warranty.
• Units exceeding one [1] year from original installation date.

• Specific/chain-specific equipment may have additional and/or extended
warranties.

PRODUCTS
PARTS
LABOR
Star Ultra Max Ⓡ fryers, griddles,
charbroilers and hotplates
2 years
2 years
Star Max Ⓡ fryers, griddles,
charbroilers and hotplates
2 years
2 years
Staltek™ roller grill coatings
5 years
Cast iron grates, burners
and burner shields
1 year
Original Star, Toastmaster or Holman
parts sold to repair equipment
90 days




R
MATERIAL
DR. DATE
FINISH
MODEL NO.
TITLE
PART NO.
TOLERANCES UNLESS OTHERWISE NOTED
FRACTIONS ± 1/64 DECIMALS ± .005
REVISIONS
-
-
HPD1PE SK2458

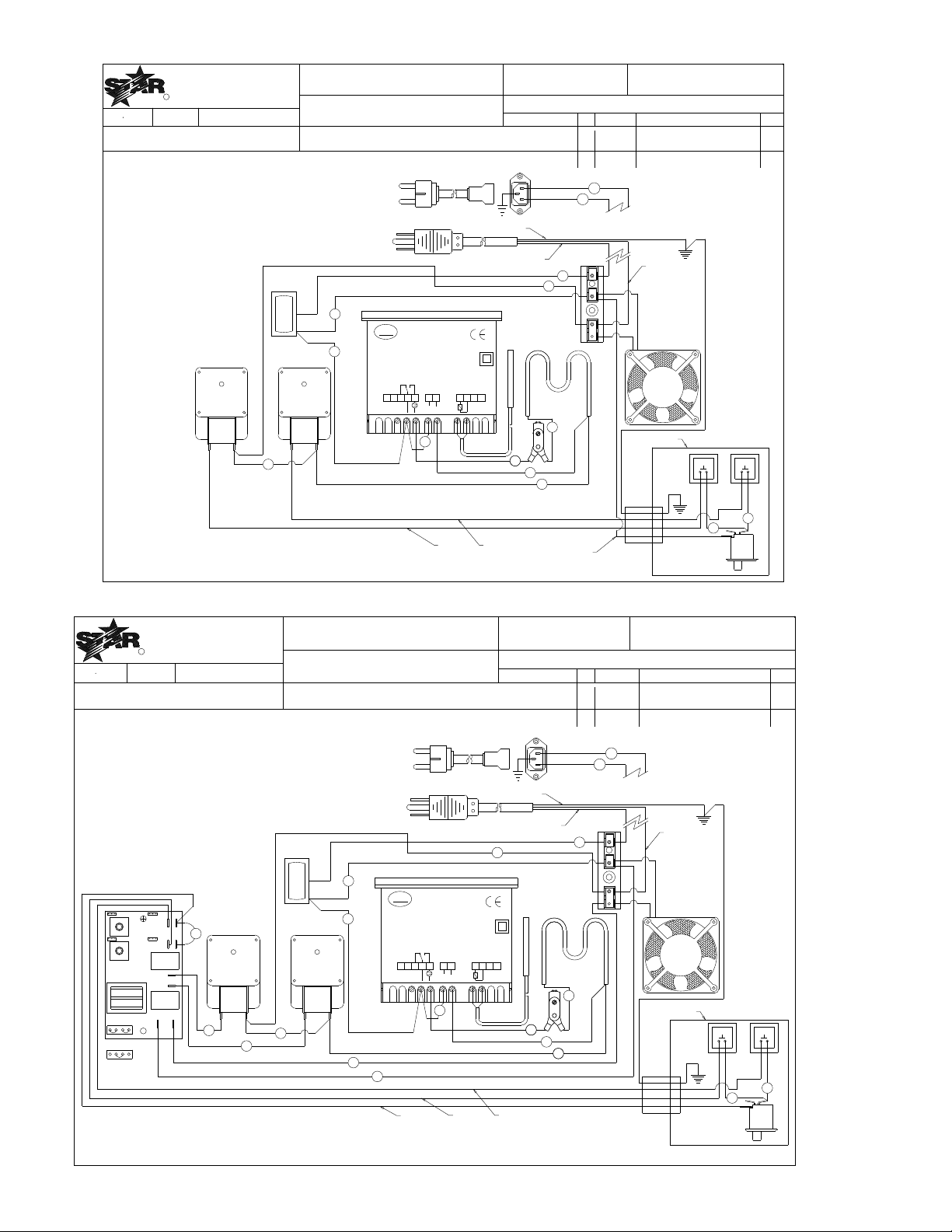

WIRING DIAGRAM
MH 5-21-10
CK. LTR DATE DESCRIPTION OF CHANGE DR
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR MANUFACTURING INTERNATIONAL INC.
#10 SUNNEN DRIVE, ST. LOUIS, MO. 63143, USA
-
1
2
GREEN
BLACK
14
15
FOR 230V
FOR 120V
ABCD
3
5
6
4
RED
WHITE
9
DOOR
SW-2
FOR 240V
HOT
NEUT
SO-1
SO-2
SW-1
COM
12
12
13
BLACK
CEE7-7
NEMA 5-15P
A POWER SWITCH
B TERMINAL BLOCK
C PUMP MOTOR
E TIMER 0-15 SEC
G LIMIT THERMOSTAT 165°F
H FAN
I PUMP SWITCH
J SAFETY SWITCH
K IEC INLET (230V ONLY)
A
B
CE
H
K
L HEATING ELEMENT 1
I
F TEMPERATURE CONTROL W/PROBE
10
J
NO
NC
COM
3
8
7
G
L
8
7
G
11
PZSMS0P1E1
CAREL
R U
ROHS
12 3 4 5 678910 11
NTC
PROBES
LN
115V
L
R
MATERIAL
DR. DATE
FINISH
MODEL NO.
TITLE
PART NO.
TOLERANCES UNLESS OTHERWISE NOTED
FRACTIONS ± 1/64 DECIMALS ± .005
REVISIONS
-
-
HPD1E SK2456
WIRING DIAGRAM
TH 8-11-03
CK. LTR DATE DESCRIPTION OF CHANGE DR
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR MANUFACTURING INTERNATIONAL INC.
#10 SUNNEN DRIVE, ST. LOUIS, MO. 63143, USA
-
1
2
GREEN
BLACK
14
15
FOR 230V
FOR 120V
ABCD
3
8
7
5
6
4
BLACK
WHITE
9
DOOR
WHITE
CEE7-7
NEMA 5-15P
A POWER SWITCH
B TERMINAL BLOCK
C PUMP MOTOR
G LIMIT THERMOSTAT 165°F
H FAN
I PUMP SWITCH
J SAFETY SWITCH
K IEC INLET (230V ONLY)
A
B
C
G
H
K
L HEATING ELEMENT
L
1
I
F TEMPERATURE CONTROL W/PROBE
10
11
J
NO
NC
COM
PZSMS0P1E1
CAREL
R U
ROHS
12 3 4 5 678910 11
NTC
PROBES
LN
115V
L

R
MATERIAL
DR. DATE
FINISH
MODEL NO.
TITLE
PART NO.
TOLERANCES UNLESS OTHERWISE NOTED
FRACTIONS ± 1/64 DECIMALS ± .005
REVISIONS
-
-
HPD2PE SK2459
WIRING DIAGRAM
MH 5-21-10
CK.
LTR DATE DESCRIPTION OF CHANGE DR
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR MANUFACTURING INTERNATIONAL INC.
#10 SUNNEN DRIVE, ST. LOUIS, MO. 63143, USA
-
1
2
GREEN
BLACK
14
15
FOR 230V
FOR 120V
ABCD
3
9
5
6
4
RED
WHITE
10
DOOR
11
NC
NO
COM
SW-2
FOR 240V
HOT
NEUT
SO-1
SO-2
SW-1
COM
12
12
12
13
WHITE
BLACK
16
CEE7-7
NEMA 5-15P
A POWER SWITCH
B TERMINAL BLOCK
C LEFT PUMP MOTOR
D RIGHT PUMP MOTOR
E TIMER 0-15 SEC
F TEMPERATURE CONTROL W/PROBE
G LIMIT THERMOSTAT 165°F
H FAN
I PUMP SWITCH
J SAFETY SWITCH
K IEC INLET (230V ONLY)
A
B
C DE
H
I
J
K
L HEATING ELEMENT
1
I
9
8
7
G
L
18
8
7
G
17
PZSMS0P1E1
CAREL
R U
ROHS
12 3 4 5 6789
10 11
NTC
PROBES
LN
115V
L
R
MATERIAL
DR. DATE
FINISH
MODEL NO.
TITLE
PART NO.
TOLERANCES UNLESS OTHERWISE NOTED
FRACTIONS ± 1/64 DECIMALS ± .005
REVISIONS
-
-
HPD2E SK2547
WIRING DIAGRAM
MH
5-20-10
CK.
LTR DATE DESCRIPTION OF CHANGE DR
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR MANUFACTURING INTERNATIONAL INC.
#10 SUNNEN DRIVE, ST. LOUIS, MO. 63143, USA
-
1
2
GREEN
BLACK
14
15
FOR 230V
FOR 120V
ABCD
3
9
8
7
5
6
4
RED
WHITE
10
DOOR
11
WHITE
BLACK
CEE7-7
NEMA 5-15P
A POWER SWITCH
B TERMINAL BLOCK
C LEFT PUMP MOTOR
D RIGHT PUMP MOTOR
G LIMIT THERMOSTAT 165°F
H FAN
I PUMP SWITCH
J SAFETY SWITCH
K IEC INLET (230V ONLY)
A
B
C D
G
H
I
K
L HEATING ELEMENT
L
1
I
F TEMPERATURE CONTROL W/PROBE
18
J
NO
NC
COM
8
7
G
17
PZSMS0P1E1
CAREL
R U
ROHS
12 3 4 5 6789
10 11
NTC
PROBES
LN
115V
L

R
MATERIAL
DR. DATE
FINISH
MODEL NO.
TITLE
PART NO.
TOLERANCES UNLESS OTHERWISE NOTED
FRACTIONS ± 1/64 DECIMALS ± .005
REVISIONS
-
-
HPDE1SHP SK2460
WIRING DIAGRAM HPDE1SHP
MH 5-21-10
CK. LTR DATE DESCRIPTION OF CHANGE DR
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR MANUFACTURING INTERNATIONAL INC.
#10 SUNNEN DRIVE, ST. LOUIS, MO. 63143, USA
--
-
--
1
2
GREEN
BLACK
14
15
BLACK
WHITE
GREEN
FOR 230V
FOR 120V
ABCD
1
3
9
7
5
4
RED
WHITE
10
DOOR
11
RED
NC
NO
COM
BLACK
SW-2
FOR 240V
HOT
NEUT
SO-1
SO-2
SW-1
COM
12
12
12
13
WHITE
WHITE BLACK
16
CEE7-7
NEMA 5-15P
A POWER SWITCH
B TERMINAL BLOCK
C LEFT PUMP MOTOR
E TIMER 0-15 SEC
F TEMPERATURE CONTROL W/PROBE
G THERMOSTAT 165°F
H FAN
I PUMP SWITCH
J SAFETY SWITCH
K IEC INLET (230V ONLY)
AB
CE
H
I
J
K
I
6
8
G
18
8
17
PZSMS0P1E1
CAREL
R U
ROHS
12 3 4 5 678910 11
NTC
PROBES
LN
115V
L
SW-2
HOT
NEUT
SO-1
SO-2
SW-1
COM
PZSMS0P1E1
CAREL
R U
ROHS
12 3 4 5 678 9 10 11
SW-2
HOT
NEUT
SO-1
SO-2
SW-1
COM

MODELS: HPD1E, HPD1PE,
HPD1HE, HPD1HPE STAR MANUFACTURING INTERNATIONAL, INC.
SK2008 Rev. A 10/17/06
34
32
50
28
28
29
23
24 25
21
17
18
51
36
35
31
57
49
45
6
1
2
3
5
11
16
12
15
30 60
20
45
26
22
58
45
44
54
53
52
27
9
8
4
56
55
13
14
7
10
41
39
37 47
40
43
46
42
59
38 33

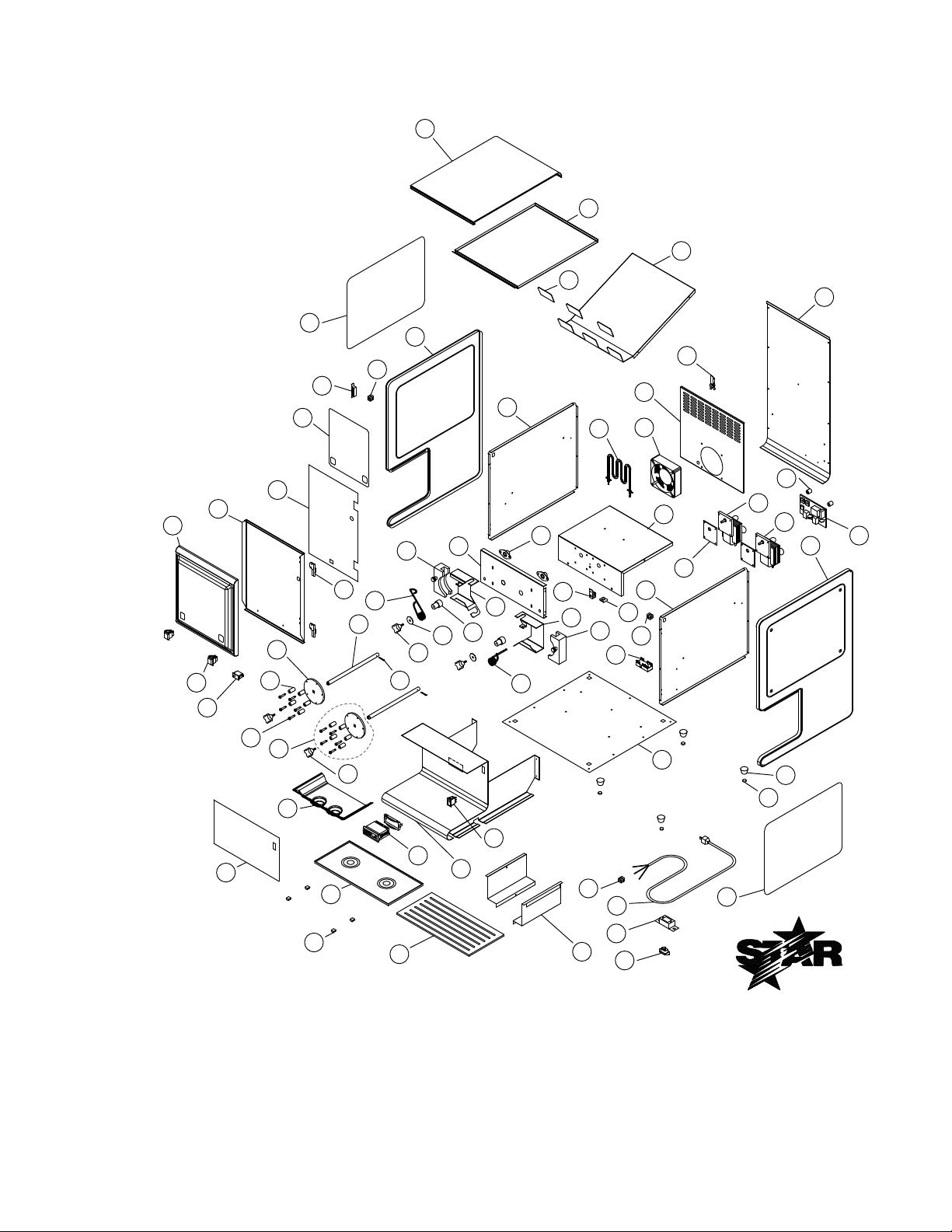

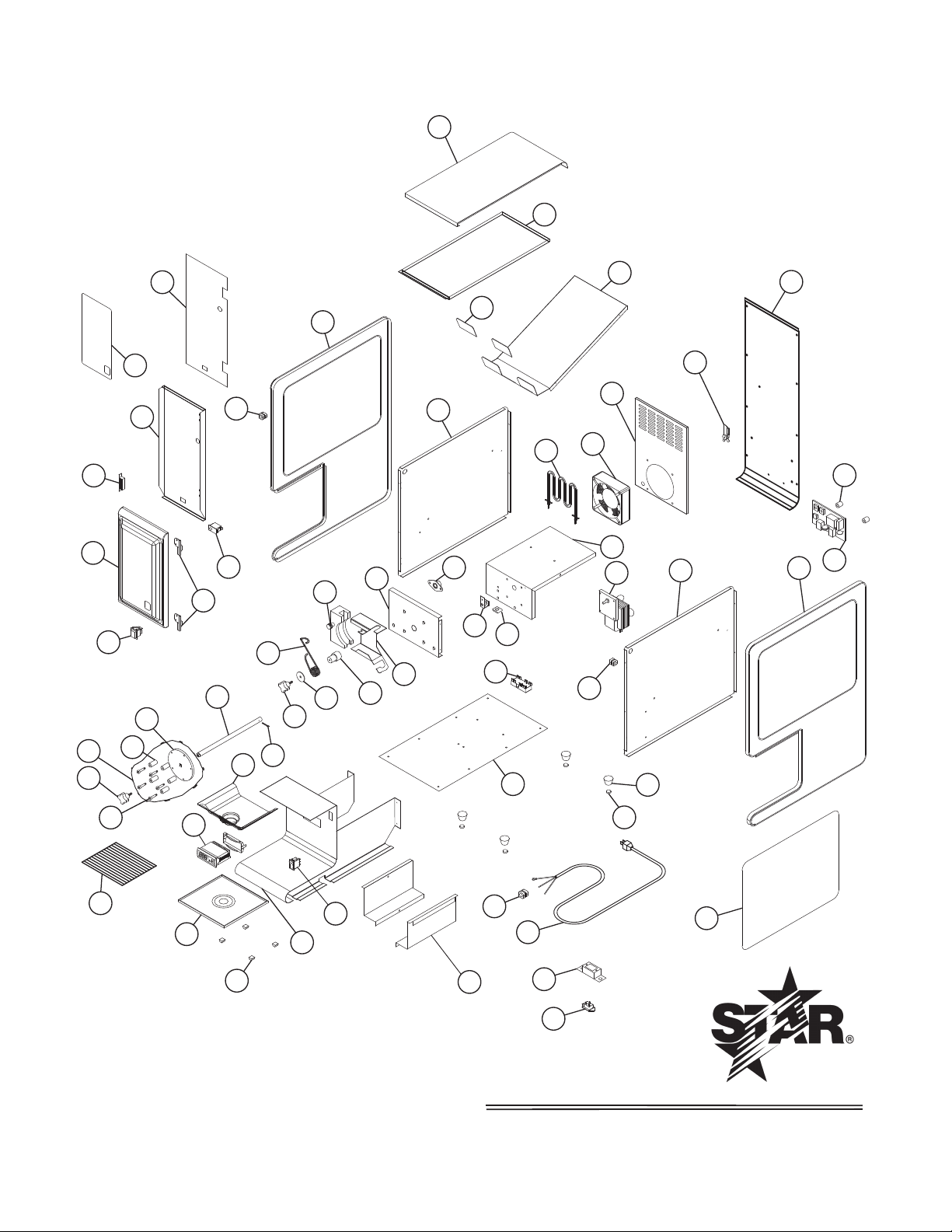

PARTS LIST February 13, 2013, Rev. L
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 1
INCLUDE MODEL AND SERIAL NUMBER OF 2
Some items are included for illustrative purposes only and in certain instances may not be available.
Number
Per
Unit Description and Model Designation
MODEL: HPDE1 Series Heated Peristaltic Dispenser
Part
Number
Key
Number
1 M2-Z4641 1 TOP
2 M2-Z4668 1 TOP LINER HPDE1
3 M2-Z4634 1 BAG TRAY HPDE1
4 M2-Z4655 1 BACK HPDE1P
M2-Z5804 1 BACK HPDE1SHP
M2-Z4656 1 BACK HPDE1
5 2I-Z4663 1 VINYL CAP 1 9/16 x 2 5/8 HPDE1
6 2L-Z4591 1 LEFT SIDE PANEL
7 2U-200559 1 MOTOR, FAN 120V 12A12-BTM 120V
2U-Z5041 1 FAN A/C 110CFM 230V 230V
8 2T-Z4666 1 HI-LIMIT THERMOSTAT 165°F HPDE1
9 M2-PD1017 1 FAN WALL ASSEMBLY HPDE1
10 2N-Z4603 1 ELEMENT 120V / 650W
2N-Z5044 1 ELEMENT 230V/650W HPD E
11 M2-Z4636 1 LINER LEFT HPDE1
12 M2-Z7241 1 WALL-MOTOR HPDE1
13 2L-Z4592 1 RIGHT SIDE PANEL
14 M2-Z4637 1 LINER RIGHT HPDE1
15 PS-Z10009 1 MOTOR 165RPM COUNTER-CLOCKWISE HPDE1H
PS-Z10013 1 MOTOR CCW 165 RPM 230V HPD E
PS-Z10007 1 MOTOR 75 RPM CCW HPDE1
PS-Z10011 1 MOTOR 75 RPM CCW 230V HPDE1
PS-Z10009 1 MOTOR 120 RPM CCW HPDE1HPR
16 2P-9615 1 BEARING SELF ALIGN .51 ID HPDE1
17 M2-PD1004 1 PUMP WALL ASSEMBLY HPDE1
18 M2-22049 1 ASSEMBLY BLOCK RIGHT HPDE1
19 2I-Y6709 1 CUSHION-MOTOR HPDE1
20 2E-Z4597 1 TERMINAL BLOCK 1/4 P.O. HPDE1
21 M2-PD2006 1 TRACK LEFT ASSEMBLY HPDE1
22 2P-9564 4 PLUG-RUBBER HPDE1
23 2P-Z4598 1 SPRING LEFT
24 2C-Z1689 1 WASHER 1.25 O.D. x 9/32 ID HPDE1
25 2A-Z1616 1 BUSHING HPDE1
26 2I-Z0057 4 FOOT HPDE1
27 M2-Z4672 1 BOTTOM HPDE1
M2-Z5050 1 BOTTOM 230V HPDE1
28 2R-Z6774 2 KNOB-DAVIES 4200 10-24 x 1/4 HPDE1
29 2A-Z4595 1 DRIVE SHAFT
30 M2-Z7236 1 BRACKET - PROBE HPDE1
31 M2-PD1016 1 DOOR ASSEMBLY, INNER DOOR LINER HPDE1
32 2V-Z1619 1 PUMP HEAD HPDE1
33 2C-Z11912 1 HAIR PIN .091 DIA X 1.625 HPDE1
34 2A-Z1621 5 ROLLER #10 x 1-1/2 x 1 NYLON HPDE1
35 2C-9788 1 MAGNETIC CATCH 9LB HPDE1, 2
36 2L-Z4858 1 DOOR, OUTER HPDE1
M2-Z5803 1 DOOR, OUTER HPDE1SHP
37 2C-Z1620 5 SHOULDER SCREW #8-32 x 1/4 HPDE1
38 2L-Z4659 1 TUBE COVER HPDE1
39 2R-Z4893 2 HINGE SET HPDE2
40 PS-PD2046 1 SWITCH ON/OFF (LIGHTED REPLACMENT) HPDE1
2E-Z0091 1 SWITCH ON/OFF (non-lighted) HPDE1
41 2E-Z1622 1 SWITCH MOMENTARY HPDE1
42 M2-Z4631 1 DRIP TRAY HPDE1
M2-Z5617 1 DRIP TRAY CE HPDE1
43 M2-PD1015 1 BODY FRONT ASSEMBLY HPDE1
Star International Holdings, Inc. Company

PARTS LIST February 13, 2013, Rev. L
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 2
INCLUDE MODEL AND SERIAL NUMBER OF 2
Some items are included for illustrative purposes only and in certain instances may not be available.
Number
Per
Unit Description and Model Designation
MODEL
Part
Number
Key
Number
HPDE1 Series Heated Peristaltic Dispenser
44 A3-ST3006 1 CORDSET ASSEMBLY HPDE1
2E-Z0512 1 CORDSET 230V HPDE1
45 2K-7889 1 BUSHING HEYCO SR-11-2 HPDE1
46 2A-H7804 4 BUMP-ON RUBBER SQ
47 M2-Z11877 1 CONTROL SET TO 150°F, w/PROBE 120V
2E-Z13212 1 TEMPERATURE CONTROL 230V (does not include probe)
2E-Z13215 1 PROBE NTC
M2-Z11877 1 CONTROL - SET TO 150°F HPDE1BE-120V
49 2M-Z13395 1 LABEL-DOOR INTERIOR
50 M2-22017 1 PUMP HEAD ASSEMBLY
51 2E-Z1684 1 SWITCH-SPDT
52 M2-Z5031 2 LINER-LOWER
53 2E-Z3034 1 I.E.C. INLET
54 A3-Z4357 1 INLET HOUSING
55 M2-Z10302 1 TIMER 0-15 SEC 120V
M2-Z5791 1 TIMER 0-15 SEC 230V
56 2A-Z3429 2 SPACER-NYLON .175 x .375 x .5
57 2M-Z4604 1 LABEL - DOOR STAR
2M-Z5010 1 LABEL - DOOR NESTLE
2M-Z5014 1 LABEL - FRONT RICOS
2M-Z5610 1 LABEL - FRONT CLASSIC FOODS
2M-Z5613 1 LABEL - FRONT CLASSIC FOODS GRAVY
2M-Z5805 1 LABEL - DOOR HDPE1SHP
2M-Z6475 1 LABEL - FRONT RICOS CHILI
2M-Z11872 1 LABEL - HPD1 FRNT BOB EVAN HPDEBE-120V
58 2M-Z5011 2 LABEL - SIDE PANEL NESTLE
2M-Z5015 2 LABEL - SIDE RICOS
2M-Z5611 2 LABEL - SIDE CLASSIC FOODS
2M-Z5614 2 LABEL - SIDE CLASSIC FOODS GRAVY
2M-Z6476 1 LABEL - SIDE PANEL RICOS CHILI
59 2B-Z5616 1 GRATE HPDE1CF
60 2C-Z3700 1 CLIP - PROBE
Star International Holdings, Inc. Company

1
2
3
5
6
4
8
7
9
11
10
15
14
13
16
17
19
12
20
18
21
24
23
29
28
25
45
26
33
31
35
36
41
39
37
32
34
38
42
46
43
40
44
27
52
54
53
22
56
55
61
49
51
62
50
57
48
18
59
60
63
45
45
28
62
64
30
47
MODELS: HPD2E, HPD2PE,
HPD2HE, HPD2HPE, HPD2BLE,
HPDE-2 STAR MANUFACTURING INTERNATIONAL, INC.
SK2009 REV D (07-23)

PARTS LIST REV M (07-23)
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 1
INCLUDE MODEL AND SERIAL NUMBER OF 2
Some items are included for illustrative purposes only and in certain instances may not be available.
MODEL
HPDE2 Series Heated Peristaltic Dispenser
Star International Holdings, Inc. Company
ITEM NO. PART NUMBER QTY. DESCRIPTION MODEL
1 M2-Z4640 1 TOP
M2-Z5794 1 TOP HPDE2BL
2 M2-Z4667 1 TOP LINER
3 M2-Z4635 1 BAG TRAY
4 M2-Z4626 1 BACK HPDE2P
M2-Z4627 1 BACK HPDE2
M2-Z5795 1 BACK HPDE2BL
M2-Z25303 1 BACK, 2 PC BOARDS HPDE-2
5 2I-Z4662 3 VINYL CAP 1 9/16 x 2 3/4
6 2L-Z4591 1 LEFT SIDE PANEL
7 2U-200559 1 MOTOR, FAN 120V 12A12-BTM 120V
2U-Z5041 1 FAN A/C 110CFM 230V 230V
8 2T-Z4666 1 HI-LIMIT THERMOSTAT 165°F
9 M2-PD2027 1 FAN WALL ASSEMBLY
10 2N-Z4603 1 ELEMENT 120V/650W
2N-Z5044 1 ELEMENT 230V/650W
11 M2-Z4636 2 LINER LEFT
12 M2-Z7234 1 WALL-MOTOR
13 2L-Z4592 1 RIGHT SIDE PANEL
14 M2-Z4637 1 LINER RIGHT
15 PS-Z10009 1 MOTOR 165 RPM COUNTERCLOCKWISE HPDE2H
PS-Z10013 1 MOTOR CCW 165 RPM 230V
PS-Z10007 1 MOTOR 75 RPM CCW
PS-Z10011 1 MOTOR 75 RPM CCW 230V
16 2P-9615 2 BEARING SELF ALIGN .51 ID
17 M2-PD2004 1 PUMP WALL ASSEMBLY
18 M2-22121 2 ASSEMBLY BLOCK
20 2E-Z4597 1 TERMINAL BLOCK 1/4 P.O.
21 M2-PD2006 1 TRACK LEFT ASSEMBLY
22 2P-9564 4 PLUG-RUBBER
23 2P-Z4598 1 SPRING LEFT
24 2C-Z1689 2 WASHER 1.25 O.D. x 9/32 ID
25 2A-Z1616 2 BUSHING
26 2I-Z0057 4 FOOT
27 M2-Z4673 1 BOTTOM
M2-Z5051 1 BOTTOM 230V
28 2R-Z6774 4 KNOB-DAVIES 4200 10-24 x 1/4
29 2A-Z4595 2 DRIVE SHAFT
30 M2-Z7236 1 BRACKET - PROBE
31 M2-PD2026 1 DOOR ASSEMBLY, INNER DOOR LINER
M2-Z25304 1 STIFFENER, DOOR, 4 BUTTON HPDE-2
32 2V-Z1619 2 PUMP HEAD
33 2C-Z11912 2 HAIR PIN .091 DIA. X 1.625
34 2A-Z1621 10 ROLLER #10 x 1-1/2 x 1 NYLON
35 2C-9788 1 MAGNETIC CATCH 9LB
36 2L-Z4857 1 DOOR, OUTER
M2-Z25302 1 DOOR, 4 BUTTON HPDE-2
37 2C-Z1620 10 SHOULDER SCREW #8-32 x 1/4

PARTS LIST REV M (07-23)
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 2
INCLUDE MODEL AND SERIAL NUMBER OF 2
Some items are included for illustrative purposes only and in certain instances may not be available.
MODEL
HPDE2 Series Heated Peristaltic Dispenser
Star International Holdings, Inc. Company
38 2L-Z4658 1 TUBE COVER
39 2R-Z4893 2 HINGE SET
40 PS-PD2046 1 SWITCH ON/OFF (LIGHTED REPLACMENT)
2E-Z0091 1 SWITCH ON/OFF (NON-LIGHTED)
41 2E-Z1622 2 SWITCH MOMENTARY
42 M2-Z4630 1 DRIP TRAY
M2-Z5030 1 DRIP TRAY - CLASSIC FOODS
2L-Z5796 1 DRIP TRAY HPDE2BL
43 M2-PD2024 1 BODY FRONT ASSEMBLY
M2-PD2025 1 BODY FRONT ASSEMBLY HPDE2BL
44 A3-ST3006 1 CORDSET ASSEMBLY
2E-Z0512 1 CORDSET 230V
45 2K-7889 3 BUSHING HEYCO SR-11-2
46 2A-H7804 4 BUMP-ON RUBBER SQ
47 M2-Z11877 1 CONTROL SET TO 150°F, w/PROBE 120V
2E-Z13215 1 PROBE NTC
2E-Z13212 1 TEMPERATURE CONTROL 230V (does not include probe)
2E-Z13215 1 PROBE NTC
48 M2-PD2005 1 TRACK RIGHT ASSEMBLY
49 2M-Z13394 1 LABEL-DOOR INTERIOR
50 M2-22017 2 PUMP HEAD ASSEMBLY
51 2E-Z1684 1 SWITCH-SPDT
52 M2-Z5031 2 LINER - LOWER
53 2E-Z3034 1 I.E.C. INLET 230V
54 A3-Z4357 1 INLET HOUSING 230V
55 M2-Z10302 1 TIMER 0-15 SEC 120V
M2-Z5791 1 TIMER 0-15 SEC 230V
56 2A-Z3429 2 SPACER-NYLON .175 x .375 x .5
57 PS-Z10010 1 MOTOR 165 RPM CLOCKWISE HPDE2H
PS-Z10014 1 MOTOR CW 165 RPM 230V
PS-Z10008 1 MOTOR 75 RPM CW
PS-Z10012 1 MOTOR 75 RPM CW 230V
59 2P-Z4599 1 SPRING RIGHT
60 2B-Z5029 1 GRATE - CLASSIC FOODS
61 2M-Z4605 1 LABEL - FRONT STAR
2M-Z5012 1 LABEL - FRONT PANEL NESTLE
2M-Z5018 1 LABEL - FRONT RICOS CHEESE
2M-Z5019 1 LABEL - FRONT RICOS CHEESE/CHILI
2M-Z5022 1 LABEL - FRONT CLASSIC FOODS
2M-Z5024 1 LABEL - FRONT PANEL 7-ELEVEN
62 2M-Z5013 2 LABEL - SIDE PANEL
2M-Z5015 2 LABEL - SIDE RICOS CHEESE
2M-Z5620 1 LABEL - LEFT RICOS CHEESE/CHILI
2M-Z5621 1 LABEL - RIGHT RICOS CHEESE/CHILI
2M-Z5612 2 LABEL - SIDE CLASSIC FOODS
63 2M-Z7246 1 LABEL - BODY FRONT
64 2C-Z3700 1 CLIP - PROBE

STAR MANUFACTURING INTERNATIONAL INC.
Star - Holman - Lang - Wells - Toastmaster
265 HOBSON ST. SMITHVILLE, TN 37166
[phone]
www.star-mfg.com
