Stardom SOHORAID ST2-B31+ User manual

SOHORAID
User Manual
ST2-B31+

» ST2-B31+ User Manual .................................... 1
1. Environmental Requirements............................................1
2. Product Appearance and Packaging Content ...................1
3. Hardware Requirements and Precautions ........................2
4. Hardware Installation.........................................................3
5. RAID Mode Setting............................................................4
6. Description of HDD Indicators...........................................5
7. Support Mini DisplayPort...................................................5
8. Support USB Power Delivery (USB-PD)...........................6
9. Hard Drive Replacement and Data Rebuild Instructions...6
10. Install The Operation System Into This Device...........7
» ST2-B31+ 產品使用說明 ...................................12
1. 環境需求...................................................................................12
2. 產品外觀及包裝內容 ...............................................................12
3. 硬體需求與注意事項 ...............................................................13
4. 硬體安裝...................................................................................14
5. RAID 模式切換設定 ................................................................15
6. 燈號說明...................................................................................16
7. 支援 Mini Display 埠..........................................................16
8. 支援 USB Power Delivery (USB-PD )................................17
9. 更換硬碟與資料重建說明........................................................17
10. 外接磁碟安裝作業系統 .........................................................18
SOHORAID ST2-B31+ User Manual
V1.0

SOHORAID ST2-B31+ User Manual
1
1. Environmental Requirements
About this Manual
Thank you for choosing the STARDOM product. This manual will familiarize you with the STARDOM
ST2-B31+ product. We recommend reading through this manual before using the STARDOM
ST2-B31+ product. The information provided in this manual was checked before publication, but the
actual product specifications may have changed before shipping; Latest product specifications and
updates can be found at www.STARDOM.com.tw. No separate notications will be provided by our
company. If you would like to receive the latest STARDOM product information, manuals, and rmware,
or have any questions regarding STARDOM products, please contact your local supplier or visit www.
STARDOM.com.tw for more information.
All product-related content in this manual are copyrighted by RAIDON TECHNOLOGY, INC.
Operating temperature: 0 ～40 ℃(32 ～104 ℉)
Storage temperature : -20 ～47℃(-4 ～116 ℉)
Operating voltage: 100 ～240V AC
2. Product Appearance and Packaging Content
The following items should be inside the package upon opening:
ST2-B31+
ST2-B31+ product x1 (containing HDD enclosure x2)
USB 3.1 cable x1
Power cord x1
AC/DC adapter x1
Quick setup guide x1
Screws and key
• Please check the product and accessories for any defect or missing parts. If you have any questions,
please contact your product supplier.
• Please visit the official website - Download page (http://www.stardom.com.tw/STARDOM2016/
download.php) to download drivers and other related resources.

J
SOHORAID ST2-B31+ User Manual
2
Front and rear view
3. Hardware Requirements and Precautions
1. After the hard disk is formatted, the actual total capacity of the ST2-B31+ detected by the
computer operating system will vary from the sum of all hard disk capacities stated by the
manufacturer.
2. To prevent data loss, do not remove ST2-B31+ while the system is running.
3. Please always connect the USB cable to the computer to ensure the energy saving function
operating normally.
4. Once the system has been initialized, do not switch hard disks around during use. Doing so may
prevent the RAID from being recognized by the system.
5. Once RAID mode has been set up, the switching of hard drives will lead to the removal of data
from the hard disks. Please be sure to backup the data on the hard disk before making any
switches.
6. The product needs to be restarted after adding or changing the RAID mode, and the update is
guaranteed to be the new RAID mode.
7. When the Notebook which support USB PD function is only connected to iST2-B31+, ST2-B31+
can provide up to 24W (12V/2A) power supply, but if then connected to other power supply such
like the original Notebook power supply, Notebook will automatically judge which one will be
the main power source, usually the one which can provide more Wattage will be. At this time,
ST2-B31+ may be interrupted and re-identied by the Notebook. Therefore, before connecting to
other power supplies, please make sure that there are no data accessed between Notebook and
ST2-B31+.
8. ST2-B31+ can only provide 24W at most, which is different from the original Notebook power
supply. It mainly to extend the Notebook's usage time. Take Macbook Pro 13" as an example,
the original power supply is 60W, assuming it take 2 hours for it to fully charge the battery , use
ST2-B31+ might need three times time. Therefore, if user need to use Notebook for a long time, it
is recommended to connect the original power supply rst before connect ST2-B31+.

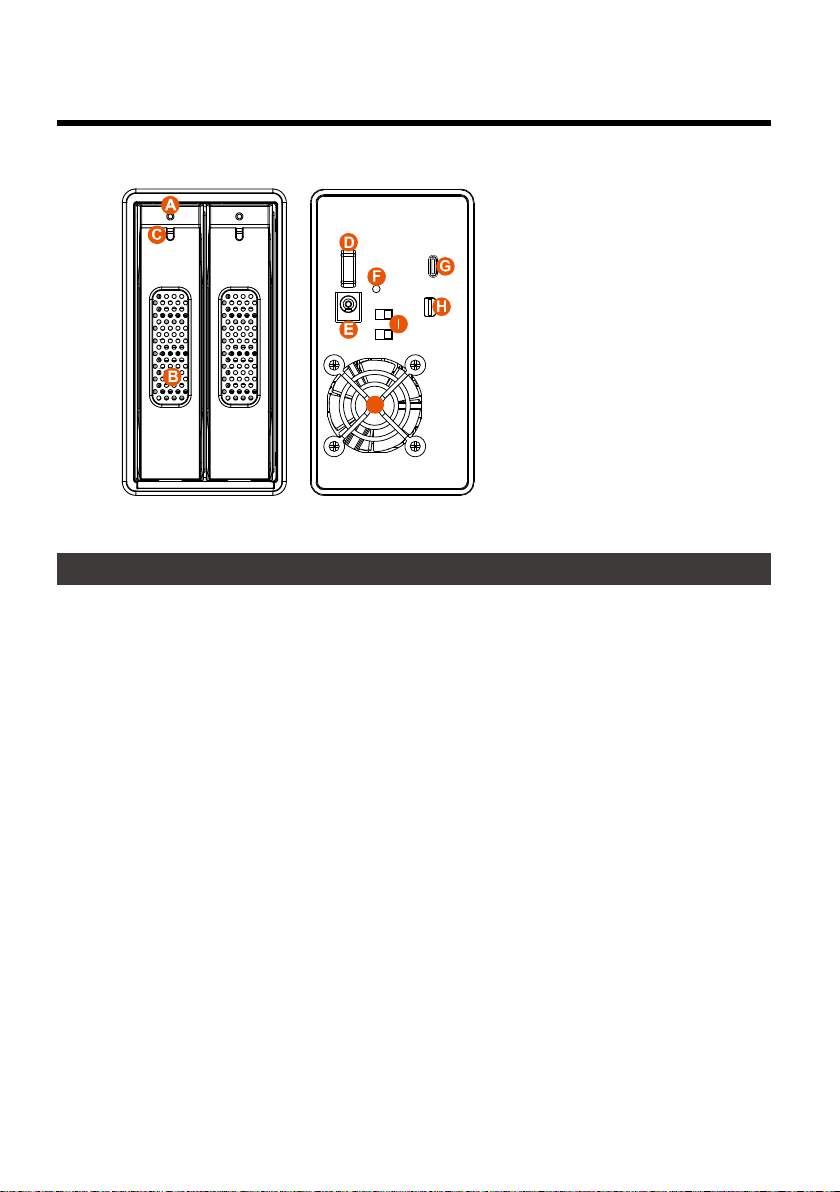

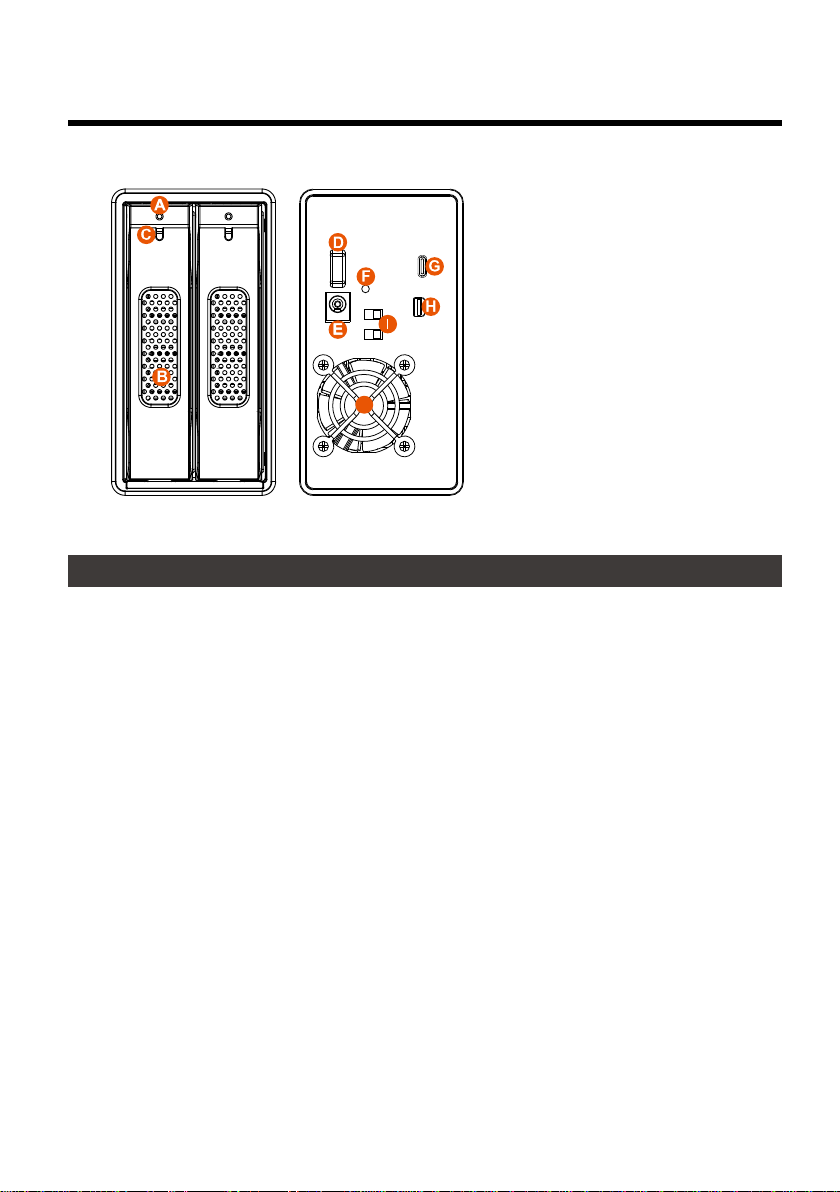

Front View Rear View
A. HDD access light
B. HDD enclosure handle
C. HDD enclosure keyhole
D. Power switch
E. Power socket
F. RESET hole
G. USB 3.1 Gen2 Type-C
(10Gbps)
H. Mini Display Port
(DP1.1a)
I. RAID switch
J. Fan

SOHORAID ST2-B31+ User Manual
3

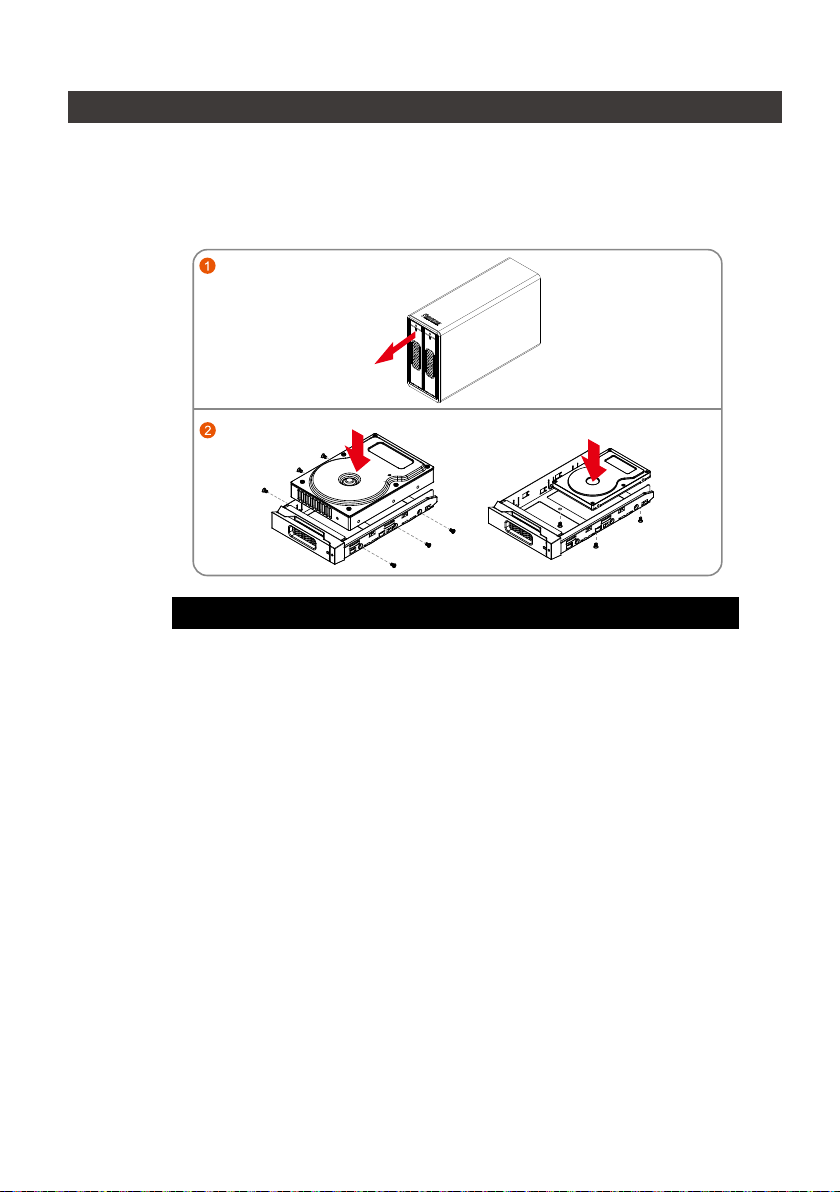

4. Hardware Installation
Please follow the steps below to complete the hardware installation process:
Use the ejector pin included in the accessory kit and inserted into the pin release opening to
eject the removable drive tray latch and extract the removable drive tray.
For 3.5" HDD/SSD, please secure it by use six the larger screws included in the accessory
kit. For 2.5" HDD/SSD, please secure it by use four the smaller screws included in the
accessory kit.
Step 1
Step 2
9. If the ST2-B31+ needs to be shut down or disconnected, please ensure the HDD is safely
removed through your operating system before turning o󰀨 the power.
10.We strongly recommend backing up important data stored on theST2-B31+ to another storage
device or a remote site. STARDOM will not be held liable for the damage or loss of data you
stored on the ST2-B31+.
Note: Please avoid using hard disk drives from di󰀨erent manufacturers or di󰀨erent
models from the same manufacturer as this may impact system performance.

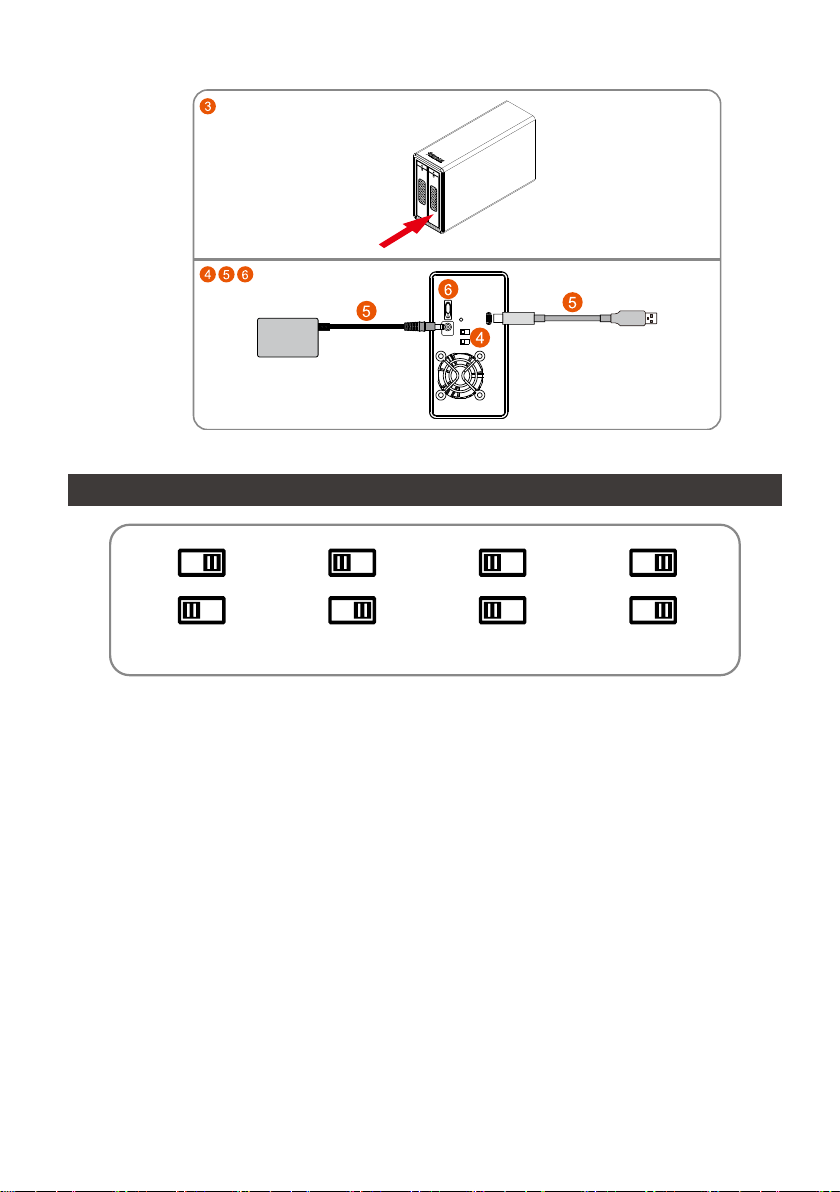

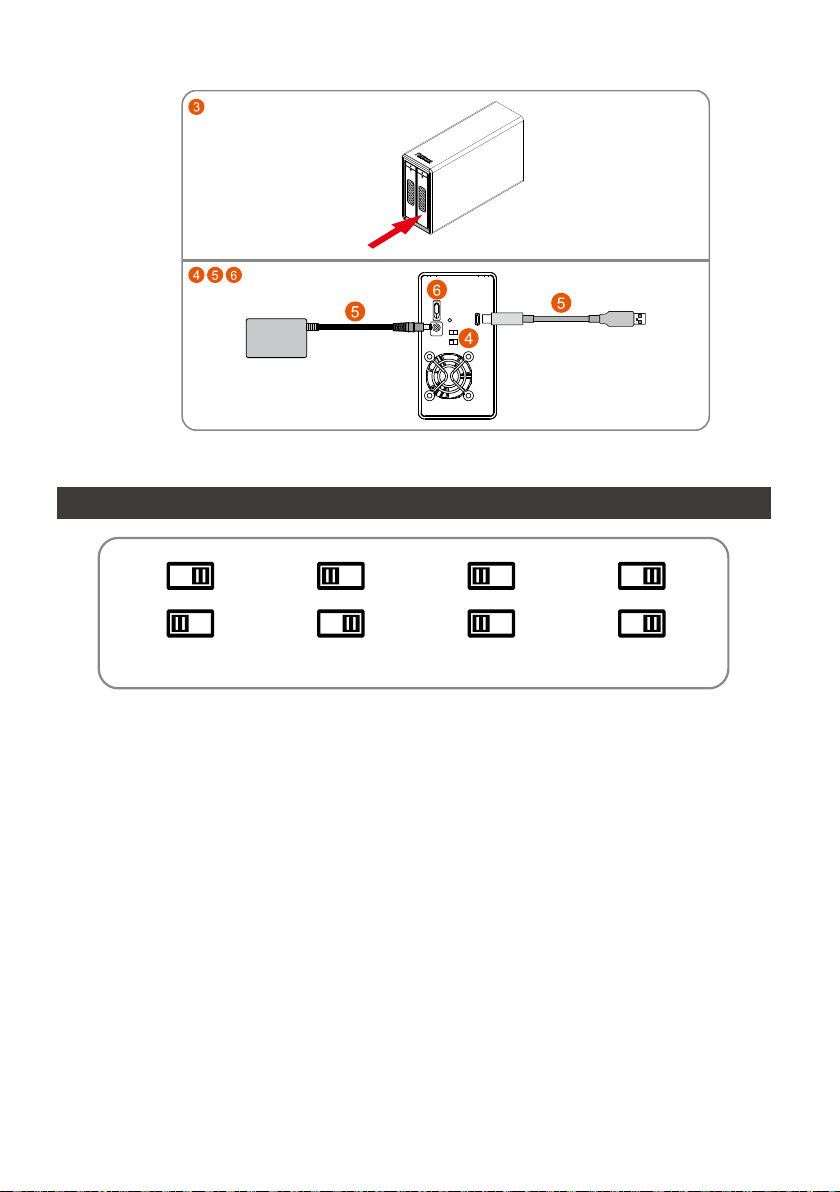

Step 3
Step 4
Step 5
Step 6
After installing two HDDs into Trays, please insert them into ST2-B31+, and then latch the
handle.
Please set RAID mode at the back-plate of ST2-B31+ unit for RAID 1, RAID 0, JBOD, and
BIG.
Please connect the signal cable rst, and then power cord later.
After completing hardware installation, turn on the power and follow the instruction of Disk
Utility to format the two HDDs, you then could start using your new ST2-B31+.

SOHORAID ST2-B31+ User Manual
4
RAID 0 RAID 1 JBOD BIG
5. RAID Mode Setting
Provide a big storage capacity and the data transfer efficiency, but no data
porotection feature.
Because of this Mirroring feature, your two HDDs/SSDs will keep an identical data
after your wtiting works. In case one of the two HDDs/SSDs is defect, ST2-B31+
would still work ne with only one of them. And once inserting a good HDD/SSD as
the defect replacement, it will do the rebuilding work by itself.
With JBOD mode, you could actually use the two HDDs/SSDs as the normal two
storages for your large memory capacity requirement, but no data porotection
feature.
You could enjoy a double memory capacity from this BIG feature, but no data
porotection feature.
RAID 0：
RAID 1：
JBOD ：
BIG ：
(default)
The Standard Procedure to Switch RAID Setting
Step-1: Please rst connect ST2-B31+ to your Mac with Thunderbolt cable..
Step-2: Please set RAID Dip Switch to the position you choose.
Step-3: Please use the Key to press the hidden RESET key at the back-plate, hold and wait for
the end of Blue-Purple LED blinking till a stable Blue light.
Step-4: Please turn o󰀨 your ST2-B31+, and re-turn it on again. You now have reset ST2-B31+
with a new RAID mode successfully.

SOHORAID ST2-B31+ User Manual
5
6. Description of HDD Indicators
Status HDD Status Light
RAID 0, BIG RAID 1 JBOD
HDD idle Blue light always on Blue light always on Blue light always on
No HDD detected Red light always on Red light always on Red light always on
Data access Blue light flashing Blue light flashing Blue light flashing
Rebuilding data -
Source HDD N/A Breathing Blue Light N/A
Rebuilding data -
Target HDD N/A Breathing Purple Light N/A

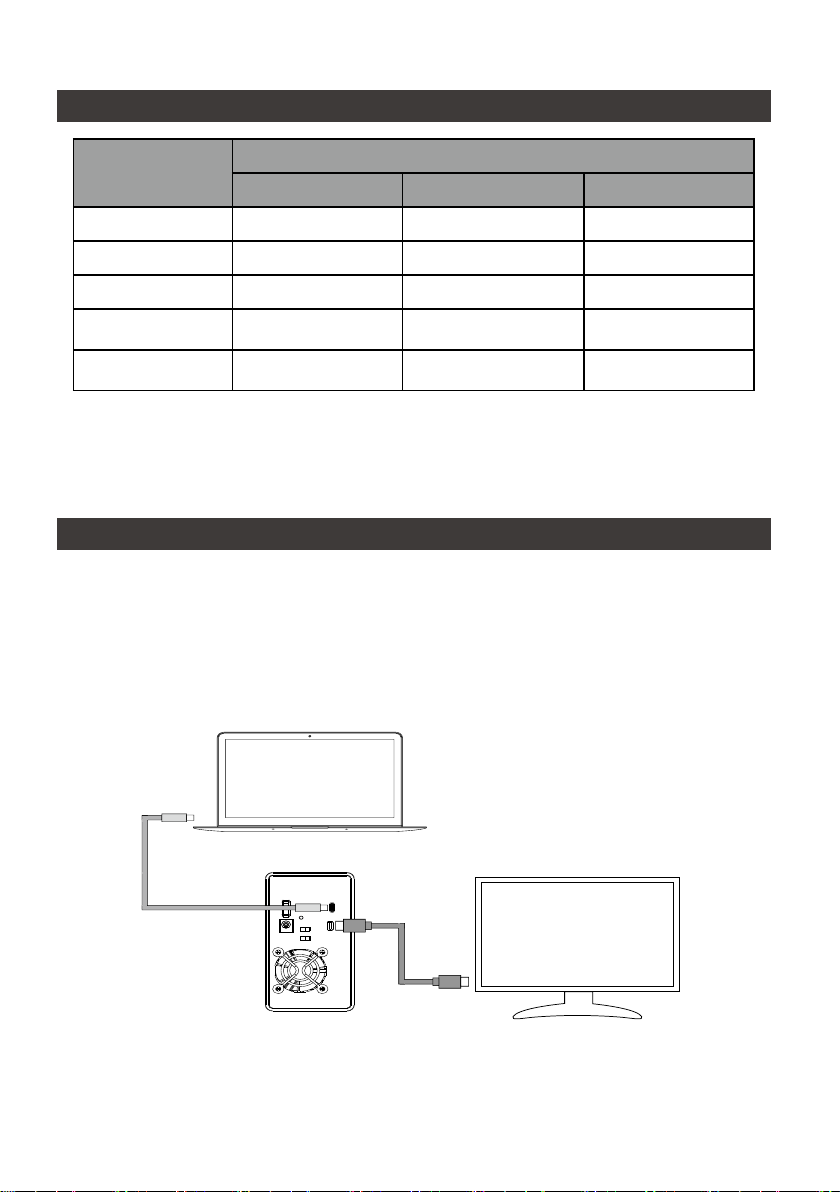

7. Support Mini DisplayPort
1. The ST2-B31+ o󰀨ers a Mini DisplayPort support DP1.1a, provides up to 4K@30Hz resolution ,
and is compatible with monitor and cables with Mini DisplayPort.
2. By using third-party's mini DisplayPort adapter, it can be connected to the monitor with
DisplayPort interface.
3. By using third-party's active mini DisplayPort adapter, it can be connected to the monitor with
VGA, DVI and HDMI interface.

SOHORAID ST2-B31+ User Manual
6
9. Hard Drive Replacement and Data Rebuild Instructions
1. During the use of ST2-B31+, if you are required to replace a malfunctioning drive, refer to chapter
4“Hardware Installation”. Once drive replacement is completed and it is turned on, ST2-B31+ will
perform data rebuilding procedure automatically.
2. If, during the rebuilding process, a drive malfunctions and is unable to continue the rebuilding process,
please restart ST2-B31+ to check and see that whether the drive is in fact malfunctioning. If it is, please
refer to chapter 4 “Hardware Installation” to replace the malfunctioning drive.
Note:
ST2-B31+ allows suspension during data rebuilding process. If you turn o󰀨 the power during the process,
the system will automatically continue to process the remains the next time you turn on the power of the
unit. Please do not change the position and sequence of the drives at any time.
1. USB Power Delivery (USB-PD) introduces charging technology and unified cable standards.
ST2-B31+ supports USB-PD. Use USB Type-C to USB Type-C cable, it can provide up to 24W
(5V/3A (15W), 9V/2A (18W), 12V/2A (24W)) power charging to the host.
2. If the connected host is a notebook that supports USB-PD (5V/9V/12V) charging, it will remain
charging after the notebook is powered off or restarted while the ST2-B31+ is still power on.
3. If the ST2-B31+ cannot be recognized after the notebook restarted, please reconnect the Type-C
cable or restart the ST2-B31+.

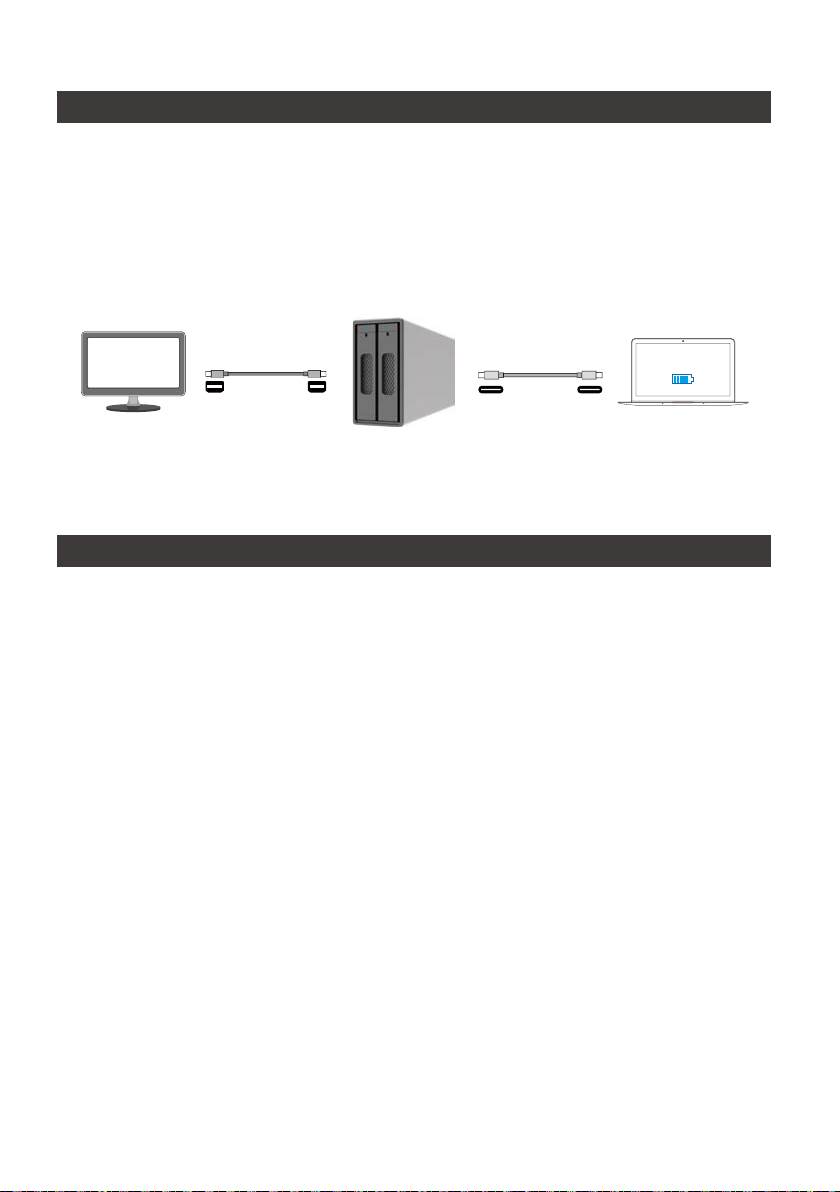

8. Support USB Power Delivery (USB-PD)
One USB-C Cable
More Speed, More Power, More Pixels
4K
More Pixels
(4K@30Hz) More Speed (10Gbps)
Smart Charge
(24W)
Notebook
★Notebook will need to support 5V/9V/12V charge.

SOHORAID ST2-B31+ User Manual
7
10. Install The Operation System Into This Device
1. Need to have network online capabilities. If a wireless network is available, you can choose it
from the Wi-Fi menu in the menu bar. This menu is also available in macOS Recovery.

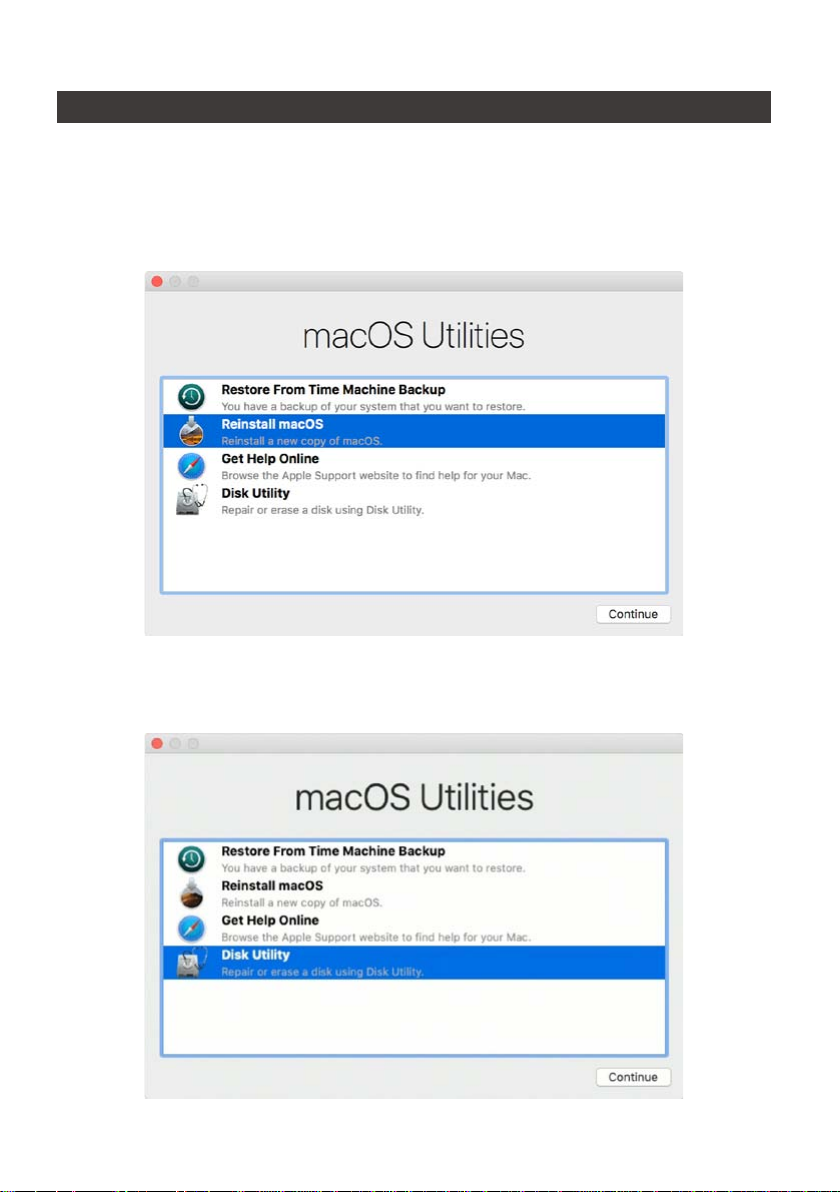

2. Turn on your Mac and immediately press and hold Command ( ⌘)-R. Continue holding until you
see the Apple logo or a spinning globe. Startup is complete when you see the utilities window:
3. If you need to erase your disk before installing macOS, select Disk Utility from the Utilities window,
then click Continue. You probably don't need to erase, unless you're selling or giving away your
Mac or have an issue that requires you to erase.
Install macOS (Use macOS Mojave 10.14 for example)

SOHORAID ST2-B31+ User Manual
8

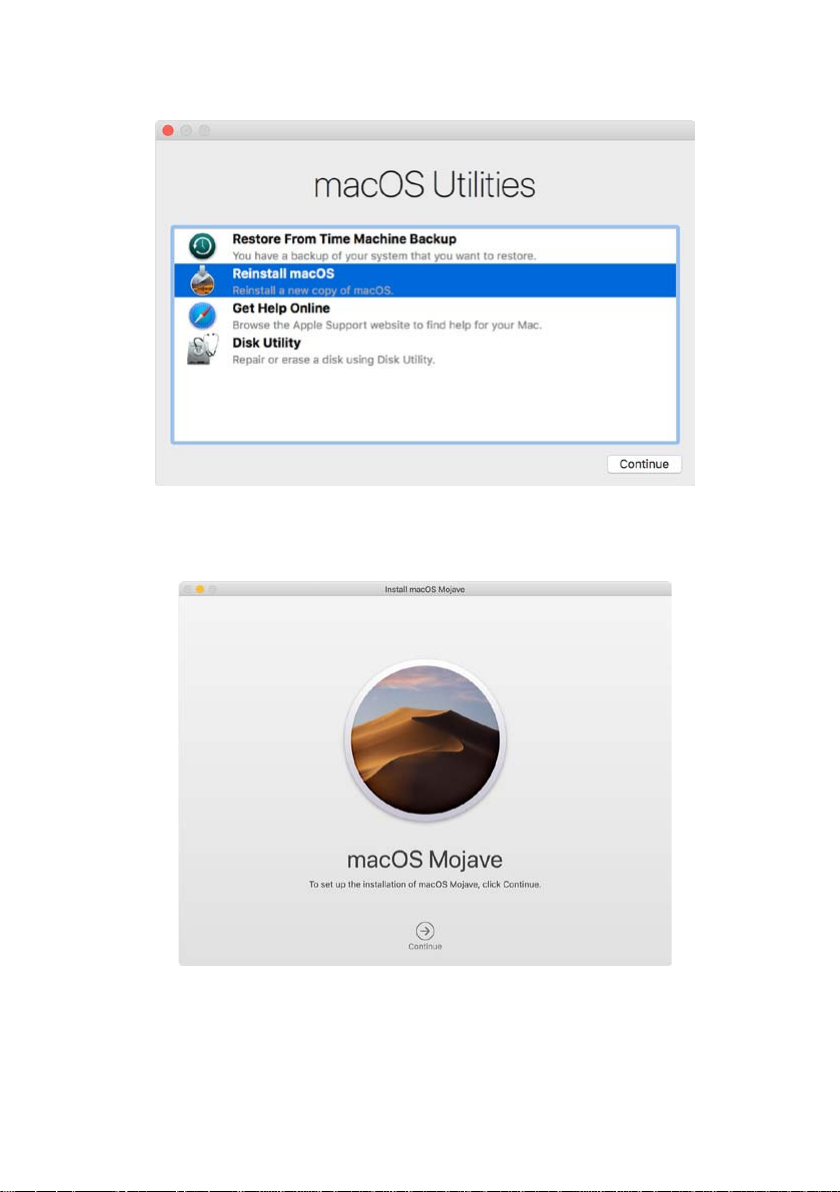

4. Install macOS. Choose Reinstall macOS from the Utilities window, and click continue.
5. Follow the onscreen instructions, select agree to the software license agreement, and then select
the disk to start the installation.
6. Please allow installation to complete without putting your Mac to sleep or closing its lid. During
installation, your Mac might restart and show a progress bar several times, and the screen might
be empty for minutes at a time.

SOHORAID ST2-B31+ User Manual
9
Install Windows
1. The following content is an example of using the software "WinToUSB Free Edition". For related
specications and copyrights, please refer to the software official website for details.
2. After the software is installed, press the shortcut icon of the desktop twice to open Hasleo
WinToUSB.
3. On the left side of the interface, select "Mirror to USB" and click the right folder icon to select the
ISO le for Windows 10.
4. Select the version of Windows you want to install and go to the next step.
Note: WinToUSB Free Edition does not support Windows Professional and Enterprise editions.
(Use Windows 10 Home Edition for example)

SOHORAID ST2-B31+ User Manual
10

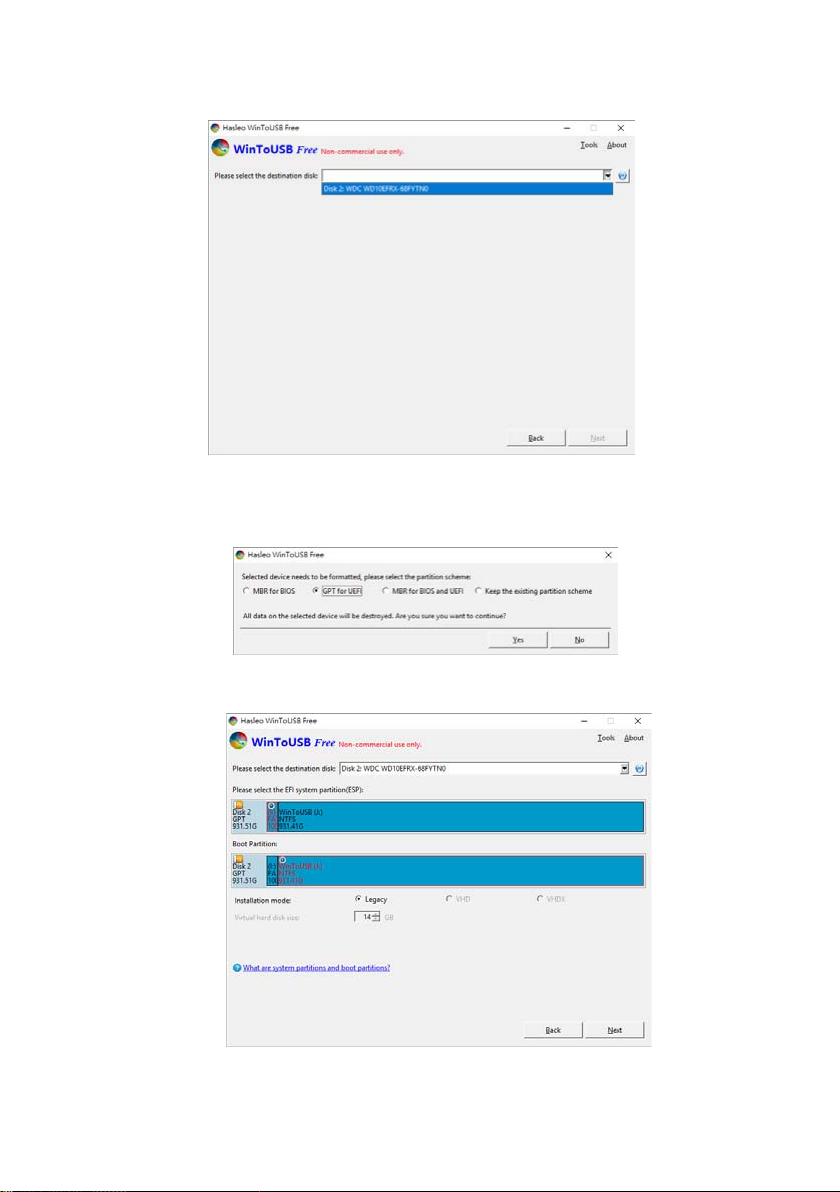

5. Select the USB external drive to install.
6. Select the version of the disk partition configuration according to your personal hardware
specications, then execute "Yes" to proceed to the next step.
7. Follow the default and follow the next step.

SOHORAID ST2-B31+ User Manual
11
8. Windows 10 is installed to an external hard drive. After the installation is complete, click the "End"
button, and then conrm to leave.
9. Conrm that the external hard disk is inserted in the USB slot of the computer. After rebooting,
enter the BIOS or UEFI adjusts to the USB external hard disk box as the rst boot sequence, and
saves the settings and leaves.
10.Then start the installation process for Windows 10, and follow the system instructions and
personal requirements to complete the setup.
Note: The screenshot is for illustration only, and the actual situation varies depending on each motherboard.

SOHORAID ST2-B31+ User Manual
12
2. 產品外觀及包裝內容
1. 環境需求
關於這份手冊
感謝您使用 STARDOM 的產品。本手冊將介紹 STARDOM ST2-B31+ 產品。在您開始使用 STARDOM
ST2-B31+ 產品前，建議您先閱讀過本手冊。手冊裡的資訊在出版前雖已被詳細確認，實際產品規格
仍將以出貨時為準；任何產品規格或相關資訊更新請您直接到 www.stardom.com.tw 網站查詢，本公
司將不另行通知。若您想獲得 STARDOM 最新產品訊息、使用手冊、韌體 ,或對 STARDOM 產品有任
何疑問，請您聯絡當地供應商或到 www.stardom.com.tw 取得相關訊息。
本手冊相關產品內容歸銳銨科技股份有限公司版權所有
打開包裝外盒後，包裝內容應包含下列組件：
工作溫度 : 0 ～40 ℃(0 ～104 ℉)
儲存溫度 : -20 ～47℃(-4 ～116 ℉)
工作電壓 : 100 ～240V AC
ST2-B31+
ST2-B31+ 產品本體 x1( 內含抽取盒 x2)
USB 3.1 連接線 x1
電源線 x1
電源轉接器 x1
快速安裝導引 x1
螺絲及鑰匙
• 請先確認相關配件與產品本身是否有受損或是缺少配件，若有任何疑問，請與您的經銷商或業務人
員聯絡。
• 請前往官網 -產品資料下載頁面 (http://www.stardom.com.tw/STARDOM2016/download.php) 下載
驅動程式以及其餘相關資源。

SOHORAID ST2-B31+ User Manual
13
正面與背面示意圖
A. 硬碟讀取燈
B. 硬碟抽取盒把手
C. 硬碟抽取盒鑰匙孔
D. 電源開關
E. 電源插座
F. RESET 鈕
G. USB 3.1 Gen2 Type-C
(10Gbps)
H. Mini Display 埠
(DP1.1a)
I. RAID 切換鈕
J. 風扇
前視圖 背視圖
3. 硬體需求與注意事項
1. 硬碟格式化後，由電腦主機作業系統所辨識 ST2-B31+ 的實際總容量會與硬碟廠所標示的容量加總
後，將有所差異。
2. 當系統運作時，請勿任意移除，以免導致資料遺失。
3. 為了確保節能功能的正常運作，請將 USB 連接線常態性與電腦端保持連接。
4. 完成系統初始化安裝後，在使用上請勿任意變更硬碟位置；此動作將可能導致系統無法形成
RAID。
5. RAID 模式一旦設定完成，若要進行切換，因切換過程中將會清除硬碟中的資料，請務必先將硬碟
中的資料另行備份後再行切換。
6. 在新增或變更 RAID 模式後需重新啟動產品，以確保完成更新為新的 RAID 模式。
7. 當支援 USB PD 功能的 Notebook 僅連接 ST2-B31+ 時，ST2-B31+ 可以提供最多 24W (12V/2A)
的電源供應，但後續再接上原本 Notebook 的電源供應器時，主要供電來源將由 Notebook 自行判
斷，以可供應較大瓦數的電源為主，此時的 ST2-B31+ 有可能會因此中斷供電並重新被 Notebook
辨識，因此當要接上其它電源時，請務必先確認當下 ST2-B31+ 並沒有資料存取的動作。
8. ST2-B31+ 的PD 功能，最多僅能提供 24W ，主要在延長 Notebook 的使用時間，與原本
Notebook 電源供應器的瓦數有落差，以 Macbook Pro 13" 為例，電源供應器為 60W，假設使用原
本的電源供應器充飽電需要 2 小時，透過 ST2-B31+ 大約會需要 3 倍的時間。因此如果需要長時
間使用 Notebook ，建議先接上 Notebook 原本的電源供應器後再接上 ST2-B31+。
9. 當您需要關閉或移除 ST2-B31+ 時，務必透過您所操作的作業系統中執行硬碟安全移除後，方進行
電源關閉的動作。
10.強烈建議除了使用 ST2-B31+ 的資料儲存功能外，請針對重要資料備份到另一個儲存裝置上或遠端
備份，雙重備份您重要的資料。若您儲存在 ST2-B31+ 的資料損毀或遺失，STARDOM 將不負任
何的責任。
J

SOHORAID ST2-B31+ User Manual
14
4. 硬體安裝
請參照以下步驟完成硬體安裝
請使用配件中所附的頂針插⼊硬碟抽取盒頂針孔，開啟硬碟抽取盒把手方便將抽取盒取出。
安裝 3.5 吋硬碟，請使用 6 顆零件包內附的大顆螺絲加以固定；安裝 2.5 吋硬碟，請使用 4
顆零件包內附的小顆螺絲加以固定。
步驟 1
步驟 2
硬碟安裝完成後，請將抽取盒平移放入主機內，並關上把手。
透過機體背面的 RAID 切換紐，設定所要使用的 RAID 模式。
將相關連接線接上，最後接上電源轉接器。
硬體安裝完成。開啟電源後請透過作業系統進行後續格式化設定。請依照電腦作業系統指示
進行硬碟格式化，完成硬碟格式化後，便可以進行資料的讀寫。
步驟 3
步驟 4
步驟 5
步驟 6
注意：不建議使用不同廠牌，或是同廠牌不同型號的硬碟，避免影響效能。

RAID 0 RAID 1 JBOD BIG
SOHORAID ST2-B31+ User Manual
15
5. RAID 模式切換設定
RAID 0：一個大的獨立資料儲存容量，並可加速資料存取但無資料保護功能。
RAID 1：兩顆硬碟是鏡射關係因此擁有相同的資料，因此有一顆硬碟損毀仍然可以正常運作。
當放⼊入新硬碟取代損毀硬碟後，系統會自自動將資料重建到新的硬碟。
JBOD ：可對兩顆獨立硬碟進行管理的工作，能大幅增加硬碟管理上的便利性，但無資料保護
功能。
BIG ：兩顆硬碟的容量會被加總成一個大儲存容量，但無資料保護功能。
（預設）
切換 RAID 設定的標準程序：
步驟 1：請在 ST2-B31+ 連線到電腦後，一併打開電腦和 ST2-B31+ 的電源開關。
步驟 2：請在藍燈恆亮時，將在 ST2-B31+ 背板上設定 RAID 設定的「切換開關」調到你所要的
設定位置。
步驟 3：請使用頂針插入「重置鍵」，待前面板抽取盒上的閃爍藍紫燈結束、並轉成恆亮藍燈後
鬆開頂針。
步驟 4：請您再做一次關、開 ST2-B31+ 電源的動作後，您已經改變、並重新設定了 ST2-B31+
的RAID。

SOHORAID ST2-B31+ User Manual
16
6. 燈號說明
狀態 硬碟狀態燈
RAID 0, BIG, RAID 1 JBOD
硬碟閒置 藍燈恆亮 藍燈恆亮 藍燈恆亮
無硬碟 紅燈恆亮 紅燈恆亮 紅燈恆亮
資料存取 藍燈閃爍 藍燈閃爍 藍燈閃爍
資料重建 -來源碟 N/A 呼吸燈（藍燈） N/A
資料重建 -目標碟 N/A 呼吸燈（紫燈） N/A
7. 支援 Mini Display 埠
1. ST2-B31+ 提供一個 Mini Display 埠支援 DP1.1a，最高可支援 4K@30Hz 畫質，相容於具有 Mini
Display 埠的螢幕及連接線。
2. 透過第三方 Mini Display 埠轉接器或轉接線，可以連接具備 Display 埠的螢幕。
3. 透過第三方主動式 Mini Display 埠轉接器或轉接線，可以連接具備 VGA、DVI 或HDMI 的螢幕。

SOHORAID ST2-B31+ User Manual
17
9. 更換硬碟與資料重建說明
1. 使用 ST2-B31+ 過程當中 ,如硬碟故障而必須更換新硬碟時，請參考「章節 4_ 硬體安裝」，取出
故障硬碟並更換成新硬碟。故障硬碟一旦完成更新並開機後，ST2-B31+ 會自動進行資料重建功能。
2. 在資料重建的過程當中，如其中硬碟又再次發生故障，而導致資料重建無法繼續。請將 ST2-B31+
重新開機，再次確認硬碟是否故障，如果確定有故障，請參考「章節 4_ 硬體安裝」進行硬碟更換。
注意：
ST2-B31+ 容許資料重建過程中斷。如您在資料重建過程中將電源關閉，在您下次開機，過程將會從
您上次關機時的階段繼續進行直到完成。請勿任意改變硬碟的位置與順序。
1. USB Power Delivery ( 簡稱 USB-PD )，為 USB 開發者論壇（USB-IF）推出快速充電技術與統一連
接線標準。 ST2-B31+ 支援 USB-PD ，若採用 USB Type-C to USB Type-C 介面，可提供 5V/3A
(15W), 9V/2A (18W), 12V/2A (24W) 電力給主機端。
2. 若所連接之主機端為支援 USB-PD(5V/9V/12V) 充電的筆記型電腦，在 ST2-B31+ 開機的狀態下，
將筆電關機或重新開機後， USB-PD 仍會維持充電功能。
3. 如電腦無法讀取到 ST2-B31+，請重新連接 Type-C 連接線，或是將 ST2-B31+ 關機再啟動，方可
正常連接使用。
8. 支援 USB Power Delivery (USB-PD )
一條 USB-C 傳輸線
更快的速度 智慧充電 更高的畫質
4K
更高的畫質
(4K@30Hz)
更快的速度
(10Gbps)
智慧充電
(24W)
Notebook
★筆記型電腦需要支援 5V/9V/12V 充電。

SOHORAID ST2-B31+ User Manual
18
10. 外接磁碟安裝作業系統
安裝 macOS
1. 需具備網路連線能力。若有無線網路可用，可以從選單列的 Wi-Fi 選單中選擇該網路。「macOS
復原」也提供這份選單使用。
（以 10.14 Mojave 為例）

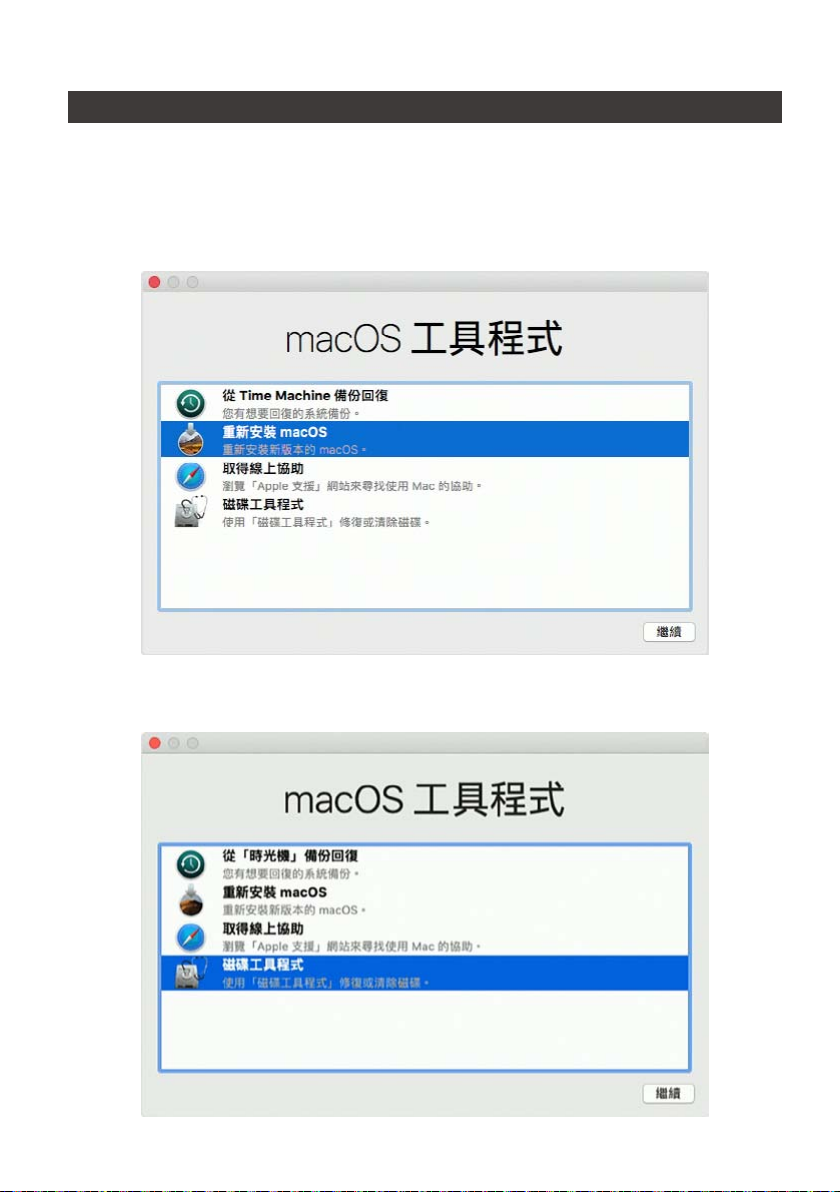

2. 開啟 Mac 並立即按住 Command( ⌘)-R，持續按住這些按鍵，直到出現 Apple 標誌或旋轉的地球。
看到工具程式視窗，即表示完成啟動：
3. 若必須在安裝 macOS 之前清除磁碟，請從「工具程式」視窗選擇「磁碟工具程式」，然後按一下「繼
續」。您可能不需要清除磁碟，除非要將 Mac 賣或送給別人，或是有問題需要清除磁碟。
