1. Environmental Requirements
About this Manual
Thank you for choosing the STARDOM product. This manual will familiarize you with the STARDOM
ST4-TB3 product. We recommend reading through this manual before using the STARDOM ST4-
TB3 product. The information provided in this manual was checked before publication, but the actual
product specications may have changed before shipping; Latest product specications and updates
can be found at www.STARDOM.com.tw. No separate notications will be provided by our company. If
you would like to receive the latest STARDOM product information, manuals, and rmware, or have any
questions regarding STARDOM products, please contact your local supplier or visit www.STARDOM.
com.tw for more information.
All product-related content in this manual are copyrighted by RAIDON TECHNOLOGY, INC.
Operating Temperature: 5 ～35 ℃(41 ～95 ℉)
Storage Temperature : -20 ～47℃(-4 ～116 ℉)
Line Voltage : 100 ～240V AC
» ST4-TB3 User Manual
2. Product Appearance and Packaging Content
The following items should be inside the package upon opening:
ST4-TB3
ST4-TB3 product x1 (containing HDD enclosure x4)
Thunderbolt cable x1
Power cable x1
Handle x1
Screws and key x5
Quick Setup Guide x1
• Please check the product and accessories for any defect or missing parts. If you have any questions,
please contact your product supplier.
• Please visit the official website (www.stardom.com.tw) to download drivers and other related
resources.

J
SOHORAID ST4-TB3 User Manual
2
Front and rear view
3. Hardware Requirements and Precautions
1. This system can only transfer data to one computer through one interface at a time.
2. Please make sure that the hard drives are free from bad blocks or defects prior to installation in
order to avoid system crashes or data loss.
3. Whenever turning o󰀨 or unplugging the ST4-TB3 from your computer system becomes necessary,
always remember to safely remove it from your operating system rst.
4. When the ST4 is connected to the computer system, it's prohibited to remove, insert or swap the
hard drive while data transfer is being performed.
5. If you will be incorporating either software or hardware RAID functionality to operate with the ST4-
TB3, it is important to understand the RAID level and its component that will be incorporated and
the precautions to take as each RAID level and component may function di󰀨erently and contains
various limitations.
6. It is highly recommended for users to back up important data contained within the drives of the
ST4-TB3 on a regular basis or whenever the user feels necessary to a remote or a separate
storage device. STARDOM will not be responsible for any lost of data caused during the use of
the ST4-TB3 or the recovery of the data lost.

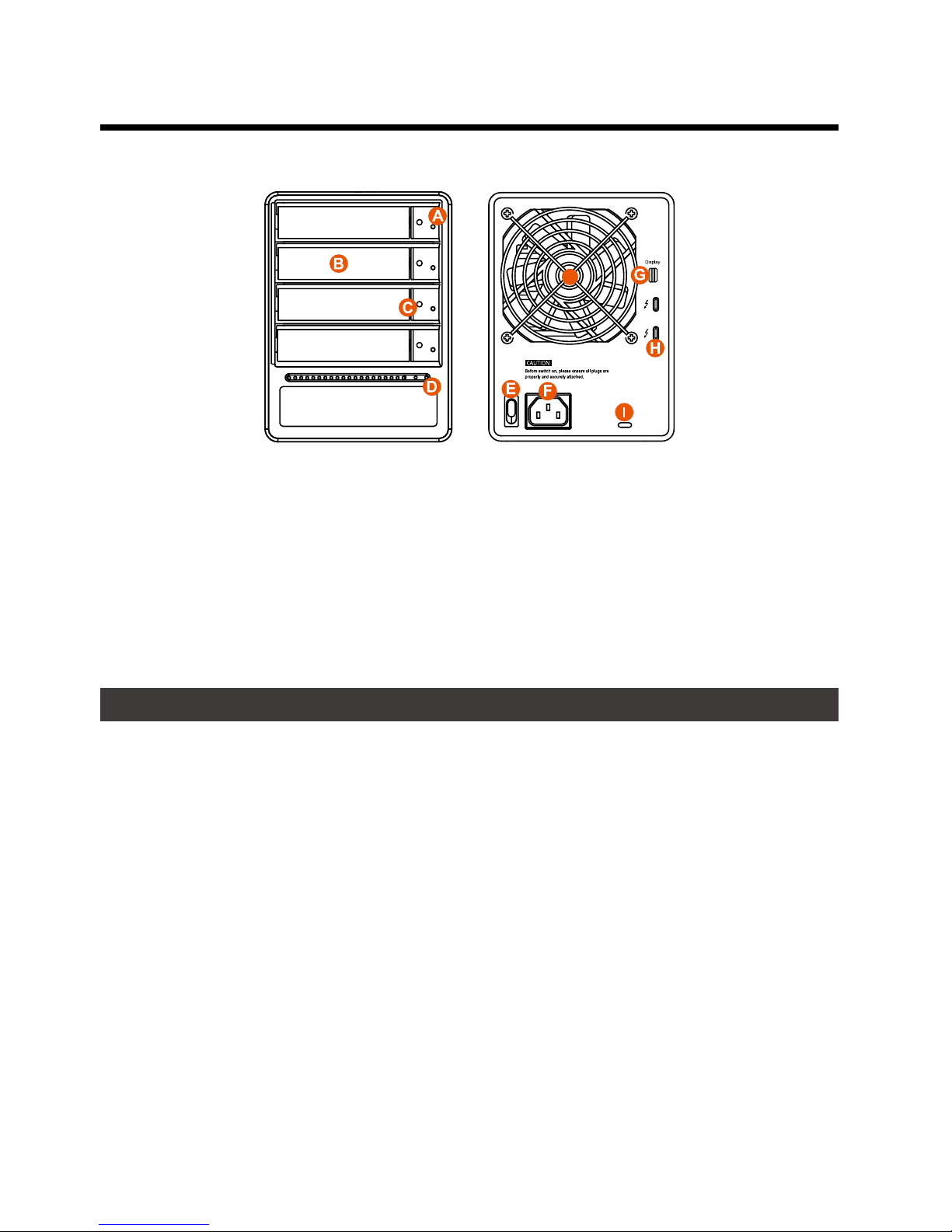

A. HDD access light
B. HDD enclosure handle
C. HDD enclosure keyhole
D. Power status light
E. System status light
F. Thunderbolt port
G. Mini DisplayPort
H. Anti-theft lock
I. Fan
J. Fan speed switch (set to "High" by default)
Front View
Hard Disk
Location 0
Hard Disk
Location 1
Hard Disk
Location 2
Hard Disk
Location 3
Note: A hard disk must be installed at HDD location 0
Rear View
K. Mute switch
L. Power switch
M. Power socket

SOHORAID ST4-TB3 User Manual
3
4. Hardware Installation
Please follow the steps below to complete the hardware installation process:
When you open the package, please immediately check the product and included parts for
any damage or missing parts. If there is a problem with the product or included parts please
contact your supplier immediately.
Place the device on a flat, even surface. Make sure that the cooling fan is not blocked
and there is sufficient surrounding space for cooling. (Keep away from water or other
environments that may cause product damage)
Please insert the pin included with the parts pack into the keyhole to release the HDD
enclosure handle and remove the HDD enclosure.
Place the hard disk in the HDD enclosure and secure it in place with the included screws;
this will prevent damage to the hard disk from external vibration.
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9
Once the hard disk is installed, slide the enclosure into the system and close the handle.
Select the appropriate cable from the accessories pack depending on the interface. Connect
the ST4-TB3 backplate connection port to the corresponding port on the computer.
Connect the AC Power cable to the ST4-TB3. Plug the connector into the power socket then
start the system.
Your operating system will automatically detect available capacity once the device nishes
booting. Once the device has been detected, please follow instructions given by the
operating system and format the system. Once the hard disk has been formatted, the ST4-
TB3 can be used.
If the computer is unable to detect the system, please install the drivers from official website
(www.STARDOM.com.tw)
Note: Please avoid using hard disk drives from di󰀨erent manufacturers or di󰀨erent
models from the same manufacturer as this may impact system performance.

SOHORAID ST4-TB3 User Manual
4
• JBOD: To use individual capacity of each installed HDD.
• RAID-0: Only enhances the performance of data accessing, it does not provide backup/fail-safe
for stored data.
1. Use your Windows username and password to log into the MSU. If you have a username but no
password, then leave the password eld blank.
2. Click 【Operation】and 【Create Array】.
5. The MSU, and easy RAID configurator
A. Set up RAID Mode:

SOHORAID ST4-TB3 User Manual
5
3. Click at the selected HDDs.
4. Select【RAID 0】.
5. Setup Stripe Size.
• The more Stripe Sizes helps a better data transfer for large data les which is
good for video and audio editing works.
• The less Stripe Sizes helps a better efficiency at randon les which is good for
daily word processing, frequent read-&-write works.

SOHORAID ST4-TB3 User Manual
6
6. Type Storage Name and Submit RAID setting.
7. After submitting RAID setting:
8. Click 【Create VD】, 【Initialize】option is set to 【No Initialization】; 【Gigabyte Rounding】
options set to 【10G】, then click 【Submit】.

SOHORAID ST4-TB3 User Manual
7
10.To initiate and format HDD/SSD at OS level.
11. After completing the format, you couyld start using your ST4-TB3.
9. After submit, you get a New_VD.
P.S. VD is the abbreviation of Virture Disk.

SOHORAID ST4-TB3 User Manual
8
1. Click 【Operation】and 【Delete VD】.
2. Click 【OK】 at rst warning message.
3. Click 【OK】at the second warning message.
B. Delete a RAID for a new RAID setting

SOHORAID ST4-TB3 User Manual
9
4. Click 【Operation】, 【Delete Array】and 【Submit】.
5. Click 【OK】at warning message.
6. It returns to JBOD mode, you just have to format every individual HDD or just to set up another
RAID.
Please refer to “STARDOM All TB2&TB3 RAID 5 Storage MSU User Manual.pdf” for the RAID setting.

SOHORAID ST4-TB3 User Manual
10
6. Description of HDD Indicators
Status System indicator Light HDD Status Light
No HDD Blue light always on N/A
HDD failed Blue light always on N/A
Data access Blue light always on Blue light flashing
HDD idle Blue light always on Blue light always on
7. Connect with other devices
1. TB port: Thunderbolt 3 ports can be connected to TB3, USB3.1 and Display port device. It is downward
to support USB3.0 / USB2.0. This product can connect with di󰀨erent USB devices by USB Type C to
Type A/B cable. It supports TB port power delivery (PD) function, which can provide 15W (5V / 3A)
power output to support 5V / 3A rechargeable notebook computer use. There is no additional power
supply need.
2. Mini Display port: congured with Mini Display Port connection port to provide additional screen output.

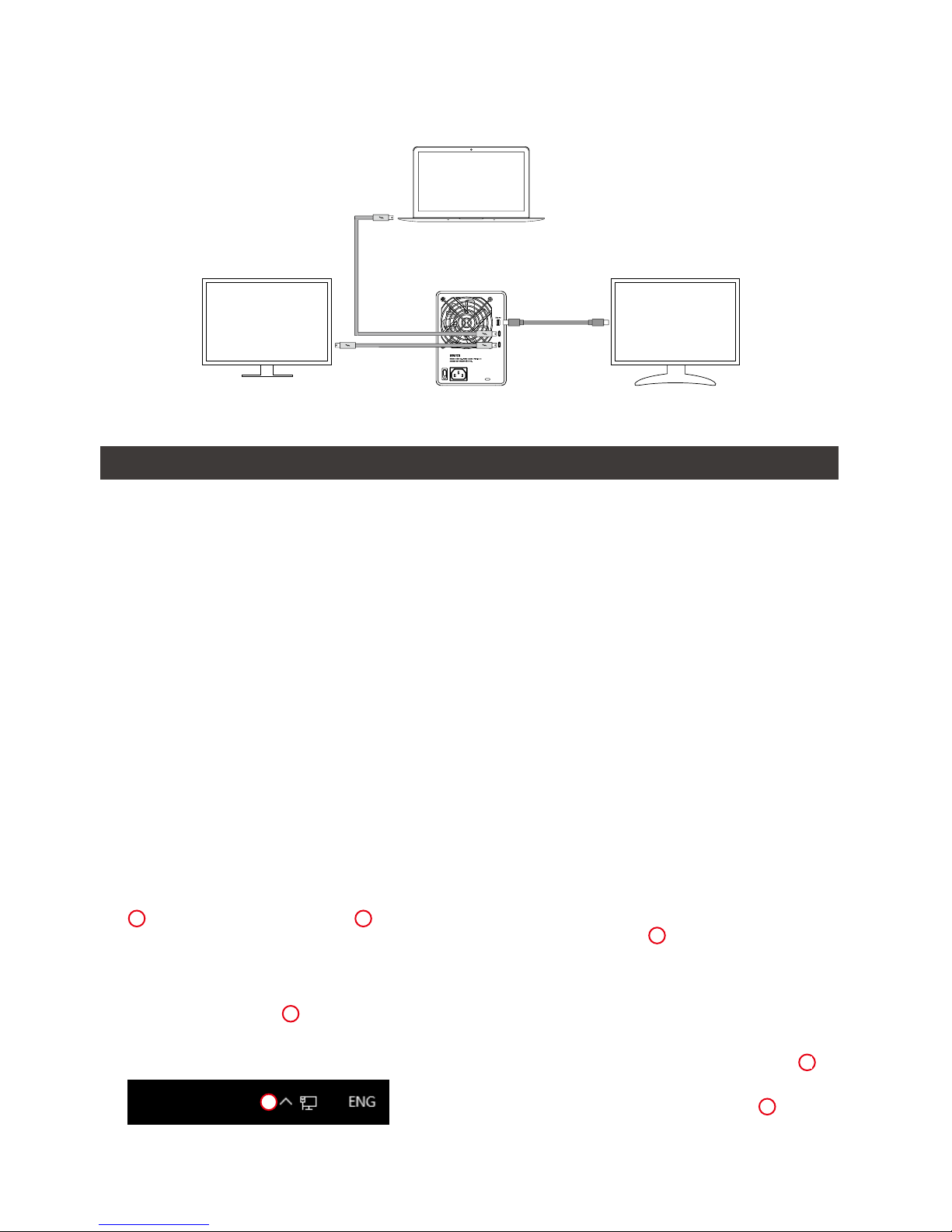

Two System Connections:
A. ST4-TB3: Let its TB A port connect to Host (PC/Workstation/Server), TB B port to other
Device (USB or TB), and mDP (Mini Display) port to monitor.

SOHORAID ST4-TB3 User Manual
11
8. Frequently Asked Questions
1. If the ST4-TB3 is turned on, but the Thunderbolt cable is not connected, the fan and power status lights
will both be in stopped/hibernation mode. The fan and power status light will not come on until the
Thunderbolt cable is connected to the computer.
2. When the computer enters hibernation mode, the fan and power status lights will both be in stopped/
hibernation mode. The fan and power status light will not come on until the computer is awake.
3. If a hard disk already contains data from another RAID product or RAID mode has already been set,
we recommend reverting back to JBOD mode before the drive is used with the ST4-TB3 again to avoid
problems accessing the hard drive.
4. If the ST4-TB3 is installed on the Windows OS but can not be connected, refer to the following
steps:
B. ST4-TB3: Let its TB A port connect to Host (PC/Workstation/Server), TB B port to a monitor,
and mDP port to the second monitor.
D
RAIDON tech., ST4-TB3
A. Open the Windows Taskbar.
B. right-click the Thunderbolt icon.
C. Select "Approve Attached Devices".
D. Select the port to which the device is connected.
E. Wait for the dialog box "Approve Thunderbolt ™ Devices" to appear.
F. Select "Always Connect"
G. Press "OK"。
A
C
B
E
G
F
