Treadmill T60
For safe use and product knowledge, please read this
MANUAL thoroughly.

OWNER’S MANUAL

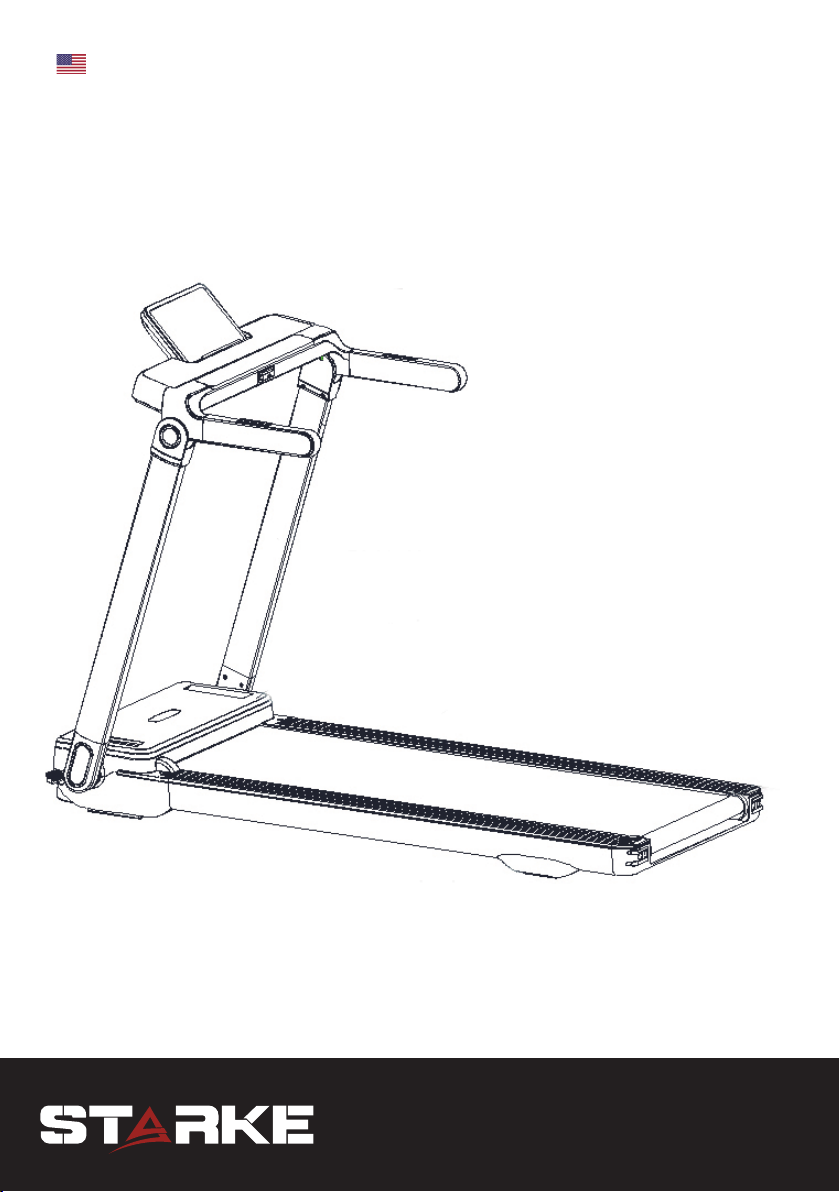

TREADMILL T60 STARKE
EN

INDEX
Important Safety Information
Technical Specications
Explored view
Parts list
Operation guide

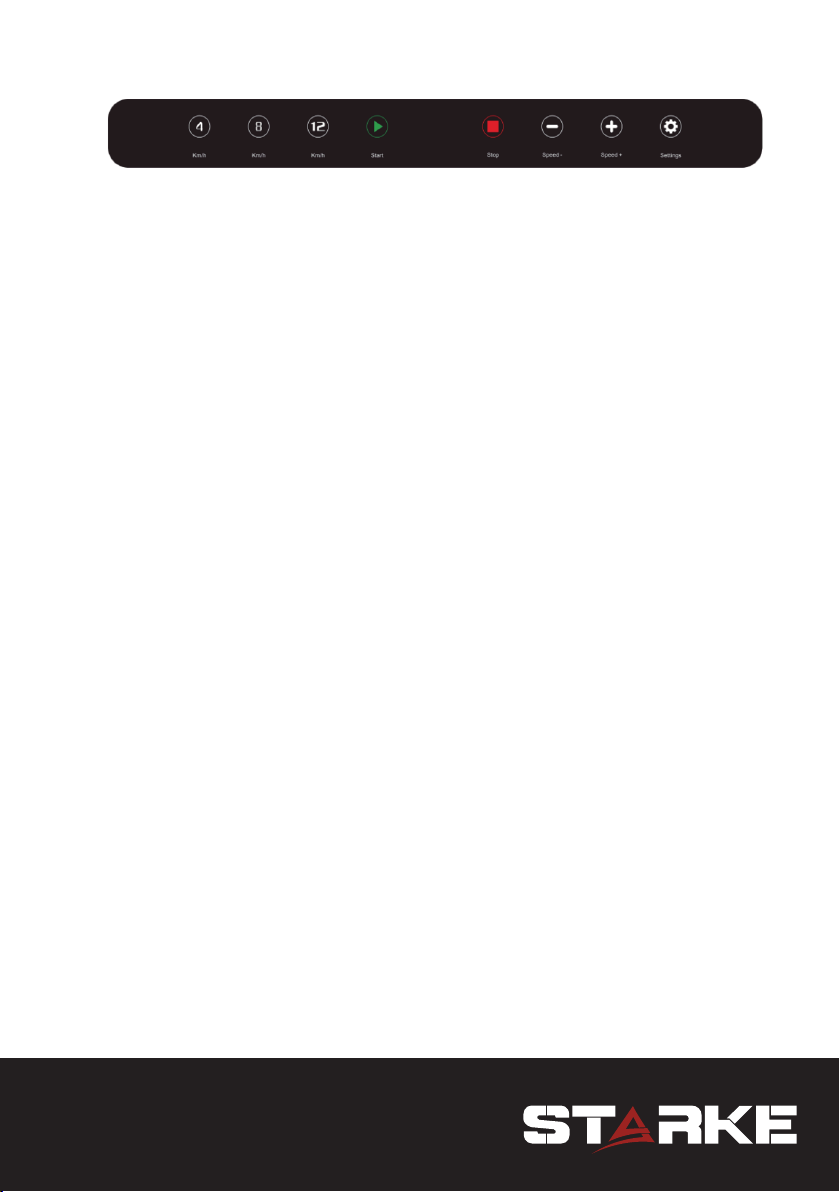

Electronic panel display and operation
Troubleshooting
Exercise Precautions
Warranty certicate
Notes
01
05
07
08
11
13
25
27
30
33

01
IMPORTANT SAFETY INFORMATION
SAFETY FIRST
1.When using the treadmill, keep children and pets away from the treadmill.
Minors should use the treadmill under the escort of adults to avoid injury.
2. Before using the treadmill, clamp the safety switch on the user’s clothes.
When not using the treadmill, please remove the safety switch.
3. The power supply of the treadmill needs to be well grounded. Using a power
outlet without good grounding may damage the treadmill, and the manufacturer
will not guarantee it! When you nish exercising and stop using the treadmill,
please turn off the power.
4. For non-professionals, please don’t open the front cover of the treadmill and
adjust the electrical control of the treadmill, so as not to bring you unnecessary
trouble.
5. For your safety and prolonging the service life of the treadmill, it is forbidden
for overweight people or two or more people to use a treadmill at the same
time.
6. For your safety, please don’t get on the treadmill from the back end of the
machine, so as not to harm your body.
7. When the treadmill is running, it is forbidden to touch the running belt with
your hands or exercise barefoot on the treadmill.
8. Heart rate monitoring is only for exercise reference, not for medical data.
Patients with hypertension and heart disease should not use treadmill alone to
avoid accidents.
9. When using the treadmill, if you feel chest tightness and dizziness, please stop
exercising immediately. Excessive exercise may cause serious injury or accident.
10. Emergency jumping-off method: If the running belt does not stop in time in
case of emergency during exercise, hold the handrail with both hands to support
the body, so that both feet are separated from the surface of the running belt,
and put both feet on the pedal platforms on both sides and leave the treadmill
from one side.

02
11. At least 2000mm×1000mm safety area should be reserved behind the
treadmill to avoid accidents when using the treadmill.
For the health and safety of you and your family, please carefully read the
following operating procedures and precautions before you start exercising, so
that you will have more fun in exercising.
Please note that this product has a weight limit. If your weight exceeds 135Kg
(297Ib), it may affect the service life of the treadmill.
Waste Disposal
The products are recyclable. At the end of its useful life,
dispose of this Article correctly and safely.
Thank you for purchasing our product. Even though we work hard to guarantee
the quality of each product, occasional errors and / or omissions can occur. If you
nd a defect with this product or a lack of parts, please contact us.
PRECAUTIONS
•Make sure that the power cord is not exposed so that people can trip.
• Never touch the canvas with your hands while it is in motion. Also make sure
that there are no objects close to the canvas or the rollers that can be pulled
causing injury or damage to the product.
• Repair of the unit’s electrical components should be done only by qualied
personnel.
Important Voltage Information
Before connecting the power cord to an electrical outlet, check that the voltage
requirements for your area match the voltage of the treadmill you received.
Power requirements for the treadmill include a dedicated, grounded circuit.
Check the voltage on the label on the product.
ATTENTION: Do not attempt to use this unit with a voltage adapter. Do not
attempt to use this unit with an electrical extension cord.

03
To reduce the risk of burns, re, electric shock or personal injury:
1. The device must never be left unattended when plugged into an outlet.
Unplug it when not in use, and before placing or removing parts.
2. Use this device only for its intended use, as described in this manual. Do not
use accessories not recommended by the manufacturer.
3. Never use this equipment if you have a loose cable or connector, if it is not
working properly, in the event of a fall, or contact with water and is malfunctioning.
Contact technical assistance for analysis.
4. Keep the cable away from hot surfaces.
5. Never use the device in places without ventilation.
6. Keep air openings free of dust, hair, and the like.
7. Never drop or insert any object into any opening.
8. Do not use the equipment outdoors.
9. Do not operate in locations with the presence of ammable gases.
11. Connect the device only to a properly grounded outlet.
12. The equipment is intended for use in homes, gyms and condominiums.
Emergency stop
In the event of an emergency that requires stopping the equipment, hold the
handrail and place both feet next to the walking canvas on the platform and
press the safety button to stop the equipment completely.
Getting in and out of the treadmill
Be careful when entering and exiting the belt, always use the bars and place
your feet on the tarp only after the tarp reaches a constant speed. For your
own safety, start walking on the treadmill at speeds below 2 km / h. Always look
ahead during your workouts and never try to turn around while the treadmill is

04
activated.
At the end of your training session, stop by pressing the ‘STOP’ button and
wait until the tarpaulin stops completely before leaving the treadmill. In case
you feel unsure about speed, hold the bars and position yourself on the side
platforms next to the hiking canvas.
See a doctor immediately
Before starting any exercise program, consult your doctor. This is especially
important for individuals over the age of 35 or people with pre-existing health
problems. Read all instructions before using any tness equipment. We assume
no responsibility for damage or injury sustained by or through the use of this
treadmill.
ADD-ONS
Recommended operating temperature: -20º C ~ 40º C.
Recommended storage temperature: -0º C ~ 50º C.
Ideal humidity for operation and storage is between 40% and 80%.
Below 40% - Increases the risk of electrostatic energy accumulation caused by
friction between the canvas and the deck.
Above 80% - Water may condense on the electronic components and cause a short
circuit on the board.
If the power cord is damaged, it must be replaced by the dealer, service personnel
or qualied person to avoid accidents.

05
TECHNICAL SPECIFICATIONS
Main technical parameters
- Input power supply voltage: AC220V±10%(50Hz~60Hz)
- Rated current: 10.2A
- Working environment temperature: 0~40º C
- Motor power: 1850W
- Operating speed range: 1~16 (km/h)
- Slope adjustment range: xed
- Time display range: 0:00~99:59(H:M)
- Distance display range: 0.00~99.99(km)
- Heart rate range: 50~200 (beats/min)
- Calories display range: 0~999 (calories)
- Floor space: 158×76×119 CM
- Effective use area: 130×46CM
- Folding size: 22×76×158 CM
Characteristics
- 1850W low noise dc motor.
- Foldable design for easy storage.
- Equipped with double rollers which are convenient to move, it is convenient
and light to move.
- Installation-free, and can be used after unpacking and unfolding, thus avoiding
the complicated installation process.
- Step-on folding upright pole, push-down folding dial.
- Humanized safety protection device with double safety protection functions of
emergency stop and slow stop.
- Green energy-saving function, automatic shutdown after 5 minutes of no-load
operation, safety, energy saving and environmental protection.
- The lines of the whole machine are simple and smooth, and the appearance is
novel and fashionable.
- Bring your own mobile phone and PAD support, and enjoy free entertainment
while running.
- Adopt multi-window white light display screen, fully present sports data, and
preset 12 intelligent running programs.
- High-brightness acrylic panel and high-sensitivity touch buttons are adopted,

06
making the operation more convenient.
- With high-sensitivity hand-held handrails for measuring heart rate, the exercise
heart rate can be monitored in time.
- The transformer-free electric control technology with lower energy
consumption, energy saving and environmental protection is adopted, and the
applicable voltage range is wider.
- PU handrails which are ergonomic, comfortable, safe and environmentally
friendly.
- It is equipped with Hi-Fi and Bluetooth music input.
- Intelligent Health Cloud Management Campaign APP which supports multiple
platforms and languages (IOS system and Android system are supported).
- The intelligent Internet of Things treadmill which makes the running process
full of pleasure (sharing running data, interacting with friends, and participating
in online running competitions).
- The step counting and real-time monitoring can scientically and effectively
improve the sports effect and safety protection.

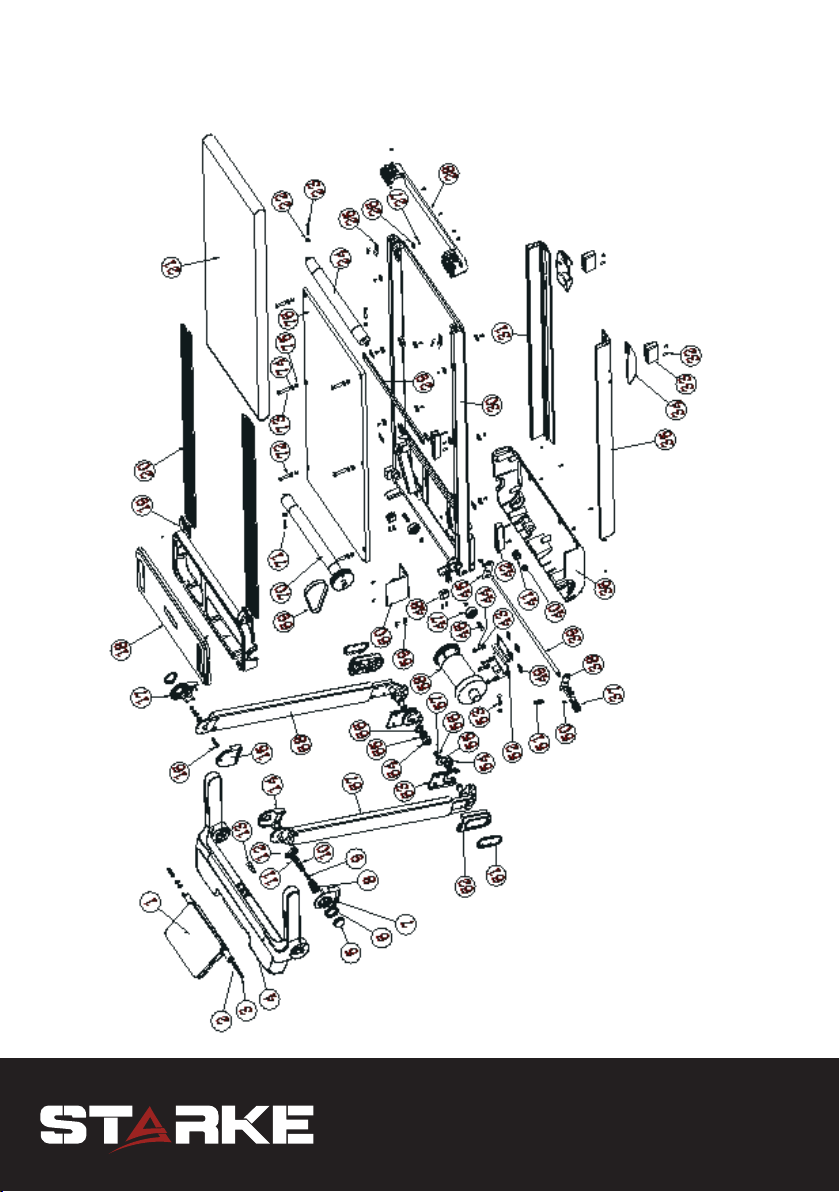

EXPLODED VIEW
07

LIST OF PARTS
No. Descripon Quanty
1Display screen 1
2Spring gasket 2
3M8x25 cylindrical head hexagon socket screw 2
4Electronic console 1
5Key 1
6 Circle 2
7Le outside trim 1
8Tower spring 1
9M8X35 pan head hexagon socket screw 1
10 An-rotaon sheet 2
11 Armrest posioning sleeve 1
12 Movable adjustment part 1
13 Safety key 1
14 Le inside trim 1
15 Right inside trim 1
16 M8X40 pan head hexagon socket screw 1
17 Right outside trim 1
18 Motor cover housing 1
19 Motor cover 1
20 Top edging 2
21 Running belt 1
22 M6 at gasket 3
23 M6X60 cylindrical head hexagon socket screw 2
24 Rear roller 1
25 Upper edging stopper 2
26 Edgingbuckle 12
27 M4X10 at head screw 34
28 Rear adjustment box 1
08

29 Running support tube 1
30 Running frame 1
31 Right edging 1
32 M4X16 at head screw 12
33 Rear foot pad 2
34 Rear boots 2
35 Le edging 1
36 Motor boom cover 1
37 Pedal rubber part 1
38 Le adjustment weldment 1
39 Link xing sha 1
40 Power cord plug (small) 1
41 Power Switch 1
42 Front foot pad 2
43 M8 spring gasket 4
44 M8X20 cylindrical head hexagon socket screw 4
45 Right adjustment weldment 1
46 M8X outer hexagon head screw 2
47 φ48 casters 2
48 Standing foot pad 2
49 Motor cushion 4
50 M6X15 at head cross screw 1
51 Belt tensioning spring 1
52 Motor base 2
53 M8X50 outer hexagon head screw 1
54 Lower trim inside the upright pole 2
55 M10 (40 × 3. 0) mushroom washer 1
56 M10 standard spring washer 1
57 M10 stop nut 1
58 DC motor 2
59 Plasc pressing line code 1
09

60 Motor control board 1
61 Small trim of upright pole 2
62 Exterior trim of upright pole 2
63 Interior trim ofupright pole 2
64 M20 self-locking nut 1
65 M20 spring washer 1
66 M20 gasket 1
67 Le side bar weldment 1
68 Right side bar weldment 1
69 Drive belt 1
70 Front roller 1
71 M6X45 cylindrical head hexagon socket screw 1
72 M8X50 countersunk cross screw 4
73 M8X55 countersunk cross screw 2
74 M8 (16 × 1. 2) at washer 17
75 M8 self-locking nut 11
76 Running board 1
10

OPERATING GUIDE
Take the treadmill out of the packing box and remove the packaging protecve materials.

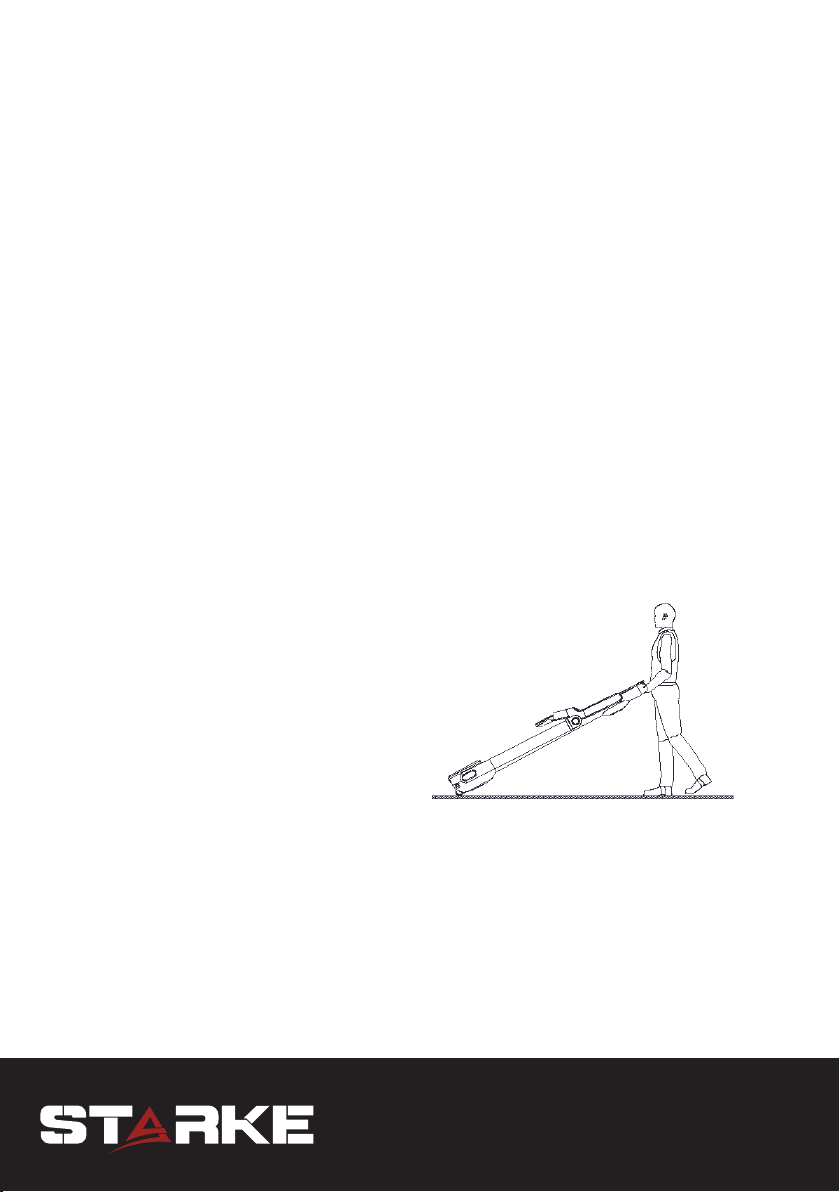

The treadmill is designed with double rollers which are convenient to move, has the

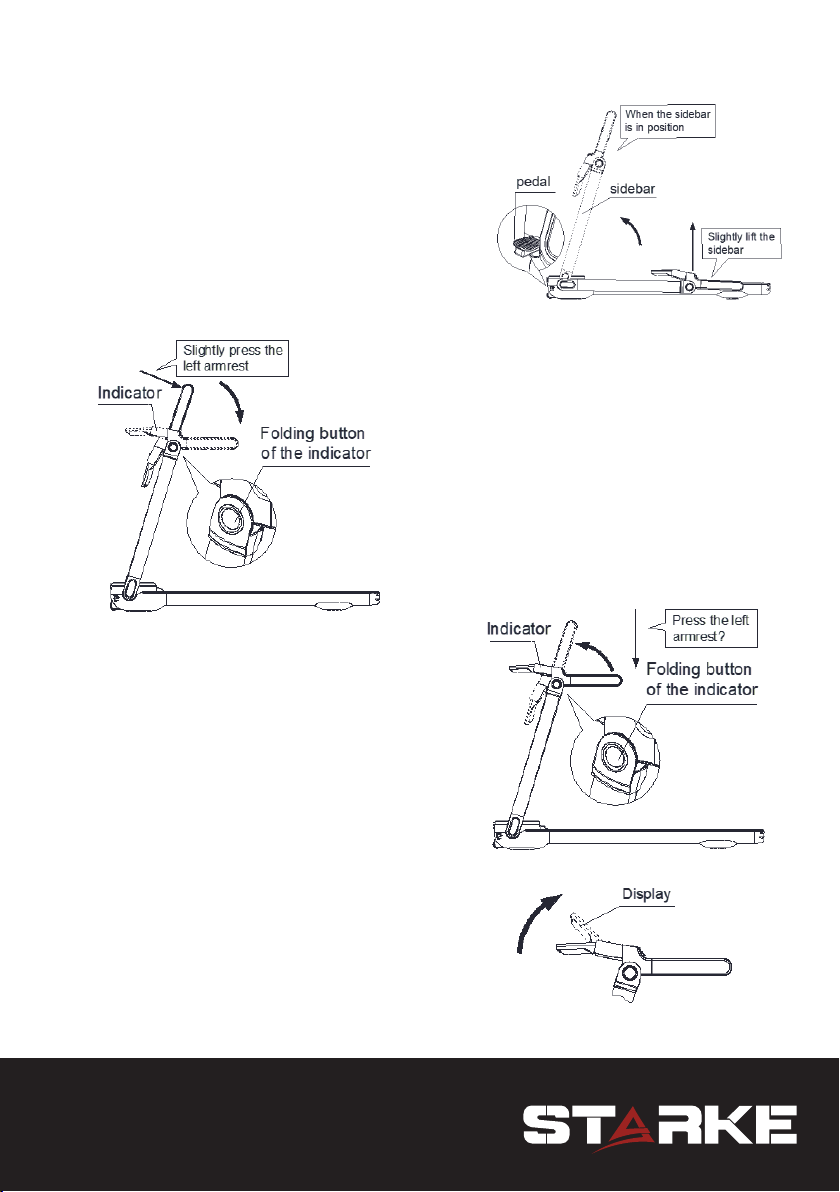

funcon of installaon-free folding, and can be placed horizontally or standing for easy
storage.
When standing, please place it against the wall. There is a risk of falling down aer
standing. Please keep children away from it to avoid unnecessary injuries. Funcon
operaon is as follows:
Before you start
1. Find a comfortable place, mount your equipment in an open space, with adequate
venlaon and lighng. As the equipment can be transported easily, it is not necessary to
assemble it in the exact place where it will be used. For your convenience, however, you
should avoid carrying it over long distances, through narrow passages, or by stairs aer
mounng it.
2. Review all safety instrucons on page 1 of this manual.
Step 1
Movement of the treadmill: the user stands
at the rear end of the treadmill, grasps the
cross bar at the rear end of the treadmill
with both hands, lis it by 35°, pushes the
treadmill to a suitable area, and places it
at. At least 2000mm×1000mm safety
zone should be reserved behind the tread-
mill to avoid accidents when the treadmill
is used.
Step 2
Folding of the upright post of the treadmill: the user stands on the le side of the treadmill,
holds the upright post with his right hand and slightly lis it, steps on the pedal at the front
of the treadmill with his le foot, slowly lis the upright post while leaving the pedal with his
le foot, and makes a “click” sound when the upright post rotates in place, indicang that it is
locked in place. If there is no “click” sound, please pull the right sidebar forward unl the “click”
11

Step 3
Unfolding the indicator: Press the folding
buon of the indicator with the le hand and
gently press the armrest with the right hand.
Rotate the indicator all the way down. If there
is no “click: sound, Slightly press down the le
armrest, when the “click” sound appears, the
indicator is locked in posion.
12
sound appears, and make sure both sidebars are in
posion and locked. When folding, hold the upright
with your right hand, step on the pedal at the front
of the treadmill with your le foot, slowly lower the
upright, and leave the pedal with your le foot. When
the upright rotates in place, it makes a “click” sound,
indicang that it is locked in place. Note: Do not step
on the foot pedal without holding the upright post
to prevent impact. When the treadmill is folded, pay
aenon to the rotang parts to prevent pinch injury.
Step 4
Folding the indicator: Press the le armrest
with your right hand, at the same me, press
the folding buon of the indicator with your
le hand. The panel can be rotated and fol-
ded.
Step 5
Folding of treadmill display screen: Hold the
gauge ouit with your le hand and the dis-
play screen with your right hand, and push
the display screen forward slightly to the
appropriate angle.

13
ELECTRONIC PANEL DISPLAY AND OPERATION
Display funcon:
1. The Window “Time”:
According to the exercise me, the manual
mode counts forward from 0: 00 to 99: 59,
and when it counts to 99: 59, the treadmill
smoothly slows down and stops running, and
the speed window displays “End”, and enters
the standby state aer 5 seconds of complete
stop; The forward ming of distance and calorie
mode is from 0: 00 to 99: 59, and it is cleared to connue running aer 99: 59; The cou-
ntdown will decrease from the set me to zero. When the countdown reaches 0: 00, the
treadmill will slow down smoothly and stop running, and “End” will be displayed. Aer it
stops completely, it will enter the standby state 5 seconds later.
2. The window “Distance”:
According to the moving distance, the forward count is from 0.00-99.99, and aer over-
ow, it is cleared to connue running; the backward count decreases from the set value
to zero. When the backward count reaches zero, the treadmill smoothly slows down and
stops running, and “End” is displayed. Aer it stops completely, it enters the standby
state for 5 seconds.
“P01~P12, U01~U03, FAT” is displayed in the seng state.
3. The window “Pulse”:
to display the heartbeat rate of the runners. When the runners hold the heartbeat sen-
sing handle, the treadmill can automacally detect and record their heartbeat rate and
display it in this window. The display range of the heartbeat 50-200 mes/minute(This
data is for reference only, and can’t be used as medical data.)
4. The window “Speed”:
to display the current speed value in the operaon state. The speed range is 1.0-16.0KM/
h.
5. The window “Calorie”:
Display the heat consumpon value, from 0-999 when counng forward, and clear it
aer overow to connue running; when counng down, it will count down from the set
value to 0. When counng down to 0, the treadmill will slow down smoothly and stop
running, and “End” will be displayed. Aer it stops completely, it will enter the standby
state 5 seconds later.

14
Key funcon and operaon:
1. “Km/h: 4, 8, 12 Km/h” is the speed shortcut key: speed seng can be performed quickly.
2. “Start” is the start key: when the power is turned on and the safety lock is engaged,
press this key to start the running of the treadmill.
3. “Stop” is the stop key: during the exercise, pressing this key can stop the running of the
treadmill and reset it to zero.
4. “Speed +”, “ Speed -” Speed +/- key: to regulate the set value in the standby state. Aer
the treadmill is started, this key is used to regulate the speed. The speed regulang ampli-
tude value is 0.1 at a me. When this key is pressed over 0.5 second, the speed automa-
cally increases or decreases.
5. “Sengs” is the seng key: press it to circularly select 0:00, 30: 00, 1.00, 50.0, P01-
…-P12-U01-U03-FAT. When selecng various modes, you can use “Speed + ”、“Speed-key
to set the relevant reverse count value. Press the Start key to start the treadmill aer the
seng is completed.
“30: 00” is the me reverse counng mode, “1.00” is the distance reverse counng mode,
and “50.0” is the calorie reverse counng mode. When selecng various modes, you can
use the “Speed +” and “Speed-” keys to set the relevant reverse counng values. Aer the
seng is completed, press the “Start” key to start the treadmill.
Quick start (manual mode):
Turn on the power switch of the treadmill, and correctly aract the safety lock to the
posion of the safety lock of the treadmill. Press the “Start” key, the system will enter the
countdown of 3 seconds, the treadmill will give a prompt sound, and the me window
will display the countdown of 3, 2 and 1. Aer the countdown, the treadmill will start run-
ning at the speed of 1 km/h. Aer startup, the user can adjust the speed of the treadmill
by using the “Speed+” and “Speed-” keys as required. The unset parameters during the
running of the treadmill will be accumulated. When the value is reached at the maximum
display range, it will be cleared and counng will connue. In manual mode, the machine
stops automacally aer the me accumulaon exceeds 99: 59 (100 minutes).
Operaon during movement:
1. Pressing the “Speed-” key will slow down the running speed of the treadmill.
2. Pressing the “Speed+” key will increase the running speed of the treadmill.
3. Pressing the “Stop” key will slow down the runner to stop running.
4. When the exerciser holds the heartbeat handle with both hands, the treadmill reads

15
the heartbeat data displayed for about 3 seconds. (Heartbeat data can only be used as
reference for exercise, not as medical data.)
Manual mode:
1. Turn on the power switch, and the electronic gauge will enter the standby state. In the
standby state, press the Start key to run the manual forward ming mode, and the tread-
mill starts to run at a speed of 1.0 km/h. The forward counng from zero will be started in
other windows. Press the “Speed+”、“Speed-key to change the speed.
2. In the standby state, press the “Mode” key to enter the Time countdown mode, the
“me” window displays “30: 00” and ashes, and press the “Speed+” and “Speed-” keys
to set the exercise me, with the seng range from 5: 00 to 99: 00.
3. In the me countdown Mode, press the “Mode” key to enter the Distance countdown
mode, and the “Distance” window displays “1.00” and ashes. Press the “Speed+” and
“Speed-” keys to set the movement distance, and the distance seng range is 0.50-99.9.
4. In the distance countdown Mode, press the “Mode” key to enter the Calorie countdo-
wn mode, and the “Calorie” window displays “50.0” and ashes. Press the “Speed+” and
“Speed-” keys to set calories. The calorie seng range is from 10.0 to 999.0.
5. Press the start buon aer selecng one of the three countdown modes. The treadmill
starts running aer counng down for 3 seconds. Press the “Speed+” and “Speed-” keys
to adjust the speed. Press the “Stop” key and the treadmill stops running.
6. In the reverse counng mode, when the set me decreases to zero, or when the set
calories decrease to zero, or when the set distance decreases to zero, the peak whistle
will make short sound Bi-Bi-Bi, and the speed will slowly decrease unl it stops. The buz-
zer will make long sound Bi-Bi-Bi, and the speed window will display End. Aer 5 seconds,
the peak whistle will return to standby state, and the buzzer will make long sound Bi-Bi.
In addion to the 12 built-in programs, the treadmill also has 3 user-dened programs
that allow users to set according to their personal condions: U01, U02 and U03.
Built-in xed program:
Press the “Program” key to select any built-in program from P01 to P12. The window
shows the program numbers P01~P12; the “Time” window displays the default exercise
me and ashes.
Press the “Speed+” and “Speed-” keys to adjust the required exercise me. (The built-in
program is divided into 16 segments, and the running me of each segment is set me
divided by 16.)
Press the “Start” key, and aer the system enters the “3, 2, 1” countdown, it starts run-

16
ning according to the speed of the rst segment of the built-in xed program. When
the previous segment nishes running, it automacally runs the next segment, and the
speed is automacally adjusted to the value of this segment at the same me. During
running, you can press the “Speed+” and “Speed-” keys to adjust the speed. However, it
will automacally adjust to the program default when entering the next paragraph. Aer
all segments run, the program ends, and the treadmill slows down slowly to a stop. Du-
ring the exercise, the user can press the “stop” key or disconnect the “safety lock” at any
me to stop the running of the treadmill.
Built-in xed program table:
Duracon Running me of each segment = set me divided by 16
Program 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
P01
Lose weight Speed 3 6 7 8 9 10 9 8 8 9 10 9 8 7 6 3
P02
Burn fat Speed 5 7 9 9 11 8 8 10 10 8 10 8 6 5 4 3
P03
Mountain Speed 3465356456768653
P04
Running Road Speed 3 6 7 7 8 9 9 10 10 10 9 9 8 6 4 3
P05
Race Speed 3 5 6 8 12 8 6 5 6 8 12 8 6 8 6 3
P06
Slow Walk Speed 3455655455655453
P07
Quick walk Speed 3567766776677653
P08
Random Speed 5 10 6 11 7 11 8 11 9 6 10 7 11 9 6 3
P09
Jog Speed 5789998899989865
P10
Sprint Speed 2 6 7 8 9 10 10 11 11 11 10 9 8 6 4 2
P11
Gradual Speed 3456775677576543
P12
Learner Speed 3565565565555433

17
User-dened program:
In addion to the 12 built-in programs, the treadmill also has 3 user-dened programs:
U01, U02 and U03, which allow users to set their own programs according to their per-
sonal situaons.
1. Sengs for user-dened programs:
Press the “Program” key in turn in the standby state, and the window displays “U01~U03”
as user-dened programs. Press the “Mode” key to enter the seng, the “Time” window
displays “S-01~S-16”, and the “Speed” window displays relevant data of corresponding
me period. Then, you can set each me period. When seng, use “Speed+”, “Speed-”
keys or “4Km/h” and “8Km/h” speed shortcuts to set the speed, press “Mode” key to
complete the seng of this me period, and enter the seng state of the next me
period unl all 16 me periods are set. Aer seng, the data will be permanently saved
unl you reset it next me, and this data will not be lost due to power failure.
2. Acvaon of user-dened program:
a. Press the “Program” key connuously in the standby state unl the user-dened pro-
gram (U01~U03) you want to run is set, and then press the start key to start.
b. Press the “Start” key aer the user-dened program and running me are set, and it
can be started immediately.
3. User-dened program setup instrucons:
Each program divides the exercise me into 16 me periods. When seng, the speed
and running me of all 16 me periods must be set before pressing the “Start” key to
start the treadmill.
Physical tness test:
In the standby state, press the “Program” key successively, and the “Time” window dis-
plays “FAT” to enter the body mass index (FAT) detecon funcon, and press the “Mode”
key to enter F-1, F-2, F-3, F-4 and F-5 interfaces (F-1 is gender, F-2 refers to age, F-3 refers
to height, F-4 refers to weight and F-5 refers to body mass index). Press “Speed+” and
“Speed-” keys to set the parameters of F-1~F-4 (see the following table for parameters).
Aer seng, press “Mode” key to enter the F-5 physical tness test interface, and then
hold the heart rate board 5 with both hands. Body mass index (FAT) is a measure of the
relaonship between a person’s height and weight, not the body proporon. FAT is suita-
ble for any male and female, and provides people with the basis for adjusng their weight
together with other health indicators. The ideal FAT should be between 20 ~24. If it is
lower than 19, it means too thin, if it is between 25 ~ 29, it means overweight, and if it
Table of contents
Other Starke Treadmill manuals
Popular Treadmill manuals by other brands

Trojan
Trojan IRONMAN 520 Care instructions and assembly manual

NordicTrack
NordicTrack NETL14909.0 user manual

Reebok
Reebok RX 7200 user manual

Spirit
Spirit ESP0030 -Esprit CT100 owner's manual

NordicTrack
NordicTrack T5 Lv Treadmill user manual

Christopeit Sport
Christopeit Sport TM650 Assembly and exercise instructions
