SR300 and SR400 Surface Roughness Tester
SR300 AND SR400 OVERVIEW

SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
These new editions of Starrett Surface Roughness Testers incorporate a large
display with the simplest of menu structures and the most up-to-date
parameters. Their mechanical rigidity and styli have a firm reputation for
reliable and repeatable surface finish measurements across a wide range of
applications.
The SR Surface Roughness Tester comes in two variants: the SR300 is our
standard offering, while the SR400 offers extended measurement range and
analysis capability.
The SR300 and 400 are battery powered and offers total portability with a
built-in memory capacity (holds up to 100 readings). The instrument can be
used either freestanding (on horizontal, vertical or even inverted surfaces) or
with bench mounted fixtures for batch measurement and laboratory
applications.

SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
Durable
•High impact rubberized molding IP44 rated
•Recessed, Mylar protected high durability
touch screen
•Solid steel drive mechanism
•Robust anti-wear gears and bearings
•Heavy-duty Li-Poly battery
–2000 measurements
–5000 hours standby
Versatile
•Unique 50mm stylus lift/lower
–Simple setup on any surface
•Multiple pickups available
–Small bore, groove, o-ring, etc.
•Measure in any orientation
–Even upside down
•Evaluation length up to 25mm
•Anti-slip V-feet for flat or curved parts

SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
User-Friendly
•4.3” daylight readable display
•Operation in any orientation
–Settings always on display
•Colour touch screen interface
–Up to 7 results on each page
•Single button measurement
•InstantOnTM < 1 second restart
Connectivity
•Standard USB Charging (PC or Mains)
•Storage of results internal or USB key
–100 internal, >10,000 on USB
•USB to PC for advanced analysis
–Includes free Talyprofile software
•USB remote Settings and Measurement
•Standard USB Printing (ESC/POS)

SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
Measuring Flat or
Cylindrical Surfaces
Extended Pick-Up Measure
Right-Angles
Lift Lower Mechanism
0 to 60mm of Height
Traverse Length = 25mm
Built in Memory
as Standard

SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
•Turn the Device On
•Make a Measurement
Function Button
USB Mini Port
•Connect to PC
•Charge Device
USB Type A Port
•Connect Printer
•Connect External Memory
Touch Screen

SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
Parameter Options
to Suit Your Application
Fast Measurement
Cycle
Intuitive Menu Structure
Unique Stylus Lift Mechanism for Total Flexibility

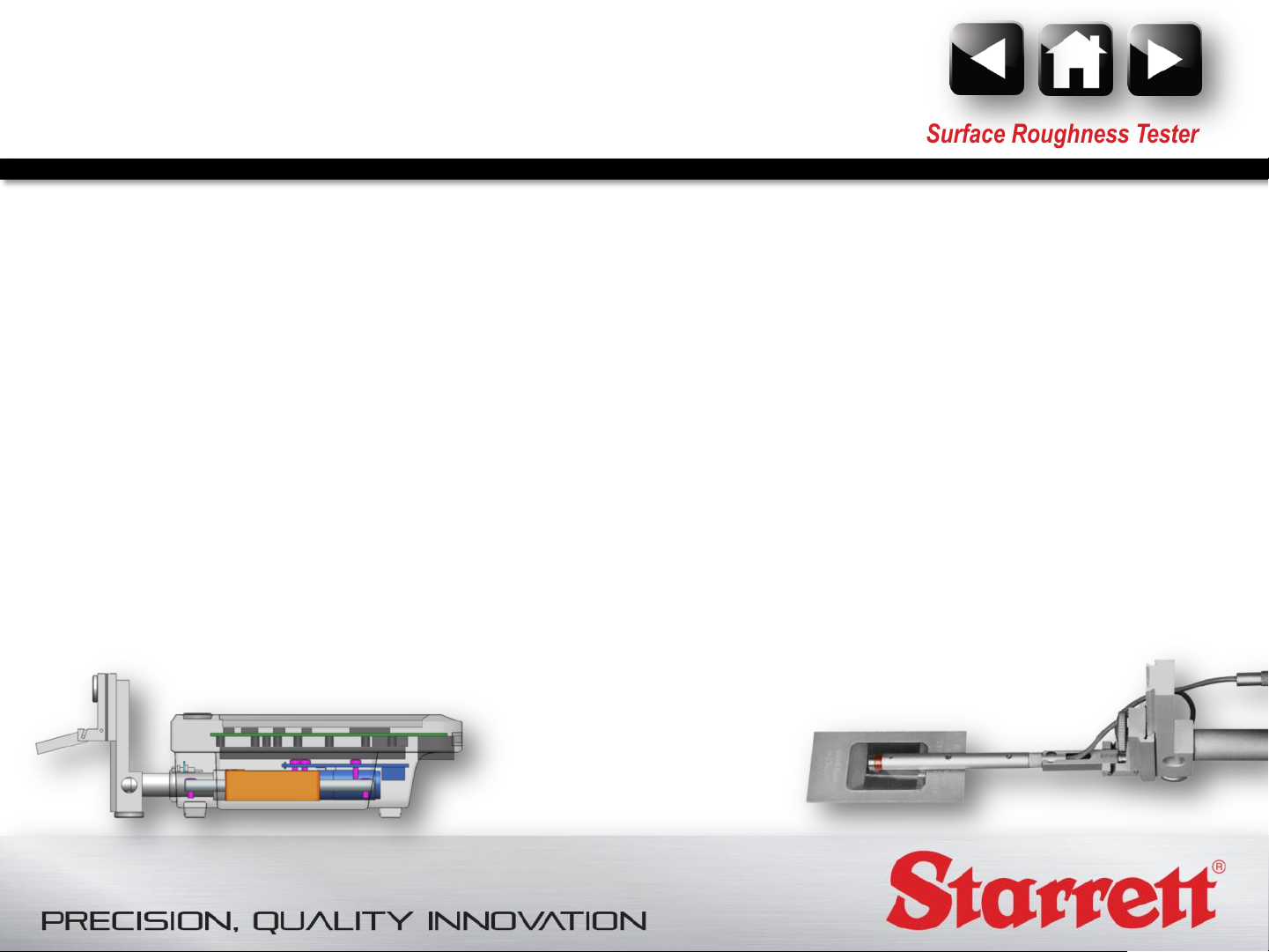

Long Traverse Length and Extended
Pick-Up Reach
Comprehensive Range of Accessory and Pick
-Up Options
Storage of Up
to 100 Readings
Powerful Software Option
World Class Technical Support

SR300 and SR400 Surface Roughness Tester
INSTRUMENT OVERVIEW

SR300 and SR400 Surface Roughness Tester
Instrument Overview
Parameter Options to Suit Your Application The SR300/SR400 can calculate up to 22 parameters
according to your measurement application including:
Amplitude Parameters
Measures the vertical characteristics
of the surface deviations:
•Ra (Arithmetic Mean Deviation)
•Rsk (Skewness)
•Rz (Average peak to valley
height)
•Rt (Total height of profile)
•Rp (Max profile peak height)
•Rz1max (Max peak to valley
height)
Spacing Parameters
Measures the horizontal
characteristics of the surface
deviations:
•RPc (Peak count)
•RSm (Mean width of profile
elements)
Hybrid Parameters
Combinations of spacing and
amplitude parameters:
•Rmr (Material Ratio)
•Rda - R Delta a (Arithmetic
Mean Slope)
The above parameters cover the most common requirements to check
lubrication, feed rates, stresses, friction and wear properties.
Additional parameters can be analysed with the addition of Talyprofile software.

SR300 and SR400 Surface Roughness Tester
Instrument Overview
Intuitive Menu Structure

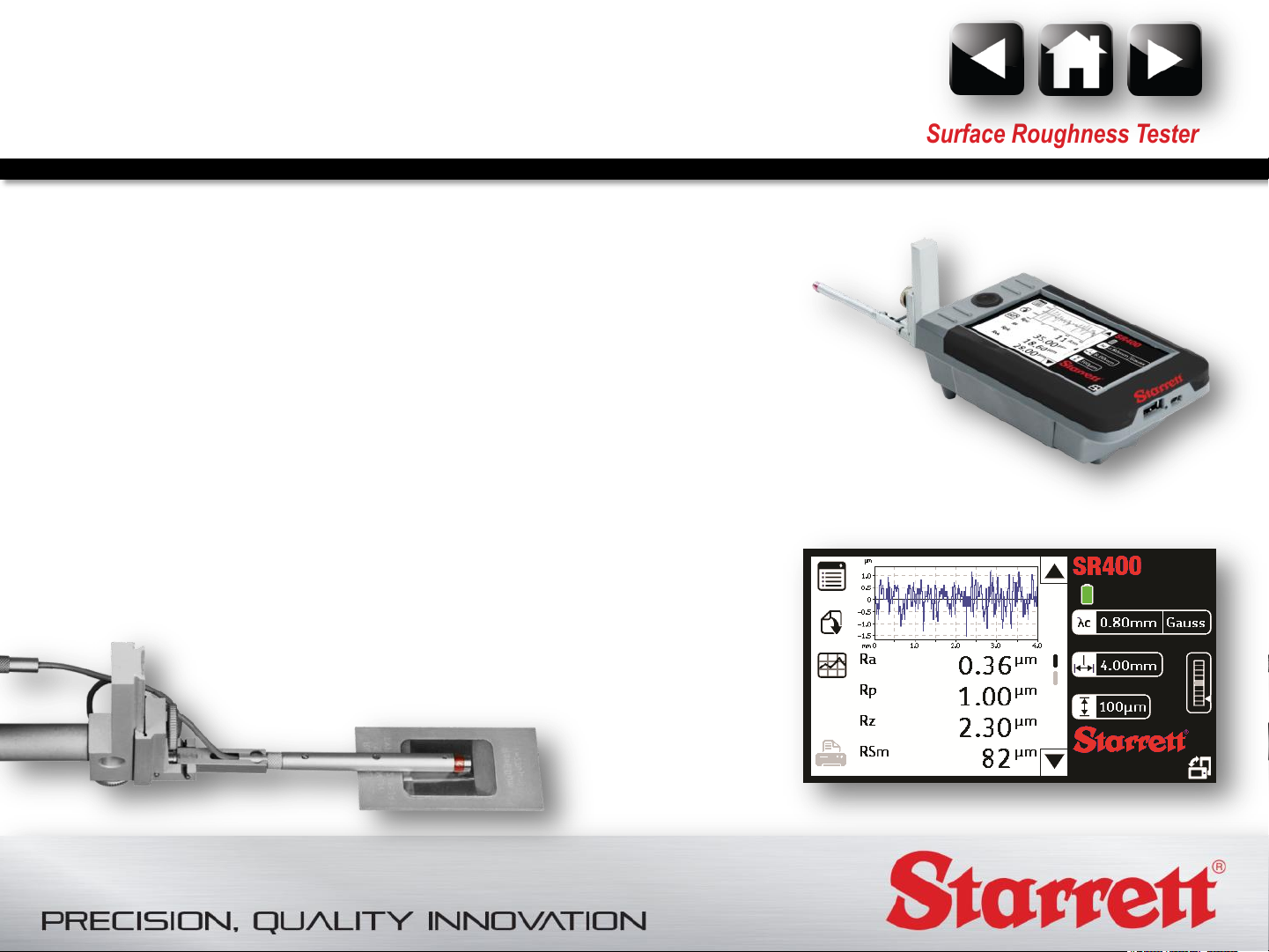

The SR300/SR400 incorporates a large LCD screen which allows full
menu and measurement results to be displayed. Using only two buttons
the user can scroll through the menus and make selections intuitively
before pressing the MEASURE key. All selections are saved for future
measurements. All the measurement criteria and results are displayed
clearly on the screen ready to print or export to a PC.
Fast Measurement Cycle
The SR300/SR400 incorporates the
latest electronics for very fast analysis -
results are calculated and displayed
even before the traverse unit returns.
This fast processing, combined with
intuitive menu buttons, greatly reduces
measurement cycles.
Powerful Software Options
The SR300/SR400 includes Type A
USB and USB mini ports which allow
connection to a printer or exportation of
results to a PC for further analysis using
the optional Talyprofile software. By
setting the SR300/SR400 to 'Data
Dump' mode, measurements can be
instigated directly from the Talyprofile
software.

SR300 and SR400 Surface Roughness Tester
Instrument Overview
Unique Stylus Lift Mechanism
The SR300/SR400 has a uniquely engineered stylus lift
mechanism which allows a vertical adjustment of 50mm and
rotation of the pick-up to different measuring positions, including
right angle or inverted measurements. These adjustments to the
height and position of the gauge allow areas and features of a
part to be easily measured without additional fixtures. This
feature saves the operator a huge amount of set up time and
allows total flexibility. Typical applications where the stylus lift is
invaluable include the measurement of steps, bores, grooves and
lands.

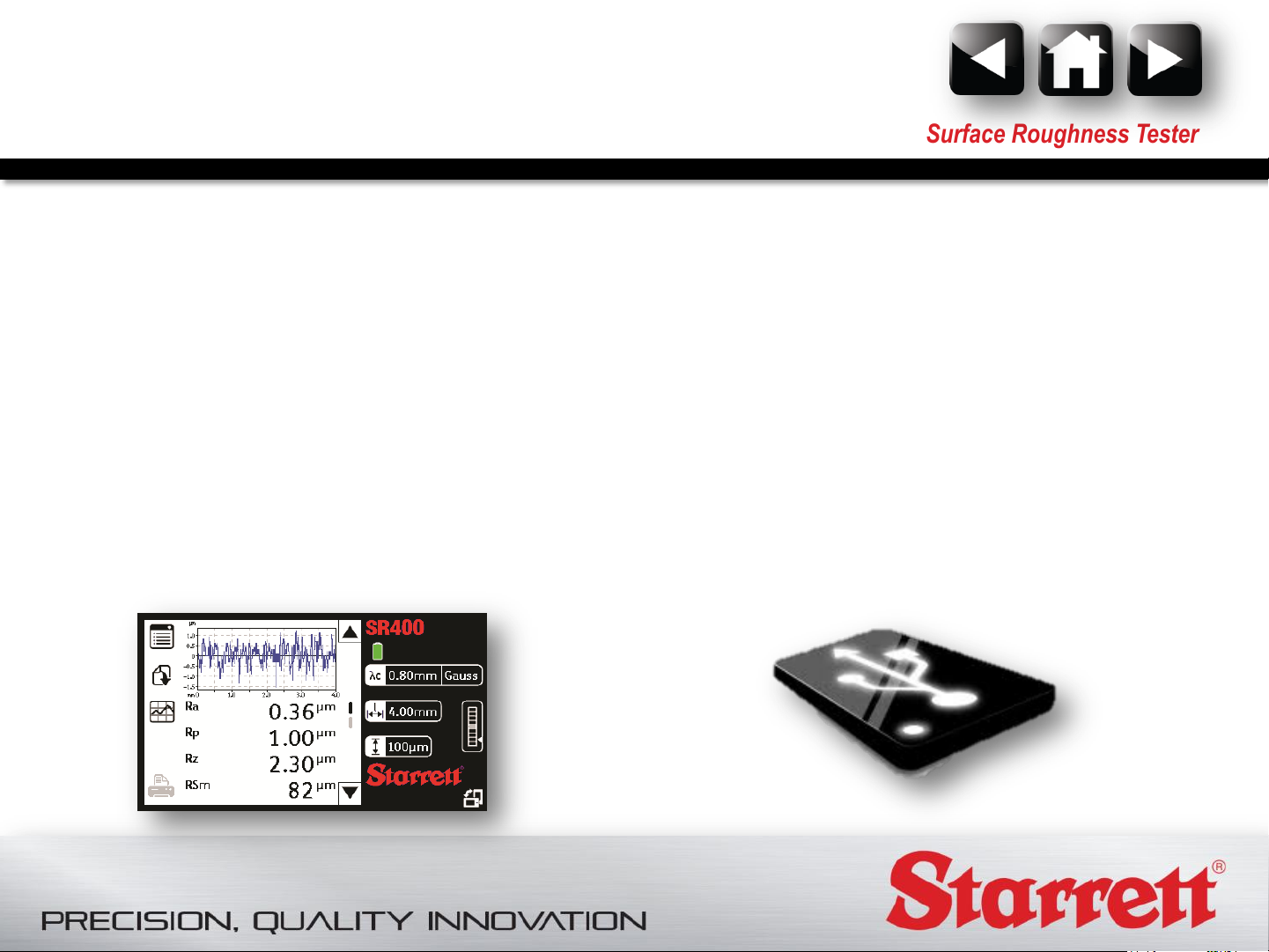

Built-in Memory/Storage
No PC or printer cables in your way while you
measure –the SR300/SR400 is now truly
portable: Take your surface roughness tester
wherever you need to take measurements,
save as many batch readings as you need
(max 100 measurements) then download to
your PC or printer at your convenience.
External Memory
Storage is expandable with a standard
USB stick. The 4 GB USB stick provided
with the unit is capable of storing over
64,000 screen shots and/or
measurements

SR300 and SR400 Surface Roughness Tester
Instrument Overview
Long Traverse Length and Extended
Pick-Up Reach
The SR300/SR400 can traverse up to 25mm (or as little
as 0.25mm) depending on your component. In addition,
the stylus length and pick-up configuration give a long
reach, making it an ideal instrument for features such
as large and narrow bores. Optional extension rods
extend the pick-up further.
Comprehensive Range of Accessories
and Pick-Ups
Starrett has developed an extensive range of pick-ups
and accessories to suit the varied measurement needs
of our customers. In addition to the pick-ups shown on
page 6 our applications department regularly designs
and manufactures pick-ups and fixtures for specific
requirements.

SR300 and SR400 Surface Roughness Tester
TALYPROFILE

SR300 and SR400 Surface Roughness Tester
Talyprofile
Advanced Surface Finish Analysis
Talyprofile is a dedicated software package
designed for use with workshop or laboratory
instruments.
Three versions are available:
•Talyprofile “Silver” has all functions typically
used for a shop floor inspection.
•Talyprofile “Gold” has complete laboratory
analysis functions.
•Talyprofile “Lite” is a free download, available
from ‘talyprofile.com’
•Click the button below to open the website.
Talyprofile.com

SR300 and SR400 Surface Roughness Tester
Talyprofile
General Features
Gold Silver Lite
Modules
Acquisition interface
for workshop profilers 
Basic set of file formats

Can be used without
USB dongle
V6

Desktop publishing and template
document STA
File
formats of 2D profilers 
Manage parametric profiles
V6
CT ACT
Management of non
-measured points CT ACT
Minidocs
V5

Series of profiles
enabled 
Statistics
enabled
V5
STA
Table of results
V5
ACT
Template of document on all data
of a folder
STA
Third party plug
-ins 
Tolerance limits
(pass/fail) 
Key
Included
Available in Optional Module(s)
STA Statistics
CT Contour
ACT Advanced Contour

SR300 and SR400 Surface Roughness Tester
Talyprofile
Interface
Gold Silver Lite
Modules
Analysis workflow
V5 
Document pages
viewer V5 
File explorer and favorite folders
V5 
Interactive bank
of studiables 
Languages:
EN, FR, DE, ES, IT, PL, JP, CH, KR 
Masterpages
V5 
Key
Included
Available in Optional Module(s)
STA Statistics
CT Contour
ACT Advanced Contour
Operators on Profiles
Gold Silver Lite
Modules
Filtering

Filtering by direct edition of the FFT

Filtering by threshold of the FFT
V5 
Form
removal 
Join two profiles

Leveling

Resampling

Retouch profile
points 
Symmetries

Thresholding

Zoom


SR300 and SR400 Surface Roughness Tester
Talyprofile
Studies on Profiles
Gold Silver Lite
Modules
Abbott
-Firestone curve/depth distribution 
Advanced options
in contour analysis V6 ACT
Area
of a hole/peak 
Averaged
power spectrum density 
Contour
analysis CT ACT
Distance measurement

Fractal analysis

Frequency Spectrum

Graphical
study of Rk parameters 
Morphological envelopes

Profile curve

Profile
parameters study 
R&W motifs (ISO
12085) 
Rk
calculation profiles 
Roughness and waviness profile curves

Step height measurement

Waviness
parameters of groups A and/or B 
Key
Included
Available in Optional Module(s)
STA Statistics
CT Contour
ACT Advanced Contour

SR300 and SR400 Surface Roughness Tester
Talyprofile
Parameters
Gold
Silver
Lite
Modules
2D (P+R)
parameters, Group A: ISO 4287 
2D (P+R) parameters, Group
B: old parameters

2D parameters, Group C: automotive

Key
Included
Available in Optional Module(s)
STA Statistics
CT Contour
ACT Advanced Contour
Operators
on Series of Profiles Gold Silver Lite
Modules
Profile
extraction 
Studies on Series of Profiles
Gold Silver Lite
Modules
Profile
curves of the series 
