ST123HDA
3 Port Component Video Splitter with
Digital Audio
*actual product may vary from photos

Instruction Manual
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and
Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.

Instruction Manual
i
Table of Contents
Introduction............................................................................................1
Features ........................................................................................................................................................ 1
Contents ....................................................................................................................................................... 1
System Requirements.............................................................................................................................. 1
Installation ..............................................................................................2
Connecting the A/V source to the distribution amplier........................................................... 2
Connecting the distribution amplier to the display .................................................................. 3
Connecting the A/V source to the distribution amplier........................................................... 3
Connecting the distribution amplier to the display .................................................................. 4
Connecting the distribution amplier to the display .................................................................. 5
Technical Support ..................................................................................6
Warranty Information............................................................................6

Instruction Manual
1
Introduction
Thank you for purchasing a StarTech.com Component Video Distribution Amplier
with Audio. This product is the perfect addition to any analog video entertainment
distribution system, delivering both standard denition and high denition video and
digital or analog audio to multiple display units.
Features
• Three separate composite video sources can be distributed to up to 9 displays (3 per
video source)
• Works with standard denition and high denition displays
• Supports resolutions up to 1080p
• Sturdy metal construction
Contents
• Distribution amplier with audio (1)
• Instruction Manual (1)
• Power Adapter (1)
System Requirements
• Composite or component video source(s)
• A composite or component compatible display

Instruction Manual
2
Installation
The following examples illustrate the conguration options for the distribution
amplier, when used with a HD component video source (YPbPr), HD RGBHV video
source, or composite video source.
Prior to installation, please situate the distributor near the video signal sources, as well
as an available power outlet, in order to minimize cabling requirement.
ST123HDA used with HD component video source (YPbPr)
Using a standard component/YPbPr cable, you can connect your video source to the
distribution amplier, to be used with up to three displays:
Connecting the A/V source to the distribution amplier
1. Insert the connectors from one end of a standard component video cable to the
color-coded output ports located on the A/V source.
2. Connect the remaining end of the component cable to the corresponding ports,
(marked INPUT) on the rear panel of the distribution amplier. The necessary ports
are labelled Pr/R/V, Pb/B/V2 and Y/G/V1.

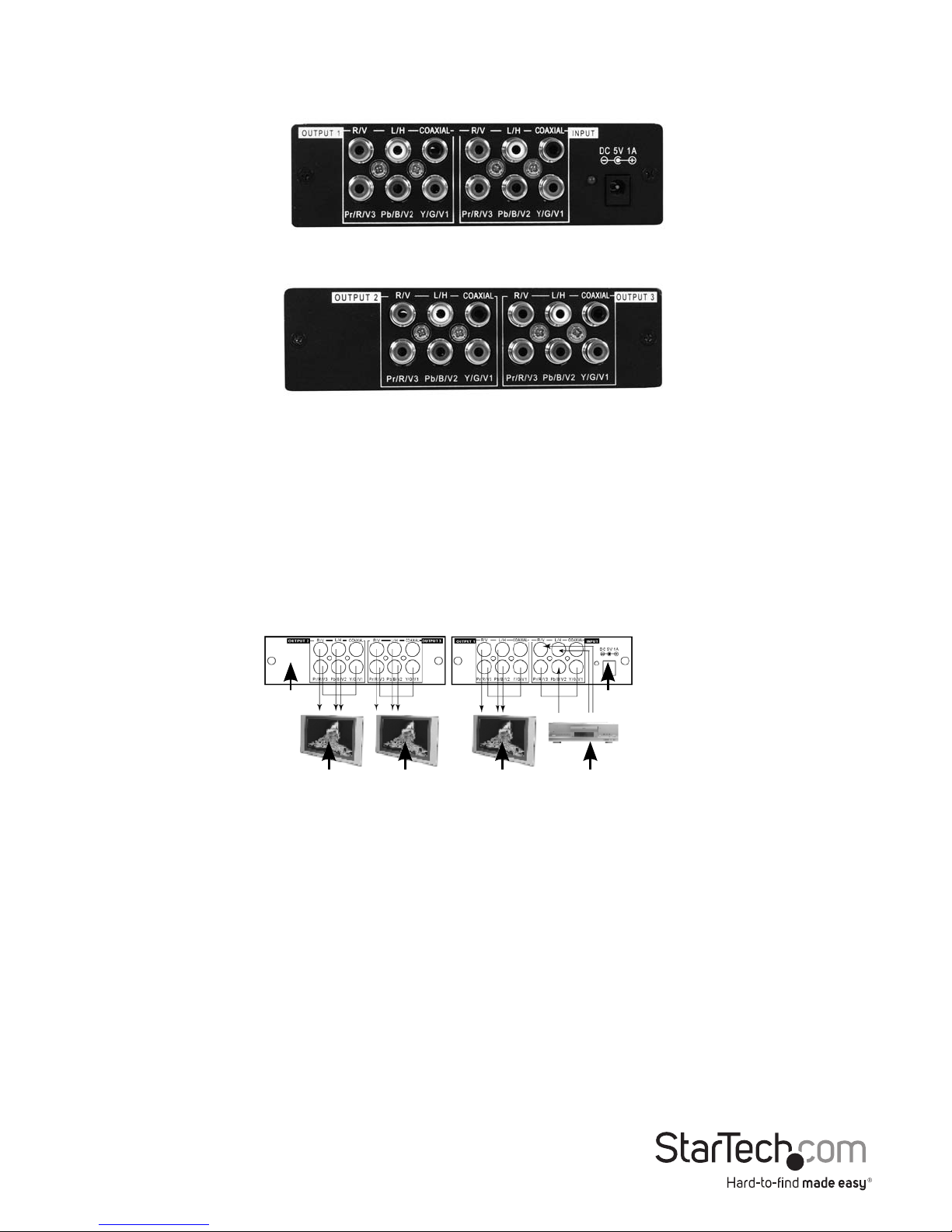

Front Panel
Rear Panel
Diplay #1 Video Source #1Diplay #2Diplay #3
Front Panel Rear Panel

Instruction Manual
3
3. Insert the connectors from one end of a standard RCA audio cable into the audio
ports provided by the audio/video source.
4. Connect the remaining end of the RCA audio cable to the INPUT audio ports located
on the rear panel of the distribution amplier.
Connecting the distribution amplier to the display
1. Insert the connectors from one end of a standard component video cable to the
colorcoded OUTPUT ports located on the distribution amplier. These ports will be
labelled Pr/R/V, Pb/B/V2 and Y/G/V1
2. Connect the remaining end of the component cable to the corresponding ports
provided by the display. Be sure to follow the color coding appropriately, to ensure
that there is a direct connection between each component signal.
3. Insert the connectors from one end of a standard RCA audio cable to the OUTPUT
audio ports located on the distribution amplier. These ports will be marked R/V
and L/H, denoting the left and right audio channels.
4. Connect the remaining end of the RCA audio cable to the input ports located on
your display. For further instruction on the location of these ports, please consult
the documentation that accompanied your display at the time of purchase.
ST123HDA used with HD RGBHV video source
Using a standard RGBHV cable, you can connect your video source to the distribution
amplier for use with up to three displays:
Connecting the A/V source to the distribution amplier
1. Insert the connectors from one end of a standard RGBHV video cable to the
color-coded output ports located on the A/V source.
2. Connect the remaining end of the component cable to the corresponding ports,
(marked INPUT) on the rear panel of the distribution amplier. The necessary ports
are labelled Pr/R/V, Pb/B/V2 and Y/G/V1.
Diplay #3 Diplay #2 Diplay #1 Video Source

Instruction Manual
4
3. (OPTIONAL) Insert one end of a standard digital coaxial audio cable into the digital
coaxial output port, provided by the audio/video source.
4. Connect the remaining end of the digital coaxial audio cable into the INPUT audio
port, marked COAXIAL, located on the rear panel of the distribution amplier.
Connecting the distribution amplier to the display
1. Insert the connectors from one end of a standard component video cable to the
colorcoded OUTPUT ports located on the distribution amplier. These ports will be
labelled Pr/R/V, Pb/B/V2 and Y/G/V1
2. Connect the remaining end of the component cable to the corresponding ports
provided by the display. Be sure to follow the color coding appropriately, to ensure
that there is a direct connection between each component signal.
3. (OPTIONAL) Connect one end of the digital coaxial audio cable into the OUTPUT
audio port, marked COAXIAL, located on the distribution amplier.
4. Connect the remaining end of the digital coaxial audio cable into the corresponding
input port located on the display.
ST123HDA used with HD RGBHV video source
Using a standard RGBHV cable, you can connect your video source to the distribution
amplier for use with up to three displays:

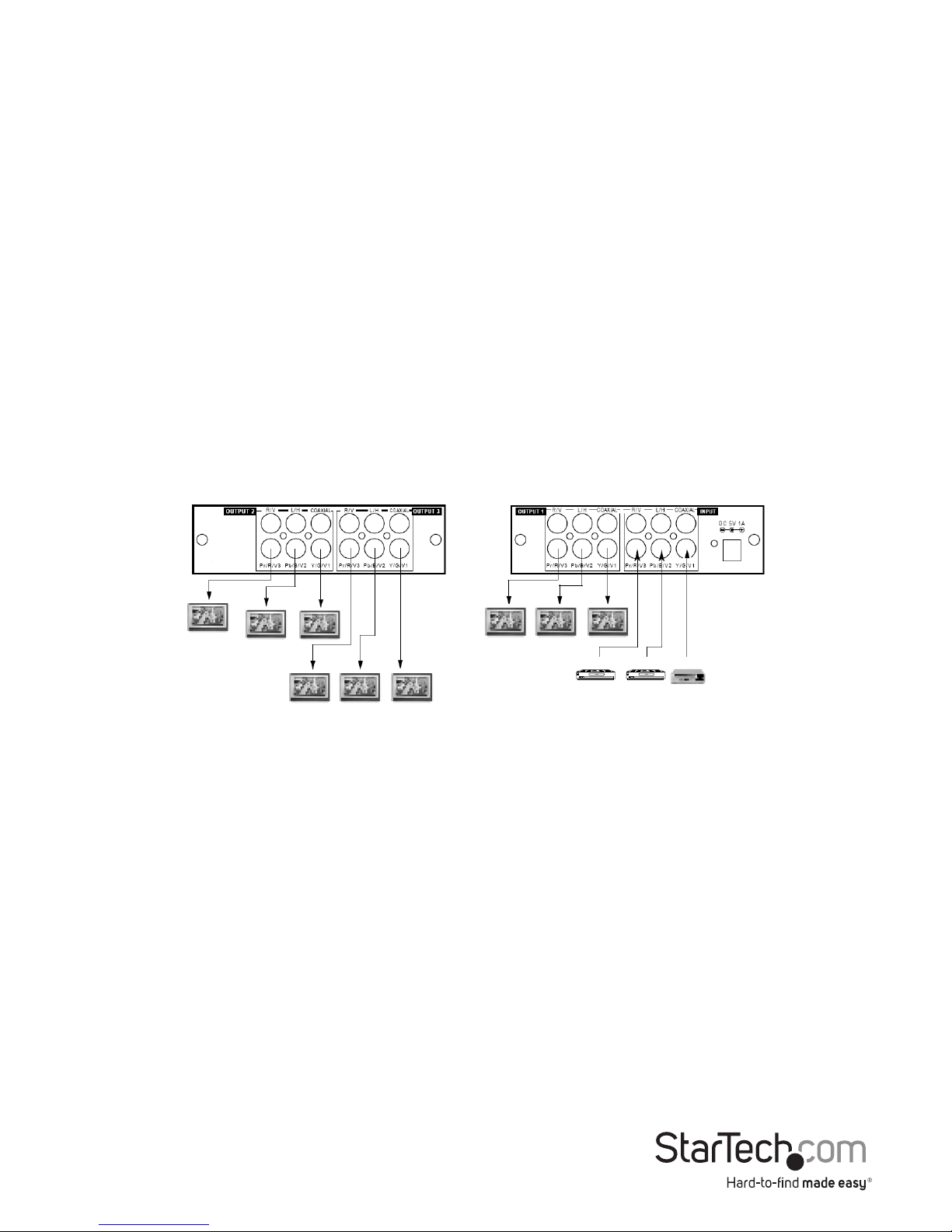

Connecting the A/V source to the distribution amplier
1. Insert the connector from one end of a standard composite video cable into the
appropriate output port located on the A/V source. For further information as to the
location of the necessary port, please consult the documentation that accompanied
the display at the time of purchase.
Video 3 Video 3
Video 1 Video 1
Video 3
Source 3
Video 2
Source 2
Video 1
Source 1
Video 2 Video 2

Instruction Manual
5
2. Connect the remaining end of the composite cable to the corresponding port,
(marked INPUT) on the rear panel of the distribution amplier. The necessary port(s)
will be labelled Pr/R/V1, Pb/B/V2, Y/G/V1. Please note: Up to three video sources can
be used, by inserting one composite video cable in each of the three input ports.
The signal that is used with the V1 input, will provide a signal to the outputs labelled
V1. Similarly, the signal that is used with the V2 input will provide a signal to the
outputs labelled V2; the signal that is used with the V3 input will provide a signal to
the outputs labelled V3.
Connecting the distribution amplier to the display
1. Insert the connector from one end of a standard composite video cable into one of
the color-coded OUTPUT ports located on the distribution amplier. Please note:
the video signal provided will correspond directly to the port designation. For
example, the signal connected to INPUT V1 will be transmitted through OUTPUT(s)
V1, and so on.
2. Connect the remaining end of the composite video cable used in step 1 to the
display, as designated by the video port number.

Instruction Manual
6
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
