StarTech.com VS310HD2HDMI User manual

HDMI Converter/Scaler
VS310HD2HDMI Instruction Manual
Actual product may vary from photo
Component/VGA and Audio to HDMI Converter/Scaler

FFCCCCCCoommpplliiaanncceeSSttaatteemmeenntt
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
UUsseeooffTTrraaddeemmaarrkkss,,RReeggiisstteerreeddTTrraaddeemmaarrkkss,,aanndd
ootthheerrPPrrootteecctteeddNNaammeessaannddSSyymmbboollss
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and
do not represent an endorsement of a product or service by StarTech.com, or an
endorsement of the product(s) to which this manual applies by the third-party company in
question. Regardless of any direct acknowledgement elsewhere in the body of this
document, StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this
manual and related documents are the property of their respective holders.

TTaabblleeooffCCoonntteennttss
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Operation controls and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Remote control and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation - Input connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Installation - Output connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OSD Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Instruction Manual
i

IInnttrroodduuccttiioonn
FFeeaattuurreess
BBeeffoorreeYYoouuBBeeggiinn
Instruction Manual
1
Thank for purchasing a StarTech.com VGA/Component to HDMI converter/scaler. This
product will allow you to convert analog and digital video to DVI-D or HDMI, while scaling
the image for optimized display.
• Supports analog PC Resolution input/output up to WUXGA (1920x1200) @ 60Hz
• Supports analog HDTV RGB / YPbPr / YCbCr input/output up to 1080p @ 60Hz
• DVI / HDMI and HDCP compliant with bandwidth of up to 165MHz
• On-screen display allows for easy setup and configuration
• Automatic 3:2 and 2:2 pull-down detection and recovery
System Requirements
• A display with HDMI or DVI-D input capability
• An HDMI/DVI-D video source
• HDMI or DVI-D cabling
Contents
This package should contain:
• 1 x Video Scaler/Converter
• 1 x Power Adapter
• 1 x Instruction Manual

OOppeerraattiioonnccoonnttrroollssaannddffuunnccttiioonnss
Instruction Manual
2
7 6 5 4 3 2 1

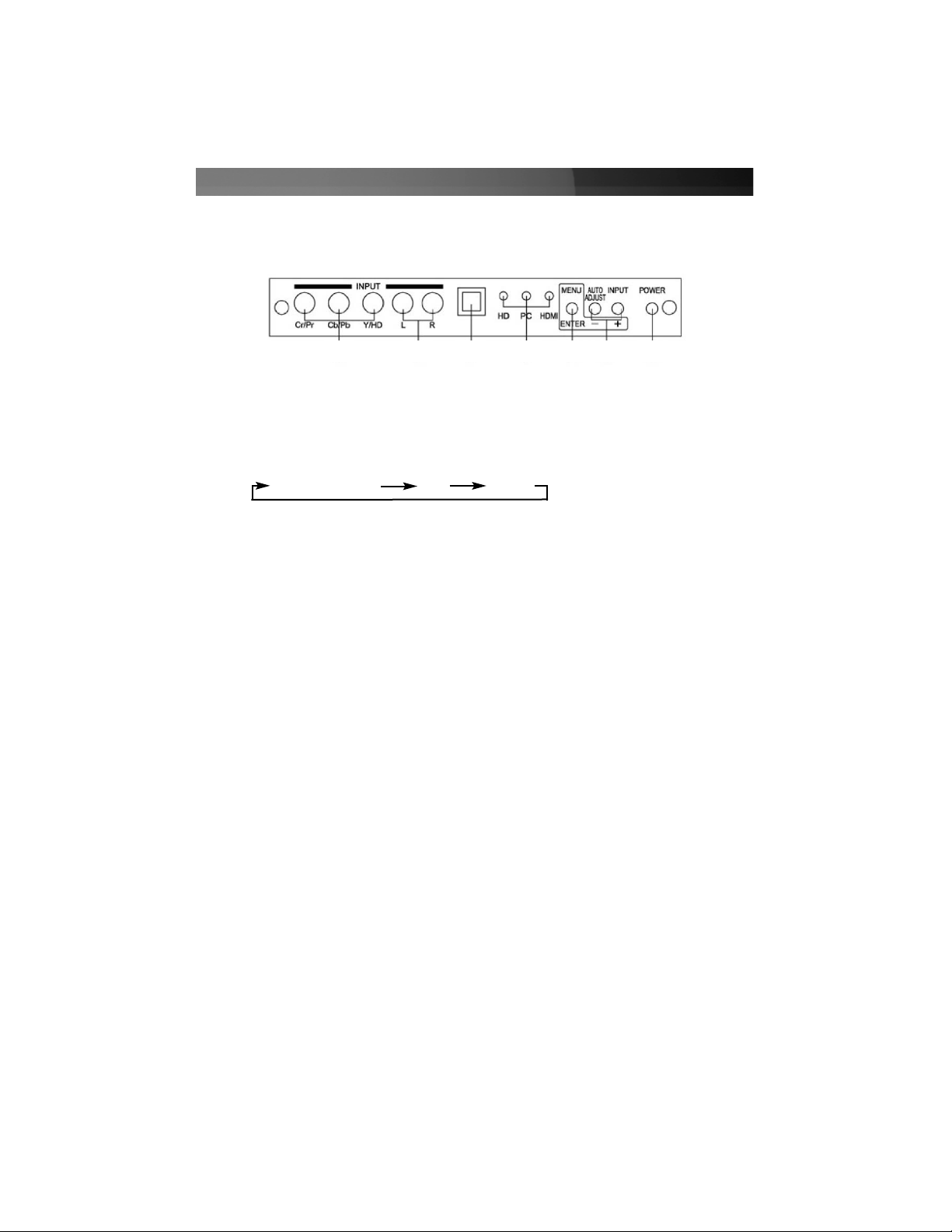

Front Panel
1. Power: Press this button to turn the power of the unit ON or OFF (standby)
2. + / - : These buttons provide three functions:
a) Input Select - Press the button repeatedly to select your desired input
source. The input sources are toggled through the following sequence:
HD (Component) PC HDMI
b) Auto Tune (-) - Press the “-” button to automatically adjust the image for
analog inputs (component or PC). This will fine tune the position and color of
the output picture.
c) When using the On Screen Display, press the +or -button to move up or
down the highlight bar to match the desired perameter. Or, once a parameter
has been selected with the MENU/Enter button, press the button to adjust the
value of the selected parameter.
3. MENU/Enter - This button serves two purposes:
a) Press this button to launch the OSD main menu
b) Press this button to enter the sub-menu or to adjust the setting value of the
selected parameter
4. Input LED Indicators - The LED indicators notify you that the corresponding source is
selected as input
5. IR Sensor - Infrared remote control sensor
6. Audio L/R Input - Stereo audio input, associated with Component In
7. Component Input - Used to connect to Component Video sources. VS310HD2HDMI
accepts both interlaced component input (480i, 576i) and deinterlaced
progressive input (480p, 576p...1080p). The input range is 480i, 570i-1080i,
1080p.

Instruction Manual
3
Rear Panel
654 3 2 1
1. PC IN - Connects VS310HD2HDMI to the VGA output of your PC. Acceptable PC
resolutions range from VGA - WUXGA
2. PC Audio IN - Stereo audio input from video source. Requires 3.5mm audio cable.
3. HDMI (DVI) IN: Connects VS310HD2HDMI to your HDMI source equipment
4. AUX (DVI) Audio IN: This audio input should be used only when a DVI source is
connected to the HDMI input. This device will convert DVI and AUX audio
input to HDMI Output.
5. HDMI OUT - Connect this output to the HDMI input on your HD display.
6. Power jack - For connection to the 5V 2.6A DC power adapter (included).
1
2
3
6
8
10
11
4
5
7
9
12
Remote Control and functions
1. Power - Press this button once to power on the
scaler/ converter. Press a second time to
power down
2. Input - Press repeatedly, to toggle through input
sources
3. HD Input - Press to select component input.
4. PC Input - Press this button to select PC input
5. HDMI/DVI Input - Press to select DVI or HDMI input
6. Output resolution - Select from available output
resolutions
7. Menu - Press to bring up the OSD main menu page
8. Exit - Press to exit from a sub-menu or main menu

Instruction Manual
4
9. Up/Down/Left/Right - Press the up/down buttons to move the highlight bar to the
desired parameter during OSD operation. exit from a sub-menu
or main menu. Press the left/right buttons to increase/decrease
the value of a selected parameter.
10. OK (Enter) - Press to confirm selections
11. Reset - Press to reset the unit’s firmware setting to the factory default values
12. Auto Adjust - Press to optimize the position of the picture (picture centering) on the
screen

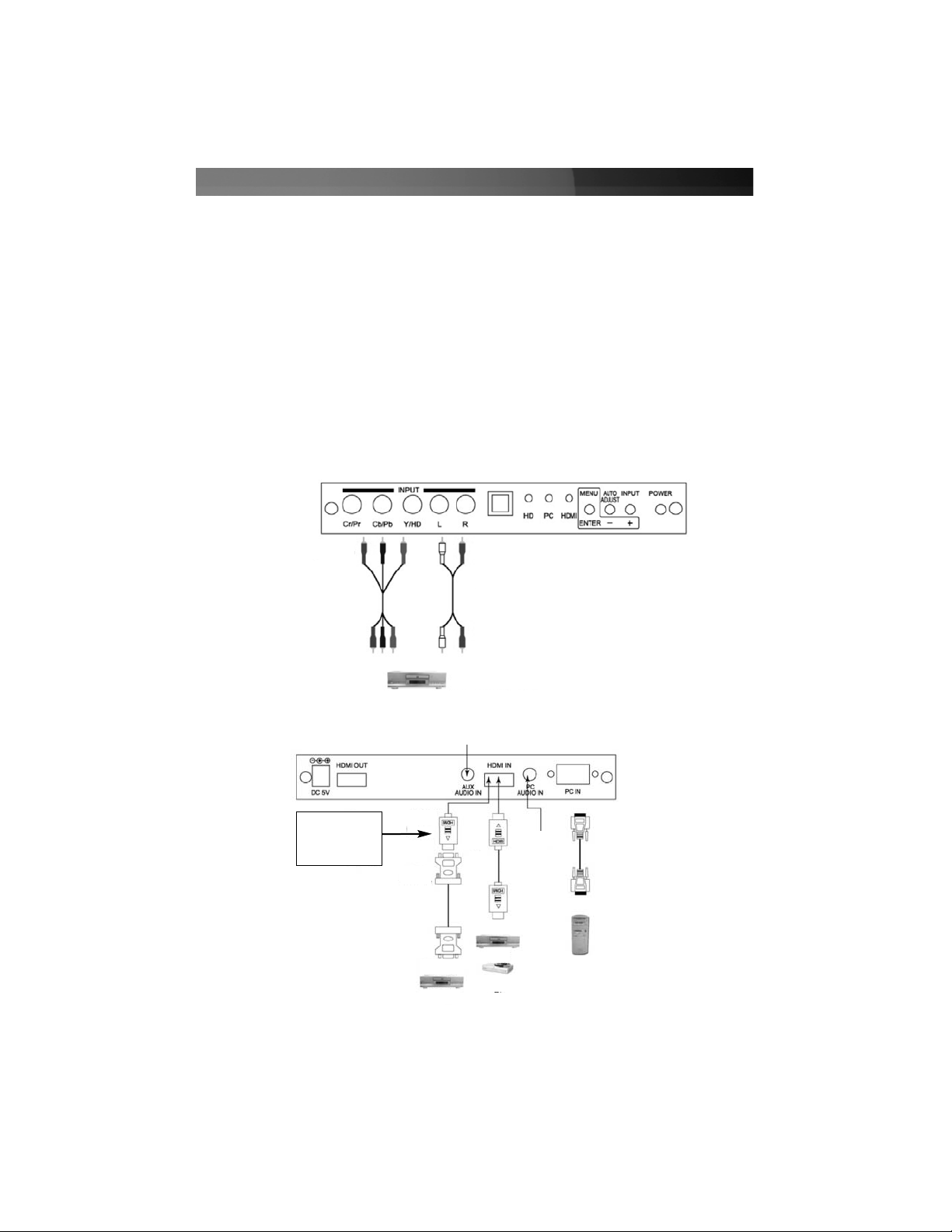

Installation - Input connection
Stereo IN
Audio
Component IN
LR
Component OUT
DVD or Set top box
Audio in for
DVI source
DVI to HDMI
connector
adapter
HDMI
DVI
Cable
DVI PC IN
PC
Set top box
DVI Out
DVD
HDMI Out
DVD
OR HDMI
Cable
PC Audio

Instruction Manual
5
VS310HD2HDMI accepts component, PC and HDMI inputs with audio on each.
Formats supported by these inputs are as follows:
YPbPr
480p @50/60Hz
576p @50Hz
720p @50/60Hz
1080i @50/60Hz
1080p @50/60Hz
YCbCr
480i @ 60Hz
576i @ 50Hz
Component Input
RGBHV (PC Input)
VGA/SVGA/XGA/SXGA/UXGA/WXGA/WSXGA/WUXGA
VGA @ (60/72/75/85Hz) SVGA @ (56/60/72/75/85Hz)
XGA @ (60/72/75/85Hz) SXGA @ (60/75/85Hz)
UXGA @ (60Hz) WXGA @ (60Hz)
WSXGA @ (60Hz) WUXGA @ (60Hz)
Digital (HDMI Input)
VGA @ (60/72/75/85Hz) SVGA @ (56/60/72/75/85Hz)
XGA @ (60/70/75/85Hz) SXGA @ (60/75/85Hz)
UXGA @ (60Hz) WXGA @ (60Hz)
WSXGA @ (60Hz) WUXGA @ (60Hz)
• When connecting to a PC source, use a 15-pin D-sub cable to connect the PC
output to the D-Sub input connector of VS310HD2HDMI
• When connecting to a component source, use a RCA cable to connect the
YPbPr/YCbCr output of a DVD player or set top box to the YPbPr/YCbCr input
connector on VS310HD2HDMI
• When connecting to an HDMI source, use an HDMI cable to connect from the HDMI
output of a set top box or DVD player, to the HDMI connector of VS310HD2HDMI
• When connecting to a DVI source, use a DVI cable to connect from the DVI source
(output) with a DVI to HDMI connector adapter, which is then connected to the
HDMI input on VS310HD2HDMI

Instruction Manual
6

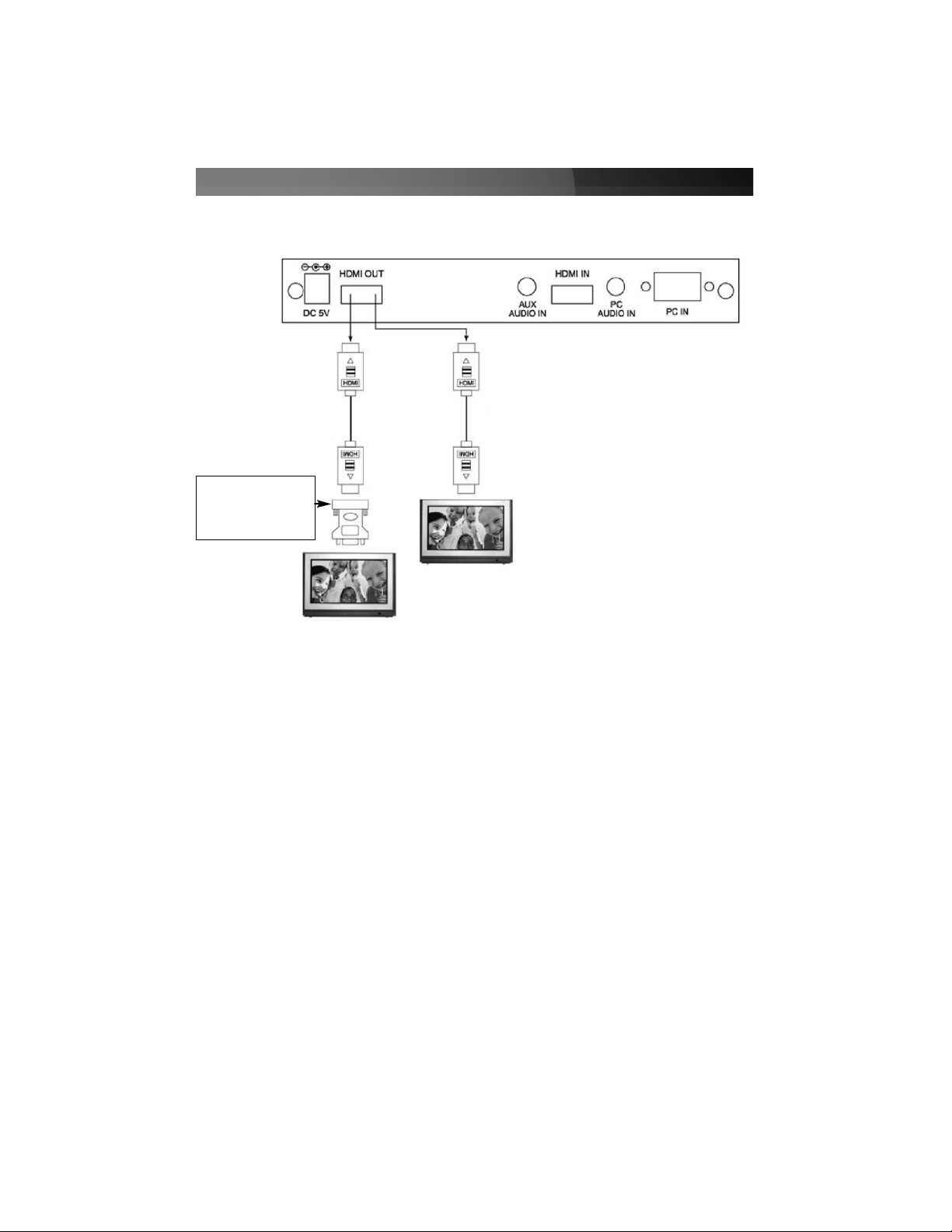

Installation - Output connection
HDMI to DVI
connector adapter
HDMI
Cable
HDMI
Cable
or
DVI TV
HDMI TV
HDMI
VS310HD2HDMI can output a variety of PC, Standard definition and High definition
resolutions in HDMI digital format. The HDMI output supports the following resolutions,
all in RGB format:
SD/HD: 480i, 480p, 576i, 576p, 720p @50/60Hz, 1080i @50/60Hz
PC: VGA @ 60Hz SVGA @60Hz XGA @ 60Hz WXGA@60Hz WSXGA, UXGA,
WUXGA
• When connecting to an HDMI display, use a certified HDMI cable to connect from the
HDMI output of VS310HD2HDMI to the HDMI input on your television/display
• When connecting to a DVI display, use an HDMI cable in conjunction with an HDMI to
DVI connector adapter, to connect to the DVI display

Instruction Manual
7
OSD Operation
Video (or PC)
Color
Output
Info
OSD
Main Menu
Video (or PC)
Contrast
Brightness
Hue
Sat
Sharpness
Picture Mode
Scale
NR
H-Position
V-Position
Exit
Color
User
Normal
Warm
Cool
Video (or PC)
VGA
SVGA
XGA
SXGA
UXGA
WXGA
WSXGA
WUXGA
480i
480p
576i
576p
720p (50/60Hz)
1080i (50/60Hz)
1080p (50/60Hz)
NATIVE
OSD
H-Position
V-Position
Time out
Background
Info
Project
Input
Output
Date
Exit
Using the +and - buttons, move the highlight bar to the desired parameter, then press
MENU/ENTER to enter into the corresponding sub-menu
Video (or PC) - When Video is selected, a sub-menu will appear as follows:
Contrast
Brightness
Picture Mode
Hue
Saturation
Sharpness
Scale
Exit
V-Position (PC)
H-Position (PC)
NR
Standard
User
Movie
Vivid
Underscan
Overscan
Low
Middle
High
Off
To adjust picture quality, use the +or -button to move the highlight bar to the desired
parameter, and press the MENU/ENTER button to confirm your selection. At this point,

Instruction Manual
8
the selected parameter will turn red, at which point you can use + or -to increase or
decrease the value. Once you’ve completed the necessary adjustments, press MENU to
leave the selected parameter. Move the highlight bar to Exit, and press MENU/ENTER
again to exit.
Please note: The H-Position and V-Position are only available when component or PC
input is selected. Neither are available when the HDMI input is selected.
Picture mode - There are four picture modes to choose from:
User: Select to adjust to your favorite settings (stored for later use)
Standard: Standard factory default settings for optimal display in a normal
environment
Vivid: High saturation picture for optimal display in a bright room
Movie: Picure for comfortable low brightness display in a dark room
Scale - Select overscan when the input source is SD or HD video, to ensure no black
band appears around the screen border. Select underscan when the input
source is a PC signal, to ensure full picture content falls within the screen border.
Noise Reduction - This function only works when input is analog RGB or component
video. It will not work for HDMI input.
H & V position - To adjust for optimal positioning within the screen
Output - VS310HD2HDMI can output a wide variety of PC and HD resolutions as
follows:
VGA (up to 100MH) DVI/HDMI(Up to 165MH) Resolution i/p* Format
480i 480i 720 x 480 iRGBHV
480p 480p 720 x 480 pRGBHV
576i 576i 720 x 576 iRGBHV
576p 576p 720 x 576 pRGBHV
720p @ 50/60Hz 720p @ 50/60Hz 1280 x 720 pRGBHV
1080i @ 25/30Hz 1080i @ 25/30Hz 1920 x 1080 iRGBHV
1080p @ 50/60Hz 1080p @ 50/60Hz 1920 x 1080 pRGBHV
VGA @ 60Hz VGA @ 60Hz 640 x 480 pRGBHV
SVGA @ 60Hz SVGA @ 60Hz 800 x 600 pRGBHV
XGA @ 60 Hz XGA @ 60 Hz 1024 x 768 pRGBHV
SXGA @ 60Hz SXGA @ 60Hz 1280 x 1024 pRGBHV
UXGA UXGA @ 60Hz 1600 x 1200 pRGBHV
WXGA @ 60Hz WXGA @ 60Hz 1280 x 800 pRGBHV
WSXGA @ 60Hz WSXGA @ 60Hz 1680 x 1050 pRGBHV
WUXGA @ 60Hz WUXGA @ 60Hz 1920 x 1200 pRGBHV

OSD Adjust -
H-Position: Adjust the horizontal position of the OSD
V-Position: Adjust the vertical position of the OSD
Time out: Set a predetermined time to turn the OSD menu off, following
inactivity
Background: Select transparent or solid OSD background
SSppeecciiffiiccaattiioonnss
Instruction Manual
9
Power Adapter 5V DC 2.6Amp, Type M connector
Connectors
Input:
1 x Component Video 3-RCA Connecters
1 x Audio 2-RCA Connecter
1 x HD15 VGA Connecter
1 x HDMI Connecter
2 x 3.5mm audio connecter
Output:
1 x HDMI Connecter
Maximum Bandwidth 165MHz
Regulatory certifications FCC, CE, ROHS

Instruction Manual
10
TTeecchhnniiccaallSSuuppppoorrtt
StarTech.com’s lifetime technical support is an integral part of our commitment to provide
industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
WWaarrrraannttyyIInnffoorrmmaattiioonn
This product is backed by a one-year warranty. In addition, StarTech.com warrants its
products against defects in materials and workmanship for the periods noted, following
the initial date of purchase. During this period, the products may be returned for repair, or
replacement with equivalent products at our discretion. The warranty covers parts and
labor costs only. StarTech.com does not warrant its products from defects or damages
arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
officers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation of
incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.

Revised: 14 December 2006 (Rev. A)
AAbboouuttSSttaarrTTeecchh..ccoomm
StarTech.com is “The Professionals’ Source for Hard-to-Find Computer
Parts”. Since 1985, we have been providing IT professionals with the
quality products they need to complete their solutions. We offer an
unmatched selection of computer parts, cables, server management
solutions and A/V products and serve a worldwide market through our
locations in the United States, Canada, the United Kingdom and Taiwan.
Visit www.startech.com for complete information about all our products
and to access exclusive interactive tools such as the Parts Finder and the
KVM Reference Guide. StarTech.com makes it easy to complete almost
any IT solution. Find out for yourself why our products lead the industry in
performance, support, and value.
