STARVILLE CLB5 Compact LED Bar RGBW User manual

CLB5 Compact LED Bar RGBW / RGBWW
LED Lighting Set
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
01.12.2022, ID: 419587, 503920 (V9)

Table of contents
1 General information................................................................................................................................. 6
1.1 Further information........................................................................................................................... 7
1.2 Notational conventions.................................................................................................................... 7
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 11
3 Features....................................................................................................................................................... 15
4 Installation.................................................................................................................................................. 16
5 Starting up.................................................................................................................................................. 22
6 Connections and controls................................................................................................................... 24
7 Operating.................................................................................................................................................... 30
7.1 Starting the device........................................................................................................................... 30
7.2 Main menu.......................................................................................................................................... 30
7.3 Menu overview................................................................................................................................. 37
7.4 Functions in 4-channel DMX mode........................................................................................... 38
7.5 Functions in 8-channel DMX mode........................................................................................... 39
7.6 Functions in 16-channel DMX mode........................................................................................ 39
7.7 Functions in 18-channel DMX mode........................................................................................ 41
7.8 Functions in 20-channel DMX mode........................................................................................ 43
7.9 Reset to factory defaults................................................................................................................ 48
Table of contents
CLB5 Compact LED Bar RGBW / RGBWW 3
LED Lighting Set

8 Technical specications....................................................................................................................... 49
9 Plug and connection assignments.................................................................................................. 52
10 Cleaning....................................................................................................................................................... 53
11 Protecting the environment.............................................................................................................. 54
Table of contents
4CLB5 Compact LED Bar RGBW / RGBWW
LED Lighting Set

CLB5 Compact LED Bar RGBW / RGBWW 5
LED Lighting Set

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
6CLB5 Compact LED Bar RGBW / RGBWW
LED Lighting Set

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
General information
CLB5 Compact LED Bar RGBW / RGBWW 7
LED Lighting Set

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
Displays
Instructions
General information
8CLB5 Compact LED Bar RGBW / RGBWW
LED Lighting Set

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
Warning – suspended load.
General information
CLB5 Compact LED Bar RGBW / RGBWW 9
LED Lighting Set

Warning signs Type of danger
Warning – danger zone.
General information
10 CLB5 Compact LED Bar RGBW / RGBWW
LED Lighting Set

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use only and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
Intended use
Safety instructions
CLB5 Compact LED Bar RGBW / RGBWW 11
LED Lighting Set

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable
or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a registered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
Safety instructions
12 CLB5 Compact LED Bar RGBW / RGBWW
LED Lighting Set

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Fire hazard due to exceedance of the maximum current
The device can power other devices of identical construction. The current consumption of all other devices connected in series must
not exceed the values indicated in the technical specications. Otherwise you risk injuries and irreparable damages to the device.
Only connect so many identical devices that the maximum current consumption is not exceeded. Ensure the sucient dimensioning
(wire cross section) of the power cables used for all devices connected in series.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
Safety instructions
CLB5 Compact LED Bar RGBW / RGBWW 13
LED Lighting Set

NOTICE!
Risk of short-circuits
Short-circuits may cause irreparable damages of the device. They can occur when you remove or change cables of the spots during
operation. Disconnect the device from the power supply before you change the cabling.
NOTICE!
Damages due to disconnection during operation
Only operate the unit when all spotlights are connected. The disconnection of LED spotlights during operation may damage the
unit. Disconnect the unit from the power supply before disconnecting LED spotlights.
NOTICE!
Radio interference
This device emits electromagnetic signals. This can cause interference due to overlapping radio waves. Do not use the device in
locations where the use of wireless devices is prohibited.
NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting bat‐
teries.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a
longer period.
Safety instructions
14 CLB5 Compact LED Bar RGBW / RGBWW
LED Lighting Set

3 Features
The LED light set oers an ideal combination of white and coloured light for parallel illumina‐
tion of stage and dance oor in various shades.
nfour LED spots with each seven 4-in-1 LEDs, 4 W each, pre-mounted on T-bar
– Stairville CLB5 RGBW WH Compact LED Bar 5 (item no. 503920): Red, green, blue, cold
white
– Stairville CLB5 RGB WW Compact LED Bar 5 (item no. 419587): Red, green, blue, warm
white
nControl via DMX (ve dierent modes), via buttons and display on the unit,
infrared remote control (item no. 354223), foot switch (item no. 279058, optionally avail‐
able) and radio foot switch (item no. 370552, optionally available)
nPreprogrammed automatic shows
nSound control
nMaster / slave mode
nNoiseless operation due to convection cooling
nSturdy transport bag and infrared remote control included
nOptionally available accessories: Stand, foot switch, radio foot switch unit
For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
CLB5 Compact LED Bar RGBW / RGBWW 15
LED Lighting Set

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
NOTICE!
Damages due to disconnection during operation
Only operate the unit when all spotlights are connected.
The disconnection of LED spotlights during operation may damage the unit. Dis‐
connect the unit from the power supply before disconnecting LED spotlights.
Installation
16 CLB5 Compact LED Bar RGBW / RGBWW
LED Lighting Set

NOTICE!
Risk of overheating
The distance between light output and the illuminated surface must be more
than 1.5 m (19.7in).
Provide sucient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
ers.
Installation
CLB5 Compact LED Bar RGBW / RGBWW 17
LED Lighting Set

Please note that this device must not be connected to a dimmer.
Installation
18 CLB5 Compact LED Bar RGBW / RGBWW
LED Lighting Set

The four spots are pre-mounted on the T-bar.
A Locking screw for xing the inclination angle.
B Locking screw for xing the spots on the T-bar and the horizontal orientation
(dispersion direction).
C Electrical connection of the spot at the T-bar (pre-mounted).
D 36 mm ange to mount the T-bar on a stand.
Pre-mounted spots
Installation
CLB5 Compact LED Bar RGBW / RGBWW 19
LED Lighting Set

E 1/4" phone socket to connect a foot controller.
F Threads for attaching additional eects units or for hanging using the C-hooks.

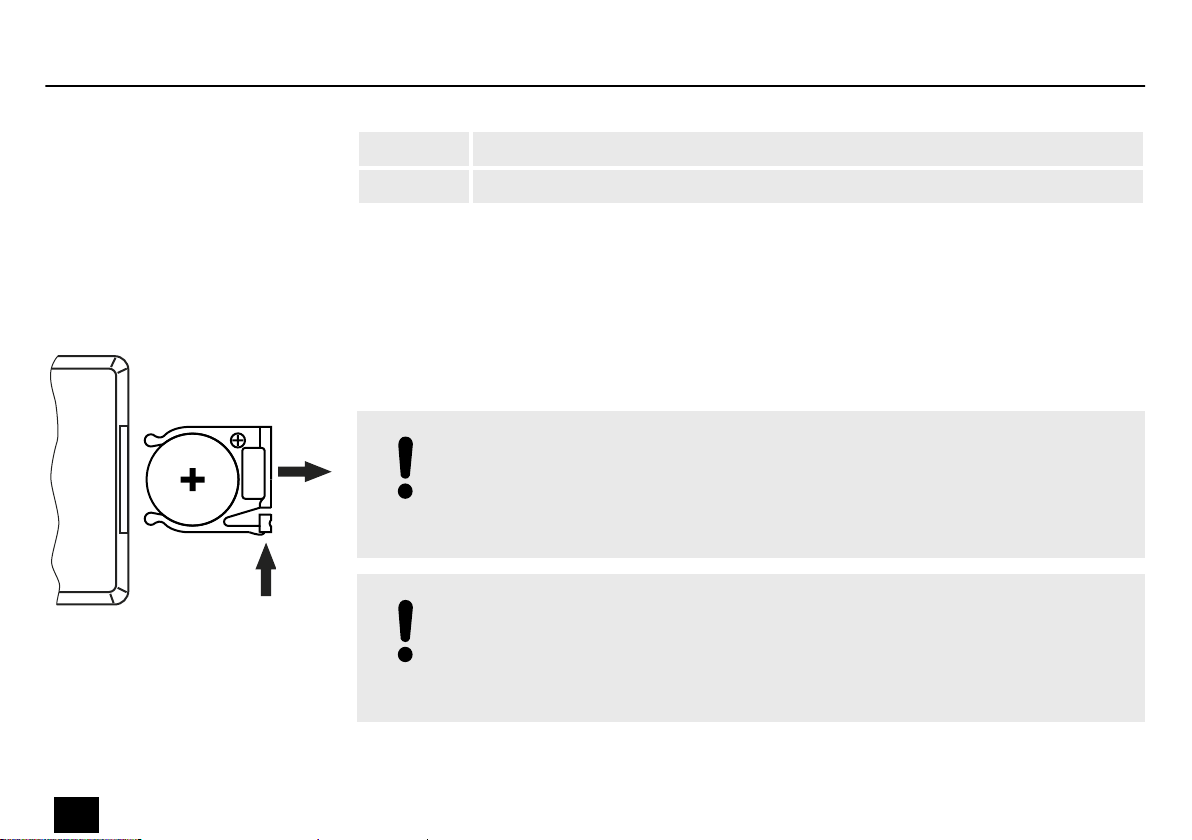

Press the lock of the battery holder to the centre of the housing and pull out the battery holder
like a drawer. Insert the battery. The battery is correct if the positive pole points to the housing
base of the remote control. Slide the battery holder back into the remote until it clicks into
place.
When shipping, the battery is already installed in the remote and protected against discharge
by a transparent plastic foil. Remove the plastic foil prior to rst use.
NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries.
Ensure that proper polarity is observed when inserting batteries.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device.
Take batteries out of the device if it is not going to be used for a longer period.
Inserting the battery into the
remote control
Installation
20 CLB5 Compact LED Bar RGBW / RGBWW
LED Lighting Set
