Triton Blue WALLY 12 User manual

PROFESSIONAL LED Lighting USER MANUAL
!!
WALLY 12
KEEP THIS MANUAL FOR FUTURE NEEDS Thank

-- XM420-V1.2-C
1
you for your patronage. We are confident that our excellent products and service can
satisfy you. For your own safety, please read this user manual carefully before installing
the device.
In order to install , operate, and maintain the lighting safety and correctly. We suggest that
the installation and operation should be done by the verified technician and follow the
instruction strictly.
INTRODUCTION:
Thank you for having chosen this professional LED lighting.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the box you should find:
1. Two XLR waterproof connection cables
2. One waterproof power cables
3. One safety rope
4. Manual
Please check carefully that there is no damage caused by transportation. Should there be
any, consult your dealer and don’t install this device.
DESCRIPTION OF THE DEVICE
Features
•Equippedwith12 x 3W LEDS: 4x red , 4 x green, 4 x blue
•100000hoursLEDlife
·3, 4，6 , 12 or 15 DMX channels selectable for numerous applications
•Strobe-effect with 1-18 flashes per second
•Programmable colour-change speed and strobe effect

-- XM420-V1.2-C
2
•4digitLEDdisplay
•DMX-controlled operation or stand alone operation with Master/Slave-function
·Preset program: 8 built in programs can be called up via DMX controller
•Software-upload by optional accessory via DMX line
Overview
(1) LEDS
(2) Fixation screw
(3) Floor stand
(4) Housing
(5) DMX input
(6) DMX output
(7) Power input
(8) Power output
(9) Menu-button
(10)Up-button
(11) Down-button
(12)Enter-button
(13)Display

-- XM420-V1.2-C
3
SAFETY INSTRUCTIONS
This device has left the factory in perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental changes, do
not switch it on immediately. The arising condensation could damage the device. Leave
the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device should
be earthed.
The electric connection must carry out by qualified person.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be
the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power
cord.
Fixtures cannot be installed on combustible substances, keep more than 50cm distance
with wall for smooth air flow, so there should be no shelter for fans and ventilation for
heat radiation.

-- XM420-V1.2-C
4
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order to
avoid a hazard.
Please be aware that damages caused by manual modifications to the device are not
subject to warranty. Keep away from children and non-professionals.
GENERAL GUIDELINES
This device is a lighting effect for professional use on stages, in discotheques, theatres,
etc.
This fixture is only allowed to be operated with the max alternating current which stated
in the technical specifications in the last page of this manual, the device was designed for
indoor and outdoor use.
Lighting effects are not designed for permanent operation. Consistent operational breaks
may ensure that the device will function properly for a long time.
Do not shake the device.Avoid brute force when installing or operating the device.
The device shall only be used complete with its protective shield.
While choosing the installation-spot, please make sure that the device is not exposed to
extreme heat, moisture or dust. The minimum distance between light-output from the
projector and the illuminated surface must be more than 0.1 meter.
Operate the device only after having familiarized with its functions. Do not permit
operation by persons not qualified for operating the device. Most damages are the result
of unprofessional operation.
Please use the original packaging if the device is to be transported.
For safety reasons, please be aware that all modifications on the device are forbidden.

-- XM420-V1.2-C
5
If this device will be operated in any way different to the one described in this manual, the
product may suffer damages and the guarantee becomes void. Furthermore, any other
operation may lead to short-circuit, burns, electric shock, lamp explosion, crash, etc.
INSTALLATION INSTRUCTIONS
Mounting the device
The applicable temperature for the lighting is between-25°C～45°CDo not use the
lighting under or above the temperature.
The installation of the effect has to be built and constructed in a way that it can hold 10
times the weight for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an
appropriate safety cable.
Never stand directly below the device when mounting, removing or servicing the fixture.
The operator has to make sure the safety relating and machine technical installations are
approved by an expert before taking the device into operation for the first time.
These installations have to be approved by a skilled person once a year.
Overhead mounting requires extensive experience, including amongst others calculating
working load limits, installation material being used, and periodic safety inspection of all
installation material and the device. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury.

-- XM420-V1.2-C
6

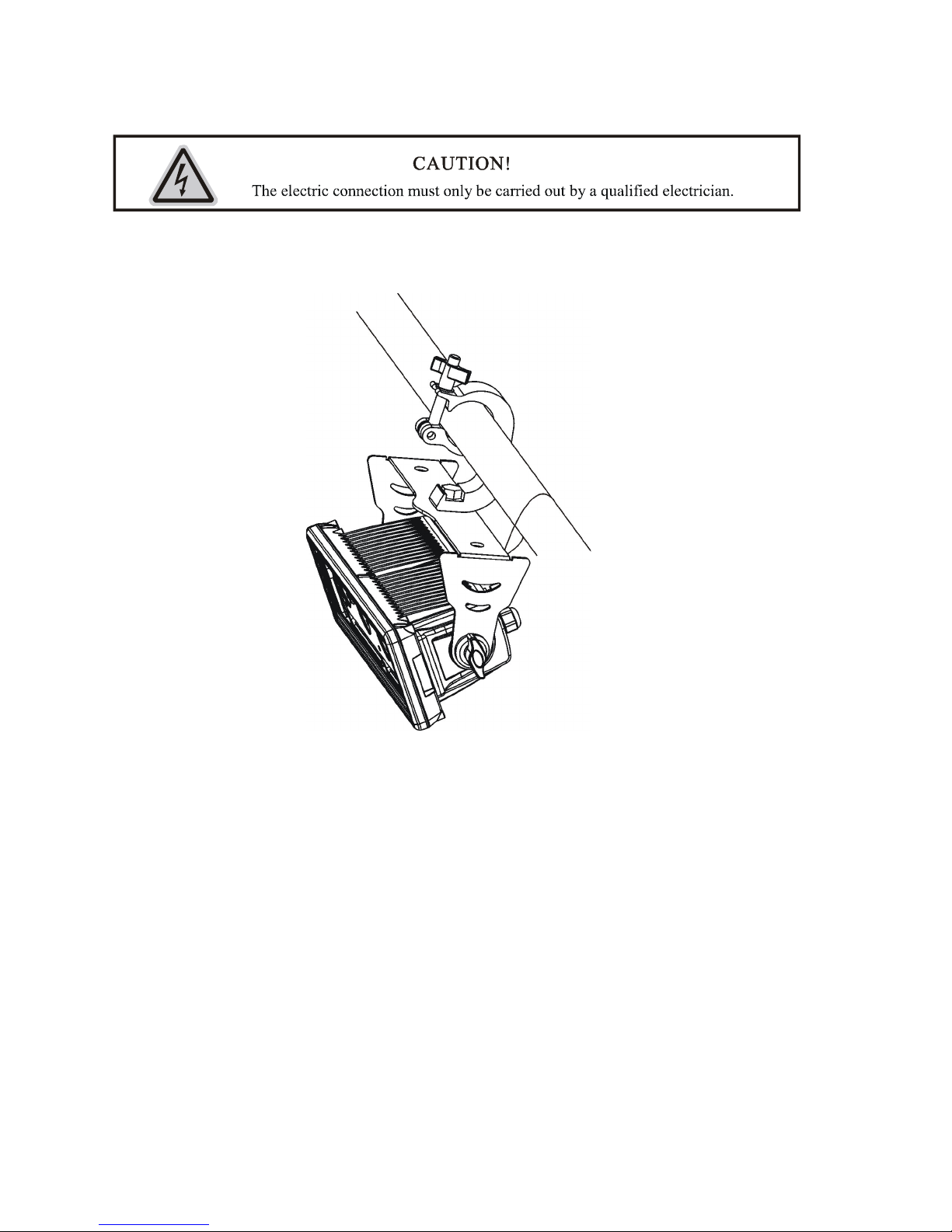

Installation method via clamp
Screw one clamp each via a M12 screw and nut onto the Omega holders.
Pull the safety-rope through the holes on the bracket of the base and over the
trussing system or a safe fixation spot. Insert the end in the carabine and tighten the
safety screw.
DMX-512 control connection
Connect the provided XLR cable to the female 3-pin XLR output of your controller and
the other side to the male 3-pin XLR input of the LED lighting. You can chain multiple
LED lighting together through serial linking. The cable needed should be two core,
screened cable with XLR input and output connectors. Please refer to the diagram below.

-- XM420-V1.2-C
7
Please note: to ensure maximal stability, when the voltage is 120V, only eight devices
may be connected together in this manner!From the ninth device, please connect to
power supply to get power for the second link; when the voltage is over 220V, only
fifteen devices may be connected together in this manner!From the sixteenth device,
please connect to power supply to get power for the second link.
DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, such as in a discotheque, it is recommended to use a DMX terminator.
This helps in preventing corruption of the digital control signal by electrical noise. The
DMX terminator is simply an XLR plug with a 120 Ωresistor connected between pins 2
and 3,which is then plugged into the output XLR socket of the last fixture in the chain.
Please see illustrations below.

-- XM420-V1.2-C
8
OPERATION
Display menu：
VALU
A001~AXXX
(AXXX)
DMX address setting
SLAV
ON/OFF
Set as Slave
<ADDR>
RDMX
ON/OFF
Change address via DMX
<RUN>
AUTO
ALON/MAST
Run Auto program
VALU
D-XX D-00(DXXX)
Display DMX value

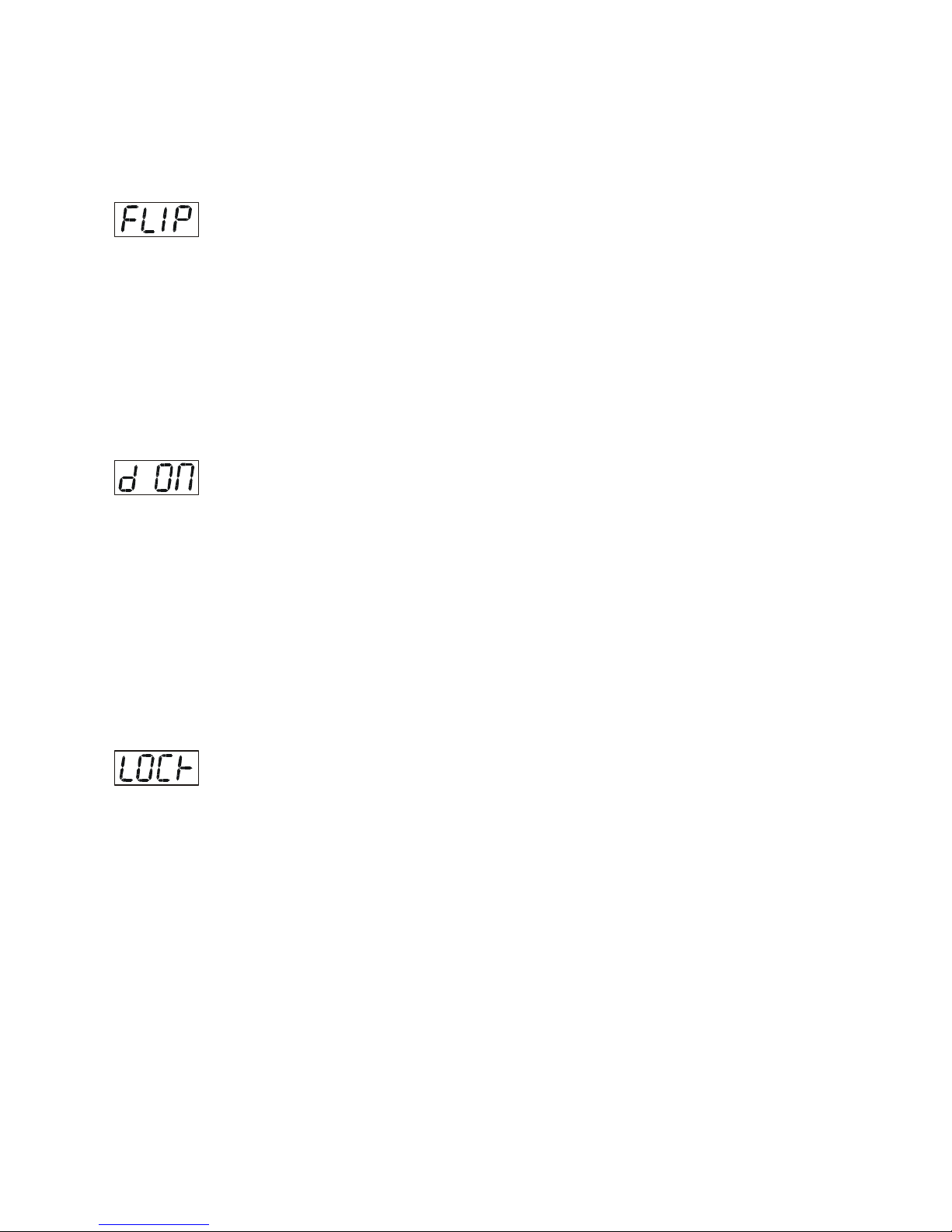

FLIP
ON/OFF
Flip display
D ON
ON/OFF
Delay shutting off LED display
MODE
<DISP>
LOCK
ON/OFF
Key lock
(Press the MENU button for 3
seconds to activate)
<CHAN>
3CH/4CH /6CH/12CH /15CH
DMX channel Mode
<FAIL>
OFF/HOLD/AUTO
Status while there is no DMX
<DFSE>
ON/OFF
Default setting
<POHO>
ON/OFF
Power on to preserve the MANL
settings
SET
<VER>
V-1.0~V-9.9
Software version

-- XM420-V1.2-C
9
MANL
<RED>
<GREN>
<BLUE>
<PROG>
<STRB>
<DIMM>
RXXX（0-255）
GXXX（0-255）
BXXX（0-255）
PXXX（0-255）
SXXX（0-255）
DXXX（0-255）
Manual adjust intensity
<LIFE>
0000~9999(HOURS)
Life time of machinerunning
<CODE>
CXXX
Password of clear time ”038”
TIME
<CLFE>
ON/OFF
Clear machinerunning time
<STEP>
S-01~S-48
Select steps of program
REC.
RE.XX
Auto Save Scene
RED
GREN
BLUE
PROG
STRB
DIMM
RXXX（0-255）
GXXX（0-255）
BXXX（0-255）
PXXX（0-255）
SXXX（0-255）
DXXX（0-255）
FADE
XXX (0-255)
EDIT
<SC01>
~<SC48>
TIME
XXX.X(000.1s~999.9s)

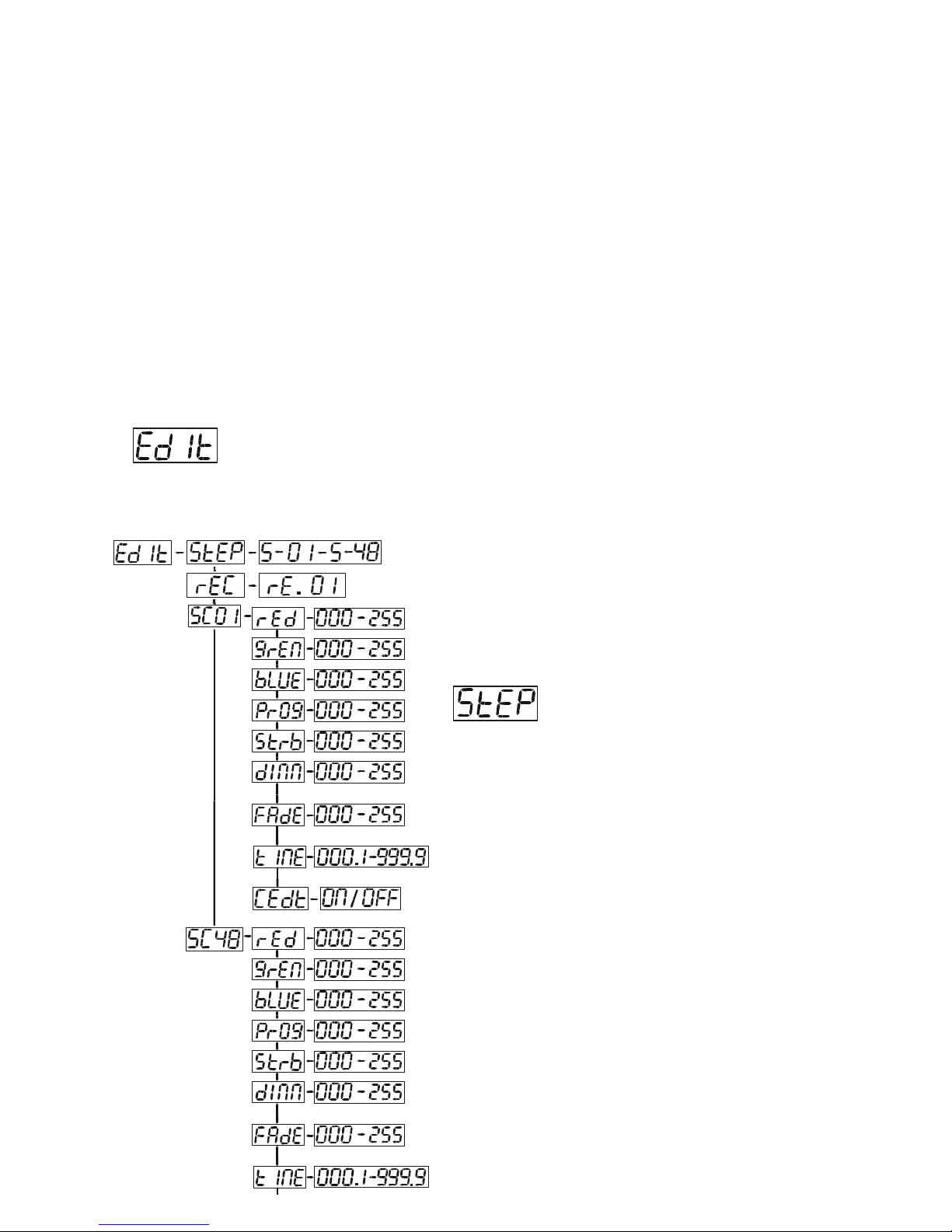

Edit the internal scenes
CEDT
ON/OFF
Edit program via controller
Notice
1）When you set the device to run as master or stand alone, it will run the default program
if without a edit program.
2）After edit a program, you can run it by enter the menu
"Mode"--"RUN"--"Auto"--"Alone/Mast"
Main functions:

-- XM420-V1.2-C
10
-Main menu
1. Press [MENU]to enter the main menu "MODE" (display flashing)
2. Press [ENTER] and select "ADDR", “RUN” or "DISP" by pressing [UP] or
[DOWN] button.
3. Press [ENTER] for selecting the desired sub menu.

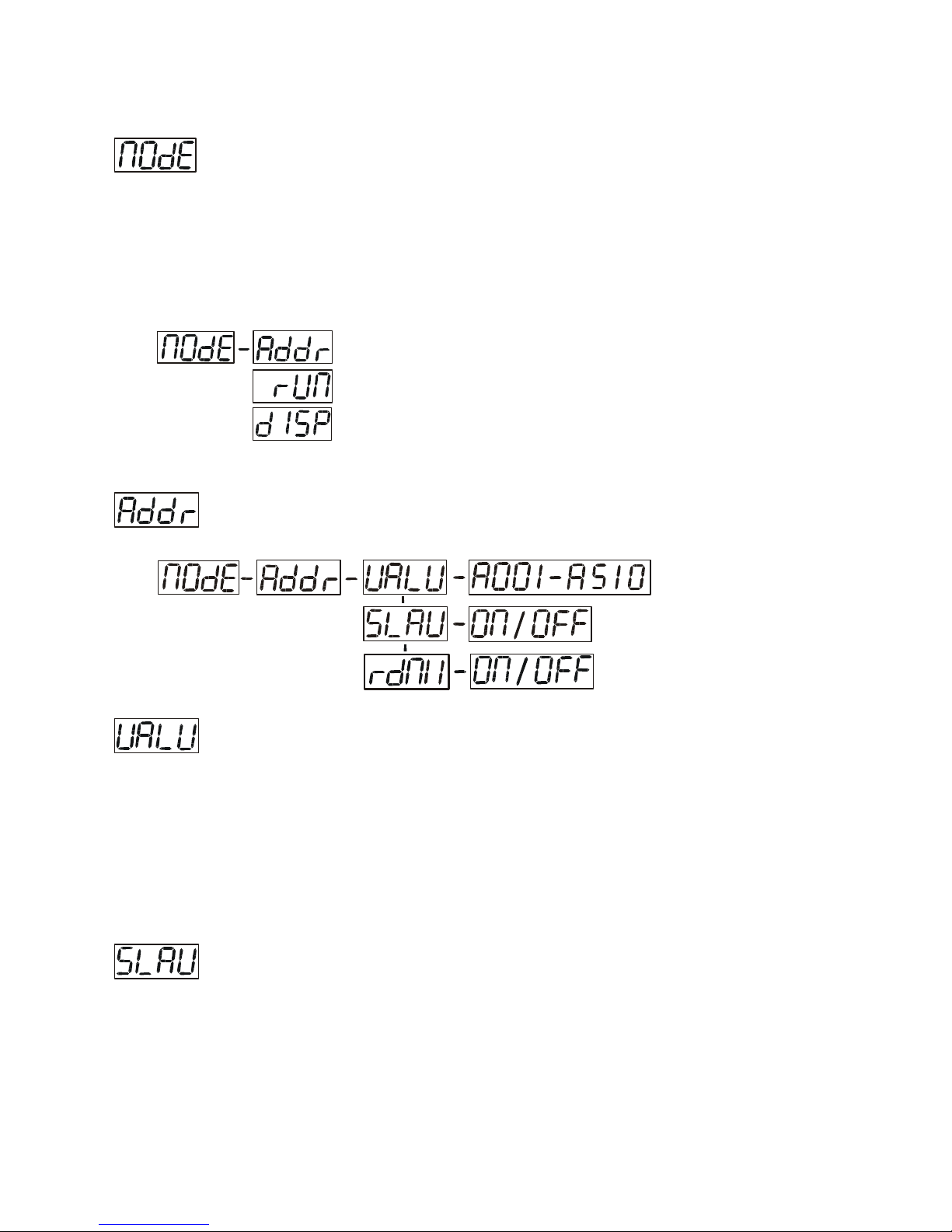

——DMX address setting, Slave setting
-DMX address setting
With this function, you can adjust the desired DMX-address via the Control Board.
1. Select “VALU” by pressing [UP] or [DOWN] button.
2. Press [ENTER], adjust the DMX address by pressing [UP] or [DOWN] button.
3. Press [ENTER] to confirm or pressing [MENU] to return to main menu.
-Slave setting
With this function, you can define the device as slave.
1. Select “SLAV” by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “ON” or “OFF”.

-- XM420-V1.2-C
11
3. Press [UP] to select “ON” if you wish to enable this function or press [DOWN] to
select “OFF” if you don’t.
4. Press [ENTER] to confirm or press [MENU]to return to main menu.
-DMX address setting via controller
With this function, you can adjust the desired DMX-address via an external controller.
This function can only be activated when the DMX-value of all other channels is set to
"0" on the controller.
Select “EBOC” by pressing [UP] or [DOWN].
Press [ENTER], the display shows “ON” or “OFF”.
Press [UP] to select “ON” if you wish to enable this function or [DOWN] to select “OFF”
if you don’t.
Press [MENU] to confirm.
Press [ENTER] in order to return to the main menu.
On the controller, set the DMX-value of channel 1 to "7".
Set the DMX-value of channel 2 to "7"or "8". When set to "7" you can adjust the starting
address between 1 and 255. When set to "8" you can adjust the starting address between
256 and 510.
Set the DMX-value of channel 3 to the desired starting address. If you want to set the
starting address to 57, set channel 1 to "7", channel 2 to "7" and channel 3 to "57". If you
want to set the starting address to 420, set channel 1 to "7", channel 2 to "8" and channel 3
to "164" (256+164=420).
Wait for approx. 20 seconds and the unit will carry out a reset. After that, the new starting
address is set.

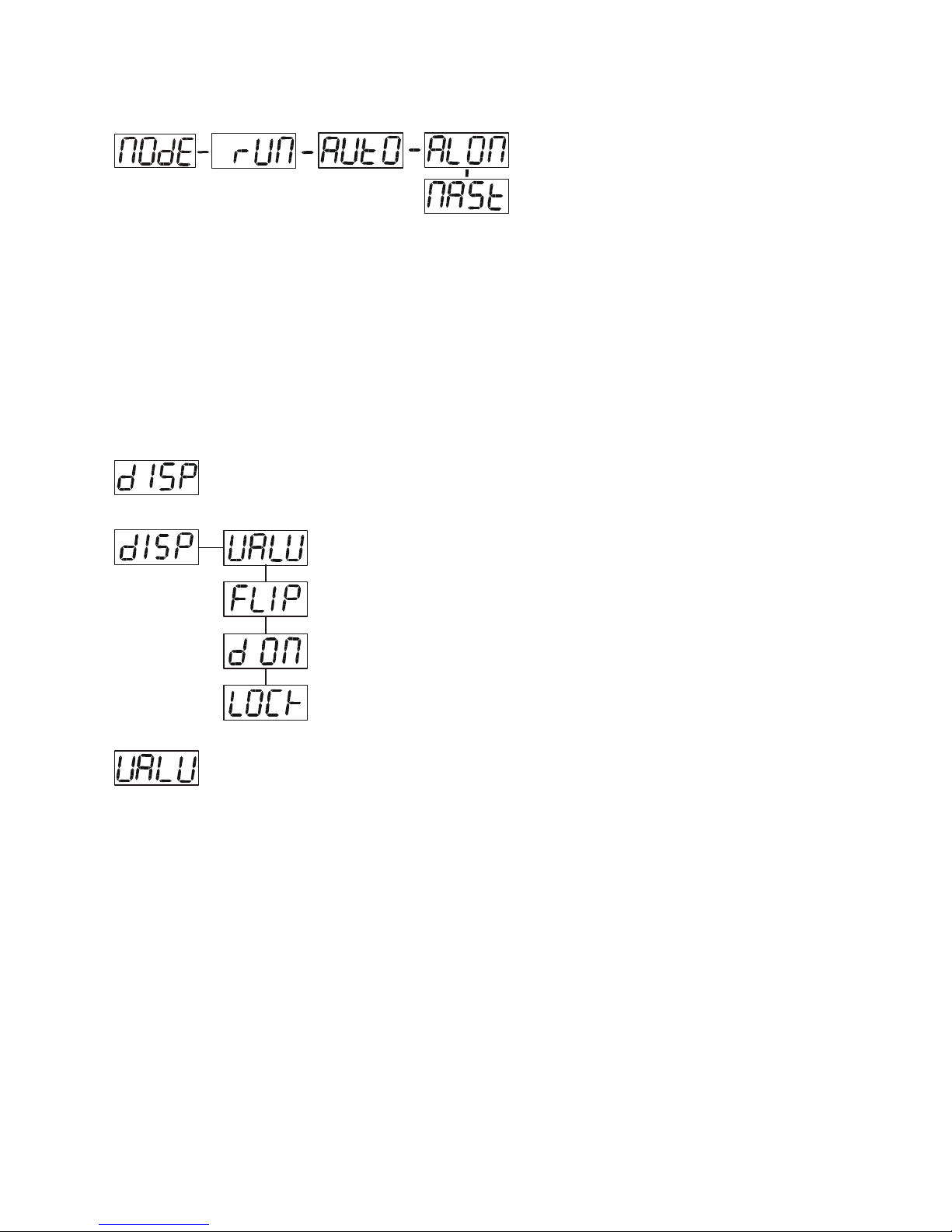

-Program Run, Master setting
With the function "RUN", you can run the internal program. You can set the number of
steps under Step. You can edit the individual scenes under Edit.

-- XM420-V1.2-C
12
1. Select “ALON” or “MAST” by pressing [UP] or [DOWN] button.
2. Press [ENTER] to confirm or Press [MENU]to return to the main menu.
——Display the DMX-value, Reverse display, Shut off LED display
-Display the DMX 512 value of each channel
With this function you can display the DMX 512 value of each channel.
1. Select "VALU" by pressing [UP] or [DOWN] button.
2. Press [ENTER] to confirm; the display shows“D-00”. In this setting, the
DMX-adjustment of every channel
willbedisplayed.
3. Press [UP] or [DOWN] button in order to select the desired channel. If you select
“D-15” the display will only
showtheDMX-value of the 15th channel.
4. Press [ENTER] to confirm or Press [MENU]to return to the main menu.

-- XM420-V1.2-C
13
5. The display shows "D-XX”, ”X” stands for the DMX-value of the selected channel.
-Reverse display
With this function you can rotate the display by 180°.
1. Select "FLIP"by pressing [UP] or [DOWN] button.
2. Press[ENTER], the display shows “ON” or “OFF”.
3. Press [UP] to select “ON” if you wish to enable this function or press [DOWN]
button to “OFF” if you don’t; the display will rotate by 180°.
4. Press [ENTER] to confirm or Press [MENU]to return to the main menu.
-Shut off LED display
With this function you can shut off the LED display after 2 minutes.
1. Select "D ON"by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “ON” or “OFF”.
3. Press [UP] to select “ON” if you wish to enable this function or press [DOWN]
button to “OFF” if you don’t.
4. Press [ENTER] to confirm or Press [MENU]to return to the main menu.
——locked keys the display
With this function you can activate the automatic keylock function. If this function is
activated, the keys will be locked automatically after exiting the edit mode for 15 seconds.
keeping press the [MENU]key for 3seconds if you want to deactivate the keylock statu.
1. Tapthe[UP] button until “LOCK” is displayed and tap the [ENTER] button.
2. Press the [UP] button to select “ON” to activate this function, or “OFF” to
deactivate this function. Press [ENTER] to confirm.
3. Press[MENU]to return to the main menu.

-- XM420-V1.2-C
14
——Main menu
1. Press [MENU]to enter the main menu (display flashing).
2. Press [UP] or [DOWN] button. to select “SET”.
——“CHAN”DMX channel MODE
Withthisfunction you can choose DMX channel Mode
1. Select “CHAN” by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows““3CH”，“4CH”，“6CH”，“12CH”，“15CH”.
3. Press [UP] or [DOWN] button to select“3CH”，“4CH”，“6CH”，“12CH”，“15CH”,
the default is “3CH”.
4. Press [ENTER] to confirm or Press [MENU]to return to the main menu.
-Automatic Run by no DMX
With this function you can automatic run the device by no DMX.
1. Select “FAIL” by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “OFF”, “HOLD” or “AUTO”.
3. Press [UP] or [DOWN] button to select “OFF”, “HOLD” or “AUTO”,the default is
“HOLD”.
4. Press [ENTER] to confirm or Press [MENU]to return to the main menu.
-Restore factory settings
With this function you can restore the factory settings of the device. All settings will be
set back to the default values (shaded). Any edited scenes will be lost.
1. Select “DFSE”by pressing [UP] or [DOWN] button.

-- XM420-V1.2-C
15
2. Press [ENTER], the display shows “ON” or “OFF”.
3. Press [UP] to select “ON” if you wish to enable this function or press [DOWN]
button to “OFF” if you don’t.
4. Press [ENTER] to confirm or Press [MENU]to return to the main menu.
——Power on to preserve the MANL settings
With this function you can activate. The fixture will return to the scene manual set
before automatically after re-power on.

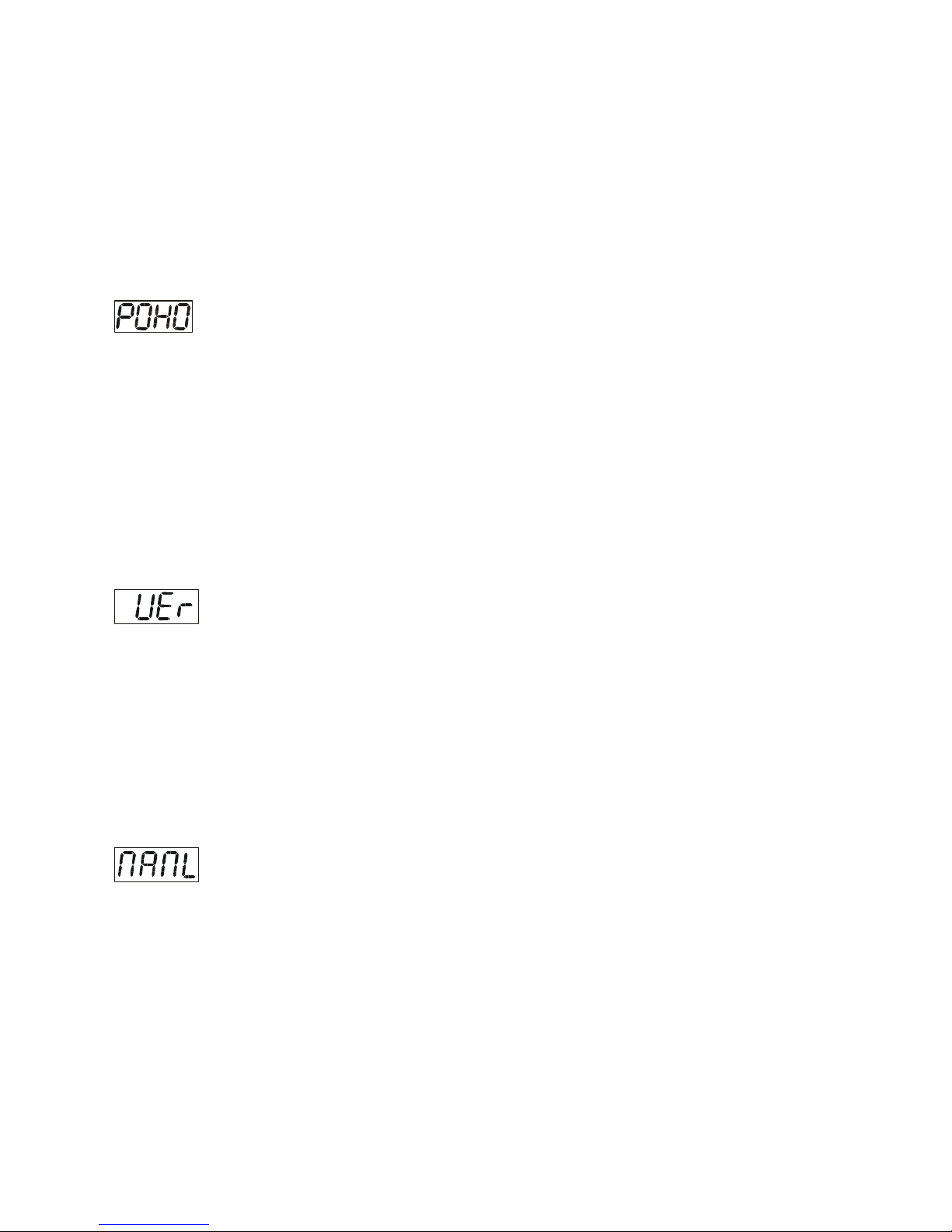

1. Tapthe[UP] button until “POHO”is displayed and tap the [ENTER] button.
2. Press the [UP] button to select “ON” to activate this function, or “OFF” to
deactivate this function. Press [ENTER] to confirm.
3. Press[MENU]to return to the main menu.
- Software version
With this function you can display the software version of the device.
1. Select “VER” by pressing [UP] or [DOWN] button.
2. Press [ENTER], The display will show “V-XX”, "XX" stands for the version number,
such as the display may also show,"V-2.0","V-9.9"etc.
3. Press [ENTER] to confirm or Press [MENU]to return to the main menu.
——Manual adjust intensity
With this function you can Manual adjust intensity
1. Select “MANL” by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows“RED”, “GREN”, “BLUE”, “PROG”,
“STRB”, “DIMM”.
3. Press [UP] or [DOWN] button to select“RED”, “GREN”, “BLUE”, “PROG”,
“STRB”, “DIMM”.

-- XM420-V1.2-C
16
4. Press [ENTER] to confirm or Press [MENU]to return to the main menu.
——Main menu
1. Press [MENU]to enter the main menu (display flashing).
2. Press [UP] or [DOWN] button to select “TIME”.
3. Press [MENU]to enter the main menu (display flashing).
4. Press [UP] or [DOWN] button to select “TIME”.
-Fixture running time
With this function you can display the running time of the device.
1. Select “LIFE”by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “XXXX”, “X” stands for the number of hours.
3. Press [ENTER] to confirm or Press [MENU]to return to the main menu.
-Time password
With this function you can display the running time of the lamp.
1. Select “CODE” by pressing [UP] button.
2. Press [ENTER], the display shows “C038”, “038” is password of clear open time.
3. Press [MENU]to return to the main menu.
-Clear fixture time

-- XM420-V1.2-C
17
With this function you can clear the running time of the device.
1. Select “CLFE”by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “ON” or “OFF”.
3. Press [UP] to select “ON” if you wish to enable this function or press [DOWN]
button to “OFF” if you don’t.
4. Press [ENTER] to confirm or Press [MENU]to return to the main menu。
——Main menu
1. Press [MENU]to enter the main menu
(display flashing).
2. Press [UP] or [DOWN] button to select
“EDIT”.
-Define the number of steps in
Run
With this function you can define the
number of steps in the Program Run.
1. Select “STEP” by pressing [UP] or
[DOWN] button.
2. Press [ENTER], the display shows
“S-XX”, “X” stands for the total amount of
steps you want to save, so you can call up to
48 scenes in “RUN”. For example if the
“XX” is 05, it means that “RUN” will run
the first 5 scenes you saved in “EDIT”.

-- XM420-V1.2-C
18
3. Press [ENTER] to confirm or Press [MENU]to return to the main menu.
-Auto Save
With this function you can automatic save the number of steps in the Program Run.

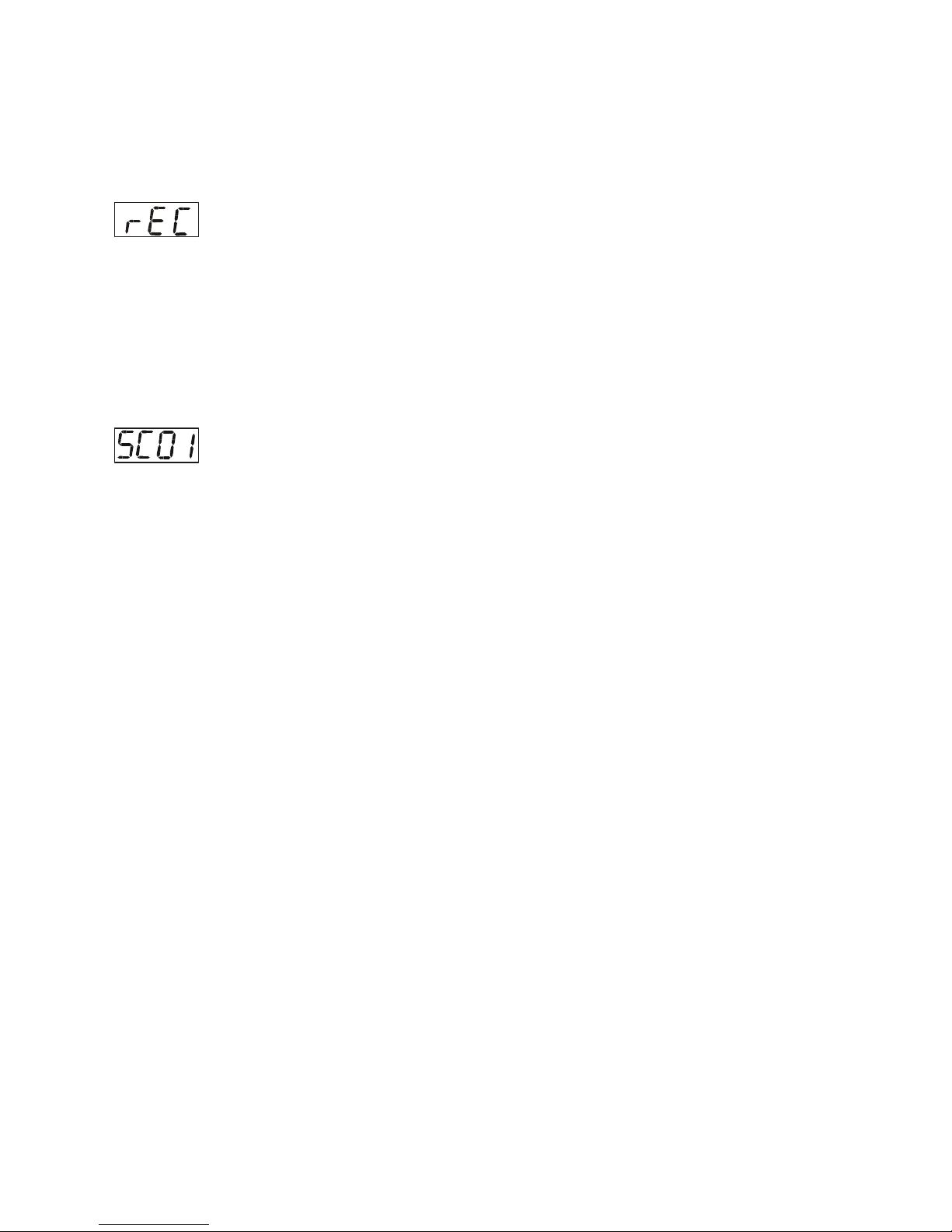

1. Select “REC”by pressing [UP] or [DOWN]button.
2. Press [ENTER], the display shows “RE.XX”,“XX” stands for the number from 1
to 400.
3. Press [ENTER] to confirm or Press [MENU]to return to the main menu.
-Editing the channels of the individual scenes
With this function you can edit the program to be called up in Run.
1. Select “SC01” by pressing [UP] or [DOWN]button.
2. Press [ENTER], the display shows “SCXX”, “X” stands for the scene no. to be
edited.
3. Select the channel no. you would like to edit by pressing [UP] or [DOWN]button.
4. Adjust the desired DMX value by pressing [UP] or [DOWN]button.
5. Press [ENTER] in order to edit other channels of this scene.
6. Repeat steps 3-5 until you finish setting all the DMX values for all channels of this
scene.
7. Once all the channels completed, the display will flash “TIME”
8. Press [ENTER] to edit the time needed, the display shows “TXXX”, “XXX” stands
for the time needed to run the current scene, value “001-999”. E.g., “002” means you need
0.4ms (002*0.2ms) to run the current scene. Adjust the desired time by pressing [UP] or
[DOWN]button.
9. Press [ENTER] to save the settings for the scene you are editing, the display will
change to the next scene automatically.
10. Repeat step 3-8 to edit and other scenes, you can edit and save a maximum of 48
scenes.

-- XM420-V1.2-C
19
11. Press [MENU] to exit. The number of steps can be defined under “STEP” and the
scenes can be called up under “RUN”.
b) Editing via the external controller
Call up the first scene in your controller now.
1. Press [ENTER], the display to be edited.
2. Select “SC01” by pressing [UP] or [DOWN]button.
3. Select the channel no. you would like to edit by pressing [UP] or [DOWN]button.
4. Press [ENTER], the display shows “C-01”.
5. Press [UP] or [DOWN]button .the display shows "FADE ".（Adjust fade speed）
6. Press [ENTER], the display to be adjust fade speed.
7. Select "CEDT"by pressing [UP] or [DOWN]button.
8. Press [ENTER], the display shows "OFF".
9. Press [UP] or [DOWN]button .the display shows "ON".
10. Press [ENTER], the display shows "SC02". You successfully downloaded the first
scene.
11. Adjust the Step-time as described above under point 12.
12. Call up the second scene in your controller now.
13. Repeat steps 5-11 until all desired scenes are downloaded.
14. Press [MENU]to exit. The number of steps can be defined under “STEP” and the
scenes can be called up under “RUN”.
INSTRUCTIONS ON USE:
DMX channel´s functions and their values :
Mode/Channel
Value
Function
3CH
4CH
6CH
12CH
15CH
1
1
1
0-255
Red ( 0-Black , 255-100% )
2
2
2
0-255
Green ( 0-Black , 255-100% )
