SteamSpa 4.5KW User manual

STEAM BATH GENERATOR USER GUIDE
4.5KW
6KW
7.5KW
9KW
10.5KW
12KW
15KW
MODELS
Steam Spa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

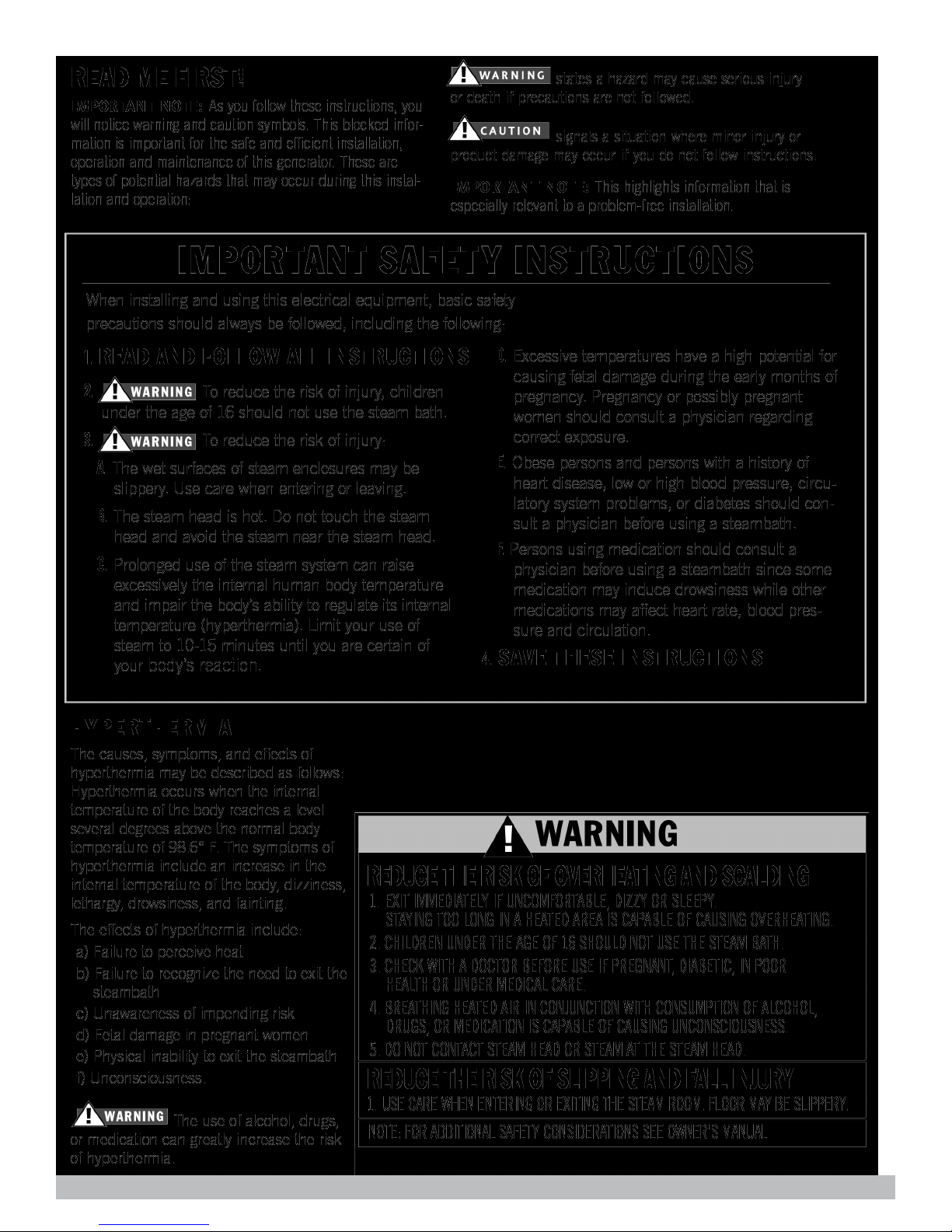

W
H
I
S
P
E
R
Q
U
I
E
T
B
U
I
L
T
-
I
N
A
U
T
O
D
R
A
I
N
C
O
N
T
I
N
U
O
U
S
S
T
E
A
M
Q
U
I
C
K
S
T
A
R
T

Steam Spa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]
Page 3
INSTALLATION & USER GUIDE
TABLE OF CONTENTS
PROLOGUE....................................................................................................................... 3
USER INSTRUCTIONS ......................................................................................................... 3
CHOOSING THE RIGHT LOCATION .......................................................................................... 3
INSTALLATION DRAWING OF STEAM GENERATOR ..................................................................... 4

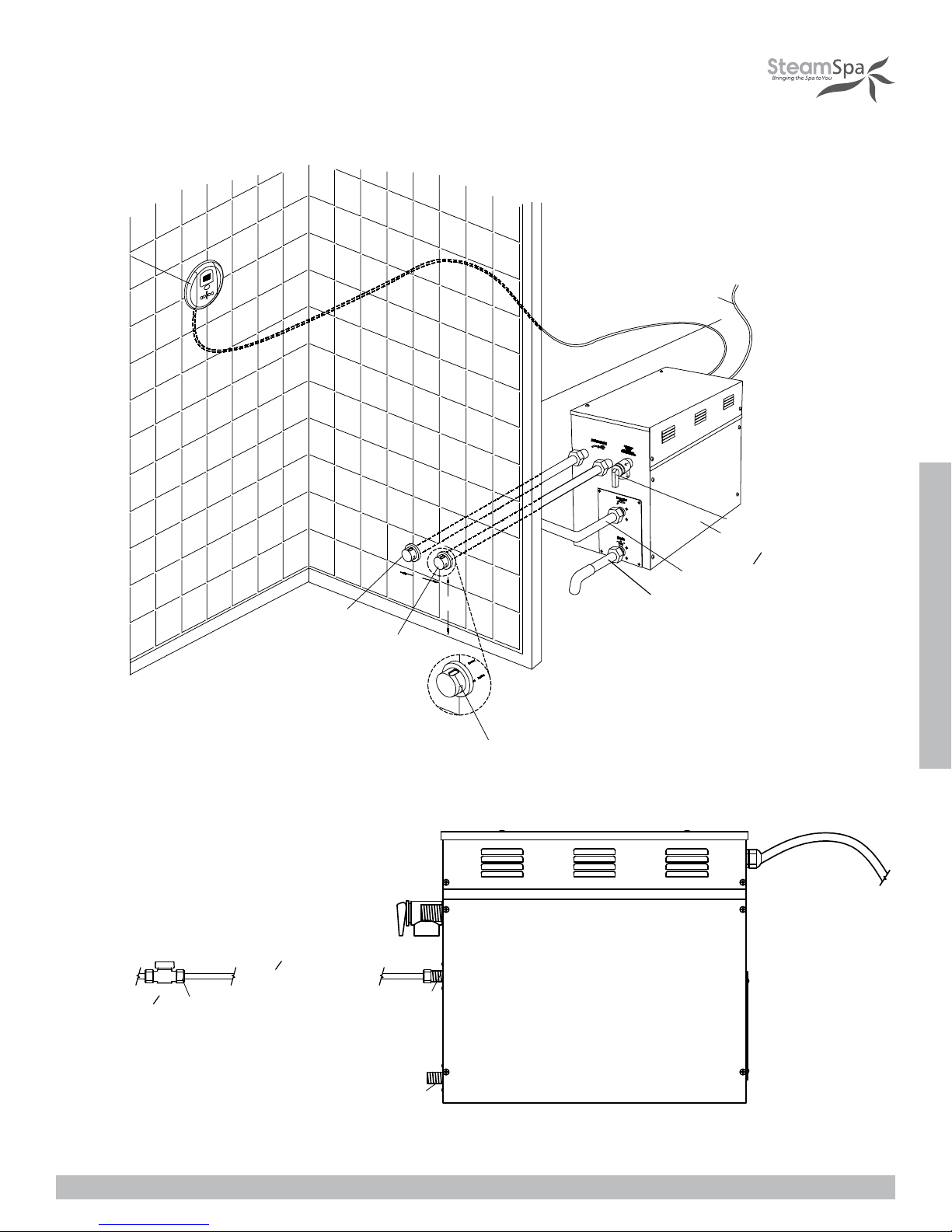

PLUMBING INSTALLATION ................................................................................................... 6
STEAM GENERATOR SPECIFICATIONS..................................................................................... 8
ELECTRICAL REQUIREMENTS ............................................................................................... 9

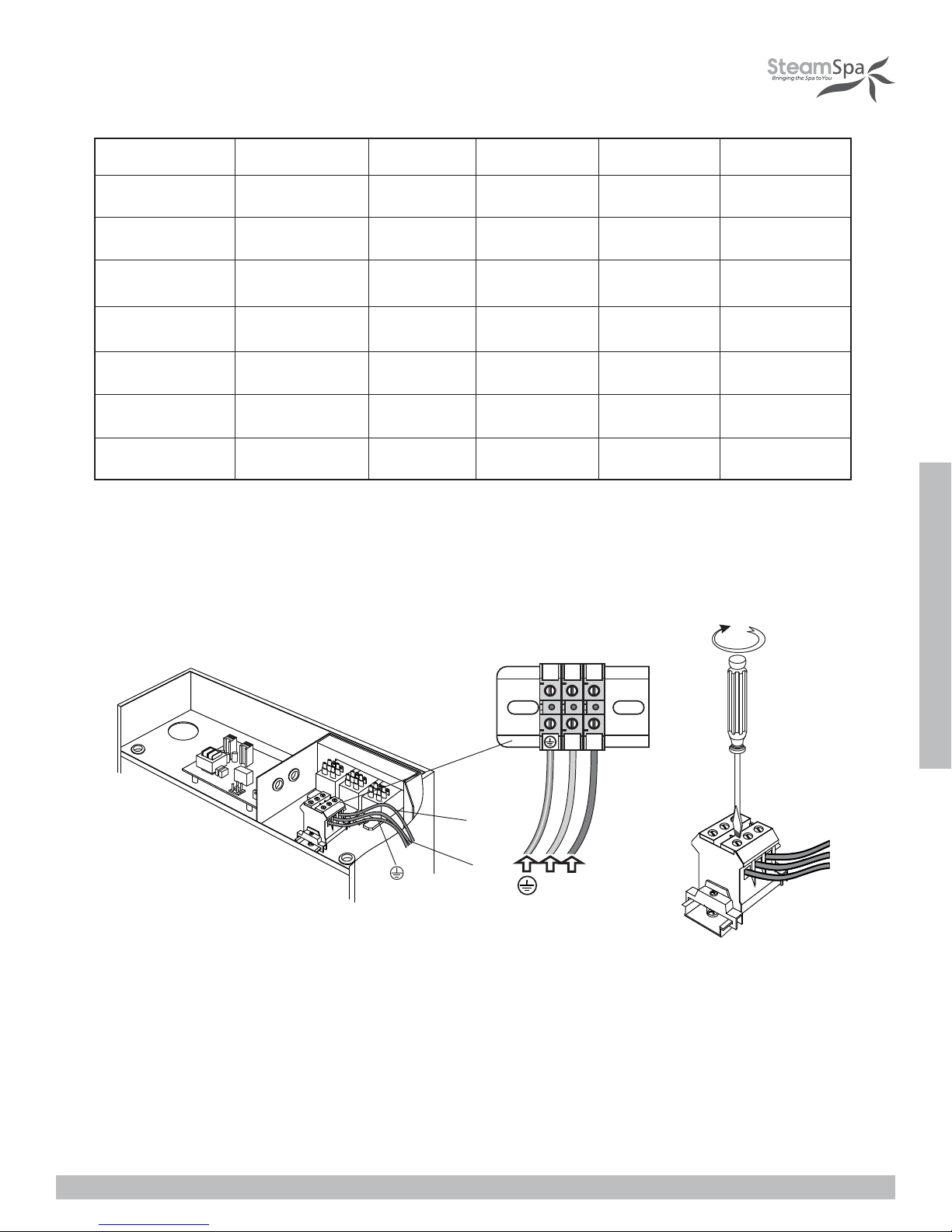

ASSEMBLY GRAPH FOR POWER WIRE .................................................................................. 10
INSTALLATION OF THE TOP LIGHT........................................................................................ 12

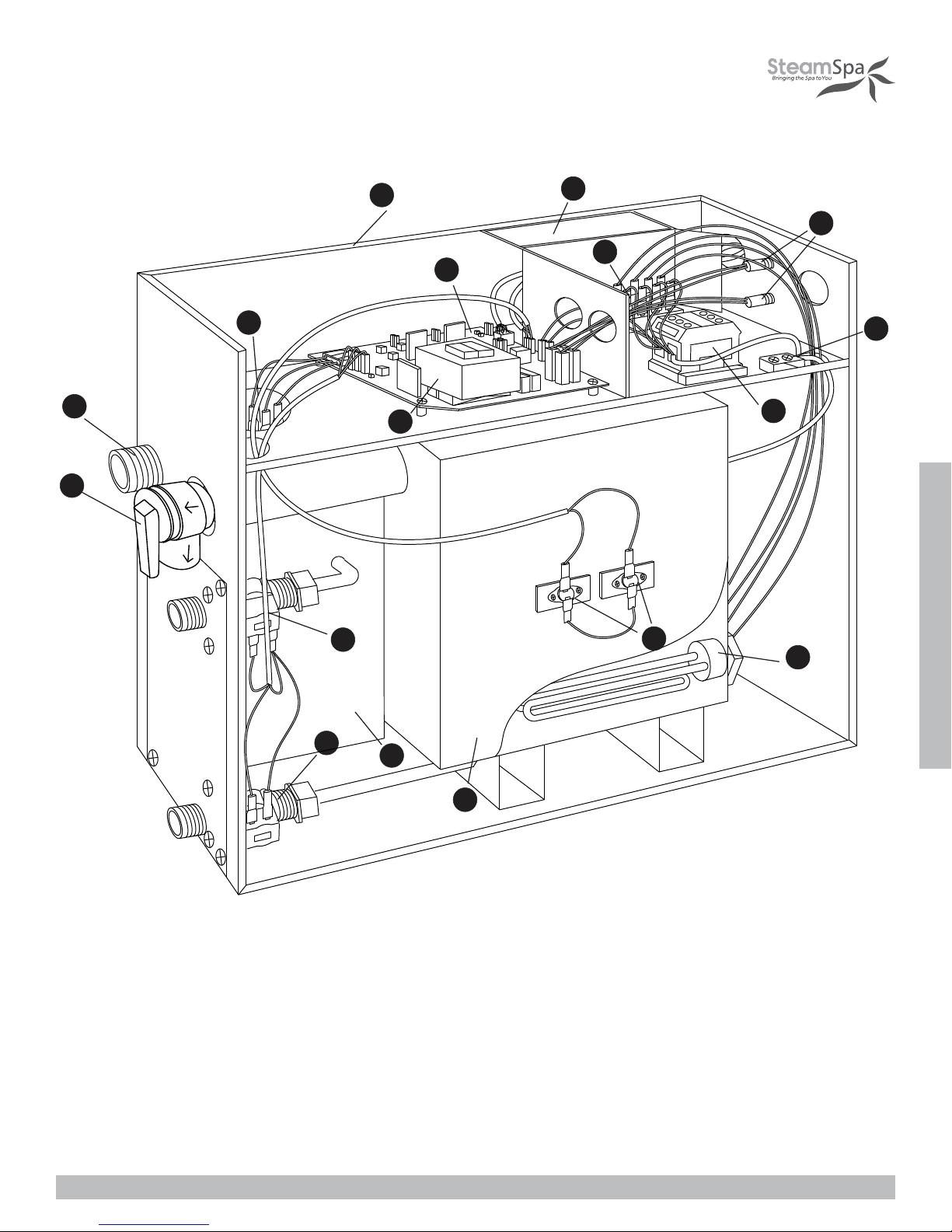

STEAM GENERATOR DISSECTION DIAGRAM........................................................................... 13
CARE & USE FOR THE CONTROL PANEL ................................................................................ 14
CONTROLLER BOX CONTENT .............................................................................................. 14

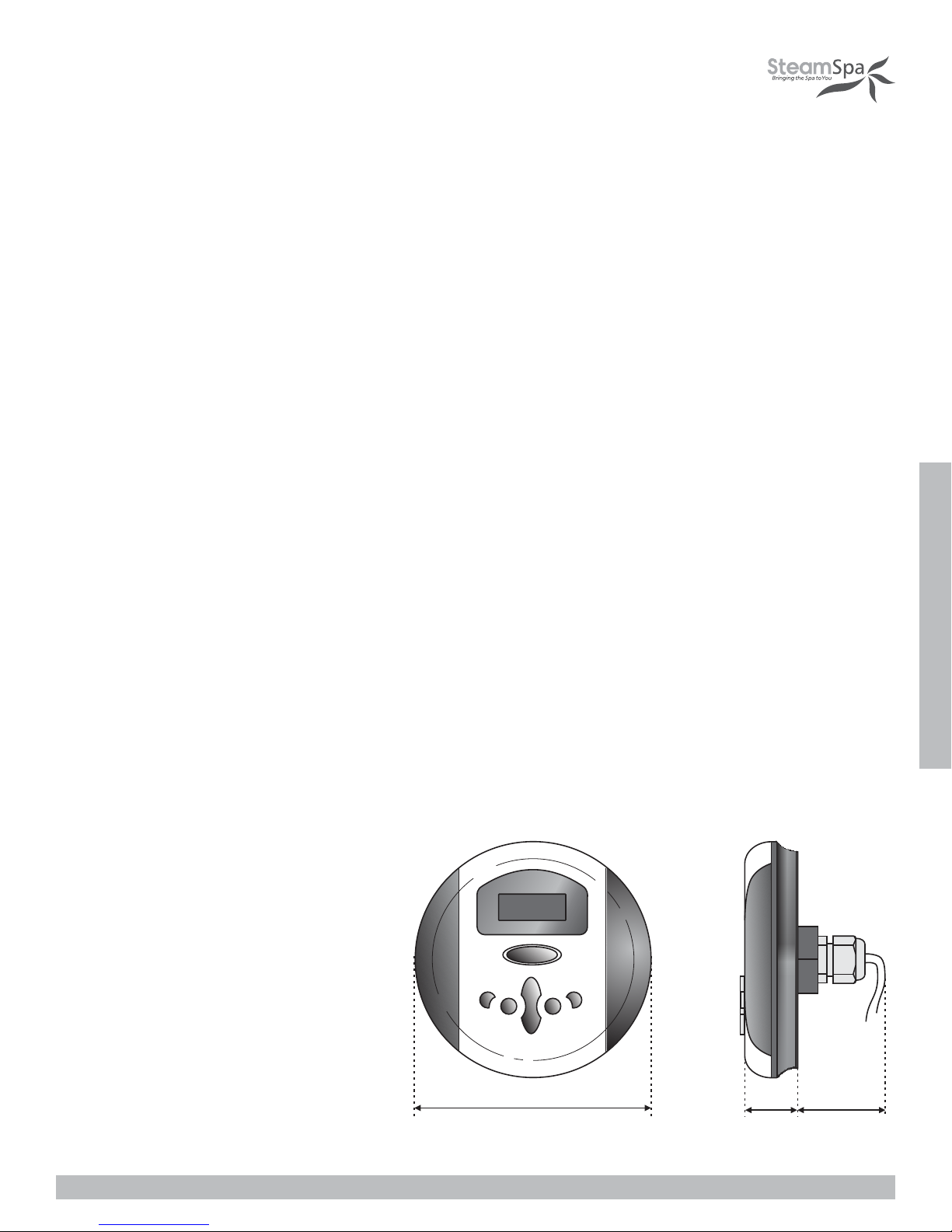

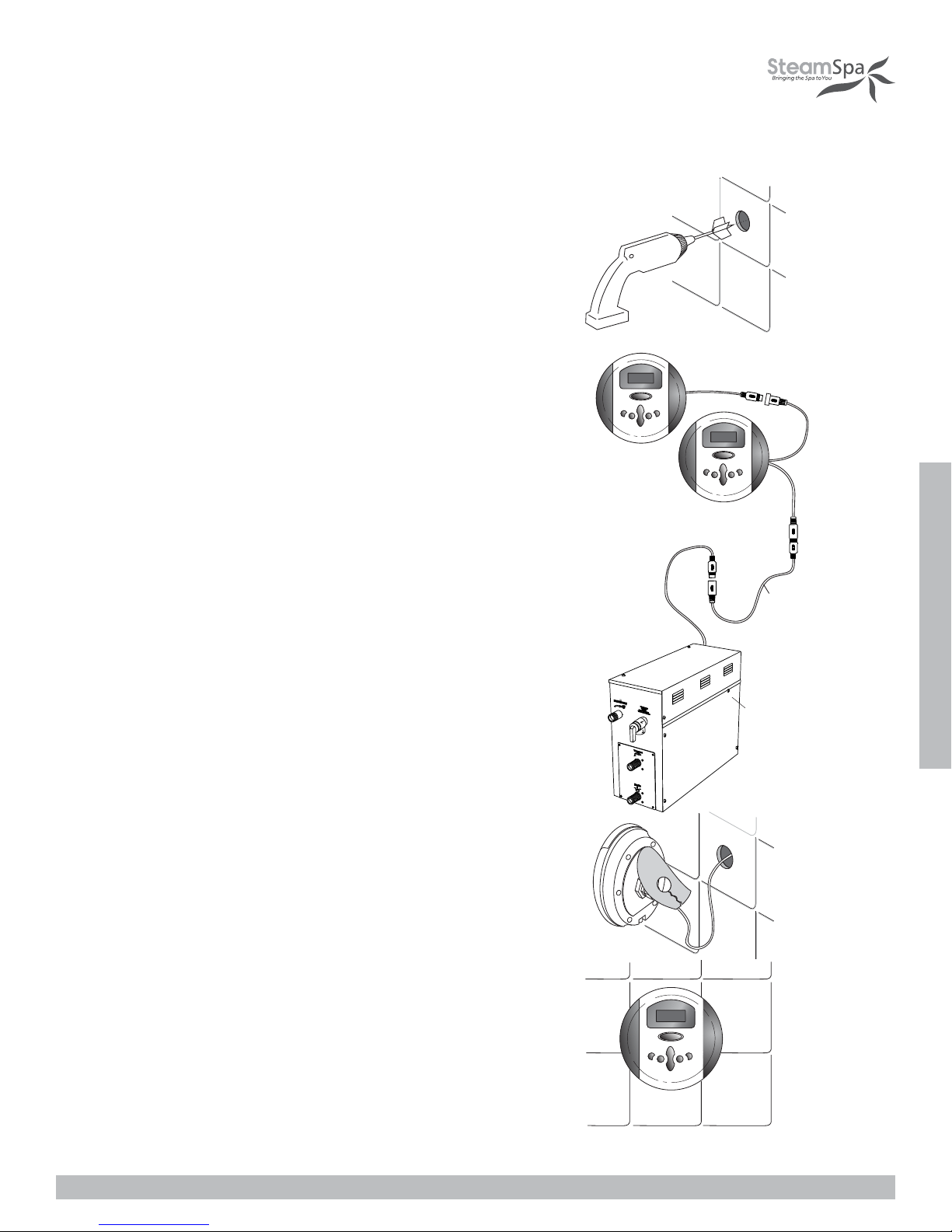

CONTROL PANEL INSTALLATION INSTRUCTIONS ..................................................................... 15
TESTING THE MACHINE ..................................................................................................... 16

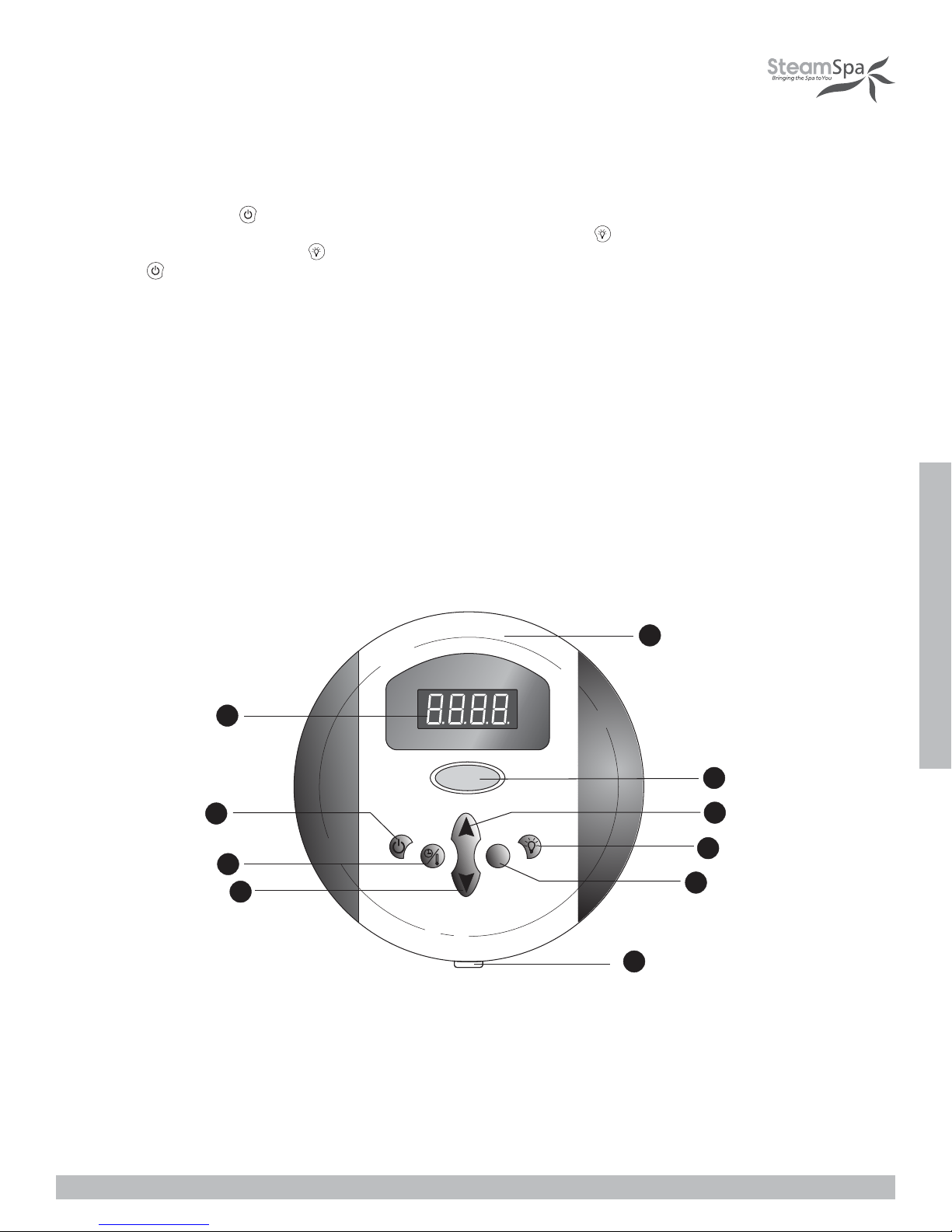

CONTROL PANEL DIAGRAM................................................................................................ 16

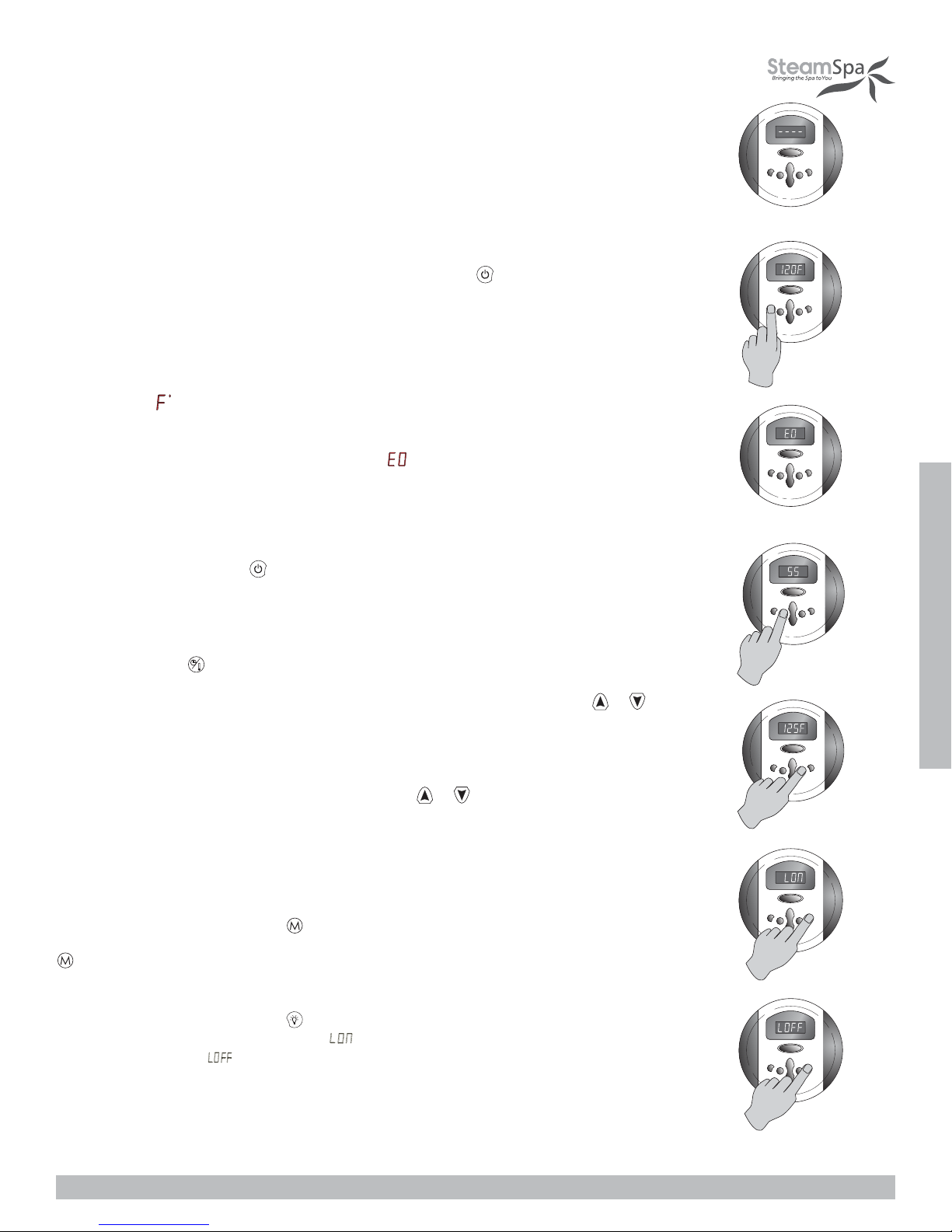

CONTROL PANEL OPERATION ............................................................................................. 17
STEAM GENERATOR MAINTENANCE ..................................................................................... 18
TECHNICAL PARAMETERS.................................................................................................. 20

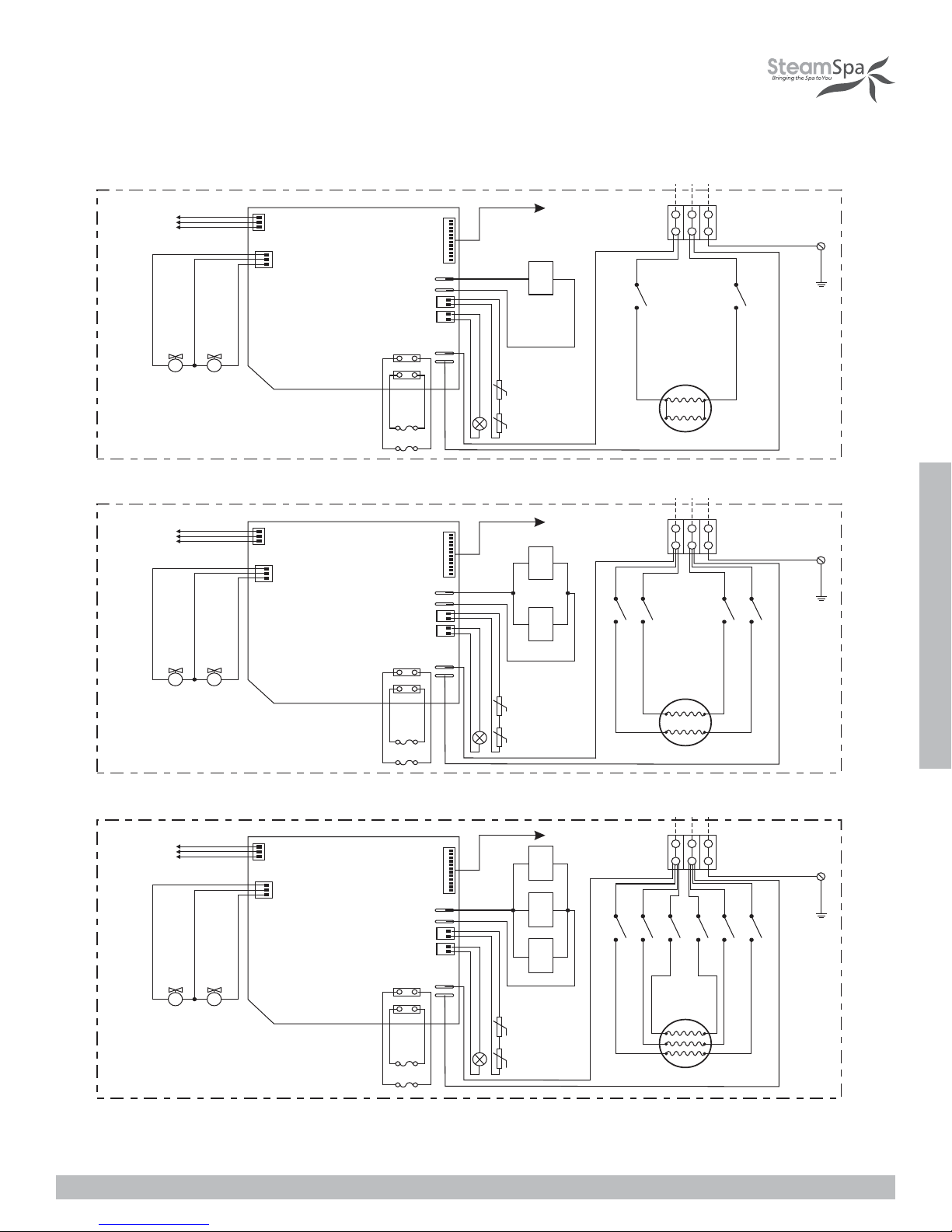

WIRING DIAGRAMS.......................................................................................................... 21

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]
Page 4
INSTALLATION & USER GUIDE
PROLOGUE
Thank You for choosing SteamSpa for health, beauty and relaxation. Now you can enjoy your own private sanctuary in the comfort
of your own home. Let your stress melt away as you relax in your state of the art Steam Room.
For Centuries people have recognized the health benefits of saunas. Leave your stress behind and enter a world of total relaxation,
ridding you of pain, toxins, and sore muscles as well as increasing your blood circulation etc., leaving your skin glowing. Besides
these physical effects, a SteamSpa Session will leave you totally relaxed by providing you a peaceful and relaxing environment
away from all.
Our advanced technology, engineering, and product development provides Steam Generators that enhance the lifestyles of people
throughout the world. SteamSpa is continuously refining, updating and developing their products assuring the optimum quality
and performance of their products. Working with the industries top engineers we have developed the most efficient, dependable
and highest quality products.
USER INSTRUCTIONS
1. Check for visible damages upon delivery of Generator. Any damages to packaging should be reported immediately to shipping
company delivery representative and SteamSpa’s Customer Service Dept.
2. Check model and accessories are correct, including voltage input. Any discrepancies are to be reported to SteamSpa’s
Customer Service Dept. within 48 hours of delivery.
3. Read installation instructions in detail for a secure and effective installation of SteamSpa generators.
4. SteamSpa recommends the use of a licensed plumber and electrician for proper installation of SteamSpa generators.
5. SteamSpa shall not be responsible for product damage or malfunction caused by self-installation or installation procedures
which do not comply with user manual.
6. SteamSpa generators are for indoor use only.
CHOOSING THE RIGHT LOCATION
1. The generator should be less than 20ft from the steam room for best performance,the 3/4” pipe which links the controller and
the steam generator should be 20ft.
2. The steam generator should not be installed in the steam room
3. Do not install outdoor or in any places that will influence the performance of the machine by the environment.
4. Do not install in a frigid location or any places where the water will freeze.
5. Do not install near flammable chemicals.
6. Install in a dry place where the ventilation is good.
7. Install an exhaust fan outside of the steam room for the excess steam to be expelled from the shower room.
8. The steam generator has a hanging groove for wall installations..
9. Both sides and the top of the steam generator need to reserve at least 12 inches space.
10. The area where the machine is installed must be easily cleaned up and convenient for the disassembly of the machine.
11. The installation area must be convenient for the steam generator draining system.
12. The steam tube, safety valve, drain valve, water tube and steam outlet remain very heated after the steam generator has
stopped working for some time.
13. The controller panel should be installed away from the steam head to avoid false readings,please read the instructions for the
controller’s installation and operation.

SteamSpa PHONE: [phone] FAX: [phone] http://steamspa.com [email protected]
Page 5
INSTALLATION & USER GUIDE

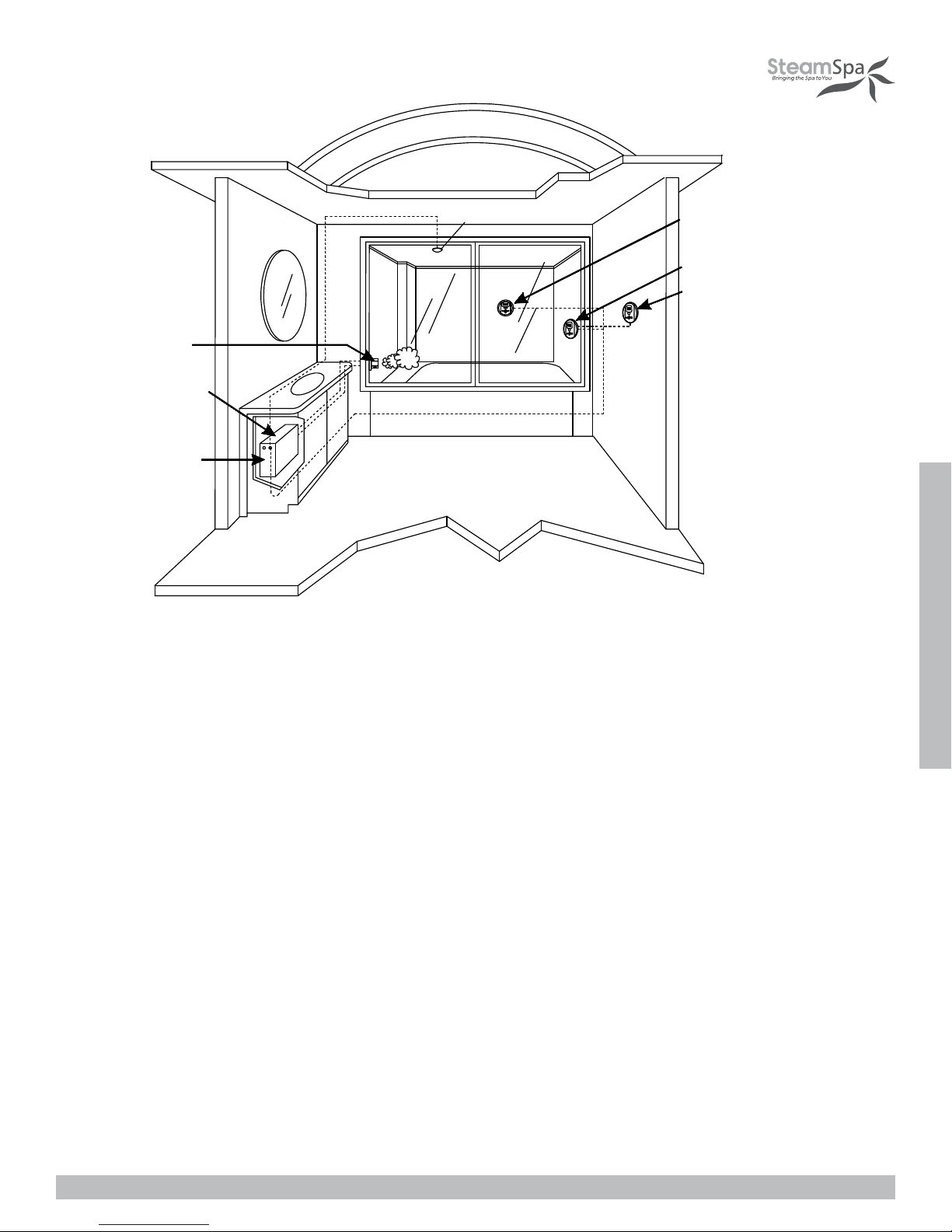

INSTALLATION DRAWING OF STEAM GENERATOR
ATTENTION! The drawing is only for explanation purposes. As for practical design of steam room, please consult with a qualified
designer, architect or builder.
Dual Steam
Outlet for
10.5kw 12kw
15kw
Single Steam
Outlet
Control Panel
AROMA TRAY
RESERVOIR
Supply
Pressure Relief Valve
Steam Generator
Water Inlet 38"stainless
steel braided flex hose
Water Drain Valve
12"
12"
SAFETY
VALVE
WATER
INLET
PIPE
WATER
DRAINAGE
38"STAINLESS
STEEL BRAIDED FLEX HOSE
12"CONNECTION
WATERLINE
Shut off
Valve
