Steel Core 34 OZ User manual
*Actual product may vary slightly
Please carefully read and save these instructions before attempting to assemble, maintain, install, or operate this product.
Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property
damage and/or personal injury. Please keep instructions for future reference.
For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping.
For Customer Service, Call 1-800-348-5004
34 OZ BRAKE FLUID BLEEDER
39210
SPECIFICATIONS
IMPORTANT SAFETY INFORMATION
SAVE THESE INSTRUCTIONS
WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow instructions listed below may result in serious injury.
1. Keep bystanders, children, and visitors away while operating the Vacuum Pump.
Distractions can cause you to lose control. Protect others in the work area from injury.
2. Stay alert. Watch what you are doing, and use common sense when operating
the Vacuum Pump. Do not use the tool while tired or under the influence of drugs,
alcohol, or medication. A moment of inattention while operating the tool may result in
serious personal injury.
3. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep
your hair, clothing, and jewelry away from moving parts. Loose clothes, jewelry,
or long hair can be caught in moving parts.
4. Do not overreach. Keep proper footing and balance at all times. Proper footing
and balance enables better control of the power tool in unexpected situations.
5. Use safety equipment. Wear ANSI-approved safety glasses underneath a full face
safety shield. Nonskid safety shoes, hard hat, or hearing protection must be used
for appropriate conditions.
6. Do not force the tool. Use the correct tool for your application. The correct tool
will do the job better and safer at the rate for which it is designed.
7. Store idle tools out of reach of children and other untrained persons. Tools are
dangerous in the hands of untrained users.
8. Maintain tools with care. Keep tools dry and clean. Properly maintained tools are
less likely to bind and are easier to control. Do not use a damaged tool. Tag damaged
tools “Do not use” until repaired.
9. Check for misalignment or binding of moving parts, breakage of parts, and any
other condition that may affect the tool’s operation. If damaged, have the tool
serviced before using. Many accidents are caused by poorly maintained tools.
10. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous when
used on another tool.
Operating PSI 90-120 PSI
Air Inlet Size 1/4″-18 NPT
Fill Bottle Capacity 24 oz.
Old Fluid Bottle Capacity 34 oz.
Adapter
Sizes
1-1/4″ – 1-19/32″
1-3/32″ – 1-15/32″
31/32″ – 1-1/4″
25/32″ – 1-7/32″
(32–41mm)
(28–37mm)
(24–32mm)
(21–30mm)
11. Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
12. When servicing a tool, use only identical replacement parts. Follow instructions
in the Maintenance and Servicing section of this manual. Use of unauthorized
parts or failure to follow maintenance instructions may create a risk of injury.
13. Maintain a safe working environment. Keep the work area well lit. Make sure there
is adequate surrounding workspace. Keep the work area free of obstructions, grease,
oil, trash, and other debris. Do not use this product in a damp or wet location.
14. Maintain labels and nameplates on this product. These carry important information.
If unreadable or missing, contact FOT for a replacement.
15. Keep the handle dry, clean, and free from brake fluid, oil, and grease.
16. Before use read and understand all warnings, safety precautions, and instructions
as outlined in the vehicle manufacturer’s service manual. Every vehicle has specific
measurement values for vacuum related readings. It is beyond the scope of this manual
to properly describe the correct procedure and test data for each vehicle.
17. Carbon monoxide is produced while a vehicle’s engine is operating and is deadly
in a closed environment. Early signs of carbon monoxide poisoning resemble the flu,
with headaches, dizziness, or nausea. If you have these signs, the work area may not
be vented properly. Get fresh air immediately.
18. Prior to using the Vacuum Pump, make sure to place the vehicle’s transmission
in “PARK” (if automatic) or “NEUTRAL” (if manual). Then, block the tires with
chocks.
19. Be alert for hot engine parts to avoid accidental burns.
20. Avoid accidental fire and/or explosion. Do not smoke near engine fuel and
battery components.
21. Use the Brake Bleeder only with brake fluid. Do not attempt to use the tool to
siphon any other liquids. Damage to the internal chamber and seal, or future brake
fluid contamination may result.
22. Follow guidelines for proper brake fluid disposal. Used brake fluid should be
removed from the vehicle and properly recycled. Many states require recycling.
Contact your local solid/liquid waste authority for information on recycling. Do not
reuse old brake fluid.
23. Brake fluid may damage paint. Clean up spilled fluid quickly.
24. The brass components of this product contain lead, a chemical known to the State
of California to cause cancer and birth defects (or other reproductive harm).
(California Health & Safety Code § 25249, et seq.)
25. The warnings, precautions, and instructions discussed in this manual cannot cover
all possible conditions and situations that may occur. The operator must understand
that common sense and caution are factors which cannot be built into this product,
but must be supplied by the operator.
1. Turn the vehicle’s engine off and
chock the vehicle’s wheels to
prevent the vehicle from moving.
2. Fill the Fill Bottle (1) with clean,
new, brake fluid. Use only the kind
of brake fluid recommended by the
vehicle manufacturer. Then, screw the
Fill Nozzle (2) onto the Fill Bottle.
3. Close the Lever on the Fill Nozzle.
See Figure A, below.
4. Remove the cap from the vehicle’s
master cylinder. Select the
Adapter (3) which best fits the
brake fluid fill hole in the master
cylinder, and attach the Adapter to
the Fill Nozzle (2). See Figure B.
5. Turn the Fill Bottle (1) upside down and
insert its tube into the brake fluid fill hole
of the master cylinder, making sure the
Adapter (3) fits the fluid fill hole securely.
6. Open the Lever. See Figure B.
7. Screw the Gun (6) firmly onto the
Old Fluid Bottle (4). Then, connect
the Bleeding Hose (7) to the
Old Fluid Bottle. See Figure C.
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the
beginning of this document including all text under subheadings therein
before set up or use of this product. Fill
Nozzle (2)
Lever
(closed)
Fill
Bottle (1)
Adapter (3)
Master Cylinder Reservoir
Lever
(opened)

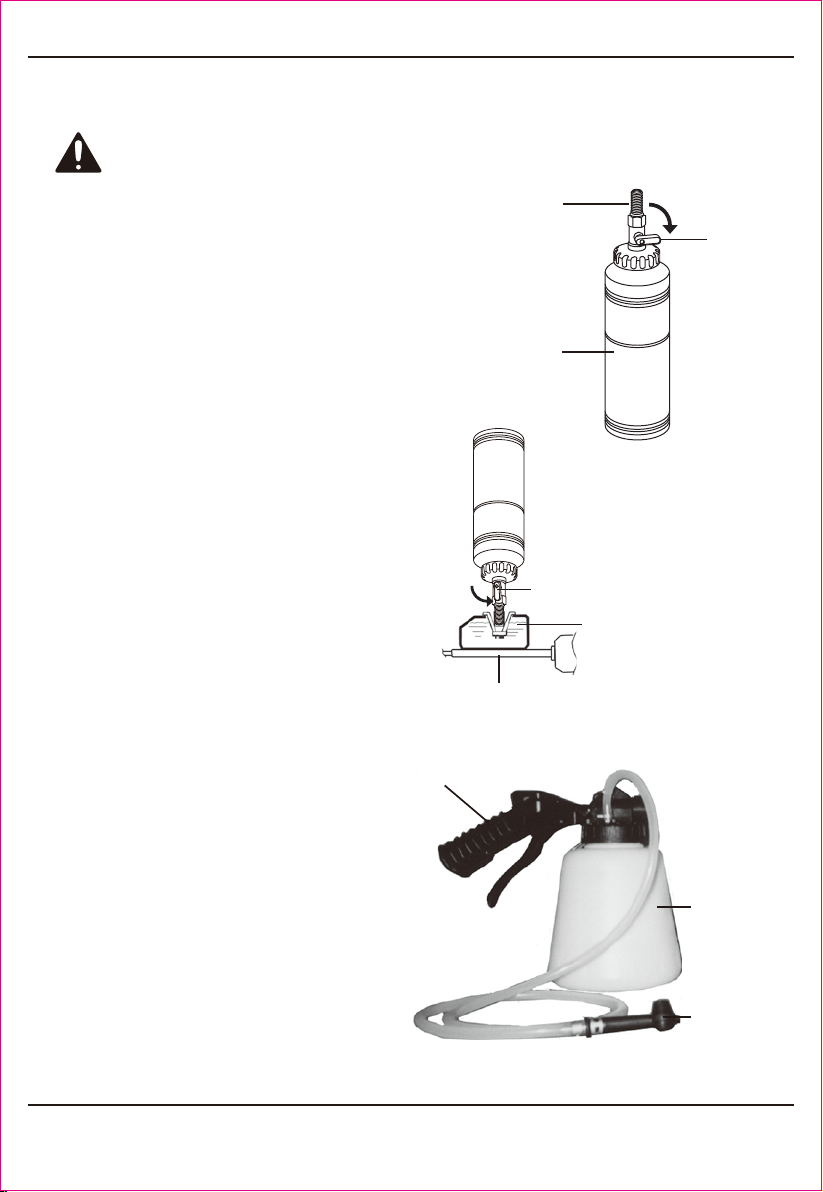

Figure B: Master Cylinder Reservoir
Gun (6)
Old Fluid
Bottle (4)
Bleeding
Hose (7)
Figure C: Old Fluid Bottle
Figure A:
Fill Bottle and Fill Nozzle
8. Determine the proper brake bleeding
sequence from the vehicle service
manual. (i.e., right rear caliper,
left rear caliper, right front caliper,
left front caliper)
9. Clean the vehicle brake caliper with
brake parts cleaner (not included).
10. Attach the Bleeding Hose (7) to the
Bleeder Screw on the vehicle caliper.
Then, connect the air compressor’s air
hose to the Gun (6). See Figure D.
11. Turn on the air compressor, and set its regulator at 90 to 120 PSI. Do not exceed
120 PSI.
12. Squeeze the Trigger to create a vacuum in its Old Fluid Bottle (4).
13. Using a bleeder screw wrench (not included), open the bleeder screw until the brake
fluid starts flowing into the Oil Fluid Bottle. See Figure D.
14. Squeeze the Trigger until the old brake fluid flows freely into the Old Fluid Bottle (4).
15. If the Fill Bottle fluid level gets low:
a. Close the Lever and refill the Fill Bottle with clean, new brake fluid.
b. Reattach the Fill Bottle to the master cylinder and open its Lever.
c. Then, resume bleeding the brakes.
16. If the Old Fluid Bottle is full, or when done bleeding the brakes:
a. Close then disconnect the air supply from the Gun (6).
b. Empty the Old Fluid Bottle (4) of old brake fluid.
c. Reassemble the Gun and Old Fluid Bottle, and resume bleeding the brakes.
17. When clean, new brake fluid with no bubbles begins to flow into the Old Fluid Bottle.
Release the Trigger and retighten the caliper’s bleeder screw. See Figure D.
18. Disconnect the Bleeding Hose (7) from the caliper’s bleeder screw.
19. Proceed to the vehicle’s next wheel, and perform the same Steps as above.
20. When finished, close the Lever and remove the Fill Bottle (1).
21. Make sure the master cylinder is full of brake fluid up to, but not over, its full line.
(If the master cylinder is too full, correct this before proceeding.) Then, replace the
cap on the master cylinder.
22. WARNING! Before driving the vehicle:
a. Depress the brake pedal repeatedly until the brake pedal feels firm.
b. Check the brake calipers for leaks.
c. Then, test the brakes thoroughly at slow speed before operating the vehicle
under normal conditions.
23. Do not store fluid in the Fill Bottle or the Old Fluid Bottle. Dispose of excess fluid
properly, according to all federal, state, and local guidelines. Store the Brake Fluid
Bleeder in a clean, dry location out of reach of children.
Old Fluid
Bottle (4)
Gun (6)
Trigger
Air Hose
(not included)
Bleeding Hose (7)
Brake
Caliper
Bleeder
Screw
Figure D: Caliper Connection
MAINTENANCE AND SERVICING
PLEASE READ THE FOLLOWING CAREFULLY
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn off the tool, detach the air supply, and release the trigger before
performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise, vibration, or leaking
air occurs, have the problem corrected before further use.
1. Before each use, inspect the general condition of the Brake Fluid Bleeder.
Check for misalignment or binding of moving parts, cracked or broken parts,
damaged hoses, loose connections, and any other condition
that may affect its safe operation.
2. CLEAN WITH A CLEAN, DRY CLOTH ONLY. Do not use any cleaners,
solvents, water, or other liquids.
3. Do not store fluid in the Fill Bottle or the Old Fluid Bottle. Dispose of excess
fluid properly, according to all federal, state, and local guidelines. Store the
Brake Fluid Bleeder in a clean, dry location out of reach of children.
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST
AND ASSEMBLY DIAGRAM IN THIS DOCUMENT AS A REFERENCE TOOL ONLY.
NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION
OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO
MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO
REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT
BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF
HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT
PARTS THERETO.
Procedures not specifically explained in this manual
must be performed only by a qualified technician.
PARTS LIST AND ASSEMBLY DIAGRAM
Part Description Qty
1 Fill Bottle 1
2 Fill Nozzle 1
3 Adapter Set 1 Set of 4
4 Old Fluid Bottle 1
Part Description Qty
5 1
6 Gun 1
7 Bleeding Hose 1
1
5
2
6
37
4
Limited Manufacturer Warranty
FOT makes every effort to ensure that this product meets high quality and durability
standards. FOT warrants to the original retail consumer a 1-year limited warranty
from the date the product was purchased at retail and each product is free from
defects in materials. Warranty does not apply to defects due directly or indirectly
to misuse, abuse, negligence or accidents, repairs or alterations, or a lack of
maintenance. FOT shall in no event be liable for death, injuries to persons or
property, or for incidental, special or consequential damages arising from the
use of our products. To receive service under warranty, the original manufacturer
part must be returned for examination by an authorized service center. Shipping
and handling charges may apply. If a defect is found, FOT will either repair or
replace the product at its discretion.
DO NOT RETURN TO STORE
For Customer Service:
This manual suits for next models
1
Table of contents
Other Steel Core Paint Sprayer manuals
