Operator’s Manual
Original Instructions (EN)
Register your product at www.Toro.com
Form No. 3329-707
Multi-Pro5600 Turf Sprayer
Model No. 41568—Serial No. 230000001 and Up

2
2003 by The Toro Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
Contact us at www.Toro.com
All Rights Reserved
Printed in the USA
CALIFORNIA
Proposition 65 Warning
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
Warning
Important The engine in this product is not equipped
with a spark arrester muffler. It is a violation of California
Public Resource Code Section 4442 to use or operate this
engine on any forest-covered, brush-covered, or
grass-covered land as defined in CPRC 4126. Other states
or federal areas may have similar laws.
This spark ignition system complies with Canadian
ICES-002.
Ce système d’allumage par étincelle de véhicule est
conforme à la norme NMB-002 du Canada.
Contents
Page
Introduction 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safe Operating Practices 3. . . . . . . . . . . . . . . . . . . .
Chemical Safety 4. . . . . . . . . . . . . . . . . . . . . . . . . .
Before Operating 4. . . . . . . . . . . . . . . . . . . . . . . . .
While Operating 5. . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety and Instruction Decals 7. . . . . . . . . . . . . . . .
Specifications 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Optional Equipment 10. . . . . . . . . . . . . . . . . . . . . . .
Setup 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loose Parts 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Anti-siphon Fill Receptacle 12. . . . . .
Before Operating 12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the Engine Oil 12. . . . . . . . . . . . . . . . . . .
Checking the Tire Pressure 13. . . . . . . . . . . . . . . . . .
Adding Fuel 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the Coolant Level 13. . . . . . . . . . . . . . . . .
Checking the Hydraulic Fluid 14. . . . . . . . . . . . . . .
Checking the Brakes 14. . . . . . . . . . . . . . . . . . . . . . .
Filling the Fresh Water Tank 14. . . . . . . . . . . . . . . .
Operation 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Think Safety First 15. . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle Controls 15. . . . . . . . . . . . . . . . . . . . . . . . . .
Pre-Starting Checks 17. . . . . . . . . . . . . . . . . . . . . . .
Starting the Engine 17. . . . . . . . . . . . . . . . . . . . . . . .
Driving the Sprayer 17. . . . . . . . . . . . . . . . . . . . . . .
Page
Introduction 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safe Operating Practices 3. . . . . . . . . . . . . . . . . . . .
Chemical Safety 4. . . . . . . . . . . . . . . . . . . . . . . . . .
Before Operating 4. . . . . . . . . . . . . . . . . . . . . . . . .
While Operating 5. . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety and Instruction Decals 7. . . . . . . . . . . . . . . .
Specifications 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Optional Equipment 10. . . . . . . . . . . . . . . . . . . . . . .
Setup 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loose Parts 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Anti-siphon Fill Receptacle 12. . . . . .
Before Operating 12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the Engine Oil 12. . . . . . . . . . . . . . . . . . .
Checking the Tire Pressure 13. . . . . . . . . . . . . . . . . .
Adding Fuel 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the Coolant Level 13. . . . . . . . . . . . . . . . .
Checking the Hydraulic Fluid 14. . . . . . . . . . . . . . .
Checking the Brakes 14. . . . . . . . . . . . . . . . . . . . . . .
Filling the Fresh Water Tank 14. . . . . . . . . . . . . . . .
Operation 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Think Safety First 15. . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle Controls 15. . . . . . . . . . . . . . . . . . . . . . . . . .
Pre-Starting Checks 17. . . . . . . . . . . . . . . . . . . . . . .
Starting the Engine 17. . . . . . . . . . . . . . . . . . . . . . . .
Driving the Sprayer 17. . . . . . . . . . . . . . . . . . . . . . .

3
Introduction
Read this manual carefully to learn how to operate and
maintain your product properly. The information in this
manual can help you and others avoid injury and product
damage. Although Toro designs and produces safe
products, you are responsible for operating the product
properly and safely.
You may contact Toro directly on the internet at
www.Toro.com for product and accessory information, help
finding a dealer, or to register your product.
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model and
serial numbers of your product ready. Figure 1 illustrates
the location of the model and serial numbers on the
product.
1
Figure 1
1. Location of the model and serial numbers
Write the product model and serial numbers in the space
below:
Model No.
Serial No.
This manual identifies potential hazards and has special
safety messages that help you and others avoid personal
injury and even death. Danger, Warning, and Caution are
signal words used to identify the level of hazard. However,
regardless of the hazard, be extremely careful.
Danger signals an extreme hazard that will cause serious
injury or death if you do not follow the recommended
precautions.
Warning signals a hazard that may cause serious injury or
death if you do not follow the recommended precautions.
Caution signals a hazard that may cause minor or moderate
injury if you do not follow the recommended precautions.
This manual uses two other words to highlight information.
Important calls attention to special mechanical
information and Note: emphasizes general information
worthy of special attention.
Safety
Improper use or maintenance by the operator or owner
can result in injury. To reduce the potential for injury,
comply with these safety instructions and always pay
attention to the safety alert symbol, which means
CAUTION, WARNING, or DANGER—“personal
safety instruction.” Failure to comply with the
instruction may result in personal injury or death.
Supervisors, operators, and service persons should be
familiar with the following standards and publications:
(The material may be obtained from the addresses shown).
•Flammable and Combustible Liquids Code:
ANSI/NFPA 30
•National Fire Protection Association:
ANSI/NFPA #505; Powered Industrial Trucks
National Fire Prevention Association
Barrymarch Park
Quincy, Massachusetts 02269 U.S.A.
•ANSI/ASME B56.8 Personal Burden Carriers
American National Standards Institute, Inc.
1430 Broadway
New York, New York 10018 U.S.A.
•ANSI/UL 558; Internal Combustion Engine Powered
Industrial Trucks
American National Standards Institute, Inc.
1430 Broadway
New York, New York 10018 U.S.A.
or
Underwriters Laboratories
333 Pfingsten Road
Northbrook, Illinois 60062 U.S.A.
Safe Operating Practices
The sprayer is an off-highway vehicle only and is
not designed, equipped, or manufactured for use
on public streets, roads, or highways.
Warning

4
Supervisor’s Responsibilities
•Make sure that operators are thoroughly trained and
familiar with the Operator’s Manual, Engine Manual,
and all labels on the sprayer.
•Establish your own special procedures and work rules
for unusual operating conditions (e.g. slopes too steep
for sprayer operation).
Chemical Safety
Chemicals are hazardous and can injure you,
bystanders, animals, plants, soils, or other
property.
•Carefully read and follow the chemical
manufacturer’s instructions for the safe
preparation, use, and disposal of the chemical.
•Keep chemicals off of your or bystander’s skin.
if contact should occur, wash it off immediately
with clean water and detergent.
•Wear goggles and other protective equipment as
instructed by the chemical manufacturer.
Warning
•Obtain proper training before using or handling
chemicals.
•Use the correct chemical for the job.
•Follow the chemical manufacturer’s instructions for the
safe application of the chemical.
•Handle chemicals in a well ventilated area.
•Wear goggles and other protective equipment as
instructed by the chemical manufacturer. Ensure that as
little skin as possible is exposed while using chemicals.
•Have clean water available especially when filling the
spray tank.
•Do not eat, drink, or smoke while working with
chemicals.
•Always wash your hands and other exposed areas as
soon as possible after finishing the work.
•Properly dispose of unused chemicals and chemical
containers as instructed by the chemical manufacturer
and your local codes.
•Chemicals and fumes in the tanks are dangerous; never
enter the tank or place your head over or in the opening.
Before Operating
•Operate the machine only after reading and
understanding the contents of this manual.
•Never allow children to operate the sprayer. Anyone
who operates the sprayer should have a motor vehicle
license.
•Never allow other adults to operate the sprayer without
first reading and understanding the Operator’s Manual.
Only trained and authorized persons should operate this
sprayer. Make sure that all operators are physically and
mentally capable of operating the sprayer.
•This sprayer is designed to carry only you, the operator,
and one passenger in the seat provided by the
manufacturer. Never carry any other passengers on the
sprayer.
•Never operate the sprayer when under the influence of
drugs or alcohol. Even prescription drugs and cold
medicines can cause drowsiness.
•Do not drive the sprayer when you are tired. Be sure to
take occasional breaks. It is very important that you stay
alert at all times.
•Become familiar with the controls and know how to
stop the engine quickly.
•Keep all shields, safety devices, and decals in place. If a
shield, safety device, or decal is malfunctioning,
illegible, or damaged, repair or replace it before
operating the machine.
•Always wear substantial shoes. Do not operate the
machine while wearing sandals, tennis shoes, or
sneakers. Do not wear loose fitting clothing or jewelry
which could get caught in moving parts and cause
personal injury.
•Wearing safety glasses, safety shoes, long pants, and a
helmet is advisable and required by some local safety
and insurance regulations.
•Avoid driving when it is dark, especially in unfamiliar
areas. If you must drive when it is dark, be sure to drive
cautiously, use the headlights, and even consider adding
additional lights.
•Be extremely careful when operating around people.
Always be aware of where bystanders might be.
•Before operating the sprayer, always check the
designated areas of the sprayer that are stated in the
Pre-Starting section of this manual, page 17. If
something is wrong, do not use the sprayer. Make sure
that the problem is corrected before the sprayer or
attachment is operated.
•Ensure that all fluid line connectors are tight and all
hoses are in good condition before applying pressure to
the system.
•Since gasoline is highly flammable, handle it carefully.
– Use an approved gasoline container.
– Do not remove the cap from the fuel tank when the
engine is hot or running.

5
– Do not smoke while handling gasoline.
– Fill the fuel tank outdoors, and fill it to about 1 inch
(25 mm) below the top of the tank (the bottom of
the filler neck). Do not overfill it.
– Wipe up any spilled gasoline.
While Operating
Engine exhaust contains carbon monoxide, which
is an odorless, deadly poison that can kill you.
Do not run engine indoors or in an enclosed area.
Warning
•The operator and passenger should remain seated
whenever the sprayer is in motion. The operator should
keep both hands on the steering wheel whenever
possible, and the passenger should use the hand holds
provided. Keep your arms and legs within the sprayer
body at all times.
•Drive slower and turn less sharply when you are
carrying a passenger. Remember your passenger may
not be expecting you to brake or turn and may not be
ready.
•Always watch out for and avoid low overhangs such as
tree limbs, door jambs, and over-head walkways. Make
sure there is enough room over head to easily clear the
sprayer and your head.
•Failure to operate the sprayer safely may result in an
accident, tip over of the sprayer, and serious injury or
death. Drive carefully. To prevent tipping or loss of
control:
– Use extreme caution, reduce speed, and maintain a
safe distance around sand traps, ditches, creeks,
ramps, unfamiliar areas, or any areas that have
abrupt changes in ground conditions or elevation.
– Watch for holes or other hidden hazards.
– Use extra caution when operating the sprayer on wet
surfaces, in adverse weather conditions, at higher
speeds, or with a full load. Stopping time and
distance will increase with a full load.
– Avoid sudden stops and starts. Do not go from
reverse to forward or forward to reverse without
first coming to a complete stop.
– Slow down before turning. Do not attempt sharp
turns or abrupt maneuvers or other unsafe driving
actions that may cause a loss of sprayer control.
– Before backing up, look to the rear and ensure that
no one is behind you. Back up slowly.
– Watch out for traffic when you are near or crossing
roads. Always yield the right of way to pedestrians
and other vehicles. This sprayer is not designed for
use on streets or highways. Always signal your turns
or stop early enough so that other people know what
you plan to do. Obey all traffic rules and
regulations.
– The electrical and exhaust systems of the sprayer
can produce sparks capable of igniting explosive
materials. Never operate the sprayer in or near an
area where there is dust or fumes in the air which
are explosive.
– If you are ever unsure about safe operation, stop
work and ask your supervisor.
•Do not touch the engine or muffler while the engine is
running or soon after it has stopped. These areas may be
hot enough to cause burns.
•If the machine ever vibrates abnormally, stop
immediately, wait for all motion to stop, and inspect the
sprayer for damage. Repair all damage before resuming
operation.
•Before getting off of the seat:
A. Stop the movement of the machine.
B. Place the range selector in Neutral and set the
parking brake.
C. Turn the ignition key to Off.
D. Remove the ignition key.
Note: If the sprayer is stopped on an incline, block the
wheels after getting off the sprayer.
Braking
•Slow down before you approach an obstacle. This gives
you extra time to stop or turn away. Hitting an obstacle
can damage the sprayer and its contents. More
important, it can injure you and your passenger.
•Gross Vehicle Weight (GVW) has a major impact on
your ability to stop and/or turn. Heavy loads and
attachments make a sprayer harder to stop or turn. The
heavier the load, the longer it takes to stop.
•Turf and pavement are much slipperier when they are
wet. It can take 2 to 4 times as long to stop on wet
surfaces as on dry surfaces. If you drive through
standing water deep enough to get the brakes wet, they
will not work well until they are dry. After driving
through water, you should test the brakes to make sure
they work properly. If they do not, drive slowly while
putting light pressure on the brake pedal. This will dry
the brakes out.
•When operating with a liquid in the tank, reduce your
speed and allow for sufficient braking distance. Do not
suddenly apply the brakes. Use extra caution on slopes.

6
•Be aware that heavy loads increase your stopping
distance and reduce your ability to turn quickly without
tipping over.
Operating on Hills and Rough Terrain
Operating the sprayer on a hill may cause tipping or rolling
of the sprayer, or the engine may stall and you could lose
headway on the hill. This could result in personal injury.
•Do not accelerate quickly or slam on the brakes when
backing down a hill, especially with liquid in the tank.
•Never drive across a steep hill; always drive straight up
or down or go around the hill.
•If the engine stalls or you begin to lose headway while
climbing a hill, gradually apply the brakes and slowly
back straight down the hill.
•Turning while traveling up or down hills can be
dangerous. If you have to turn while on a hill, do it
slowly and cautiously. Never make sharp or fast turns.
•Avoid stopping on hills, especially with liquid in the
tank. Stopping while going down a hill will take longer
than stopping on level ground. If the sprayer must be
stopped, avoid sudden speed changes, which may
initiate tipping or rolling of the sprayer. Do not slam on
the brakes when rolling backward, as this may cause the
sprayer to overturn.
•The Toro Company strongly recommends installing the
optional ROPS Kit when operating on hilly terrain. If
you install a ROPS, always wear the seat belt when
driving the sprayer.
•Liquid loads will shift when turning, going up or down
hills, suddenly changing speeds, or while driving over
rough surfaces. Shifting loads can cause the sprayer to
tip over. Reduce your speed in these conditions.
Sudden changes in terrain may cause abrupt
steering wheel movement, possibly resulting in
hand and arm injuries.
•Reduce your speed when operating on rough
terrain and near curbs.
•Grip the steering wheel loosely around the
perimeter. Keep your hands clear of the steering
wheel spokes.
Warning
Maintenance
•Only permit qualified and authorized personnel to
maintain, repair, adjust, or inspect the sprayer.
•Before servicing or making adjustments to the machine,
stop the engine, set the parking brake, and remove the
key from the ignition to prevent someone from
accidentally starting the engine.
•To make sure that the entire machine is in good
condition, keep all nuts, bolts, and screws properly
tightened.
•To reduce the potential for fire, keep the engine area
free of excessive grease, grass, leaves, and
accumulation of dirt.
•Never use an open flame to check the level or leakage
of fuel or battery electrolyte.
•If the engine must be running to perform a maintenance
adjustment, keep your hands, feet, clothing, and any
parts of your body away from the engine and any
moving parts. Keep everyone away.
•Do not use open pans of fuel or flammable cleaning
fluids when cleaning parts.
•Do not adjust the ground speed governor. To ensure
safety and accuracy, have an Authorized Toro
Distributor check the ground speed.
•Keep your body and hands away from pin hole leaks or
nozzles that eject high pressure fluid. Use cardboard or
paper to find leaks. Fluid escaping under pressure can
penetrate skin and cause injury requiring surgery within
a few hours by a qualified surgeon or gangrene may
result.
•If major repairs are ever needed or assistance is
required, contact an Authorized Toro Distributor.
•To be sure of optimum performance and safety, always
purchase genuine Toro replacement parts and
accessories. Replacement parts and accessories made by
other manufacturers could be dangerous. Altering this
sprayer in any manner that may affect sprayer
operation, performance, durability, and may result in
injury or death. Such use could void the product
warranty.

7
Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near any area
of potential danger. Replace any decal that is damaged or lost.
41176
1. No power
2. Engine—ignition 3. Engine—start
26-7170
1. Recycle
54-0890
65-3090
71-3730
100-6836
1. Tank drain
2. On 3. Off
85-4730
87-0430
93-6687
1. Do not step here.

8
87-0450
87-0580
92-0479
94-7132
94-7171
94-7172
94-7176
95-2136

9
104-9129
1. Warning—read the
Operator’s Manual .
2. Lock and engage
3. Cruise control
4. On
5. Off
100-8386
1. Fuel
2. Empty 3. Half-full 4. Full
87-0570
1. Warning—read the Operator’s Manual.
2. Electric shock hazard, overhead power lines—watch for
overhead power lines.
3. Crushing hazard, boom—keep bystanders a safe distance from
the machine.
93-0688
1. Warning—read the Operator’s Manual.
2. Caustic liquid/chemical burn and toxic gas inhalation
hazards—wear hand, skin, eye, and respiratory protection.
104-9177
1. Fast
2. Continuous variable
setting
3. Slow
4. Spray
5. On
6. Off
7. Automatic
8. Manual
9. Left boom foam marker
10. Right boom foam marker
11. Left boom
12. Center boom
13. Right boom
14. Lower the boom.
15. Raise the boom.
16. Spray on
17. Spray off
18. Agitation
19. Pump
20. Continuous variable
setting, spray pressure
21. Increase
22. Decrease

10

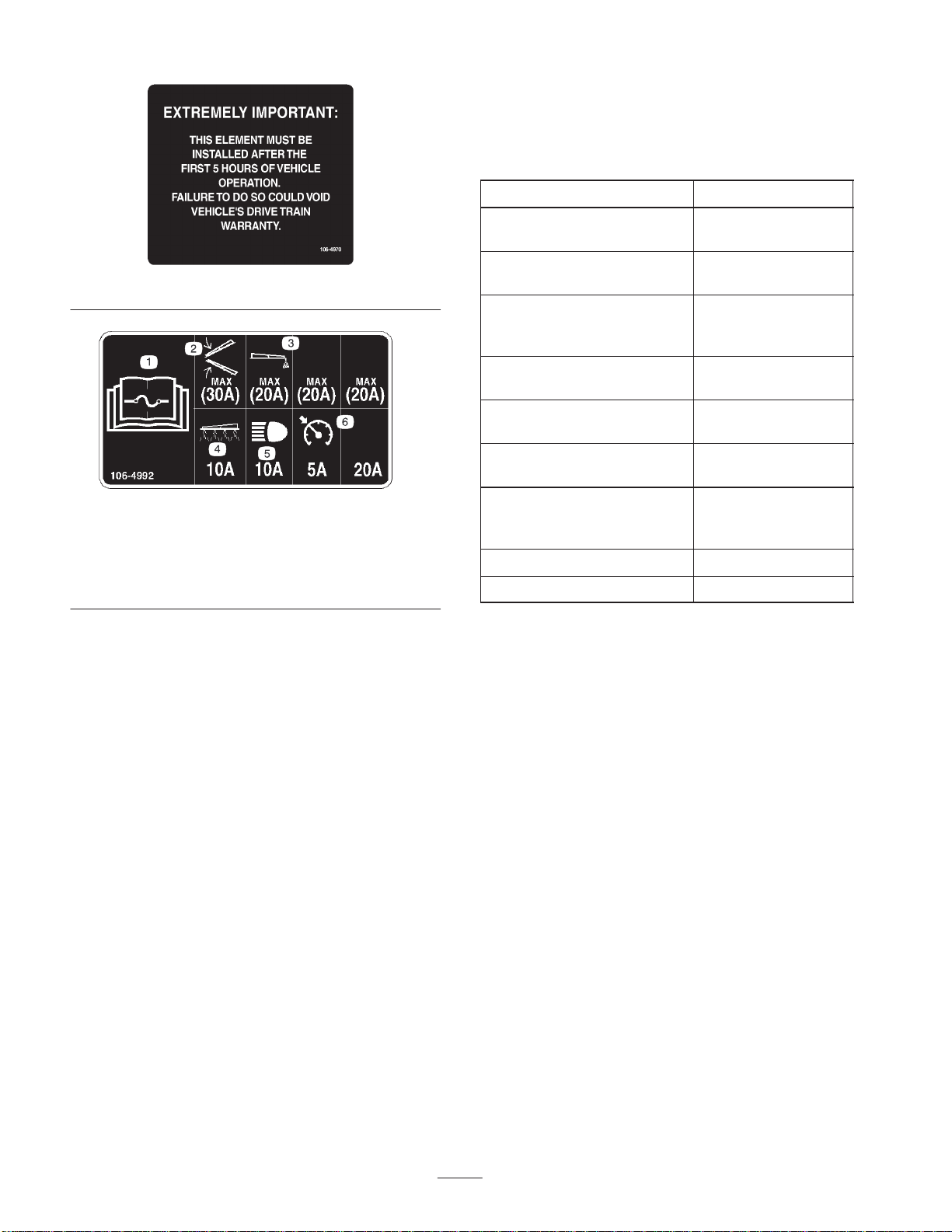

106-4970
106-4992
1. Read the Operator’s
Manual for information on
fuses.
2. Boom lift
3. Foam marker
4. Spray system
5. Headlights
6. Cruise control
Specifications
Note: Specifications and design are subject to change
without notice.
Base weight 1750 lb (794 kg)
Weight with standard spray
system, empty, with operator 2540 lb (1152.6 kg)
Weight with standard spray
system, full, with operator 5040 lb (2287 kg)
Maximum gross vehicle
weight (GVW)
(on level ground)
6040 lb (2741 kg)
Tank capacity 300 US gallons
(1135.6 L)
Overall width with standard
spray system 72 inches (183 cm)
Overall length with standard
spray system 136 inches (345 cm)
Overall height with standard
spray system to the top of
the tank
57.5 inches (146 cm)
Ground clearance 6.5 inches (16.5 cm)
Wheel base 78 inches (198 cm)
Optional Equipment
The Toro Company has optional equipment and accessories
that you can purchase separately and install on your
sprayer. Contact your Authorized Service Dealer for a
complete list of optional equipment that is currently
available for your sprayer.

11
Setup
Note: Determine the left and right sides of the machine from the normal operating position.
To use the sprayer, you must obtain and install a boom kit and nozzles. Contact your Authorized Toro Distributor for
information on the available boom kits and accessories. After you install your booms and nozzles and before using the
sprayer for the first time, adjust the boom bypass valves so that the pressure and application rate remains the same for all
booms when you turn one or more booms off. Refer to Adjusting the Boom Bypass valves, page 20.
Caution
Without a boom kit installed, the sprayer may spray chemicals out of the boom valves, possibly
injuring bystanders or causing property damage.
Do not operate the sprayer without a boom kit and nozzles installed.
Loose Parts
Note: Use the chart below to verify that all parts have been shipped.
Description Qty. Use
90 degree fitting
Quick coupler
Hose adapter
Fill receptacle bracket
Flange nut, 5/16 inch
Hairpin cotters
1
1
1
1
1
2
Install the anti-siphon fill receptacle.
Key 2 Use in the ignition switch.
Operator’s Manual
Engine Operator’s Manual 1 1Read before operating the machine.
Operator Video 1Watch before operating the machine.
Parts Catalog 1Use for ordering replacement parts.
Registration Card 1Complete and return to Toro.
Predelivery Inspection Form 1Complete and file in your customer history portfolio.

12
Installing the Anti-siphon Fill
Receptacle
1. Remove the rubber cap from the stud on the tank strap
(Fig. 2).
1865
16
5
4
2
3
Figure 2
1. Fill receptacle bracket
2. Stud
3. Flange nut, 5/16 inch
4. 90 degree elbow fitting
5. Quick coupler
6. Hose adapter
2. Place the fill receptacle bracket over the stud and secure
it with a flange nut (5/16 inch) (Fig. 2).
3. Place the threaded end of the 90 degree elbow fitting
through the bracket and thread the quick coupler onto it,
securing it to the bracket (Fig. 2).
Note: Install the elbow fitting with the open end pointing
toward the tank opening so the water will arc into the tank
when you fill it.
4. Install the hose adapter into the quick coupler (Fig. 2).
5. Lock the adapter into place by swinging the levers
toward the adapter and then secure them with the
hairpin cotters.
Before Operating
Checking the Engine Oil
The engine is shipped with oil in the crankcase; however,
the level of oil must be checked before you first start the
engine and after you have run it.
1. Position the sprayer on a level surface, set the parking
brake, stop the pump, stop the engine, and remove the
ignition key.
2. Remove the dipstick, located under the passenger seat,
and wipe it with a clean rag (Fig. 3). Insert the dipstick
into the tube and make sure it is seated fully. Remove
the dipstick and check the oil level.
1
Figure 3
1. Dipstick
3. If the oil level is low, add oil as follows:
A. Remove the access plug in the wall behind the
engine (Fig. 4).
1
Figure 4
1. Oil access plug
B. Remove the filler cap from the valve cover (Fig. 5)
and pour oil into the opening until the oil level is up
to the Full mark on the dipstick.
Important Refer to Servicing Engine Oil, page 26, for
the proper oil type and viscosity. Add the oil slowly and
check the level often during this process. Do not overfill.
1
Figure 5
1. Oil filler cap
C. Install the filler cap and access plug.
4. Install the dipstick firmly in place.

13
Checking the Tire Pressure
Check the tire pressure every 8 hours or daily to ensure
proper levels. Fill the tires to 18 psi (124 kPa). Also, check
the tires for wear or damage.
Adding Fuel
Danger
In certain conditions, gasoline is extremely
flammable and highly explosive. A fire or
explosion from gasoline can burn you and others
and can damage property.
•Fill the fuel tank outdoors, in an open area,
when the engine is cold. Wipe up any gasoline
that spills.
•Do not fill the fuel tank completely full. Add
gasoline to the fuel tank until the level is 1 inch
(25 mm) below the bottom of the filler neck.
This empty space in the tank allows gasoline to
expand.
•Never smoke when handling gasoline and stay
away from an open flame or where gasoline
fumes may be ignited by a spark.
•Store gasoline in an approved container and
keep it out of the reach of children. Never buy
more than a 30-day supply of gasoline.
•Always place gasoline containers on the ground
away from your sprayer before filling.
•Do not fill gasoline containers inside a vehicle or
on a truck or trailer bed because interior
carpets or plastic truck bed liners may insulate
the container and slow the loss of any static
charge.
•When practical, remove gas-powered equipment
from the truck or trailer and refuel the
equipment with its wheels on the ground.
•If this is not possible, then refuel such
equipment on a truck or trailer from a portable
container, rather than from a gasoline dispenser
nozzle.
•If a gasoline dispenser nozzle must be used, keep
the nozzle in contact with the rim of the fuel
tank or container opening at all times until
fueling is complete.
Recommended Gasoline
Use fresh, clean, unleaded regular gasoline suitable for
automotive use (87 pump octane minimum). Leaded
gasoline may be used if unleaded regular is not available.
Important Never use gasoline containing methanol,
gasoline containing more than 10% ethanol, gasoline
additives, or white gas because engine fuel system damage
could result.
Filling the Fuel Tank
The fuel tank capacity is approximately 10.6 US gallons
(40 L).
Note: The fuel tank cap contains a gauge which shows the
fuel level; check it frequently.
1. Position the sprayer on a level surface, set the parking
brake, stop the pump, stop the engine, remove the
ignition key, and allow the engine to cool.
2. Clean the area around the fuel tank cap and remove it
(Fig. 6).
1
Figure 6
1. Fuel tank cap
3. Fill the tank to about one inch below the top of the tank,
(bottom of the filler neck). This space in the tank allows
gasoline to expand. Do not overfill.
4. Install the fuel tank cap securely.
5. Wipe up any fuel that may have spilled.

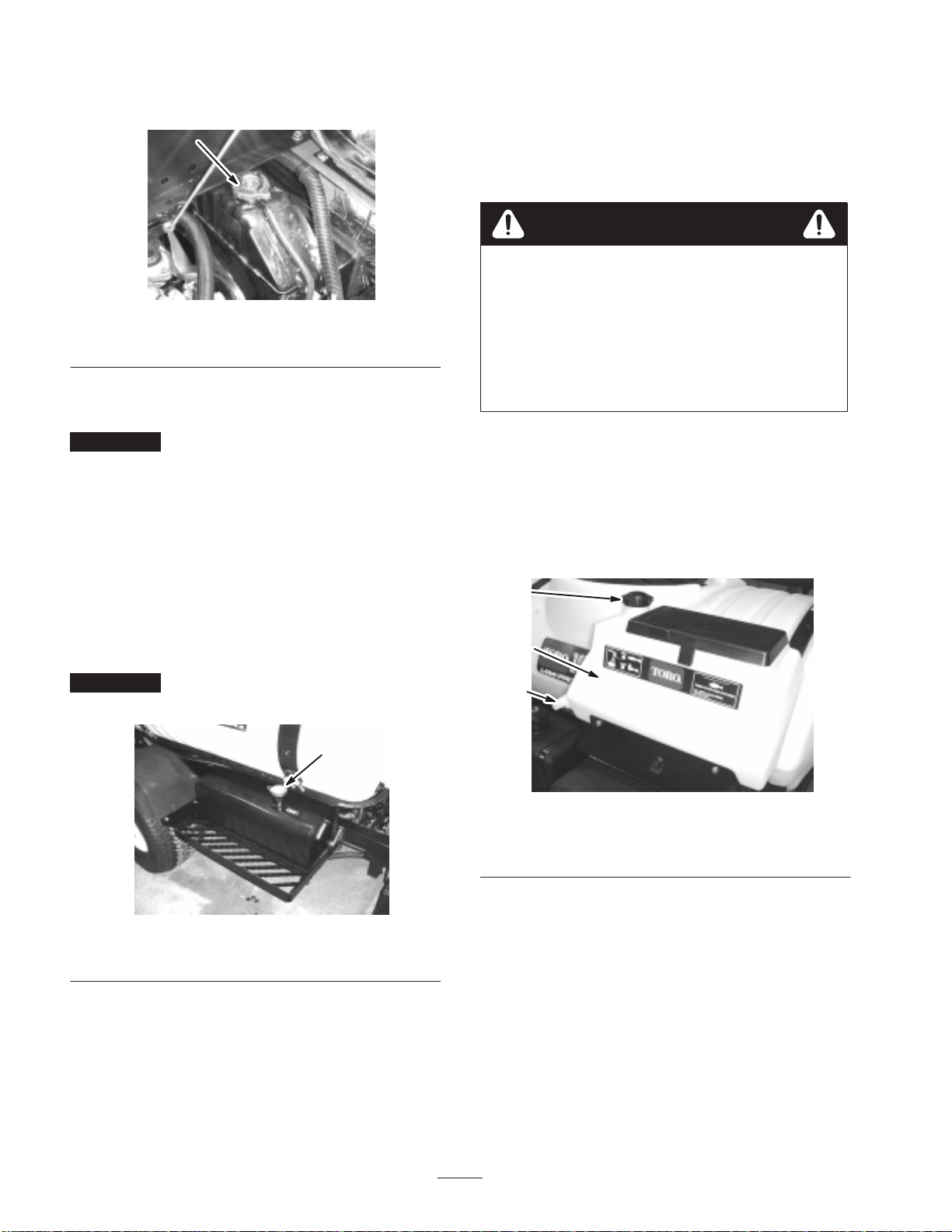

Checking the Coolant Level
If the engine has been running, the coolant may be
hot and pressurized. If you open the radiator cap
when the coolant is hot, it could spray out and
severely burn you or bystanders.
Allow the engine to cool for at least 15 minutes
before opening the radiator cap.
Caution
1. Position the sprayer on a level surface, set the parking
brake, stop the pump, stop the engine, and remove the
ignition key.
2. When the engine is cool, remove the radiator cap
(Fig. 7) and check the coolant level.

14
The coolant should be 3/4 to 1-1/2 inches (2 to 4 cm)
below the bottom of the filler neck.
1
Figure 7
1. Radiator cap
3. If the coolant is low, add a solution of 50% water and
50% permanent ethylene glycol antifreeze.
Important Do not use water only or an
alcohol/methanol based coolant.
4. Install and secure the radiator cap.
Checking the Hydraulic Fluid
1. Position the sprayer on a level surface, set the parking
brake, stop the pump, stop the engine, and remove the
ignition key.
2. Clean the area around the hydraulic oil tank cap and
remove it (Fig. 8).
Important Be very careful not to get dirt or other
contaminants into the opening when checking the oil.
2
Figure 8
1. Hydraulic oil tank cap
3. Check the oil level by looking into the opening.
The oil should be 2 inches (5 cm) below the bottom of
the filler neck.
4. If the oil is low, fill the tank with Mobil 424
(Mobil 15M) hydraulic fluid or equivalent.
5. Install and secure the hydraulic oil tank cap.
Checking the Brakes
Before starting the sprayer, lightly press the brake pedal. If
the pedal travels more than 1 inch (2.5 cm) before you feel
resistance, adjust the brakes; refer to Adjusting the Brakes,
page 33.
If you operate the sprayer with poorly adjusted or
worn brakes you could lose control of the sprayer,
resulting in serious injury or death to you or
bystanders.
Always check the brakes before operating the
sprayer and keep them properly adjusted and
repaired.
Warning
Filling the Fresh Water Tank
The sprayer is equipped with a fresh water tank (Fig. 9) for
washing chemicals off of your skin, eyes, or other surfaces
in the case of accidental exposure. Always fill the fresh
water tank with clean water before handling or mixing any
chemicals.
1
2
3
Figure 9
1. Filler cap
2. Fresh water tank 3. Spigot
To open the fresh water tank spigot, turn the lever on the
spigot toward the front of the sprayer.

15
Operation
Note: Determine the left and right sides of the machine
from the normal operating position.
Think Safety First
Please carefully read all of the safety instructions and
decals in the safety section. Knowing this information
could help you or bystanders avoid injury.
Vehicle Controls
Traction Pedal
The traction pedal (Fig. 10) controls the movement of the
machine, both forward and reverse. Using the heel and tow
of the right foot, press the top of the pedal to move forward
or the bottom of the pedal to move in reverse. Release the
pedal to slow and stop.
Important Ensure that you allow the sprayer to come
to a stop before switching between Forward and Reverse.
2
1
3
Figure 10
1. Traction pedal
2. Brake pedal 3. Parking brake pedal
The further you press the pedal in either direction, the
faster the sprayer will travel. To obtain maximum forward
speed, set the throttle lever to the Fast position and press
the traction pedal all the way forward.
To obtain maximum power with a full tank or when
traveling up a hill, set the throttle lever in the Fast position
and drive slowly so that the engine remains at a high rpm.
Brake Pedal
Use the brake pedal to stop or slow the sprayer (Fig. 10).
If you operate the sprayer with poorly adjusted or
worn brakes you could lose control of the sprayer,
resulting in serious injury or death to you or
bystanders.
Always check the brakes before operating the
sprayer and keep them properly adjusted and
repaired.
Warning
Parking Brake
The parking brake is a pedal to the left of the brake
(Fig. 10). Engage the parking brake whenever you plan on
leaving the seat to prevent accidental movement of the
sprayer. To engage the parking brake, press the brake pedal
and, while holding the brake, press the parking brake pedal.
To disengage, press and release the brake pedal. If the
sprayer is parked on a steep grade, apply the parking brake
and place blocks at the downhill side of the wheels.
Choke Control
The choke control is a small knob between the seats under
the control panel (Fig. 11). To start a cold engine, pull the
choke control out. After the engine starts, regulate the
choke to keep the engine running smoothly. As soon as
possible, push the control in. A warm engine requires little
or no choking.
1
Figure 11
1. Choke control
Throttle Lever
The throttle lever, located on the control panel between the
seats (Fig. 12), controls the speed of the engine. Push the
lever forward to increase the engine speed and pull it
rearward to decrease engine speed. Use the Spray position
when spraying for optimal results.

16
1
2
Figure 12
1. Throttle lever 2. Spray position
Ignition Switch
The ignition switch (Fig. 13), used to start and stop the
engine, has 3 positions: Stop, Run, and Start. Rotate the key
clockwise to the Start position to start the engine and
release it to the Run position when started. Rotate the key
to the Stop position to stop the engine.
1
4
3
2
Figure 13
1. Pressure gauge
2. Ignition switch 3. Cruise control switch 4. Headlight switch
Pressure Gauge
The pressure gauge (Fig. 13) indicates the pressure of the
spray system. Refer to Pressure Gauge, page 20, for more
information.
Cruise Control Switch
The cruise control switch (Fig. 13) sets the forward speed
of the sprayer and holds it without pressure on the traction
pedal. Set the cruise control and maintain a speed as
follows:
1. Drive forward and attain the speed you desire; refer to
Driving the Sprayer, page 17.
2. Press the top of the cruise control switch.
The light on the switch illuminates.
3. Take your foot off of the traction pedal.
The sprayer will maintain the speed you set.
To release the cruise control, do one of the following:
•Press the top of the cruise control switch.
•Press the brake pedal.
The light on the switch turns off and the traction control
returns to the traction pedal.
If you press the switch to turn off the cruise
control and do not have your foot on the traction
pedal, the traction unit may come to a sudden stop
and cause you to lose control, possibly injuring you
or bystanders.
Ensure that you have you foot on the traction
pedal when you disengage the cruise control using
the switch.
Caution
Headlight Switch
Toggle the switch to operate the headlights (Fig. 13). Push
it forward to turn the lights on and rearward to turn them
off.
Hour Meter
The hour meter (Fig. 11) indicates the total number of
hours the engine has run. The hour meter starts to function
whenever the key is turned to the Run position.
2
3
4
1
Figure 14
1. Hour meter
2. Voltmeter
3. Engine oil pressure light
4. Coolant temperature
gauge
Voltmeter
The voltmeter (Fig. 14) indicates the level of charge in the
battery. When the battery is fully charged, the voltmeter
will read in the center of the dial when the key is in the Run
position with the engine off. When the engine is running
the voltmeter needle should be to the right.

17
Engine Oil Pressure Warning Light
The engine oil pressure warning light (Fig. 14) illuminates
when the engine oil pressure is dangerously low. If the light
illuminates, stop the engine immediately and correct the
problem before starting the engine again.
Coolant Temperature Gauge
The coolant temperature gauge (Fig. 14) indicates the
temperature of the coolant. This gauge only functions when
the ignition key is in the Run position. When the engine is
running the gauge needle should advance to and remain in
the green range of the dial.
If the needle enters the red range, the engine is over
heating. Stop the sprayer and allow the engine to idle in
neutral for 2 minutes, then stop the engine, allow it to cool,
and determine the cause of the overheating.
If the engine has been running, the coolant may be
hot and pressurized. If you open the radiator cap
when the coolant is hot, it could spray out and
severely burn you or bystanders.
Allow the engine to cool for at least 15 minutes
before opening the radiator cap.
Caution
Fuel Gauge
The fuel gauge (Fig. 15) shows the amount of fuel in the
tank.
1
Figure 15
1. Fuel gauge
Pre-Starting Checks
Check the following items each time you begin using the
sprayer for the day:
•Check the tire pressure.
Note: These tires are different than car tires; they
require less pressure to minimize turf compaction and
damage.
•Check all fluid levels and add the appropriate amount of
specified fluids, if any are found to be low.
•Check the brake pedal operation.
•Ensure that the lights are working.
•Turn the steering wheel to the left and right to check
steering response.
•With the engine off, check for oil leaks, loose parts, and
any other noticeable malfunctions.
If any of the above items are not correct, notify your
mechanic or check with your supervisor before taking the
sprayer out for the day. Your supervisor may want you to
check other items on a daily basis, so ask what your
responsibilities are.
Starting the Engine
1. Sit in the operator’s seat, insert the key into the ignition
switch, and rotate the key clockwise to the Run
position.
2. Press the brake.
3. Ensure that the pump switch is in the Off position.
4. Move the throttle to the Slow position.
5. If the engine is cold, pull the choke knob.
Important Do not use the choke if the engine is warm.
6. Turn the key to the Start position until the engine starts.
Important Do not hold the key in the Start position for
more than 10 seconds. If the engine has not started after 10
seconds, wait 1 minute before trying again. Do not attempt
to push or tow the sprayer to start the engine.
7. Once the engine starts, push the choke knob in slowly.
8. Adjust the throttle as needed.
Driving the Sprayer
1. Press the traction pedal forward to drive forward or
rearward to drive in reverse.
Important Ensure that you allow the sprayer to come
to a stop before switching between Forward and Reverse.
2. To slowly stop the sprayer, release the traction pedal.
3. To stop quickly, press the brake pedal.
Note: Stopping distance may vary depending on the
sprayer load and speed.

18
Stopping the Engine
1. Press the brake to stop the sprayer.
2. With the brake pressed, press the parking brake pedal to
lock the brake.
3. Move the throttle lever to the Slow position.
4. Turn the ignition key to the Stop position.
5. Remove the key from the switch to prevent someone
from accidentally starting the engine.
New Sprayer Break-In
To provide proper performance and long sprayer life,
follow these guidelines for the first 100 operating hours:
•Check the fluid and engine oil levels regularly and be
alert for indications of overheating in any component of
the sprayer.
•After starting a cold engine, let it warm up for about
15 seconds before accelerating.
•Avoid hard braking situations for the first several hours
of new sprayer break-in operation. New brake linings
may not be at optimum performance until several hours
of use has caused the brakes to become burnished
(broken-in).
•Avoid racing the engine.
•Vary the sprayer speed during operation. Avoid fast
starts and quick stops.
•Refer to the Maintenance section for any special low
hour checks.
Transporting the Sprayer
For moving the sprayer long distances, use a trailer. Secure
the sprayer to the trailer. Figures 16 and 17 illustrate the
tie-down points.
1
Figure 16
1. Rear tie down point
1
1
Figure 17
1. Front tie down points
Towing the Sprayer
In case of an emergency, the sprayer can be towed for a
short distance after you open the tow valve. However, we
do not recommend this as a standard procedure.
Towing at excessive speeds could cause a loss of
steering control, resulting in personal injury.
Never tow the sprayer faster than 3 mph (4.8 kph).
Warning
Towing the sprayer is a two person job. If the machine must
be moved a considerable distance, transport it on a truck or
trailer; refer to Transporting the sprayer, page 18.
1. Rotate the tow valve (Fig. 18) 90 degrees in either
direction to open it.
Important If you do not open the tow valve before
towing the sprayer you will damage the transmission.
1
Figure 18
1. Tow valve
2. Affix a tow line to the frame.

19
3. Release the parking brake.
4. Tow the sprayer at less than 3 mph (4.8 kph).
5. When finished, close the tow valve and torque it to no
more than 5 to 8 ft-lb (7 to 11 N⋅m).
Sprayer Controls and
Components
Master Boom Switch
The master boom switch allows you to start or stop the
spray operation. Press the switch with your foot to enable
or disable the spray system (Fig. 19).
1
Figure 19
1. Master boom switch
Boom Switches
The boom switches are located at the front of the control
panel to the right of the seat (Fig. 20). Toggle each switch
forward to turn the corresponding boom section on and
rearward to turn each off. When the switch is turned on, a
light on the switch illuminates. These switches will only
affect the spray system when the master boom switch is on.
2
3
4
1
5
Figure 20
1. Boom switches
2. Pump switch
3. Application rate switch
4. Agitation switch
5. Empty plugs (picture
shows the optional boom
lift switches installed)
Pump Switch
The pump switch is located on the control panel to the right
of the seat (Fig. 20). Toggle this switch forward to run the
pump or rearward to stop the pump. When the switch is
turned on, a light on the switch illuminates.
Application Rate Switch
The application rate switch is located on the control panel
to the right of the seat (Fig. 20). Press and hold the switch
forward to increase the spray system pressure, or press and
hold it rearward to decrease pressure.
Agitation Switch
The agitation switch is located on the control panel to the
right of the seat (Fig. 20). Toggle this switch forward to
turn agitation in the tank on or rearward to stop the
agitation. When the switch is turned on, a light on the
switch illuminates. For agitation to work, the pump must be
on and the engine must be running above an idle. The
agitation valve is located behind the tank (Fig. 21).
Boom Lift, Sonic Boom, and Foam Marker
Switch Locations
If you install the electric boom lift, sonic boom, and foam
marker kit, you will add switches to the control panel for
controlling their operation. The sprayer comes with plastic
plugs in these locations.
Boom Valves
These valves turn the three booms on or off (Fig. 21). If
you ever need to manually turn off a boom, rotate the knob
on the valve clockwise to turn the valve off or
counterclockwise to turn it on.
12
Figure 21
1. Agitation valve 2. Boom valves

20
Boom Bypass Valves
The boom bypass valves redirect the fluid flow for a boom
to the tank when you turn off the boom section. You can
adjust these valves to ensure that the boom pressure
remains constant no matter how many booms are on. Refer
to Adjusting the Boom Bypass Valves, page 20.
Pressure Gauge
The pressure gauge is located on the dash (Fig. 13). This
gauge shows the pressure of the fluid in the system in psi
and kPa.
Pump
The pump is located near the back of the tank on the left
side (Fig. 22).
2
1
Figure 22
1. Pump 2. Grease fitting
Tank Drain Knob
The tank drain knob is located on top of the tank (Fig. 23).
Turn the knob counterclockwise to drain the tank.
12
3
Figure 23
1. Tank drain knob
2. Tank cover 3. Anti-siphon fill receptacle
Tank Cover
The tank cover is located in the center of the top of the tank
(Fig. 23). To open it, turn off the engine, then turn the front
half of the cover to the left and swing it open. You can
remove the strainer inside for cleaning. To seal the tank,
close the cover and rotate the front half toward the right.
Anti-siphon Fill Receptacle
To the front of the tank cover is a hose receptacle with a
threaded fitting and a 90 degree barbed fitting and tube
which you can direct toward the tank opening (Fig. 23).
This receptacle allows you to connect a water hose to it and
fill the tank with water without contaminating the hose with
the chemicals in the tank.
Adjusting the Boom Bypass
Valves
Important If you have the Pro ControlSpray System
installed, the boom valves must be closed.
After you install your booms and nozzles and before using
the sprayer for the first time, adjust the boom bypass valves
so that the pressure and application rate remains the same
for all booms when you turn one or more booms off.
Select an open flat area to perform this procedure.
1. Fill the spray tank with clean water.
2. Put the extension booms down, if installed.
3. Set the parking brake and start the engine .
4. Move the throttle lever to the Spray position.
5. Set the pump switch to the On position to start the
pump.
