Steelex ST1001 User manual
#8339TR
Phone: (360) 734-3482 • Online Technical Support: [email protected]
COPYRIGHT © SEPTEMBER, 2006 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC. Printed in China
-2- ST1001 6" Jointer
MODEL ST1001 SPECIFICATIONS
Product Dimensions:
Weight ..................................................................................................................................................................................................................... 205 lbs.
Length/Width/Height .................................................................................................................................................................461⁄2" x 231⁄2" x 38"
Footprint (Length/Width) ................................................................................................................................................................................26" x 22"
Shipping Dimensions:
Type ..................................................................................................................................................................................................................... Cardboard
Content .................................................................................................................................................................................................................. Machine
Weight ......................................................................................................................................................................................................................218 lbs.
Length/Width/Height .......................................................................................................................................................................481⁄2" x 21" x 15"
Motor:
Type.................................................................................................................. ...........................................................TEFC Capacitor Start Induction
Horsepower .................................................................................................................................................................................................................. 1 HP
Voltage....................................................................................................................................................... ................................................................... 110V
Phase ............................................................................................................................................................................................................................Single
Amps .................................................................................................................................................................................................................................13A
Speed ................................................................................................................................................................................................................... 3450 RPM
Cycle ..............................................................................................................................................................................................................................60 Hz
Number Of Speeds ...........................................................................................................................................................................................................1
Power Transfer ...............................................................................................................................................................................................V-Belt Drive
Bearings ................................................................................................................................................................................. Shielded and Lubricated
Main Specifications:
Cutting Capacities
Maximum Cutting Width ................................................................................................................................................................................ 6"
Maximum Cutting Depth (per pass) .........................................................................................................................................................1⁄8"
Minimum Workpiece Length ......................................................................................................................................................................10"
Minimum Workpiece Height ......................................................................................................................................................................... 1"
Minimum Workpiece Thickness ..................................................................................................................................................................1⁄2"
Cutterhead Information
Cutterhead Type .......................................................................................................................................................3-Knife, Straight Blades
Cutterhead Speed .............................................................................................................................................................................. 4800 RPM
Cutterhead Knife Size .............................................................................................................................................................6" x 21⁄32" x 7⁄64"
Table Information
Table (Length, Width) ....................................................................................................................................................................... 46" x 71⁄2"
Floor-to-Table Height ................................................................................................................................................................................331⁄2"
Adjustment Type ............................................................................................................................................. Lever Adjust, Dovetail Ways
Construction
Table ......................................................................................................................................................................Precision Ground Cast Iron
Fence .....................................................................................................................................................................................Cast Iron and Steel
Guard ..................................................................................................................................................................................................... Aluminum
Leg Construction ...........................................................................................................................................................................................Steel
Base ............................................................................................................................................................................................................Cast Iron
Body .......................................................................................................................................................................................Cast Iron and Steel
Paint ......................................................................................................................................................................... Powder Coated and Paint
Other Information
Sound Rating ...........................................................................................................................................................................................≤80 dBL
Dust Port Size ...................................................................................................................................................................................................... 4"
Country of Origin ........................................................................................................................................................................................China
OFF
please imme-
diately call your Steelex dealerfor advice.
Otherwise,
filing a freight claim can be difficult.
NOTICE

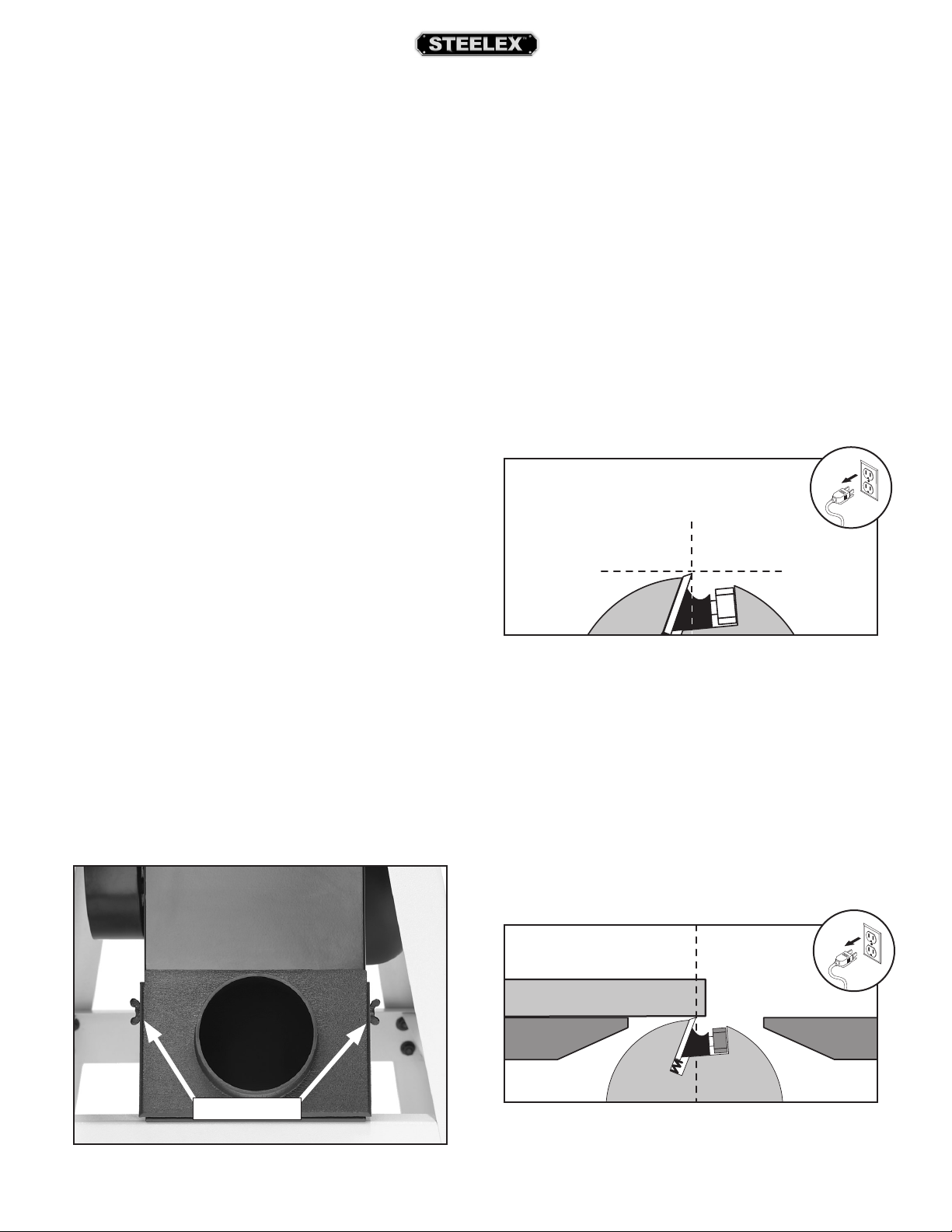

Do not confuse this CFM recommendation with the rat-
ing of the dust collector. To determine the CFM at the
dust port, you must take into account the CFM rating of
the dust collector, the length of hose between the dust
collector and the machine, the amount of branches or
wyes, and the amount of other open lines throughout
the system. Explaining this calculation is beyond the
scope of this manual. If you are unsure of your system,
consult an expert or buy a "how-to" book.
.

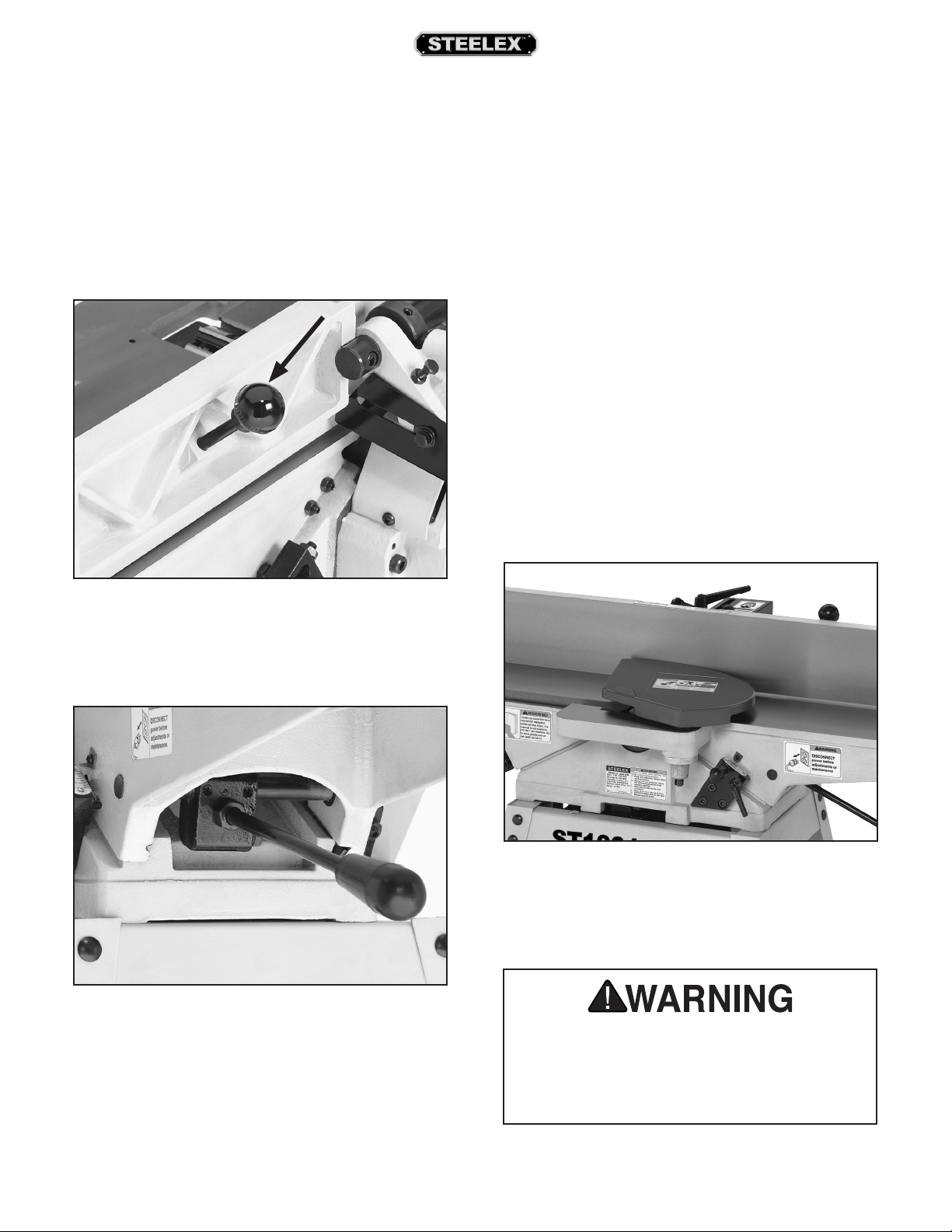

ON
OFF
ON

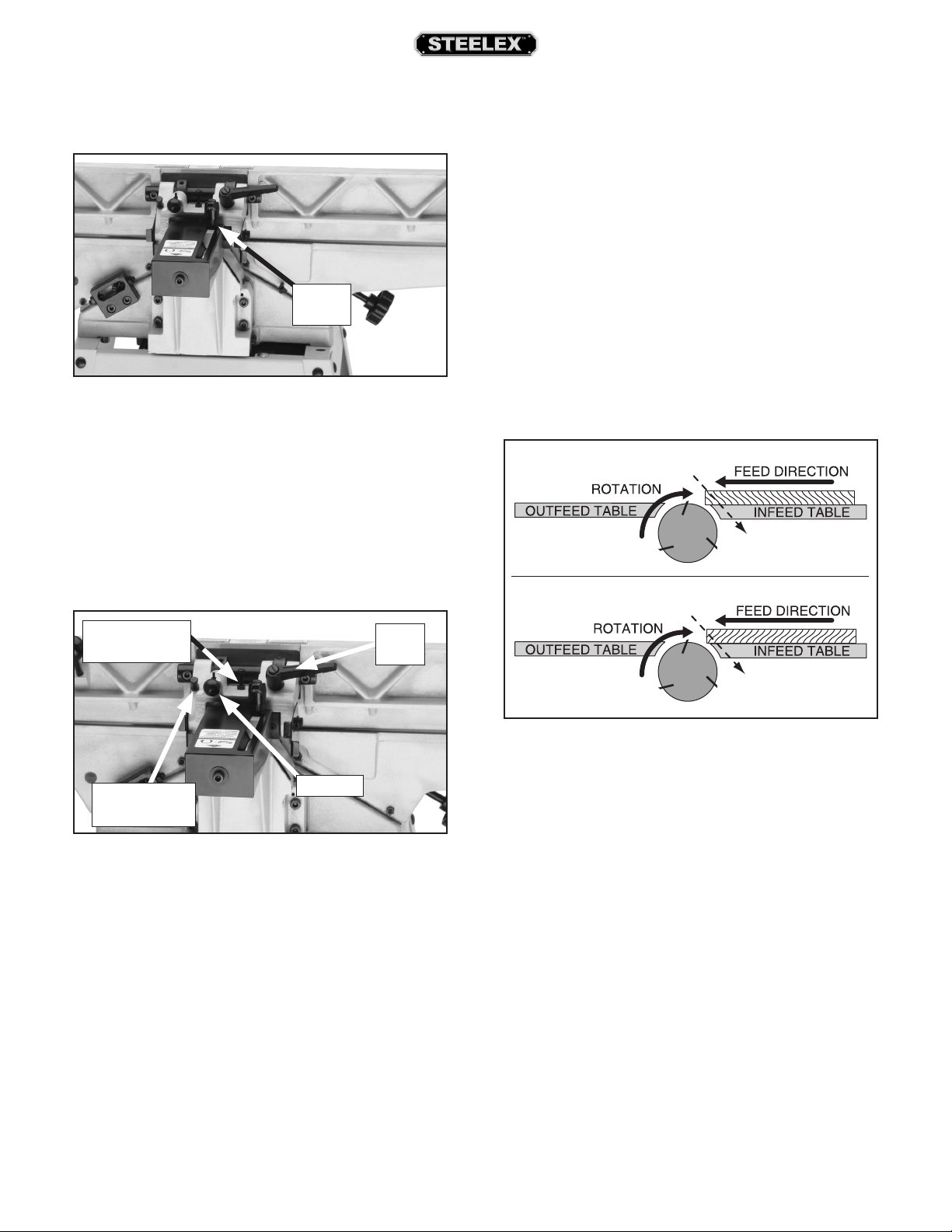

NOTICE
If the grain changes direction along the
edge of the board, decrease the cutting depth and
make additional passes.
