Champion Roto Brute MINIBRUTE RB32-VSR Instruction Manual

SAFETY & USAGE GUIDELINES · PARTS & SCHEMATICS
Magnetic Drill press
RB32-VSR MINIBRUTE

INCLUDED WITH EVERY RB32
Carrying case, safety strap, RB334 3/4” arbor, RB3212 1/2” drill chuck,
D-handle, cutting fluid, safety guard, chuck key, hex keys and spanner wrenches
Ear and eye protection MUST be worn during operation of this equipment. Do NOT
touch the cutter while it is in motion. Always follow the Personal Protection
Equipment (PPE) recommendations while operating this tool.
This machine is designed specifically for drilling holes in steel using annular cutters
or with twist drills when using the optional drill chuck. We recommend Champion®
Rotobrute™ annular cutters. Please consult your Champion authorized distributor for
a complete range of sizes.
DO NOT modify and / or use your Rotobrute™ magnetic drill press for any application
other than for which it is intended.
SAFETY
Be sure to read and follow these important safety instructions:
When using your RB32 MiniBrute, be sure to follow these important safety precautions:
1. Before operating the machine, check supply voltage and general conditions, i.e. cable/cord
damage. A machine with damaged cable must be returned or repaired prior to use.
2. Always use the safety strap in all drilling applications.
4. Since cutting tools can shatter, eye and head protection should be worn at all times.
5. After use, clean machine and cutters and keep in the case provided.
6. Store when not in use, in a dry environment.
7. Always provide a method of catching slug, where the ejected slug may cause injury (slug
ejects at end of cut).
8. Should the cutter jam in the work-piece, stop the machine immediately. Isolate the
machine at the main supply. Loosen the cutter by rotating the arbor. Do not attempt to free
cutter by starting and stopping the motor.
9. Always use the safety guard provided.
Electrical Safety
1. Grounded tools must be plugged into an outlet properly installed and grounded in
accordance with all codes and ordinances. Never remove the grounding prong or modify the
plug in any way.
2. Do not use any adapter plugs. Check with a qualified electrician if you are in doubt as to
whether the outlet is properly grounded. If the tools should electrically malfunction or breakdown,
grounding provides a low resistance path to carry electricity away from the user.
3. Never use the cord to carry the tools or pull the plug from an outlet. Replace damaged
cords immediately.
4. When operating a power tool outside, use an outdoor extension cordmarked “W-A” or
“W”. These cords are rated for outdoor use and reduce the risk of electric shock. Minimal
gauge external cord should be 12/3.
5. Use the RB-32 with 110 A/C voltage only. Not for use with generators, welders or any dc
power source. Do not use on any surface where welding is taking place.
Personal Safety
Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use tool while tired or under the influence of drugs, alcohol, or medication.
Do not wear loose clothing or jewelry. Avoid accidental starting. Be sure switch is off before
plugging in. Carrying tools with your finger on the switch or plugging in tools that have the
switch on invites accidents.
Remove adjusting keys before turning the tool on.
Do not overreach. Keep proper footing and balance at all times.
Safety equipment (eye protection, dust mask, non skid safety shoes, hard hat, hearing
protection) should be used for appropriate conditions.
Tool Use and Care
Use clamps or other practical ways to secure and support the work-piece to a stable
platform.
Do not force tool. Use the correct tool for the application.
Disconnect the plug from the power source before making any adjustments, changing
accessories, or storing the tool.
Store idle tools out of reach of children and other untrained persons.
Maintain tools with care. Keep cutting tools sharp and clean.
Check for misalignment or binding of moving parts, breakage of parts and any other condition
that may affect the tool’s operation. If damaged, have the tool serviced before using.
Service
Tool service must be performed only by qualified personnel.
When servicing a tool, use only original replacement parts.
Use of unauthorized parts will void the warranty.
Use of unauthorized parts or failure to follow maintenance instructions may create
a risk of electric shock or injury.
Magnetic Drill Safety
The drill’s magnetic adhesion depends on the thickness of the work-piece. 1/2” (13mm) is
the minimum thickness for safe operation. Keep the magnet clean of metal chips and other
dirt and debris. These will seriously reduce the magnetic adhesion. The drill must be
operated on its own electrical outlet. Always use the supplied safety strap or chain. An
electrical overload can result in loss of adhesion.
CAUTION: The slug ejects at end of cut and is very hot.
WARNING: Do not attempt to drill a work-piece, which is thicker than the maximum cutting
depth of the cutter being used. Never exceed 1-3/8” (35mm) cutter diameter.
Maintenance and Troubleshooting
Keep the drill press and the cord clean. In case of electrical or mechanical malfunction,
immediately switch off the tool and disconnect the plug. Excessive sparking generally
indicates the presence of dirt in the motor or worn out carbon brushes. Periodically check
brushes for wear and replace when they reach 1/4” (6mm). Also check that the machine is
well lubricated.
For all other service and maintenance, please contact a Champion® authorized service
center.
COMPONENTS & SAFETY
RB32-VSR
The RB32 is available in one other configuration:
RB32-VSR - The same features as the RB32 but has variable speed control and reverse. It
also features an isolating power relay for improved handling safety. The RB32-VSR can run
twist drills at the correct RPM and has optical attachments.
Please see Champion’s website for additional technical information downloads on this
configuration.
IMPORTANT
Please read these operating and safety instructions carefully and completely. For your own safety, before using this equipment check that the voltage
is correct and that all handles and parts are firmly secured. If you are uncertain about any aspect of using this equipment, contact your distributor.
PLEASE KEEP THESE INSTRUCTIONS
0-550
COMPONENTS & SAFETY
2
RB32-VSR MINIBRUTE

RB32-VSR FEATURES AND BENEFITS
1. Champion’s RB32-VSR MiniBrute with variable speed & reverse motor is engineered for drilling holes
and tapping threads.
2. The RB32-VSR features a 0-550 variable speed motor, which can be operated in both forward and
reverse.
3. An optional tapping head unit is available for use with hand taps and spiral point taps. With Champion’s
‘quick change’ tapping head, a variety of tap sizes #0 thru7/8” and 3/8” NPT pipe taps can be run
utilizing the RB32-VSR.
TO ASSEMBLE / CHANGE THE RB32-TAPPER
1. The arbor and arbor support bracket must be removed to assemble the tapper.
2. Align the threaded hole in the tapper with the 1/2-20 thread spindle.
3. Turn clockwise to tighten.
4. To remove the tapper, use the 17mm wrench provided to hold the spindle nut inplace. Use the 7/16”
wrench to hold the flats while turning counter clockwise to loosen.
USING THE RB32-VSR TAPPER
1. Align the tapper collet with the hole on the bottom of the tapper.
2. Push up on one side of tapper, push in collet and let down sides of tapper to lockcollet into place.
3. Align tap with hole in center of the collet. Once aligned, push collet ring in, pushtap into collet and
release center collet ring to lock tap into place.
4. Taps can be run at full speed after developing a comfortable technique. Switch to neutral prior to
reversing taps. This will help prolong the life of the motor.
5. To remove, reverse steps.
OPERATING INSTRUCTIONS
RB32-VSR PANEL RB32-VSR ADAPTOR OPTIONS
RB334
Arbor
RB3212
Drill Chuck
RB32
Tapper
RB32-VSR WITH TAP
RB32-VSR WITH COMBINATION DRILL & TAP
RB32-VSR WITH TWIST DRILL
RB32-VSR VERSATILITY
RB335
Arbor
3
RB32-VSR MINIBRUTE

19
18
1a
8
2
1
3
22
23
28

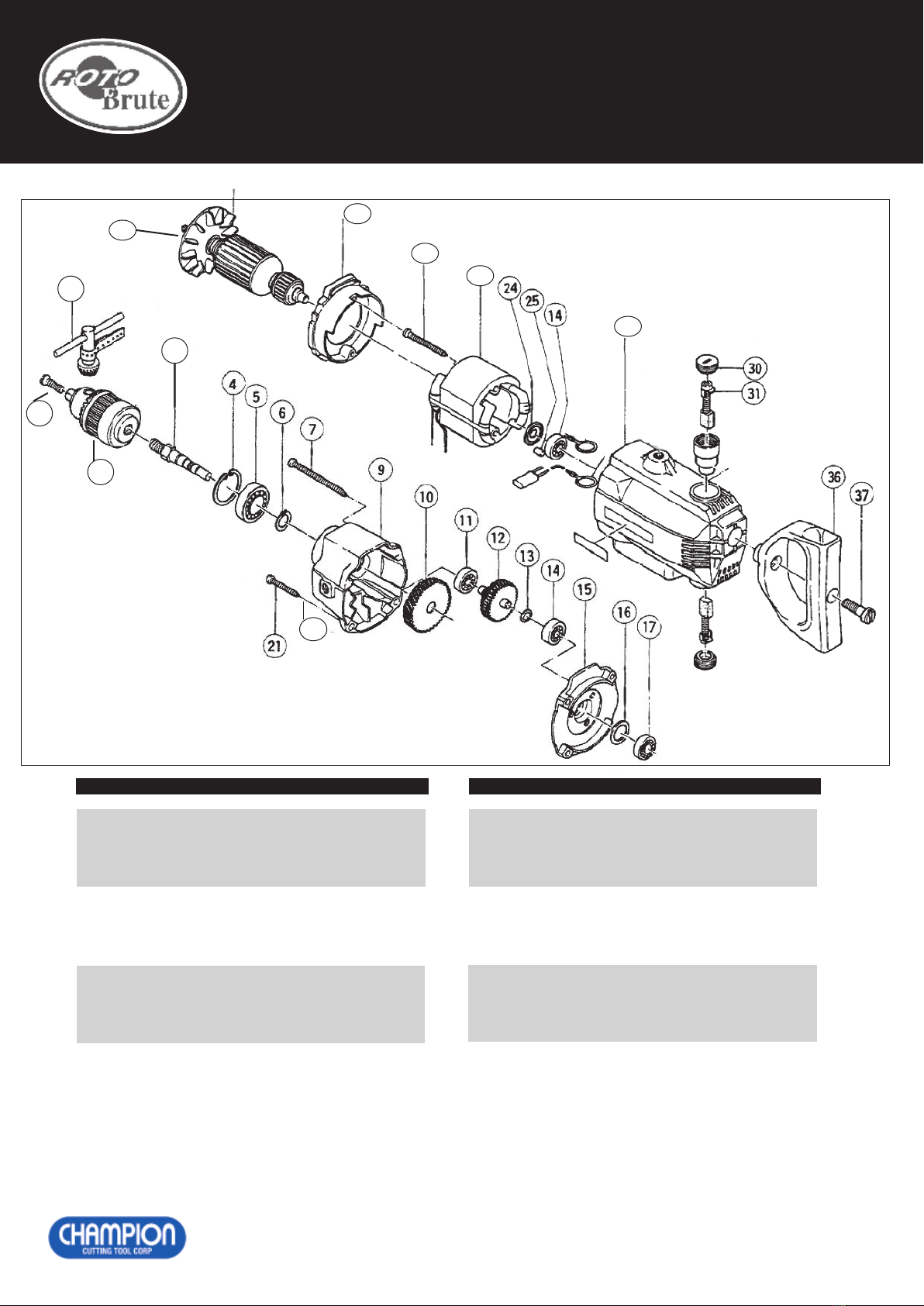

MOTOR PARTS
No. List/Size Description (Qty per Machine)
1 RB3212 1/2” Jacobs Chuck (1)
1 a RB32-1122 Drill chuck safety screw
2 RB3212-KEY Chuck Key (1)
3 RB32-1667 Spindle (1)
4 RB32-9556 D35 Retaining Ring
5 RB32-6202VV Ball Bearing
6 RB32-9544 D15 Retaining Ring
7 RB32-7725 Tapping Screw D5X70 (1)
8 RB32-9454 D5 SpringWasher (4)
9 RB32-1650 Gear Cover (1)
10 RB32-3448 Final Gear
11 RB32-627VVM Ball Bearing
12 RB32-652Z Second Pinion Assembly
13 RB32-9426 D8Washer
14 RB32-608VVM Ball Bearing
RB522 Varistor (1)
RB326 Relay Bracket & 523 Clip (1)
RB32-8002 Field Coil Connect #26 (1)
RB32-8012 Field Coil Connect #27 (1)
RB5620D5/25 Tap Screws
RB32-5075 M5X15 Pin Retaining Screw
15 RB32-2791 Inner Cover Assembly (1)
16 RB32-984357 Washer
17 RB32-609VVM Ball Bearing
18 RB32-657 Armature (1)
19 RB32-1562 Fan Guide (1)
20 RB32-1875 Tapping Screw D5X35 (2)
21 RB32-1007 Tapping Screw D5x60 (2)
22 RB32-797 Stator Field Coil (1)
23 RB32-4367 Dust Seal
24 RB32-6362 Bearing Lock
25 RB32-HAD13 Housing Assembly (1)
26 RB32-1781 Brush Caps (2)
27 RB32-612 Carbon Brush (set) (2)
28 RB32-794Z D-Handle (1)
29 RB32-796Z Special Bolt M10 (1)
4
MINIBRUTE
RB32-VSR
No. List/Size Description (Qty per Machine)

RB32-VSR
MINIBRUTE STAND SCHEMATIC
5
INCLUDEDWITHEVERY RB32:
Carrying case, safety strap, RB334 3/4”
arbor, RB3212 1/2” drill chuck, D-handle,
cutting fluid, safety guard, chuck key, hex
keys and spanner wrenches
2
6
7
8
40
14
11
12
21
32
36
34
28
29
27
30
20
19
18
38
41
50
43
45
46
10
21
49
47
48
51
17
9
5
15
26
25
24
22
23
1
3
4
6
16
39
31
36
44
13
10
52
35
33
37
42
No. List/Size Description (Qty per machine) No. List/Size Description (Qty per machine) No. List/Size Description (Qty per machine)
41 RB3241 D Ring Strap (1)
42 RB3242 M6 x 30 Cap Head Screw (2)
43 RB316 Side Panel (1)
44 RB3244 M6 Steel Washer (2)
45 RB221 M5 x 15 Socket Cap Head Screw (1)
1 RB3201 M6 x 25 Cap Head Screw (1)
2 RB3202 Coolant Bottle Assembly (1)
3 RB3203 M4 x 10 Cap Head Screw (2)
4 RB3204 Fixed Ratchet Wheel (1)
5 RB3205 Coolant Bracket (1)
6 RB3206 M5 x 12 Cap Head Screw (4)
7 RB519A Cable Gland for Conduit Lead (2)
8 RB504 PAFS13 Conduit (1)
9 RB311 Retaining Bracket (1)
10 RB502 Pinion Bush(2)
11 RB313 Pinion (1)
12 RB32175 Handle And Knob Assembly (3)
13 RB3213 M5 x 18 Grub Screw (6)
14 RB3214 M5 Steel Nut (6)
15 RB3215 M3 x 10 Panel Screws (8)
26 RB3227 O Ring 24-30 (2)
16 RB3216 Panel Assembly 110V (1)
17 RB312 Brass Guides (2)
18 RB322 Rack (1)
19 RB304 Slide (1)
RB3220 M6 x 8 Grub Screw (1)
20
21 RB3221 M6 x 20 Cap Head Screw (4)
22 RB3224 Swivel Elbow (1)
23 RB308 Arbor Support Bracket (1)
24 RB3225 M5 x 10 Socket Cap Head Screw (6)
25 RB3226 Coolant Ring Cover (2)
27 RB3228 Flange Bush (1)
28 RB3229 M6 X 40 Socket Cap Head Screw (2)
29 RB334 1/2” - 20 Threaded mount to 3/4” Arbor (1)
30 RB3230 Grub Screw for Arbor (2)
31 RB3232 Guard Slide (1)
32 RB3233 M4 x 14 Button Head Screw (2)
33 RB3234 Guard (1)
34 RB3235 Guard Support (1)
35 RB3236 M5 x 16 C/SNK Scocket Screw (2)
36 RB3237 M6 Shank Proof Washer (4)
37 RB3238 M6 X 10 Cap Head Screw (1)
38 RB302 Magnet Base Assembly (1)
39 RB329 Shim Strip (1)
40 RB301 Main Body Casting (1)
46 RB524 Pinion End Cap (1)
47 RB3247 M4 Brass Nut (1)
48 RB3248 M4 x 20 C/SNK Machine Screw (1)
49 RB519 Cable Gland (1)
50 RB515 Rectifier Unit (1)
51 RB3251 M5 x 25 Socket Cap Head Screw (1)
52 RB503 Mains Cable (1)
MINIBRUTE
RB32-VSR

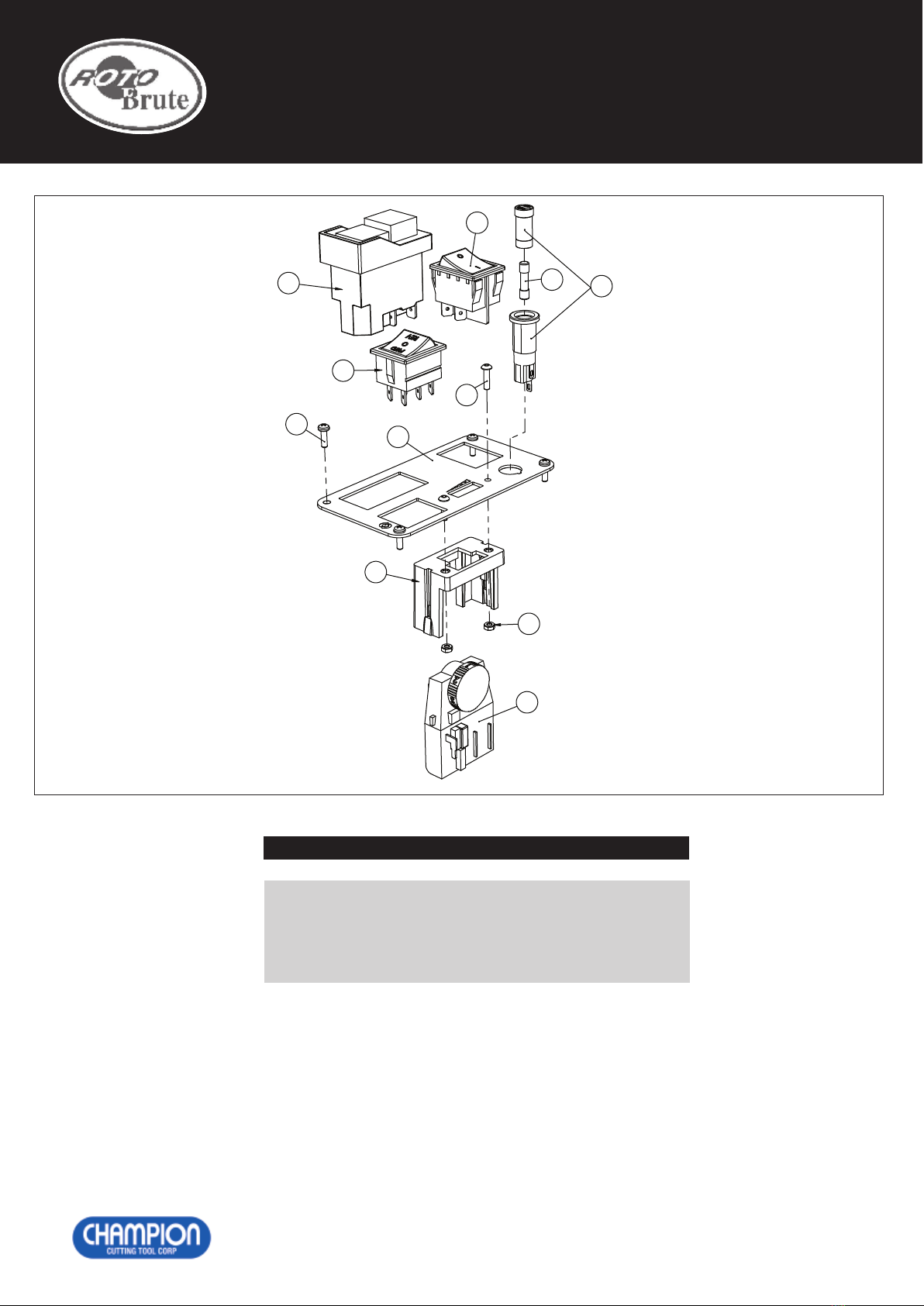

PANEL SCHEMATIC
2
8
11
9
5
14
10
7
6
3
6
No. List/Size Description (Qty per machine)
1 RB32-VSR-656 Motor NVR Switch (1)
2 RB32-VSR-456 Magnet Rocker Switch (1)
3 RB511 Fuse holder (1)
4 RB512 2A Fuse (1)
5 RB32-VSR-650 FWD/REV Rocker Switch (1)
6 RB32-VSR-674 M3 X 12 Torx SEC. Screw (2)
7 RB32-VSR-252 M3 X 12 Pozi Pan Screw (4)
8 RB32-VSR-670 RB32-VSR Front Panel (1)
9 RB32-VSR-655 Speed Control Unit (1)
10 RB32-VSR-675 M3 Nut (2)
11 RB32-VSR-653 Speed Control (1)
MINIBRUTE
RB32-VSR

7
OPERATING INSTRUCTIONS
Operating Instructions
1. Place a pilot pin in the cutter at the shank end. Insert the cutter into the special
arbor, aligning the flats to the set screws on the arbor. Secure the set screws to the
cutter with the supplied hex wrench.
2. Position the machine on a clean, dry, ferrous surface at least 1/2” thick. Switch on
the magnet.
3. Cutting fluid must be used at all times to enhance the quality of cut and prolong
the cutting tool life. Cutting fluid is applied through small holes located at the
top/shank end of the arbor and feeds via gravity.
4. Switch on the drill. Always proceed with caution at the start of drilling operations.
When using RotoBrute annular cutters apply pressure gradually at first until a depth
of 1/8” is reached. Normal cutting pressure can then be applied.
5. On completion of cut, withdraw the cutter fromhole, switch off the drill, then the
magnet. Ensure the magnet base is clear of chips. Locate the next hole using the
above procedures.
Adjusting Dovetail Slides
Slowly adjust the hex screws while moving the handle up and down. Adjust so there
is no free play or no binding anywhere through its range of travel. Periodically check,
lubricate, and adjust as necessary.
Repositioning of Handles
1. Elevate the slide upward to its full extent.
2. Remove the pinion cap screw and pinion cap from the shaft end
(opposite side to handles).
3. Slide the pinion with the handles on outward, approximately 1/3rd distance.
4. Disengage the rack by means of raising the slide up by another 3/4”.
5. Remove pinion, reposition through opposite side of body casting and reverse
procedure as above.
Assembly of Arbor for use with Annular Cutters
1. Align arbor support bracket with holes on dovetail slide.
2. Align support screws with holes and tighten clockwise.
3. IMPORTANT - do NOT tighten all the way until arbor is in place.
4. Place arbor through center hole of support bracket, making sure spindle bushing collar
is upright. Align with 1/2-20 threaded spindle and tighten clockwise.
5. When arbor is in place, tighten arbor support screws.
6. To remove arbor, use the 17mm wrench provided to hold the spindle nut in place.
Use the 7/16” wrench to hold the flats while turning counter-clockwise to loosen.
Assembly of Drill Chuck for use with Straight Shank Tools
An important feature of the RB32 is that it can quickly and easily be converted to operate
standard twist drills and other straight shank cutting tools such as chassis reamers.
To remove the arbor assembly:
1. Use the included 5mm hex wrench to remove the two arbor support screws.
2. Loosen 3/4” arbor by unscrewing in counter-clockwise direction, using a wrench on
flats located at top of arbor.
3. Remove arbor support bracket.
4. Screw on 3-jaw chuck, supplied, and install safety screw to prevent drill chuck from
becoming frozen.
5. Insert twist drill or other straight shank cutting tool and tighten with chuck key. To
remove drill chuck, reverse procedure.
Assembly of Traverse Handles
1. To assemble traverse handle, place each of the three (3) handles into the threaded
holes on the pinion shaft, turning clockwise to tighten.
2. To remove handles, turn counter-clockwise.
Assembly of Safety Guard
• Loosen screw from underneath the arbor support (front/center). Align the bracket slot
with the screw, and tighten screw until safety guard locks into place.
• To remove safety guard, loosen screw and remove safety guard.
RB32-VSR ELECTRICAL DIAGRAM
MINIBRUTE
RB32-VSR

RB32 MiniBrute
PORTABLE METAL
DRILLING SYSTEMS
OTHER ROTOBRUTE MACHINES AVAILABLE FROM CHAMPION
P.O.Box 368, Rockville Centre, NY 11571-0368
Tel: [phone] Fax: [phone]
www.championcuttingtool.com
High Speed Annular CuttersCarbide Tipped Annular Cutter Ranges
CT150
1-3/8”
Depth of cut
CT200
2” Depth of cut
CT300
3” Depth of cut
CT400
4” Depth of cut
XL100
1” Depth of cut
XL200
2” Depth of cut
XL300
3” Depth of cut
CT150STK
Carbide Tipped
Stack Cut
1-3/8” Depth of cut
CT200STK
Carbide Tipped
Stack Cut
2” Depth of cut
Carbide Tipped Stack Annular Cutters
AC35 MiniBrute AC50 MightiBrute SB35 SmartBrute RB30 LittleBrute RB65E MegaBrute
