Steinbach 061014 User manual

Originalbetriebsanleitung / Original owner's manual / Notice originale / Istruzioni originali / Manual original / Původní
návod k používání / Eredeti használati utasítás / Izvirna navodila / Pôvodný návod na použitie / Instrukcja oryginalna /
Instrucțiuni originale / Originalne upute / Оригинална инструкция / Orijinal kullanım talimatları
Schwimmbadreiniger
Poolrunner
de
Schwimmbadreiniger......................................... 4
fr
Nettoyeur de piscine........................................52
es
Limpiafondos de piscina................................101
hu
Úszómedence tisztító.....................................148
sk
Čistič bazénu..................................................195
ro
Dispozitiv de curățare a piscinei.................. 243
bg
Уред за почистване на басейни................290
en
Pool cleaner......................................................29
it
Pulitore per piscina...........................................77
cs
Čistič bazénů.................................................. 125
sl
Čistilnik bazena..............................................172
pl
Odkurzacz basenowy....................................218
hr
Čistač bazena................................................267
tr
Yüzme havuzu temizleyicisi........................... 315

1
2
3
4
56
7
2

8
9
A

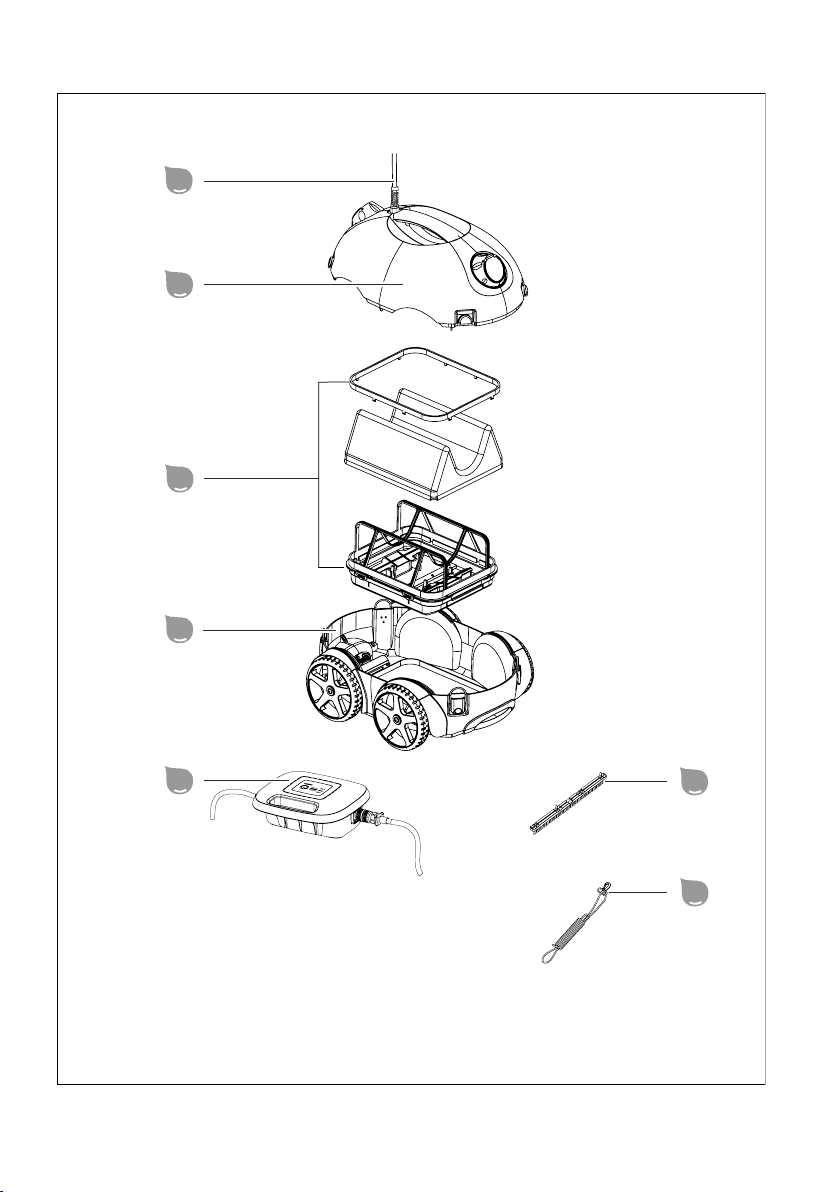

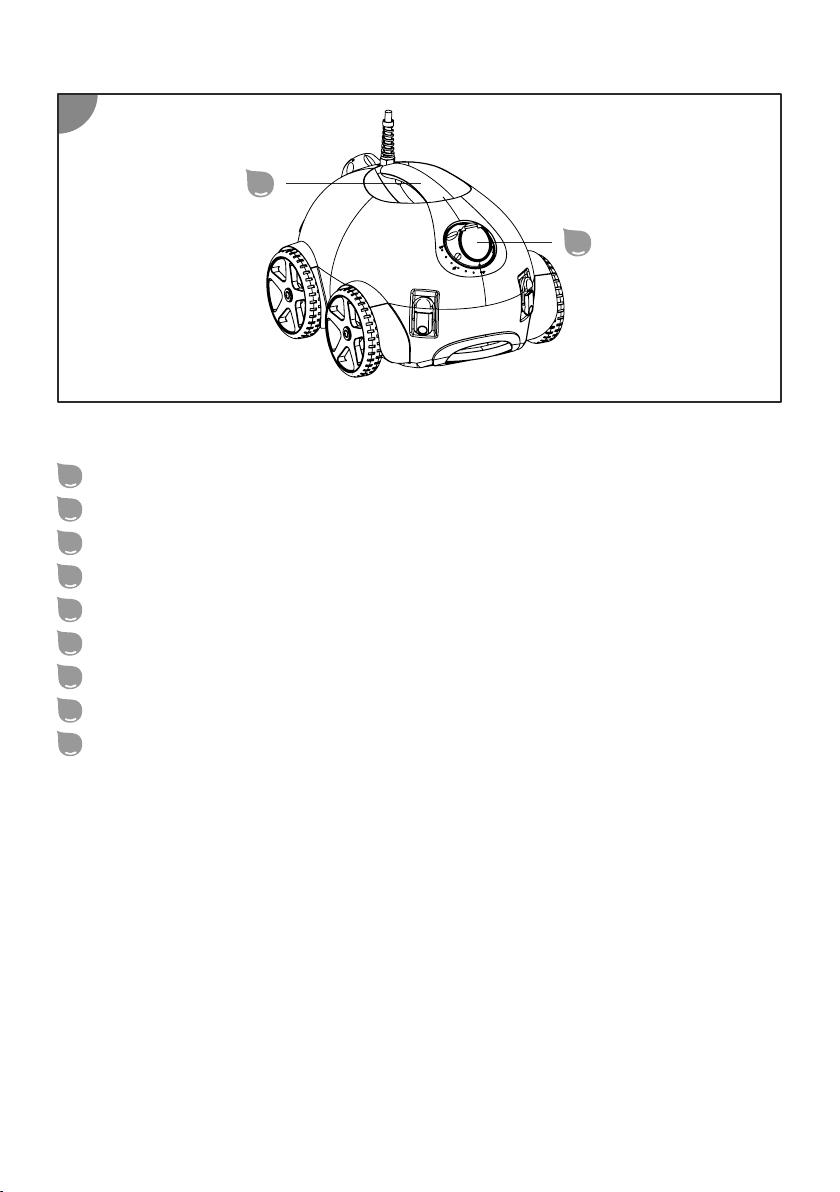

Lieferumfang/Geräteteile
1
Schwimmkabel
2
Oberteil
3
Filtereinheit
4
Unterteil
5
Steuereinheit
6
Bürste
7
Sicherungsseil
8
Gri
9
Düse
Betriebsanleitung (ohne Abbildung)
3

Package contents/components
1
Floang cable
2
Top part
3
Filter unit
4
Boom part
5
Control unit
6
Brush
7
Safety rope
8
Handle
9
Nozzle
Operang instrucons (without illustraon)
28

Contents
Overview.......................................................................................................................2
Package contents/components....................................................................................28
General Informaon.................................................................................................... 30
Explanaon of Symbols............................................................................................... 30
Safety.......................................................................................................................... 31
Unpacking and checking the package contents............................................................ 34
Descripon..................................................................................................................35
Descripon of the pool cleaner.................................................................................... 35
Funcons of the control unit........................................................................................ 35
Basic sengs...............................................................................................................36
Adjusng the nozzles....................................................................................................36
Aaching the brush...................................................................................................... 37
Removing the brush..................................................................................................... 37
Operaon....................................................................................................................38
Cleaning the pool......................................................................................................... 38
Switching o the device............................................................................................... 41
Cleaning...................................................................................................................... 43
Storage........................................................................................................................45
Troubleshoong.......................................................................................................... 45
Technical data..............................................................................................................47
Spare parts..................................................................................................................48
Declaraon of Conformity........................................................................................... 50
Disposal...................................................................................................................... 50
29

General Information
Read and keep the operating instructions
These operang instrucons are part of the "Pool Runner" pool cleaner (in the
following also called "device"). It contains important informaon about startup
and operaon.
Read the operang instrucons and especially the safety instrucons carefully before
using the device. Non-observance of these operang instrucons can lead to severe
injuries or damage to the device.
The operang instrucons are based on the standards and regulaons in eect in the
European Union. Also observe country-specic direcves and laws abroad.
Keep the operang instrucons for further use. If you pass on the device to a third party,
you must pass on these operang instrucons as well.
Intended use
This device is exclusively designed to clean private pools. The device is not suited for
pools with liners with a liner thickness of less than 0.4 mm.
This product is exclusively intended for private use and not suited for the commercial
sector. Only use the device as described in these operang instrucons. Any other use is
considered inappropriate and may lead to material damage or even injury. The device is
not a toy.
The manufacturer or retailer will not assume any liability for damage caused by
inappropriate or incorrect use.
Explanation of Symbols
The following symbols are used in these operang instrucons, on the device or on the
packaging.
This symbol provides you with useful addional informaon on handling
and use.
Products marked with this symbol meet all the applicable Community
regulaons of the European Economic Area.
Never use a sharp knife or other pointed object to open the packaging.
You may damage the contents.
30

Weight of the packaging unit.
Dimensions of the packaging unit.
Safety
The following signal words are used in this user manual.
WARNING! This signal symbol/word denotes a hazard with an
average risk level that could lead to death or severe
injury if it is not avoided.
CAUTION! This signal symbol/word denotes a hazard with a low
risk level that could lead to mild or moderate injury if
it is not avoided.
NOTICE! This signal word provides a warning about potenal
material damage.
General safety instructions
WARNING!
Risk of electric shock!
Faulty electric installaon or excess mains voltage can cause an
electric shock.
- Only connect the power cable if the mains voltage of the socket
matches that on the type plate.
- Only connect the power cable to an easily accessible socket so
that you can quickly disconnect it in the case of a fault.
- Only connect the power cable to a grounded socket.
- Only operate the device on a grounded socket secured with at
least 16A.
- The device must be powered via a residual current device with a
rated residual current of at most 30 mA.
- Do not operate the device if it shows visible damage or if the
power cable is defecve.
31

- Do not open the device; leave repairs to an expert. Contact the
service address on the back of the instrucon manual for this
purpose. All liability and warranty claims will be void in the case
of arbitrary repairs, improper connecon or wrong operaon.
- Never touch the power cable with wet hands.
- Never pull the power cable out of the socket by the cable; always
hold it by the plug.
-Never use the power cable as a carrier handle.
- Keep the device and the power cable away from naked ames
and hot surfaces.
- Do not place any objects on the power cable.
- Do not bury the power cable.
-Route the power cable such that no one can trip over it.
- Do not kink the power cable and do not place it over sharp
edges.
- Do not use the device during a thunderstorm. Switch it o and
pull the power cable out of the socket.
-Always switch o the device and disconnect it from the power
supply if you are not using the device, when cleaning it or in the
case of a fault.
- Only components that meet the original device data must be
used for repair. There are electric and mechanical components in
this device that are indispensable for hazard protecon.
-Only use spare parts and accessory parts supplied or
recommended by the manufacturer. All warranty claims will be
void when using third-party components.
- Do not operate the device with an external mer or a separate
remote system.
NOTICE!
-Only use the supplied control unit that matches your device.
32

- Never let the device run outside of the water as this can cause
damage even aer a short me.
Safety instructions for persons
WARNING!
Danger to children and persons with reduced physical, sensory or
mental capacies (such as parally disabled persons/older persons
with reduced physical and mental capacies) or persons lacking
experience and knowledge (such as older children).
Improper handling of the device can lead to severe injury or damage
to the device.
-Only allow others to access the device aer they have read and
comprehended the enre manual or have been instructed about
the intended use and the associated risks.
-Never let persons with reduced physical, sensory or mental
capacies (such as children or drunk people) or a lack of
experience and knowledge unsupervised near the device.
-Never allow children and persons with limited physical, sensory
or mental capacies or persons lacking the respecve experience
and knowledge to operate the device.
- Do not let children clean or service the device.
- Children are not allowed to play with the device or with the
power cable.
- Do not operate the device under the inuence of drugs, alcohol
or medicaon or if you are red.
33

WARNING!
Risk of injury through insucient qualicaon!
Insucient experience or skills for handling the required tools and
insucient knowledge of regional or normave regulaons for the
required work can lead to severe injuries or material damage.
-Assign all work whose risks you cannot esmate due to
insucient personal experience to a qualied expert.
Unpacking and checking the package contents
NOTICE!
Careless opening of the packaging, especially with the help of sharp
or pointed objects, may cause damage to the device.
- Open the packaging very carefully.
- Do not penetrate the packaging with sharp or pointed objects.
WARNING!
Packaging materials pose a risk of suocaon!
Catching your head in the packaging foil or swallowing other
packaging materials can cause death. There is a higher risk for
children and mentally challenged persons who cannot esmate the
hazard potenal due to lack of knowledge and experience.
- Prevent children and mentally challenged persons from playing
with the packaging materials.
NOTICE!
There is a higher risk of damage to the device if it is stored or
transported without the packaging.
- Do not dispose of the packaging.
- In the case of damage, substute the packaging with an at least
similar box.
34

Checking the delivery for completeness and damage
1. Open the packaging carefully.
2. Take all parts out of the packaging.
3. Check the completeness of the delivery.
4. Check the delivery for damage.
Description
Description of the pool cleaner
The pool cleaner cleans your lled pool in automac mode.

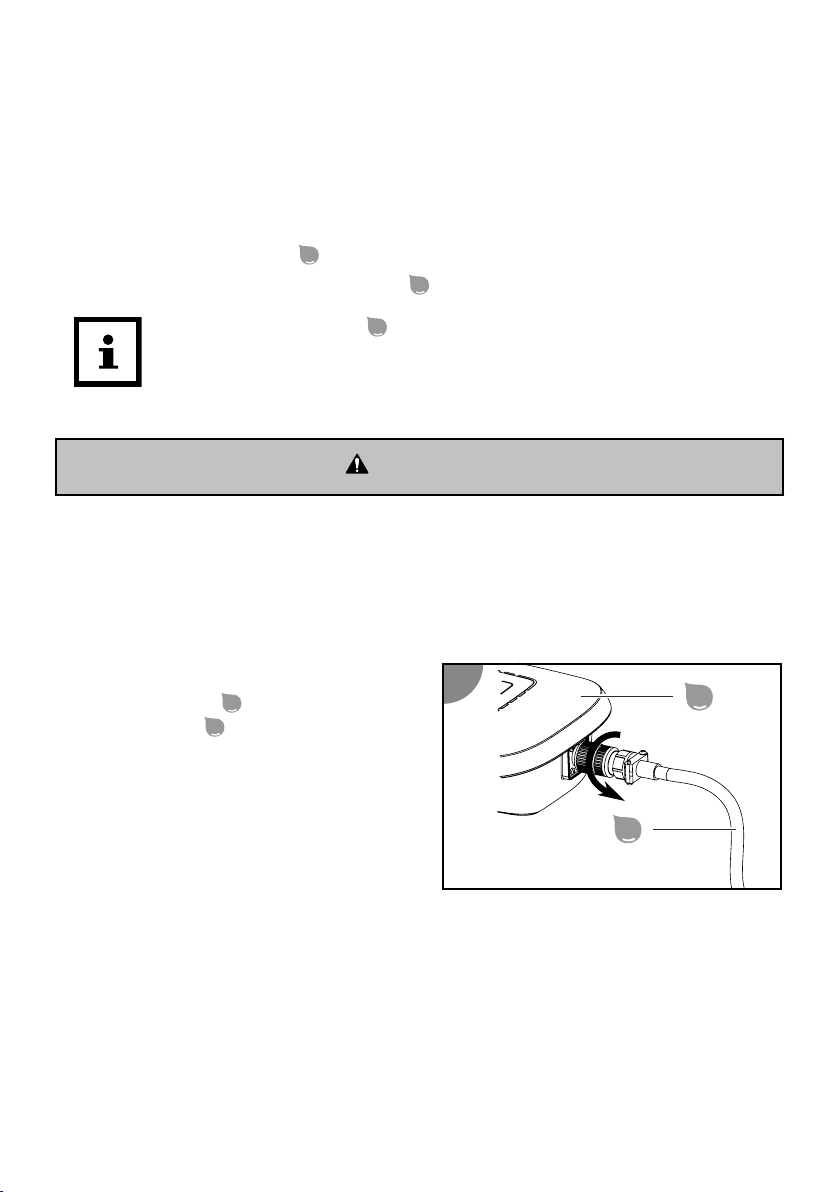

The oang cable
1
supplies the pool cleaner in the water with the required power and
informaon.
The adjustable nozzles
9
determine the travel path and the speed of the pool cleaner.
The removable lter unit
3
lters the water and collects deposits in the pool.
Depending on the degree of soiling, an oponal brush
6
can improve the cleaning result.
You select the right cleaning program for your purposes with the control unit
5
.
Functions of the control unit
The power adapter integrated in the control unit supplies the pool cleaner with 24 V DC.
B
B
10 11 12
Cleaning cycle
11
10
The indicator
10
shows the cleaning cycle.
-S for small pools: the device cleans the pool for 1 hour.
-M for medium-sized pools: the device cleans the pool for 1.5 hours.
-L for large pools: the device cleans the pool for 2 hours.
A blinking indicator indicates the selected cleaning cycle.
When all indicators blink, the cleaning cycle is nished.
If all indicators are lit, the device has a fault. Contact customer service.
35

CYCLE function
11
Use this funcon to set the cleaning cycle.
Use the CYCLE buon
11
to switch between the cleaning cycles.
ON/OFF function
12
Use this funcon to switch the device ON and OFF.
Use the ON/OFF buon
12
to switch between the following funcons:
- ON (Switches the device on and starts the selected cleaning cycle.)
- OFF (Stops the selected cleaning cycle and switches the device o at the same me.)
Basic settings
Adjusting the nozzles
The following sengs are recommendaons. Adapt the basic sengs to the actual
properes and the degree of soiling of your pool.
Light soiling
Use the round reference marking on the
nozzle
9
for adjustment.
1. Set one nozzle to 15° or 30° and the
other nozzle to 45°.
The device moves faster.
Excepon for lightly soiled round or oval pools:
Use the seng 15°/0°.
Medium to heavy soiling
Use the oblong reference marking on the
nozzle
9
for adjustment.
1. Set both nozzles to 45° or 60°.
The device moves slower.
1
99
2
99
36

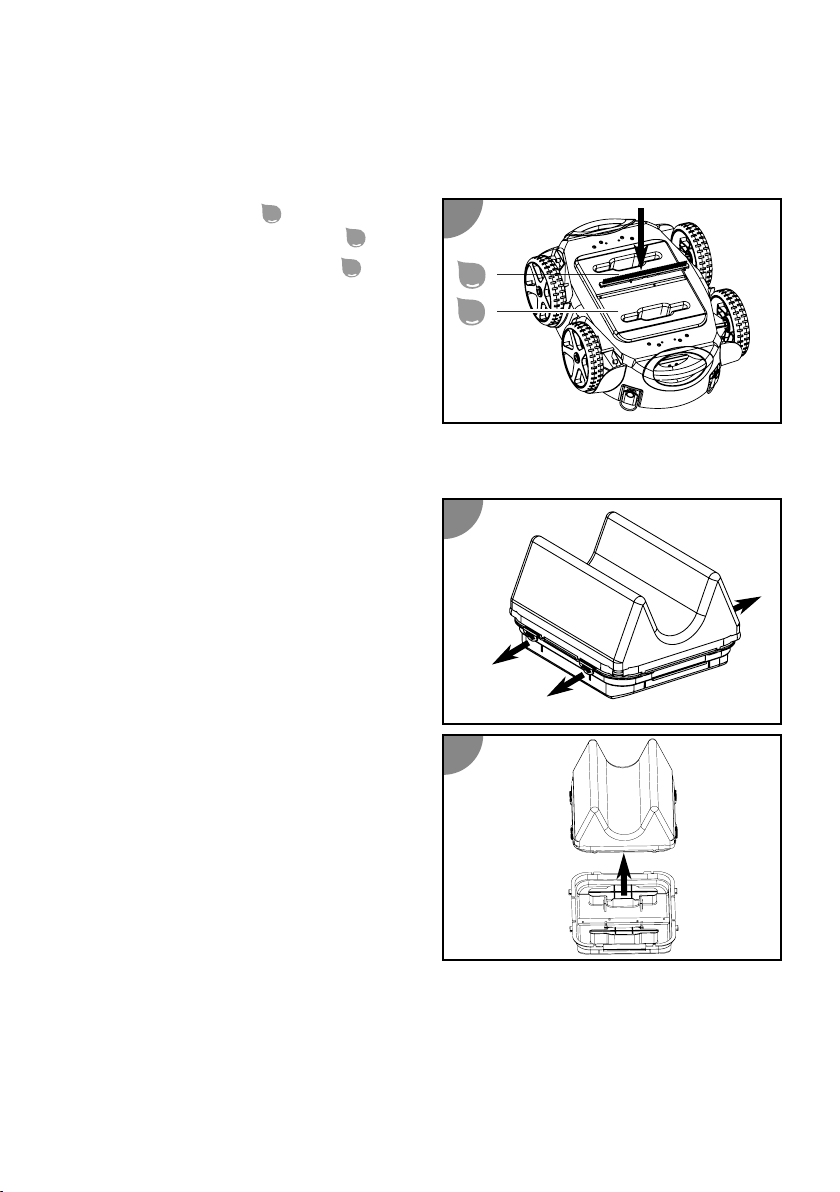

Attaching the brush
1. Press the brush strip
6
into the recess
on the boom of the lter unit
3
.
2. Make sure that the brush strip
6
has
completely engaged and ts ghtly.
The brush is installed.
Removing the brush
1. Remove the lter unit (see secon "Cleaning").
2. Open all latches on the top part of the
lter unit.
3. Separate the top and the boom part of
the lter unit.
Only aach the brush if it can assist cleaning (e.g. for removing a biolm). In the case of
an incline, unevenness or too much dirt on the oor, the brush may have an adverse
eect on the cleaning result.
3
6
3
4
5
37

4. Unlatch the hook of the brush strip
6
from the inside and press the brush
strip
6
out of the boom part of the
lter unit
3
at the same me.
5. Take out the brush strip
6
.
The brush is taken out.
Operation
Check the following before each use:
- Is there visible damage on the device?
- Is there visible damage on the control elements?
- Do all individual parts funcon?
- Are the accessories in perfect condion?
- Are all cables in perfect condion?
Do not start up a damaged device or damaged accessories. Have them checked by the
manufacturer or its customer service or a qualied service technician.
Cleaning the pool
Observe the following before cleaning your pool:
- We recommend thoroughly cleaning the device before using it for the rst me.
- Remove any cover or lm from the pool.
- Remove obstacles (such as a ladder) from the pool.
- Switch o the lter system at least one hour before the start of cleaning so that
parcles in the water can sele on the oor.
- Never let the device run outside of the water as this can cause damage even aer a
short me.
Proceed as follows to clean your pool:
1. Insert the lter unit.
2. Place the device in the pool.
3. Connect the control unit to the device and the power supply.
4. Start the cleaning cycle.
5. If necessary, adapt the running me of the cleaning cycle to the size of your pool, see
secon "Funcons of the control unit".
6
6
3
38

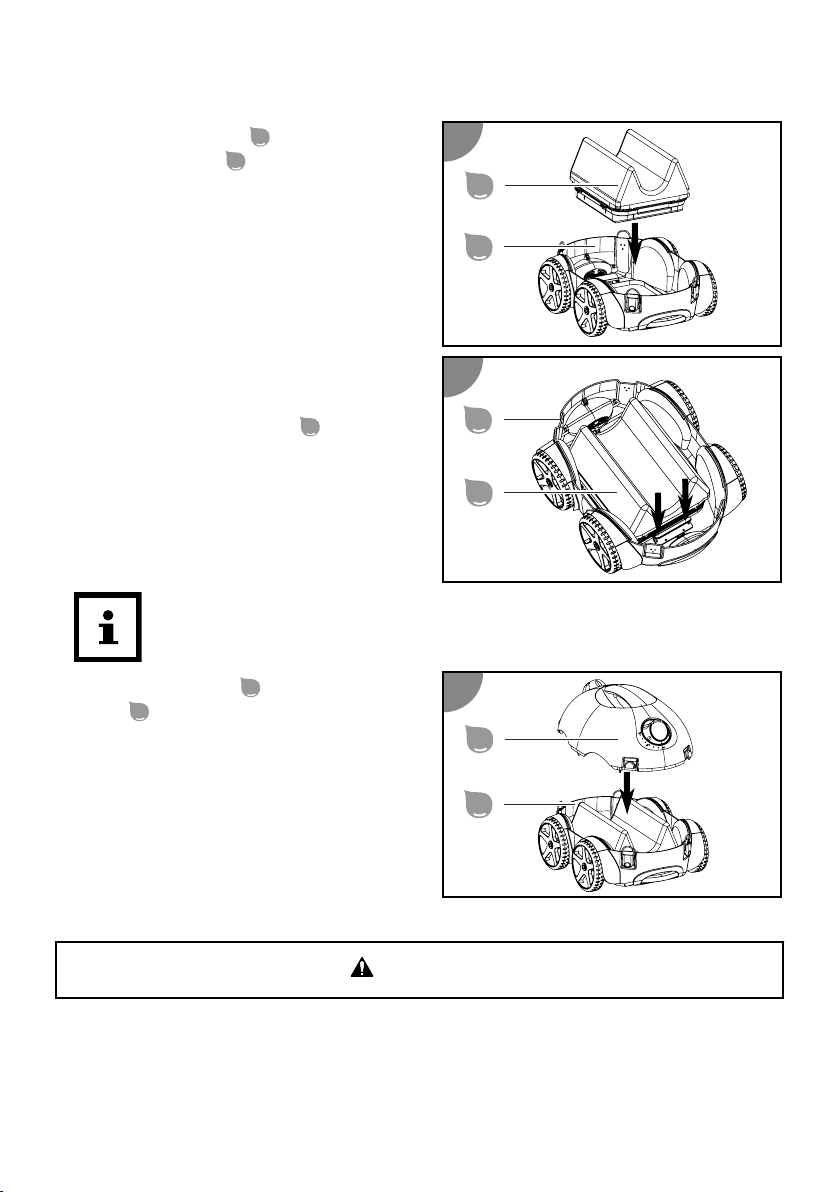

Inserting the filter unit
1. Place the lter unit
3
in the recess of
the boom part
4
.
2. Press and hold the snap lock on one
side to open it.
3. Press down the lter unit
3
and let go
of the snap lock.
4. Repeat the last two steps on the
opposite side.
The snap locks must x the lter unit in place on both sides in the boom
part.
5. Place the top part
2
on the boom
part
4
.
6. Close all snap locks.
The lter unit is inserted.
Placing the device in the pool
CAUTION!
Risk of injury!
The device can hurt persons in the pool.
- Make sure no one is in the pool while the device is in the water.
7
4
3
8
4
3
9
4
2
39

NOTICE!
A lawnmower can damage a cable placed on the ground.
- Route the cable so that it cannot be damaged by a lawnmower or
similar device.
1. Completely unroll the cable and place it next to the pool without twisng.
2. Hold the device by the handle and
lower it slowly and lted slightly
forward into the water unl all air has
escaped and it sinks to the boom by
itself. The device should run at a right
angle to the pool wall.
The device is in the pool.
Connecting the control unit
WARNING!
Risk of electric shock!
Handling the power plug with wet hands can lead to an electric
shock.
- Never touch the power plug with wet hands.
NOTICE!
High temperatures can damage the control unit.
- Do not cover the control unit.
- Place the control unit in the shade, if possible.
1. Only let as much of the oang cable
1
into the water so that the device can reach
all the spots in the pool.
10
40

2. Connect the plug of the oang
cable
1
in the right posion to the
control unit
5
and screw the
connecon together.
3. Aach the control unit
5
at a distance
of at least A=3.5 m to the pool with the
safety rope
7
so that it cannot be
pulled into the water.
4. Connect the power plug to a grounded
socket.
The control unit is connected.
Starting cleaning
1. Press the ON/OFF buon
12
.
The device starts moving. The indicator
10
of the last selected cleaning cycle starts to
blink.
To change the cleaning cycle, press the CYCLE buon
11
.
It is normal that the device knocks against the pool wall. You can adjust the
speed of the device with the two nozzles, see secon "Basic sengs".
Cleaning stops automacally at the end of the set cleaning cycle. All indicators
10
blink.
Switching off the device
Proceed as follows to switch o the device:
11
1
5
12
A
5
7
13
5
10
12
11
41

1. Switch o the device aer the end of the cleaning program.
2. Disconnect the control unit from the power supply and the device.
3. Li the device out of the pool.
4. Clean the lter unit and the device.
Switching off the device
1. Press the ON/OFF buon
12
.
The device is switched o and all indicators
10
are o.
Press the ON/OFF buon
12
to stop cleaning the device before the me is
up.
Disconnecting the control unit
WARNING!
Risk of electric shock!
Handling the power plug with wet hands can lead to an electric
shock.
-Never touch the power plug with wet hands.
1. Disconnect the power plug from the grounded socket.
2. Undo the screw ng of the plug on
the control unit
5
and pull of the
oang cable
1
.
The control unit is disconnected.
14 5
1
42

Lifting the device out of the pool
WARNING!
Risk of electric shock!
Risk of electric shock if the control unit drops into the lled pool
while it is connected to the power supply.
- Pull the power plug out of the socket before liing the device out
of the pool.
1. Slowly pull the device by the oang cable
1
towards the water surface unl you
can reach the handle
8
.
2. Slowly li the device out of the water by the handle
8
and hold it above the water
surface for 10 to 15 seconds so that most of the water can ow back into the pool.
3. Set down the device next to the pool.
The device is lied out of the pool.
Clean the device aer each use to ensure connued fault-free operaon.
Cleaning
NOTICE!
Improper cleaning might damage the device.
- Clean the surface of the device with plain tap water aer each
use.
- Do not use any aggressive cleaning agents.
- Do not use any sharp or metal objects such as knives, hard
scrapers or similar.
-Do not use any cleaning brushes.
- Do not use a high-pressure cleaner.
43

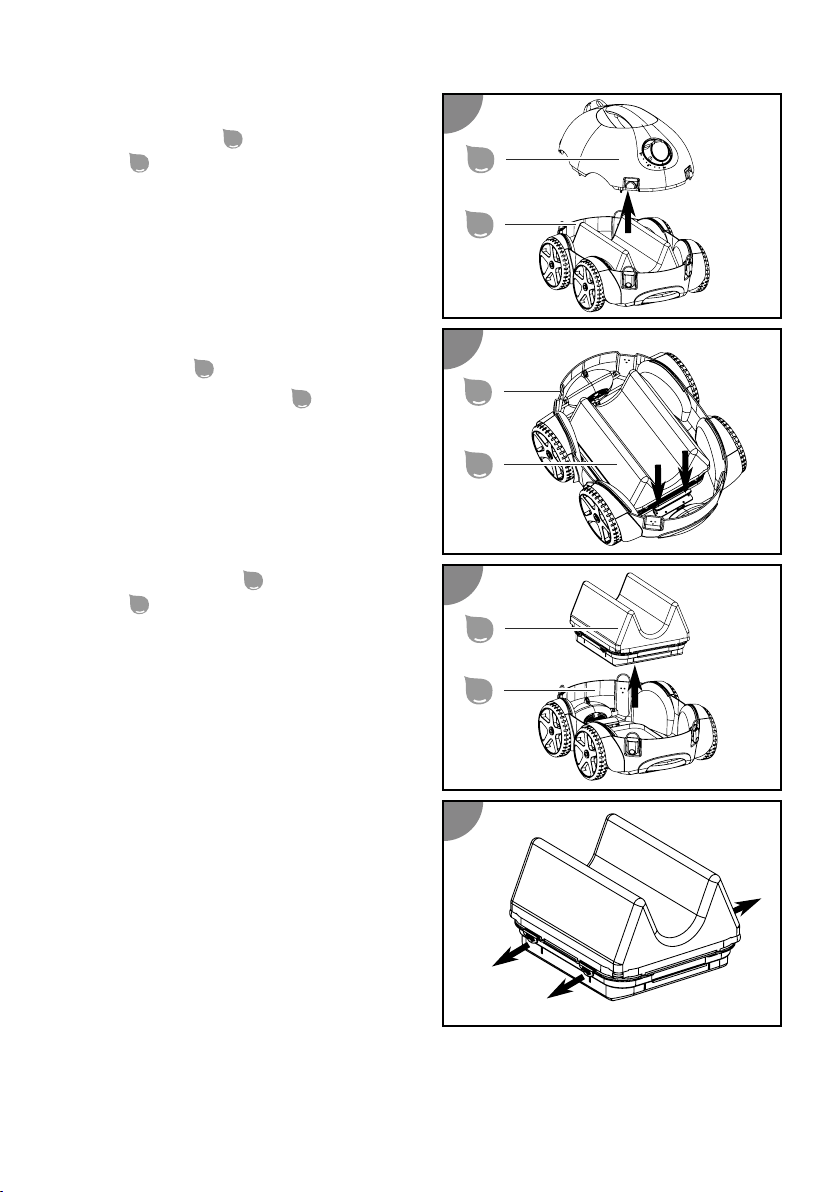

1. Open all snap locks.
2. Li the top part
2
o the boom
part
4
.
3. Press and hold the snap lock on the
boom part
4
on one side to open it.
4. Slightly li the lter unit
3
and let go of
the snap lock.
5. Repeat the last two steps on the
opposite side.
6. Take the lter unit
3
out of the boom
part
4
.
7. Open all latches on the top part of the
lter unit.
15
4
2
16
4
3
17
4
3
18
44
