stellar labs TireMan 12154 User manual

TireMan 12154
Owner’s Manual
Stellar Industries, Inc.
190 State Street
PO Box 169
Garner, IA 50438
800-321-3741
Fax: 641-923-2811
www.stellarindustries.com
Subject to Change without Notification.
© 2020 Stellar Industries, Inc.
Rev 2
PN 90383
Installation • Assembly Drawings • Parts
Notice: A copy of this manual must remain with the equipment at all times.
For a printable download copy, please visit: www.stellarindustries.com

Page ii | Stellar®TM12154 TireMan Owner’s Manual
Model TM12154 Manual Revisions
Date of Revision Section Revised Description of Revision
11/25/2019 specifications; dimensions; CRP hydraulic
kit; RP breakdown/BOM; CRP breakdown/
BOM
Operating, maintaining, and servicing a Stellar product may expose you
to chemicals including, but not limited to, engine exhaust, carbon monoxide, phthalates,
and lead. These chemicals are known to the State of California to cause cancer and birth
defects (or other reproductive harm). To keep your exposure to a minimum, be sure to
avoid breathing exhaust and service your Stellar product in a well-ventilated area while
wearing gloves or washing your hands frequently. For more information, go to
www.P65Warnings.ca.gov/passenger-vehicle.
WARNING

Stellar®TM12154 TireMan Owner’s Manual | Page iii
Table of Contents
Introduction.............................................................................................................................. iv
Model TM12154 Specifications................................................................................................ 1
TM12154 Dimensional Layout .................................................................................................. 2
General Installation .................................................................................................................. 3
Installer Notice........................................................................................................................ 3
Torque Data Chart................................................................................................................. 4
Hydraulic Installation ................................................................................................................ 5
Hydraulic Pressure Settings ...................................................................................................... 6
Face Seal/O-Ring Size Chart ................................................................................................... 6
RP Hydraulic Kit - PN 78017 ...................................................................................................... 7
CRP Hydraulic Kit - PN 105060 ................................................................................................. 8

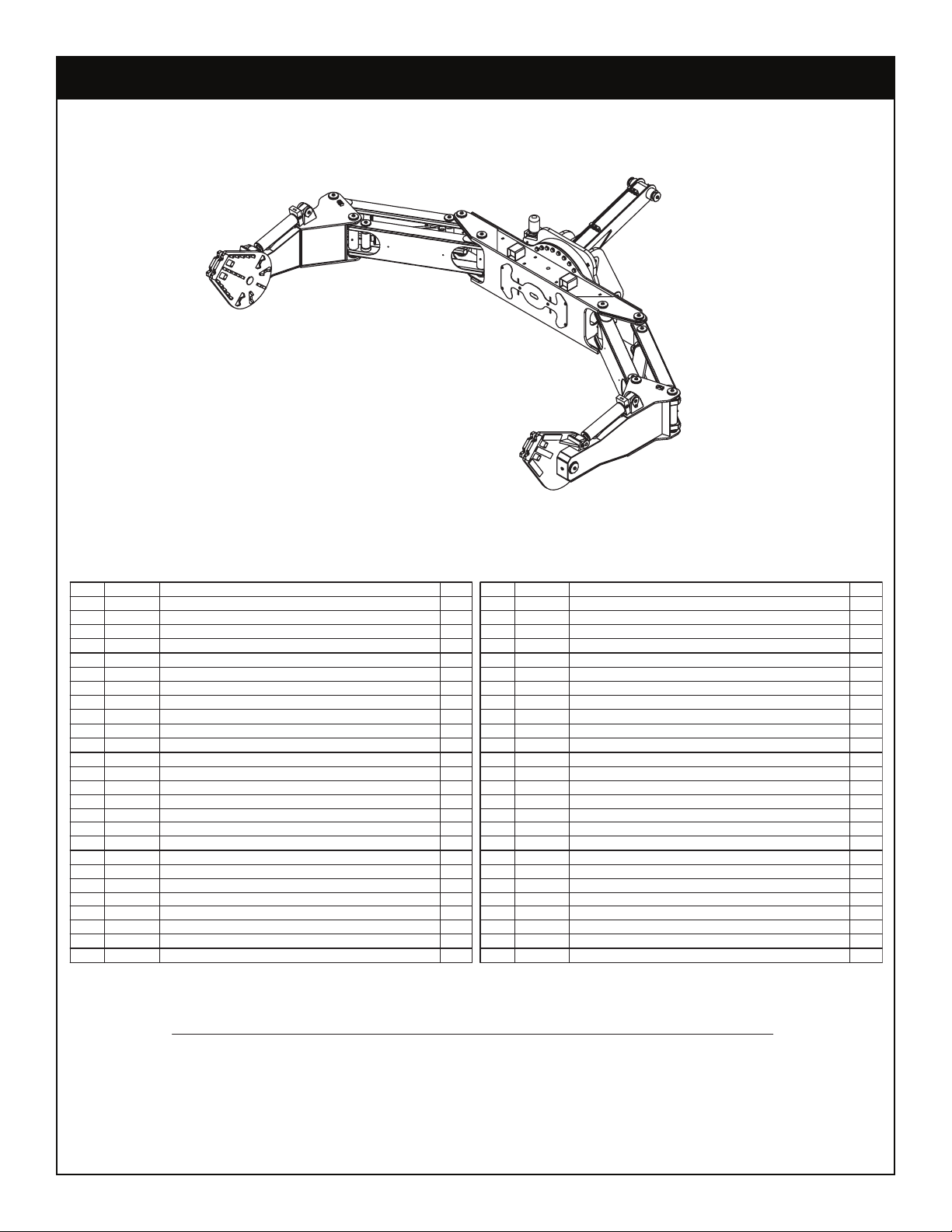

TM12154 RP Breakdown - PN 101535 ...................................................................................... 9
TM12154 RP Bill - PN 101535.................................................................................................... 10
TM12154 CRP Breakdown - PN 101534 ................................................................................. 11
TM12154 CRP Bill - PN 101534................................................................................................. 12
Decal Placement - PN 44525 ................................................................................................ 13

Page iv | Stellar®TM12154 TireMan Owner’s Manual
Introduction
A copy of this manual is provided with every tire manipulator and can be found in the hard
plastic manual case that is installed on the chassis. A copy of this manual shall remain with
the tire manipulator at all times.
Throughout the manual, three signal words will be used to bring attention to important
items:
A NOTICE signal word indicates a practice not related to physical injury.
A WARNING signal word indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
A DANGER signal word indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
Information contained within this manual does not cover operation, maintenance, or
troubleshooting. Please refer to the Large OTR Crane Manual for details on these items.
This manual is not binding. Stellar Industries, Inc. reserves the right to change, at any
time, any or all of the items, components, and parts deemed necessary for product
improvement or commercial/production purposes. This right is kept with no requirement or
obligation for immediate mandatory updating of this manual.
In closing:
If more information is required or technical assistance is needed, or if you feel that any
part of this manual is unclear or incorrect, please contact the Stellar Customer Service
WARNING
NOTICE
DANGER
For Technical Questions, Information, Parts, or Warranty, Call Toll-Free at
800-321-3741
Hours: Monday - Friday, 8:00 a.m. - 5:00 p.m. CST
Or email at the following addresses:

Stellar®TM12154 TireMan Owner’s Manual | Page 1
Model TM12154 Specifications
17’ (5.18m)
12,000 lbs (5443kg)
12000 LBS
(5443 KG)
MAXIMUM RATED LOAD
EXCEEDING MAXIMUM RATED LOAD WILL
DAMAGE EQUIPMENT AND VOID WARRANTY
Capacity: 12,000 lbs @ 17 ft (5,443 kg @ 5.18 m)
Clamping Span: Rotating Pads - 42.6” to 152.7” (108 cm to 388 cm)
C. Rotating Pads - 42.8” to 152.9” (109 cm to 388 cm)
Clamp Cylinders: 4” (10.16 cm) bore with pilot operated check valves
Tilt Cylinder: Provided by crane extension boom
Body Rotation: 315º power
Rotation System: Worm gear
Clamping Pad Rotation: 90° Rotating Pads - 89° power
Cont. Rotating Pads - Continuous 360º power
TireMan Tilt: +79º to -49º
Hydraulic Controls: Incorporated with the crane controls
Approximate Shipping Weight: 5,150 lbs (2,336 kg) RP Version
5,800 lbs (2,631 kg) CRP Version

Page 2 | Stellar®TM12154 TireMan Owner’s Manual
153"
43"
TM12154 Dimensional Layout

Stellar®TM12154 TireMan Owner’s Manual | Page 3
Installer Notice
According to Federal Law (49 cfr part 571), each final-stage manufacturer shall complete
the vehicle in such a manner that it conforms to the standards in effect on the date of
manufacture of the incomplete vehicle, the date of final completion, or a date between
those two dates. This requirement shall, however, be superseded by any conflicting
provisions of a standard that applies by its terms to vehicles manufactured in two or more
stages.
Therefore, the installer of Stellar®Cranes and Bodies is considered one of the manufacturers
of the vehicle. As such a manufacturer, the installer is responsible for compliance with all
applicable federal and state regulations. They are required to certify that the vehicle is in
compliance with the Federal Motor Vehicle Safety Standards and other regulations issued
under the National Traffic and Motor Vehicle Safety Act.
Please reference the Code of Federal Regulations, title 49 - Transportation, Volume 5 (400-
999), for further information, or visit http://www.gpoaccess.gov/nara/index.html for the full
text of Code of Federal Regulations.
General Installation
This chapter is designed to serve as a general guide for the installation of a Stellar TM12154
on a Stellar Service Crane. Each installation is considered unique so certain portions of this
chapter may or may not apply to your direct application. If a question should arise during
the installation process, please contact Stellar Customer Service at (800) 321 3741.
This crane is designed for use with a Stellar Service Crane installed on a vehicle that meets
the minimum chassis requirements of the crane. It is the installer’s responsibility to assure
that the unit is mounted on a platform that will support the maximum crane rating of this
crane.
Do not install this crane/manipulator on a body not capable of handling
the loads imposed on it. Failure to do so may result in serious injury or death.
WARNING

Page 4 | Stellar®TM12154 TireMan Owner’s Manual
When using the torque data in the
chart, the following rules should be
observed:
• Bolt manufacturer’s particular
specifications should be consulted
when provided.
• Flat washers of equal strength
must be used.
• All torque measurements are
given in foot-pounds. To convert
to inch-pounds, multiply by 12.
• Torque values specified are for
bolts with residual oils or no special
lubricants applied.
• Torque values for socket-head
capscrews are the same as for
Grade 8 capscrews.
• Do not use these values if a different torque value or tightening
procedure is given for a specific application. Torque values listed are for general use
only. Check tightness of fasteners periodically.
• Shear bolts are designed to fail under predetermined loads. Always replace shear bolts
with identical grade.
• Fasteners should be replaced with the same or higher grade. If higher grade fasteners
are used, these should only be tightened to the strength of the original.
• Tighten plastic insert or crimped steel-type lock nuts to approximately 110 percent of the
dry torque values shown in the chart below, applied to the nut, not to the bolt head.
Tighten toothed or serrated-type lock nuts to the full torque value. Note: “Lubricated”
means coated with a lubricant such as engine oil, or fasteners with phosphate and oil
coatings. “Dry” means plain or zinc plated without lubrication. Tighten lubricated bolts
to approximately 80% of dry bolts.
Size Bolt DIA Plain Plated Plain Plated Plated
(DIA-TPI) (Inches) (Ft-Lb) (Ft-Lb) (Ft-Lb) (Ft-Lb) (Ft-Lb)
5/16-18 0.3125 17 13 25 18 22
3/8-16 0.3750 31 23 44 33 39
7/16-14 0.4375 49 37 70 52 63
1/2-13 0.5000 75 57 105 80 96
9/16-12 0.5625 110 82 155 115 139
5/8-11 0.6250 150 115 220 160 192
3/4-10 0.7500 265 200 375 280 340
7/8-9 0.8750 395 295 605 455 549
1-8 1.000 590 445 910 680 823
1 1/8-7 1.1250 795 595 1290 965 1167
1 1/4-7 1.2500 1120 840 1815 1360 1646
1 3/8-6 1.3750 1470 1100 2380 1780 2158
1 1/2-6 1.500 1950 1460 3160 2370 2865
GRADE 5 GRADE 8 GRADE 9
Torque Data Chart
NOTICE

Stellar®TM12154 TireMan Owner’s Manual | Page 5
Hydraulic Installation
Never modify or alter any of the equipment, whether mechanical, electrical, or hydraulic,
without Stellar Industries’ approval.
Do not touch or grab any hoses that could be under pressure. Release
system pressure before attempting to make adjustments or repairs.
Do not attempt service or repair when PTO is engaged.
Disassemble and assemble hydraulic components on a clean surface.
Clean all metal parts in a nonflammable cleaning fluid. Then lubricate all components to
aid in assembly.
Hydraulic fluid expands when heated. This raises the pressure in an
unventilated tank. Release the tank pressure before removing the cap completely. Failure
to do so may cause the oil to shoot out of the tank very rapidly and cause severe burns.
Do not rely on the hydraulic fluid to support the boom or crane. If
hydraulic fluid escapes, the boom or crane can fall immediately. Make sure the ground or
blocking is supporting the boom before performing any maintenance or repair.
Contaminants in a hydraulic system affect operation and will result in
serious damage to the system components. Dirty hydraulic systems are a major cause of
component failures.
If evidence of foreign particles is found in the hydraulic system, flush the system.
When installing metal hydraulic tubes, tighten all fittings finger tight. Then , in order, tighten
the fittings at the rigid end, the adjustable end, and the mounting brackets. After tubes
are mounted, install the hoses. Connect both ends of the hose with all fittings finger tight.
Position the hose so it does not rub the machine or another hose and has a minimum of
bending and twisting. Tighten fittings in both couplings.
Due to manufacturing methods, there is a natural curvature to a hydralic hose. The hose
should be installed so any bend is with this curvature.
WARNING
WARNING
WARNING
NOTICE

Page 6 | Stellar®TM12154 TireMan Owner’s Manual
Hydraulic Pressure Settings
Main Relief 4600 psi
Pressure (psi)
Function Flow (gpm) Extend Retract
Inner 10.6 4400 2200
Outer 10.6 4400 2200
Extension 10.6 4400 4400
Rotation 10.6 2200 2200
TM Rot 6.6 2200 2200
TM Pad Rot 6.6 2500 2500
TM Clamp 6.6 4200 4200
Face Seal (A)
Stellar®PN
Hose
Size
Fitting
Size Stellar®PN
O-ring Boss (B)
#4 C2027 D1245
#6 C2028 D1246
#8 C2029 D1247
#10 32223 D1248
#12 D1244 D1249
#161”
3/4”
5/8”
1/2”
3/8”
1/4”
D1250
B
A
Face Seal/O-Ring Size Chart

Stellar®TM12154 TireMan Owner’s Manual | Page 7

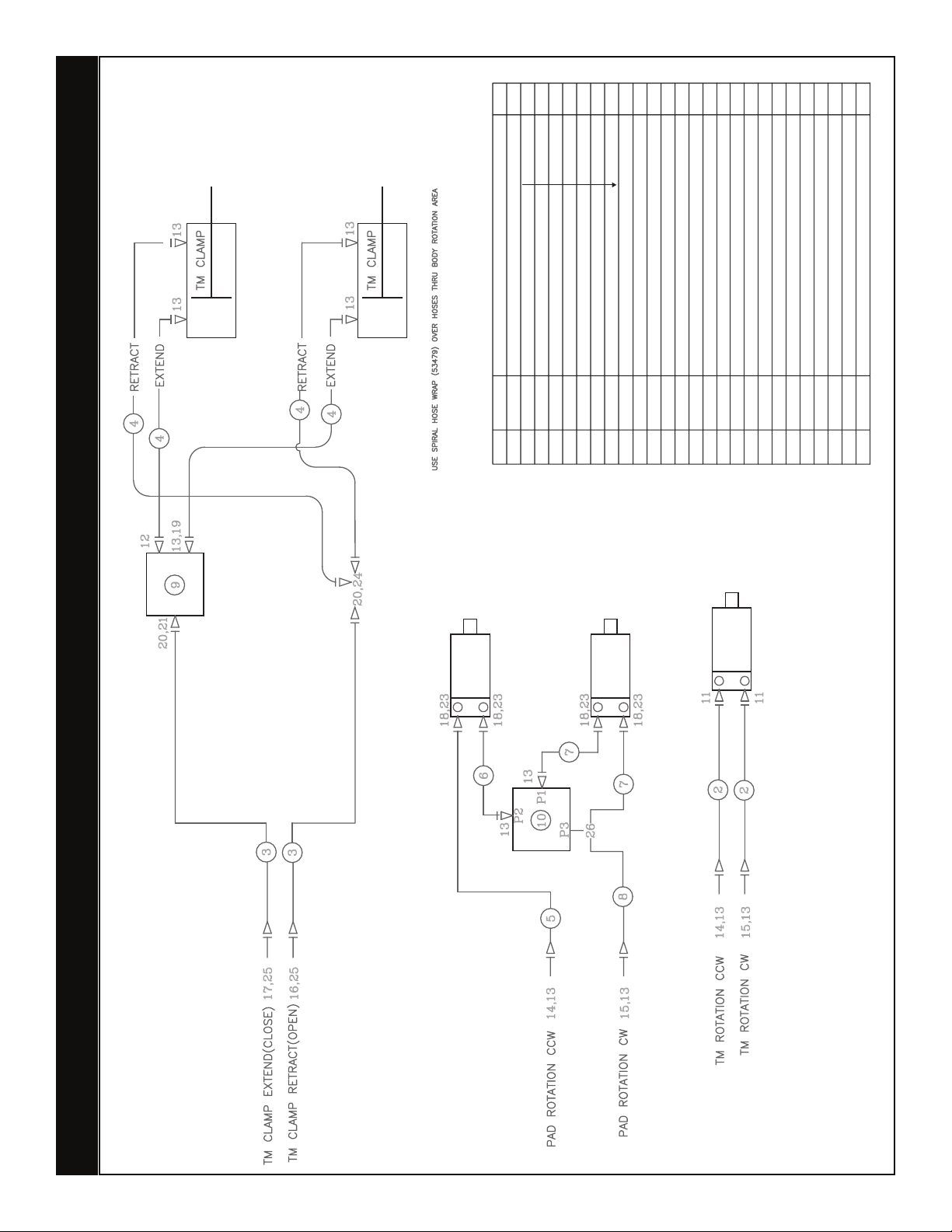

RP Hydraulic Kit - PN 78017
PN 78017

Page 8 | Stellar®TM12154 TireMan Owner’s Manual
CRP Hydraulic Kit - PN 105060
PN 105060
1105061 1HOSE KIT, TM12154 V3 CONT RP (incl: 2-8)
471050 4refHOSE-HYD, 0.38 X 60
371052 2refHOSE-HYD, 0.38 X 81
271051 2refHOSE-HYD, 0.38 X 76
585509 1refHOSE-HYD, 0.38 X 248
6105064 1refHOSE-HYD, 0.38 X 153
7105348 2refHOSE-HYD, 0.38 X 153
8105347 1refHOSE-HYD, 0.38 X 95
10 105063 1VAVLE SOLND 2 POS 3 WAY SV10-34-8T-N-12DR
935111 1VALVE COMB DIV FD50-44-6T-N-44
11 D1302 2FTG 6-10 MFS-MAORB 90
12 C0338 1FTG 6-6 MFS-MAORB 90
13 0279 11FTG 6-6 MFS-MORB STRAIGHT
14 13554 2QUICK CPLR FFH04-38-SAE-F
15 13555 2QUICK CPLR FFH04-38-SAE-M
18 D1193 4FTG 6-6 MFS-MOARB 45
17 13557 1QUICK CPLR FFH06-12SAE-M
16 13556 1QUICK CPLR FFH06-12SAE-F
19 C2248 1FTG 6-6 MFS-FFSS 90
20 12171 2FTG 6-6 MFS-MFS SWIVEL STRAIGHT
21 33743 1FTG 6-6 FFSS-MORB STRAIGHT
22 53479 4LOOM 1.00 SPIRAL WRAP POLYETHYLENE
24 D0107 1FTG 6-6-6 MFS-MFS-FFSS BRANCH TEE
23 C1111 4FTG 10-6 MORB-FORB STRAIGHT REDUCER
25 C1854 2FTG 6-8 MFS-MORB STRAIGHT
26 C2345 1FTG 6-6-6 MFS-MFS-MAORB TEE
ITEM PART No
.Q
TY.DESCRIPTION

Stellar®TM12154 TireMan Owner’s Manual | Page 9
TM12154 RP Breakdown - PN 101535
50
1
17
6
3
6
5
4
33
34
8
9
29
52
10
5
22
21
15
22
21
35
15
16
22
21
6
16
18
3
30
24
26
25
20
23
15
13
20
23
25
27
12
14
36
21
22
22
21
6
14
20
19
37
14
14 6
21 22
39
39
11
38
31
32
28
MOTOR GASKET SHOWN FOR REFERENCE
GEARBOX REPLACEMENT KIT 39969
47
BUSHINGS INCLUDED IN 77627
2
CYLINDER BUSHINGS 4381
28
28
32
20
27
25
23
20
21 43
41
22
621
22
22
21
42
22 21 44
20
541
40
48
49
45
20
C-BALANCE VALVE C6184
CYLINDER SEAL KIT 19182
7
46
ROUTE HARNESS WITH HOSE THRU SPIRAL WRAP

Page 10 | Stellar®TM12154 TireMan Owner’s Manual
TM12154 RP Bill - PN 101535
FLOW DIVIDER & MOTOR GASKET SHOWN FOR REFERENCE
PN 101535
1101543 1BODY TM12154 V4
477855 1ARM TM12154 V3 CS
377178 4LINK TM12154 V3 INSIDE
20220 4CAP SCR 0.25-20X1.50 HHGR5
5C1592 12ZERK 1/8 NPT STRAIGHT
68377 29PIN CAP 0.56X3.50X0.19 YZ
77623 8CLAMP 1.00 RUBBER
822258 1TURNTABLE BEARING 450-05110-1
10 5311 1MOTOR HYD ROSS MG140611AAAB
977227 1BASE TM12154 V3
11 78431 2LIGHT FLOOD LED 3.2X2.9 850LM 16W 10-30V
12 100625 1LINK TM12154 V4
13 101592 1PLATE COVER BODY TM12154 V4
14 5739 4BUSHING BPC40DXR48 2.50X3.00
15 4381 32BUSHING BPC32DXR32 2.00X2.00
18 9719CR 4PIN 2.00X17.75 D&T ZC
17 77557CR 4PIN 2.00X18.75 D&T ZC
16 4380 16BUSHING BPC32DXR24 2.00X1.50
19 C0929 4CAP SCR 0.31-18X2.75 HHGR5
20 0343 22WASHER 0.31 USS FLAT
ITEM PART No. QTY.DESCRIPTION
27 17149 46CAP SCR 0.75-10X4.50 HHGR9
30 77627 2CYLINDER 4.00X17.88
29 6537 1GEAR BOX 015-00120-1
28 0340 16WASHER 0.25 USS FLAT
31 0481 4CAP SCR 0.25-20X2.00 HHGR5
32 0333 8NUT 0.25-20 HHGR5 NYLOC
33 22272 1GUARD TTB TM14160B PC BLACK
34 22268 1GEAR GUARD TM14160B PC BLACK
36 41681CR 2PIN TEAR DROP 2.50X16.13 ZC
35 17971CR 4PIN 2.00X13.75 D&T ZC
37 101537CR 1PIN TEAR DROP 2.50X12.81 ZC
38 70964 4CLAMP 3 HOSE 0.38 HYD 28000
39 C1597 2ZERK 1/8 NPT 90 DEG
40 77558 1ARM TM12154 V3 SS
41 0865 4BUSHING BPC48DXR32 3.00X2.00
44 13315 2PIN CAP 0.56X4.00X0.19 YZ
43 41632CR 2PIN TEAR DROP 2.00X3.88 ZC
42 41634CR 2PIN TEAR DROP 2.00X5.50 ZC
45 0488 2CAP SCR 0.31-18X2.00 HHGR5
46 0342 2NUT 0.31-18 HHGR5 NYLOC
21 D0790 38WASHER 0.50 SAE FLAT YELLOW GR8
24 D1307 2CAP SCR 0.50-13X1.25 SH
23 0420 12CAP SCR 0.31-18X0.75 HHGR5
22 10172 38CAP SCR 0.50-13X1.00 HHGR8
25 17150 50WASHER 0.75 SAE FLAT YELLOW GR9
26 11298 4CAP SCR 0.75-10X3.50 SH
47 8621 2CLAMP HOSE/TUBE AG-3
50 41567 2CYLINDER 3.50X13.25
49 64158 1PAD TM12154 CS V2
48 64155 1PAD TM12154 SS V2
51 35111 2VALVE COMB DIV FD10-44-6T-N-44
52 21151 1GASKET MOTOR 008-10056-1
ITEM PART No. QTY.DESCRIPTION
NOT SHOWN:
21409 (1) WIRE HARNESS FLOOD LIGHT TM14160 22161 (1) FTG 2-2 FP-FP COUPLER STRAIGHT BRASS
44525 (1) DECAL KIT TM12154 56589 (1) ZERK 1/8 NPT STRAIGHT LONG THREAD
78017(1) HYD KIT TM12154 V3 90 DEG 9752 (2) CONNECT 2 PIN SHROUD PACKARD
D0240 (1) FTG 4-2 CPRSN-MP 90 9756 (4) CONTACT M TERM SHROUD 18-20
D1810 (0.67 FT) TBE AIR SAEJ844 TYPE A .25 (RM) 8384 (4) CABLE SEAL 18-20 PACKARD 39000
D1345 (1) FTG 4-2 CPRSN-MP STRAIGHT 90383 (1) MANUAL TM12154

Stellar®TM12154 TireMan Owner’s Manual | Page 11
TM12154 CRP Breakdown - PN 101534
ROUTE HARNESS WITH HOSE THRU SPIRAL WRAP
29
1
23
6
3
6
5
4
42
43
8
9
37
50
10
5
14
11
28
27
21
28
27
44
21
22
28
27
6
22
24
3
35 34
47
13
34
41
38
30
32
31
26
29
519
18
17
21
16
26
29
31
33
15
20
45
27 28
28
27
620
26
25
46
20
20 6
27 28
49
49
4
12
48
39
40
36
MOTOR GASKET SHOWN FOR REFERENCE
GEARBOX REPLACEMENT KIT 39969
31
BUSHINGS INCLUDED IN 77627
2
CYLINDER BUSHINGS 4381
36
36
40
26
33
C-BALANCE VALVE C6184
CYLINDER SEAL KIT 19182
7
26

Page 12 | Stellar®TM12154 TireMan Owner’s Manual
TM12154 CRP Bill - PN 101534
PN 101534
1101543 1BODY TM12154 V4
477221 2ARM TM12154 V3 CONT ROT PADS
377178 4LINK TM12154 V3 INSIDE
20220 4CAP SCR 0.25-20X1.50 HHGR5
5C1592 12ZERK 1/8 NPT STRAIGHT
68377 27PIN CAP 0.56X3.50X0.19 YZ
77623 8CLAMP 1.00 RUBBER
822258 1TURNTABLE BEARING 450-05110-1
10 5311 1MOTOR HYD ROSS MG140611AAAB
977227 1BASE TM12154 V3
11 77226 2PAD TM12154 V3
12 78431 2LIGHT FLOOD LED 3.2X2.9 850LM 16W 10-30V
13 69742 2BEARING SWING DRIVE 14 IN ENCLSD KINEMATICS
14 22275 2MOTOR HYD EATON 101-3454
15 100625 1LINK TM12154 V4
18 C2250 2FTG 2-2X1.50 MP-MP NIPPLE STRAIGHT BLK
17 C2239 2FTG 2-2 MP-FP STREET ELBOW 90
16 101592 1PLATE COVER BODY TM12154 V4
19 C2256 2FTG CPLR PIPE 0.13
20 5739 4BUSHING BPC40DXR48 2.50X3.00
ITEM PART No. QTY.DESCRIPTION
27 D0790 30WASHER 0.50 SAE FLAT YELLOW GR8
30 D1307 2CAP SCR 0.50-13X1.25 SH
29 0420 12CAP SCR 0.31-18X0.75 HHGR5
28 10172 30CAP SCR 0.50-13X1.00 HHGR8
31 17150 50WASHER 0.75 SAE FLAT YELLOW GR9
32 11298 4CAP SCR 0.75-10X3.50 SH
33 17149 46CAP SCR 0.75-10X4.50 HHGR9
34 C5902 82WASHER 0.63 SAE FLAT YELLOW GR8
36 0340 16WASHER 0.25 USS FLAT
35 D1312 46CAP SCR 0.63-11X3.50 HHGR8
37 6537 1GEAR BOX 015-00120-1
38 77627 2CYLINDER 4.00X17.88
39 0481 4CAP SCR 0.25-20X2.00 HHGR5
40 0333 8NUT 0.25-20 HHGR5 NYLOC
41 77555 36CAP SCR 0.63-11X4.00 HHGR8 W/RED PATCH
44 17971CR 4PIN 2.00X13.75 D&T ZC
43 22268 1GEAR GUARD TM14160B PC BLACK
42 22272 1GUARD TTB TM14160B PC BLACK
45 41681CR 2PIN TEAR DROP 2.50X16.13 ZC
46 101537CR 1PIN TEAR DROP 2.50X12.81 ZC
21 4381 32BUSHING BPC32DXR32 2.00X2.00
24 9719CR 4PIN 2.00X17.75 D&T ZC
23 77557CR 4PIN 2.00X18.75 D&T ZC
22 4380 16BUSHING BPC32DXR24 2.00X1.50
25 C0929 4CAP SCR 0.31-18X2.75 HHGR5
26 0343 18WASHER 0.31 USS FLAT
47 62484 4CAP SCR 12MMX40MM SH
50 21151 3GASKET MOTOR 008-10056-1
49 C1597 2ZERK 1/8 NPT 90 DEG
48 70964 4CLAMP 3 HOSE 0.38 HYD 28000
51 35111 1VALVE COMB DIV FD10-44-6T-N-44
52 105063 1VALVE SOLND 2 POS 3 WAY SV10-34-8T-N-12DR
ITEM PART No. QTY.DESCRIPTION
VALVES AND MOTOR GASKETS SHOWN FOR REFERENCE
NOT SHOWN:
106349 (1) WIRE HRNS EXT 7FT 2P WP TO DT
21409 (1) WIRE HARNESS FLOOD LIGHT TM14160 22161 (1) FTG 2-2 FP-FP COUPLER STRAIGHT BRASS
44525 (1) DECAL KIT TM12154
56589 (1) ZERK 1/8 NPT STRAIGHT LONG THREAD
105060 (1) HYD KIT TM12154 V4 CONT ROT PADS
9752 (2) CONNECT 2 PIN SHROUD PACKARD
D0240 (1) FTG 4-2 CPRSN-MP 90
9756 (4) CONTACT M TERM SHROUD 18-20
D1810 (0.67 FT) TBE AIR SAEJ844 TYPE A .25 (RM)
8384 (4) CABLE SEAL 18-20 PACKARD 39000
D1345 (1) FTG 4-2 CPRSN-MP STRAIGHT
90383 (1) MANUAL TM12154

Stellar®TM12154 TireMan Owner’s Manual | Page 13
Decal Placement - PN 44525
1.)Lubricate bearing and pinion teeth with Molub-Alloy 936SF.
2.)Lubricate inner race and pin with EP2 (extreme pressure grease).
3.)Check gearbox oil level monthly (Traxon80W-90).
4.)Visually inspect bolts for tightness. Check torque if necessary.
Boltsoninner and outer race should be torqued to 340 ft-lbs.
Inspect Rotation Bearing Monthly
22617
1.)Lubricate bearing and pinion teeth with Molub-Alloy 936SF.
2.)Lubricate inner race and pin with EP2 (extreme pressure grease).
3.)Check gearbox oil level monthly (Traxon80W-90).
4.)Visually inspect bolts for tightness. Check torque if necessary.
Boltsoninner and outer race should be torqued to 340 ft-lbs.
Inspect Rotation Bearing Monthly
22617
Grease Weekly
22618
Grease bearing with EP2
(Extreme Pressure Grease)
while rotating the bearing.
Grease Weekly
22618
Grease bearing with EP2
(Extreme Pressure Grease)
while rotating the bearing.
12000 LBS
(5443 KG)
MAXIMUM RATED LOAD
EXCEEDINGMAXIMUM RATED LOAD WILL
DAMAGEEQUIPMENT AND VOID WARRANTY
43475
12000 LBS
(5443 KG)
MAXIMUM RATED LOAD
EXCEEDINGMAXIMUM RATED LOAD WILL
DAMAGEEQUIPMENT AND VOID WARRANTY
43475
STELLAR TM12154
43474
CAPACITY
CHART
17’(5.18m)
12,000lbs(5443kg)
1
21
3
44
5
5
6
6
2
PN 44525
(Rev B - 10/26/15)
Added 22618
Removed 54589
ITEM PN DESCRIPTION LOCATION QTY
1 22617 DECAL ROTATION BEARING Rotation Bearing Base - Both Sides 2
2 22618 DECAL GREASE WEEKLY TireMan Arms - Both Sides 2
3 43474 DECAL CAPACITY CHART Front Stabilizer Leg - Both Sides 2
4 43475 DECAL RATED LOAD TIreMan Link - Both Sides 2
5 52681 DECAL STELLAR LOGO 6.00X16.50 TireMan Arms - Both Sides 2
6 54600 DECAL TM12154 INDENTIFICATION TireMan Arms - Both Sides 2



Subject to Change without Notification.
© 2020 Stellar Industries, Inc.
Other manuals for TireMan 12154
2
Table of contents
Other stellar labs Service Equipment manuals
Popular Service Equipment manuals by other brands

Butler
Butler NAV41.11N instruction manual

HENNESSY INDUSTRIES
HENNESSY INDUSTRIES Coats H.I.T. 5000H2 instruction manual

Xtreme Power
Xtreme Power 71097 Owner's manual and safety instructions

Davco
Davco SHOP PRO FXP Technical manual

Bend-Pak
Bend-Pak R76LT Technical service bulletin

MSW Motor Technics
MSW Motor Technics MSW-CB-2000 user manual
