Stenner 45MHP2 User manual

Classic Series
INSTALLATION MANUAL
Metering Pumps
Manufactured Since 1957

www.stenner.com2
Table of Contents
Warranty and Service Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Pump Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15
Materials of Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
AccessoryChecklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-26
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27-30
Tube Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-35
Motor – exploded view and parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36-38
Feed Rate Control – exploded view and parts . . . . . . . . . . . . . . . . . . . . . . . . . . 39-40
Pump Head – exploded view and parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41-44
Pump Tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Check Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

US and Canada call 1-800-683-2378, other countries call 1-904-641-1666 3
Damaged or Lost Shipments
UPS and prepaid truck shipments: Check your order
immediately upon arrival. All damage must be noted on
the delivery receipt. Call Stenner Customer Service at
800-683-2378 for all shortages and damages within
seven (7) days of receipt.
Returns
Stenner offers a 30-day return policy on factory direct
purchases. Except as otherwise provided, no material
will be accepted for return after 30 days from purchase.
To return merchandise at any time, call Stenner at 800-
683-2378 for a Returned Goods Authorization (RGA)
number. A 15% re-stocking fee will be applied. Include
acopy of your invoice or packing slip with your return.
Limited Warranty
G. H. Stenner & Co., Inc. will for a period of one (1)
year from the date of purchase (proof of purchase
required) repair or replace – at our option – all defective
parts. G. H. Stenner & Co., Inc. is not responsible for
any removal or installation costs. Pump tube assemblies
and rubber components are considered perishable and
are not covered in this warranty. Pump tube will be
replaced each time a pump is in for service, unless
otherwise specified. The cost of the pump tube
replacement will be the responsibility of the customer.
G. H. Stenner & Co., Inc. will incur shipping costs for
warranty products shipped from our factory in
Jacksonville, Florida. Any tampering with major
components, chemical damage, faulty wiring, weather
conditions, water damage, power surges, or products
not used with reasonable careand maintained in
accordance with the instructions will void the warranty.
G. H. Stenner & Co., Inc. limits its liability solely to the
cost of the original product. We make no other
warranty expressed or implied.
Disclaimer
The information contained in this manual is not
intended for specific application purposes. G. H.
Stenner & Co., Inc. reserves the right to make changes
to prices, products, and specifications at any time
without prior notice.
Warranty and Service Policy

www.stenner.com4
Safety Information
ELECTRIC SHOCK HAZARD: Pump
supplied with grounding power cord and attached plug.
To reduce risk of electrical shock, connect only to a properly
grounded, grounding type receptacle.
RISQUE DE CHOC ELECTRIQUE:
Cette pompe est équipée d’une fiche de mise à terre. Pour
réduirele risque de choc électrique, s’assurer que la fiche est
bien raccordée à une prise de courant avec une connexion de
mise à terre.
DO NOT alter the power cord or plug end.
DO NOT use receptacle adapters.
DO NOT use pump with a damaged or altered power
cord or plug. Contact the factory or an authorized service facility
for repair.
HAZARDOUS VOLTAGE:
DISCONNECT power cord before removing motor cover for
service. Electrical service by trained personnel only.
EXPLOSION HAZARD:
This pump is not explosion proof. Do Not install or operate in
an explosive environment.
RISK OF CHEMICAL EXPOSURE:
Potential for chemical burns, fire, explosion, personal injury, or
property damage. To reduce risk of exposure, the use of proper
personal protective equipment is mandatory.
RISK OF FIRE HAZARD:
Do Not install or operate on any flammable surface.
RISK OF CHEMICAL OVERDOSE:
To reduce risk, follow proper installation methods and
recommendations. Check your local codes for additional
guidelines.
AVERTISSEMENT
Warns about hazards
that CAN cause death, serious personal injury,
or property damage if ignored.
ELECTRIC SHOCK HAZARD

US and Canada call 1-800-683-2378, other countries call 1-904-641-1666 5
Safety Information continued
Warns about hazards that WILL or CAN
cause minor personal injury or property damage if ignored.
PLUMBING:
NOTICE: Indicates special instructions or general
mandatory action.
NOTICE: This metering pump is portable and designed
to be removable from the plumbing system without
damage to the connections.
NOTICE: This metering pump and its components
have been tested for use with the following chemicals:
Sodium Hypochlorite (10-15%), Muriatic Acid (20-22
Baume, 31.5% Hcl), and Soda Ash.
NOTE: Cette a pompe de dosage et ses composants ont
été testés pour utilisation avec les produits chimiques
suivants; Hypochlorite de Sodium (solution de 10-15%);
Acide Muriatique (20-22 Baume, 31.5% Hcl); Cendre
de Soude.
This is the safety alert symbol. When displayed in
this manual or on the equipment, look for one of the
following signal words alerting you to the potential for
personal injury or property damage.

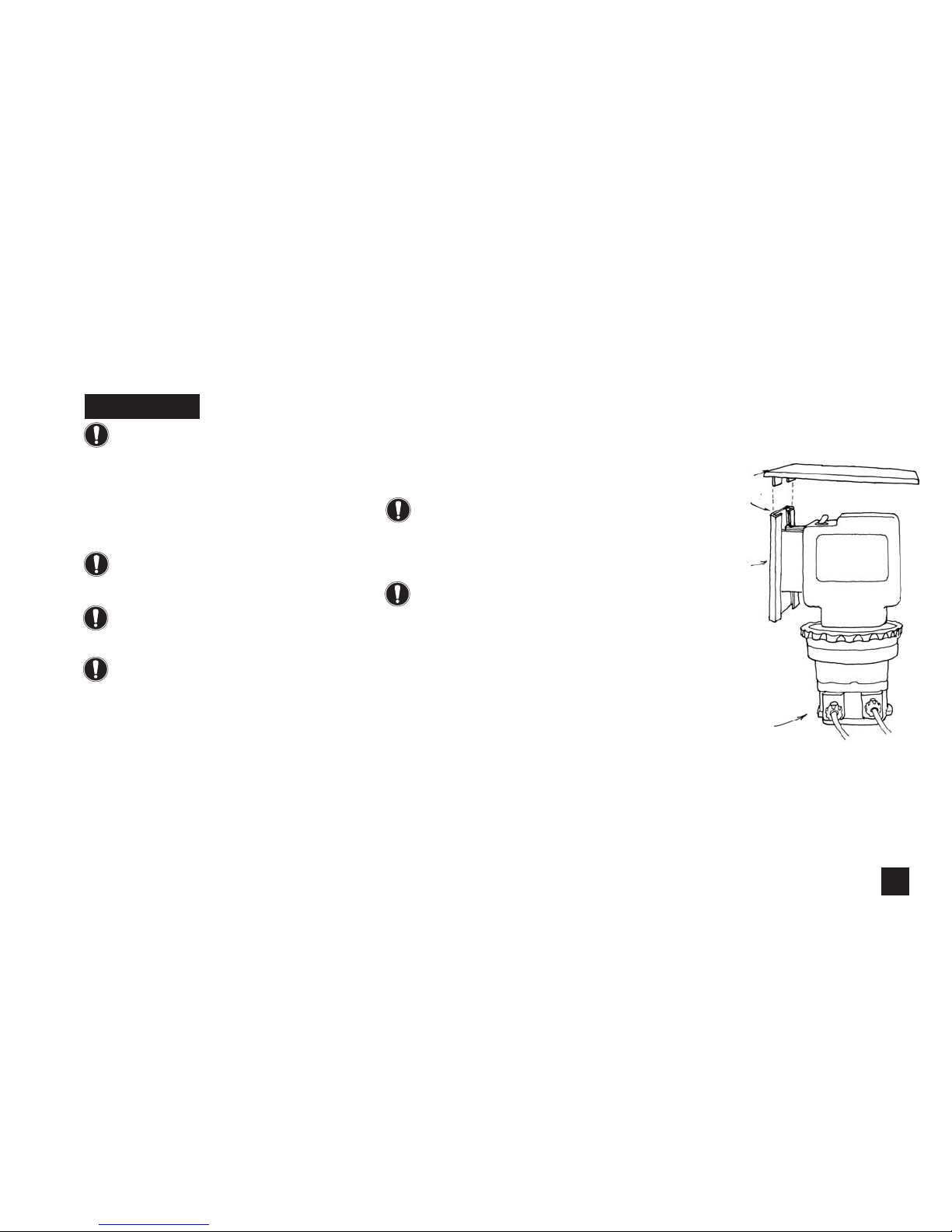

PUMP SUITABLE FOR USE OUTDOORS when installed
with a Stenner Rain Roof Part No. MP90000.
Electrical installation should adhere to all national and local
codes. Consult a licensed professional for assistance with proper
electrical installation.
Removing power from pool/spa recirculation pump must
also remove power from pump.
The use of an auxiliarysafety device (not supplied), such as
aflow switch or sensor,is recommended to prevent feed pump
operation in the event of a recirculation pump failureor if flow
is not sensed.
Point of chemical injection should be beyond all pumps,
filters, and heaters.
PUMP INTENDED FOR INDOOR USE.
Cette pompe est prévue pour utilisation à l’intérieur.
Chemical feed pump installation must always adhere to your
local plumbing codes and requirements. Be sure installation does
not constitute a cross connection. Check local plumbing codes
for guidelines.

www.stenner.com6
Pump Identification
Model
Serial Number
Maximum Output per Day
Suction/Discharge Tubing
Item Number for
Placing Order
Voltage
Identify your pump using the label on the box or the pump.
85MHP5
02010503943
120
5/18.9 Adjustable
5/18.9 Ajustable
100/6.9
1/4" White
1/4" Blanco
85MJH1A1STAA
Box Label
5/18.9
Maximum Operating Pressure

US and Canada call 1-800-683-2378, other countries call 1-904-641-1666 7
Pump Identification continued
Item Number for
Placing Order
Voltage
Maximum Output per Day
85MHP5 85MJH1A1STAA
100 psi / 6.9 bar 120VAC / 60Hz
1.7 amp 5GPD / 18.9 LPD
02010503943

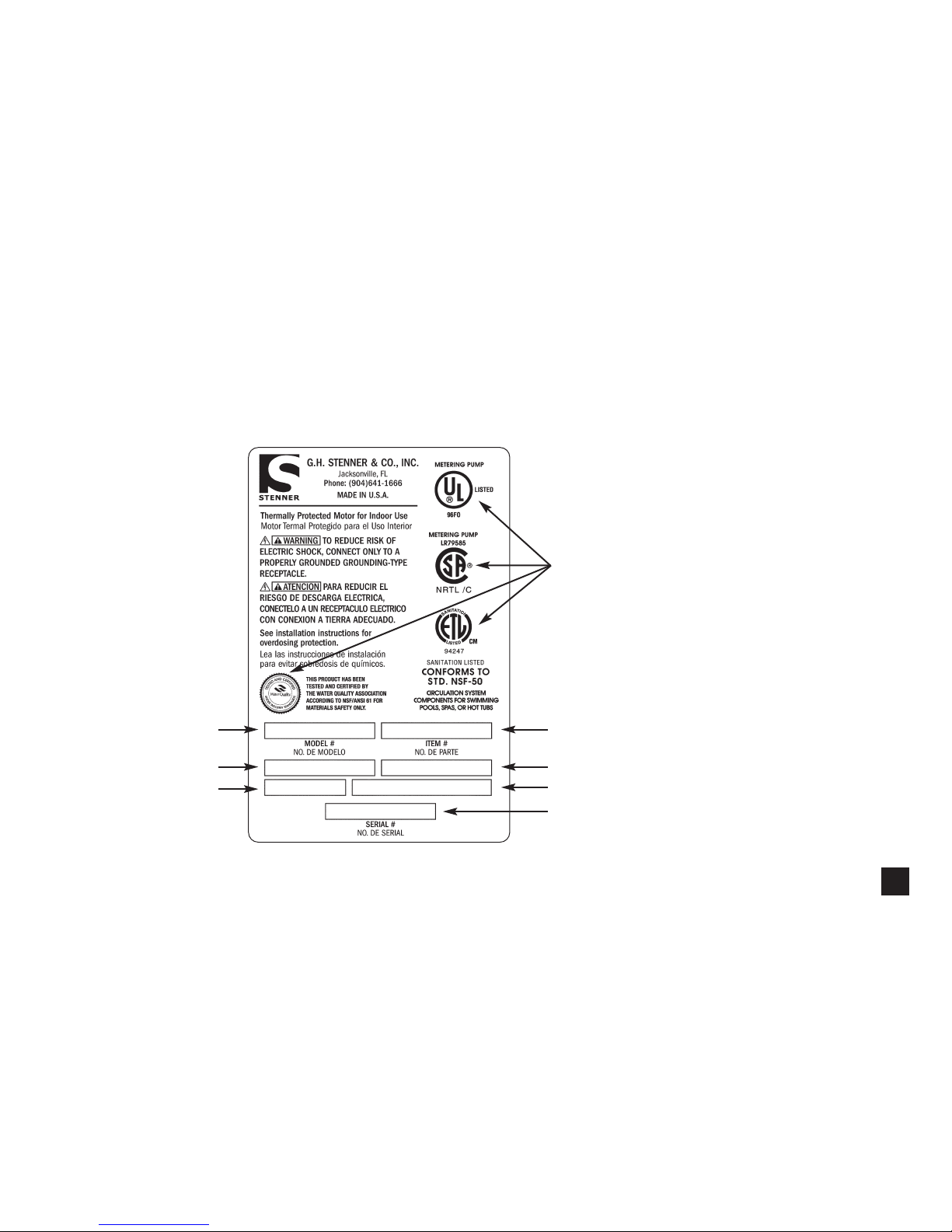

Pump Label
Model
Maximum Pressure
Agency Listings
(varies by model)
Serial Number
Amp Draw

www.stenner.com8
Outputs 45 series
Single Head Maximum Pump Tube gallons liters gallons liters ounces milliliters liters liters milliliters
Model Pressure Number per day per day per hour per hour per minute per minute per day per hour per minute
Adjustable
45MHP2* 100 psi / 6.9 bar #1 0.2 to 3.0 0.8 to 11.4 0.01 to 0.13 0.03 to 0.48 0.02 to 0.27 0.56 to 7.92 0.6 to 9.1 0.03 to 0.38 0.42 to 6.32
45M1 25 psi / 1.7 bar #1
Fixed Output
45MPHP2* 100 psi / 6.9 bar 3.0 11.4 0.13 0.48 0.27 7.92 9.1 0.38 6.32
45MP1 25 psi / 1.7 bar
Adjustable
45MHP10* 100 psi / 6.9 bar #2 0.5 to 10.0 1.9 to 37.9 0.02 to 0.42 0.08 to 1.58 0.04 to 0.89 1.32 to 26.32 1.5 to 30.3 0.06 to 1.26 1.04 to 21.04
45M2 25 psi / 1.7 bar #2
Fixed Output
45MPHP10* 100 psi / 6.9 bar 10.0 37.9 0.42 1.58 0.89 26.32 30.3 1.26 21.04
45MP2 25 psi / 1.7 bar
Adjustable
45MHP22* 100 psi / 6.9 bar #7 1.1 to 22.0 4.2 to 83.3 0.05 to 0.92 0.18 to 3.47 0.10 to 1.96 2.92 to 57.85 3.3 to 66.6 0.14 to 2.78 2.29 to 46.25
45M3 25 psi / 1.7 bar #3
Fixed Output
45MPHP22* 100 psi / 6.9 bar #7 22.0 83.3 0.92 3.47 1.96 57.85 66.6 2.78 46.25
45MP3 25 psi / 1.7 bar #3
Adjustable
45M4 25 psi / 1.7 bar #4 1.7 to 35.0 6.4 to 132.5 0.07 to 1.46 0.27 to 5.52 0.15 to 3.11 4.44 to 92.01 5.1 to 106.0 0.21 to 4.42 3.54 to 73.61
Fixed Output
45MP4 25 psi / 1.7 bar 35.0 132.5 1.46 5.52 3.11 92.01 106.0 4.42 73.61
Adjustable
45M5 25 psi / 1.7 bar #5 2.5 to 50.0 9.5 to 189.3 0.10 to 2.08 0.40 to 7.89 0.22 to 4.44 6.60 to 131.46 7.6 to 151.4 0.32 to 6.31 5.28 to 105.14
Fixed Output
45MP5 25 psi / 1.7 bar 50.0 189.3 2.08 7.89 4.44 131.43 151.4 6.31 105.14
Approx. Outputs @ 60 Hz Approx. Outputs @ 50 Hz
#1
#2
#4
#5
NOTICE: The information within this chart is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment.
Many variables can affect the output of the pump. G. H. Stenner & Co., Inc. recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs.
*pump supplied with injection check valve for 26-100 psi applications
The dial ring for adjustable pumps is marked L-10; L=5%, 1-10 indicates
10% increments of maximum output. (20:1 Turndown Ratio)

US and Canada call 1-800-683-2378, other countries call 1-904-641-1666 9
Single Head Maximum Pump Tube gallons liters gallons liters ounces milliliters liters liters milliliters
Model Pressure Number per day per day per hour per hour per minute per minute per day per hour per minute
Adjustable
85MHP5* 100 psi / 6.9 bar #1 0.3 to 5.0 1.1 to 18.9 0.01 to 0.21 0.05 to 0.79 0.03 to 0.44 0.76 to 13.13 0.9 to 15.1 0.4 to 0.63 0.63 to 10.49
85M1 25 psi / 1.7 bar #1
Fixed Output
85MPHP5* 100 psi / 6.9 bar 5.0 18.9 0.21 0.79 0.44 13.13 15.1 0.63 10.49
85MP1 25 psi / 1.7 bar
Adjustable
85MHP17 100 psi / 6.9 bar #2 0.8 to 17.0 3.0 to 64.4 0.03 to 0.71 0.13 to 2.68 0.07 to 1.51 2.08 to 44.65 2.4 to 51.5 0.10 to 2.15 1.67 to 35.76
85M2 25 psi / 1.7 bar #2
Fixed Output
85MPHP17* 100 psi / 6.9 bar 17.0 64.4 0.71 2.68 1.51 44.65 51.5 2.15 35.76
85MP2 25 psi / 1.7 bar
Adjustable
85MHP40 100 psi / 6.9 bar #7 2.0 to 40.0 7.6 to 151.4 0.08 to 1.67 0.32 to 6.31 0.18 to 3.55 5.27 to 105.14 6.1 to 121.1 0.25 to 5.05 4.24 to 84.10
85M3 25 psi / 1.7 bar #3
Fixed Output
85MPHP40* 100 psi / 6.9 bar #7 40 151.4 1.67 6.31 3.55 105.14 121.1 5.05 84.10
85MP3 25 psi / 1.7 bar #3
Adjustable
85M4 25 psi / 1.7 bar #4 3.0 to 60.0 11.4 to 227.1 0.13 to 2.5 0.48 to 9.46 0.27 to 5.33 7.92 to 157.71 9.1 to 181.7 0.38 to 7.57 6.32 to 126.18
Fixed Output
85MP4 25 psi / 1.7 bar 60.0 227.1 2.50 9.46 5.33 157.71 181.7 7.57 126.18
Adjustable
85M5 25 psi / 1.7 bar #5 4.3 to 85.0 16.3 to 321.8 0.18 to 3.54 0.68 to 13.40 0.38 to 7.55 11.32 to 223.40 13.0 to 257.4 0.54 to 10.73 9.03 to 178.75
Fixed Output
85MP5 25 psi / 1.7 bar 85.0 321.8 3.54 13.40 7.55 223.40 257.4 10.73 178.75
Approx. Outputs @ 60 Hz Approx. Outputs @ 50 Hz
#1
#2
#4
#5
Outputs 85 series
NOTICE: The information within this chart is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment.
Many variables can affect the output of the pump. G. H. Stenner & Co., Inc. recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs.
*pump supplied with injection check valve for 26-100 psi applications
The dial ring for adjustable pumps is marked L-10; L=5%, 1-10 indicates
10% increments of maximum output. (20:1 Turndown Ratio)

www.stenner.com10
Double Head Maximum Pump Tube gallons liters gallons liters ounces milliliters liters liters milliliters
Model Pressure Number per day per day per hour per hour per minute per minute per day per hour per minute
Adjustable
100DMHP5* 100 psi / 6.9 bar #1 0.3 to 6.0 1.1 to 22.7 0.01 to 0.25 0.05 to 0.95 0.03 to 0.53 0.76 to 15.76 0.9 to 18.2 0.04 to 0.76 0.61 to 12.64
100DM1 25 psi / 1.7 bar #1
Fixed Output
100DMPHP5* 100 psi / 6.9 bar 6.0 22.7 0.25 0.95 0.53 15.76 18.2 0.76 12.64
100DMP1 25 psi / 1.7 bar
Adjustable
100DMHP20* 100 psi / 6.9 bar #2 1.0 to 20.0 3.8 to 75.7 0.04 to 0.83 0.16 to 3.15 0.09 to 1.78 2.64 to 52.57 3.0 to 60.6 0.13 to 2.53 2.11 to 42.06
100DM2 25 psi / 1.7 bar #2
Fixed Output
100DMPHP20* 100 psi / 6.9 bar 20.0 75.7 0.83 3.15 1.78 52.57 60.6 2.53 42.06
100DMP2 25 psi / 1.7 bar
Adjustable
100DM3 25 psi / 1.7 bar #3 2.2 to 44.0 8.3 to 166.5 0.09 to 1.83 0.35 to 6.94 0.19 to 3.91 5.76 to 115.63 6.6 to 133.2 0.28 to 5.55 4.58 to 92.50
Fixed Output
100DMP3 25 psi / 1.7 bar 44.0 166.5 1.83 6.94 3.91 115.63 133.2 5.55 92.50
Adjustable
100DM4 25 psi / 1.7 bar #4 3.5 to 70.0 13.2 to 265.0 0.15 to 2.92 0.55 to 11.04 0.31 to 6.22 9.17 to 184.03 10.6 to 212.0 0.44 to 8.83 7.36 to 147.22
Fixed Output
100DMP4 25 psi / 1.7 bar 70.0 265.0 2.92 11.04 6.22 184.03 212.0 8.83 147.22
Adjustable
100DM5 25 psi / 1.7 bar #4 5.0 to 100.0 18.9 to 378.5 0.21 to 4.17 0.79 to 15.77 0.44 to 8.88 13.13 to 262.88 15.1 to 302.8 0.63 to 12.61 10.49 to 210.28
Fixed Output
100DMP5 25 psi / 1.7 bar 100.0 378.5 4.17 15.77 8.88 262.88 302.8 12.61 210.28
Approx. Outputs @ 60 Hz Approx. Outputs @ 50 Hz
#1
#2
#3
#4
#5
Outputs 100 series
NOTICE: The information within this chart is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment.
Many variables can affect the output of the pump. G. H. Stenner & Co., Inc. recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs.
*pump supplied with injection check valve for 26-100 psi applications
The dial ring for adjustable pumps is marked L-10; L=5%, 1-10 indicates
10% increments of maximum output. (20:1 Turndown Ratio)

US and Canada call 1-800-683-2378, other countries call 1-904-641-1666 11
Double Head Maximum Pump Tube gallons liters gallons liters ounces milliliters liters liters milliliters
Model Pressure Number per day per day per hour per hour per minute per minute per day per hour per minute
Adjustable
170DMHP9* 100 psi / 6.9 bar #1 0.5 to 10.0 1.9 to 37.9 0.02 to 0.42 0.08 to 1.58 0.04 to 0.89 1.32 to 26.32 1.5 to 30.3 0.06 to 1.26 1.04 to 21.04
170DM1 25 psi / 1.7 bar #1
Fixed Output
170DMPHP9* 100 psi / 6.9 bar 10.0 37.9 0.42 1.58 0.89 26.32 30.3 1.26 21.04
170DMP1 25 psi / 1.7 bar
Adjustable
170DMHP34* 100 psi / 6.9 bar #2 1.7 to 34.0 6.4 to 128.7 0.07 to 1.42 0.27 to 5.36 0.15 to 3.02 4.44 to 89.38 5.1 to 103.0 0.21 to 4.29 3.54 to 71.55
170DM2 25 psi / 1.7 bar #2
Fixed Output
170DMPHP34* 100 psi / 6.9 bar 34.0 128.7 1.42 5.36 3.02 89.38 103.0 4.29 71.55
170DMP2 25 psi / 1.7 bar
Adjustable
170DM3 25 psi / 1.7 bar #3 4.0 to 80.0 15.1 to 302.8 0.17 to 3.33 0.63 to 12.62 0.35 to 7.11 10.49 to 210.28 12.1 to 242.2 0.50 to 10.09 8.40 to 168.22
Fixed Output
170DMP3 25 psi / 1.7 bar 80.0 302.8 3.33 12.62 7.11 210.28 242.2 10.09 168.22
Adjustable
170DM4 25 psi / 1.7 bar #4 6.0 to 120.0 22.7 to 454.2 0.25 to 5.00 0.95 to 18.93 0.53 to 10.66 15.76 to 315.42 18.2 to 363.4 0.76 to 15.14 12.64 to 252.36
Fixed Output
170DMP4 25 psi / 1.7 bar 120.0 454.2 5.00 18.93 10.66 315.42 363.4 15.14 252.36
Adjustable
170DM5 25 psi / 1.7 bar #4 8.5 to170.0 32.2 to 643.5 0.35 to 7.08 1.34 to 26.8 0.76 to 15.10 22.36 to 446.88 25.7 to 514.8 1.07 to 21.45 17.92 to 357.50
Fixed Output
170DMP5 25 psi / 1.7 bar 170.0 643.6 7.08 26.8 15.10 446.88 514.8 21.45 357.50
Approx. Outputs @ 60 Hz Approx. Outputs @ 50 Hz
#1
#2
#3
#4
#5
Outputs 170 series
NOTICE: The information within this chart is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment.
Many variables can affect the output of the pump. G. H. Stenner & Co., Inc. recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs.
*pump supplied with injection check valve for 26-100 psi applications
The dial ring for adjustable pumps is marked L-10; L=5%, 1-10 indicates
10% increments of maximum output. (20:1 Turndown Ratio)

www.stenner.com12
Outputs 100 MDC series
Determining Output for Dual Head Dual
Control Models
• The dial ring for adjustable pumps is marked
L-10; L=5%, 1-10 indicates 10% increments of
maximum output.
• The turndown ratio is 20:1.
• On the MDC models, the outer pump head
operates on a percentage of the inner head
(closest to the motor).
• Setting #10 on both pump heads will deliver the
pump’s maximum output and is the only time each
pump head will output the same amount.
Example Using 100MDC5
• Decide on the desired output for the inner head.
• Note the setting on the dial ring that represents the
desired output.
For example setting #4 = 40% of max output
In the 100MDC5 model, setting #4 = 20 GPD
• Repeat the above steps to calculate the output of the
outer head.
Using setting #3 in this example,
#3 = 30% of the inside head output
20 GPD x 30% = 6 GPD
In this example using pump model 100MDC5,
the output for the inside head would be 20 GPD
and 6 GPD for the outside head.

US and Canada call 1-800-683-2378, other countries call 1-904-641-1666 13
Outputs 100 MDC series
Dual Head Maximum Pump Tube gallons liters gallons liters ounces milliliters liters liters milliliters
Dual Control Pressure Number per day per day per hour per hour per minute per minute per day per hour per minute
Model
Adjustable
100MDCHP5* 100 psi / 6.9 bar #1 0.2 to 3.0 0.8 to 11.4 0.01 to 0.13 0.03 to 0.48 0.02 to 0.27 0.56 to 7.92 0.6 to 9.1 0.03 to 0.38 0.42 to 6.32
100MDC1 25 psi / 1.7 bar #1
100MDCHP20* 100 psi / 6.9 bar 0.5 to 10.0 1.9 to 37.9 0.02 to 0.42 0.08 to 1.58 0.04 to 0.89 1.32 to 26.32 1.5 to 30.3 0.06 to 1.26 1.04 to 21.04
100MDC2 25 psi / 1.7 bar
100MDC3 25 psi / 1.7 bar #2 1.1 to 22.0 4.2 to 83.3 0.05 to 0.92 0.18 to 3.47 0.10 to 1.96 2.92 to 57.85 3.3 to 66.6 0.14 to 2.78 2.29 to 46.25
100MDC4 25 psi / 1.7 bar 1.7 to 35.0 6.4 to 132.5 0.07 to 1.46 0.27 to 5.52 0.15 to 3.11 4.44 to 92.01 5.1 to 106.0 0.21 to 4.42 3.54 to 73.61
100MDC5 25 psi / 1.7 bar 2.5 to 50.0 9.5 to 189.3 0.10 to 2.08 0.40 to 7.89 0.22 to 4.44 6.60 to 131.46 7.6 to 151.4 0.32 to 6.31 5.28 to 105.14
Outputs for Inner Pump Head Only
Approx. Outputs @ 60 Hz Approx. Outputs @ 50 Hz
#1
#2
#3
#4
NOTICE: The information within this chart is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment.
Many variables can affect the output of the pump. G. H. Stenner & Co., Inc. recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs.
*pump supplied with injection check valve for 26-100 psi applications
#5
The dial ring for adjustable pumps is marked L-10; L=5%, 1-10 indicates
10% increments of maximum output. (20:1 Turndown Ratio)

www.stenner.com14
Outputs 170 MDC series
Determining Output for Dual Head Dual
Control Models
• The dial ring for adjustable pumps is marked
L-10; L=5%, 1-10 indicates 10% increments of
maximum output.
• The turndown ratio is 20:1.
• On the MDC models, the outer pump head
operates on a percentage of the inner head
(closest to the motor).
• Setting #10 on both pump heads will deliver the
pump’s maximum output and is the only time each
pump head will output the same amount.
Example Using 170MDCHP34
• Decide on the desired output for the inner head.
• Note the setting on the dial ring that represents the
desired output.
For example setting #8 = 80% of max output
In the 170MDCHP34 model, setting
#8 = 13.6 GPD
• Repeat the above steps to calculate the output of the
outer head.
Using setting #6 in this example,
#6 = 60% of the inner head output
13.6 GPD x 60% = 8.5 GPD
In this example using pump model 170MDCHP34, the
output for the inner head would be 13.6 GPD and
8.5 GPD for the outer head.

US and Canada call 1-800-683-2378, other countries call 1-904-641-1666 15
Outputs 170 MDC series
Dual Head Maximum Pump Tube gallons liters gallons liters ounces milliliters liters liters milliliters
Dual Control Pressure Number per day per day per hour per hour per minute per minute per day per hour per minute
Model
Adjustable
170MDCHP9* 100 psi / 6.9 bar #1 0.3 to 5.0 1.1 to 18.9 0.01 to 0.21 0.05 to 0.79 0.03 to 0.44 0.76 to 13.13 0.9 to 15.1 0.4 to 0.63 0.63 to 10.49
170MDC1 25 psi / 1.7 bar #1
170MDCHP34* 100 psi / 6.9 bar 0.8 to 17.0 3.0 to 64.4 0.03 to 0.71 0.13 to 2.68 0.07 to 1.51 2.08 to 44.65 2.4 to 51.5 0.10 to 2.15 1.67 to 35.76
170MDC2 25 psi / 1.7 bar
170MDC3 25 psi / 1.7 bar #2 2.0 to 40.0 7.6 to 151.4 0.08 to 1.67 0.32 to 6.31 0.18 to 3.55 5.27 to 105.14 6.1 to 121.1 0.25 to 5.05 4.24 to 84.10
170MDC4 25 psi / 1.7 bar 3.0 to 60.0 11.4 to 227.1 0.13 to 2.5 0.48 to 9.46 0.27 to 5.33 7.92 to 157.71 9.1 to 181.7 0.38 to 7.57 6.32 to 126.18
170MDC5 25 psi / 1.7 bar 4.3 to 85.0 16.3 to 321.8 0.18 to 3.54 0.68 to 13.40 0.38 to 7.55 11.32 to 223.40 13.0 to 257.4 0.54 to 10.73 9.03 to 178.75
Outputs for Inner Pump Head Only
Approx. Outputs @ 60 Hz Approx. Outputs @ 50 Hz
#1
#2
#3
#4
NOTICE: The information within this chart is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment.
Many variables can affect the output of the pump. G. H. Stenner & Co., Inc. recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs.
*pump supplied with injection check valve for 26-100 psi applications
#5
The dial ring for adjustable pumps is marked L-10; L=5%, 1-10 indicates
10% increments of maximum output. (20:1 Turndown Ratio)

www.stenner.com16
Materials of Construction
All Housings* . . . . . . . . . . . . . . . . . Lexan®Polycarbonate Plastic
Peristaltic Tube** . . . . . . . . . . . . . . Santoprene®FDA Approved
Check Valve Duckbill
Peristaltic Tube†............... Tygothane®FDA Approved
Check Valve Duckbill†† .......... Pellathane®
Suction/Discharge Tubing . . . . . . . . LDPE Polyethylene-NSF/FDA Approved
Ferrules(1/4" & 6mm)
Tube Fittings . . . . . . . . . . . . . . . . . Type 1 Rigid PVC-NSF Listed
Connecting Nuts
Check Valve Fittings
Strainer (ceramic weight included)
All Fasteners . . . . . . . . . . . . . . . . . Stainless Steel
*Lexan®is a registered trademark of General Electric.
Consult General Electric for chemical resistance of Lexan®.
**Santoprene®is a registered trademark of Advanced
Elastomer System, Akron, OH.
†Tygothane®is a registered trademark of Saint-Gobain
Performance Plastics, Pittsburgh, PA.
††Pellathane®is a registered trademark of The Dow
Company, Midland, MI.

US and Canada call 1-800-683-2378, other countries call 1-904-641-1666 17
25 psi unit includes:
(3) Connecting Nuts (1/4" or 3/8")
(3) Ferrules w/1/4" & 6mm or
(2) Ferrules w/3/8"
(1) Injection Fitting
(1) Suction Line Strainer 1/4", 3/8" or 6mm
(ceramic weight included)
(1) 20' Roll of Suction & Discharge Tubing
1/4" or 3/8" white or UV black
OR
6mm (Europe) white
(1) SparePump Tube
(1) Mounting Bracket
(1) Installation Manual
100 psi unit includes:
(3) Connecting Nuts (1/4" or 3/8")
(3) Ferrules w/1/4" & 6mm or
(2) Ferrules w/3/8"
(1) Injection Check Valve
(1) Suction Line Strainer 1/4", 3/8" or 6mm
(ceramic weight included)
(1) 20' Roll of Suction & Discharge Tubing
1/4" or 3/8" white or UV black
OR
6mm (Europe) white
(1) SparePump Tube
(1) Mounting Bracket
(1) Installation Manual
Accessory Checklist – pre-installation

www.stenner.com18
Installation – additional safety instructions
Read all safety hazards before
installing or servicing the pump.
The pump is designed for
installation and service by properly
trained personnel.
Use all required personal protective
equipment when working on or
near a chemical metering pump.
Install the pump so that it is in
compliance with all national and
local plumbing and electrical codes.
Use the proper product to treat
potable water systems, use only
chemicals listed or approved for use.
Install the pump to work in
conjunction with pool, spa, well
pump, or system controls.
NOTICE: Indicates special instructions or general mandatory action.

US and Canada call 1-800-683-2378, other countries call 1-904-641-1666 19
Mount Pump
Select a dry location (to avoid water
intrusion and pump damage) above the
solution tank. Best recommended location
is above the solution tank in a vertical
position with the pump head pointed
downward and the spill recovery (see
next page) in place to reduce the risk and
severity of damage.
To prevent pump damage in the event of
apump tube leak, never mount the pump
vertically with the pump head up.
To avoid chemical damage from fumes,
do not mount pump directly over an open
solution tank. Keep tank covered.
Avoid flooded suction or pump mounted
lower than the solution container.
Draw solution from the top of the tank.
If pump is installed with a flooded
suction, a shut-offvalve or other device
must be provided to stop flow to pump
during service.
• Use the mounting bracket as a template
to drill pilot holes in mounting location.
• Secure bracket with fasteners or wall
anchors. Slide pump into bracket.
Provide 8" clearance to allow pump
orientation to be reversed during tube
replacement. Do not allow water intrusion
into the motor or corrosion and damage
will occur.
To prevent motor damage, verify with a
volt meter that the receptacle voltage
corresponds with the pump voltage.
• Plug cord into receptacle and turn the
motor power switch on. If the pump is
adjustable, turn the dial ring to 10.
• Activate the pump by the pump control
(flow switch, pressureswitch, etc.) and
verify rotation of the roller assembly
within the clear pump head. Turn pump
switch off.
Installation continued –mount pump
Wall
bracket
Rain roof
(optional)
slips onto
wall bracket
Pump
head

www.stenner.com20
Installation continued –additional instructions for CE pumps
Istruzioni
Supplementari Per
L’ installazione
1. Tutte le pompe Classe II
localizzate nella Zona 1
della superficie
circostante la piscina
devono essere collocate
dove gli allagamenti no
possono accadere.
2. Questa pompa, é inteso,
deve essereinstallata
come ‘fissa’ e non come
portatile.
3. La tettoia deve essere
installata e il montaggio
‘orientazione verticale’
dell’intera unitá deve
essereosservato.
4. Dopo l’installazione, la
spina deve essere
accessibile durante l’uso.
5. Questa unitá deve essere
gettata via se il filo
elettrico é danneggiato.
6. Osservare e aderire a
tutte le Norme Nazionali
Sugli Impianti Elettrici.
Instucciones
Adicionales Para
instalación
1. Todas las bombas Clase II
situadas en la Zona 1 de
las áreas de la piscina
requieren colocarse
donde no puedan ser
inundadas.
2. Esta bomba es para ser
instalada “fija” en vez
de portátil.
3. Es necesario instalar el
techo de lluvia, y montar
la unidad entera
siguiendo una orintación
vertical.
4. Depués de la instalación
el enchufe suministrador
de energia debe estar
accesible durante el uso.
5. Se deberá desechar la
unidad si el cordón de
abastecimiento se
deteriora.
6. Observe y cumpla con
todas las Reglas
Nacionales para
Instalaciones Eléctricas.
Instructions
Supplémentaires
d’Installtion
1. Toutes les pompes
installées dans la Zone 1
du périmètre de la
piscine doivent être
situées de manière à ne
pas pouvoir être
inondées.
2. Cette pompe est prévue
pour installation fixe et
non pas portative.
3. L’abri anti-pluie doit être
installé et l’orientation
verticale doit toujours
être observée.
4. Après l’installation, la
prise électrique doit
rester accessible pendant
l’utilisation.
5. Cette unité doit être mise
au rebut si le cordon
électrique est
endommagé.
6. Observez et adhérez à
toutes les Normes
Nationales pour
Installations Electriques.
Zustazliche
Installierungsanweisung
un
1. Pumpen die sich in Zone 1
vom Schwimmbecken
befinden sollen sind so
einzurichten daß
Ueberschwemmungen
nicht vorkommen werden.
2. Diese Pumpe ist als fest
montierte Ausrustung
bedacht und soll nicht
umstellbar gebraucht
werden.
3. Der Regendach muss
installiert werden. Eine
vertikale Asrichtung der
Montage muß erzielt
werden.
4. Die Stromversorgung muss
nach der Installierung
noch zuganglich sein.
5. Bei beschadigter
Verkabelung ist dieses
Gerat nicht mehr zu
gebrauchen.
6. Staatliche
Vernetzungsvorchriften
mussen eingehalten
werden.
Additional
Installation
Instructions
1. All Class II Pumps located
in Zone 1 of swimming
pool areas require
locating where flooding
cannot occur.
2. This pump is intended to
be installed as “fixed” as
opposed to portable.
3. The Rain Roof must be
installed and “vertical
orientation” mounting of
entire unit observed.
4. After installation, the
power supply plug must
be accessible during use.
5. This unit must be
scrapped if the supply
cordis damaged.
6. Observe and comply with
all National Wiring
Standards.
