stertil-KONI ST 1082-FS Owner's manual

© 2011 Stertil B.V. 32708980-F
Mobile column lift
ST 1082-FS & ST 1100-FS
ST 1082-RS & ST 1100-RS
Installation, operation
and
maintenance instructions

Operating instructions (Version F) 2 ST 1082 & ST 1100
PLEASE DELIVER TO THE LIFT ALL OPERATION, INSPECTION AND
MAINTENANCE MANUALS, AND ALL OTHER INSTRUCTIONAL MATERIAL
FURNISHED WITH THE LIFT, TO THE LIFT
OWNER / USER / EMPLOYER.
PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS IN THIS MANUAL
BEFORE INSTALLING, OPERATING OR MAINTAINING THIS LIFT.
Installation, operation and maintenance instructions for the Stertil-Koni
hydraulic mobile column lifts:
ST 1082-FS ST 1100-FS
ST 1082-RS ST 1100-RS
Capacity: 18,000 lbs 22,000 lbs
Starting at Serial Number: EN 159487 UA 157657

Operating instructions (Version F) 3 ST 1082 & ST 1100
Contents
Statement of conformity - - - - - - - - - - - - - - - - - - - - - 6
Preface - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
1 General - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
1.1 Copyright - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
1.2 Limitations of the document - - - - - - - - - - - - - - - - - - - 10
1.3 Intended readership - - - - - - - - - - - - - - - - - - - - - - - 10
1.4 Scope of this manual - - - - - - - - - - - - - - - - - - - - - - 11
1.5 Symbols in the text - - - - - - - - - - - - - - - - - - - - - - - 11
1.6 Manufacturer's details - - - - - - - - - - - - - - - - - - - - - - 12
1.7 Guarantee and liability - - - - - - - - - - - - - - - - - - - - - - 12
1.8 Environmental aspects- - - - - - - - - - - - - - - - - - - - - - 12
1.8.1 Information about REACH - - - - - - - - - - - - - - - - 12
1.9 Disposal of the column lifts- - - - - - - - - - - - - - - - - - - - 12
2 Safety- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
2.1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
2.2 Safety indications - - - - - - - - - - - - - - - - - - - - - - - - 13
2.3 Safety instructions - - - - - - - - - - - - - - - - - - - - - - - - 13
2.4 Manufacturers instructions to the lift owner/employer - - - - - - - 17
2.5 Safety measures - - - - - - - - - - - - - - - - - - - - - - - - 18
2.5.1 Emergency stop - - - - - - - - - - - - - - - - - - - - - 18
2.5.2 Safety features - - - - - - - - - - - - - - - - - - - - - 18

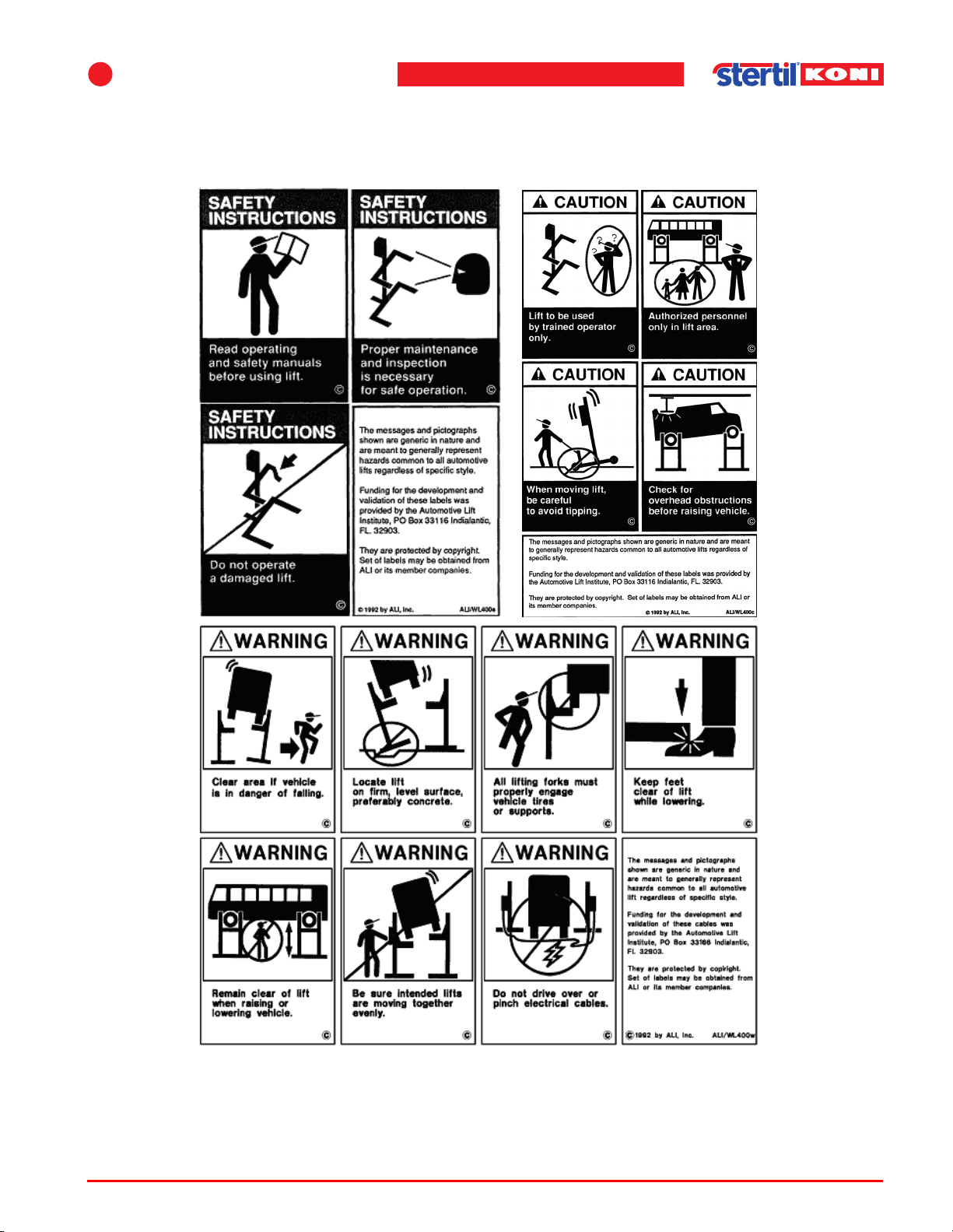

2.6 Safety instructions, caution and warning labels - - - - - - - - - - 19
3 Specifications - - - - - - - - - - - - - - - - - - - - - - - - - 21
3.1 General - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21
3.2 Lifting capacity - - - - - - - - - - - - - - - - - - - - - - - - - 22
3.3 Lifting system - - - - - - - - - - - - - - - - - - - - - - - - - - 23
3.4 Control system - - - - - - - - - - - - - - - - - - - - - - - - - 24
3.5 Hydraulic unit - - - - - - - - - - - - - - - - - - - - - - - - - - 24
3.6 Column, lifting cylinder and guide block - - - - - - - - - - - - - 24
3.7 Control box - - - - - - - - - - - - - - - - - - - - - - - - - - - 25
3.8 Pallet lifting mechanism - - - - - - - - - - - - - - - - - - - - - 25
3.9 Retractable wheels (RS models) - - - - - - - - - - - - - - - - - 25
3.10 Locking feature - - - - - - - - - - - - - - - - - - - - - - - - - 25
3.11 Adjustable forks - - - - - - - - - - - - - - - - - - - - - - - - - 25

Operating instructions (Version F) 4 ST 1082 & ST 1100
4 Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
4.1 Unpacking and setup - - - - - - - - - - - - - - - - - - - - - - 26
4.2 Linking the column lifts- - - - - - - - - - - - - - - - - - - - - - 27
4.3 Safety when hoisting- - - - - - - - - - - - - - - - - - - - - - - 29
4.4 Traverse beam (option) - - - - - - - - - - - - - - - - - - - - - 31
4.5 Outdoor use - - - - - - - - - - - - - - - - - - - - - - - - - - - 31
4.6 Adjustable forks (option for ST 1082)- - - - - - - - - - - - - - - 32
5 Operation- - - - - - - - - - - - - - - - - - - - - - - - - - - - 34
5.1 General - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 34
5.2 Control box - - - - - - - - - - - - - - - - - - - - - - - - - - - 34
5.2.1 Emergency shut-down button - - - - - - - - - - - - - - 35
5.2.2 Starting - - - - - - - - - - - - - - - - - - - - - - - - - 35
5.2.3 Rising - - - - - - - - - - - - - - - - - - - - - - - - - - 36
5.2.4 Lowering - - - - - - - - - - - - - - - - - - - - - - - - 36
5.2.5 Slow lowering - - - - - - - - - - - - - - - - - - - - - - 36
5.2.6 Lowering in the safety locks - - - - - - - - - - - - - - - 37
5.3 Setting the columns - - - - - - - - - - - - - - - - - - - - - - - 37
5.3.1 Control system - - - - - - - - - - - - - - - - - - - - - 37
5.3.2 Pair operation - - - - - - - - - - - - - - - - - - - - - - 38
5.3.3 Operation of one single column - - - - - - - - - - - - - 39
5.4 Operating the pallet lifting mechanism - - - - - - - - - - - - - - 39
5.5 Operating procedure- - - - - - - - - - - - - - - - - - - - - - - 40
5.5.1 Preparation - - - - - - - - - - - - - - - - - - - - - - - 40
5.5.2 System functions - - - - - - - - - - - - - - - - - - - - 41
5.5.3 Unblocking in case of emergency - - - - - - - - - - - - 41
6 Inspection and maintenance - - - - - - - - - - - - - - - - - - 42
6.1 General - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 42
6.2 Maintenance schedule - - - - - - - - - - - - - - - - - - - - - - 42
6.2.1 Daily checks by the user - - - - - - - - - - - - - - - - - 42
6.2.2 Monthly maintenance by the user - - - - - - - - - - - - 42
6.2.3 Annual maintenance by trained lift service personnel only 43
6.3 Maintenance procedures- - - - - - - - - - - - - - - - - - - - - 44
6.3.1 Lubrication program - - - - - - - - - - - - - - - - - - - 44
6.3.2 Hydraulic oil - - - - - - - - - - - - - - - - - - - - - - - 44
6.3.3 Checking the emergency shutdown mechanism - - - 45
6.3.4 Checking the safety locking feature - - - - - - - - - - - 45
6.3.5 Checking the pallet lift cylinder(s) - - - - - - - - - - - - 46
6.3.6 Maintenance switches - - - - - - - - - - - - - - - - - - 46
7 Service and troubleshooting - - - - - - - - - - - - - - - - - - 47
7.1 General - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 47

Operating instructions (Version F) 5 ST 1082 & ST 1100
7.2 Emergency lowering procedure - - - - - - - - - - - - - - - - - 47
7.3 Programmable settings - - - - - - - - - - - - - - - - - - - - - 48
7.4 Error messages - - - - - - - - - - - - - - - - - - - - - - - - - 51
7.5 Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - 53
7.5.1 Troubleshooting overview - - - - - - - - - - - - - - 57
7.6 Maintenance procedures- - - - - - - - - - - - - - - - - - - - - 60
7.6.1 Removal and installation of the lifting cylinder - - - - - - 60
7.6.2 Adjustment of the pallet lifting mechanism - - - - - - - - 61
7.6.3 Adjustment of the retractable front wheels
(RS models) - - - - - - - - - - - - - - - - - - - - - - - 62
7.7 List of parts - - - - - - - - - - - - - - - - - - - - - - - - - - - 62
7.8 Replacement parts - - - - - - - - - - - - - - - - - - - - - - - 63
7.9 Emergency lowering facility - - - - - - - - - - - - - - - - - - - 63
8 Options - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 64
8.1 Wheel adapters - - - - - - - - - - - - - - - - - - - - - - - - - 64
8.1.1 Longer wheel adapters (only FS models) - - - - - - - - - 65
8.2 Traverse beam - - - - - - - - - - - - - - - - - - - - - - - - - 66
8.2.1 Before you start working - - - - - - - - - - - - - - - - - 66
8.2.2 User instruction - - - - - - - - - - - - - - - - - - - - - 66
8.2.3 Tilting of the traverse beam with king pin adapter - - - - - 66
A List of parts and appendices - - - - - - - - - - - - - - - - - - 68
A.1 Summary column lift - - - - - - - - - - - - - - - - - - - - - - 69
A.2 Mobile column lift - - - - - - - - - - - - - - - - - - - - - - - - 72
A.3 Hydraulic unit - - - - - - - - - - - - - - - - - - - - - - - - - - 74
A.4 Hydraulic scheme - - - - - - - - - - - - - - - - - - - - - - - - 76
A.5 Hydraulic cylinder - - - - - - - - - - - - - - - - - - - - - - - - 77
A.6 Control box (master column) - - - - - - - - - - - - - - - - - - 79
A.7 Electrical diagram control box (master column) - - - - - - - - - - 81
A.8 Control box (secondary column) - - - - - - - - - - - - - - - - - 82
A.9 Electrical diagram control box (secondary column) - - - - - - - - 84
A.10 Connection cable - - - - - - - - - - - - - - - - - - - - - - - - 85
A.11 Pallet jack mechanism - - - - - - - - - - - - - - - - - - - - - 86
A.12 Label locations - - - - - - - - - - - - - - - - - - - - - - - - - 88
A.13 Dimensional drawing - - - - - - - - - - - - - - - - - - - - - - 90
B List of parts - Options - - - - - - - - - - - - - - - - - - - - - 92
B.1 Wheel adaptors and column extensions - - - - - - - - - - - - - 93
B.2 Traverse beam - - - - - - - - - - - - - - - - - - - - - - - - - 95
C Inspection check list - - - - - - - - - - - - - - - - - - - - - - 98

Operating instructions (Version F) 6 ST 1082 & ST 1100
Statement of conformity
Statement of conformity with the European machine directive (06/42/EG) and with
the ANSI/ALI ALCTV 2008 and UL 201 2-nd edition and CAN/CSA C22.2 No. 68-92.
Manufacturer: Stertil B.V.
Postbus 23
9288 ZG Kootstertille
Nederland
Machine: Hydraulic mobile column lifts
Trademark: STERTIL - KONI
Serial Numbers: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Date first used: . . . . . . . . . . . . . . . . .
Model ST 1082-FS
ST 1100-FS
ST 1082VFS
ST 1100VFS
ST 1082-RS
ST 1100-RS
Version Mobile column lifts
with fixed wheels
and fixed forks.
Mobile column lifts
with fixed wheels
and fixed forks –
widened version.
Mobile column lifts
with retractable
wheels and fixed
forks.
Options • Adjustable forks
(only ST1082)
• Wheel adapters
• Extended wheel
adapters +
column foot
extensions
• Traverse beam
• Wheel adapters
• Extended wheel
adapters +
column foot
extensions
• Adjustable forks
(only ST1082)
• Wheel adapters
• Traverse beam

Operating instructions (Version F) 7 ST 1082 & ST 1100
The undersigned, U. Bijlsma, General Manager, authorized for this purpose by
Stertil B.V., hereby declares that the mobile column lift described above conforms
with the fundamental safety requirements set down in:
• 2006/42/EC Machinery Directive
EN 61508 (SIL1), EN 1493, EN 418, EN 954-1, EN 60204-1,
• 1999/5/EC R&TTE Directive
EN 301 489-01, EN 301 489-02, EN 61000-3-2, EN 61000-3-3,
• 2006/95/EC Low Voltage Directive
EN60950-1, IEC60335-2-29,
• ANSI/ALI ALCTV 2008 and UL201 2-nd edition,
• CAN/CSA C22.2 No. 68-92.
These Wheel Engaging Mobile Automotive Lifts are approved by:
INTERTEK TESTING SERVICES NA. Inc.,
3933 US Route 11. Cortland, NY 13045
Telephone: [phone] Fax.: [phone]
WEB: www.intertek-etlsemko.com
Under report no.: 3107897CRT-001
Stertil B.V. Kootstertille
U. Bijlsma
General Manager
Signature
Date, 01 January 2010

Operating instructions (Version F) 8 ST 1082 & ST 1100
Preface
Prior to the operation of your Stertil Koni mobile lift, make sure that you read the
instructions thoroughly. These instructions are found in this manual. Please note that
your warranty can be voided if you do not read the manual and understand its
contents
If you have any questions concerning operation, safety or application of your mobile
lift, please contact Stertil Koni USA at the following toll free number:
800 336 6637 or call 410 643 9001.
The address for Stertil Koni USA Inc. is 200 Log Canoe Circle, Stevensville,
Maryland 21666.
The operator shall have certain qualifications before he/she can safely operate a
Stertil Koni mobile lift and these include ability in written or oral communications as
demonstrated by either a high school diploma or certificate of equivalency, aptitude
test or job experience. He/she must also have the ability to understand the
mathematical, mechanical and electrical principles of automotive lifts as
demonstrated by one of, or a combination of aptitude test, training program,
technical vocational school or job experience.
The owner/employer of the Stertil Koni mobile lift must ensure that the operator of
the mobile lift must be instructed and trained in the safe use and operation of the lift
using the manufacturer provided instructions and warning labels and the Automotive
Lift Institute Publications, "Lifting It Right" and "Safety Tips".
The lift that has been delivered to you contains the supply of operating instructions,
general safety information, safety tips and warning labels on the control post. As an
owner, or employer, it is requested that you display these materials in a conspicuous
location in the lift operating area.
The owner or employer shall appropriately document operator training by
completing an operator-training log, which shall be part of the management
documentation.
The operator shall operate the automotive lift only after being properly instructed or
trained in accordance with manufacturer supplied instructions found in the this
manual.
The operator shall use all applicable safety features provided on the automotive lift
and operate the lift in accordance with the instructions provided by Stertil Koni.
The lift operator or employer shall take all appropriate steps to follow the
recommended inspection procedures of the lift manufacturer but in no event shall
the lift operator fail to inspect or take notice of the following features on a daily basis.
1. Accessibility and readability of the operating procedures, safety tips and generic
safety material.
2. Accessibility and readability of safety warning labels.
3. Readability of the rated load capacity of the lift.
4. Proper operation of the lift controls, restraints and locking devices.

Operating instructions (Version F) 9 ST 1082 & ST 1100
5. Deformation or excessive wear of any of the lift structural components.
6. Deformation or excessive wear of other components such as hoses, electrical wires.
7. Evidence of hydraulic leaks.
8. Unusual noises.
If any of the conditions described above are observed before, during or after
operation of the lift, the operator shall stop using the lift and report the condition to
the supervisor, employer or owner. If any of the conditions listed above are
observed, then the lift shall not be used until the cause of the problem has been
determined and the appropriate repairs made by qualified Stertil Koni service
authorized personnel. In order to ensure that the lift is not used until the repairs have
been affected, the lift shall be locked out or tagged in accordance with ANSI/Z244.1
1982.
Note
n‘Trained lift service personnel’ refers to personnel of the Stertil-Koni service
department or another servicing agency recognized by Stertil-Koni, both also
designated as ‘service department’. The consequences of all repairs carried out on
the vehicle lift by non-trained lift service personnel, are entirely at the user's risk.
The owner or employer shall establish a periodic preventive maintenance procedure
in accordance with the recommendations listed in this manual.
Stertil Koni USA shall not be responsible for any actions not specifically called out
for in this manual or in this notice.
Please note that there shall be no modifications or reconstruction made to the Stertil
Koni mobile lift without the express written permission of the manufacturer.
Please make sure that caution labels are not frayed and are on the lift. Please call
the manufacturer if these caution labels have been removed or through age are no
longer on the lift.
Please read and understand the attached Statement of Warranty for the Stertil Koni
mobile lift.
Thank you for the purchase of your Stertil Koni product.
Please contact Stertil Koni USA for the location of authorized Service Centers
throughout the United States.
Stertil KONI USA Inc.
200 Log Canoe Circle
Stevensville, Maryland 21666
tel. [phone]
fax. [phone]
Toll-free number: 800 336 6637

1
Operating instructions (Version F) 10 ST 1082 & ST 1100
1 General
1.1 Copyright
Copyright 2010 Stertil B.V.
All rights reserved worldwide. No part of this publication, including drawings and
diagrams, may be reproduced and/or published, whether by printing, photocopying,
microfilm or by any other means whatsoever, without the prior written permission of
Stertil B.V.
1.2 Limitations of the document
Stertil B.V. reserves the right to modify the construction and/or configuration of its
products at any time without any obligation to modify products which have been
previously supplied. The data provided in this manual is based on the most recent
information. This data may be subject to change at a later date, without prior
notification. For information regarding adjustment, maintenance or repair which is
not described in this document, please contact the customer service department of
Stertil B.V.
The information in this document concentrates solely on use of the product as
intended by the manufacturer. In the event that the products, parts of the products
or procedures are applied in any way other than that described in this manual, then
confirmation must be obtained as to the correctness and suitability of that use.
No rights may be derived from this manual or from the documentation supplied with
the product. Supplier is bound by no agreement other than the order confirmation.
This manual contains useful and important information on the correct operation and
proper maintenance of the product. Furthermore, the manual also contains
important instructions for installing the product and instructions for preventing
possible accidents and serious injury while the machine is running. We have taken
all possible steps to make this manual as correct and as complete as possible.
Should you discover any errors or omissions, please bring this to the attention of our
service manager, so that we can make amendments. This will enable us to improve
our documentation.
1.3 Intended readership
This manual is intended for users, fitters and service engineers for mobile column
lifts of type ST 1082 & ST 1100.

General
Operating instructions (Version F) 11 ST 1082 & ST 1100
1
Persons who are not familiar with the operation and installation of type ST 1082 &
ST 1100 mobile column lifts are advised to read the following chapters thoroughly
and to follow the instructions given exactly.
Persons who are familiar with the operation and installation of type ST 1082 & ST
1100 mobile column lifts can use this manual as a reference. The table of contents
and the index can be used to search for the information required.
1.4 Scope of this manual
This manual contains important information about the operation, installation and
servicing of type ST 1082 & ST 1100 mobile column lifts.
For information about spare parts for these column lifts, please refer to the attached
ST 1082 & ST 1100 List of Parts and Appendices.
1.5 Symbols in the text
The following notation styles are used in this manual. Each style has its own
significance.
Text printed in bold is intended to emphasise something.
Note
nIndicates an important aspect of the text. Read the text carefully.
Caution
cIndicates procedures that must be followed, otherwise the machine or materials may
be damaged. Follow the procedure exactly.
Warning
wIndicates a procedure or action which, if performed incorrectly, can lead to personal
injury or may cause damage, or otherwise indicates a prohibited action. Ignoring the
warning can lead to accidents, personal injury or serious damage to the machine.
Notations between <> such as e.g. <DOWN> indicate the control buttons of the
column lift.

Operating instructions (Version F) 12 ST 1082 & ST 1100
1.6 Manufacturer's details
Stertil B.V.
P. O . B o x 2 3
9288 ZG Kootstertille
Telephone (international): [phone]
Telephone (national): (0)512 334 441
Fax: [phone]
E-mail: [email protected]
Website: www.stertil.nl
1.7 Guarantee and liability
Please refer to the delivery terms and conditions, and the order confirmation.
1.8 Environmental aspects
The owner and/or user of the mobile column lifts is responsible for the disposal of
waste materials (oil, etc.) in accordance with the applicable local laws or regulations.
1.8.1 Information about REACH
The REACH regulation entered into force on 1st June 2007. Regarding human
health and environment, the target is to manufacture and to use only safe chemical
substances inside the EU.
Considering the terms of the regulation, Stertil manufactures "articles" and is
"downstream-user" of chemical substances.
Stertil has the intention to fully comply to REACH regulation and checked his
suppliers to make sure they comply to REACH requirements for all materials and
substances used in our products.
Your local dealer will provide relevant information e.g. Material Safety Data Sheet
(MSDS) on request.
1.9 Disposal of the column lifts
Once the mobile column lifts have reached the end of their operational lives, the
owner and/or user is responsible for the safe disassembly of the mobile column lift
and for the disposal of the components, in accordance with applicable local laws or
regulations.

2
Operating instructions (Version F) 13 ST 1082 & ST 1100
2 Safety
2.1 Introduction
Our safety requirements may under no condition conflict with the statutory
requirements and rules that apply to the safety of the mobile lift. Whenever one of
the warnings or safety requirements conflicts with existing local legislation, the most
stringent rule will always take precedence. Our mobile lifts type ST 1082 & ST 1100
are protected in accordance with the rules for this type of equipment.
It is not permissible to carry out any changes to the mobile lift without our written
consent. If any damage to persons or property is caused as a consequence of not
complying with this requirement, Stertil B.V. will accept no liability for such damage.
The manager of the workshop or business should ensure that all safety instructions
that apply within the business are strictly observed.
Warning
wPhysical injury and damage to the machine can result by not following the safety
instructions.
Ensure that you become familiar with the operation and control of the machine.
Follow the instructions exactly.
2.2 Safety indications
This document contains a number of special symbols and arrangements that the
user needs to understand. For the indications in the text, see section 1.5 "Symbols
in the text" on page 11.
2.3 Safety instructions
Read all instructions. The mobile lift is provided with safety and protection features.
Even so, caution is required when using the mobile lift
Work safely!
Stertil B.V. has made every effort to inform you as correctly and completely as
possible on any dangers associated with operation of the mobile lift. You must
ensure and are responsible for compliance with these behavioral guidelines.

Operating instructions (Version F) 14 ST 1082 & ST 1100
The buyer/user is obliged to familiarize operating, cleaning and maintenance
personnel with these instructions.
Upon their arrival, check deliveries for:
• Any damage and/or missing parts due to transport. Make sure that the carrier
draws up a transport damage report on the spot.
• Correctness and completeness; have all parts (additionally) and or accessories
ordered been supplied?
In the event of damage always contact Stertil B.V. or the supplier.
All worn or broken parts need to be replaced with genuine lift manufacturer
supplied parts.
Important safety instructions
• Read all instructions.
• If an extension cord is necessary, use a cord with
a current rating equal to or more than the
equipment. Cords rated for less current than the
equipment may overheat. Take care to arrange the
cord so that it will not be tripped over or pulled.
• Always unplug equipment from electrical outlet
when not in use. Never use the cord to pull the
plug from the outlet. Grasp plug and pull to
disconnect.
• Let equipment cool completely before putting
away. Loop cord loosely around equipment when
storing.
• To reduce the risk of fire, do not operate
equipment in the vicinity of open containers of
flammable liquids (gasoline).
• Provide adequate ventilation when working on
internal combustion engines.

Safety
Operating instructions (Version F) 15 ST 1082 & ST 1100
2
• Keep hair, loose clothing, fingers and all parts of
the body away from moving parts.
• To reduce the risk of electrical shock, do not use
on wet surfaces or expose to rain.
• Use only as described in this manual. Use only
manufacturers recommended attachments.
• ALWAYS WEAR SAFETY GLASSES. Everyday
eyeglasses only have impact resistant lenses they
are not safety glasses.
• Use by untrained people could result in serious
injury and/or damage.
• Only authorized persons should operate the
mobile lift. These persons are in any case familiar
with the operating instructions of the lift.
• Do not use the lifting system outdoors if the wind
velocities mentioned in section 4.5 "Outdoor use"
on page 31 are exceeded.
• If the lifting system is used outdoors do not leave
the vehicles unattended in the lifted position. The
wind speed may change and exceed the safety
limits.
• Danger of getting injured by electrical shock.
• Care must be taken as burns can occur from
touching hot parts.
• Only remove the covers to carry out maintenance,
ensure that the mobile lift is disconnected from
the power supply.

Operating instructions (Version F) 16 ST 1082 & ST 1100
• Take care as burns can occur from touching hot
parts.
• Prevent damage to the power feed cables on
account of driving over or heavy or falling objects.
• Do not drive over interconnecting cables. Always
disconnect interconnecting cables and remove
from vehicle travel path before moving the vehicle.
• Do not operate equipment with a damaged cord or
if the equipment has been dropped or damaged
until it has been examined by a qualified
serviceman.
• In case of using one or two lifting columns (in
paired operation), be sure that this will not result
in stability risks. In case of doubt, consult your
superior. Unsafe lifting can result in serious injury
and damage to the lifting system and/or vehicles.
• This mobile lift should only be used for lifting of
vehicles and not for other applications. The
positioning of the lifting system must be done in a
way that a safe working area will be obtained,
thereby creating escape paths for emergency
situations (leave passageways of at least 24").
• For important vehicle technology see section
4.3 "Safety when hoisting" on page 28.
• If a vehicle is in the lifted position, its air
suspension system may not be used in a view of
possible change of track width and/or wheel base.

Safety
Operating instructions (Version F) 17 ST 1082 & ST 1100
2
• Use the lifting columns only on a hard and level
floor with sufficient bearing capacity, see the
specifications for floor pressure and floor load in
Table 3.1 "Specifications" on page 21.
• Whenever a vehicle is raised on the lift, always
raise the mobile column lifts to at least above the
first safety lock.
• Always lower the mobile column lifts into the
safety lock before starting any work on the vehicle
or leaving the vehicle unattended.
FOR YOUR AND OTHER PEOPLES SAFETY: SAVE
THESE INSTRUCTIONS.
Warning
wAll accessories supplied with this lift are to be used on this lift only.
Accessories from other lifts are not acceptable and could result in injury to the
user.
2.4 Manufacturers instructions to the lift
owner/employer
The owner/employer shall:
• Ensure that lift operators are qualified and that they are trained in the safe
use and operation of the lift using the manufacturers operating
instructions; ALI/SM 01-1, ALI Lifting it Right safety manual; ALI/ST-90, ALI
Safety Tips card; ANSI/ALI ALOIM-2008, American National Standard for
Automotive Lifts-Safety Requirements for Operation Inspection and
Maintenance; ALI/WL Series, ALI Uniform Warning Label Decals/Placards;
SAE J2184, Vehicle Lift Points for Service Garage Lifting.
• Establish procedures to periodically inspect the lift in accordance with the
lift manufacturers instructions; ANSI/ALI ALOIM-2008, American National
Standard for Automotive Lifts-Safety Requirements for Inspection and
Maintenance; and the employer shall ensure that lift inspectors are
qualified and that they are adequately trained in the inspection of the lift.

Operating instructions (Version F) 18 ST 1082 & ST 1100
• Maintain the periodic inspection and maintenance records recommended
by the manufacturer or ANSI/ALI ALOIM-2008, American National Standard
for Automotive Lifts-Safety Requirements for Inspection and Maintenance;
and the employer shall ensure that lift inspectors are qualified and that they
are adequately trained in the inspection of the lift.
• Display the lift manufacturers operating instructions; ALI/SM 01-1, ALI
Lifting it Right safety manual; ALI/ST-90, ALI Safety Tips card; ANSI/ALI
ALOIM-2008, American National Standard for Automotive Lifts-Safety
Requirements for Operation Inspection and Maintenance; in a conspicuous
location in the lift area convenient to the operator.
• Provide necessary lockout/tagout means for energy sources per ANSI
Z244.1-1982 (R1993), Safety Requirements for the Lockout/Tagout of
Energy Sources, before beginning any lift repairs.
• Not modify the lift in any manner without the prior written consent of the
manufacturer.
2.5 Safety measures
2.5.1 Emergency stop
Set the rotary switch on the main control box to 0 or press the emergency button on
the auxiliary control box if an emergency arises. All movements of all column lifts will
stop.
If the emergency stop has been used, check:
• whether any person is trapped,
• whether the mobile column lifts have been damaged.
2.5.2 Safety features
The mobile column lifts have a control and monitoring system, which ensures that:
• the guide blocks always stay at an equivalent height within the control limits,
• lowering is halted in the event that obstacles cause an elevation difference to
occur,
• the control circuit is interrupted, in the event the height difference between the
guide blocks exceeds a pre-defined value; operation via the push buttons on the
mobile column lift control boxes is then disabled,
• lifting is halted when the highest position is reached (height safeguard).
• lowering is mechanically blocked in the event of loss of control power or leakage
from the cylinders.

Safety
Operating instructions (Version F) 19 ST 1082 & ST 1100
2
2.6 Safety instructions, caution and warning labels
The following safety and warning labels may be used on the mobile lift:
Figure 2.1 Safety and warning labels

Operating instructions (Version F) 20 ST 1082 & ST 1100
Figure 2.2 Safety and warning labels
Figure 2.3 Safety and warning labels
