Stid Spectre Instruction manual

Quick User Guide
SPECTRE ATX & ATX4

1
© STid - QUICK USER GUIDE SPECTRE ATX&ATX4 US V1.0
CONTENTS
Quick User Guide.....................................................................................................................0
Factory settings ......................................................................................................................2
Changing the communication mode .........................................................................................3
Changing the regulation...........................................................................................................5
Operating modes.....................................................................................................................7
TCP operation......................................................................................................................8
Searching for the IP address of the reader .........................................................................8
Reset and reconfiguration of the Ethernet module............................................................10
Communication test........................................................................................................13
Keyboard emulation operation............................................................................................14

2
© STid - QUICK USER GUIDE SPECTRE ATX&ATX4 US V1.0
Factory settings
Communication mode
Ethernet
Baud rate
115200
RS485 address
0
Hardware configuration of the
outputs
(OutputConf)
Status of the outputs
(OutputConf)
Autonomous_Output
RF settings ATX4
Upper-band
Lower-band
RF settings ATX
Upper-band
Lower-band

3
© STid - QUICK USER GUIDE SPECTRE ATX&ATX4 US V1.0
Changing the communication mode
1- Connect the reader with the internal USB-C connector.
2- Open STid - SESProUHF. (v 1.0.0.847 or higher).
3- On the “SSCP” tab, enter the following settings and the number of the
communication port to which the reader is connected:
To access the interface card of the ATX reader,
unscrew the 4 nuts of the antenna plate, gently
lift the plate so as not to damage the cable.

4
© STid - QUICK USER GUIDE SPECTRE ATX&ATX4 US V1.0

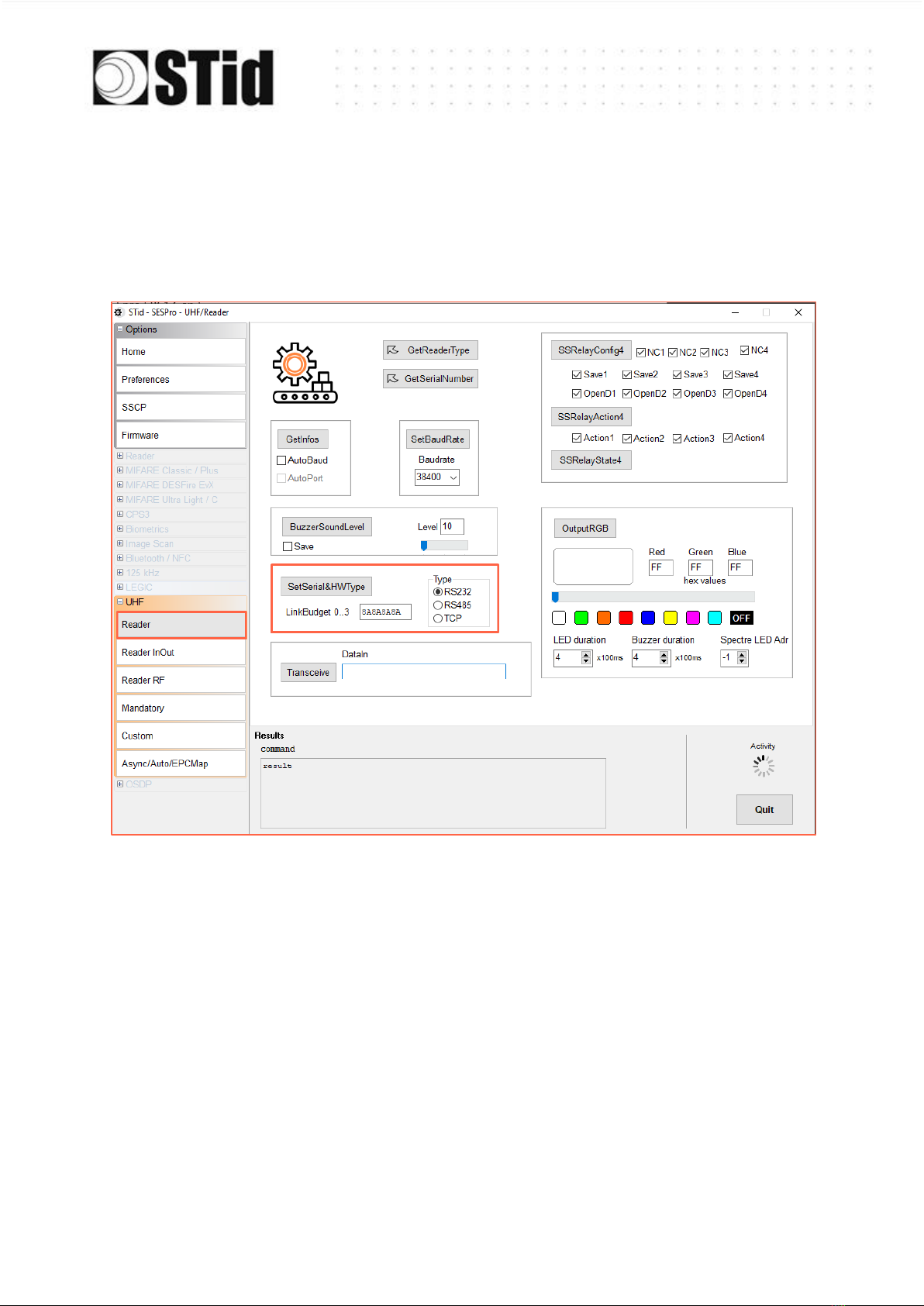

4- On the “Reader” tab:
- enter “LinkBudget 0…3”: - 00000000 pour ATX
- 90909090 pour ATX4
-Select the required type of communication: RS232 or RS485 or TCP.
-Click “SetSerial&HWType”.
-Check that the command has been executed in the “Results” window,
which displays OK.

5
© STid - QUICK USER GUIDE SPECTRE ATX&ATX4 US V1.0
Changing the regulation
1- Connect the reader with the internal USB-C connector.
2- Open STid - SESProUHF.
3- On the “SSCP” tab, enter the following settings and the number of the
communication port to which the reader is connected:
To access the interface card of the ATX reader,
unscrew the 4 nuts of the antenna plate, gently
lift the plate so as not to damage the cable.

6
© STid - QUICK USER GUIDE SPECTRE ATX&ATX4 US V1.0
4- On the “Reader RF” tab, select the required regulation according to the table
below:
Reader reference
Authorized / accepted regulation
ATX/ATX4-W5x (Upper-band)
FCC
Australia
New Zealand
ATX/ATX4-W4x (Lower-band)
ETSI- Lower-band
Morocco
A Lower-band reader will refuse the FCC/Australia/New Zealand regulations.
An Upper-band reader will refuse the ETSI-Lower-band / Morocco regulations.
5- Tick the “Reboot” box .
6- Click “ChangeRegulation”.
Note: The reader must be restarted to apply changes to the regulation.
This command must only be used to adjust the regulation of the reader to the regulation in
force in the country of use.
The “Custom” setting must only be used with the prior agreement/support of STid.
Otherwise, deterioration or malfunctions may occur, or the emissions may not comply
with the regulation in force.
The agreement/support of STid for the definition of the “Custom” regulation settings
does not relieve the user of its obligation to check the technical and administrative
compliance with the regulation of the territory where the product is used.

7
© STid - QUICK USER GUIDE SPECTRE ATX&ATX4 US V1.0
Operating modes
TCP / RS232 / RS485
Operation according to the SSCP protocol
(SSCP_UHF_INDUS_US_Vxx)
USB-C
Keyboard emulation operation

8
© STid - QUICK USER GUIDE SPECTRE ATX&ATX4 US V1.0
TCP operation
Refer to the specifications of the SSCP_UHF_INDUS_US_Vxx protocol for the commands.

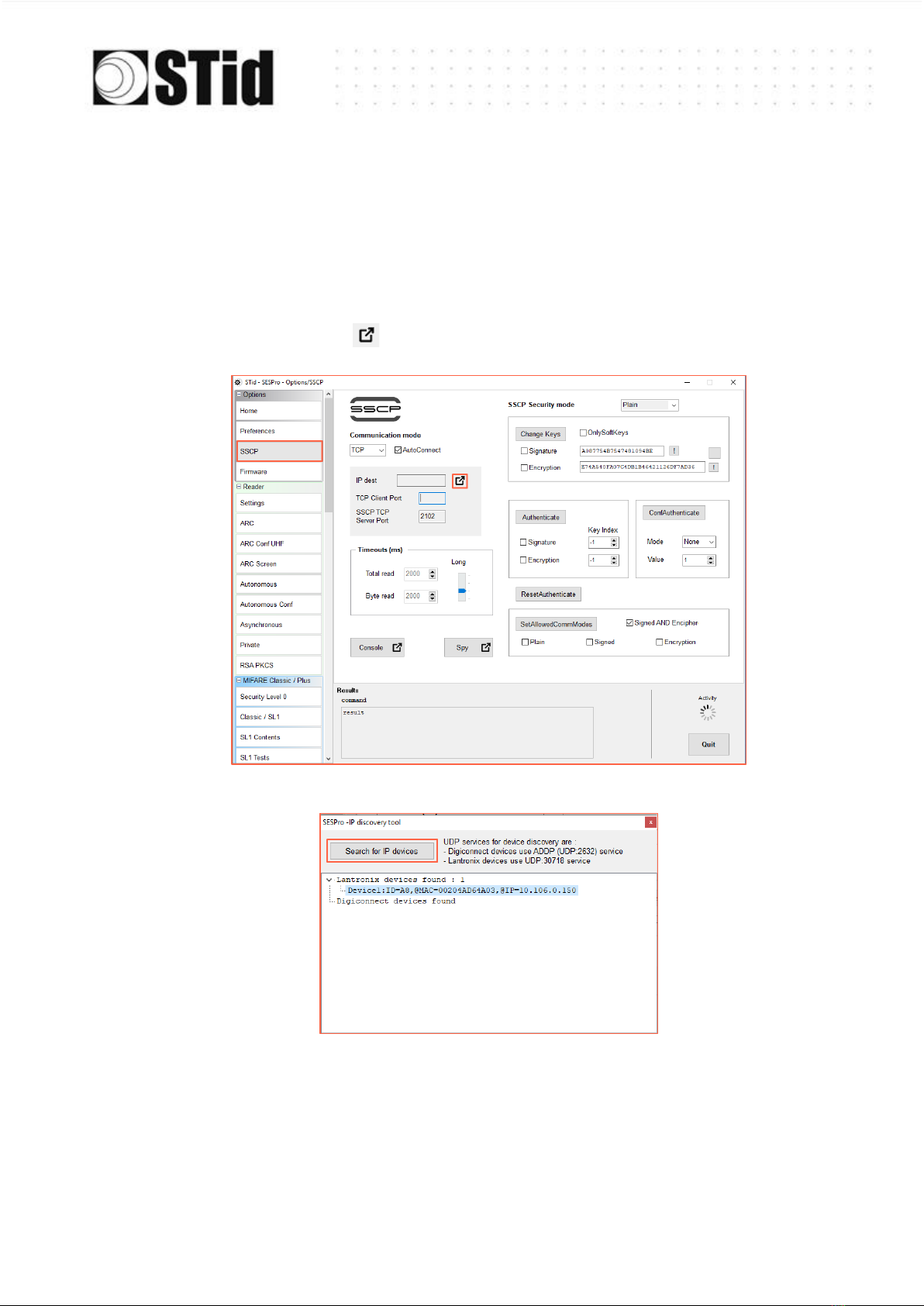

Searching for the IP address of the reader
1- Open STid - SESProUHF.
2- On the “SSCP” tab, click .
3- The window below opens. Click “Search for IP devices” to detect the reader.

9
© STid - QUICK USER GUIDE SPECTRE ATX&ATX4 US V1.0

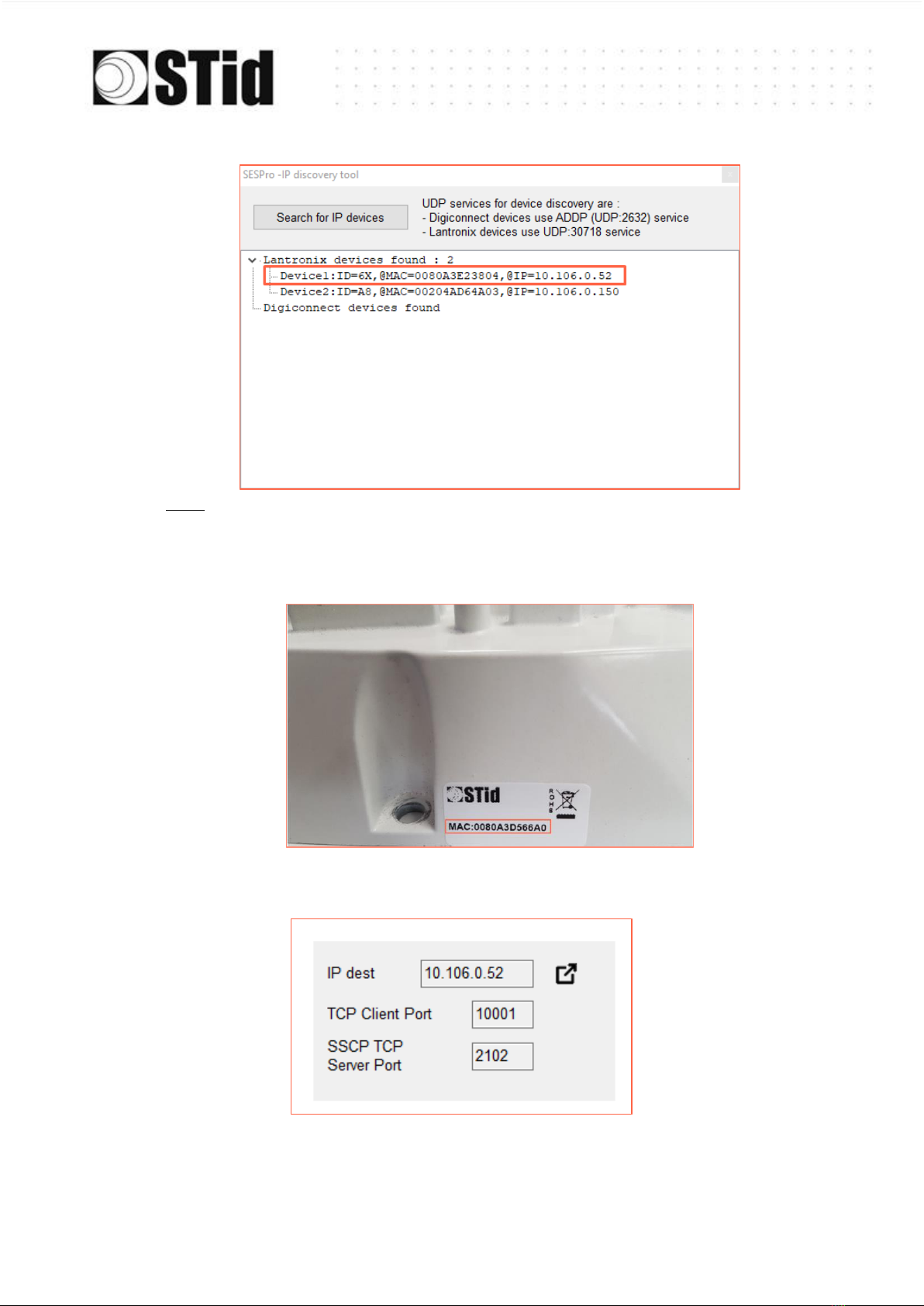

4- The list of detected readers appears.
Note: if no devices appear, refer to “Reset and reconfiguration of the Ethernet
module” section.
5- Check that the MAC address matches the address of the connected module.
6- Enter the IP address retrieved above in SESProUHF. Enter “10001” in the “TCP
Client Port” field.

10
© STid - QUICK USER GUIDE SPECTRE ATX&ATX4 US V1.0
Reset and reconfiguration of the Ethernet module
1- Put the J7-INIT jumper in the 1-2 position, then put the J6-RESET jumper in the 1-2
position.
2- Return the J6-RESET jumper to the initial 2-3 position.
The orange Ethernet LED flashes once a second (500ms ON / 500MS OFF). Wait
for 5 seconds.
3- Return the J7-INIT jumper to the initial 2-3 position.
The orange Ethernet LED flashes. As soon as it remains permanently on, the
module has been reset.
4- Repeat steps 1, 2 and 3.
5- Double-click on the device.

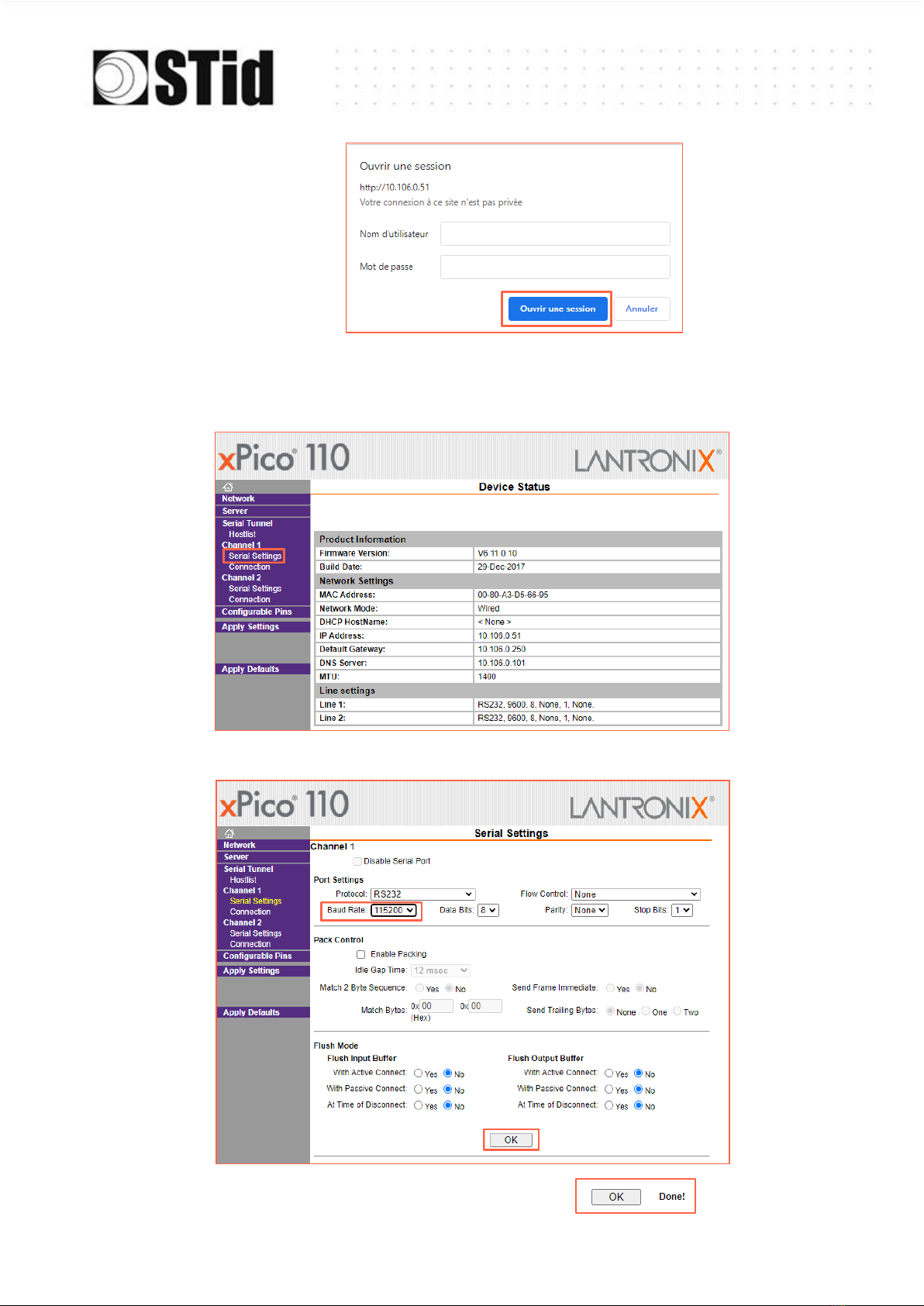

6- The window below opens. Click “Open a session”.
1 2 3
1 2 3
1 2 3

11
© STid - QUICK USER GUIDE SPECTRE ATX&ATX4 US V1.0
7- Go to “Channel 1 / Serial settings”.
8- Change the baud rate to 115200 and click “OK”.
“Done!” appears to the right of “OK”.

12
© STid - QUICK USER GUIDE SPECTRE ATX&ATX4 US V1.0
9- Go to “Channel 2 / Serial settings” and repeat the same operation.
10-Click “Apply Settings”.
11-Check that the baud rates are 115200.

13
© STid - QUICK USER GUIDE SPECTRE ATX&ATX4 US V1.0

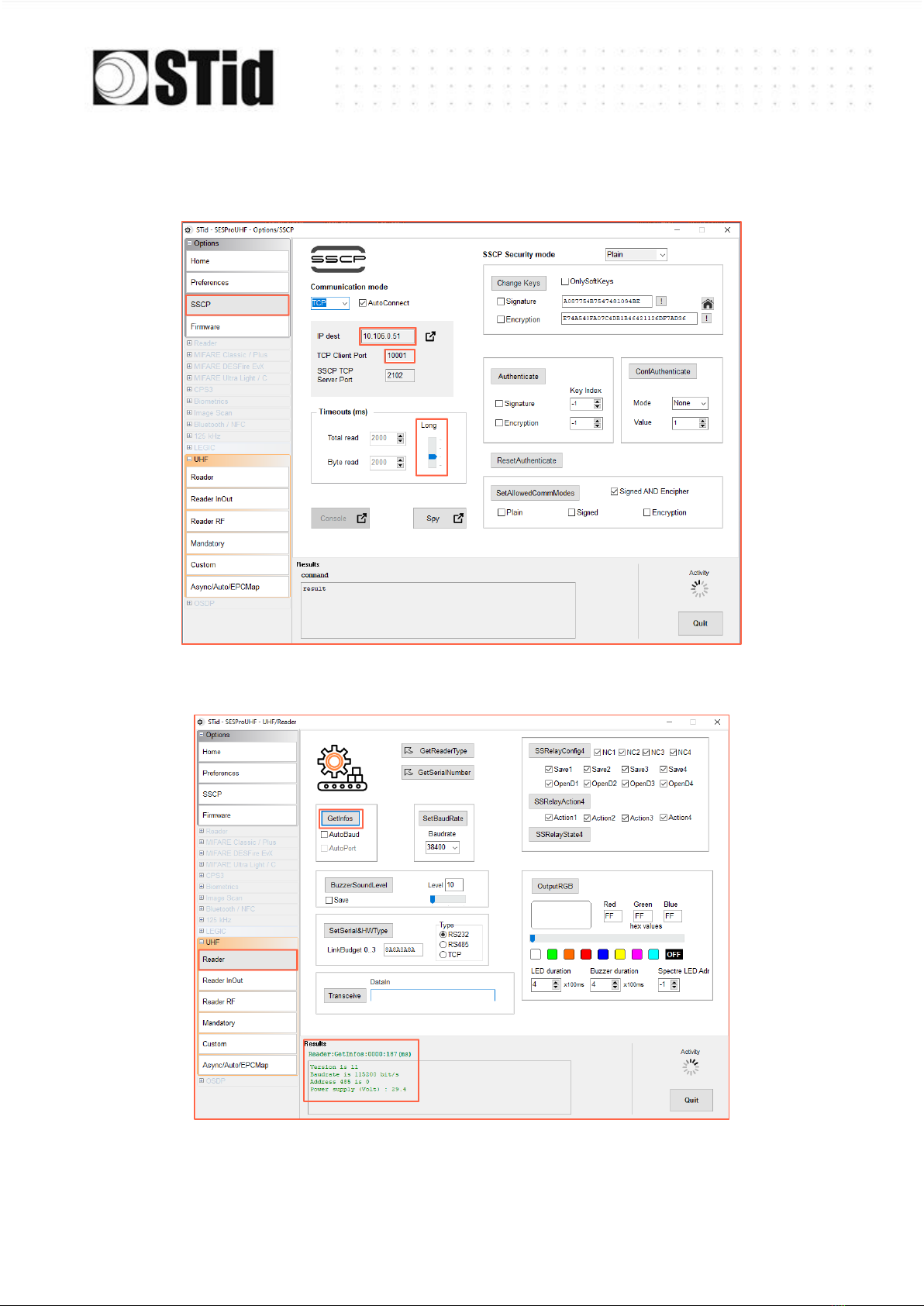

Communication test
In STid - SESProUHF, enter the IP address, enter “10001” in “TCP Client Port” and set the
Timeout to “Long”.
Run a “GetInfos” in the “Reader” tab. The response from the reader appears in the “Results”
window.

14
© STid - QUICK USER GUIDE SPECTRE ATX&ATX4 US V1.0
Keyboard emulation operation
As soon as a USB cord is connected between the USB-C output and a host, the reader
switches to an autonomous mode, in which it performs inventories and sends all the EPCs
of every detected tag in an active window.
The keyboard emulation settings can be configured using the internal USB-C connector:
-Using a terminal capable of sending ASCII characters on the serial connection of the
internal USB-C. The commands must end with CR/LF (0x0D 0x0A). The reader
responds “o” and “k” in ASCII when the frame is successfully retrieved.
-Using the STid –USB Wedge tool supplied on the USB key. Refer to Appendix 1.
List of the configurable settings:
ASCII
command
Hexa
data
Description of the command
Default
settings
language
1 byte of data:
AZERTY → 0x00
QWERTY → 0x01
Changes the keyboard layout.
AZERTY
casing
1 byte of data:
Uppercase → 0x00
Lowercase → 0x01
Chooses whether the alphabetical characters are
displayed on the screen in uppercase or lowercase.
Uppercase
numloc
1 byte of data:
Num keypad → 0x00
Num key → 0x01
Chooses which numerical keys are used: those on the
numerical keypad or those above the alphabetical keys.
Num
keypad
info
No data
Shows the current configuration (version, baud rate,
etc.).
charreturn
1 byte of data:
Deactivated → 0x00
Activated → 0x01
Switches the carriage return on or off.
Activated
reset
No data
Restores the default settings.
