Stid ultrys User manual

1
© STid –MU_ULTRYS_V3.0_EN
User Manual

2
© STid –MU_ULTRYS_V3.0_EN
Acknowledgment
Welcome to the world of high security!
You have purchased ULTRYS software; it will allow you to configure SPECTRE readers,
encode user cards and vehicle tags.
We would like to thank you for the confidence you place in us and we hope that this
solution developed by STid will keep you satisfied.
We remain at your disposal for any further information about this programming tool and
our cutting-edge solutions.
We look forward to seeing you for more information on our website www.stid-
security.com.
The STid Team

3
© STid –MU_ULTRYS_V3.0_EN
1. INFORMATION ......................................................................................................................................... 6
PC REQUIREMENTS....................................................................................................................................................6
USB KEY CONTENT ...................................................................................................................................................6
HARDWARE REQUIRED ...............................................................................................................................................6
WINDOWS INSTALLATION...........................................................................................................................................7
COMPATIBILITY ULTRYS /READER RANGE /USER IDS....................................................................................................7
COMPATIBILITY ULTRYS /FIRMWARE READER...............................................................................................................7
OVERVIEW...............................................................................................................................................................8
OPEN .....................................................................................................................................................................9
2. READERS CONFIGURABLE........................................................................................................................11
SPECTRE READER ............................................................................................................................................12
3. READER CONFIGURATION SPECTRE READ ONLY......................................................................................13
3-1 ULTRYS SETTINGS ............................................................................................................................................13
3-2 CREATE NEW CONFIGURATION.............................................................................................................................15
Step 1- UHF frequency band regulation .........................................................................................................16
Step 2- Configuration protection loaded into the reader...............................................................................18
Step 3- Reader configuration .........................................................................................................................19
Step 4- Antenna type selection ......................................................................................................................21
Step 5- Installation configuration with SPECTRE Antenna .............................................................................22
Step 6- Light indicator configuration .............................................................................................................35
Step 7- Reading & communication parameters .............................................................................................37
Step 8- User Security Roles.............................................................................................................................42
Step 9- Configuration save and protect .........................................................................................................43
4. READER CONFIGURATION SPECTRE OSDP™ ............................................................................................45
4-1 ULTRYS SETTINGS ............................................................................................................................................45
4-2 CREATE NEW CONFIGURATION.............................................................................................................................47
Step 1- UHF frequency band regulation .........................................................................................................48
Step 2- Configuration protection loaded into the reader...............................................................................50
Step 3- Reader configuration .........................................................................................................................51
Step 4- Antenna type selection ......................................................................................................................53
Step 5- Installation configuration ..................................................................................................................53
Step 6- Light indicator configuration .............................................................................................................65
Step 7- Reading & communication parameters .............................................................................................66
Step 8- User Security Roles.............................................................................................................................69
SPECTRE NANO READER..................................................................................................................................72
5. READER CONFIGURATION SPECTRE NANO READ ONLY ...........................................................................73
5-1 ULTRYS SETTINGS ............................................................................................................................................73
5-2 CREATE NEW CONFIGURATION.............................................................................................................................75
Step 1- UHF frequency band regulation UHF .................................................................................................76
Step 2- Configuration protection loaded into the reader...............................................................................78
Step 3- Reader configuration .........................................................................................................................79
Step 4- Antenna type selection ......................................................................................................................80
Step 5- Installation configuration ..................................................................................................................81
Step 6- Light and sound indicator setting ....................................................................................................104
Step 7- Reading & communication parameters ...........................................................................................108
Step 8- User Security Roles...........................................................................................................................118
Step 9- Configuration save and protect .......................................................................................................119

4
© STid –MU_ULTRYS_V3.0_EN
6. READER CONFIGURATION SPECTRE NANO OSDP™................................................................................122
6-1 ULTRYS SETTINGS ..........................................................................................................................................122
6-2 CREATE NEW CONFIGURATION...........................................................................................................................124
Step 1- UHF frequency band regulation .......................................................................................................125
Step 2- Configuration protection loaded into the reader.............................................................................127
Step 3- Reader configuration .......................................................................................................................128
Step 4- Antenna selection ............................................................................................................................129
Step 5- Installation configuration ................................................................................................................130
Step 6- Light and sound indicator setting ....................................................................................................153
Step 7- Reading & communication parameters ...........................................................................................155
Step 8- User Security Roles...........................................................................................................................164
Step 9- Configuration save and protect .......................................................................................................165
SPECTRE ATX READER ...................................................................................................................................169
7. READER CONFIGURATION SPECTRE ATX READ ONLY.............................................................................170
7-1 ULTRYS SETTINGS ..........................................................................................................................................170
7-2 CREATE NEW CONFIGURATION...........................................................................................................................172
Step 1- UHF frequency band regulation .......................................................................................................173
Step 2- Configuration protection loaded into the reader.............................................................................175
Step 3- Reader configuration .......................................................................................................................176
Step 4- Antenna type selection ....................................................................................................................178
Step 5- Installation configuration ................................................................................................................178
Step 6- Light indicator configuration ...........................................................................................................185
Step 7- Reading & communication parameters ...........................................................................................186
Step 8- User Security Roles...........................................................................................................................191
Step 9- Configuration save and protect .......................................................................................................192
8. READER CONFIGURATION SPECTRE ATX OSDP™ ...................................................................................194
8-1 ULTRYS SETTINGS ..........................................................................................................................................194
8-2 CREATE NEW CONFIGURATION...........................................................................................................................196
Step 1- UHF frequency band regulation .......................................................................................................197
Step 2- Configuration protection loaded into the reader.............................................................................199
Step 3- Reader configuration .......................................................................................................................200
Step 4- Antenna type selection ....................................................................................................................202
Step 5- Installation configuration ................................................................................................................202
Step 6- Light indicator configuration ...........................................................................................................208
Step 7- Reading & communication parameters ...........................................................................................209
Step 8- User Security Roles...........................................................................................................................212
Step 9- Configuration save and protect .......................................................................................................213
SPECTRE ATX4 READER .................................................................................................................................215
9. READER CONFIGURATION SPECTRE ATX4 READ ONLY...........................................................................216
9.1 ULTRYS SETTINGS ....................................................................................................................................216
9.2 CREATE NEW CONFIGURATION ...........................................................................................................................218
Step 1- UHF frequency band regulation.......................................................................................................219
Step 2- Configuration protection loaded into the reader.............................................................................221
Step 3- Reader configuration .......................................................................................................................222
Step 4- Antenna type selection ....................................................................................................................224
Step 5- Installation configuration ................................................................................................................224
Step 6- Light indicator configuration ...........................................................................................................235
Step 7- Reading & communication parameters ...........................................................................................236

5
© STid –MU_ULTRYS_V3.0_EN
Step 8- User Security Roles...........................................................................................................................241
Step 9- Configuration save and protect .......................................................................................................242
10. READER CONFIGURATION SPECTRE ATX4 OSDP™..............................................................................244
10-1 ULTRYS SETTINGS ........................................................................................................................................244
10-2 CREATE NEW CONFIGURATION.........................................................................................................................246
Step 1- UHF frequency band regulation .......................................................................................................247
Step 2- Configuration protection loaded into the reader.............................................................................249
Step 3- Reader configuration .......................................................................................................................250
Step 4- Antenna type selection ....................................................................................................................252
Step 5- Installation configuration ................................................................................................................252
Step 6- Light indicator configuration ...........................................................................................................263
Step 7- Reading & communication parameters ...........................................................................................264
Step 8- User Security Roles...........................................................................................................................267
Step 9- Configuration save and protect .......................................................................................................268
11. OPEN AN EXISTING CONFIGURATION ................................................................................................270
11.1 CONFIGURATION FILE.................................................................................................................................270
11.2 READER VIA USB ......................................................................................................................................272
11.3 CONFIGURATION BADGE (SCB/OCB UHF)....................................................................................................274
12. LOAD THE CONFIGURATION INTO THE READER .................................................................................276
12.1 LOADING THE CONFIGURATION INTO THE READER ............................................................................................277
12.2 CONFIGURATION CARD (SCB/OCB UHF)......................................................................................................279
13. USER CREDENTIALS............................................................................................................................280
Step 1- Configuration details loaded............................................................................................................280
Step 2 –User ID definition............................................................................................................................283
Step 3- Encoding tag ....................................................................................................................................286
14. ANNEX 1: USING THE EPC CODE FEEDBACK FORMAT AND EPC FILTER...............................................287
USING MODE .......................................................................................................................................................287
USING EPC FILTER AND MODES ...............................................................................................................................288
USING SECURE MODE.............................................................................................................................................289
15. ANNEX 2: PROTOCOLS .......................................................................................................................290
PROTOCOLS CLOCK &DATA....................................................................................................................................290
Clock & Data 2B ...........................................................................................................................................291
Clock & Data 2H ...........................................................................................................................................292
PROTOCOLES WIEGAND .........................................................................................................................................293
Wiegand 3i...................................................................................................................................................293
WIEGAND 3Ca..............................................................................................................................................294
WIEGAND 3Cb..............................................................................................................................................294
WIEGAND 3La ..............................................................................................................................................295
WIEGAND 3Lb ..............................................................................................................................................295
Wiegand 3Eb................................................................................................................................................296
Wiegand 3W ................................................................................................................................................296
Wiegand 3V..................................................................................................................................................296
16. REVISION...........................................................................................................................................297

6
© STid –MU_ULTRYS_V3.0_EN
1. Information
PC requirements
•A PC with operating system: Windows 7 or 10 or Windows server 2012r2.
•USB communication port.
•50 MB min of free disk space.
USB Key Content
•FTDI USB Driver for Windows 7, 8.x and 10.
•ULTRYS Version 3.x.x.
Hardware required
To configure the reader:
•USB cable provided with SLA and SMA to directly configure the reader via USB
link.
Or
•STid UHF 866-915 MHZ encoder to encode UHF SCB/OCB configuration card:
Part number:
-ARC-Wx5-G/U04-5AA/1
-STR-Wx5-E/U04-5AA/1 (v10 firmware version required*)
-GAD-Wx5-E/U04-5AA/1 (v08 firmware version required*)
•UHF ISO card part number: CCTW630_AP (ISO card UHF –Broadband- Quanray QS-
5AE 64K).
To encode user credentials and vehicle tags:
STid UHF 866-915 MHz encoder, part number:
-ARC-Wx5-G/U04-5AA/1
-STR-Wx5-E/U04-5AA/1 (v10 firmware version required*)
-GAD-Wx5-E/U04-5AA/1 (v08 firmware version required*)
*Identification on the back of the encoder.

7
© STid –MU_ULTRYS_V3.0_EN
Windows Installation
1. Insert the ULTRYS v2 USB stick on an USB port of your PC.
2. Wait for the automatic opening of the browser window.
3. Launch ULTRYS V2.x.x_setup.exe.
4. Follow the instructions on the screen.
Compatibility ULTRYS / Reader Range / User IDs
This ULTRYS version (3.x.x) allows you to configure SPECTRE, SPECTRE NANO, ATX and
ATX4 readers.
To configure URx & GAT readers, please use ULTRYS v1.x.x.
ULTRYS v1
ULTRYS 3.0
SPECTRE + SPECTRE ANTENNA
x
✓
SPECTRE + URD ANTENNA
x
✓
URx + URD ANTENNA
✓
x
URx + SPECTRE ANTENNA
✓
x
Credential encoding in secure
mode
x
✓
Warning:
•To read credentials encoded with ULTRYS v1 on a SPECTRE reader:
configure the EPC reading in Mode 1(standard) and do not use the EPC filter.
•Credentials encoded with ULTRYS v2 will not read on the Urx /GAT readers.
Compatibility ULTRYS / Firmware reader
This ULTRYS version (3.x) allows you to configure SPECTRE, SPECTRE NANO, ATX and
ATX4 readers according to the firmware version of the reader.
ULTRYS v2.0
ULTRYS v2.1
ULTRYS v2.4
ULTRYS v3.0
Firmware v7




Firmware v9



Firmware ≥v10


Firmware ≥v13


8
© STid –MU_ULTRYS_V3.0_EN
Overview
It is possible to install the software on an unlimited number of workstations.
❖The software is divided into three distinct parts:
ULTRYS settings
Readers configuration
User credentials
❖On the Home page, you can select the language (English, Spanish, French) and click
on the link for user manual.

9
© STid –MU_ULTRYS_V3.0_EN
Open
At the first opening no file is loaded by default.
ULTRYS is directly open on the home page.
This mention indicates the current configuration.
At the next opening, ULTRYS will automatically load the last loaded configuration file.
Two possible cases:
-The loaded file is the one to use
-The loaded file is not the one to use

10
© STid –MU_ULTRYS_V3.0_EN
1st Case: the loaded file is the one to use
1. Enter the password of the
configuration file if there is
one if not go to step 2.
2. Select the profile to use to
open the file.
3. Enter the profile password if
there is one.
4. Please confirm.
5. ULTRYS loads the file and opens the
home page.
2nd case the loaded file is not the one to use
1- Cancel.
2- ULTRYS is open on the
home page without any
configuration loaded

11
© STid –MU_ULTRYS_V3.0_EN
2. Readers configurable
SLA-Rx1-A-U04-xx / SMA-Rx1-A-U04-xx
SLA-Rx2-A-U04-5AB / SMA-Rx2-A-U04-5AB
SLA-Rx3-A-U04-7AB/ SMA-Rx3-A-U04-7AB
SLA-Wx3-A-U04-7OS / SMA-Wx3-A-U04-7OS
SNA-Rx1-A-BT4-xx
SNA-Rx2-A-BT4-5AB
SNA-Rx3-A-BT4-7AB
SNA-Wx3-A-BT4-7OS
ATX-Rx1-A-U04-xx
ATX-Rx2-A-U04-5AB
ATX-Rx3-A-U04-7AB
ATX -Wx3-A-U04-7OS
ATX4-Rx1-A-U04-xx
ATX4-Rx2-A-U04-5AB
ATX4-Rx3-A-U04-7AB
ATX4 -Wx3-A-U04-7OS
SPECTRE READ ONLY
SPECTRE OSDPTM
SPECTRE NANO READ ONLY
SPECTRE NANO OSDPTM
SPECTRE ATX OSDPTM
SPECTRE ATX READ ONLY
SPECTRE ATX 4 OSDPTM
SPECTRE ATX 4 READ ONLY

12
© STid –MU_ULTRYS_V3.0_EN
SPECTRE READER
SPECTRE READ ONLY
SPECTRE OSDPTM

13
© STid –MU_ULTRYS_V3.0_EN
SPECTRE READ ONLY
3. Reader configuration SPECTRE READ ONLY
3-1 ULTRYS settings
➢Connect the SPECTRE reader to the PC using the provided USB cable to load the
configuration via serial link directly onto the reader.
or
➢Connect an UHF encoder to the PC to load the configuration onto UHF SCB
configuration card.

14
© STid –MU_ULTRYS_V3.0_EN
SPECTRE READ ONLY

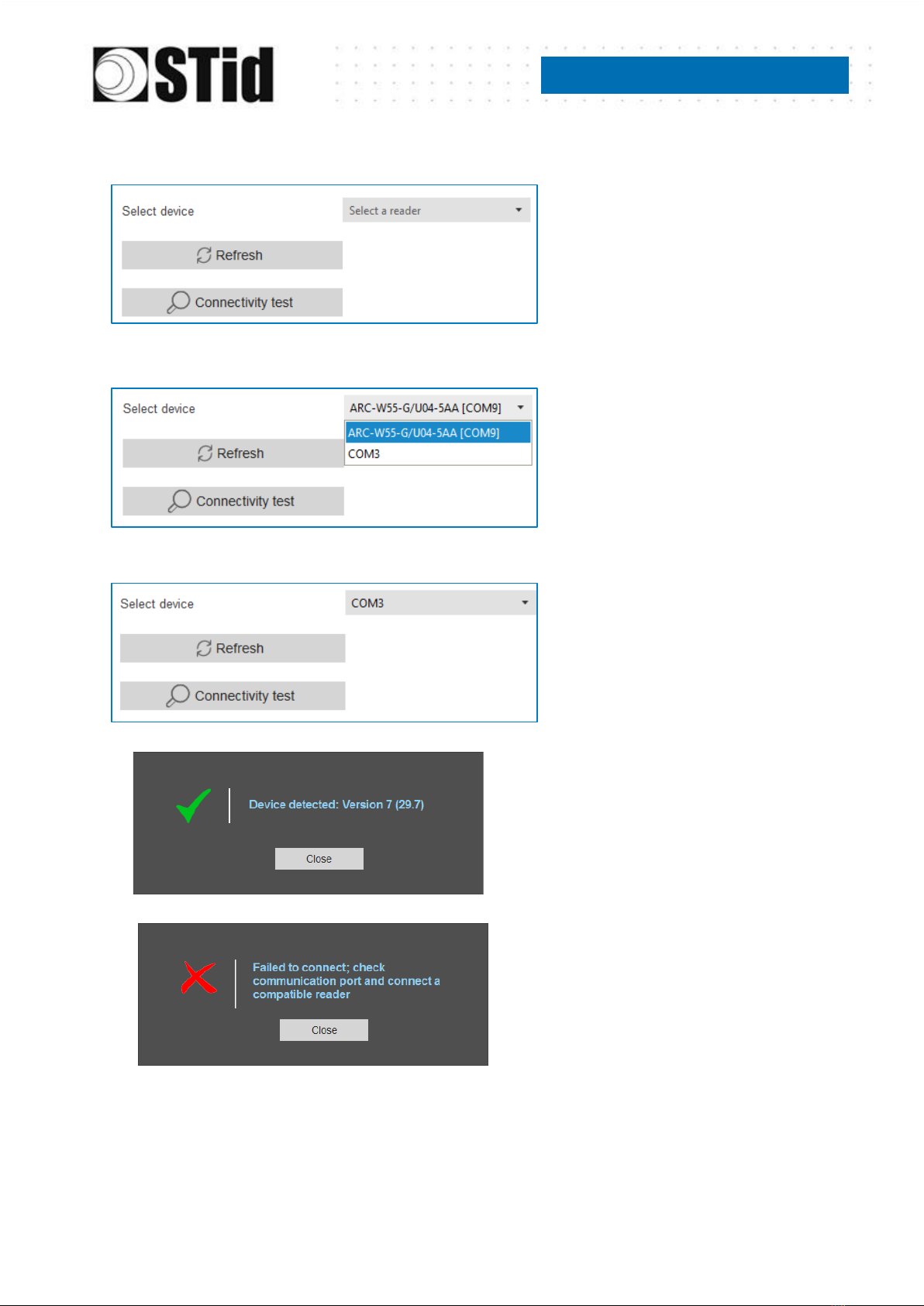

To set the communication port
1- Click on ‘Refresh’ to detect all
readers connected to the PC.
2- Open the dropdown list Select
device
3- Readers whose firmware is ≥ 8 will
appear in the drop-down list under
their commercial reference.
Select the communication port
number for the encoder or reader
or select the reader to use.
4- Run the connectivity test
Message OK (with indication of the firmware
version).
Message: Failed
- Check the compatibility of the reader.
- Check the USB cable.
- Check the Baudrate reader: it must be
fixed to 115200.
Note: during the connectivity test on a UHF encoder, a sound and light signal (orange) will be
emitted for 1 second.

15
© STid –MU_ULTRYS_V3.0_EN
SPECTRE READ ONLY
3-2 Create new configuration
The reader configuration is done in 9 steps. To move from one stage to another, you must click
on “Next”.
UHF frequency band regulation
Configuration protection loaded into the
reader
Reader configuration
Antenna type selection
Installation configuration
Light indicator configuration
Reading & communication parameters
User Security Roles
Configuration save and protect

16
© STid –MU_ULTRYS_V3.0_EN
SPECTRE READ ONLY
Step 1- UHF frequency band regulation
Type the first characters to display a country or select the
country in which the installation will be done.
For a country which is not in the list, please contact STid:
[email protected].
To approve the feasibility to install your reader in the selected country, you can check the
compatibility.
2
1
2
1

17
© STid –MU_ULTRYS_V3.0_EN
SPECTRE READ ONLY
With USB reader connection
1- Connect the reader and set the
communication COM port.
2- Select ‘Connect your reader’
3- Please confirm
Message: OK
Message: NOK
The reader can’t be installed in the
selected country.
- Check the USB cable
- Check the communication with reader
With reader part number
Enter the first 5 characters of the reader part number
Example: SLAR41, SLAR51, SMAR43…
Message: OK
Message: the reference reader is not compatible
with regulation selected.

18
© STid –MU_ULTRYS_V3.0_EN
SPECTRE READ ONLY
Step 2- Configuration protection loaded into the reader
SPECTRE readers are initially supplied with a default configuration and a protection code to
0xFFFFFFFFFF.
The size of this protection code is 5 bytes (10 hexadecimal characters).
After the initial setup and in order to reconfigure the reader, it will be necessary to present an
UHF SCB card or a configuration file with the same ‘protection code’ as the reader.
Random protection code generator.
Caution
This protection code is important and should definitely be known by the administrator.
It protects the configuration data and allows reader configuration updates.
If you lose this protection code, you won’t be able to reconfigure the reader again and the
reader must be reset at the factory.
To change the protection code, it will be necessary to know the current protection code.

19
© STid –MU_ULTRYS_V3.0_EN
SPECTRE READ ONLY
Step 3- Reader configuration
Selecting the reader type
SPECTRE SLA-R4/5x-A/U04-xx readers can be configured in “Read only” mode from firmware
version 7.
Selecting Firmware
You must select the firmware version that is compatible with your reader.
To do so, you can manually select the reader and firmware version, or you can use the function
"Auto detection –Connect and check my reader configuration".
1
2
1
2

20
© STid –MU_ULTRYS_V3.0_EN
SPECTRE READ ONLY
With USB reader connection
1- Connect the reader via USB cable provided.
Configure the communication parameters.
2- Select the Connect your reader.
3- Click on Confirm.
Message : NOK
- Check the USB cable
- Check the communication with reader
With reader’s number reference
Enter the first 6 characters of your reader’s
reference number.
Examples: SLAR41, SLAR51, SMAR41
Message: NOK
Check your reader’s reference number.
