STIEBEL ELTRON STREAM 5S User manual

USER MANUAL | STREAM 5S WATER FILTER
High Quality
WATER FILTER
by Stiebel Eltron / Germany
STREAM 5S
STREAM 5S

2 I STIEBEL ELTRON
USER MANUAL STREAM 5S.
STREAM 5S FEATURES.
Ultrafiltration membrane
The ultrafiltration membrane removes bacteria
and provides microbiological safe and clean
drinking water for you and your family.
Ag+
Ag+
Ag+
Ag+
Ag+
Ag+
Ag+
Ag+Ag+
Anti-bacterial carbon with mineral
ceramic balls
Anti-bacterial carbon powder in the last filtration
step will prevent a contamination from the
outside. Oxidation reduction potential mineral
balls reduce ORP value which acts as anti-oxidant
of water to increase the natural metabolism of
human body.
Encapsulated filter
Encapsulated filters allow a clean and safe
filtration process without contamination
from the outside. The high quality filter
media allow for an extraordinary clean and
safe filter performance.
Filter replacement
The Stiebel Eltron Stream filter cartridges are
easy to change. The PUSH & CLICK system
allows the filter change without using any
tool. No plumber or expert is needed.
Automatic water shut off
The filter system has an integrated automatic
water stop. As soon as the filter is plugged
out off the adapter the water flow will shut off
automatically.
Clip function - space saving
Because of the clip function of the filter system
there is no extra space needed for under the sink
installation. The filter can be easily changed.

3 I STIEBEL ELTRON
USER MANUAL STREAM 5S.
CONTENT.
1. Stream 5S filter components ������������������������������������������������������������� 04
2. Faucet and accessories �������������������������������������������������������������������� 05
3. Operating instructions ��������������������������������������������������������������������� 06
4. Filter specifications ������������������������������������������������������������������������� 07
5. Installation and precautions �������������������������������������������������������������� 08
6. Installation guidelines������������������������������������������������������������������ 09-10
7. Filter replacement ��������������������������������������������������������������������������� 11
8. Trouble shooting����������������������������������������������������������������������������� 12

4 I STIEBEL ELTRON
USER MANUAL STREAM 5S.
1. STREAM 5S FILTER COMPONENTS.
1Encapsulated filter
2Filter adapter
3Lower adapter part
4Upper adapter part
5Holes for wall-mount installation
6Push button for filter change
7Quick connector for water outlet
8Quick connector for water inlet
1
2
3
4
5
6
7 8
7
8

5 I STIEBEL ELTRON
USER MANUAL STREAM 5S.
2. FAUCET AND ACCESSORIES.
1Faucet
2Plate
3Rubber washer
4Washer
5Plastic washer
6Inner tooth washer
7Double-ended nut
8Plastic plug
9Plastic hollow ball
10 Locking nut
11 Plastic tube [1 x 1.5 m]
12 Manual
13 Diverter ball valve
14 Nipple
15 “L”connector
11
12
13
14 15
12
3
4
5
6
7
8
9
10

6 I STIEBEL ELTRON
USER MANUAL STREAM 5S.
3. OPERATING INSTRUCTIONS.
Type name Stream 5S (13“)
Part no. 1611-238451
Installation type under sink, wall-mounted
Filter type encapsulated
Max. operating pressure 4 bar
Min. operating pressure 1 bar
Max. operating temperature 35 oC
Min. operating temperature 4 oC
Max. operating flow 4 L / min
Sediment filter material polyprophylene
micron rating 1 micron
rated life time 2880 L or 8 months*
Pre-carbon material activated carbon
micron rating 0.5 micron
rated life time 2880 L or 8 months*
Ultrafiltration membrane material hollow fiber |polysulfone
micron rating 0.01~0.3 micron
rated life time 4320 L or 12 months*
Granual activated carbon (Ag+)
and ORP mineral ceramic balls
material activated carbon (Ag+), mineral ceramic balls
rated life time 2880 L or 8 months*
*The life time will depend on the water quality . It is based on the consumption of 12 L daily.

7 I STIEBEL ELTRON
USER MANUAL STREAM 5S.

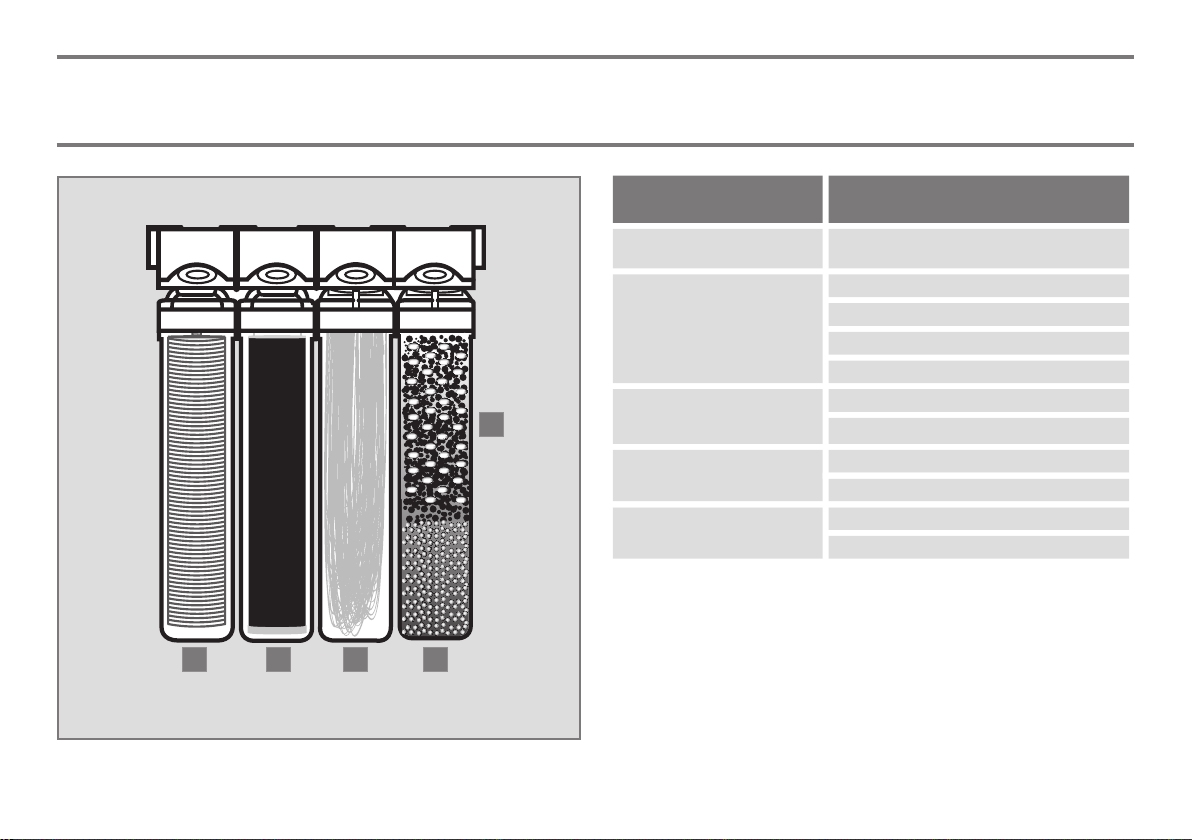

4. FILTER SPECIFICATIONS.
Filter step
(5 steps in 4 cartridges)
Removal function
1. Polyprophylene sediment fil-
ter | 1 micron
rust and sediments
2. Activated carbon block filter | 0.5
micron
bad taste and odor
chlorine
THMs
VOCs
3. Ultrafiltration membrane | 0.01- 0.3
micron
bacteria
cysts
4. Mineral ceramic balls* reduces ORP content in water
supplies minerals into water
5. Granular activated carbon filter
(anti-bacterial silver ions)
odors that occur in the filtration process
prevents bacteria growth within the filter
*it is normal to find air (oxygen) inside drinking water (especially at the first glass). It is the benefits from the mineral ceramic balls and is safe to drink.
1 2 3 4
5
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+
Ag+Ag+

8 I STIEBEL ELTRON
USER MANUAL STREAM 5S.

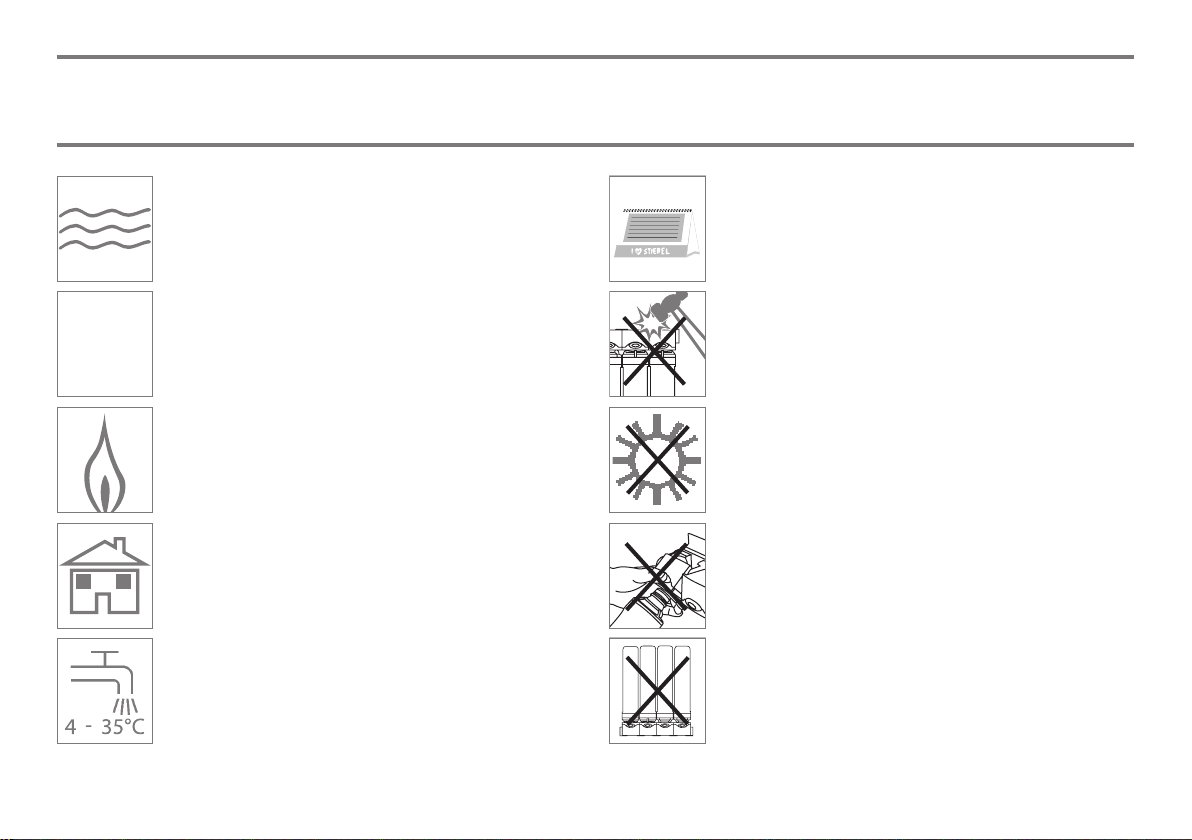

5. INSTALLATION AND PRECAUTIONS.
1 - 4
BAR
The water filter can only be used with pre-filtered water from a
water supply facility. The filter cannot be used with water from
unsafe water sources such as rivers and wells.
To reach an optimized and satisfying filter result the water
filter should only be installed in houses with a pipe pressure
between 1 and 4 bar.
The water filter must be installed in a far distance to inflammable
materials and heating sources to avoid deformation.
The water filter should only be installed inside the house.
The filter can only be installed to the cold water supply with a
water temperature between 4 and 35°C.
Never use the PUSH button for filter replacement during water
flow. The equipment may break down due to high pressure. For
filter exchange close the diverter valve.
The water filter should not be exposed to force or shock.
The water filter must be kept away or protected from direct
light (e.g. sunlight).
Replace the filters according to the schedule to insure clean
drinking water.
Please install the filter upright. In case of moving or raising the
filter make sure that the filter stays upright.
MonTue WedThu FriSat Sun
1 2 3 4 5 6
7
1 2 3 4 5 6
7
1 2 3 4 5 6
7
1 2 3 4 5 6
7
1 2 3 4 5 6
7

9 I STIEBEL ELTRON
USER MANUAL STREAM 5S.

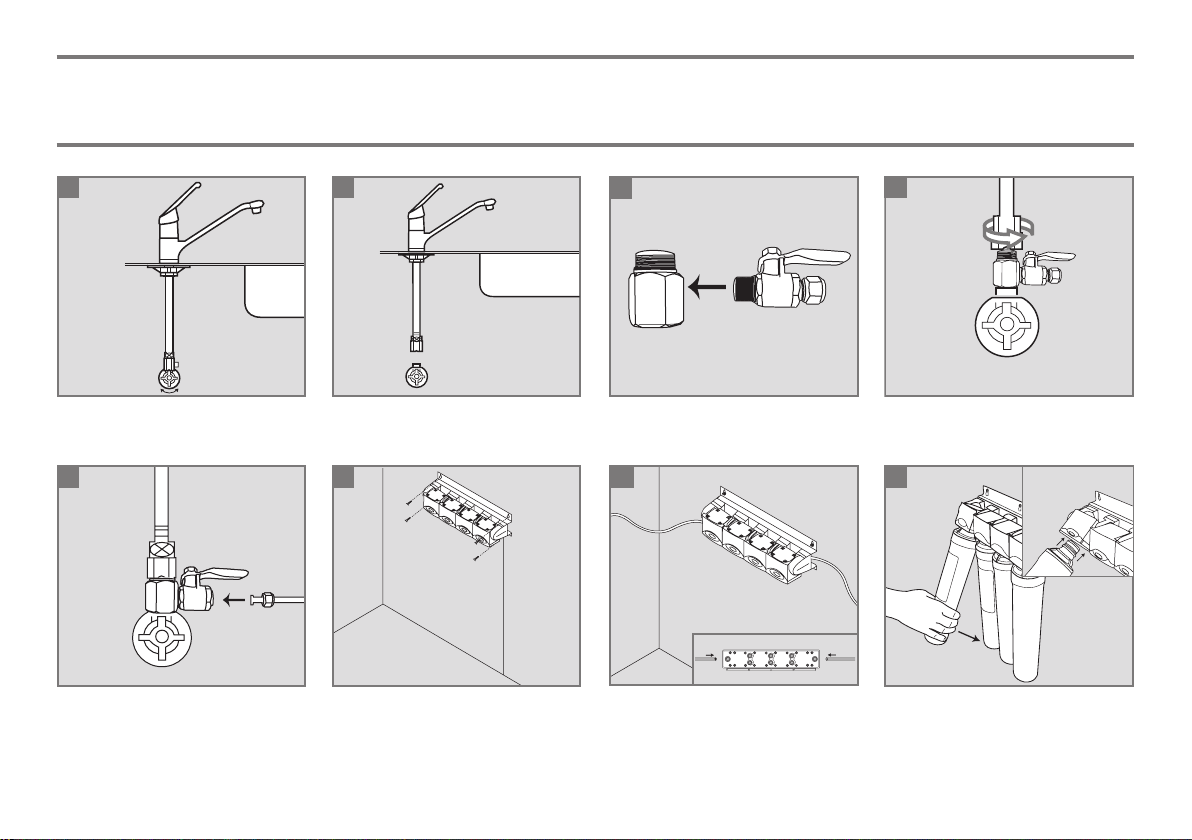

6. INSTALLATION GUIDELINES.
Lock the stop valve of the cold water
supply line.
Detach the metal hose from the cold
water supply under the sink.
3
Connect the diverter ball valve with
the nipple (use teflon-tape).
Assemble the ball valve and nipple to
the water supply. Re-attach the metal
hose.
Cut the plastic tube in 2 pieces. Con-
nect the inlet tube and tighten the
tube with the cap.
Insert the plastic tube and connect
the adapter on the wall.
Bring the adapter in upward position and
insert the filter. A loud “click“ will signal
that the filter is attached properly. Bring
the filter back in the normal position.
58
7
30.00cm
6
Select a proper place under the sink
that has at least 25 cm (10“) / 30 cm
(13“) from the floor to allow to insert
the cartridges easily. Make holes into
the wall to fix the filter adapter under
the sink.
Closed
1 2 4

10 I STIEBEL ELTRON
open
USER MANUAL STREAM 5S.

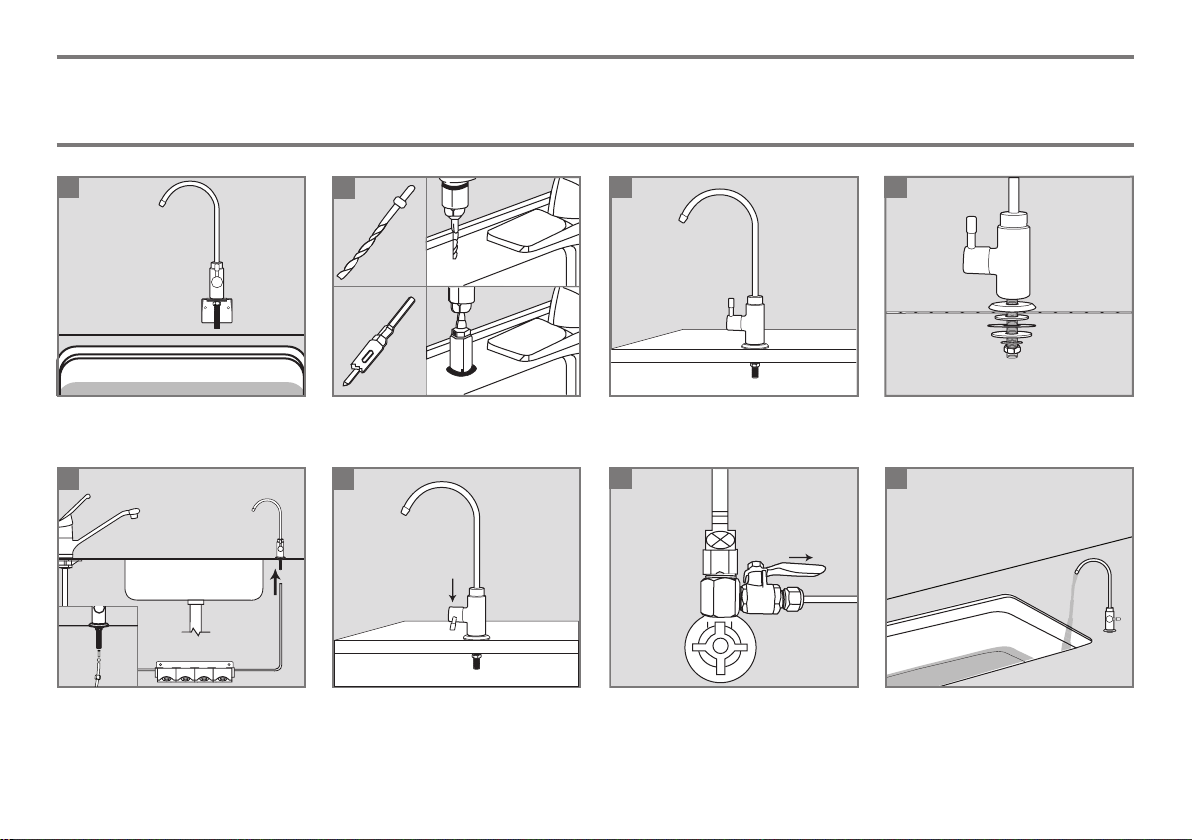

6. INSTALLATION GUIDELINES.
Connect the outlet tube with the
drinking water faucet connector.
Before operating the system open the
faucet.
If there is no installation mistake or
leakage keep the faucet open for 10
minutes to bring rest particles and air
out of the unit.
Open the diverter valve under the
sink slowly. Check the whole system
for water leakages.
9
Select a proper place for the faucet.
Drill a placement hole into the sink.
Insert the base washer to the screw
beneath the faucet’s main body and
insert the faucet to the hole.
10
Insert the rubber washer from beneath
the sink and fix the faucet in place.
14 16
In case of wall-mounted installation of the
faucet use the „L“ connector to fix the faucet
similar to the descriptions in picture 11-12.
15
open
11 12
13
*It is normal to find that air (oxygen) might come out from the faucet for the first 5 seconds especially after long time no use. These air (oxygen) comes from mineral
ceramic balls and the water might have a slightly higher pH level. It is safe to use and the water is safe to drink.

11 I STIEBEL ELTRON
open
open
USER MANUAL STREAM 5S.
7. FILTER REPLACEMENT.
3
Close the diverter valve under the sink. Open the faucet shortly to release the
pressure in the system.
Pull the adapter connector to an angle
of 45owhile holding the filter.
Press the push button and rotate the
filter to eject.
Remove the cap of the new filter and
insert in the head connector. A “click“
will signal that the filter cartridge is
connected properly.
Before operating the system open the
faucet. Open the diverter valve under the
sink slowly. Check the whole system
for water leakages.
If there is no installation mistake or
leakage keep the faucet open for 10
minutes to bring residual particles and
air out of the unit.
4
5
2
6
1
close
7
open
8
**It is recommended to change the plastic tube every two years for hygienic and safety purposes.

12 I STIEBEL ELTRON
USER MANUAL STREAM 5S.
8. TROUBLE SHOOTING.
Problems Possible cause Trouble shooting
Black color or black particles in the water. The stream water filter contains carbon powder. After
installation small particles can occur in the water.
After installation or filter exchange let the water flow
for about 10 minutes to clean the filter from possible
small residual particles of carbon.
Slow water flow. The lifetime of the filter is finished. Replace the filter cartridge.
The filter is clogged. Replace the filter cartridge.
Noise in the system. There are air bubbles in the system. After installation let the water flow for about 10 minutes
to remove all air from the system.
Unusual water or chlorine taste/bad odor. The cartridge does not remove chlorine and other
contaminants from the water. The life time of the
filter cartridge is finished.
Replace the filter cartridge.
You have not used the filter for a while and some
sediments and contaminants developed a bad smell
in the system.
Open the valves and let the water flow for at least
5 minutes.
Water leakage. Tubes, fittings, nipples might not be connected
properly.
Check every connection to be inserted in the proper
depth.
No water flow. The diverter valve is closed. Open the diverter valve.
