STIEBEL ELTRON EHS 15-150 Operation manual

This water heater must be installed (water and electrical installation), commissioned and serviced
by approved service technicians in accordance with these instructions.

English
Horizontal wall mounted electric storage water heater Instructions for use and installation


EHS 15-150

STIEBEL ELTRON
2
General information
Read these instruction
carefully before using the
appliance and retain them for future
reference. If the appliance is passed
on the third party please hand these
instructions to the new user.
- This appliance is not
intended for use by persons
(including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.
- Children should be
supervised to ensure that
they do not play with the appliance.
WARNING:
When selecting an appropriate
water temperature, the temperature
may be dangerously high, especially for
children. Keep away from the hot water
outlet, as it may cause a potential scald-
ing hazard.

   
   

 

-  
    
  
  
  

   
    


     

 

English

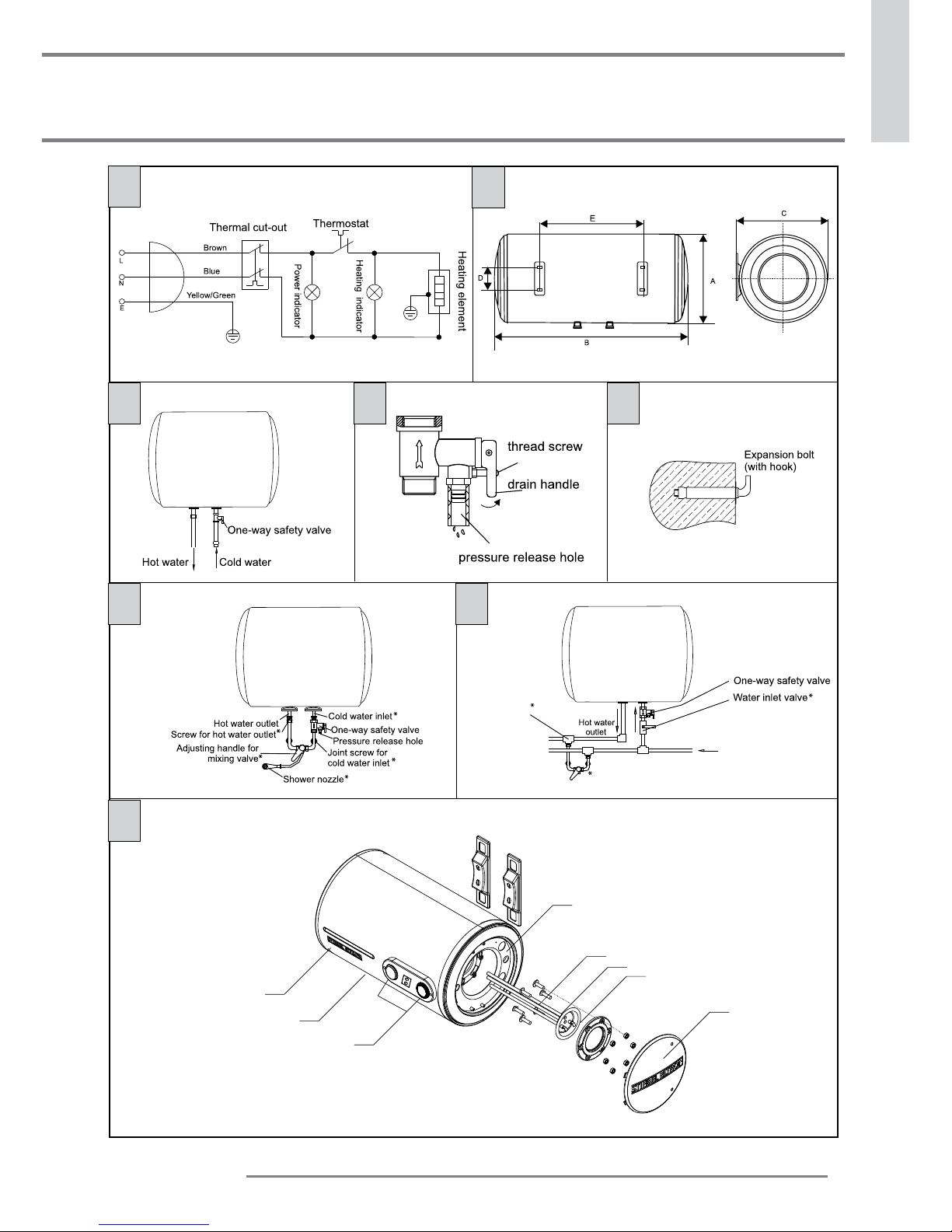

Cold water supply
Tee.Joint
High Quality Insulation
Inlet / Outlet Pipe
Magnesium Anode (30-150L)
Thermometer / Temperature Control Knob
Magnesium Anode (15L)
Incoloy Heating Element
Limiter
Assembling Cover
* Note : Included in the EHS supply scope.
AB
CDE
FG
H
STIEBEL ELTRON 3
Installation Instruction
English

STIEBEL ELTRON
4
1. Operating instructions for the user and the qualied installer
Description
The EHS 15-150 unvented (pressur-
ized) wall-mounted water heater can
heat potable water up to about:
EHS 15-150 = 75°C to suit demand
and supply a number of draw-off
points. Thewatercontentisautomatically
heated to the preset temperature.
The device is adjusted at the works to
75°C.
In brief
• Contains15-150ldomestichot
water with up to 75 °C
• Pressurizedenamelledsteel
container
• Nonfluorinepolyurethane
insulation layer
Important notes:
High temperatures present
the risk of scalding.
– Arrange to have the wall-mounted
water heater and the safety valve
or safety group checked regularly
by a qualified installer.
– Check the fittings regularly; clean
limescale off outlets using
conventional commercial descaling
products.
The device is under water
pressure. During heating,
water will drip from the safety valve
for reasons of safety; if dripping
continues after heating-up has
concluded, contact your installer.
Risk of freezing
The device is protected against freez-
ing at every temperature setting,
but not the safety valve or the safety
group and the water pipe.
Temperature adjustment
EHS 15 - 150
The temperature adjustment may be
altered by the user directly at the
temperature knob.
Care
A damp cloth is all that is needed for
care and cleaning the outer housing.
Do not use any foaming or caustic
cleaning agents.
Instructions for use and installation
Keep these instructions in a
safe place, and give them to
the new owner if you move house; if
maintanace or repair work is required,
let the qualified installer have them
for reference.
Use only original Stiebel
Eltron spare parts
English

STIEBEL ELTRON 5
1. Operating instructions for the user and the qualied installer
Heating-up time
* Cold water intake 15 °C
Temperature setting 75 °C
What to do if...?
Type Heating-up time
EHS 15 0 h 43 min
EHS 30 1 h 04 min
EHS 50 1 h 46 min
EHS 80 2 h 50 min
EHS 100 3 h 33 min
EHS 150 5 h 20 min
Fault Cause Rectication
The water discharge volume
has been clearly reduced
despite the water valve
being opened fully
The desired temperature is
not being reached.
The device is no longer
heating up.
– Heating element is
scalded up
– Incorrect positioning
of the temperature
– Heating element is
scalded up
– Device has incorrect
dimensions for its use
–Powersupply
disconnected
– Limiter has operated
– Heating element
defective
– Arrange for the
device to be descaled
by a qualied installer
(seealso“Maintenance”).
– Regulator must be set
on correct position
– Device must be
descaled
– Change appliance to
bigger one
– Check the electricity
leads (fuses).
– Arrange to change the
completesafety thermal
cut-out
– Change the heating
ange
– Reset the ELCB
English

STIEBEL ELTRON
6
2. Installation instructions for the qualied installer
Installation instructions
for the installer
Regulations and provisions
– General national regulations
– Regulations of the local water
authority
– Regulations of the local electricity
authority
– Rating plate
Installation location
– Install horizontal as in Fig. C
– In an area free of the risk of freezing
– Install in the vicinity of the water tap
Equipment installation
– Install the device Fig. E
When installing the device, select
securing materials to suit the
stability of the wall
Water connection Fig. F,G
Unvented (pressurized) for the supply
of several draw-off points.
A safety valve must be fitted
at the cold water inlet of the
unit, by a skilled installer.
 Notewithregardtocopper
 pipes:Noconnectionsmade
of copper may be installed directly on
the device. We recommend that red
brass or plastic transition fittings be
used as connection isolators for the
pipe connections.
Parts Fig H
Steel tank enamelled with heating
flange with incoloy heating element
and protection anode. For test mark:
see rating plate protection mode
IPX4.
- Cold water connection nozzle (blue)
- Hot water connection nozzle (red)
Technical data
Type EHS 15 30 50 80 100 150
Content
Weight, empty
Powerrating
Voltage
Permissibleoperatingpressure
l
kg.
W
V
bar
15
9.7
1500
220
7
30
13.2
2000
220
7
50
17.5
2000
220
7
80
23.7
2000
220
7
100
27.8
2000
220
7
150
37.6
2000
220
7
Fig. B
Type EHS 15 30 50 80 100 150
A
B
C
D
E
mm.
mm.
mm.
mm.
mm.
310
562
330
164
116
370
649
385
204
177
410
749
425
204
334
480
826
495
204
297
480
974
495
204
447
480
1294
495
204
767
English

STIEBEL ELTRON 7
2. Installation instructions for the qualied installer
Electrical connection A
Electrical connection may
only be carried out by a
qualified installer, in accordance with
these instructions.
The device is intended for fixed
connection to AC mains supplies
using permanently-laid connection
leads.
Specific national regulations are to be
respected.
First fill the device completely
with water, then connect the
current supply. The device may not be
taken into operation without water
filling (see also First start-up).
First start-up
Only to be carried out by a qualified
installer, in accordance with these
instructions.
– Before switching on, fill
the device by opening the
hot water valve and flush it through
thoroughly.
– Monitor first heating; check
to ensure that the thermo-
stat switches off.
– Check the safety valve or
safety group for functional
reliability.
– The draining pipe must be
kept sloping downwards
and connected to the pressure
release hole at the safety valve.
- Reset ELCB
English

STIEBEL ELTRON
8
3. Maintenance for the qualied installer
Guarantee
For guarantees please refer to the respec-
tive terms and conditions of supply for
your country.
The installation, electrical
connection and rst operation
of this appliance should be carried
out by a qualied installer.
The company does not accept
liability for any failure caused
by inproper installation and / or
unauthorized installers.
Maintenance
Only to be carried out by a qualified
installer, in accordance with these
instructions.
When carrying out any work,
disconnect the device from
the electricity supply!
– Check the protective anode for the
first time after six month and replace
it if necessary. After replacement,
the installer has to decide when
next inspection is necessary.
– Carry out descaling of the device
only after removing the heating
element. Do not treat the surface of
the tank with descaling agents.
– In the event of the thermal cut-out
having operated (no through-flow),
replace the regulator/limiter
combination.
– Check the safety valve or safety
group regularly.
Draining the cylinder
Draining can be carried out via the
safety valve or through the addition-
ally fitted drainage tap.
Before draining the device,
disconnect the device from
the electricity supply!
– Close the isolating valve in the cold
water pipe.
– Open all hot water valves fully at all
draw-off points.
– Open safety valve or drain valve.
Hot water may emerge
during draining.
English

STIEBEL ELTRON 9





EHS 15-150 = 75°


°C


75 °C



 

 
 
 
 
 
 
 
 

 

















 
  


 
 
Thai

STIEBEL ELTRON
10


°C
°C

 
EHS 15 
 
EHS 50 
EHS 80 
EHS 100 
EHS 150 
  


































Thai

STIEBEL ELTRON 11














  


  

 
 
 
 
 





 





 EHS      










15

1500
220
7


2000
220
7
50

2000
220
7
80

2000
220
7
100

2000
220
7
150

2000
220
7

Type EHS 15 30 50 80 100 150
A
B
C
D
E
mm.
mm.
mm.
mm.
mm.
310
562
330
164
116
370
649
385
204
177
410
749
425
204
334
480
826
495
204
297
480
974
495
204
447
480
1294
495
204
767
Thai

STIEBEL ELTRON
12

 A
 
 


AC


 
 





 
 
 
 
 
 
 
 
 
 
 
 
 
Thai

STIEBEL ELTRON 13


   

   
   

   
   







 
 

 
 
 

 
 
 

 
 
 

 



 
 



 
 
Thai
