STIEBEL ELTRON EIL 3 Premium Instruction Manual

Electronically controlled mini instantaneous water heater| Mini chauffe-eau instantané
à régulation électronique | Elektronisch geregelde mini-doorstromer | Elektronicky
regulovaný průtokový mini ohřívač | Elektronicky regulovaný mini prietokový ohrievač |
Elektronicznie regulowany mini przepływowy ogrzewacz wody | Mini încălzitor instant
controlat electronic | Elektronikus szabályozású átfolyós mini vízmelegítő |Проточный
мини-водонагреватель с электронным управлением
» EIL 3 Premium
» EIL 4 Premium
» EIL 6 Premium
» EIL 7 Premium
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
BEDIENING EN INSTALLATIE
OBSLUHA A INSTALACE
OBSLUHA A INŠTALÁCIA
OBSŁUGA I INSTALACJA
OPERARE ȘI INSTALARE
KEZELÉS ÉS FELSZERELÉS
ЭКСПЛУАТАЦИЯ И УСТАНОВКА

2| EIL Premium www.stiebel-eltron.com
CONTENTS
SPECIAL INFORMATION
OPERATION
1. General information ������������������������������������������������ 4
1.1 Safety instructions �������������������������������������������������������4
1.2 Other symbols in this documentation��������������������������������5
1.3 Units of measurement���������������������������������������������������5
2. Safety����������������������������������������������������������������� 6
2.1 Intended use���������������������������������������������������������������6
2.2 General safety instructions���������������������������������������������6
2.3 Test symbols���������������������������������������������������������������6
3. Appliance description ���������������������������������������������� 7
4. Settings �������������������������������������������������������������� 7
5. Cleaning, care and maintenance ���������������������������������� 8
6. Troubleshooting����������������������������������������������������� 8
INSTALLATION
7. Safety����������������������������������������������������������������� 9
7.1 General safety instructions���������������������������������������������9
7.2 Instructions, standards and regulations�����������������������������9
8. Appliance description ���������������������������������������������� 9
8.1 Standard delivery���������������������������������������������������������9
8.2 Accessories �������������������������������������������������������������� 10
9. Preparation ���������������������������������������������������������10
10. Installation����������������������������������������������������������10
10.1 Installation site���������������������������������������������������������� 10
10.2 Installation options����������������������������������������������������� 11
10.3 Making the electrical connection ����������������������������������� 14
11. Commissioning �����������������������������������������������������15
11.1 Initial start-up����������������������������������������������������������� 15
11.2 Appliance handover���������������������������������������������������� 15
11.3 Recommissioning������������������������������������������������������� 15
11.4 Settings������������������������������������������������������������������� 15
12. Appliance shutdown�����������������������������������������������17
13. Troubleshooting����������������������������������������������������17
14. Maintenance��������������������������������������������������������19
14.1 Draining the appliance ������������������������������������������������ 19
14.2 Clean strainer ����������������������������������������������������������� 19
14.3 Tests in accordance with VDE0701/0702 �������������������������� 20
14.4 Appliance storage ������������������������������������������������������ 20
14.5 Replacing the power cable for the EIL6Premium �������������� 20
15. Specification��������������������������������������������������������20
15.1 Dimensions and connections����������������������������������������� 20
15.2 Wiring diagram ��������������������������������������������������������� 21
15.3 Temperature increase ������������������������������������������������� 22
15.4 Application areas������������������������������������������������������� 23
15.5 Energy consumption data �������������������������������������������� 23
15.6 Data table ���������������������������������������������������������������� 24
GUARANTEE
ENVIRONMENT AND RECYCLING

ENGLISH
www.stiebel-eltron.com EIL Premium | 3
SPECIAL INFORMATION
SPECIAL INFORMATION
- The appliance may be used by children aged3
and older and persons with reduced physical,
sensory or mental capabilities or a lack of ex-
perience and know-how, provided that they
are supervised or they have been instructed
on how to use the appliance safely and have
understood the potential risks. Children must
never play with the appliance. Cleaning and
user maintenance must not be carried out by
children without supervision.
- The tap can reach temperatures of up to
55°C. There is a risk of scalding at outlet tem-
peratures in excess of 43°C.
- Ensure the appliance can be separated from
the power supply by an isolator that discon-
nects all poles with at least 3mm contact
separation.
- The specified voltage must match the mains
voltage.
- The appliance must be permanently connect-
ed to fixed wiring, exception EIL3Premium.
- The power cable must only be replaced (for
example if damaged) by a qualified contrac-
tor authorised by the manufacturer, using an
original spare part.
- Secure the appliance as described in chapter
"Installation/ Installation".
- Observe the maximum permissible pressure
(see chapter "Installation/ Specification/ Data
table").
- The specific water resistivity of the mains
water supply must not be undershot (see
chapter "Installation/ Specification/ Data
table").

OPERATION
General information
4| EIL Premium www.stiebel-eltron.com
- Drain the appliance as described in chapter
"Installation/ Maintenance/ Draining the
appliance".
OPERATION
1. General information
The chapter "Operation" is intended for appliance users and qual-
ified contractors.
The chapter "Installation" is intended for qualified contractors.
Note Read these instructions carefully before using the appli-
ance and retain them for future reference.
Pass on the instructions to a new user if required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
KEYWORD Type of risk Here, possible consequences are listed that may result
from failure to observe the safety instructions.
 Steps to prevent the risk are listed.

ENGLISH
www.stiebel-eltron.com EIL Premium | 5
OPERATION
General information
1.1.2 Symbols, type of risk
Symbol Type of risk
Injury
Electrocution
Burns (burns, scalding)
1.1.3 Keywords
KEYWORD Meaning
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in non-seri-
ous or minor injury.
1.2 Other symbols in this documentation
Note Notes are bordered by horizontal lines above and below
the text. General information is identified by the adjacent
symbol.
 Read these texts carefully.
Symbol
Material losses (appliance damage, consequential losses and environmen-
tal pollution)
Appliance disposal
 This symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
1.3 Units of measurement
Note Unless specified otherwise, all dimensions are given in
mm.
!

OPERATION
Safety
6| EIL Premium www.stiebel-eltron.com
2. Safety
2.1 Intended use
The appliance is intended for domestic use. It can be used safely
by untrained persons. The appliance can also be used in non-do-
mestic environments, e.g. in small businesses, as long as it is
used in the same way.
This appliance is suitable for heating domestic hot water or for
reheating preheated water. The appliance is designed for one hand
washbasin.
Any other use beyond that described shall be deemed inappro-
priate. Observation of these instructions and of the instructions
for any accessories used is also part of the correct use of this
appliance.
2.2 General safety instructions
DANGER Scalding The tap can reach temperatures of up to 55°C. There is a
risk of scalding at outlet temperatures in excess of 43°C.
!WARNING Injury
The appliance may be used by children aged3 and older
and persons with reduced physical, sensory or mental
capabilities or a lack of experience and know-how, pro-
vided that they are supervised or they have been in-
structed on how to use the appliance safely and have
understood the potential risks. Children must never play
with the appliance. Cleaning and user maintenance must
not be carried out by children without supervision.
DANGER Electrocution Any damaged power cables must be replaced by a qual-
ified electrician. This prevents potential hazards from
arising.
!Material losses
Protect the appliance and tap against frost.
!Material losses
Only use the special aerator provided. Prevent scale
build-up at the tap outlets (see chapter "Cleaning, care
and maintenance").
2.3 Test symbols
See type plate on the appliance.

ENGLISH
www.stiebel-eltron.com EIL Premium | 7
OPERATION
Appliance description
3. Appliance description
The electronically controlled mini instantaneous water heater
maintains a constant outlet temperature up to its output limit,
irrespective of the inlet temperature.
This appliance has been factory-set to the outlet temperature
required for washing hands. Once this temperature has been
reached, the PCB automatically reduces the output. The output is
matched to the required temperature, this prevents the temper-
ature being exceeded.
The appliance heats the water directly at the draw-off point as
soon as the tap is opened. The short pipe runs ensure that energy
and water losses are minimal.
The DHW output depends on the cold water temperature, the heat-
ing output and the flow rate.
The bare wire heating system is suitable for hard and soft water
areas. This heating system has a low susceptibility to scale build-
up. The heating system ensures quick and efficient DHW provision
at the hand washbasin.

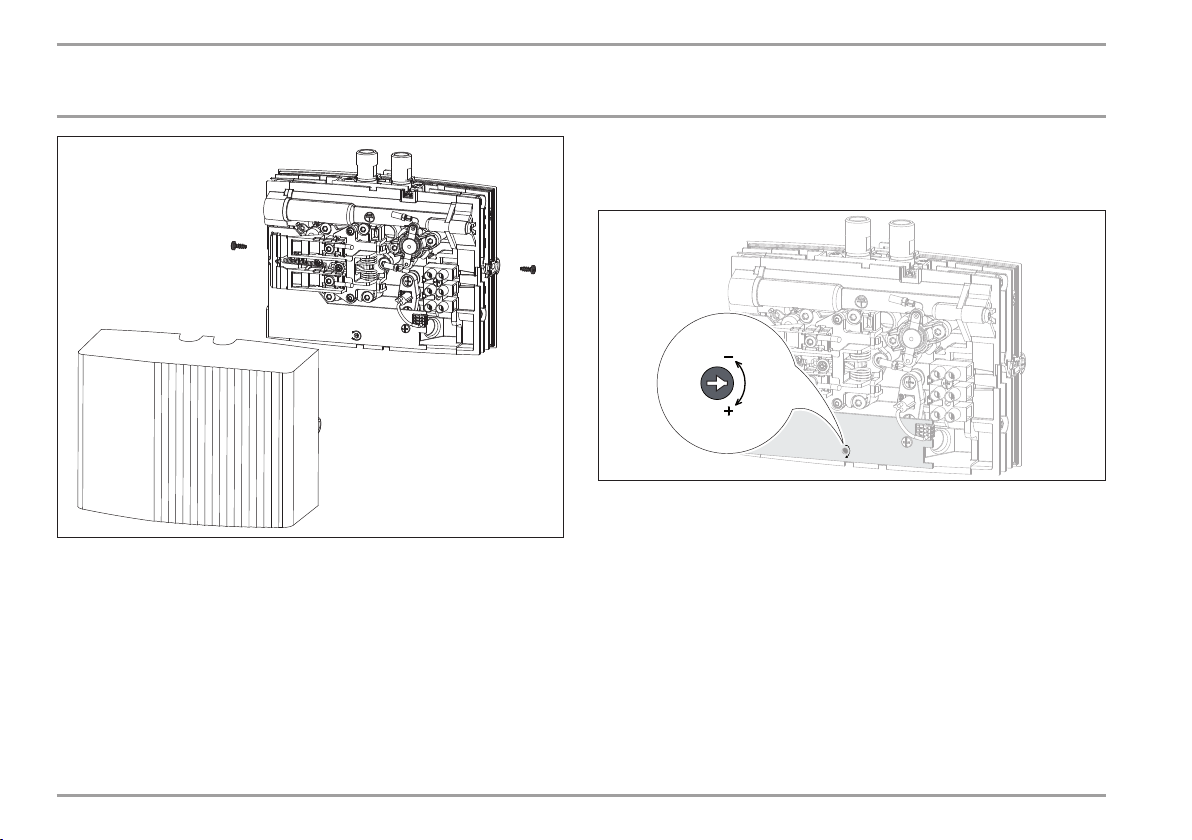

Your qualified contractor can adjust the maximum temperature
and flow rate (see chapter "Commissioning/ Settings").
Fitting the special aerator supplied provides an optimum water jet.
4. Settings
The appliance heating system switches on automatically as soon
as you open the DHW valve at the tap or activate the sensor of a
sensor tap. The water is heated. The water temperature can be
adjusted at the tap:
For the starting flow rate and flow rate limiting, see chapter "Spec-
ification".
Increasing the temperature
 Reduce the flow rate at the tap.
Reducing the temperature
 Open the tap further or add more cold water.
Following an interruption to the water supply
See chapter "Commissioning/ Recommissioning".

OPERATION
Cleaning, care and maintenance
8| EIL Premium www.stiebel-eltron.com
5. Cleaning, care and maintenance
 Never use abrasive or corrosive cleaning agents. A damp
cloth is sufficient for cleaning the appliance.
 Check the taps regularly. Limescale deposits at the tap out-
lets can be removed using commercially available descaling
agents.
 Have the electrical safety of the appliance regularly checked
by a qualified contractor.
 Regularly descale or replace the special aerator (see chapter
"Appliance description/Accessories").
6. Troubleshooting
Problem Cause Remedy
The appliance will not
start despite the DHW
valve being fully open.
No power at the appli-
ance. Check the fuse/MCB in your fuse box/distribu-
tion board.
The aerator in the tap is
scaled up or dirty. Clean and/or descale the aerator or replace the
special aerator.
The water supply has been interrupted. Vent the appliance and the cold water inlet line
(see chapter "Settings").
The required tempera-
ture is not being reached. The maximum tempera-
ture set inside the appli-
ance is too low.
Have your qualified con-
tractor adjust the maxi-
mum temperature.
The appliance has
reached its output limit. Reduce the flow rate.
If you cannot remedy the fault, notify your qualified contractor.
To facilitate and speed up your request, provide the number from
the type plate (000000-0000-00000).
EIL . . .
Model: 000000 E no.:
F no.: 0000-00000

ENGLISH
www.stiebel-eltron.com EIL Premium | 9
INSTALLATION
Safety
INSTALLATION
7. Safety
Only a qualified contractor should carry out installation, commis-
sioning, maintenance and repair of the appliance.
7.1 General safety instructions
We guarantee trouble-free function and operational reliability only
if original accessories and spare parts intended for the appliance
are used.
!Material losses
Observe the max. permissible inlet temperature. Higher
temperatures may damage the appliance. You can limit
the inlet temperature by installing a central thermostatic
valve.
WARNING Electrocution This appliance contains capacitors which are discharged
when disconnected from the power supply. The capacitor
discharge voltage may briefly reach >34VDC.
7.2 Instructions, standards and regulations
Note Observe all applicable national and regional regulations
and instructions.
The specific electrical resistance of the water used must not fall
below that stated on the type plate. In a linked water network,
factor in the lowest electrical resistance of the water (see chapter
"Specification/ Data table"). Your water supply utility will advise
you of the electrical resistivity or conductivity of the water in your
area.
8. Appliance description
8.1 Standard delivery
The following are delivered with the appliance:
- Sieve inside the cold water inlet
- Special aerator
- Connection hose 3/8, 500mm long, with gaskets*
- Tee 3/8*
- Company logo for oversink installation
*for the connection as pressure-tested appliance

INSTALLATION
Preparation
10 | EIL Premium www.stiebel-eltron.com
8.2 Accessories
Special aerator
Note Fitting the special aerator supplied provides an optimum
water jet.
Taps/valves
 Use suitable taps.
Non-pressurised taps
- MAW (OT) Wall mounted tap for oversink installation
- MAZ (UT) Twin lever basin tap
- MAE (UTE) Mono lever basin tap
Pressure-tested taps
Suitable pressure-tested taps are available from specialist trade
shops.
9. Preparation
 Flush the water line thoroughly.
Water installation
No safety valve is required.
10. Installation
10.1 Installation site
Install the appliance in a room free from the risk of frost and near
the draw-off tap.
Ensure that the lateral fixing screws for the cover are always ac-
cessible.
The appliance is suitable for undersink installation (water con-
nections at the top) and oversink installation (water connections
at the bottom).
DANGER Electrocution The adjusting screw for setting the flow rate is 'live', and
the IP 25 protection is only given when the appliance
back panel is fitted.
 Always fit the appliance back panel.

ENGLISH
www.stiebel-eltron.com EIL Premium | 11
INSTALLATION
Installation
10.2 Installation options

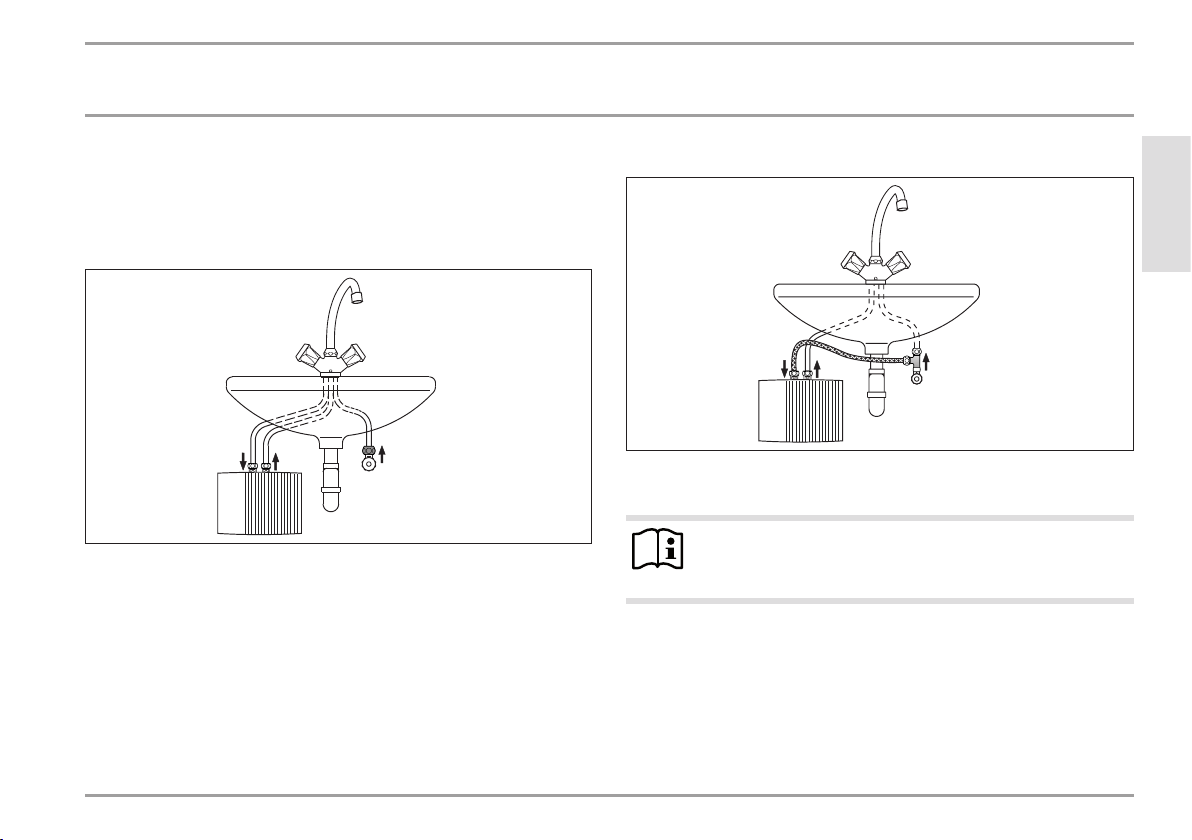

10.2.1 Undersink installation
Non-pressurised, with non-pressurised tap
26�02�05�0086
Pressure-tested, with pressure-tested tap
26�02�05�0094
Appliance installation
Note  Mount the appliance on the wall.
The wall must have sufficient load bearing capacity.

INSTALLATION
Installation
12 | EIL Premium www.stiebel-eltron.com



26�02�05�0042

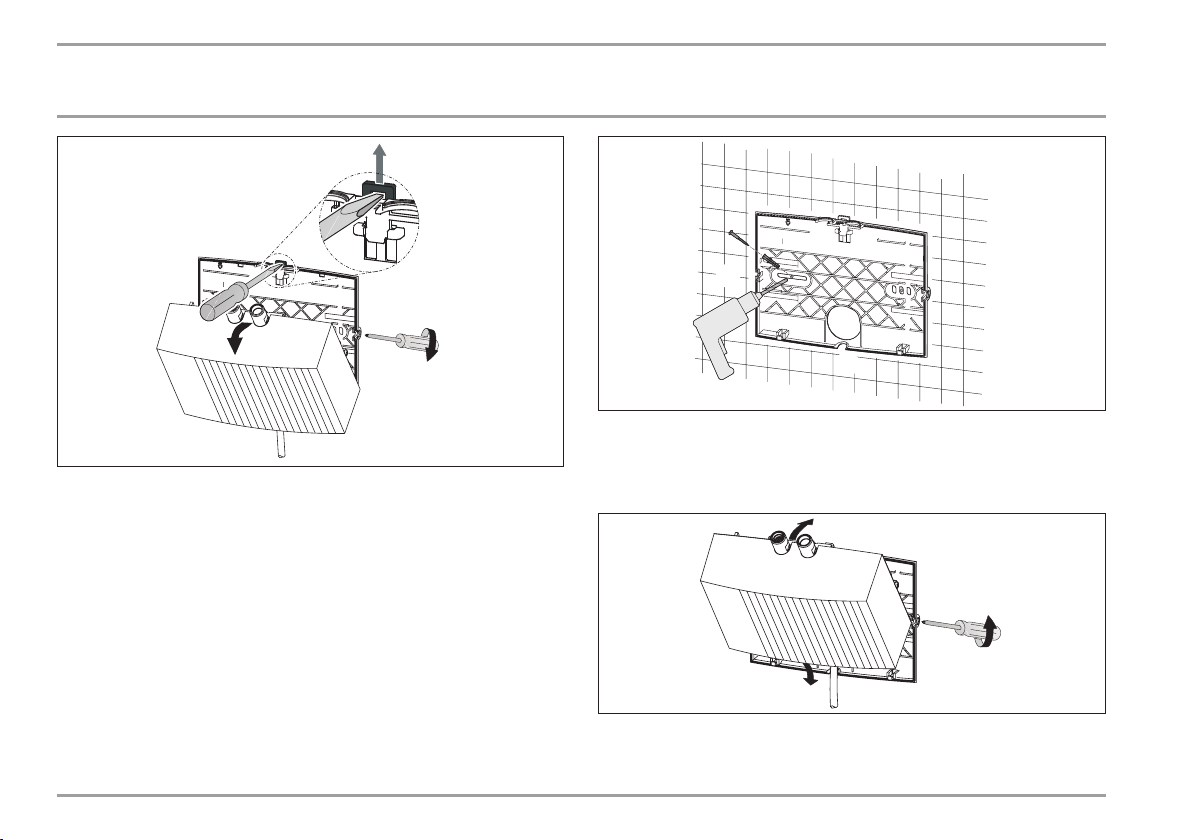

 Undo the cover fixing screws by two turns.
 Undo the snap fastener using a screwdriver.
 Remove the appliance cover with the heater towards the
front.
 Using pliers, break out the knock-out for the power cable
in the appliance cover. Correct the contours with a file if
necessary.
26�02�05�0084
 Use the appliance back panel as a drilling template.
 Secure the appliance back panel to the wall with suitable
rawl plugs and screws.



26�02�05�0085
 Route the power cable through the cable entry in the back
panel.

ENGLISH
www.stiebel-eltron.com EIL Premium | 13
INSTALLATION
Installation
 Hook in the appliance cover with the heater at the bottom.
 Click the heater into place using the snap fastener.
 Secure the appliance cover with the cover fixing screws.
Tap installation
 Install the tap. For this, also observe the tap operating and
installation instructions.
!Material losses
 When making the connections, counter the torque
on the appliance using a size 14 spanner.
Pressure-tested tap
Note  Fit the 3/8 connection hose and the 3/8 tee provided.
10.2.2 Oversink installation, non-pressurised, with non-
pressurised tap
26�02�05�0033
Tap installation
 Install the tap. For this, also observe the tap operating and
installation instructions.
!Material losses
 When making the connections, counter the torque
on the appliance using a size 14 spanner; see chap-
ter "Installation alternatives/ Undersink installa-
tion".

INSTALLATION
Installation
14 | EIL Premium www.stiebel-eltron.com
Appliance installation
 Fit the appliance to the tap with the water connections.
10.3 Making the electrical connection
DANGER Electrocution Carry out all electrical connection and installation work
in accordance with relevant regulations.
DANGER Electrocution Ensure that the appliance is earthed.
Ensure the appliance can be separated from the power
supply by an isolator that disconnects all poles with at
least 3mm contact separation.
DANGER Electrocution The appliances are delivered with a power cable
(EIL3Premium with plug).
Connection to a permanent power supply is possible,
provided the fixed cable has a cross-section that is at
least equal to that of the standard power cable of the
appliance. A maximum cross-section of 3x6mm² may
be used.
 If the appliance is installed over the sink, route the
power cable behind the appliance.
!Material losses
When making the connection to a standard safety socket
(in the case of a power cable with plug), ensure that the
socket is freely accessible after the appliance has been
installed.
!Material losses
Observe the type plate. The specified voltage must match
the mains voltage.
 Connect the power cable as shown in the wiring diagram
(see chapter "Specification/ Wiring diagram").

ENGLISH
www.stiebel-eltron.com EIL Premium | 15
INSTALLATION
Commissioning
11. Commissioning
11.1 Initial start-up
26�02�05�0087

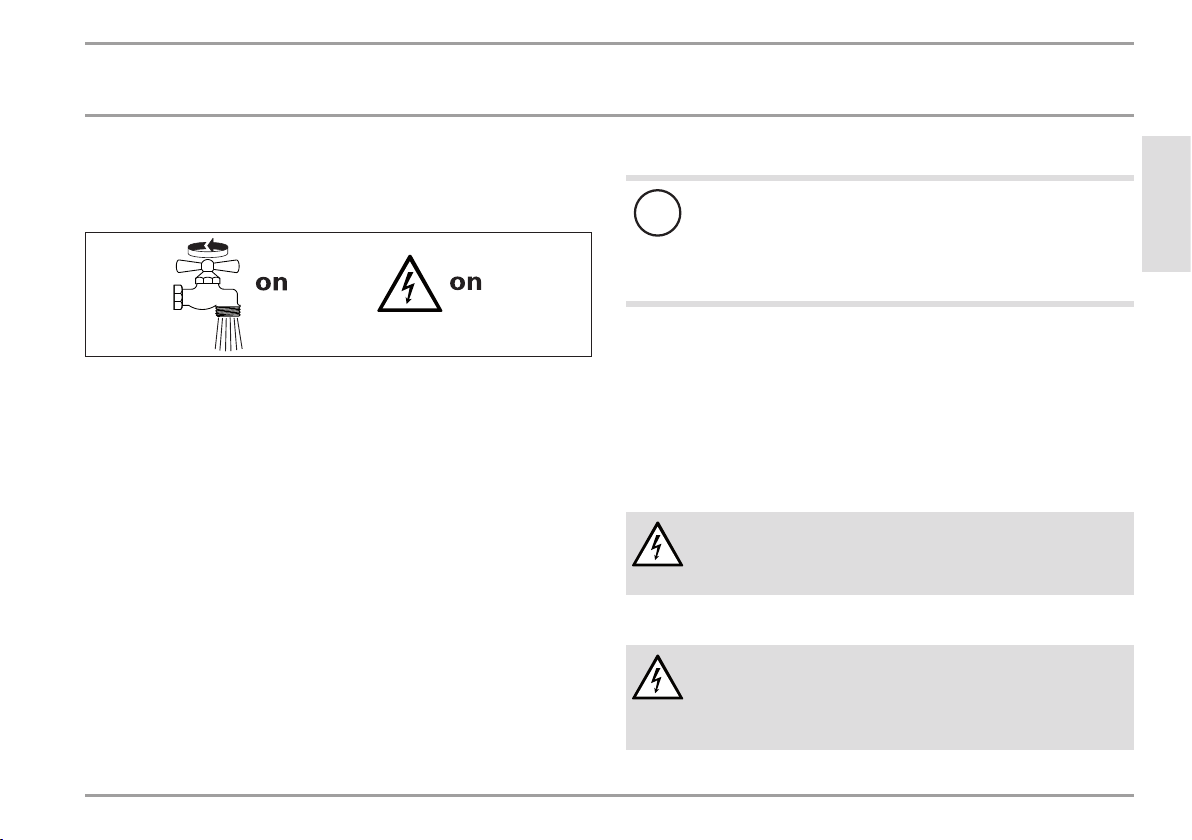

 Fill the appliance by running the tap several times until the
pipework and appliance are free of air.
 Carry out a tightness check.
 Insert the power cable plug, if present, into the standard
safety socket or set the fuse/MCB.
 Check the appliance function.
 In the case of oversink installation, affix the company logo
supplied over the existing company logo.
11.2 Appliance handover
 Explain the appliance function to users and familiarise them
with how it works.
 Make the user aware of potential dangers, especially the risk
of scalding.
 Hand over these instructions.
11.3 Recommissioning
!Material losses
Following an interruption of the water supply, recommis-
sion the appliance by carrying out the following steps,
in order to prevent irreparable damage to the bare wire
heating system.
 Isolate the appliance from the power supply. Pull the power
cable plug, if present, from the socket, or remove the fuse/
reset the MCB.
 See chapter "Initial start-up".
11.4 Settings
You can alter the maximum flow rate and temperature.
DANGER Electrocution The flow rate and temperature may only be adjusted if
the appliance is isolated from the power supply.
 Isolate all poles of the appliance from the power supply.
DANGER Electrocution The adjusting screw for changing the flow rate and the
potentiometer for setting the temperature are live if the
appliance has not been isolated from the power supply.

INSTALLATION
Commissioning
16 | EIL Premium www.stiebel-eltron.com
26�02�05�0088
 Remove the appliance cover.
Setting the maximum temperature
Factory setting: 38 °C
30°C
38°C
50°C
D0000042035
 Using a screwdriver, set the potentiometer to the maximum
required temperature.
 Fit the appliance cover.

ENGLISH
www.stiebel-eltron.com EIL Premium | 17
INSTALLATION
Appliance shutdown
Limiting the flow rate
Factory setting: Maximum flow rate
26�02�05�0079�
 Using the adjusting screw, set the maximum required flow
rate:
- Lowest flow rate = wind the screw in as far as it will go.
- Highest flow rate = wind the screw out as far as it will go.
 Fit the appliance cover.
12. Appliance shutdown
 Isolate the appliance from the power supply by means of the
fuse/MCB in your fuse box or by pulling the power cable plug
from the socket.
 Drain the appliance (see chapter "Maintenance").
13. Troubleshooting
Problem Cause Remedy
The appliance will not
start despite the DHW
valve being fully open.
The aerator in the tap is
scaled up or dirty. Clean and/or descale the aerator or replace the
special aerator.
The flow rate is set too
low. Increase the flow rate.
The sieve in the cold
water line is blocked. Clean the sieve after shutting off the cold
water inlet line.
The heating system is
faulty.
Check the resistance of
the heating system and
replace the appliance if
required.
The safety pressure limit-
er has responded.
Remedy the cause of
the fault. Isolate the ap-
pliance from the power
supply and depressurise
the water line. Activate
the safety pressure
limiter.
The required tempera-
ture is not being reached. The appliance has reached its output limit. Reduce the flow rate.

INSTALLATION
Troubleshooting
18 | EIL Premium www.stiebel-eltron.com
LED indicators
26�02�05�0082�
321
1 Illuminates red in the case of a fault
2 Illuminates yellow during heating operation
3 Flashes green if the PCB is receiving power
Activating the safety pressure limiter
1
2
D0000039769
1 1-pole safety pressure limiter EIL4Premium / EIL6Premium
2 2-pole safety pressure limiter EIL3Premium / EIL7Premium

ENGLISH
www.stiebel-eltron.com EIL Premium | 19
INSTALLATION
Maintenance
14. Maintenance
DANGER Electrocution Before any work on the appliance, disconnect all poles
from the power supply.
14.1 Draining the appliance
DANGER Scalding Hot water may escape during draining.
If the appliance needs to be drained for maintenance or to protect
the whole installation when there is a risk of frost, proceed as
follows:
 Close the shut-off valve in the cold water inlet line.
 Open the draw-off valve.
 Undo the water connections on the appliance.

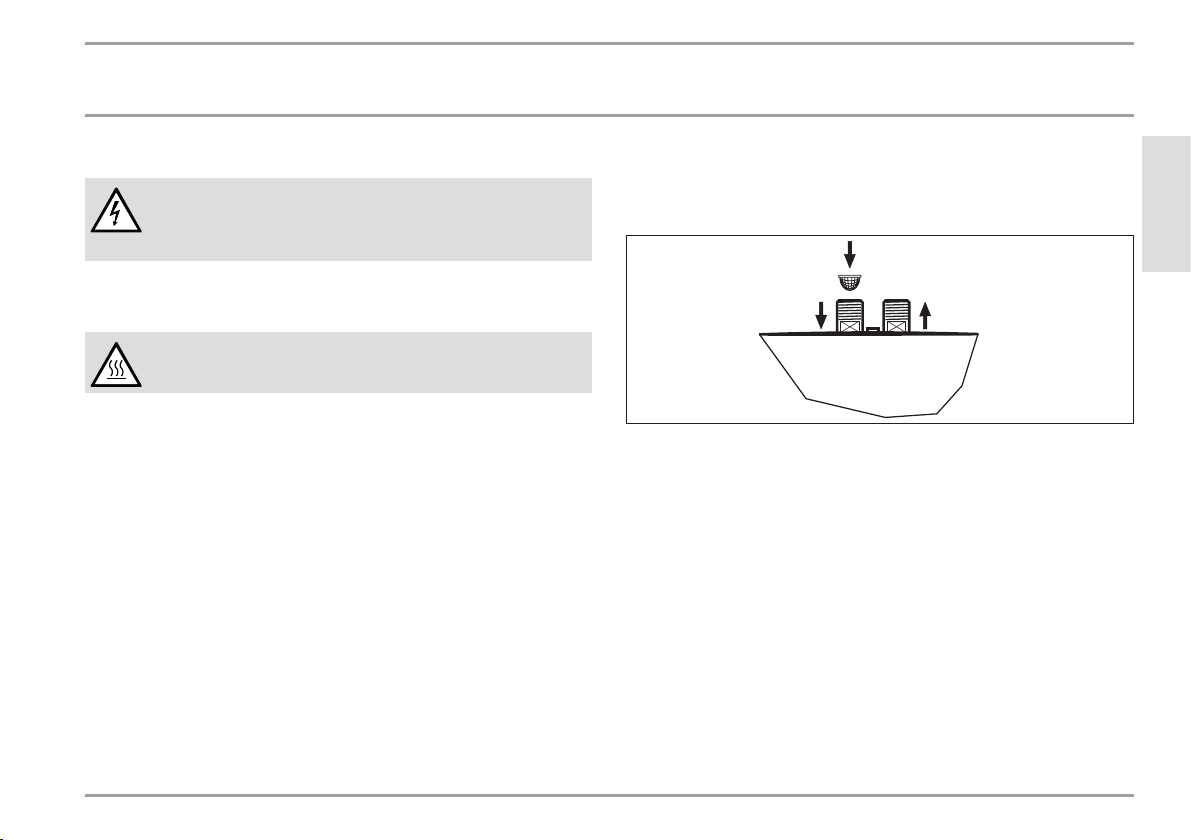

14.2 Clean strainer
You can clean the fitted strainer after removing the cold water
supply pipe.
26�02�05�0065�

INSTALLATION

20 | EIL Premium www.stiebel-eltron.com
14.3 Tests in accordance with VDE0701/0702
Earth conductor check
 Check the earth conductor (in Germany e.g. DGUV A3) on the
earth conductor contact of the power cable and on the appli-
ance connector.
Insulation resistance
Due to the electronic control of this appliance, an insulation re-
sistance test to VDE0701/0702 cannot be carried out.
 To check the effectiveness of the insulating properties of the
appliance, we recommend conducting a differential cur-
rent test of the earth conductor current/ leakage current to
VDE0701/0702 (Fig. C.3b).
14.4 Appliance storage
 Store the dismantled appliance free from the risk of frost, as
water residues remaining inside the appliance can freeze and
cause damage.
14.5 Replacing the power cable for the
EIL6Premium
 If replacing the cable for the EIL6Premium, use a power
cable with 4mm² cross-section
15. Specification
15.1 Dimensions and connections
95
28
30
120
143
190
4,8
165
82
20
b02
b03
c06
c01
D0000018336
b02 Entry for electrical cables I
b03 Entry electrical cables II
c01 Cold water inlet Male thread G 3/8 A
c06 DHW outlet Male thread G 3/8 A
