CONTENTS
SPECIAL INFORMATION
OPERATION
1. General information ��������������������������������������� 15
1.1 Safety instructions���������������������������������������������� 15
1.2 Other symbols in this documentation ���������������������� 15
1.3 Units of measurement ����������������������������������������� 16
2. Safety�������������������������������������������������������� 16
2.1 Intended use����������������������������������������������������� 16
2.2 Safety instructions���������������������������������������������� 16
2.3 Test symbols ����������������������������������������������������� 16
3. Appliance description ������������������������������������� 16
3.1 Operation��������������������������������������������������������� 16
4. Cleaning, care and maintenance ������������������������� 17
5. Troubleshooting �������������������������������������������� 17
INSTALLATION
6. Safety�������������������������������������������������������� 17
6.1 General safety instructions ����������������������������������� 17
6.2 Instructions, standards and regulations ������������������� 17
6.3 Information on the safety assembly ������������������������ 17
7. Appliance description ������������������������������������� 17
7.1 Standard delivery����������������������������������������������� 17
7.2 Accessories������������������������������������������������������� 18
8. Preparations������������������������������������������������ 18
8.1 Installation site�������������������������������������������������� 18
9. Installation�������������������������������������������������� 18
9.1 Installing the safety assembly�������������������������������� 19
9.2 Appliance installation������������������������������������������ 19
9.3 Water connection ����������������������������������������������� 19
9.4 Power supply ���������������������������������������������������� 19
10. Commissioning ��������������������������������������������� 20
10.1 Initial start-up��������������������������������������������������� 20
10.2 Recommissioning�����������������������������������������������20
11. Settings ����������������������������������������������������� 20
11.1 Setting the temperature limit �������������������������������� 20
12. Shutdown ��������������������������������������������������� 20
13. Troubleshooting �������������������������������������������� 20
13.1 Activate high limit safety cut-out���������������������������� 20
14. Maintenance ������������������������������������������������ 21
14.1 Draining the appliance ���������������������������������������� 21
14.2 Opening the appliance����������������������������������������� 21
14.3 Installing the flanged immersion heater������������������� 21
14.4 Checking the protective anode������������������������������� 21
14.5 Descaling the appliance ��������������������������������������� 21
14.6 Checking the earth conductor�������������������������������� 21
14.7 Replacing the power cable ����������������������������������� 21
14.8 Positioning the temperature sensor in its protective
pipe���������������������������������������������������������������� 22
15. Specification ������������������������������������������������ 22
15.1 Dimensions and connections��������������������������������� 22
15.2 Wiring diagram ������������������������������������������������� 23
15.3 Heat-up diagram������������������������������������������������ 24
15.4 Country-specific approvals and certifications������������� 24
15.5 Extreme operating and fault conditions ������������������� 24
15.6 Details on energy consumption������������������������������ 24
15.7 Data table �������������������������������������������������������� 25
GUARANTEE
ENVIRONMENT AND RECYCLING

www.stiebel-eltron.com SHU 10 | SH 10 | SH 15 | 15
ENGLISH
SPECIAL INFORMATION | OPERATION
General information
OPERATION
1. General information
The chapters "Special Information" and "Operation" are intended
for both the user and qualified contractors.
The chapter "Installation" is intended for qualified contractors.
Note Read these instructions carefully before using the appli-
ance and retain them for future reference.
Pass on the instructions to a new user if required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
!KEYWORD Type of risk
Here, possible consequences are listed that may result
from failure to observe the safety instructions.
 Steps to prevent the risk are listed.
1.1.2 Symbols, type of risk
Symbol Type of risk
Injury
Electrocution
Burns
(burns, scalding)
1.1.3 Keywords
KEYWORD Meaning
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in non-seri-
ous or minor injury.
1.2 Other symbols in this documentation
Note General information is identified by the adjacent symbol.
 Read these texts carefully.
!
SPECIAL INFORMATION
- The appliance may be used by children aged8
and older and persons with reduced physical,
sensory or mental capabilities or a lack of ex-
perience and know-how, provided that they are
supervised or they have been instructed on how
to use the appliance safely and have understood
the resulting risks. Children must never play with
the appliance. Children must never clean the ap-
pliance or perform user maintenance unless they
are supervised.
- When permanently connected to the power sup-
ply using a dedicated junction box, the appliance
must be able to be isolated from the mains power
supply by an isolator that disconnects all poles
with at least 3mm contact separation.
- The power cable may only be replaced (for exam-
ple if damaged) by a qualified contractor author-
ised by the manufacturer, using an original spare
part.
- Secure the appliance as described in chapter "In-
stallation/ Installation".
- Observe the maximum permissible pressure (see
chapter "Installation/ Specification/ Data table").
- Drain the appliance as described in chapter "In-
stallation/ Maintenance/ Draining the appliance".
- The appliance is pressurised. During the heat-up
process, expansion water will drip from the safety
valve.
- Install the safety valve in the cold water supply
line.
- Regularly activate the safety valve to prevent
it from becoming blocked, e.g. by limescale
deposits.
- Size the drain pipe so that water can drain off un-
impeded when the safety valve is fully opened.
- Fit the drain pipe of the safety valve with a con-
stant downward slope and in a room free from
the risk of frost.
- The safety valve drain must remain open to the
atmosphere.

OPERATION
Safety
16 | SHU 10 | SH 10 | SH 15 www.stiebel-eltron.com
Symbol Meaning
Material losses
(appliance damage, consequential losses and environmen-
tal pollution)
Appliance disposal
 This symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
1.3 Units of measurement
Note All measurements are given in mm unless stated oth-
erwise.
2. Safety
2.1 Intended use
This sealed unvented (pressurised) appliance is intended for heat-
ing domestic hot water. You can use the appliance to supply one
or several draw-off points.
This appliance is intended for domestic use. It can be used safely
by untrained persons. The appliance can also be used in a non-do-
mestic environment, e.g.in a small business, as long as it is used
in the same way.
Any other use beyond that described shall be deemed inappropri-
ate. Observation of these instructions and of instructions for any
accessories used is also part of the correct use of this appliance.
2.2 Safety instructions
WARNING Burns During operation, the tap can reach temperatures in ex-
cess of 60 °C.
There is a risk of scalding at outlet temperatures >43°C.
!WARNING Injury
The temperature selector should only be removed by a
qualified contractor.
!WARNING Injury
The appliance may be used by children aged 8 and older
and persons with reduced physical, sensory or mental
capabilities or a lack of experience and know-how, pro-
vided that they are supervised or they have been in-
structed on how to use the appliance safely and have
understood the resulting risks. Children must never play
with the appliance. Children must never clean the ap-
pliance or perform user maintenance unless they are
supervised.
Where children or persons with limited physical, sensory or men-
tal abilities are allowed to use this appliance, we recommend a
permanent temperature limit. A qualified contractor can set this
limit.
!Material losses
If the drain pipe of the safety valve is blocked, expanding
water can lead to water damage.
 Never close the drain pipe.
!Material losses
The user should protect the appliance and its tap against
frost.
2.3 Test symbols
See type plate on the appliance.
3. Appliance description
The appliance constantly keeps the water content available at the
preselected temperature. The appliance switches on automatically
as soon as its temperature falls below the set value.
Subject to season, varying cold water temperatures can result in
different maximum mixed water and outlet volumes.
Note A qualified contractor can set a temperature limit on the
appliance (see "Installation/ Settings/ Setting the tem-
perature limit").
Note The appliance is under mains water pressure. The water
volume increases as the cylinder is being heated up. Dur-
ing this process, expansion water drips through the safety
valve. This is a necessary and normal process.
3.1 Operation
You can set any required DHW outlet temperature variably at the
temperature selector. The heat-up indicator illuminates during
the heat-up process.
26�02�06�0207
SHU... SH...
1
1
2
2
1 Temperature selector
2 Heat-up indicator
!

www.stiebel-eltron.com SHU 10 | SH 10 | SH 15 | 17
ENGLISH
OPERATION | INSTALLATION
Cleaning, care and maintenance
Depending on the system, the actual temperatures may vary from
the set value.
°C = Cold. On this setting, the appliance is protected from
frost. The tap and the water line are not protected.
Eco = Recommended energy saving setting (approx. 60°C),
minor scaling
82 = Highest selectable temperature
4. Cleaning, care and maintenance
 Never use abrasive or corrosive cleaning agents. A damp
cloth is sufficient for cleaning the appliance.
 Check the taps regularly. Limescale deposits at the tap out-
lets can be removed using commercially available descaling
agents.
 Have the function of the safety assembly checked regularly by
a qualified contractor.
 Have the protective anode checked by a qualified contractor
after the first 8years of operation. The qualified contractor
will then determine the intervals at which repeat checks
should be performed.
Almost every type of water will deposit limescale at high temper-
atures. This settles inside the appliance and affects both the per-
formance and service life. The heating elements should therefore
be descaled if necessary. A qualified contractor who is aware of
the local water quality will tell you when the next descaling is due.
5. Troubleshooting
Fault Cause Remedy
The appliance does
not supply hot
water.
The temperature se-
lector is set to “°C”.
Switch the appliance ON by turn-
ing the temperature selector.
No power at the ap-
pliance.
Check the plug/ fuses in the do-
mestic fuse box.
Reduced water flow
rate at the tap.
The aerator in the tap
is scaled up.
Descale / replace the aerator.
Loud boiling noises
inside the appliance.
The appliance is
scaled up.
Have the appliance descaled by a
qualified contractor.
Water drips from
the safety valve of
the safety assembly
after heating has
stopped.
The safety valve is
scaled up or dirty.
Switch the appliance off. De-
pressurise the appliance by
disconnecting it from the power
and water supply. Have the safety
valve checked by a qualified con-
tractor.
If you cannot remedy the fault, notify your qualified contractor.
To facilitate and speed up your request, provide the number from
the type plate (000000-0000-000000).
Typ:
Nr.: ...... - .... - ......
D0000047804
SH... SLi
INSTALLATION
6. Safety
Only a qualified contractor should carry out installation, commis-
sioning, maintenance and repair of the appliance.
6.1 General safety instructions
We guarantee trouble-free function and operational reliability only
if original accessories and spare parts intended for the appliance
are used.
6.2 Instructions, standards and regulations
Note Observe all applicable national and regional regulations
and instructions.
6.3 Information on the safety assembly
!Material losses
Never exceed the operating pressure.
!Material losses
Route the drain pipe of the safety assembly with a slope
and leave it open to atmosphere.
!Material losses
The safety equipment requires regular maintenance and
activation (see installation instructions of the safety as-
sembly).
7. Appliance description
The appliance is intended for heating cold water and to supply
one or several draw-off points.
SHU 10 SLi | SHU10SLGB: The sealed unvented (pressurised)
appliance is only suitable for undersink installation.
SH 10 SLi | SH 15 SLi | SH15SLGB3.3kW: The sealed unvented
(pressurised) appliance is only suitable for oversink installation.
The appliance may only be installed with pressure taps in conjunc-
tion with a safety assembly (see chapter "Installation/ Appliance
description/ Accessories").
The enamelled internal steel cylinder is equipped with a protective
anode. The protective anode protects the inner cylinder against
corrosion.
7.1 Standard delivery
The following are delivered with the appliance:
- Wall mounting bracket
- Installation template

18 | SHU 10 | SH 10 | SH 15 www.stiebel-eltron.com
INSTALLATION
Preparations
7.2 Accessories
The following accessories are available for sealed unvented op-
eration:
SHU 10 SLi | SHU 10 SL GB
- SVMT safety assembly
- Water distribution tees
- WEH sensor tap
SH 10 SLi | SH 15 SLi | SH15SLGB3.3kW
- Safety assembly KV40/ KV307
- Surface mounted safety assembly SRT2
- Permanent connection set for 15lappliances
8. Preparations
Water installation
A safety assembly is required.
Taps/valves
Only install pressure taps in conjunction with a safety assembly.
8.1 Installation site
!Material losses
Install the appliance in a room free from the risk of frost.
!Material losses
Mount the appliance on the wall. The wall must have a
sufficient load-bearing capacity.
Note Make sure that the appliance is
freely accessible for maintenance work.
Always install the appliance vertically and near the draw-off point.

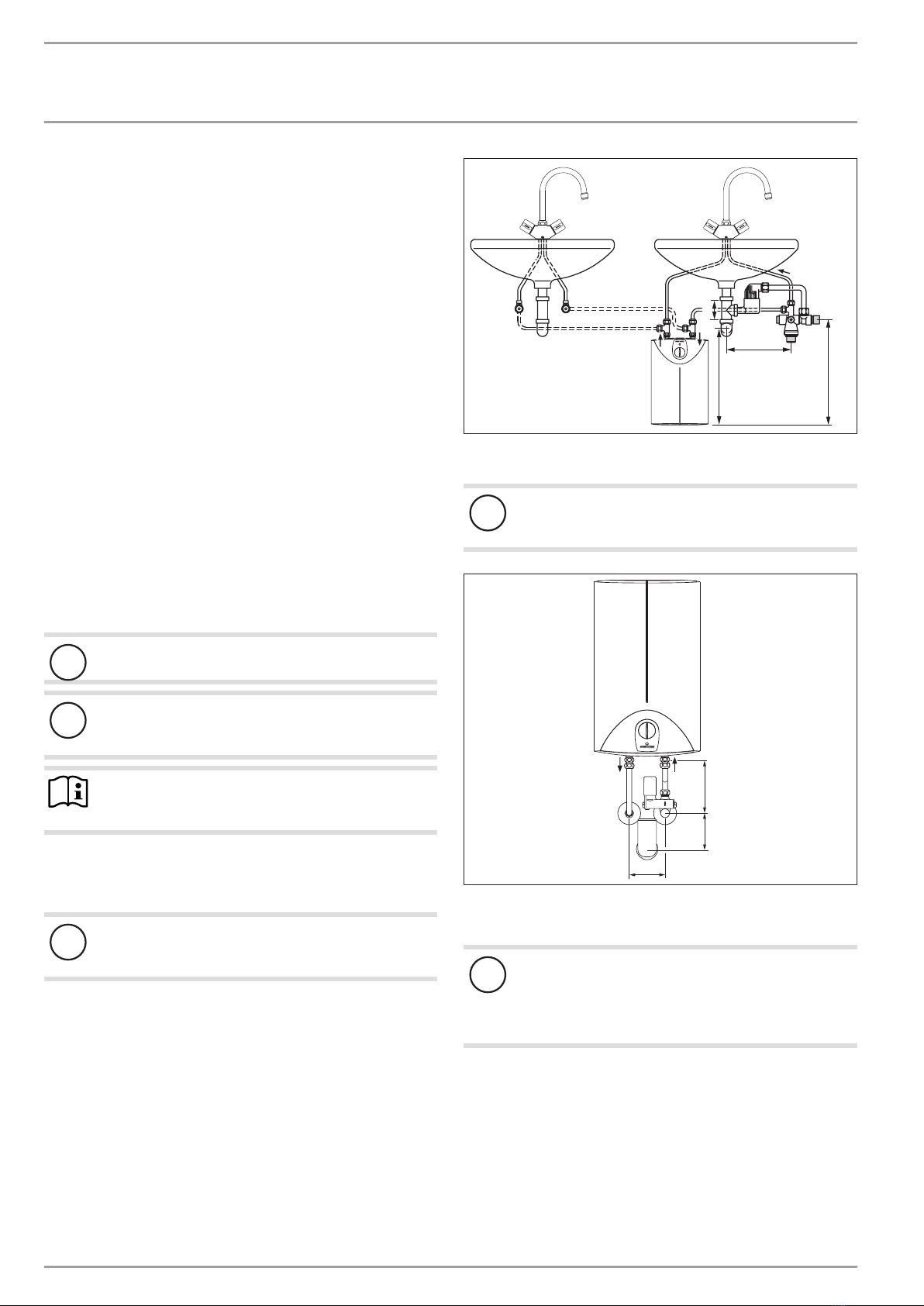

8.1.1 SHU undersink installation with safety assembly
!Material losses
The appliance is only suitable for undersink installation.
The water connections of the appliance point upwards.
82
°C
35
55
65
Eco
65
400-450
500
100-200
26�02�06�0206
8.1.2 SH oversink installation with safety assembly
!Material losses
The appliance is only suitable for oversink installation.
The water connections of the appliance point downwards.
comfor t
85
°C
35
55 65
Eco
100
124100
D0000050549
9. Installation
!Material losses
When using plastic pipework observe the extreme oper-
ating and fault conditions that can occur on the appliance
(see chapter "Installation/ Specification/ Extreme oper-
ating and fault conditions").
 Run the connections to the second tap on site, e.g. in 10mm
copper pipe.
SHU 10 SLi | SHU 10 SL GB
 To supply two washbasins, use the "water distribution
tees" (see chapter "Installation / Appliance description/
Accessories").

www.stiebel-eltron.com SHU 10 | SH 10 | SH 15 | 19
ENGLISH
INSTALLATION
Installation
9.1 Installing the safety assembly
 Fit the prospective safety assembly in the cold water supply
line of the appliance.
 Observe the information on the safety assembly (see chapter
"Installation/ Safety/ Information on the safety assembly").
 Observe the information in the installation instructions of the
safety assembly.
9.2 Appliance installation
 Mark out the holes for drilling with the installation template
supplied.
 Drill the holes and insert suitable rawl plugs.
 Secure the wall mounting bracket using suitable screws.
 Hang the appliance on the wall mounting bracket.
Note Surplus cable can be stored in the cable compartment.
26�02�06�0201
9.3 Water connection
!Material losses
Carry out all water connection and installation work in
accordance with regulations.
!Material losses
The appliance may lose its function.
 Never interchange the water connections.
 Set the flow rate (see safety assembly instructions).
Observe the maximum permissible flow rate with a
fully opened tap (see chapter "Installation/ Specifi-
cation/ Data table").
 Observe the maximum permissible pressure (see chapter "In-
stallation/ Specification/ Data table").
 Match up the colour coding on the water connections of the
tap and the appliance:
- R.h. side blue = "Cold water inlet"
- L.h. side red = "DHW outlet"
 Secure the water connections from the tap to the appliance.
Note Ensure that the water connections are not kinked during
installation. Prevent any tensioning during installation.
9.4 Power supply
WARNING ELECTROCUTION Carry out all electrical connection and installation work
in accordance with relevant regulations.
WARNING ELECTROCUTION When permanently connected to the power supply using
a dedicated junction box, the appliance must be able to
be isolated from the mains power supply by an isola-
tor that disconnects all poles with at least 3 mm contact
separation.
WARNING ELECTROCUTION Ensure that the appliance is earthed.
!Material losses
The voltage specified on the type plate must match the
mains voltage.
 Observe the type plate.
The following electrical connections are permissible:
SHU 10 SLi SHU 10 SL GB
Connection to a freely accessible
standard socket with matching
plug
X -
Permanent connection to an ap-
pliance junction box with earth
conductor
X X
Fixed power cable with the per-
manent connection set
- -
SH 10 SLi SH 15 SLi SH 15 SL GB
3.3kW
Connection to a freely accessible
standard socket with matching
plug
X X -
Permanent connection to an ap-
pliance junction box with earth
conductor
X X X
Fixed power cable with the per-
manent connection set
- X X
The permanent connection set maintains the IP24D protection
rating when converting the appliance.

20 | SHU 10 | SH 10 | SH 15 www.stiebel-eltron.com
INSTALLATION
Commissioning
10. Commissioning
WARNING ELECTROCUTION Commissioning may only be carried out by a qualified
contractor in accordance with safety regulations.
10.1 Initial start-up
!Material losses
If you fail to follow the correct sequence (first water, then
power), the high limit safety cut-out will trip.
Proceed as follows:
 If necessary, replace the temperature controller.
 Make the high limit safety cut-out operational by
pressing the reset button (see chapter "Installation/
Troubleshooting/ Activating the high limit safety
cut-out").
1. 2.
D0000049325
 Either open the DHW valve of the tap or set the mono lever
mixer tap to "hot" until the water that flows out is free of air
bubbles.
 Check the safety assembly. When purging, ensure that a full
jet of water flows out.
 Insert the plug into the standard socket or set the fuse/MCB
in the fuse box.
 Select a temperature.
 Check the entire hydraulic installation for tightness.
10.1.1 Appliance handover
 Explain the functions of the appliance to the user. Show the
user how to operate the appliance.
 Make the user aware of potential dangers, especially the risk
of scalding.
 Hand over these instructions and, if applicable, the instruc-
tions for any accessories.
10.2 Recommissioning
See chapter "Installation/ Commissioning/ Initial start-up".
11. Settings
11.1 Setting the temperature limit
85
°C
35
55
65
Eco
comfort
26�02�06�0203
1
2
1 Limiting ring
2 Temperature selector
Placing the limiting ring behind the temperature selector allows
you to limit the setting range of the temperature selector to a
specific maximum temperature.
 Turn the temperature selector to zero (fully anti-clockwise to
"°C").
 Pull off the temperature selector and the limiting ring.
 Push the limiting ring with the required maximum setting
onto the controller shaft.
 Mount the temperature selector set to zero (°C).
12. Shutdown
 Isolate the appliance from the power supply by removing the
plug or by tripping the MCB in the fuse box.
 Drain the appliance (see chapter "Installation/ Maintenance/
Draining the appliance").
13. Troubleshooting
Fault Cause Remedy
The appliance does
not supply hot water.
The high limit safety
cut-out has tripped.
Remedy the cause of the fault. If
necessary, replace the temper-
ature controller. Reset the high
limit safety cut-out by pressing
its reset button.
Loud boiling noises
inside the appliance.
The appliance is scaled
up.
Descale the appliance.
13.1 Activate high limit safety cut-out
26�02�06�0171
 Push the reset button.

www.stiebel-eltron.com SHU 10 | SH 10 | SH 15 | 21
ENGLISH
INSTALLATION
Maintenance
14. Maintenance
WARNING Electrocution Before any work on the appliance, disconnect all poles of
the appliance from the power supply.
 Dismantle the appliance for maintenance work.
 Observe the tightening torque of the flange screws (see
chapter "Installation/ Maintenance/ Installing the flanged
immersion heater").
14.1 Draining the appliance
WARNING Burns Hot water may escape during draining.
 Drain the appliance via its connectors.

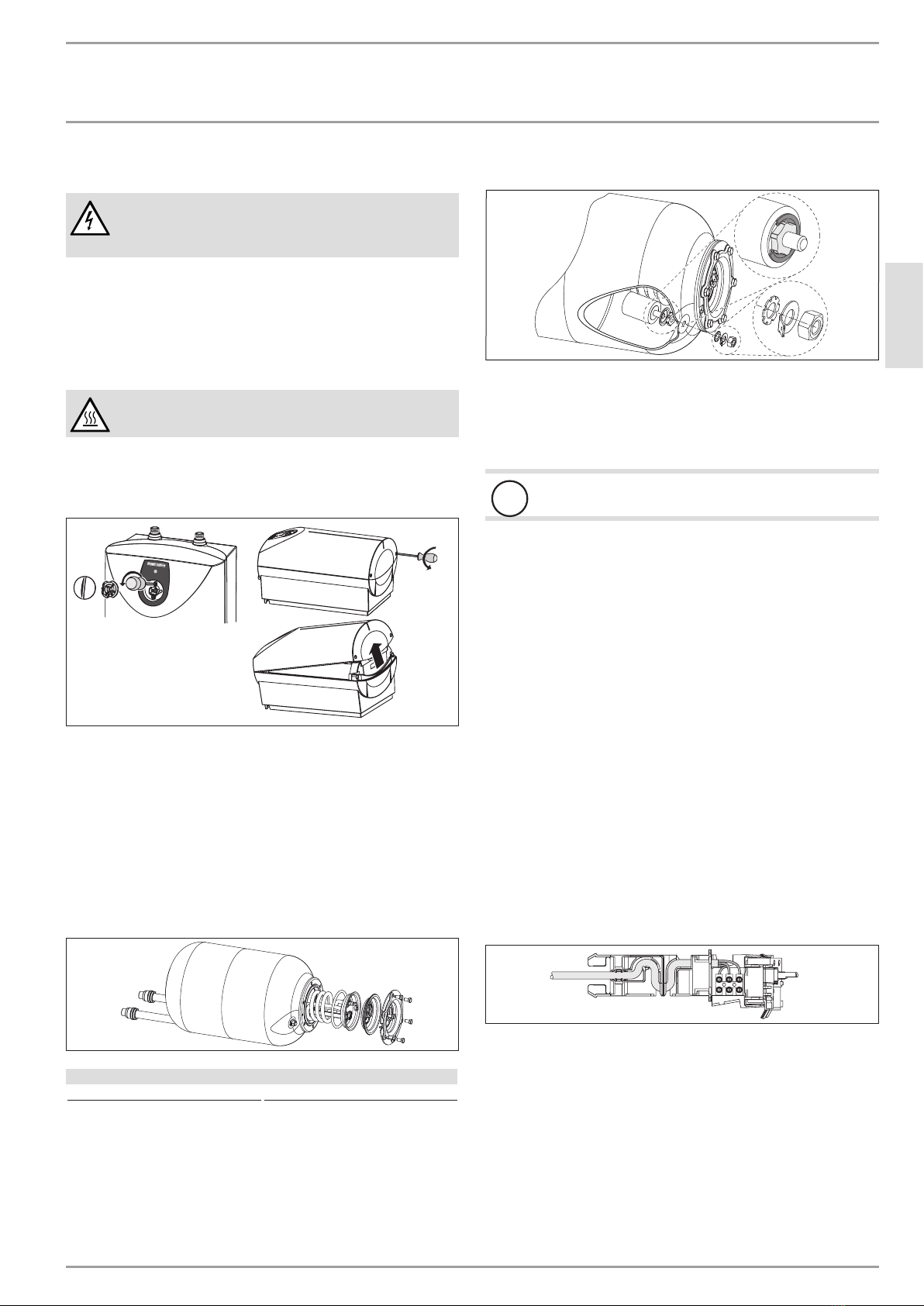

14.2 Opening the appliance
85
°C
35
55
65
Eco
comfort
26�02�06�0202
 Pull off the temperature selector and the limiting ring.
 Remove the screws from underneath the temperature
selector.
 Open the appliance cover by lowering the bolt screws in-
wards and pivot the cover upwards, then remove it.
SH 10 SLi | SH 15 SLi | SH15SLGB3.3kW
 Undo the tie (anti-tip protection).
14.3 Installing the flanged immersion heater
26�02�06�0158
Torque value of the flange screws
Nm 6±1
14.4 Checking the protective anode
 Check the protective anode for the first time 8 years after
installation. This requires removal of the flanged immersion
heater. Replace the protective anode if consumed.
 Decide the intervals in which further checks should be car-
ried out.
Fitting the protective anode
26�02�06�0166
 To include the steel cylinder in the equipotential bonding,
observe the order of the fixing elements when fitting the
protective anode.
14.5 Descaling the appliance
!Material losses
Never treat the protective anode with descaling agents.
 Remove the flanged immersion heater.
 Carefully tap the heating element to remove coarse limescale
deposits.
 Immerse the heating element up to the flange plate in desca-
ling agent.
14.6 Checking the earth conductor
 Check the earth conductor (in Germany BGVA3 for example)
across a water connector and the earth conductor contact of
the power cable.
14.7 Replacing the power cable
The power cable must only be replaced by a qualified contractor
with an original spare part. As an option, you can also use the
following cables:
2kW appliance
- H05VV-F3x1.0
3.3kW appliance
- H05VV-F3x1.5
26�02�06�0205
 Route the power cable along the cable guide.

22 | SHU 10 | SH 10 | SH 15 www.stiebel-eltron.com
INSTALLATION
Specication
14.8 Positioning the temperature sensor in its
protective pipe
 When replacing the temperature controller and the high limit
safety cut-out, guide the temperature sensors into the pro-
tective pipe.
26�02�01�0370
L2
L1
L1 Temperature controller
L2 High limit safety cut-out
L1 L2
SHU 10 SLi 160 180
SHU 10 SL GB 160 180
SH 10 SLi 250 160
SH 15 SLi 310 200
SH15SLGB3.3kW 320 200
15. Specification

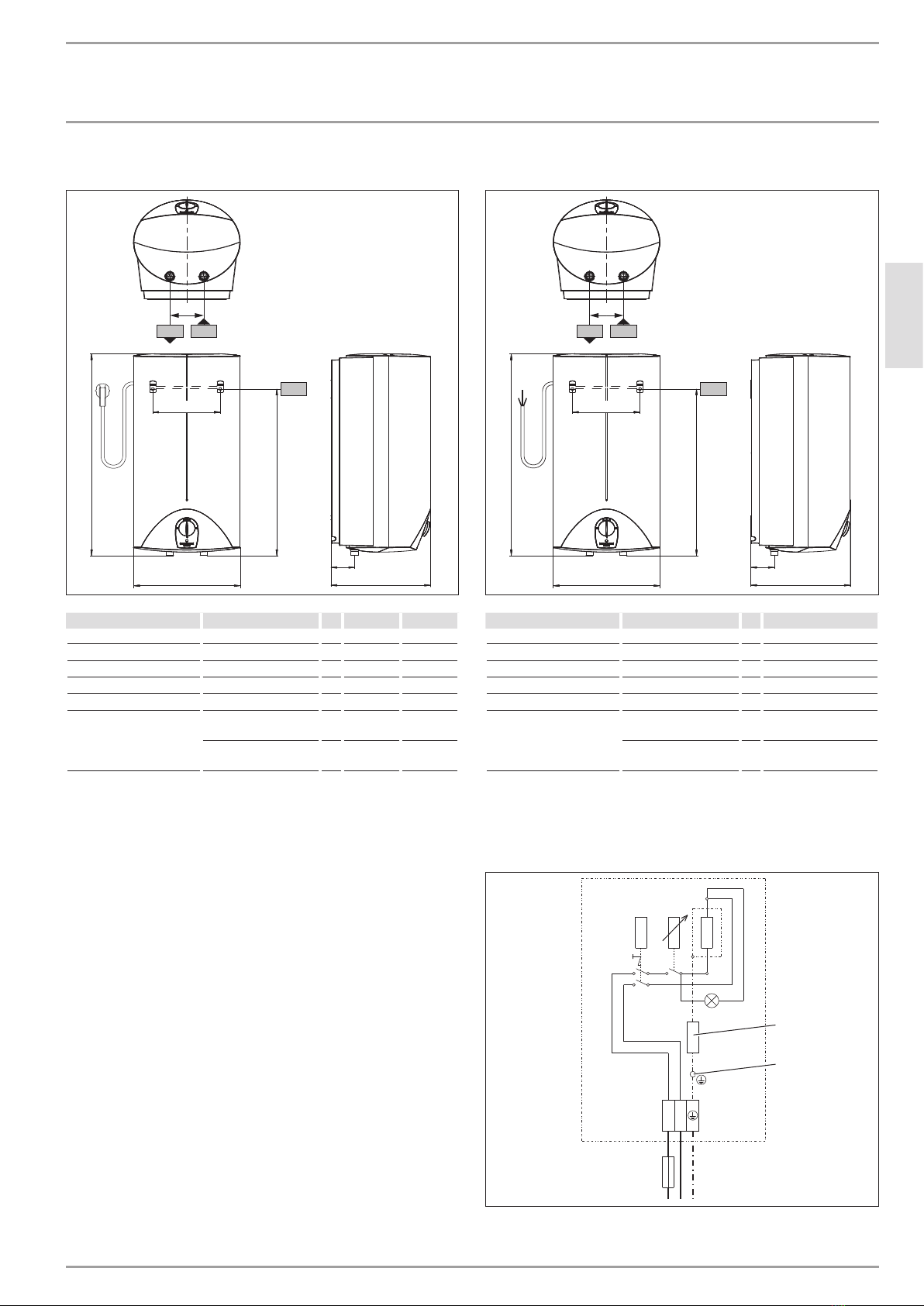

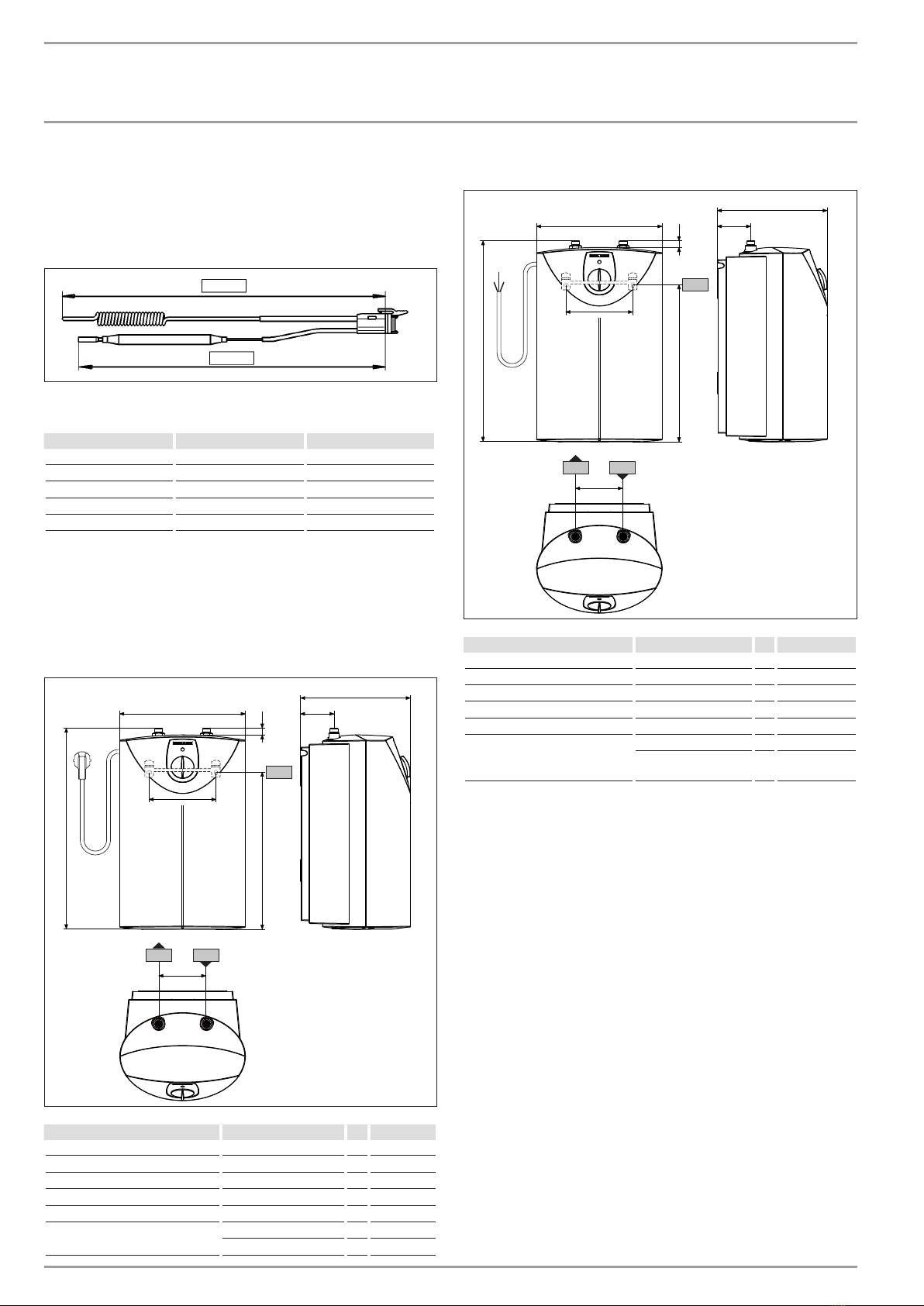

15.1 Dimensions and connections
SHU 10 SLi
c06 c01
100
a10
70
a30
a20
i13
14
D0000024351
SHU 10 SLi
a10 Appliance Height mm 503
a20 Appliance Width mm 295
a30 Appliance Depth mm 275
c01 Cold waterInlet Male thread G 3/8 A
c06 DHW outlet Male thread G 3/8 A
i13 Wall mounting bracket Height mm 363
Horizontal hole spacing mm 200
SHU 10 SL GB
c06 c01
100
a10
70
a30
a20
i13
14
D0000047346
SHU 10 SL GB
a10 Appliance Height mm 503
a20 Appliance Width mm 295
a30 Appliance Depth mm 275
c01 Cold waterInlet Male thread G 3/8 A
c06 DHW outlet Male thread G 3/8 A
i13 Wall mounting bracket Height mm 363
Horizontal hole spac-
ing
mm 200

www.stiebel-eltron.com SHU 10 | SH 10 | SH 15 | 23
ENGLISH
INSTALLATION
Specication
SH 10 SLi | SH 15 SLi
a10
70
a30
a20
100
c01
c06
i13
D0000018563
SH 10 SLi SH 15 SLi
a10 Appliance Height mm 503 601
a20 Appliance Width mm 295 316
a30 Appliance Depth mm 275 295
c01 Cold waterInlet Male thread G 1/2 A G 1/2 A
c06 DHW outlet Male thread G 1/2 A G 1/2 A
i13 Wall mounting
bracket
Height mm 387 495
Horizontal hole spac-
ing
mm 200 200
SH15SLGB3.3kW
a10
70
a30
a20
100
c01
c06
i13
D0000055514
SH 15 SL GB 3.3 kW
a10 Appliance Height mm 601
a20 Appliance Width mm 316
a30 Appliance Depth mm 295
c01 Cold waterInlet Male thread G 1/2 A
c06 DHW outlet Male thread G 1/2 A
i13 Wall mounting
bracket
Height mm 495
Horizontal hole spac-
ing
mm 200
15.2 Wiring diagram
1/N/PE ~ 220 - 240V
ϑ> ϑ>
L N
85�02�06�0004
1
2
1 Resistance 560Ω
2 Protective anode

24 | SHU 10 | SH 10 | SH 15 www.stiebel-eltron.com
INSTALLATION
Specication

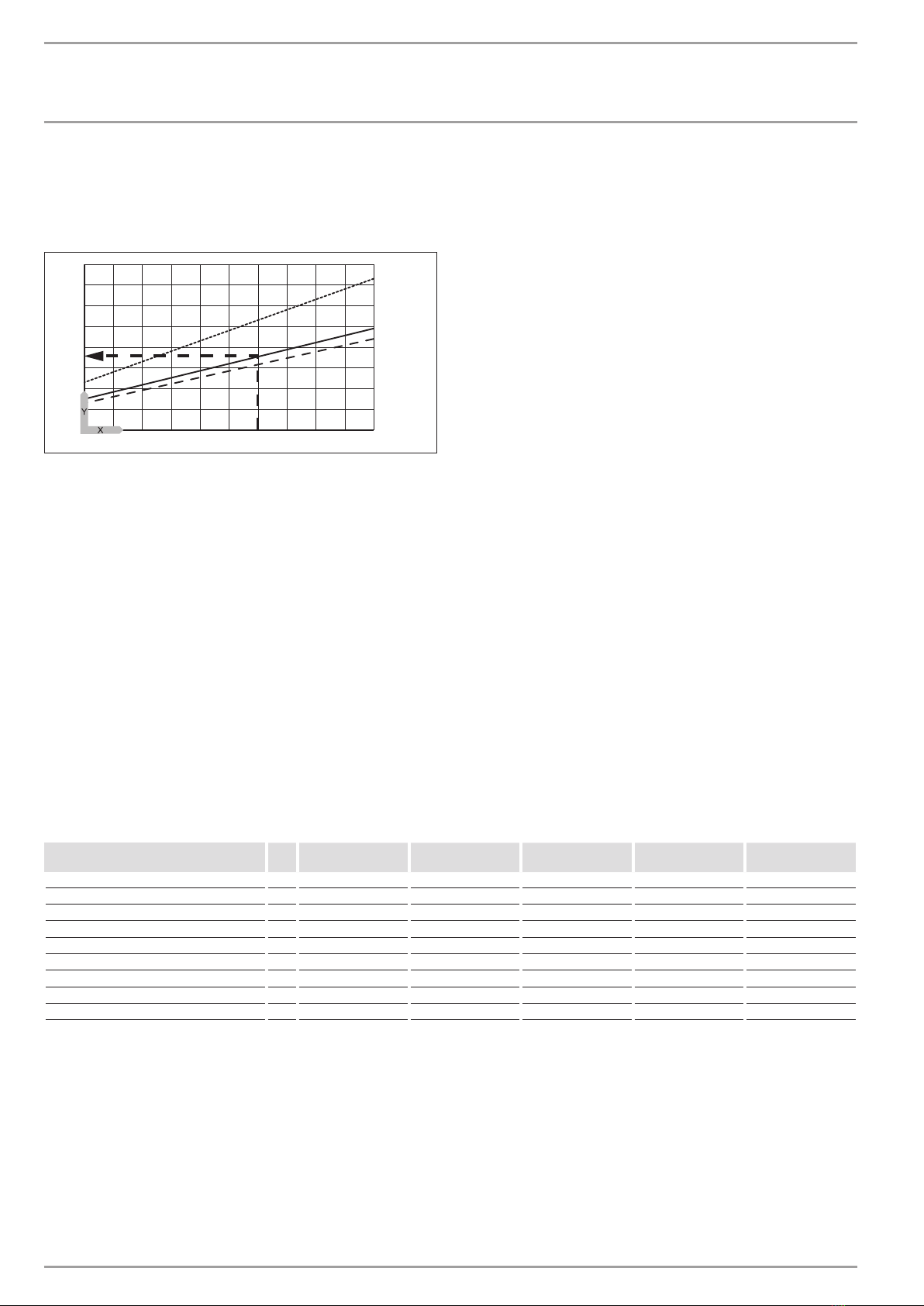

15.3 Heat-up diagram
The heat-up period depends on the degree of scaling and residual
heat. For the heat-up time for a cold water supply at 10 °C and a
maximum temperature setting, see the diagram.
35 40 45 50 55 60 65 70 75 80 85
0
5
10
15
20
25
30
35
40
3
2
1
84�02�02�0014
x Temperature in °C
y Duration in min
1 3.3kW 15lappliance
2 2kW 10lappliance
3 2kW 15lappliance
Example 10lappliance:
Temperature setting = 65 °C
Heat-up time = approx. 18minutes
15.4 Country-specific approvals and certifications
The test symbols can be seen on the type plate.
15.5 Extreme operating and fault conditions
In the case of faults, a peak temperature of up to 105 °C may briefly
occur in the system.
15.6 Details on energy consumption
The product data complies with EU regulations relating to the Directive on the ecological design of energy related products (ErP).
SHU 10 SLi SHU 10 SL GB SH 10 SLi SH 15 SLi SH 15 SL GB 3,3
kW
229473 229474 229476 229478 229480
Manufacturer STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON
Load profile XXS XXS XXS XXS XXS
Energy efficiency class AAAAA
Energy conversion efficiency %36 36 37 37 37
Annual power consumption kWh 507 507 498 497 497
Default temperature setting °C 55 55 55 55 55
Sound power level dB(A) 15 15 15 15 15
Daily power consumption kWh 2,37 2,37 2,32 2,31 2,31

www.stiebel-eltron.com SHU 10 | SH 10 | SH 15| 25
ENGLISH
INSTALLATION | GUARANTEE | ENVIRONMENT AND RECYCLING
Specication
15.7 Data table
SHU 10 SLi SHU 10 SL GB SH 10 SLi SH 15 SLi SH 15 SL GB 3.3 kW
229473 229474 229476 229478 229480
Hydraulic data
Nominal capacity l 10 10 10 15 15
Mixed water volume at
40°C
l 19 19 19 28 28
Electrical data
Rated voltage V220 230 240 220 230 240 220 230 240 220 230 240 220 230 240
Rated output kW 1.8 2.0 2.2 1.8 2.0 2.2 1.8 2.0 2.2 1.8 2.0 2.2 3.0 3.3 3.6
Rated current A8.3 8.7 9.1 8.3 8.7 9.1 8.3 8.7 9.1 8.3 8.7 9.1 13.7 14.3 15.0
MCB/fuse rating A 10 10 10 10 10 10 10 10 10 10 10 10 16 16 16
Phases 1/N/PE 1/N/PE 1/N/PE 1/N/PE 1/N/PE
Frequency Hz 50/60 50/60 50/60 50/60 50/60
Application limits
Temperature setting range °C Approx. 35 - 82 Approx. 35 - 82 Approx. 35 - 82 Approx. 35 - 82 Approx. 35 - 82
Max. permissible pressure MPa 0.7 0.7 0.7 0.7 0.7
Max. flow rate l/min 10 10 10 12 12
Energy data
Standby energy consump-
tion/24 h at 65 °C
kWh 0.36 0.36 0.34 0.4 0.4
Energy efficiency class A A A A A
Versions
IP rating IP24 D IP24 D IP24 D IP24 D IP24 D
Type of installation Undersink Undersink Oversink Oversink Oversink
Type Sealed unvented Sealed unvented Sealed unvented Sealed unvented Sealed unvented
Internal cylinder material Steel, enamelled Steel, enamelled Steel, enamelled Steel, enamelled Steel, enamelled
Thermal insulation material EPS EPS EPS EPS EPS
Casing material PS PS PS PS PS
Colour White White White White White
Connections
Power supply Standard plug type F Cable/lead Standard plug type F Standard plug type F Cable/lead
Water connection G 3/8 A G 3/8 A G 1/2 A G 1/2 A G 1/2 A
Dimensions
Depth mm 275 275 275 295 295
Height mm 503 503 503 601 601
Width mm 295 295 295 316 316
Weights
Weight kg 7.6 7.6 8.0 10.5 10.5
Guarantee
The guarantee conditions of our German companies do not
apply to appliances acquired outside of Germany. In countries
where our subsidiaries sell our products a guarantee can only
be issued by those subsidiaries. Such guarantee is only grant-
ed if the subsidiary has issued its own terms of guarantee. No
other guarantee will be granted.
We shall not provide any guarantee for appliances acquired in
countries where we have no subsidiary to sell our products.
This will not aect warranties issued by any importers.
Environment and recycling
We would ask you to help protect the environment. After use,
dispose of the various materials in accordance with national
regulations.
GUARANTEE
ENVIRONMENT AND RECYCLING



Deutschland
STIEBEL ELTRON GmbH & Co. KG
Dr.-Stiebel-Straße 33 | 37603 Holzminden
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.de
Verkauf Tel. [phone] | Fax [phone] | [email protected]
Kundendienst Tel. [phone] | Fax [phone] | [email protected]
Ersatzteilverkauf Tel. [phone] | Fax [phone] | [email protected]
Irrtum und technische Änderungen vorbehalten! | Subject to errors and technical changes! | Sous réserve
d‘erreurs et de modifications techniques! | Onder voorbehoud van ver
g
issin
g
en en technische wi
j
zi
g
in
g
en! |
Salvo error o modificación técnica! | Excepto erro ou alteração técnica | Zastrzeżone zmian
y
techniczne i
ewentualne błędy | Omyly a technické změny jsou vyhrazeny! | A muszaki változtatások és tévedések
j
o
g
át
fenntartjuk! | Отсутствие ошибок не гарантируется. Возможны технические изменения. | Ch
y
b
y
a
technické zmeny sú vyhradené! Stand 9046
Australia
STIEBEL ELTRON Australia Pty. Ltd.
6 Prohasky Street | Port Melbourne VIC 3207
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel.com.au
Austria
STIEBEL ELTRON Ges.m.b.H.
Eferdinger Str. 73 | 4600 Wels
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.at
Belgium
STIEBEL ELTRON bvba/sprl
't Hofveld 6 - D1 | 1702 Groot-Bijgaarden
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.be
China
STIEBEL ELTRON (Guangzhou) Electric
Appliance Co., Ltd.
Rm 102, F1, Yingbin-Yihao Mansion, No. 1
Yingbin Road
Panyu District | 511431 Guangzhou
Tel. [phone] | Fax [phone]
[e-mail]
www.stiebeleltron.cn
Czech Republic
STIEBEL ELTRON spol. s r.o.
K Hájům 946 | 155 00 Praha 5 - Stodůlky
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.cz
Finland
STIEBEL ELTRON OY
Kapinakuja 1 | 04600 Mäntsälä
Tel. [phone]
[email protected]
www.stiebel-eltron.fi
France
STIEBEL ELTRON SAS
7-9, rue des Selliers
B.P 85107 | 57073 Metz-Cédex 3
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.fr
Hungary
STIEBEL ELTRON Kft.
Gyár u. 2 | 2040 Budaörs
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.hu
Japan
NIHON STIEBEL Co. Ltd.
Kowa Kawasaki Nishiguchi Building 8F
66-2 Horikawa-Cho
Saiwai-Ku | 212-0013 Kawasaki
Tel. [phone] | Fax [phone]
[email protected]
www.nihonstiebel.co.jp
Netherlands
STIEBEL ELTRON Nederland B.V.
Daviottenweg 36 | 5222 BH 's-Hertogenbosch
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.nl
Poland
STIEBEL ELTRON Polska Sp. z O.O.
ul. Działkowa 2 | 02-234 Warszawa
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.pl
Russia
STIEBEL ELTRON LLC RUSSIA
Urzhumskaya street 4,
building 2 | 129343 Moscow
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.ru
Slovakia
TATRAMAT - ohrievače vody s.r.o.
Hlavná 1 | 058 01 Poprad
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.sk
Switzerland
STIEBEL ELTRON AG
Industrie West
Gass 8 | 5242 Lupfig
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.ch
Thailand
STIEBEL ELTRON Asia Ltd.
469 Moo 2 Tambol Klong-Jik
Amphur Bangpa-In | 13160 Ayutthaya
Tel. [phone] | Fax [phone]
[e-mail]
www.stiebeleltronasia.com
United Kingdom and Ireland
STIEBEL ELTRON UK Ltd.
Unit 12 Stadium Court
Stadium Road | CH62 3RP Bromborough
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.co.uk
United States of America
STIEBEL ELTRON, Inc.
17 West Street | 01088 West Hatfield MA
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron-usa.com
A 289868-39146-9074
4<AMHCMN=ijigia>
