STIEBEL ELTRON EIL 3 Premium How to use

Electronically controlled mini instantaneous water heater| Mini chauffe-eau instantané
à régulation électronique | Elektronisch geregelde mini-doorstromer | Minicalentador
instantáneo con regulación electrónica | Elektronicznie regulowany mini przepływowy
ogrzewacz wody
» EIL 3 Premium
» EIL 4 Premium
» EIL 6 Premium
» EIL 7 Premium
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
BEDIENING EN INSTALLATIE
OPERACIÓN E INSTALACIÓN
OBSŁUGA I INSTALACJA

2| EIL Premium www.stiebel-eltron.com
TABLE OF CONTENTS
SPECIAL INFORMATION
OPERATION
1. General information ������������������������������������������������ 4
1.1 Safety instructions �������������������������������������������������������4
1.2 Other symbols in this documentation��������������������������������5
1.3 Units of measurement���������������������������������������������������5
2. Safety����������������������������������������������������������������� 6
2.1 Intended use���������������������������������������������������������������6
2.2 General safety instructions���������������������������������������������6
2.3 Test mark�������������������������������������������������������������������6
3. Appliance description ���������������������������������������������� 7
4. Settings �������������������������������������������������������������� 7
5. Cleaning, care and maintenance ���������������������������������� 8
6. Troubleshooting����������������������������������������������������� 8
INSTALLATION
7. Safety����������������������������������������������������������������� 9
7.1 General safety instructions���������������������������������������������9
7.2 Instructions, standards and regulations�����������������������������9
8. Appliance description ���������������������������������������������� 9
8.1 Standard delivery���������������������������������������������������������9
8.2 Accessories �������������������������������������������������������������� 10
9. Preparation ���������������������������������������������������������10
10. Installation����������������������������������������������������������10
10.1 Installation site���������������������������������������������������������� 10

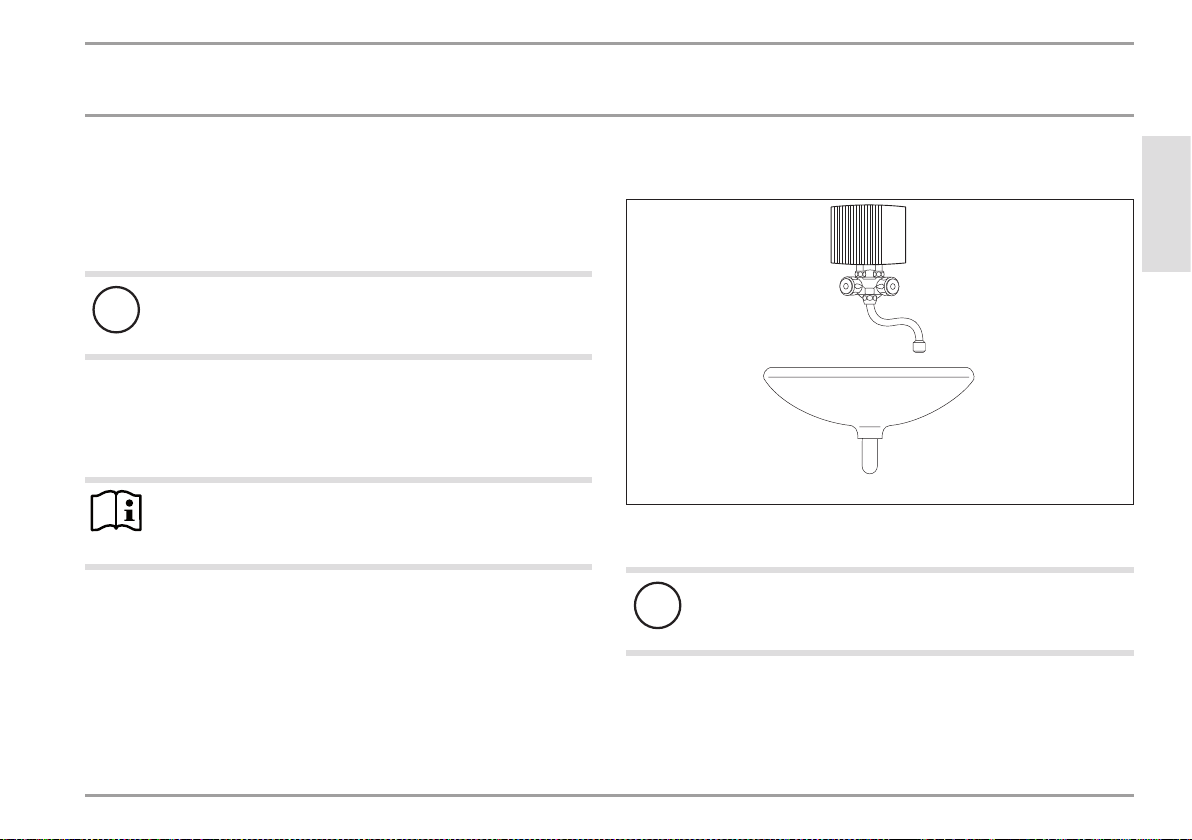

10.2 Installation alternatives ����������������������������������������������� 11
10.3 Making the electrical connection ����������������������������������� 14
11. Commissioning �����������������������������������������������������15
11.1 Initial start-up����������������������������������������������������������� 15
11.2 Appliance handover���������������������������������������������������� 15
11.3 Recommissioning������������������������������������������������������� 15

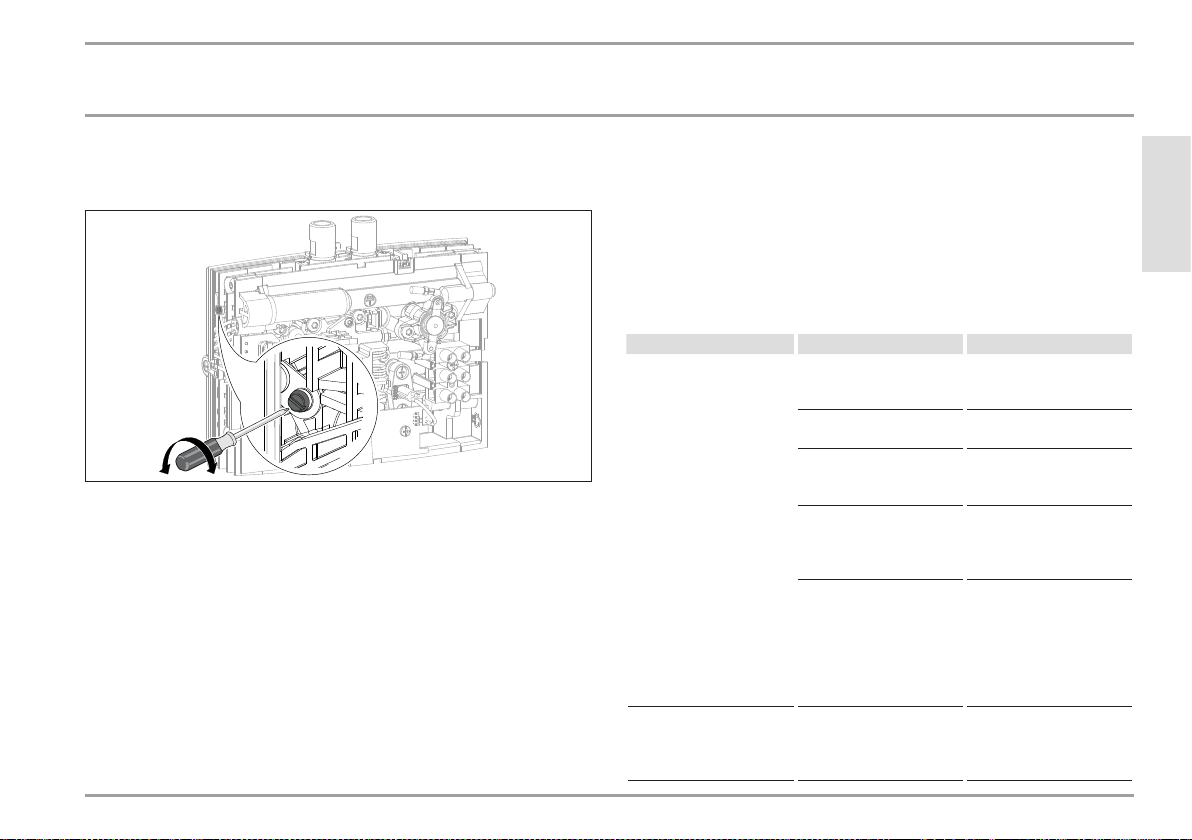

11.4 Settings������������������������������������������������������������������� 15
12. Shutting down the system ����������������������������������������17
13. Troubleshooting����������������������������������������������������17
14. Maintenance��������������������������������������������������������19
14.1 Draining the appliance ������������������������������������������������ 19
14.2 Clean the strainer ������������������������������������������������������ 19
14.3 Tests in accordance with VDE0701/0702 �������������������������� 20
14.4 Appliance storage ������������������������������������������������������ 20
14.5 Replacing the power cable for the EIL6Premium �������������� 20
15. Specification ��������������������������������������������������������20

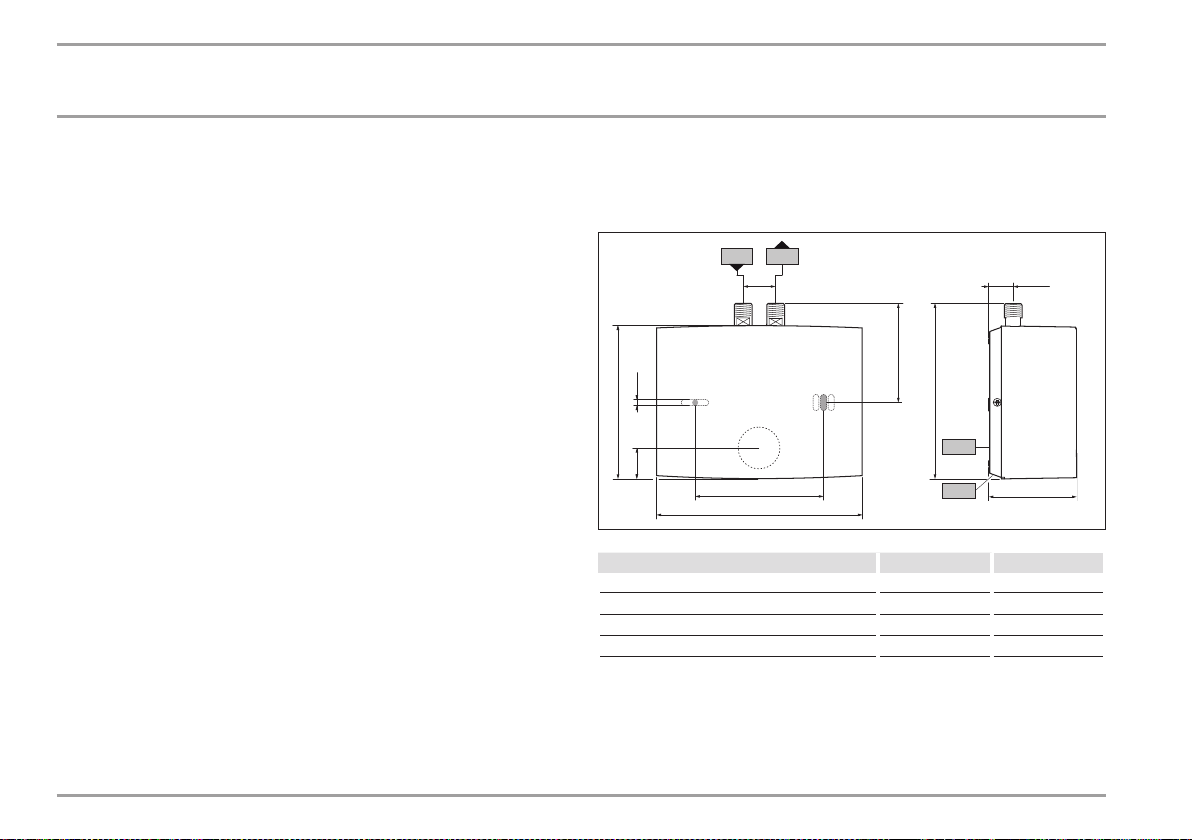

15.1 Dimensions and connections����������������������������������������� 20
15.2 Wiring diagram ��������������������������������������������������������� 21
15.3 Temperature increase ������������������������������������������������� 22
15.4 Application areas������������������������������������������������������� 23
15.5 Energy consumption data �������������������������������������������� 23
15.6 Data table ���������������������������������������������������������������� 24
GUARANTEE
ENVIRONMENT AND RECYCLING

ENGLISH
www.stiebel-eltron.com EIL Premium | 3
SPECIAL INFORMATION
SPECIAL INFORMATION
- The appliance may be used by children over
3years of age and persons with reduced
physical, sensory or mental capabilities or a
lack of experience and expertise, provided
that they are supervised or they have been
instructed on how to use the appliance safe-
ly and have understood the potential risks.
Children must never play with the appliance.
Cleaning and user maintenance must not be
carried out by children without supervision.
- During operation, the tap can reach tempera-
tures up to 55°C. There is a risk of scalding at
outlet temperatures in excess of 43°C.
- Ensure the appliance can be separated from
the power supply by an isolator that discon-
nects all poles with at least 3mm contact
separation.
- The specified voltage must match the mains
power supply.
- The appliance must be permanently connect-
ed to fixed wiring; exception EIL3Premium.
- The appliance must be connected to the earth
conductor.
- The power cable must only be replaced (for
example if damaged) by a qualified contrac-
tor authorised by the manufacturer, using an
original spare part.
- Secure the appliance as described in chapter
"Installation/ Installation".
- Observe the maximum permissible pressure
(see chapter "Installation/ Specification/ Data
table").
- The specific water resistivity of the mains
water supply must not be undershot (see
chapter "Installation/ Specification/ Data
table").

OPERATION
General information
4| EIL Premium www.stiebel-eltron.com
- Drain the appliance as described in chapter
"Installation/ Maintenance/ Draining the
appliance".
OPERATION
1. General information
The chapters "Special information" and "Operation" are intended
for appliance users and qualified contractors.
The chapter "Installation" is intended for qualified contractors.
Note
Read these instructions carefully before using the appli-
ance and retain them for future reference.
Pass on these instructions to a new user if required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
SIGNAL WORD Type of risk
Here, possible consequences are listed that may result
from failure to observe the safety instructions.
f Steps to prevent the risk are listed.

ENGLISH
www.stiebel-eltron.com EIL Premium | 5
OPERATION
General information
1.1.2 Symbols, type of risk
Symbol Type of risk
Injury
Electrocution
Burns
(burns, scalding)
1.1.3 Signal words
SIGNAL WORD Meaning
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in non-seri-
ous or minor injury.
1.2 Other symbols in this documentation
Note
General information is identified by the adjacent symbol.
f Read these texts carefully.
Symbol Meaning
Property damage
(appliance damage, consequential losses and environmen-
tal pollution)
Appliance disposal
f This symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
1.3 Units of measurement
Note
All measurements are given in mm unless stated oth-
erwise.
!

OPERATION
Safety
6| EIL Premium www.stiebel-eltron.com
2. Safety
2.1 Intended use
This appliance is suitable for heating domestic hot water or for
reheating preheated water. The appliance is designed for one hand
washbasin.
The appliance is intended for domestic use. It can be used safely
by untrained persons. The appliance can also be used in non-do-
mestic environments, e.g.in small businesses, as long as it is
used in the same way.
Any other use beyond that described shall be deemed inappro-
priate. Observation of these instructions and of the instructions
for any accessories used is also part of the correct use of this
appliance.
2.2 General safety instructions
DANGER Scalding
During operation, the tap can reach temperatures up
to 55°C.
There is a risk of scalding at outlet temperatures in ex-
cess of 43°C.
!
WARNING Injury
The appliance may be used by children over 3 years of
age and persons with reduced physical, sensory or men-
tal capabilities or a lack of experience and expertise,
provided that they are supervised or they have been
instructed on how to use the appliance safely and have
understood the potential risks. Children must never play
with the appliance. Cleaning and user maintenance must
not be carried out by children without supervision.
DANGER Electrocution
Any damaged power cables must be replaced by a qual-
ified electrician. This prevents potential hazards from
arising.
!
Property damage
Protect the appliance and the tap against frost.
!
Property damage
Only use the special aerator provided. Prevent scale
build-up at the tap outlets (see chapter "Operation/
Cleaning, care and maintenance").
2.3 Test mark
See type plate on the appliance.

ENGLISH
www.stiebel-eltron.com EIL Premium | 7
OPERATION
Appliance description
3. Appliance description
The electronically controlled mini instantaneous water heater
maintains a constant outlet temperature up to its output limit,
irrespective of the inlet temperature.
This appliance has been set at the factory to the outlet tempera-
ture required for washing hands. Once this temperature has been
reached, the PCB automatically reduces the output. The output is
matched to the required temperature, this prevents the temper-
ature being exceeded.
The appliance heats the water directly at the draw-off point as
soon as the tap is opened. The short pipe runs ensure that energy
and water losses are minimal.
The DHW output depends on the cold water temperature, the heat-
ing output and the flow rate.
The bare wire heating system is suitable for hard and soft water
areas. This heating system has a low susceptibility to scale build-
up. The heating system ensures quick and efficient DHW provision
at the hand washbasin.
Your qualified contractor can adjust the maximum temperature
and flow rate (see chapter "Installation/ Commissioning/ Set-
tings").
Fitting the special aerator supplied provides an optimum water jet.
4. Settings
The appliance heating system switches on automatically as soon
as you open the DHW valve at the tap or activate the sensor of a
sensor tap. The water is heated. The water temperature can be
adjusted at the tap.
For the starting flow rate and flow rate limit, see chapter "Instal-
lation/ Specification/ Data table".
Increasing the temperature
f Reduce the flow rate at the tap.
Reducing the temperature
f Open the tap further. Add more cold water.
Following an interruption of the water supply
See chapter "Installation/ Commissioning/ Recommissioning".

OPERATION
Cleaning, care and maintenance
8| EIL Premium www.stiebel-eltron.com
5. Cleaning, care and maintenance
f Never use abrasive or corrosive cleaning agents. A damp
cloth is sufficient for cleaning the unit.
f Check the taps regularly. Limescale deposits at the tap out-
lets can be removed using commercially available descaling
agents.
f Have the electrical safety of the appliance regularly checked
by a qualified contractor.
f Regularly descale or replace the special aerator in the
tap (see chapter "Installation/ Appliance description/
Accessories").
6. Troubleshooting
Problem Cause Remedy
The appliance will not
start despite the DHW
valve being fully open.
No voltage at the appli-
ance.
Check the fuse/MCB in
your fuse box/distribu-
tion board.
The aerator in the tap is
scaled up or dirty.
Clean and/or descale the
aerator or replace the
special aerator.
The water supply has
been interrupted.
Vent the appliance and
the cold water inlet line
(see chapter "Installa-
tion/ Commissioning/
Recommissioning").
The preferred tempera-
ture is not being reached.
The maximum tempera-
ture set inside the appli-
ance is too low.
Have your qualified con-
tractor adjust the maxi-
mum temperature.
The appliance has
reached its output limit.
Reduce the flow rate.
If you cannot remedy the fault, contact your qualified contractor.
To facilitate and speed up your enquiry, please provide the serial
number from the type plate (000000-0000-00000).
EIL . . .
Model: 000000 E no.:
F no.: 0000-00000

ENGLISH
www.stiebel-eltron.com EIL Premium | 9
INSTALLATION
Safety
INSTALLATION
7. Safety
Only a qualified contractor should carry out installation, commis-
sioning, maintenance and repair of the appliance.
7.1 General safety instructions
We guarantee trouble-free function and operational reliability only
if original accessories and spare parts intended for the appliance
are used.
!
Property damage
Observe the maximum inlet temperature. Higher tem-
peratures may damage the appliance. You can limit the
maximum inlet temperature by installing a central ther-
mostatic valve.
WARNING Electrocution
This appliance contains capacitors which are discharged
when disconnected from the power supply. The capacitor
discharge voltage may briefly exceed >34VDC.
7.2 Instructions, standards and regulations
Note
Observe all applicable national and regional regulations
and instructions.
The electrical resistivity of the water must not fall below that stated
on the type plate. In a linked water network, factor in the lowest
electrical resistance of the water (see chapter "Installation/ Spec-
ification/ Data table"). Your water supply utility will advise you of
the electrical resistivity or conductivity of the water in your area.
8. Appliance description
8.1 Standard delivery
The following are delivered with the appliance:
- Strainer in the cold water supply
- Special aerator
- Connection hose 3/8, 500mm long, with gaskets*
- Tee 3/8*
- Company logo for oversink installation
*for the connection as pressure-tested appliance

INSTALLATION
Preparation
10 | EIL Premium www.stiebel-eltron.com
8.2 Accessories
Special aerator
Note
Fitting the special aerator supplied provides an optimum
water jet.
Non-pressurised taps
- MAW (OT) - wall mounted tap for oversink installation
- MAZ (UT) - twin lever washbasin tap
- MAE (UTE) - mono lever washbasin tap
Pressure-tested taps
Suitable pressurised taps are available from specialist trade shops.
9. Preparation
f Flush the water line thoroughly.
Water installation
No safety valve is required.
Taps
f Use appropriate taps.
10. Installation
10.1 Installation site
Install the appliance in a room free from the risk of frost and near
the draw-off tap.
Ensure that the lateral fixing screws for the cover are always ac-
cessible.
The appliance is suitable for undersink installation (water con-
nections at the top) and oversink installation (water connections
at the bottom).
DANGER Electrocution
The adjusting screw for setting the flow rate is live. Pro-
tection rating IP25 is only ensured if the appliance back
panel is fitted.
f Always fit the appliance back panel.

ENGLISH
www.stiebel-eltron.com EIL Premium | 11
INSTALLATION
Installation
10.2 Installation alternatives
10.2.1 Undersink installation
Non-pressurised, with non-pressurised tap
26�02�05�0086
Pressure-tested, with pressure-tested tap
26�02�05�0094
Appliance installation
Note
The wall must have sufficient load bearing capacity.
f Mount the appliance on the wall.

INSTALLATION
Installation
12 | EIL Premium www.stiebel-eltron.com



26�02�05�0042

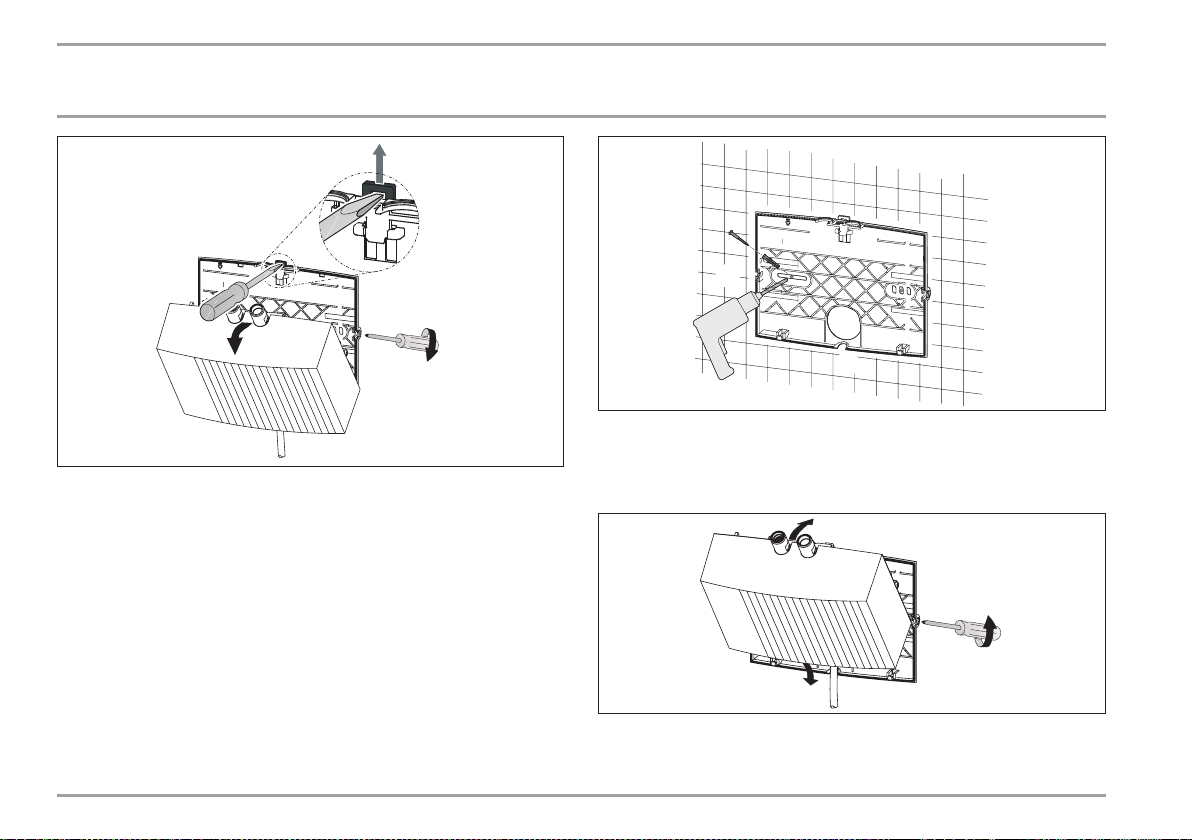

f Undo the cover fixing screws by two turns.
f Undo the snap fastener using a screwdriver.
f Remove the appliance cover with the heater towards the
front.
f Using pliers, break out the knock-out for the power cable
in the appliance cover. Correct the contours with a file if
necessary.
26�02�05�0084
f Use the appliance back panel as a drilling template.
f Secure the appliance back panel to the wall with suitable
rawl plugs and screws.



26�02�05�0085
f Route the power cable through the knock-out in the back
panel.

ENGLISH
www.stiebel-eltron.com EIL Premium | 13
INSTALLATION
Installation
f Hook in the appliance cover with the heater at the bottom.
f Click the heater into place using the snap fastener.
f Secure the appliance cover with the cover fixing screws.
Tap installation
!
Property damage
f When making the connections, counterhold the
torque on the appliance using a size 14 spanner.
f Install the tap. For this, also observe the tap operating and
installation instructions.
Pressure-tested tap
Note
f Fit the 3/8connection hose and the 3/8tee provided.
10.2.2 Oversink installation, non-pressurised, with non-
pressurised tap
26�02�05�0033
Tap installation
!
Property damage
f When making the connections, counterhold the
torque on the appliance using a size 14 spanner.
f Install the tap. For this, also observe the tap operating and
installation instructions.
Appliance installation
f Fit the appliance to the tap with the water connections.

INSTALLATION
Installation
14 | EIL Premium www.stiebel-eltron.com
10.3 Making the electrical connection
DANGER Electrocution
Carry out all electrical connection and installation work
in accordance with relevant regulations.
DANGER Electrocution
Ensure that the appliance is connected to the earth con-
ductor.
Ensure the appliance can be separated from the power
supply by an isolator that disconnects all poles with at
least 3mm contact separation.
DANGER Electrocution
The appliances are delivered equipped with a power
cable (EIL3Premium with plug).
Connection to a permanent power supply is possible,
provided the fixed cable has a cross-section that is at
least equal to that of the standard power cable of the
appliance. The maximum permissible cross-section is
3x6mm².
f If the appliance is installed over the sink, route the
power cable behind the appliance.
!
Property damage
When making the connection to a standard safety socket
(in the case of a power cable with plug), ensure that the
socket is freely accessible after the appliance has been
installed.
!
Property damage
Observe the type plate. The specified voltage must match
the mains power supply.
f Connect the power cable as shown in the wiring diagram
(see chapter "Installation/ Specification/ Wiring diagram").

ENGLISH
www.stiebel-eltron.com EIL Premium | 15
INSTALLATION
Commissioning
11. Commissioning
11.1 Initial start-up
26�02�05�0087
f Fill the appliance for at least one minute by running the tap
several times until the pipework and appliance are free of air.
f Carry out a tightness check.
f Insert the power cable plug, if present, into the standard
safety socket or set the fuse/MCB.
f Check the appliance function.
f In the case of oversink installation, affix the company logo
supplied over the existing company logo.
11.2 Appliance handover
f Explain the appliance function to users and familiarise them
with how it works.
f Make users aware of potential dangers, especially the risk of
scalding.
f Hand over these instructions.
11.3 Recommissioning
!
Property damage
To ensure that the bare wire heating system is not dam-
aged following an interruption to the water supply, the
appliance must be recommissioned by taking the follow-
ing steps.
f Isolate the appliance from the power supply across
all poles. Pull the power cable plug, if present, from
the socket, or remove the fuse/reset the MCB.
f Open and close the tap multiple times for at least
one minute until the appliance and the upstream
cold water supply line are free of air.
f Switch the mains power supply back on again.
11.4 Settings
You can alter the maximum flow rate and temperature.
DANGER Electrocution
The flow rate and temperature may only be adjusted if
the appliance is isolated from the power supply.
f Isolate all poles of the appliance from the power supply.

INSTALLATION
Commissioning
16 | EIL Premium www.stiebel-eltron.com
DANGER Electrocution
The adjusting screw for changing the flow rate and the
potentiometer for setting the temperature are live if the
appliance has not been isolated from the power supply.
D0000103911
f Remove the appliance cover.
Setting the maximum temperature
Factory setting: 38°C
D0000042035
f Using a screwdriver, set the potentiometer to the maximum
required temperature.
f Fit the appliance cover.

ENGLISH
www.stiebel-eltron.com EIL Premium | 17
INSTALLATION
Shutting down the system
Limiting the flow rate
Factory setting: Maximum flow rate
D0000103907
f Using the adjusting screw, set the maximum required flow
rate:
- Lowest flow rate = wind the screw in as far as it will go.
- Maximum flow rate = wind the screw out as far as it will go.
f Fit the appliance cover.
12. Shutting down the system
f Isolate the appliance from the mains power supply by means
of the fuse/MCB in the distribution board or by pulling the
power cable plug from the socket.
f Drain the appliance (see chapter "Installation/ Maintenance").
13. Troubleshooting
Problem Cause Remedy
The appliance will not
start despite the DHW
valve being fully open.
The aerator in the tap is
scaled up or dirty.
Clean and/or descale the
aerator or replace the
special aerator.
The flow rate is set too
low.
Increase the flow rate.
The strainer in the cold
water line is blocked.
Clean the strainer after
shutting off the cold
water supply line.
The heating system is
faulty.
Check the resistance of
the heating system and
replace the appliance if
required.
The safety pressure limit-
er has responded.
Remedy the cause of
the fault. Isolate the ap-
pliance from the power
supply and depressurise
the water line. Activate
the safety pressure
limiter.
The preferred tempera-
ture is not being reached.
The yellow indicator
flashes.
The appliance has
reached its output limit.
Reduce the flow rate.

INSTALLATION
Troubleshooting
18 | EIL Premium www.stiebel-eltron.com
LED indicators
D0000103910
321
1 Lights up red in the case of a fault
2 Indicator yellow in heating mode / flashing when the output
limit is exceeded
3 Flashes green if the PCB is receiving power
Activating the safety pressure limiter
D0000104220
1
2
1 1-pole safety pressure limiter EIL4Premium/ EIL6Premium
2 2-pole safety pressure limiter EIL3Premium/ EIL7Premium

ENGLISH
www.stiebel-eltron.com EIL Premium | 19
INSTALLATION
Maintenance
14. Maintenance
DANGER Electrocution
Before any work on the appliance, disconnect all poles
from the power supply.
14.1 Draining the appliance
DANGER Scalding
Hot water may escape when you drain the appliance.
If the appliance needs to be drained for maintenance or to protect
the whole installation when there is a risk of frost, proceed as
follows:
f Close the shut-off valve in the cold water inlet line.
f Open the draw-off valve.
f Undo the water connections on the appliance.
14.2 Clean the strainer
You can clean the fitted strainer after removing the cold water
supply line.
26�02�05�0065�

INSTALLATION

20 | EIL Premium www.stiebel-eltron.com
14.3 Tests in accordance with VDE0701/0702
Earth conductor check
f Check the earth conductor (in Germany e.g. DGUV A3) on the
earth conductor contact of the power cable and on the appli-
ance connector.
Insulation resistance
Due to the electronic control of this appliance, an insulation re-
sistance test to VDE0701/0702 cannot be carried out.
f To check the effectiveness of the insulating properties of the
appliance, we recommend conducting a differential cur-
rent test of the earth conductor current/ leakage current to
VDE0701/0702 (Fig. C.3b).
14.4 Appliance storage
f Store the dismantled appliance free from the risk of frost, as
water residues remaining inside the appliance can freeze and
cause damage.
14.5 Replacing the power cable for the
EIL6Premium
f If replacing the power cable for the EIL6Premium, use a
power cable with 4mm² cross-section.
15. Specification
15.1 Dimensions and connections
95
28
30
120
143
190
4,8
165
82
20
b02
b03
c06
c01
D0000018336
EIL Premium
b02 Entry electrical cables I
b03 Entry electrical cables II
c01 Cold water inlet Male thread G 3/8 A
c06 DHW outlet Male thread G 3/8 A
