Stihl HL-KM User manual

Instruction Manual
Manual de instrucciones
Warning!
For safe operation follow all safety
precautions in Instruction Manual - improper
use can cause serious injury.
Advertencia!
Para su seguridad durante el manejo de este
producto, siga siempre las precauciones de
seguridad dadas en el manual de
instrucciones - el uso indebido puede causar
lesiones graves.
STIH)
STIHL HL-KM
BA_U1_86_01.fm Seite 0 Mittwoch, 10. März 2004 11:50 11

1HL-KM
English / USA
BA_SE_118_003_01_05.fmPrinted on chlorine-free paper.
Printing inks contain vegetable oils; paper can be recycled.
© ANDREAS STIHL AG & Co. KG, 2005 0458 475 8621 A. M7. M5. PM. Printed in USA
STIHl
Contents
KombiSystem ................................... 2
Guide to Using this Manual .............. 2
Safety Precautions and
Working Techniques ......................... 3
Using the Hedge Cutter .................. 10
Approved CombiEngines ................ 12
Assembling the Unit ....................... 13
Mounting the CombiTool ................. 13
Adjusting Cutter Bar ....................... 14
Fitting the Harness ......................... 16
Starting / Stopping the Engine ........ 16
Lubricating the Gearbox ................. 17
Storing the Machine ........................ 18
Sharpening the Cutting Blades ....... 18
Main Parts ...................................... 19
Specifications ................................. 20
Maintenance and Repairs ............... 20
Allow only persons who understand the
manuals of the CombiEngine and hedge
trimmer CombiTool to operate this power
tool combination.
To receive maximum performance and
satisfaction from your STIHL CombiTool,
it is important that you read and
understand the maintenance and safety
precautions, starting on page 3, before
using your CombiTool.
Contact your STIHL dealer or the STIHL
distributor for your area if you do not
understand any of the instructions in this
Manual.
!Warning!
Because this power-tool has a high-
speed working tool some special safety
precautions must be observed to reduce
the risk of personal injury. Careless or
improper use may cause serious or even
fatal injury.
STIHL's philosophy is to continually
improve all of its products. As a result,
engineering changes and improve-
ments are made from time to time. If the
operating characteristics or the
appearance of your attachment differs
from those described in this Manual,
please contact your STIHL dealer for
information and assistance.

2
English / USA
HL-KM
In the STIHL KombiSystem a number of
different KombiEngines and KombiTools
can be combined to produce a power
tool. In this instruction manual the
functional unit formed by the
KombiEngine and KombiTool is referred
to as the power tool.
The KombiEngine and KombiTool come
with separate instruction manuals.
Always read and make sure you
understand both instruction manuals
before starting and using your machine.
Keep the manuals in a safe place for
later reference.
Pictograms
All the pictograms attached to the
machine are shown and explained in
this manual.
The operating and handling instructions
are supported by illustrations.
Symbols in text
The individual steps or procedures
described in the manual may be marked
in different ways:
:A bullet marks a step or procedure
without direct reference to an
illustration.
A description of a step or procedure that
refers directly to an illustration may
contain item numbers that appear in the
illustration.
Example:
Loosen the screw (1)
Lever (2) ...
In addition to the operating instructions,
this manual may contain paragraphs
that require your special attention. Such
paragraphs are marked with the
symbols described below:
Warning where there is a risk of an
accident or personal injury or
serious damage to property.
Caution where there is a risk of
damaging the machine or its
individual components.
Note or hint which is not essential
for using the machine, but may
improve the operator’s under-
standing of the situation and result
in better use of the machine.
Note or hint on correct procedure in
order to avoid damage to the
environment.
KombiSystem
.
.
.
.
002BA159 KN
+
+
Guide to Using this Manual

3HL-KM
English / USA
Equipment and features
This instruction manual may refer to
several models with different
features. Components that are not
installed on all models and related
applications are marked with an
asterisk (*). Such components may
be available as special accessories
from your STIHL dealer.
Engineering improvements
STIHL’s philosophy is to continually
improve all of its products. As a result,
engineering changes and improvements
are made from time to time. If the
operating characteristics or the
appearance of your machine differ from
those described in this manual, please
contact your STIHL dealer for
assistance.
Therefore some changes, modifications
and improvements may not be covered
in this manual.
Because a KombiEngine
equipped with a hedge
trimmer KombiTool is a
high-speed, fast-cutting
power tool with sharp
cutting blades, special
safety precautions must
be observed to reduce the
risk of personal injury.
It is important that you
read, fully understand and
observe the following
safety precautions and
warnings. Read the
instruction manuals and
the safety precautions of your
KombiEngine and KombiTool
periodically. Careless or improper use
may cause serious or fatal injury.
Have your STIHL dealer show you how
to operate your power tool. Observe all
applicable local safety regulations,
standards and ordinances.
!Warning!
Do not lend or rent your power tool
without the instruction manuals. Be sure
that anyone using it understands the
information contained in these manuals.
!Warning!
The use of this machine may be
hazardous. If the cutting tool comes in
contact with your body, it will cut you.
Use your hedge trimmer only for cutting
hedges, shrubs, scrub, bushes and
similar material. It must not be used for
any other purposes, since such misuse
may result in an accident or damage to
the machine.
!Warning!
Minors should never be allowed to use
this power tool. Bystanders, especially
children, and animals should not be
allowed in the area where it is in use.
!Warning!
To reduce the risk of injury to bystanders
and damage to property, never let your
power tool run unattended. When it is
not in use (e.g. during a work break),
shut it off and make sure that
unauthorized persons do not use it.
Safety Precautions and
Working Techniques

4
English / USA
HL-KM
Most of these safety precautions and
warnings apply to the use of all STIHL
hedge trimmers. Different models may
have different parts and controls. See
the appropriate section of your
KombiEngine and KombiTool instruction
manuals for a description of the controls
and the function of the parts of your
model.
Safe use of a hedge trimmer involves
1. the operator
2. the power tool
3. the use of the power tool.
THE OPERATOR
Physical Condition
You must be in good physical condition
and mental health and not under the
influence of any substance (drugs,
alcohol, etc.) which might impair vision,
dexterity or judgment. Do not operate
this machine when you are fatigued.
!Warning!
Be alert – if you get tired, take a break.
Tiredness may result in loss of control.
Working with any power tool can be
strenuous. If you have any condition that
might be aggravated by strenuous work,
check with your doctor before operating
this machine.
Proper Clothing
!Warning!
To reduce the risk of injury, the operator
should wear proper protective apparel.
!Warning!
To reduce the risk of injury
to your eyes never
operate your power tool
unless wearing goggles or
properly fitted protective
glasses with adequate top
and side protection complying with ANSI
Z 87.1 (or your applicable national
standard). To reduce the risk of injury to
your face STIHL recommends that you
also wear a face shield or face screen
over your goggles or protective glasses.
!Warning!
Power tool noise may
damage your hearing.
Wear sound barriers (ear
plugs or ear mufflers) to
protect your hearing.
Continual and regular
users should have their hearing checked
regularly.
Be particularly alert and cautious when
wearing hearing protection because
your ability to hear warnings (shouts,
alarms, etc.) is restricted.

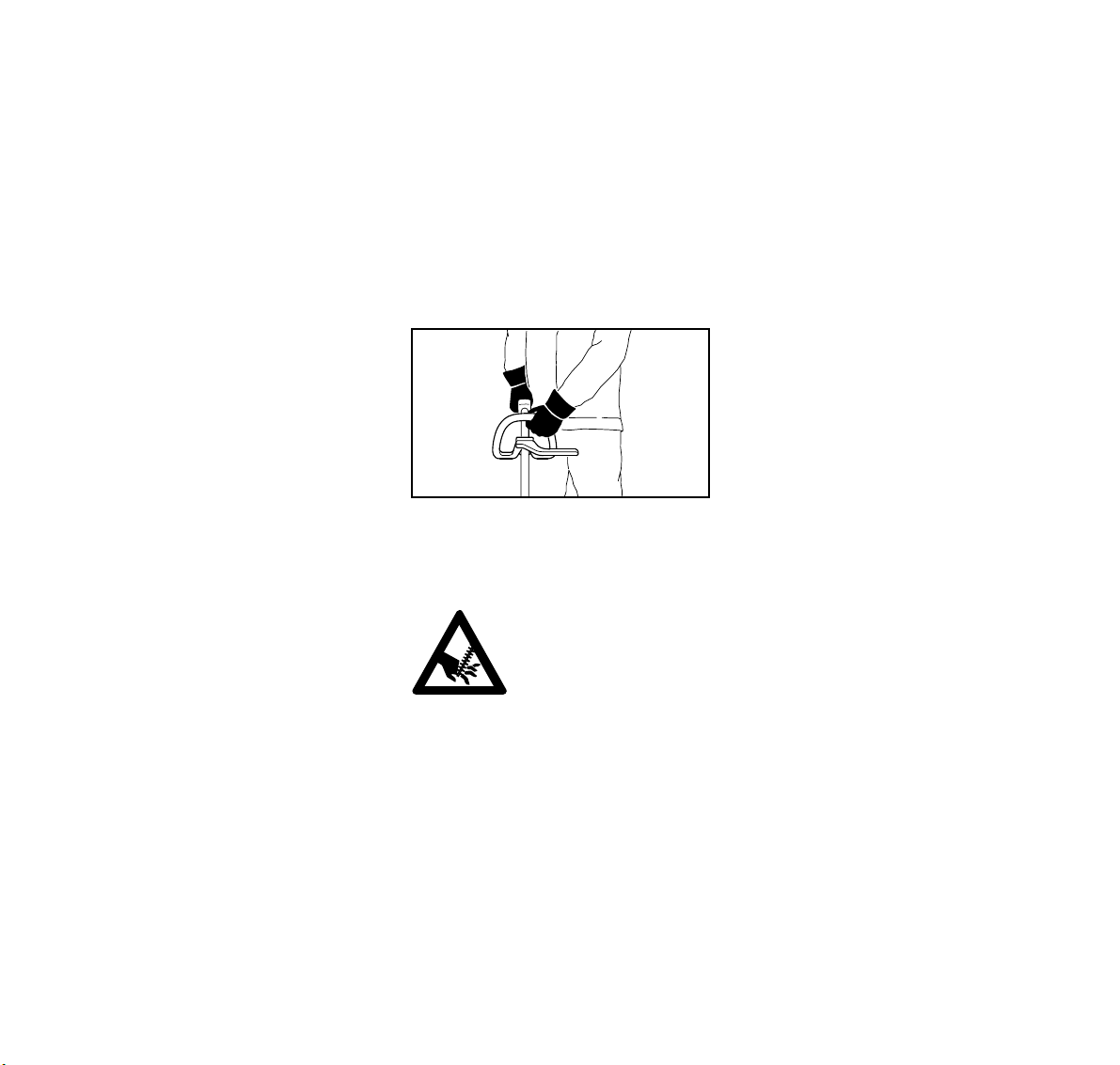

Always wear gloves when
handling the machine and
the cutting tool. Heavy-
duty, nonslip gloves
improve your grip and
help to protect your
hands.
Clothing must be sturdy
and snug-fitting, but allow
complete freedom of
movement. Wear long
pants made of heavy
material to help protect
your legs. Do not wear shorts, sandals
or go barefoot.
Avoid loose-fitting jackets,
scarfs, neckties, jewelry,
flared or cuffed pants,
unconfined long hair or
anything that could
become caught on
branches, brush or the moving parts of
the unit. Secure hair so it is above
shoulder level.
Good footing is very
important. Wear sturdy
boots with nonslip soles.
Steel-toed safety boots
are recommended.

5HL-KM
English / USA
Wear an approved safety
hard hat to reduce the risk
of injury to your head
when there is a danger of
head injuries.
STIHL offers a wide range of protective
clothing and equipment.
THE POWER TOOL
For illustrations and definitions of the
power tool parts see the chapter on
“Main Parts.”
!Warning!
Never modify this power tool in any way.
Only attachments supplied by STIHL or
expressly approved by STIHL for use
with the specific STIHL model are
authorized. Although certain
unauthorized attachments are useable
with STIHL power tools, their use may, in
fact, be extremely dangerous.
If this tool is subjected to unusually high
loads for which it was not designed (e.g.
heavy impact or a fall), always check
that it is in good condition before
continuing work. Check in particular that
the fuel system is tight (no leaks) and
that the controls and safety devices are
working properly. Do not continue
operating this machine if it is damaged.
In case of doubt, have it checked by your
STIHL servicing dealer.
THE USE OF THE POWER TOOL
Transporting the Power Tool
!Warning!
To reduce the risk of injury from blade
contact, never carry or transport your
power tool with the cutter blades
moving.
It may be carried only in a horizontal
position. Grip the shaft in a manner that
the machine is balanced horizontally.
Keep the hot muffler away from your
body and the cutting attachment behind
you.
!Warning!
Always switch off the engine and fit the
scabbard over the cutter blades before
transporting the power tool over long
distances. When transporting it in a
vehicle, properly secure it to prevent
turnover, fuel spillage and damage to the
unit.

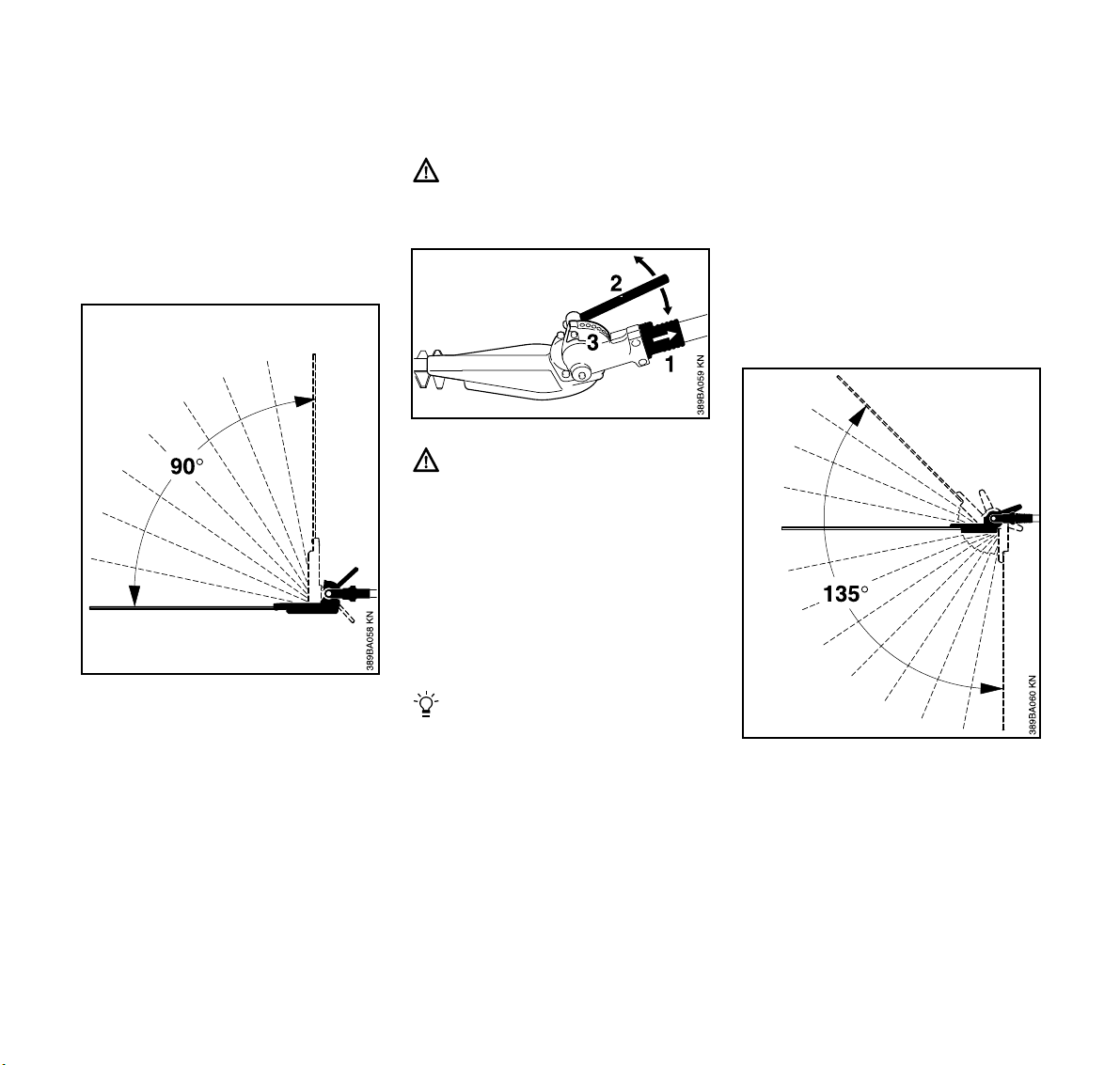

On machines with an adjustable cutter
bar: Make sure the cutter bar is secured
in position. See chapter in this
instruction manual entitled “Adjusting
Cutter Bar Angle.” On machines with a
transport position: Move cutter bar to
transport position and secure.
Before Starting
!Warning!
Always check your KombiTool for proper
condition and operation before starting.
Never attempt to modify the controls or
safety devices.
389BA019 KN

6
English / USA
HL-KM
!Warning!
Never use a power tool that is damaged
or not properly maintained.
Keep the handles clean and dry at all
times; it is particularly important to keep
them free of moisture, pitch, oil, grease
or resin in order for you to maintain a firm
grip and properly control your power
tool.
!Warning!
The cutting tool must be properly
tightened and in safe operating
condition. Inspect for loose parts (nuts,
screws, etc.) and for cracked, bent,
warped or damaged blades. Regularly
check the condition and tightness of the
cutter blades – with the engine stopped!
Replace damaged cutter blades before
using the power tool. Always keep
blades sharp.
STIHL recommends that you always
spray the cutter blades with STIHL resin
solvent before starting work - with the
engine stopped! You can obtain this
protective spray from your dealer. Apply
generously.
Adjust carrying harness and hand grip to
suit your size before starting work.
Starting
On machines with an adjustable cutter
bar: Secure the cutter bar in the starting
position as described in the chapter
“Starting/Stopping the Engine.” If this
starting position is not the desired
cutting position, you will then need to
carefully adjust the machine to the
desired position once the engine has
returned to idle and the blades are no
longer moving.
On machines with a defined transport
position (cutter bar folded against the
drive tube): Never start the machine in
the transport position, since the blades
are not engaged in that position and you
therefore cannot visually check to see
that they will be stopped at idle when
you start to adjust the cutter bar to the
desired cutting position (where the
blades are engaged).
Start the engine at least 10 feet
(3 meters) from the fueling spot,
outdoors only.
For specific starting instructions, see the
appropriate section of your
KombiEngine and KombiTool manuals.
Place the power tool on firm ground or
other solid surface in an open area.
Maintain good balance and secure
footing.
!Warning!
To reduce the risk of injury from blade
contact, be absolutely sure that the
cutting tool is clear of you and all other
obstructions and objects, including the
ground, because when the engine starts
at starting-throttle, engine speed will be
fast enough for the clutch to engage and
move the blades on the cutting tool.
With the engine running only at idle,
attach the power tool to the spring hook
of your harness (see appropriate
chapter of this manual).
!Warning!
Your power tool is a one-person
machine. Do not allow other persons in
the general work area, even when
starting.

7HL-KM
English / USA
See also the Safety Precautions on
Starting in the instruction manual of the
KombiEngine.
Important Adjustments
!Warning!
To reduce the risk of personal injury from
loss of control or contact with the
running cutting tool, do not use your unit
with incorrect idle adjustment. At correct
idle speed, the cutting tool should not
move. For directions on how to adjust
idle speed, see the appropriate section
of your instruction manual of the
KombiEngine.
If you cannot set the correct idle speed,
have your STIHL dealer check your
power tool and make proper
adjustments and repairs.
During Operation
Holding and controlling the power
tool
Always hold the unit firmly with both
hands on the handles while you are
working. Wrap your fingers and thumbs
around the handles.
Your right hand should grip the rear
handle. This also applies to left-handers.
!Warning!
Never attempt to operate
your power tool with one
hand. Loss of control of
the power tool resulting in
serious or fatal injury may
result. To reduce the risk
of cut injuries, keep hands and feet away
from the cutting tool. Never touch a
moving cutting tool with your hand or
any other part of your body.
!Warning!
Do not overreach. Keep proper footing
and balance at all times. Special care
must be taken in slippery conditions (wet
ground, snow) and in difficult, overgrown
terrain. Watch for hidden obstacles such
as tree stumps, roots and ditches to
avoid stumbling. For better footing, clear
away fallen branches, scrub and
cuttings. Be extremely cautious when
working on slopes or uneven ground.
!Warning
To reduce the risk of injury from loss of
control, never work on a ladder, in a tree
or any other insecure support. Never
hold the machine above shoulder
height.
Working conditions
Operate and start your power tool only
outdoors in a well ventilated area.
Operate it under good visibility and
daylight conditions only. Work carefully.
!Warning!
If the vegetation being cut or the
surrounding ground is coated with a
chemical substance (such as an active
pesticide or herbicide), read and follow
the instructions and warnings that
accompanied the substance at issue.
002BA057 KN

8
English / USA
HL-KM
!Warning!
Inhalation of certain
dusts, especially organic
dusts such as mold or
pollen, can cause
susceptible persons to
have an allergic or
asthmatic reaction. Substantial or
repeated inhalation of dust and other
airborne contaminants, in particular
those with a smaller particle size, may
cause respiratory or other illnesses.
Control dust at the source where
possible. Use good work practices, such
as operating the unit so that the wind or
operating process directs any dust
raised by the power tool away from the
operator. Follow the recommendations
of EPA/OSHA/NIOSH and occupational
and trade associations with respect to
dust (“particulate matter”). When the
inhalation of dust cannot be substantially
controlled, i.e., kept at or near the
ambient (background) level, the
operator and any bystanders should
wear a respirator approved by NIOSH/
MSHA for the type of dust encountered.
Operating instructions
!Warning!
Do not operate your power tool using the
starting throttle lock, as you do not have
control of the engine speed.
In the event of an emergency, switch off
the engine immediately – move the slide
control / stop switch to 0or STOP.
See section of your KombiEngine
instruction manual on the proper use of
the slide control.
!Warning
The cutter blades continue to move for a
short period after the throttle trigger is
released (flywheel effect).
Accelerating the engine while the blades
are blocked increases the load and will
cause the clutch to slip continuously.
This may result in overheating and
damage to important components (e.g.
clutch, polymer housing components) –
which can then increase the risk of injury
from the blades moving while the engine
is idling.
!Warning!
On units with an adjustable cutter bar: To
reduce the risk of injury, never touch the
blades while making adjustments.
The power tool
has a large range.
In order to reduce
the risk of personal
or even fatal injury
to bystanders from
falling objects or inadvertent contact with
the moving cutter blades of your power
tool always keep bystanders at least
50 feet (15m) away when the power tool
is running.
Stop the engine and cutting tool
immediately if you are approached.
!Warning!
Before you start work, examine the
hedge area for stones, fence wire, metal
or other solid objects which could
damage the cutter blades.
Take particular care when cutting
hedges next to or against wire fences.
Do not touch the wire with the cutting
blades. When working close to the
ground, make sure that no sand, grit or
stones get between the cutter blades.
15m (50ft)

9HL-KM
English / USA
Striking solid foreign objects such as
stones, fence wire or metal could
damage the cutting attachment and may
cause blades to crack, chip or break.
STIHL does not recommend the use of
your power tool when cutting in areas
where the blades could contact such
objects.
!Warning
Observe the cutting blades at all times –
do not cut any areas of the hedge that
you cannot see. When cutting the top of
a taller hedge, check the other side of
the hedge frequently for bystanders,
animals and obstructions.
Danger!
Your power tool is not
insulated against electric
shock. To reduce the risk
of electrocution, never
operate this power tool in the vicinity of
any wires or cables (power, etc.) which
may be carrying electric current.
!Warning!
If the cutting tool becomes clogged or
stuck, always turn off the engine and
make sure the cutting tool has stopped
before cleaning. Grass, weeds, etc.
should be cleaned off the cutting tool at
regular intervals.
Check the cutting blades at regular short
intervals during operation, or
immediately if there is a noticeable
change in cutting behavior:
– Shut off the engine.
– Wait until the cutting blades have
come to a complete standstill.
– Check condition and tightness, look
for cracks.
– Check sharpness.
– Replace damaged or dull cutting
tools immediately, even if they have
only superficial cracks.
!Warning
The gearbox becomes hot during
operation. To reduce the risk of burn
injury, do not touch the gear housing
when it is hot.
After Finishing Work
Always clean dust and dirt off the
machine – do not use any grease
solvents for this purpose.
Spray the blades with STIHL resin
solvent. Start and run the engine briefly
so that the solvent is evenly distributed.
MAINTENANCE, REPAIR AND
STORING
Maintenance, replacement, or repair
of the emission control devices and
systems may be performed by any
nonroad engine repair establishment
or individual. However, if you make a
warranty claim for a component
which has not been serviced or
maintained properly or if
nonapproved replacement parts were
used, STIHL may deny coverage.
!Warning!
Use only identical STIHL replacement
parts for maintenance and repair. Use of
non STIHL parts may cause serious or
fatal injury.
Strictly follow the maintenance and
repair instructions in the appropriate
section of your KombiEngine and
KombiTool instruction manuals. Please
refer to the maintenance charts
respectively the maintenance notes in
these manuals.

10
English / USA
HL-KM
!Warning!
Always stop the engine and make sure
that the cutting tool is stopped before
doing any maintenance or repair work or
cleaning the power tool. Do not attempt
any maintenance or repair work not
described in your KombiEngine and
KombiTool instruction manuals. Have
such work performed by your STIHL
servicing dealer only.
Wear gloves when handling or
performing maintenance on blades.
!Warning!
Never repair damaged cutting attach-
ments by welding, straightening or
modifying the shape. This may cause
parts of the cutting tool to come off and
result in serious or fatal injuries.
Keep the cutting tool sharp. Tighten all
nuts, bolts and screws, except the
carburetor adjustment screws, after
each use.
Store the power tool in a dry and high or
locked location out of reach of children.
Do not use your hedge cutter during
rest periods customary in the
neigborhood.
Preparations
Use lopping shears to cut out thick
branches first.
Always wear a harness..
Cutting sequence
If a radical cut is necessary, cut a little at
a time in several stages.
Cutting techniques
Vertical cut:
Swing the cutter bar up and down in an
arc as you move along the hedge – use
both sides of the cutting blades.
Horizontal cut:
Hold the cutter bar at an angle of 0° to
10° as you swing the hedge cutter
horizontally.
Swing the cutter bar in an arc towards
the outside of the hedge so that the
cuttings are swept on to the ground.
Do not throw cuttings in the rubbish
bin (garbage can) – they can be
composted!
Horizontal cut
(with angled cutter bar)
Cutting close to the ground from a
standing position, e.g. low shrubs.
Using the Hedge Cutter
389BA044 KN

11HL-KM
English / USA
Vertical cut
(with angled cutter bar)
Cutting without standing directly next to
hedge, e.g. flowerbed between operator
and hedge
Vertical cut
(with straight cutter bar)
Large working radius even without
additional aids.
Overhead cut
(with angled cutter bar)
Hold the hedge cutter vertically and
swing it in an arc to make maximum use
of its reach.
Any working position above head
height is tiring. To minimize the risk
of accidents, work in such positions
for short periods only. Set angle of
adjustable cutter bar to maximum so
that the unit can be held in a lower,
less tiring position (with harness)
while still providing adequate
vertical reach.
389BA049 KN
475BA000 KN
388BA000 KN

12
English / USA
HL-KM

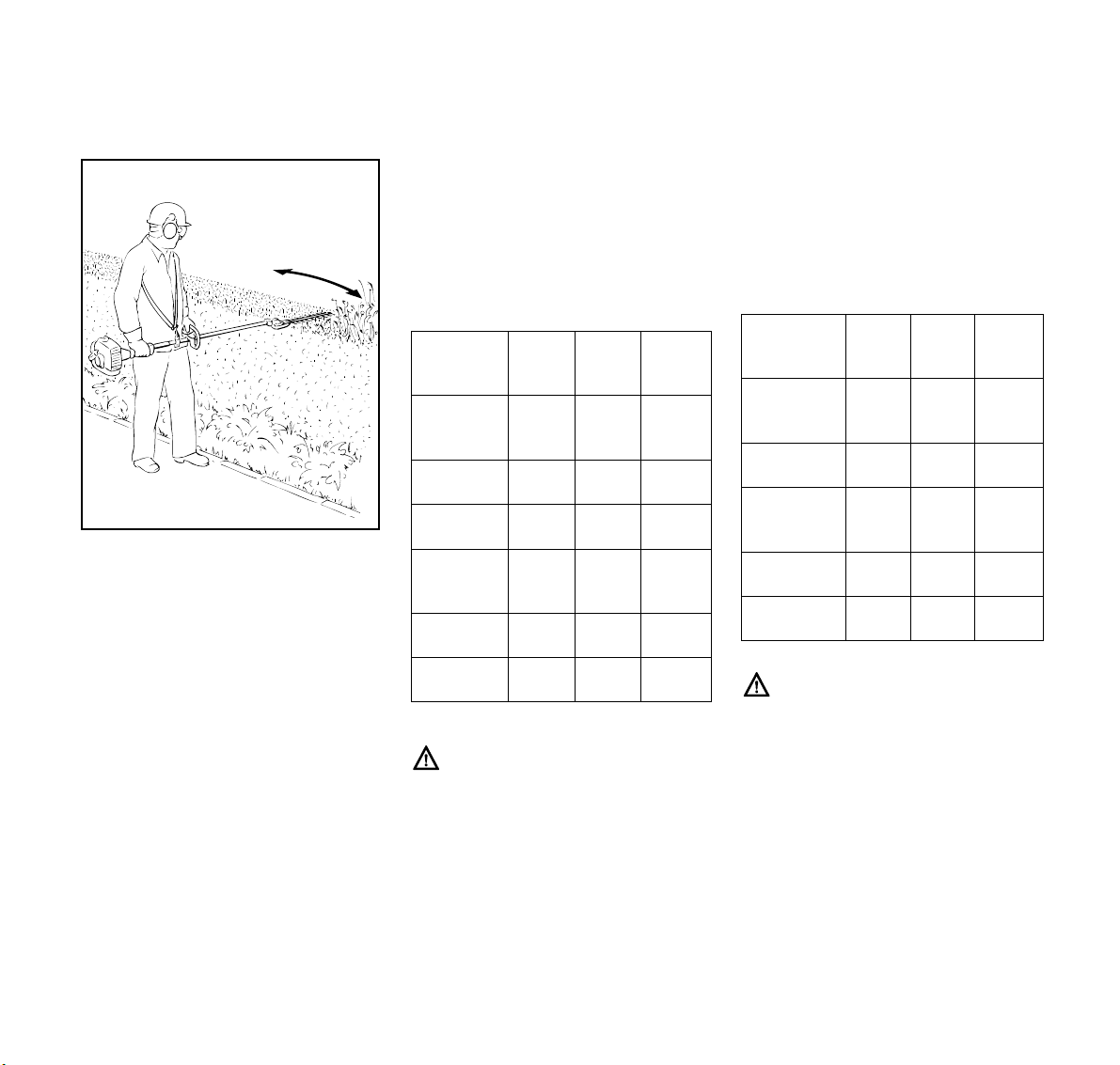

Horizontal cut
(with straight cutter bar)
Cutting without standing directly in front
of the hedge, e.g. reaching over a
flowerbed.
Only use CombiEngines supplied by
STIHL or expressly approved by STIHL
for use with the CombiTool.
The CombiTools may be operated in
combination with the following
CombiEngines:
Loop-handled models must be
equipped with a barrier bar.
x approved
o not approved
The CombiTools may also be mounted
to brushcutters with a split boom or drive
tube (T models).
Operation of the CombiTools is therefore
also permitted on the following power
tool models:
Refer to power tool instruction
manual for use of the barrier bar.
x approved
o not approved
389BA010 KN
Combi
Engine
HL-KM
0°
HL-KM
30°
HL-KM
0 - 90°/
135°
STIHL
KM 55,
KM 55 C
ox x
STIHL
KM 85 ox x
STIHL
KM 110 ox x
STIHL
KM 55 R,
KM 55 RC
xx x
STIHL
KM 85 R xx x
STIHL
KM 110 R xx x
Approved CombiEngines
Brush-
cutter
HL-KM
0°
HL-KM
30°
HL-KM
0 - 90°/
135°
STIHL
FS 55 T,
FS 55 TC
ox x
STIHL
FS 85 T ox x
STIHL
FS 55 RT,
FS 55 RTC
xx x
STIHL
FS 85 RT xx x
STIHL
FS 83 T xx x

13HL-KM
English / USA

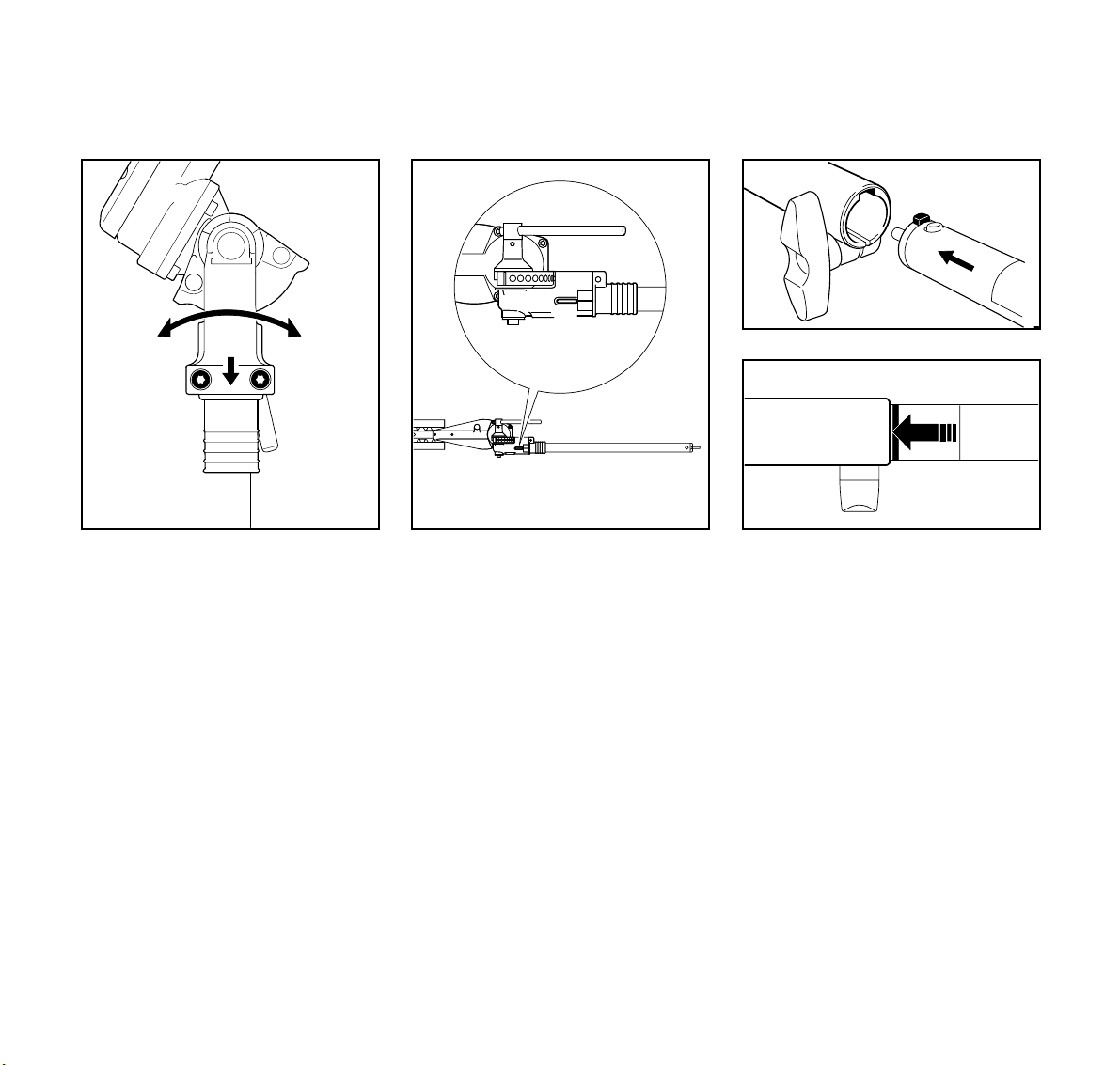

Mounting the Gearbox
:Loosen the clamp screws (9).
:Push the gearbox (10) onto the
drive tube (5) – turn the gearbox
back and forth as necessary.
:Once the end of the drive tube is
inserted beyond the slot in the
clamp (11), push it fully home as far
as stop.
:Fit the clamp screws and tighten
down moderately.
:Line up the gearbox (10).
Tighten down the clamp screws firmly.
:Engage lug (1) on drive tube in
slot (2) in the coupling sleeve and
push home the drive tube as far as
stop.
:When correctly installed, the red
line (3) (arrow point) must be flush
with the end of the coupling sleeve.
:Tighten the wing screw (4) firmly.
Reverse the above sequence to remove
the drive tube.
Assembling the Unit
225BA001 KN
5
9
10
9
10
11
475BA001 KN
Mounting the CombiTool
002BA132 KN
1
2
4
3
002BA133 KN

14
English / USA
HL-KM
0° to 90° Version
On this version the angle of the cutter
bar can be adjusted in 8 stages between
0° (straight) and 90° (upwards at right
angle. There are therefore 9 possible
working positions.
Carry out the adjustment only when
the cutting blades are at a standstill
– engine at idle speed – not in the
starting throttle position.
The gearbox becomes hot during
operation. To reduce the risk of burn
injury, do not touch the gear
housing.
:Pull back the sliding sleeve (1) and
use the lever (2) to adjust the joint
by one or several holes.
:Release the sliding sleeve and
make sure the pin engages the
quadrant (3).
The sliding sleeve butts against the
housing when the pin is properly
engaged (after making adjustment).
0° to 135° Version
On this version the angle of the cutter
bar can be adjusted upwards in 4 stages
from 0° (straight) to 45°, and downwards
in 8 stages from 0° to 90° (right angle
facing down). There are therefore 13
possible working positions.
There is also a special transport
position.
Adjusting Cutter Bar

15HL-KM
English / USA
Carry out the adjustment only when
the cutting blades are at a standstill
– engine at idle speed – not in the
starting throttle position.
The gearbox becomes hot during
operation. To reduce the risk of burn
injury, do not touch the gear
housing.
:Pull back the sliding sleeve (1) and
use the lever (2) to adjust the joint
by one or several holes.
:Release the sliding sleeve and
make sure the pin engages the
quadrant (3).
The sliding sleeve butts against the
housing when the pin is properly
engaged (after making adjustment).
Transport Position
The cutter bar on this version can be
folded flat against the drive tube and
locked in position to save space during
transportation.
Always shut off the engine – slide
control to STOP – and fit the blade
scabbard before moving the cutter
bar to the transport position or from
the transport position to the normal
working position.
The gearbox becomes hot during
operation. To reduce the risk of burn
injury, do not touch the gear
housing.
:Shut off the engine.
:Fit the blade scabbard.
:Pull back the sliding sleeve (1) and
use the lever (2) to swing the joint
upwards – in direction of drive tube
– until the cutter bar is flat against
the drive tube.
:Release the sliding sleeve and
make sure the lock pin engages the
housing (3).
The sliding sleeve butts against the
housing when the pin is properly
engaged (after making adjustment).

16
English / USA
HL-KM
Shoulder Strap
:Put on the shoulder strap (1).
:With the hedge cutter attached,
adjust length of strap until the spring
hook (3) is at the same height as
your right hip.
Full Harness*
:Put on the full harness (2).
:Adjust length until the spring hook
(3) is at the same height as your
right hip.
* see "Guide to Using this Manual"
Starting the Engine
Always follow the starting procedure
outlined in the instruction manual of
basic power tool or CombiEngine you
are using.
:Place the unit on the ground: It must
rest securely on the engine support
and the gearbox.
:On units with an adjustable cutter
bar and defined transport positon:
Set the cutter bar to the straight (0°)
position.
Fitting the Harness
1
389BA055 KN
3
2
389BA056 KN
3
Starting / Stopping
the Engine
002BA038 KN
002BA072 KN

17HL-KM
English / USA
:Remove the blade scabbard. Check
that the cutting blades are not
touching the ground or any other
obstacles. If necessary, place the
gearbox on a raised support (e.g.
mound, brick or block of wood).
:Make sure you have a firm footing.
:Press the unit firmly against the
ground with your left hand. Your
thumb should be under the fan
housing.
Do not stand or kneel on the drive
tube!
The starting procedure is now as
described in the instruction manual of
the basic power tool or the CombiEngine
you are using
To shut down the engine:
:Move the slide control in direction of
arrow ( h) to STOP – $or move
the stop switch to $
Lubricate the blade drive gear with
STIHL gear lubricant for hedge trimmers
– see "Special Accessories".
The position of the filler plug may be
different on some models.
About every 25 hours of operation
:Unscrew the filler plug (1).
:Screw the tube of grease into the
filler hole.
:Sqeeze up to 5 g (1/5 oz) grease
into the gearbox.
:Refit the filler plug and tighten it
down firmly.
Lubricate the angle drive with STIHL
gear lubricant for brushcutters – see
"Special Accessories".
The position of the filler plug may be
different on some models.
About every 25 hours of operation
:Unscrew the filler plug (2).
:If no grease can be seen on the
inside of the filler plug, screw the
tube of grease into the filler hole.
:Squeeze up to 5 g (1/5 oz) grease
into the gearbox.
Do not not completely fill the
gearbox with grease.
:Refit the filler plug and tighten it
down firmly.
Lubricating the
Gearbox

18
English / USA
HL-KM
For periods of about 3 months or longer:
:Clean the cutting blades, check
condition and spray with STIHL
resin solvent.
:Fit the blade scrabbard.
:If the CombiTool is stored
separately, fit the protective cap on
the drive tube to avoid dirt getting
into the coupling.
:Store the machine in a dry, high or
locked location – out of the reach of
children and other unauthorized
persons.
The blades must be resharpened if
cutting performance and behavior begin
to deteriorate (i.e. if blades frequently
snag on branches).
It is best to have the cutting blades
resharpened by your STIHL dealer on a
workshop sharpener.
Do not operate your unit with dull or
damaged blades – this may cause
overload and will give unsatisfactory
cutting results.
Storing the Machine Sharpening the Cutting
Blades

19HL-KM
English / USA
1Cutting blades
2Blade scabbard
3Blade drive gear
4Angle drive
5Drive tube
6Sliding sleeve
7Adjusting lever
8Quadrant
9Bush
Definitions
1. Cutting Blades
Steel blades for cutting hedges and
shrubs.
2. Blade Scabbard
Covers and protects cutting blades
when hedge cutter is not in use.
3. Blade Drive Gear
Converts rotary movement of angle
drive into reciprocating movement
of cutting blades.
4. Angle Drive
Transmits rotary movement of drive
shaft to the blade drive gear.
5. Drive Tube (Boom)
Encloses and protects the drive
shaft between the coupling sleeve
and gearbox.
6. Sliding Sleeve*
Locks and unlocks the cutter bar
adjusting mechanism.
7. Adjusting Lever*
Used to set cutter bar to the
required angle.
8. Quadrant*
Locks the cutter bar in the required
position.
9. Bush
Locates drive tube in coupling
sleeve.
* see "Guide to Using this Manual"
Main Parts
2
1
6
8
5
4
3
401BA009 KN
7
9
5
