stilum vigo User manual
© stilum GmbH, Gewerbegebiet Larsheck, 56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • All rights and product modications reserved. State: 11/2012 · S. 1
Mounting instructions for climbing equipment „vigo“
Item No. 516001401
Mounting instructions for climbing equipment „vigo“

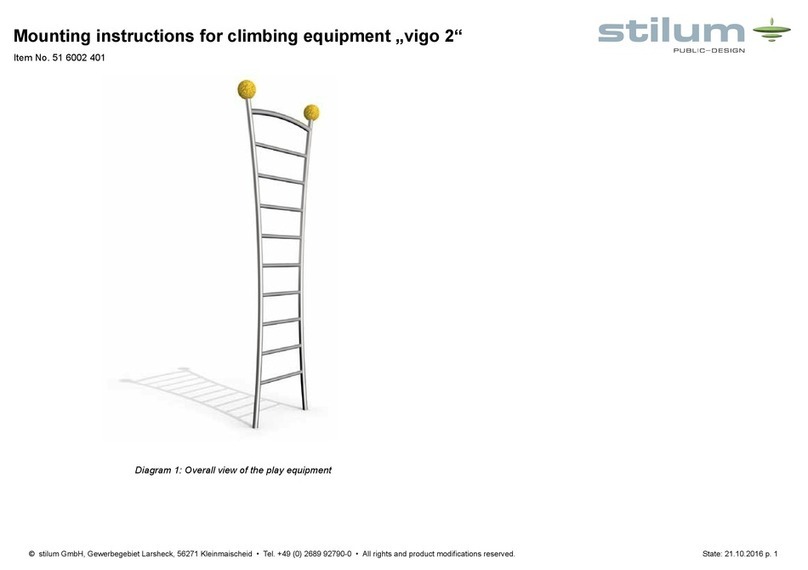

Diagram 1: Overall view of the play equipment
© stilum GmbH, Gewerbegebiet Larsheck, 56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • All rights and product modications reserved. State: 11/2012 · S. 2
Mounting instructions for climbing equipment „vigo“
Item No. 516001401
Foundation
Diagram 2: Side view with dimension details „vigo“
1:15
1. Select the play equipment location in consideration of the required safety
area (see Diagram 3: Ø 3750 mm).
2. Carry out excavation work for the 4 foundations as shown in Diagram 2. After
excavation, compress the foundation oor.
Note: The climbing equipment is built in on the play level. Pay attention to
items marked „game level“ of play equipment!
3. Concrete foundation acc. the specied dimensions (800mm x 800mm x
500mm) build with centrally mounted, horizontal reinforcement. It shed the
supplied anchor bolts with the foundation that the upper angle frame is hori-
zontal and ush with the foundation surface.
4. After a setting period of 10 – 14 days, depending on weather conditions and
foundation size, clean the surface of the foundation and put the preassem-
bled playequipment on the foundation anchor and screw it.
5. Existing gaps between the foundation and foundation hole lled up with exca-
vated soil and compact.
Reinforcement plan: Concrete foundation with rein-
forcement
Main foundation: BSt 500S
Ever 4 stirrups Ø 8 mm lengthwise and cross
Concrete cover h´= 3 cm
Concrete quality class B25
1228 Free fall height
Play level
Marking installation depht
© stilum GmbH, Gewerbegebiet Larsheck, 56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • All rights and product modications reserved. State: 11/2012 · S. 3
Mounting instructions for climbing equipment „vigo“
Item No. 516001401
Mounting instructions for climbing equipment „vigo“
6. Seal the foundation with the safety cover required for the height of fall indica-
ted. Set up impact-absorbing playground surfacing according to EN 1177 HIC
1000.
Recommended surface material: sand, bark mulch, gravel, synth. fall protec-
tion. (Critical drop height ≤ 1300 mm)
7. Do not allow children to use the equipment before the installation has been
nished.
Attention: If the play equipment has been incompletely installed or partly dis-
mantled when carrying out maintenance and repair work, this may lead to par-
ticular risks of injury for the user. For this reason, make clearly visible that the
equipment shall not be used in such cases.
NOTE: Play equipment, which contain components made of stainless steel
should not come with „normal“ steel parts in contact. Those steel parts may rub
off and leave small steel particles in combination with moisture brown rust stains.
If such corrosion occur on stainless steel parts, they are ne with an abrasive
(240 grit) to remove.
Please take care when transporting and setting up the fact that the components
are made of stainless steel with no „normal“ steel parts in contact.
1500
3750
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI + KAISER GMBH DARF DIESE TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT
NOCH DRITTEN MITGETEILT ODER ZUGÄNGLICH GEMACHT WERDEN NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VERWENDET
WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
MAßSTAB:
KUNDE:
BESTELL-NR:
Mindestraum
Vigo
ZG-NR:
BENENNUNG:
V. Bishop
FREIG:
GEPR:
GEZ:
NAME:
DATUM:
WERKSTOFF / ROHMAß:
ZUL. ABWEICHUNG
DIN 2768 - mH
OBERFLAECHEN NACH
DIN ISO 1302 REIHE 2
WERKSTUECKKANTEN
NACH DIN 6784
-0,3
+0,3
22.06.2011
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
A4
Extent of the minimum zone =
safety area
Diagram 3: Top view
© stilum GmbH, Gewerbegebiet Larsheck, 56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • All rights and product modications reserved. State: 11/2012 · S. 4
Mounting instructions for climbing equipment „vigo“
Item No. 516001401
Mounting instructions for climbing equipment „vigo“
In order to preserve a good visual appearance of your stilum playground equip-
ment over a long period one should take care of maintenance of the stainless
surface even despite of their corrosion resistance.
Especially areas, which can not be reached by rainfall should be frequently clea-
ned from dirt and deposits due to air pollution and dirt caused by the atmosphere.
Light soiling can easily be romoved by using a high pressure cleaner.
For persistent deposits use a clean cloth moistened with a special liquid cleaner
(e.g. on phosphoric acid) and rinse off with clear water after a short application
time. During cleaning with mild abrasive components, only wipe over stainless
steel surface in polishing direction.
For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome on
cars) or for greasy and oily dirt alcoholic cleaning agents and solvents (e.g. ethyl
alcohol, isopropyl alcohol or acetone).
However, it should be noted that the dissolved soiling is not spread over the sur-
face again.
Do not use any chlorid or hydrochloric containing cleaning products nor scouring
powder, bleaching - or silver polish cleaner. Cleaning intervals depend on type
and degree of soiling as well as on demands made on optical characteristics.
Therefore cleaning is advisable at intervals of six to twelve months – whereby in
the case of strong soiling it is appropriate to clean the playground equipment at
intervals of 3 to six months.
