Stinger SG-6 Instruction Manual

A TPE HANDLE GRIP
B UMBRELLA HOLDER BASE
C SCORECARD HOLDER
D HANDLE
E ACCESSORY STORAGE BAG
F UPPER BAG BRACKET
G ADJUSTABLE HANDLE MECHANISM
H MAIN FRAME
I SLIDE CONNECTING RODS
J LEG BRACKET
K SIDE CONNECTING ROD
L 4 HOLES LEG FRAME
M 2 HOLES LEG FRAME
N REAR WHEEL
O CONNECTING RODS
P LEFT WHEEL LOCKING MECHANISM
P1 RIGHT WHEEL LOCKING MECHANISM
Q LOWER FRAME
R ANTI-SPLAY WIRE
S LOWER BAG BRACKET
T PUSH BUTTOM SYSTEM
T1 DRINK HOLDER
U LOWER JOINT
V FRONT WHEEL
W SAND HOOK
X LEVER FOR HANDLE BRAKE
Y LEVER FOR SWIVEL FRONT WHEEL
Z UMBRELLA HOLDER
PARTS LIST MAINTENANC
To clean the buggy, wipe with a soft, dry cloth. Avoid using harsh
chemicals to clean. Lubricate moving parts every 6 months.
Warning:
For your own safety, please read and understand the following warnings
and keep this user guide for future reference.
1. Always make sure the buggy is fully extended and locked before use.
2. Always make sure the buggy is folded and locked properly before lifting
or transporting.
3. Do not run while using this product.
4. Do not use accessories other than those designed for use with this cart.
5. Keep all packing materials away from children and recycle where
possible or where required by law.
344005

UMBRELLA HOLDER
To put in use:
Simply attach the umbrella holder
onto the buggy as per Fig. 12.
Fig. 12.
USING THE 360 SWIVEL FRONT WHEEL SYSTEM & HAND BRAKE
Fig.13 Fig.13-1
To activate the 360 Swivel Wheel,
push the grey lever down.
To put the 360 wheel into fixed
wheel mode, pull the handle up
as per Fig.13.
To activate the brake, push the
grey hand brake lever down.
To disengage the brake, pull the
handle up as per Fig. 13-1.
BAG HOLDER STRAP LENGTH ADJUSTMENT
Fig.14 Fig.15
Refer to Fig. 14 & Fig.15.
1. Pull the elastic strap out of the strap buckle as per fig. 14.
2. Adjust the strap to the desired length.
3. Push the elastic strap back to the strap buckle as per fig. 15.
USING THE UMBRELLA HOLSTER
Fig.16
Pass the umbrella through the
elasticised loop until the spike
on the end of the umbrella fits
snugly into the tip holder as per
Fig 16.

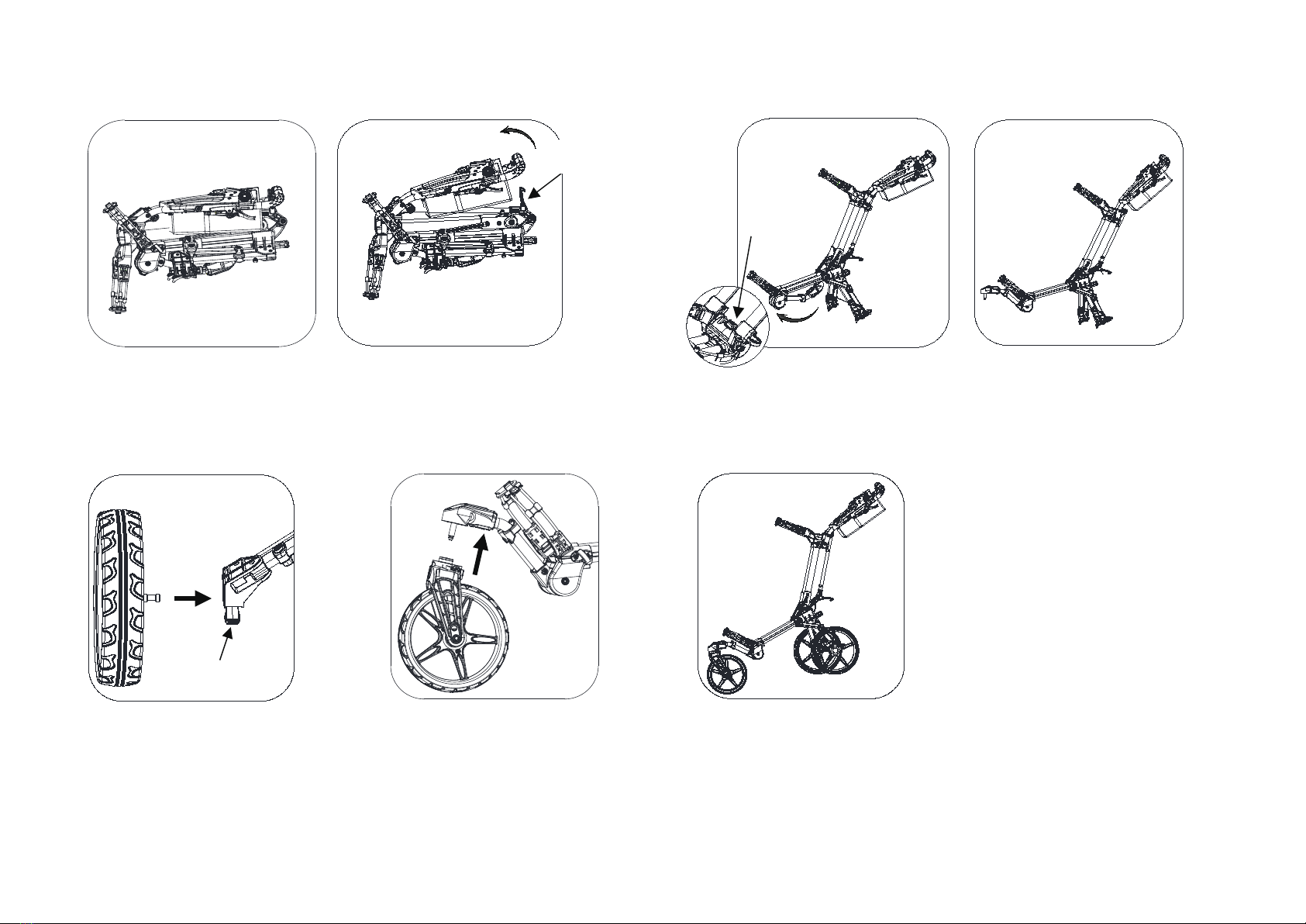

SETTING UP THE BUGGY
Push the locking buckle away from the handle and pull the
handle to open the frame as per Fig. 2.
Press the grey front fork lock button to unlock the front forks
as per Fig. 3/4.
Release the grey wheel locking
lever, insert the wheel axel into
the wheel holder completely and
then tighten the grey locking lever
in Fig.5.
Press the grey button and insert
the front wheel until locked in place
as per Fig.6.
The buggy is now assembled as
per Fig.7.
Fig.1
Fig.6 Fig.7
Fig.2 Fig.3 Fig.4
Grey Locking lever
Fig.5
Grey
Button
Button
Locking
buckle

Fig.8 Fig.10 Fig.11
Fig.9

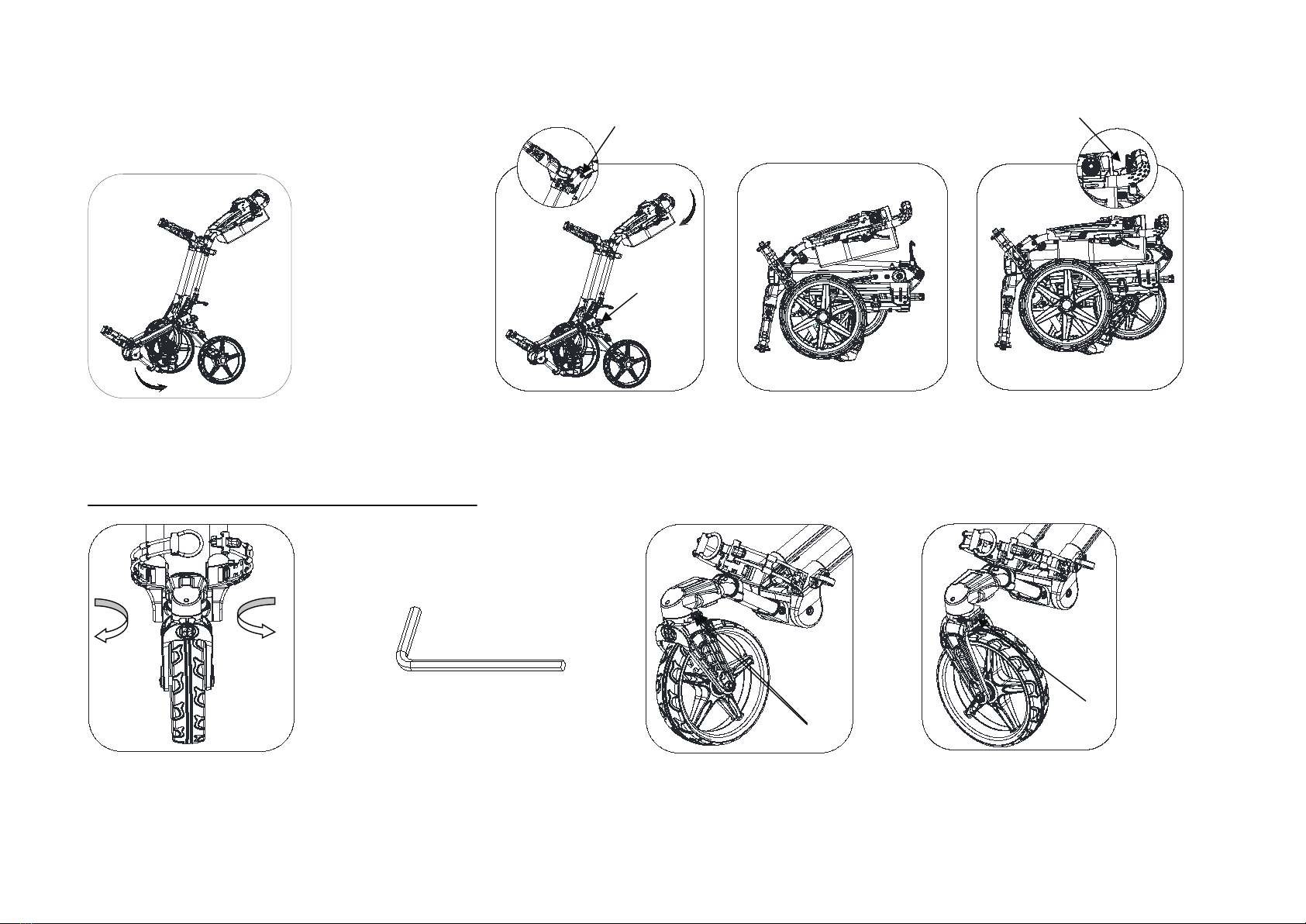

FOLDING DOWN THE BUGGY
Press the grey 'Push' button and
fold the front wheel under the
frame as per Fig. 8
Grey Lifting
Grey Push
Button Locking Hook
Press the Grey Push Button to unlock the frame. Hold the Grey lifting handle with one hand and with the
other hand, grab the buggy top handle and fold buggy together until locking hook is locked in place as per
Fig.9/10/11.
FRONT WHEEL ADJUSTMENT MECHANISM
FRONT WHEEL ADJUSTMENT MECHANISM:
If the buggy veers to the RIGHT: use the Allen key (as shown in Fig. 17) to loosen the 2 screws (A) on the backside of the front wheel frame, as shown in Fig. 18.
Then adjust the front wheel to center position by turning the screw (B) counterclockwise, as in Fig. 19. Tighten the 2 screws (A) after the front wheel alignment is
done.
If the buggy veers to the LEFT: use the Allen key(as shown in Fig. 17) to loosen the 2 screws (A) on the backside of the front wheel frame, as shown in Fig. 18.
Then adjust the front wheel to center position by turning the screw (B) clockwise, as in Fig. 19. Tighten the 2 screws (A) after the front wheel alignment is done.
Right Left
Allen Key
Fig.17Fig .16
Fig.18 Fig.19
A
B
Before folding down the buggy:
Move the 360° lever to the OFF position &
the Brake lever to the ON Position.
You must raise & fix the Handle Height to
the highest setting.
