Stingray SB3 User manual

SB3 Media Player
Installation Guide

2
Warning
Device should remain powered on
at all times.
For optimal performance and
reliability, use a surge protected
power bar between the SB3 unit
and the electrical outlet.
To reduce the risk of re or electric
shock, do not expose this unit to rain
or other forms of moisture.
To prevent electric shock, do not
connect the polarized plug of
the external power supply to an
extension cord, receptacle, or other
outlet unless the blades can be fully
inserted.
To reduce the risk of SB3
malfunction, never place the unit
on top of electronic equipment or
a surface that may generate heat
(e.g. amps, routers, computers, etc.).
• The SB3 should be installed
horizontally and right side up.
Other orientations may cause
problems with air flow and
shorten the lifespan of the
components.
• The SB3 should be placed in a
clean, well-ventilated area. Do
not stack items on top of or
against it.
Safety Instructions
• Use the power supply unit
provided in the box. Using
another power supply, will void
the warranty.
• Ensure all cabling is routed
properly and safely.
• Ensure your SB3 is plugged into
a properly grounded, always-on
AC electrical outlet.
Caution
Do not unscrew, open,
or manipulate your
SB3 device’s internal
components.
Risk of explosion if internal
battery is replaced by an
incorrect type.

3
Welcome
All Good Vibes
Stingray Business is thrilled to offer
you its newest media player, the SB3
(Stingray Box): the little box with a
big sound. Affordable, user-friendly,
and built to last, the SB3’s impeccable
sound and image quality will allow you
to connect with your customers through
your very own musical and digital
signage signature. The best music for
every moment, place, and mood.
Management interface
Log into the remote SB3 Management
Interface to start exploring your new
musical universe.
Visit https://cs.business.stingray.com
and enter your account information.
If you have not received your login
information, please contact our support
team.
[e-mail]
1.888.685.2486

4
Your Device at a Glance
Content
Choose from our preprogrammed
collection of channels or craft a
totally unique ambiance for your
store. Seamlessly integrate music
and custom messaging into your
programming to maximize every
moment you have your customers’
attention every moment, place,
and mood.
Features and
functionalities
Adapt music and messaging to
specic spaces with the zoning
option.
Block songs, schedule messages,
select programs, and more using
the web based SB3 Management
Interface.

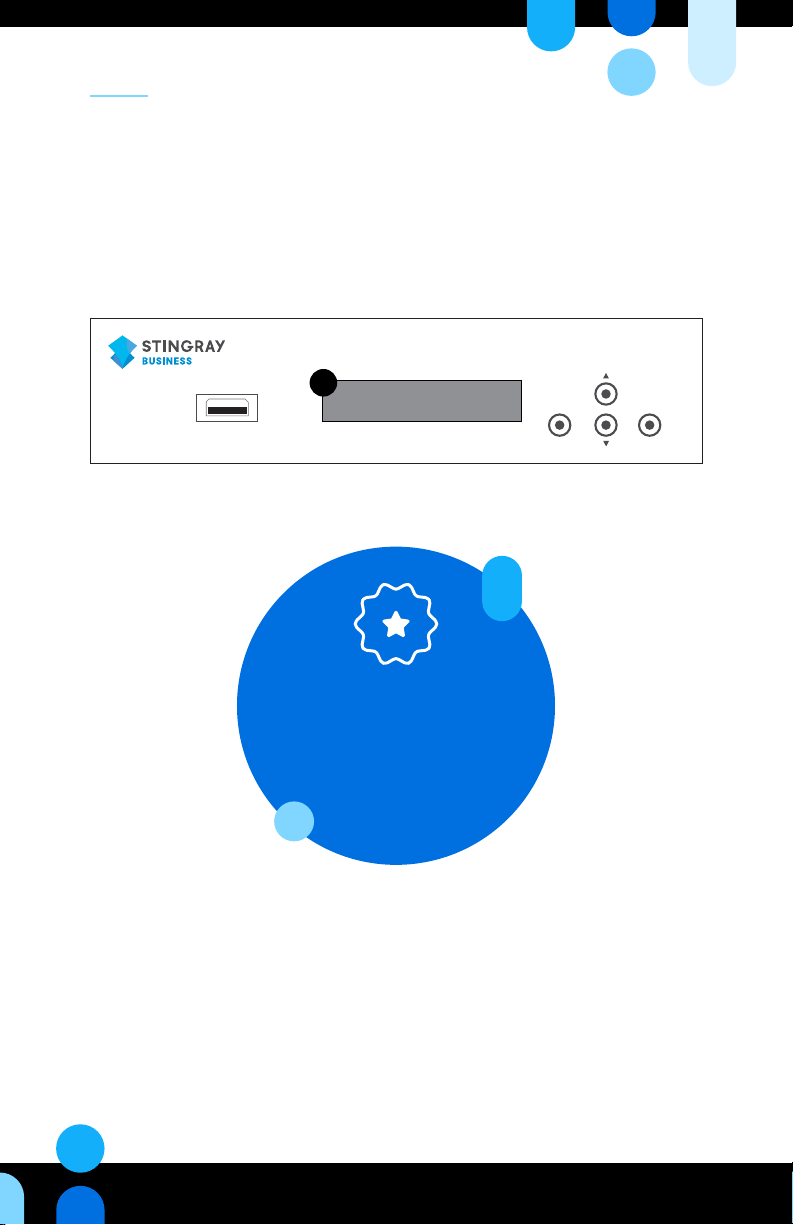

LCD front panel displays song title,
artist name, message name, network
information, and menu options.
Installation
Not a techie? No problem! Setting
up the SB3 is easy. Turn to page 6
to learn how to get started. Can’t
nd what you’re looking for? Our
customer care team is at your
service at all times.
Content updates
The SB3 will arrive at your doorstep
congured and ready to play, right
out of the box. Subsequent updates
will download automatically during
your desired download window.

5
A) SB3 player
B) Power Module
C) Network Cable
D) Audio Cable
E) HDMI Cable*
AB
C
E
Check your product box for the following items. If there are any missing
accessories, call 1.888.685.2486 or contact [e-mail].
Please keep all packaging material for later use in case your SB3 must be
re-shipped.
*Only included with SB3s delivering music videos.
Unpacking
Notes
Accessories may vary
depending on the
device model and your
amplication system.
To ensure safety and
maximize the product’s
lifespan, do not use any
unapproved accessories.
Damages or injuries
caused by the use of
unapproved items
are not covered by the
warranty.
123
D

6
TVHDMI Source
Internet Source Amplier Power Source
1 - AUDIO - 2 DC 5V
HDMI
1
2
3
4
5

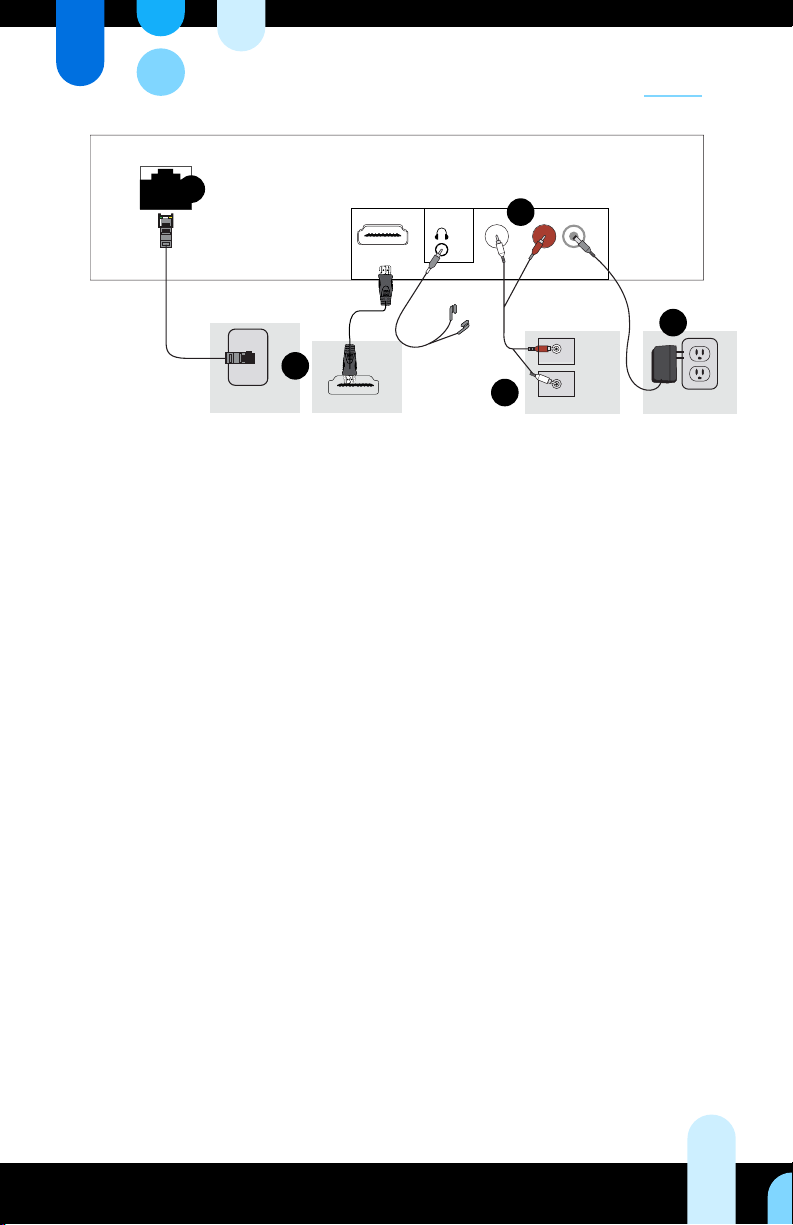

Setting Up
Setting up the network connection
Skip steps 1 and 2 if your player is congured with a WiFi connection
1. Connect the network cable to an active network connection.
2. Connect the other end of the network cable to the ethernet porton the SB3.
Setting up on-hold music and messaging
for phone systems (Optional)
To complete the circuit to the telephone system, follow steps 1 through 4,
but make sure you attach one head of the audio cable to the amplier input
that is linked to on-hold music.
Setting up music videos
To connect your SB3 to a screen, plug one end of the HDMI cable into your
SB3’s HDMI output and attach the other end to your TV’s HDMI input.
Setting up audio
3. Attach both connectors at one end of your audio cable to the audio jack.
Outputs “1” and “2” on your SB3.
4. Attach the other ends of your audio cable to the amplier inputs. If you
only have one amplier input, only connect one cable head and leave the
other one unplugged. You will not be needing it.

7
Congratulations!
Your music should start playing
momentarily. Remember, your
device should remain powered
on at all times.
SUPPORT 1-888-685-2486
USB Update
6
Back Select
Setting up
Important information to
keep your device up to date
An active network connection must be maintained to receive updates. Content
updates will be downloaded onto your device during your preselected
download window.
Setting up power
5. Attach the power module to the power port on the SB3.
6. The LCD screen on your device will light up to indicate that the device has
been plugged in properly.

8
More
Specifications

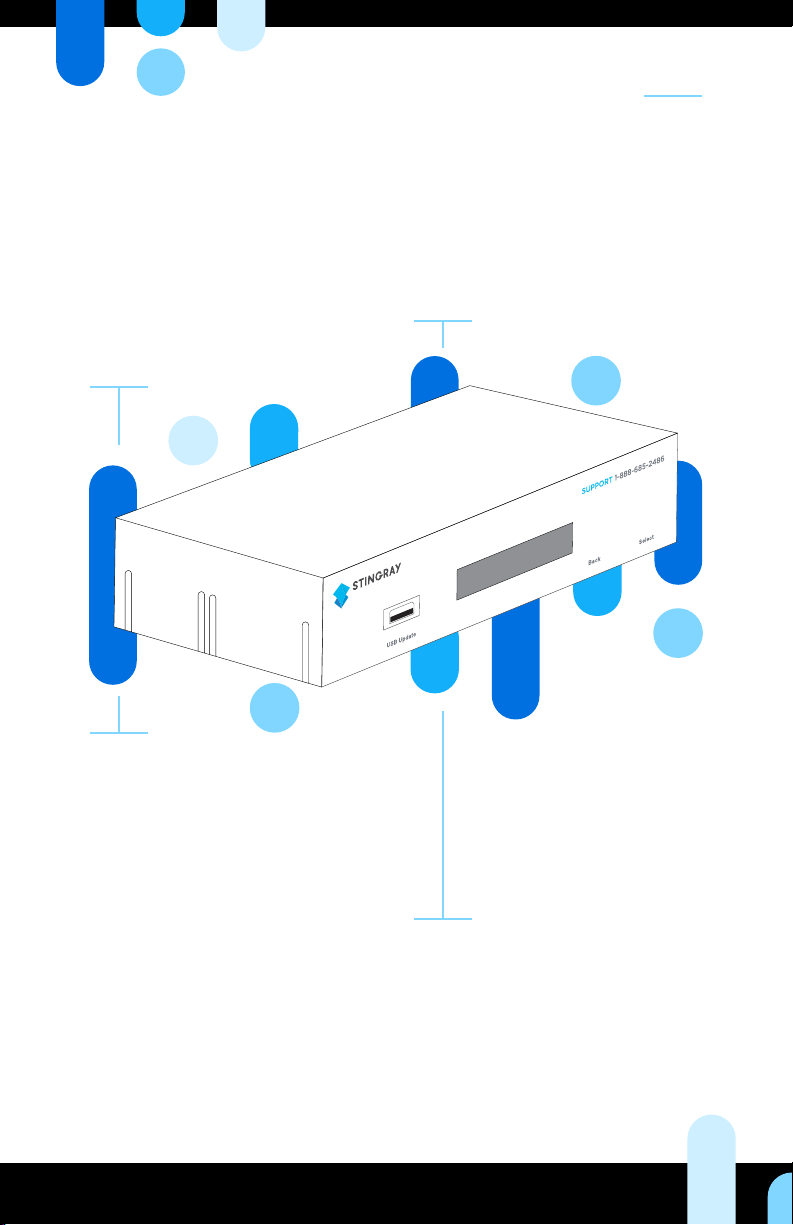

Packaging Dimensions L 9’’ x W 9’’ x H 4’’
SB3 Dimensions L 3.75’’x W 7 3/4’’ x H 2’’
Power Supply Input 100-240 VAC, 50/60 hz
Power Consumption 5V, 3A
Supported Connector
Types
2 RCA outputs
(2 mono zones or one stereo zone)
and one HDMI output.
Online Control
Log into the remote SB3 Management Interface to start exploring your new
musical universe. Visit https://cs.business.stingray.com and log in with
your email address.
Management Interface Help Center
Once you have logged into the Management Interface, click “Help” in the
upper right corner for instructions on how to use the web platform, manage
and troubleshoot the SB3, manage your audio/video content, and create
message calendars
Contact us
Email [e-mail]
Phone [phone]
