Stirling STR-SGC60 User manual

AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Model Number STR-SGC60
Gas Cooktop
INSTRUCTION MANUAL
E209

2
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Welcome
Congratulations on choosing to buy a STIRLING®product.
All products brought to you by STIRLING®are manufactured to the highest
standards of performance and safety and, as part of our philosophy of
customer service and satisfaction, are backed by our comprehensive
3 Year In Home Warranty. We hope you will enjoy using your purchase
for many years to come.

3
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Contents
02 Welcome
04 Warranty Details
05 General Safety Instructions
09 Product Overview
11 Installation
24 Instructions
29 FAQs & Troubleshooting Guide
30 Other Useful Information
35 Repair and Refurbished Goods or Parts Notice

4
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
The product is guaranteed to be free from defects in workmanship and
parts for a period of 36 months from the date of purchase. Defects that
occur within this warranty period, under normal use and care, will be
repaired, replaced or refunded at our discretion. The benets conferred by
this warranty are in addition to all rights and remedies in respect of the
product that the consumer has under the Competition and Consumer Act
2010 and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for
a major failure and to compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
Gas Cooktop
Warranty Details
REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION

5
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
General Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read this manual thoroughly before rst use, even if you are familiar with
this type of product. The safety precautions enclosed herein reduce the risk
of re, electric shock and injury when correctly adhered to. Make sure you
understand all instructions and warnings. Keep the manual in a safe place
for future reference, along with the completed warranty card and purchase
receipt. If you sell or transfer ownership of this product, pass on these
instructions to the new owner.
Always follow basic safety precautions and accident prevention
measures when using an electrical appliance, including the following:
WARNING!
• Professional installation only: This cooktop must be installed by a
licensed plumber/gastter in accordance with all instructions in this manual
and all applicable rules and regulations. Any electrical work required for
installation must be carried out by a licensed electrician. Comprehensive
installation instruction follow on pages 11 to 23 of this manual.
• Electric shock hazard: This appliance must be connected to a good
earth wiring system. Before carrying out any work on the electrical section
of the appliance, or any maintenance work or repairs, the appliance must
be disconnected from the mains. If accessible, always switch off the
cooktop at the wall before cleaning the appliance. Failure to follow this
advice may result in death or electric shock.
• Hot surface hazard: While in use, direct contact with the cooktop surface
may cause burns! Take utmost care when the equipment is in use. Do not
touch the cooktop components (base, burners, caps, enamelled trivets)
when hot. We recommend using oven gloves when handling cookware.
• Fire hazard: Never leave items on top of the cooktop as this can be a re
hazard when switched on. In case of a re, never try to extinguish it with
water. Switch off the burner and cover the ame(s) with a lid or re blanket.
• Explosion hazard: DO NOT USE OR STORE FLAMMABLE MATERIALS
IN THE APPLIANCE STORAGE DRAWER OR NEAR THIS APPLIANCE.
• DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE
WHILE IT IS IN OPERATION.
• DO NOT MODIFY THIS APPLIANCE.
• DO NOT USE THIS APPLIANCE AS A SPACE HEATER.
Failure to adhere to the above warnings may result in death or serious injury.

6
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
General usage conditions and restrictions
• Domestic use only: This cooktop is designed for indoor domestic use
only; commercial catering may invalidate the warranty. The cooktop can
be built into a standard kitchen cabinet or housing unit.
• Intended purpose: Only use this cooktop for its intended purpose, in
its intended environment and as described in this manual. Any other use
may cause re, electric shock or injury, and invalidate the warranty.
• Ventilation: Heat, steam and moisture will be created during use of
the cooktop. Take care to avoid injury and ensure that the kitchen is
adequately ventilated.
• Instructions: Make sure to observe all rules and provisions in this
instruction manual. Do not allow anybody who is not familiar with the
contents of this manual to operate the cooktop. These instructions are
not intended to cover every possible condition and situation. As with any
electrical household appliance, use common sense and caution when
installing, operating and maintaining the cooktop.
• Power cord: Do not allow the power cord to come into contact with
areas on the cooktop that get hot. Check the cord regularly for damage.
Do not use the appliance if the cord, or any other part of the appliance,
has been damaged. If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly qualied person in
order to avoid a hazard.
DANGER!
In case of a gas leak, or if you suspect gas is leaking,* take the following
actions:
DO NOT turn on the light.
DO NOT switch on/off any electrical appliance.
DO NOT touch any electric plug.
DO NOT use a telephone.
1. Stop using the product and close the middle valve.
2. Open a window to ventilate.
3. Contact our after sales support centre by using a phone outside.
*The fuel gas contains mercaptan, which smells like rotten garlic or egg, so you
can smell the gas leak, even only very small amounts.
General Safety Instructions (Cont.)

7
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
General Safety Instructions (Cont.)
• Usage restriction: This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a
person responsible for their safety.
• CAUTION! Children and pets: Cooking appliances become very hot in
use, therefore ensure children and pets are kept away. If it is necessary
for younger family members to be in the kitchen, ensure that they are kept
under close supervision at all times.Do not allow children to operate or
play with any part of the appliance.
• Health issues: If you have any mechanical parts in your body (e.g. an
articial heart), consult a doctor before using the appliance.
• WARNING! Fire risk: Never leave the cooktop unattended during use,
as this is a re risk. Oils and fats in pots and pans may catch re due to
overheating. Do not cover the cooktop or place combustible materials on
or near the surface even when the cooktop is not in use.
• Marine craft and leisure vehicles: Where this appliance is installed for
use with ULPG in marine craft or in caravans, it shall not be used as a
space heater.
• Pots and pans: Do not use unstable or plastic cookware, or aluminium
foil containers on the cooktop. Do not let large cookware overlap the
bench as this could deect heat onto the benchtop, which could damage
the surface. Pot and pan handles may become hot during use; position
handles away from the edge of the cooktop and out of children’s reach.
• No timer: The appliance is not intended to be operated by means of an
external timer or separate remote control system.
• No work surface: Do not store any items on the cooktop or use it as a
work surface.
• Frying food: When frying food on the cooktop, check constantly and
ensure the oil is not overheating and becoming a re hazard. Do not ll
deep frypans more than one third full of oil. Do not leave unattended.
• Cleaning: In the interests of safety and hygiene, ensure the cooktop is
kept clean as a build-up of grease could cause a re hazard. Switch off all
controls and allow the cooktop surface to cool before cleaning.
• Cleaning precautions: Disconnect the appliance from the mains before
cleaning, if your setup allows and the plug is accessible. Do not immerse
the appliance or power cord in water or any other liquid. Do not use

8
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
General Safety Instructions (Cont.)
a steam jet or other high pressure cleaning equipment for cleaning the
cooktop. Do not use scourers or any other harsh abrasive cleaning agents,
as these can scratch the nish. Do not use caustic cleaning agents.
• Handle with care: Do not place or drop heavy objects on your cooktop.
• Disconnection: Do not disconnect the appliance with wet hands. Grip by
the plug, do not pull by the cord when disconnecting.
• Damage/repair: Do not use the cooktop if any part has been damaged
or does not work properly. Only have it repaired by authorised service
personnel and only original spare parts should be used. Incorrect repair
could expose you to the risk of electric shock, re or injury. Prolonged use
of the unit in such conditions could cause re or electrocution. In case of
damage, contact our after sales support centre using the details at the
bottom of this page.
• No faulty use: Do not use the cooktop in the event of a technical fault. Any
faults must be xed by an appropriately qualied and authorised person.
Contact our after sales support centre for advice.
• Misuse: We accept no liability for any eventual damages or injury to persons
caused by misuse of the product or noncompliance with these instructions.

9
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Scope of delivery
Gas cooktop
A Semirapid gas burner (2x 6.3MJ/h)
B Rapid gas burner (10.8MJ/h)
C Auxiliary gas burner (4.0MJ/h)
D Enamelled trivets (pan support)
E Control panel
F Stainless steel surface
E Control panel
From top to bottom:
Rear right burner control
Rear left burner control
Front left burner control
Front right burner control
Product Overview
A
BC
E
A
F
D
D

10
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Product Overview (Cont.)

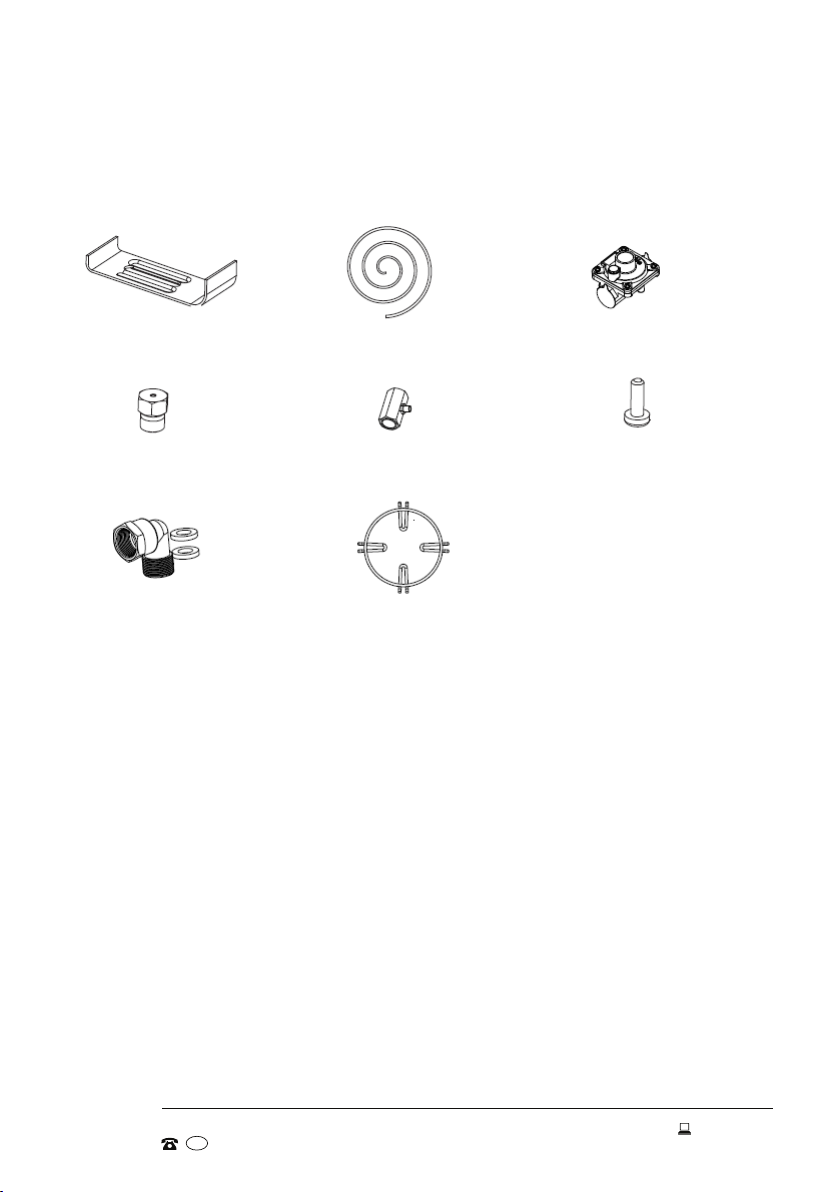

Installation hardware
As illustrated below:
* The cooktop is configured for use with NG (Natural Gas). The injectors are for
conversion to ULPG (Universal Liqueed Petroleum Gas).
Documentation (not shown):
Instruction manual
Quick start guide
Warranty certicate
NOTE:
Due to continued product improvement, images and illustrations in this manual may
vary slightly from the product purchased. All images in this manual are for reference
purposes only. Parts are not necessarily pictured to scale.
Mounting brackets (4) Foam sealing tape Gas regulator valve (1)
ULPG Injectors * (4) Brass test point adaptor (1) Screws (4)
Elbow (1) Auxiliary pan support (1)

11
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Installation
Unpacking the appliance
• This product has been packaged to protect it against transportation
damage. Unpack the appliance but keep all packaging materials until
you have made sure your new gas cooktop is undamaged and in perfect
condition.
• If parts of the appliance are protected by a plastic film, please remove
the film, and any stickers that may be present on the hob surface, before
using the appliance.
• The carton is recyclable. Whenever possible, reuse the carton and recycle
it when disposing of the packaging materials.
• Plastic wrapping can be a suffocation hazard for babies and young
children, so ensure all packaging materials are out of their reach and
disposed of safely.
WARNING: Professional installation only!
• This cooktop must be correctly installed by an authorised, licensed
gastter/plumber only, in accordance with Gas Installation Code
AS/NZS 5601, all other applicable rules and regulations and all
instructions in this manual. It is in your interest and that of your safety
to ensure compliance.
• Do not try to install the cooktop yourself! Doing so will expose you
to danger and void the warranty. Improper installation, adjustment,
alteration or service can cause injury or damage. We decline any
responsibility for injury or damage, to persons or property, as a result of
improper use or installation.
• This appliance is not connected to a ue for discharge of the
combustion products; therefore, it must be connected in compliance
with the above mentioned installation rules. Particular attention must
be paid to the instructions given on the next page for ventilation.
• Any adjustments, conversions and maintenance of this product
may only be carried out by an appropriately authorised person, as
mentioned above.
• The safety and automatic adjustment devices of the appliance may
only be modied by an authorised service agent.

12
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Installation (Cont.)


Important installation advice
NG / ULPG: The cooktop is configured for use with NG (Natural
Gas). If it is to be used with ULPG, it must be
converted using the ULPG (Universal Liqueed
Petroleum Gas) injectors provided and following the
conversion instructions starting on page 21. Such
a conversion must only be carried out by a licensed
plumber/gastter.
Location: The cooktop may be located in a kitchen, kitchen/
dining room or a bed-sitting room, but not in a room
containing a bath or shower. The cooktop must not
be installed in a bed-sitting room of less than 20m3.
If used with LPG, the cooktop shall not be installed
in a room or space below ground level, such as in a
basement.
Heat resistance of Wall and bench surfaces must be capable of
surrounding surfaces: sustaining temperatures of 85°C above the ambient
room temperature while in use and be resistant to
heat, steam and condensation. All laminates, xing
adhesive and surfacing materials must be certied
suitable for this temperature.
We accept no liability for any damage caused if the
appliance is installed contrary to this advice.
Do not install the cooktop near curtains or other
ammable materials.
Ventilation This appliance must only be used in rooms equipped
requirements: with adequate ventilation. The use of a gas cooking
appliance results in the production of heat and
moisture in the room in which it is installed. Always
ensure that the kitchen is well ventilated; keep natural
ventilation holes open or install a rangehood.
Prolonged intensive use of the appliance may require
additional or more effective ventilation, for example,
opening of a window or increasing the level of
mechanical ventilation, where present.

13
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Clearances
The clearances listed below are required when installing the appliance into a
kitchen unit (depending on size) or 600mm worktop (Fig. 1):
• The edges of the cooktop must be a minimum distance of 60mm from a
side or rear wall.
• The highest point of the cooktop surface (including the burners and trivets)
must be a minimum distance of:
– 700mm to the underside of any horizontal surface directly above it
– 400mm to the underside of any horizontal surface if it is in line with the
outer edge of the cooktop (if the underside of the horizontal
surface is lower than 400mm, then it must be at least 50mm
away from the outer edges of the cooktop)
• There must be a 50mm clearance around the appliance and between the
cooktop surface and any combustible materials.
• Fire resistant materials (such as ceramic tiles) are required up to 450mm
above the burner top.
• If installing above an oven, the oven must have forced ventilation. Check
the necessary clearances and cut-out requirements in the oven installation
manual.
Installation (Cont.)

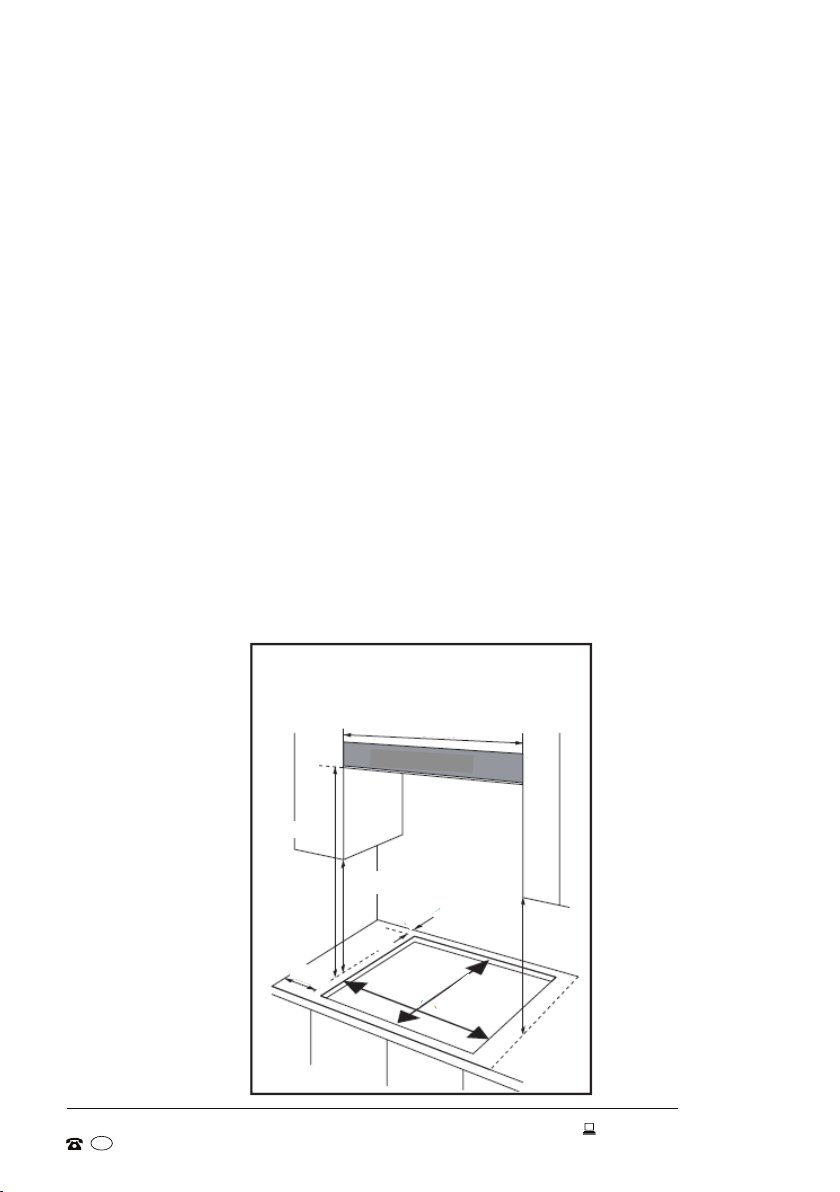

Clearances required when tting the
cooktop with a rangehood above
Rangehood
400mm
700mm
600mm
553mm
200mm
min.
60mm
473mm
400mm
Fig. 1

14
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Benchtop preparation
• Make sure the kitchen area is dry and there is sufcient ventilation and
easy access to all control elements.
• Do not install the cooktop near curtains or other ammable materials.
• The cooktop can be tted to any benchtop with a minimum thickness of
30mm.
• If you have (or plan to have) a rangehood tted above the cooktop,
check in the rangehood instructions that you will have the required
clearance before starting with the installation.

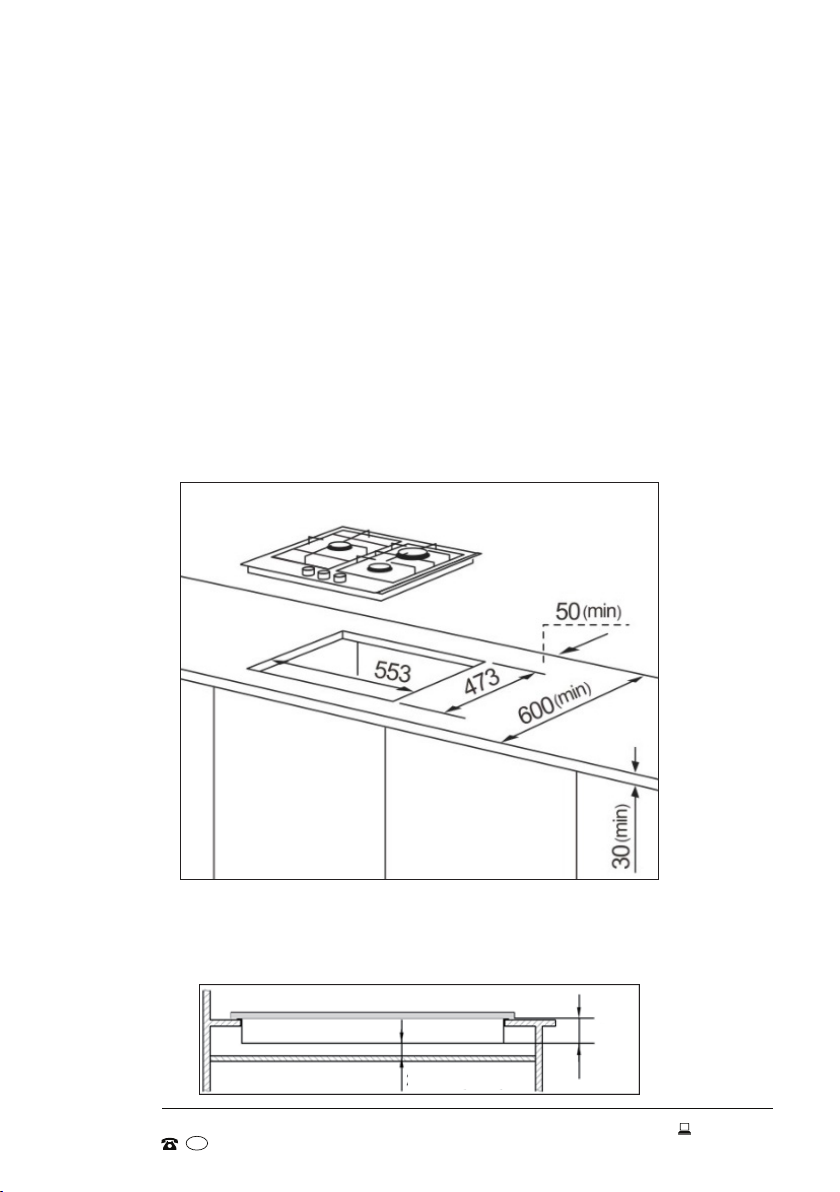

• To install the cooktop in your benchtop, make an opening with the
dimensions given below (Fig. 2).
• The required clearances for the cooktop are illustrated on page 13 (Fig. 1).
Installation (Cont.)
• IMPORTANT: You must have a gap of at least 25mm and at most 74mm
between the underside of the appliance and any surface underneath it
(Fig. 3).
Fig. 3
45mm
25mm (min.)
Fig. 2

15
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Installation (Cont.)
Applying the seal
The installation hardware includes a length of sealing tape, which when
applied around the cooktop prevents liquid from entering the cabinet. Before
installing the cooktop, please apply this sealing tape follow the instructions
below.
• Remove the trivets (pan supports) and put aside.
• Remove the burner caps and ame
spreaders (Fig.4), then turn the
cooktop upside down and place it
on a cushioned mat, taking care not
to damage the ignition plugs and the
thermocouples.
• The supplied sealing tape is 3mm thick and 10mm wide. Detach the
backing strip from the tape but ensure that the transparent adhesive still
adheres to the seal itself.
• Correctly position the
sealing tape under the
edge (Fig. 5), ensuring
that the outer part of the
seal perfectly matches the
outer edge of the cooktop.
The ends of the strips
must t together without
overlapping. Then press the seal rmly in place at the underside of the
cooktop.
• IMPORTANT: Do not use a silicon sealant to seal the appliance against
the aperture. This will make it difcult to remove the cooktop from the
aperture in future if it needs to be serviced.
Burner cap
Flame spreader
Fig. 4
Fig. 5

16
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Fig. 6
Sealing tape
Screw (A) Mounting
bracket (B)
Installation (Cont.)
Installation options
When tting a gas cooktop above a drawer or standard housing unit, suitable
precautions must be taken to prevent contact with the cooktop hob and base,
which become very hot during operation. The recommended method for over-
coming this problem is to x a wooden panel within the cabinet at a minimum
distance of 25mm below the underside of the cooktop (see Fig. 3, page 14).
NOTE: The panel below the hob must be easily removable to enable servicing if
and when required.
Affixing the cooktop
Once the sealing tape has been installed around the underside of the
cooktop, carefully turn it back over and gently lower it into the aperture hole
that has been cut out. Push it down gently so that the cooktop is resting
rmly on the cabinet/benchtop surface.
Now secure the cooktop in position using the mounting brackets supplied.
• Place a mounting bracket over the hole that matches the size of the
screws—there are appropriate screw holes in each corner of the hob.
• Insert a screw (A) through
the mounting bracket (B)
and slightly tighten it so
that the bracket is attached
to the cooktop, but you
can still adjust its position
(Fig.6).
• On the underside of
the cooktop, adjust the
mounting brackets into a
position that is suitable for
your benchtop. Then fully
tighten the screws (A) to
secure the cooktop into
position.

17
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Installation (Cont.)
Electrical connection
• Connection: The appliance is equipped with an electrical cord and power
plug, which must be connected to a 220–240V~, 50–60Hz electricity
supply in order for the ignition to work. After the appliance has been
installed and connected to the gas supply, insert the power plug rmly into
an appropriate electrical outlet and switch on the power at the outlet.
• Wall socket: The electric wall outlet must be properly earthed, accessible
and suitable for the power drawn by the appliance. The outlet voltage and
circuit frequency must correspond to the voltage stated on the appliance
rating label.
• Power cord: When installing the appliance, make sure that the power
supply cord does not come into contact with any parts of the cooktop that
get hot during use, or with hot cookware. If the supply cord is damaged,
it must be replaced by the manufacturer or a similarly qualied person in
order to avoid a hazard.
• Electrical work: Should any electrical work be required associated with the
electrical outlet that is to be used for the cooktop, all such work must be
carried out by an appropriately qualied, licensed electrician in accordance
with all applicable rules and regulations.
Wiring diagram
16066200A02381 客版其他标贴 60G40ME401-SFT 80*60mm 白底耐温150度以上IMC材料
MO-01452502 AU Intersource Solutions Pty Ltd AUPL-GWF61SS Platinum 过膜 电路图标贴
L
E
N
AC INPUT
IGNITION
SWITCH 1
SWITCH 2
SWITCH 3
SWITCH 4
Fig. 7

18
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Installation (Cont.)
Gas connection
• Safety regulation: This cooktop must be correctly installed by an
authorised, licensed gasfitter/plumber only, in accordance with Gas
Installation Code, AS/NZS 5601, all other applicable rules and regulations
and all instructions in this manual. It is in your interest and that of your
safety to ensure compliance. Failure to have the cooktop installed correctly
could invalidate the warranty, liability claims and lead to prosecution.
• Connection parts: The appliance must be connected to the gas supply
following the illustration below (Fig. 8):
• Accessibility: Make sure that it is possible to run gas lines to the gas
connection point of the appliance. The gas connection point must be
accessible without having to remove the hob. If a exible hose is used, the
connection point must also be accessible without having to remove the
hob.
Dual gas regulator valve
The supplied dual gas regulator valve (Fig.
9) is a low-pressure pipeline regulator valve,
built-in voltage regulator for gas products. It is
factory-set for use with Natural Gas (NG), but
can be adjusted for use with Universal Liqueed
Petroleum Gas (ULPG).

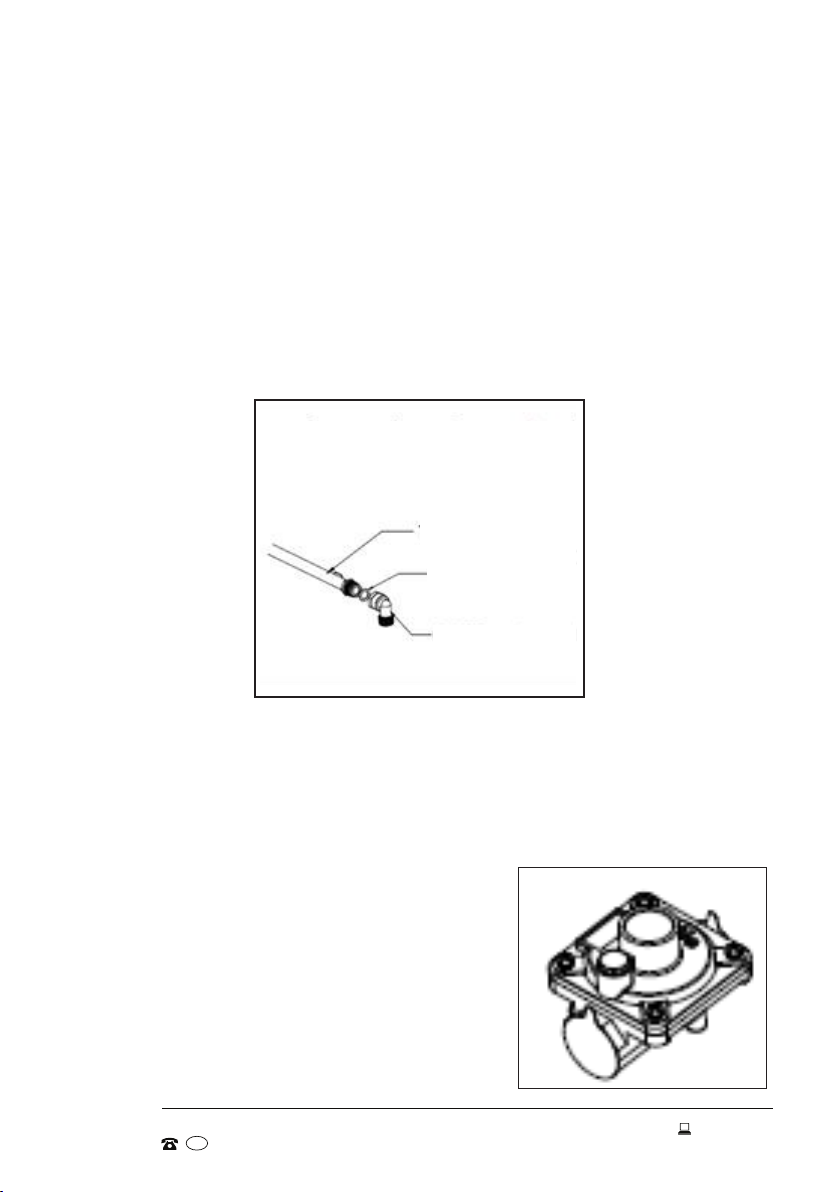

Fig. 9
Fig. 8
Gas rail
Seal
G ½” (12.7mm)
Female coupler

19
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Installation (Cont.)
Installing the gas regulator
• Connect the elbow tting to the appliance gas manifold connection.
Check and ensure that the seals between the elbow and manifold
connection are in place and in good condition.
• NG: If connecting the appliance to a Natural Gas (NG) outlet, connect the
supplied gas regulator valve to the elbow, as illustrated in Fig.10-A.
• ULPG: If connecting the appliance to a ULPG outlet, connect the
supplied brass test point adaptor to the elbow, as illustrated in Fig.10-B.
• When making the connection, ensure that the gas regulator valve outlet
thread matches the thread of the gas connector. Use an approved gas
thread tape or compound around the threads.
• Ensure that the gas regulator valve installation location is perpendicular.
• Ensure that the supply connection point, test point and NG regulator
adjustment screw (for NG installation) are accessible for testing and/or
adjustment with the hotplate in the installed position.
• After installation, open the gas source switch and check the valve body
connections with soap and water for leaks.
WARNING:
• The regulator valve outlet pressure is set at the factory, please do not
adjust it in order to avoid the occurrence of safety accidents.
• If you nd any abnormality of the regulator valve, stop using the appliance
and contact our after sales support centre for advice. Do not attempt any
maintenance yourself.

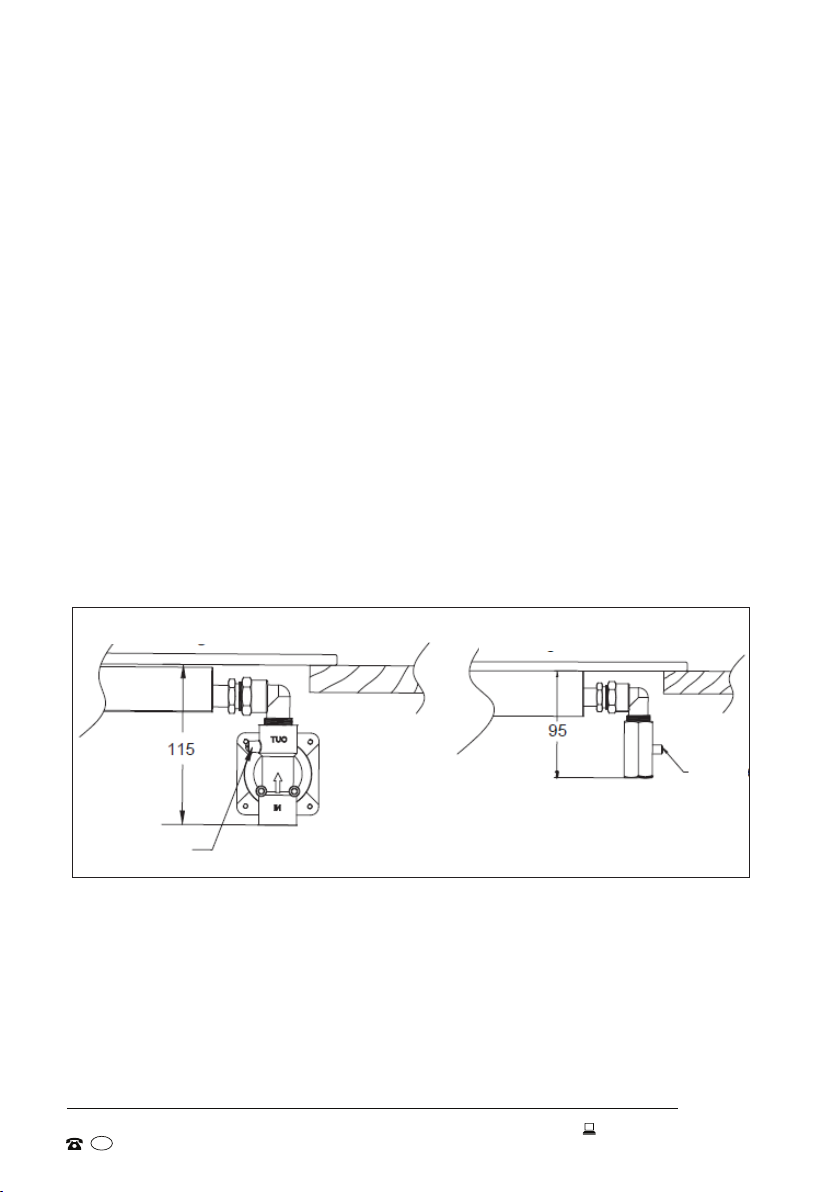

Fig. 10-A NG connection Fig. 10-B ULPG connection
Pressure
test point
Pressure
test point

20
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-SGC60 PRODUCT CODE: 700793 04/2020
Installation (Cont.)
Hose assembly
• The nal gas connection shall be made using a exible hose or annealed
copper tubing of sufcient length to permit the insertion and removal of the
appliance. For gas appliances connected using a exible hose, install with
a hose assembly that complies with AS/NZ 1869 (AGA approved), 10mm
ID class B or D, and in accordance with AS/NZS 5601.1. This hose must
not exceed 1m in length.
• Ensure that the hose does not contact the hot surfaces of the hotplate,
oven, dishwasher or any other appliance that may be installed underneath
or next to the cooktop. The hose should be positioned so that it does not
interfere with drawers or other moving parts, and so that it is not subjected
to abrasion, kinking, or permanent deformation. The hose should be able
to be inspected along its entire length. Unions compatible with the ttings
must be used and all connections must be tested.
• WARNING: Ensure that the hose assembly is restrained from accidental
contact with the ue outlet of an underbench oven.
• A restraining wire or chain of adequate strength is to be xed to the
appliance and the wall within 50mm of each connection point. The
length of the chain or wire is not to exceed 80% of the length of the hose
assembly.
• It is recommended that a manual shut-off valve be installed in the gas
supply line, in an accessible position external to the appliance, so that the
gas supply to the appliance can be shut off in the event of an emergency or
for servicing without having to remove the appliance.
• This hose assembly is suitable for
connection to a xed consumer
piping outlet located at 800–
850mm above the oor (hotplates),
and outside the width of the
appliance to a distance of 250mm
(Fig.11).

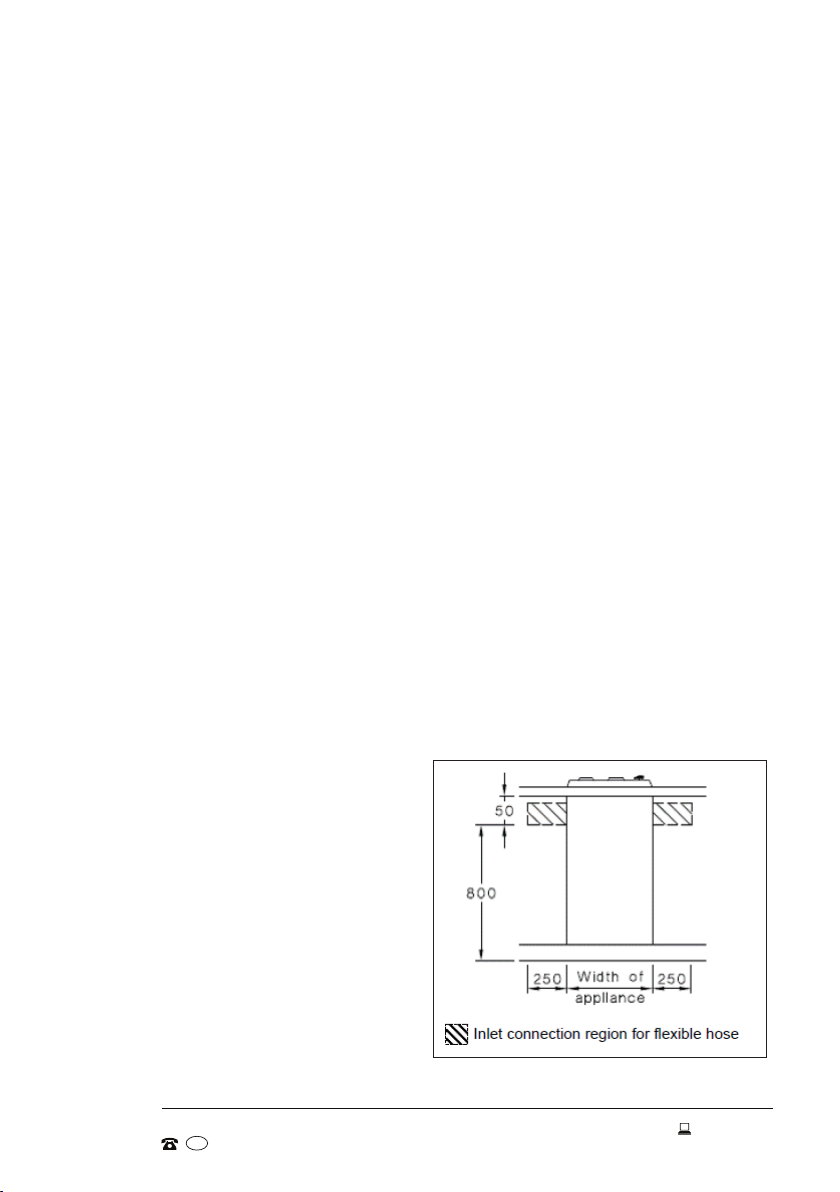

Fig. 11
