Stirling STR-X70GH User manual

N13275
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
Model Number STR-X70GH
70cm Gas Cooktop
IM Version No: V1.2 Issue Date: 11 January 2016
INSTRUCTION MANUAL

2
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
Welcome
Congratulations on choosing to buy a STIRLING®product.
All products brought to you by STIRLING®are manufactured to the highest
standards of performance and safety and, as part of our philosophy of
customer service and satisfaction, are backed by our comprehensive 3 Year
in Home Warranty. We hope you will enjoy using your purchase for many years
to come.

3
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
Contents
02 Welcome
04 Warranty Details
05 General Safety Instructions
08 Product Overview
10 Installation
22 Instructions
24 FAQs & Troubleshooting Guide
25 Other Useful Information
29 Repair and Refurbished Goods or Parts Notice

4
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
70cm Gas Cooktop
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts
for a period of 36 months from the date of purchase. Defects that occur
within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion, solely at our option with no charge for
parts and labour. The benets conferred by this warranty are in addition
to all rights and remedies in respect of the product that the consumer
has under the Competition and Consumer Act 2010 and similar state and
territory laws.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for
a major failure and to compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.

5
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
General Safety Instructions
• Professional installation: This cooktop must be installed by a licensed
plumber/gastter in accordance with all instructions in this manual and
all applicable rules and regulations. Any electrical work required for
installation must be carried out by a licensed electrician. Comprehensive
installation instruction follow on pages 10 to 21 of this manual.
• Cut hazard: Installation of this stainless steel cooktop involves handling
sharp edges. Take due care to avoid injury or cuts.
• Electric shock hazard: This appliance must be connected to a good
earth wiring system. Before carrying out any work on the electrical
section of the appliance, or any maintenance work or repairs, the
appliance must be disconnected from the mains. If accessible, always
switch off the cooktop at the wall before cleaning the appliance. Failure
to follow this advice may result in death or electric shock.
• Hot surface hazard: While in use, direct contact with the cooktop surface
may cause burns! Take utmost care when the equipment is in use. Do not
touch the cooktop components (base, burners, caps, enamelled trivets)
when hot. We recommend using oven gloves when handling cookware.
• Fire hazard: Never leave items on top of the cooktop as this can be a re
hazard when switched on. In case of a re, never try to extinguish it with
water. Switch off the burner and cover the ame(s) with a lid or re blanket.
• Explosion hazard: Do not use or store ammable materials such as
petrol near the cooktop. Do not spray aerosols near the cooktop when it
is in use. Do not modify the appliance. Failure to follow this advice may
result in death or serious injury.
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read this manual thoroughly before first use, even if you are familiar with
this type of product. The safety precautions enclosed herein reduce the risk
of re, electric shock and injury when correctly adhered to. Make sure you
understand all instructions and warnings. Keep the manual in a safe place
for future reference, along with the completed warranty card and purchase
receipt. If you sell or transfer ownership of this product, pass on these
instructions to the new owner.
Always follow basic safety precautions and accident prevention
measures when using an electrical appliance, including the following:

6
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
General Safety Instructions (Cont.)
General usage conditions and restrictions
• Domestic use only: This cooktop is designed for indoor domestic use
only; commercial catering may invalidate the warranty. The cooktop can
be built into a standard kitchen cabinet or housing unit.
• Intended purpose: Only use this cooktop for its intended purpose, in
its intended environment and as described in this manual. Any other use
may cause re, electric shock or injury, and invalidate the warranty.
• No space heating: Do not use this cooktop for space heating purposes.
• Ventilation: Heat, steam and moisture will be created during use of
the cooktop. Take care to avoid injury and ensure that the kitchen is
adequately ventilated.
• Follow instructions: Make sure to observe all rules and provisions in
this instruction manual. Do not allow anybody who is not familiar with the
contents of this manual to operate the cooktop. These instructions are
not intended to cover every possible condition and situation. As with any
electrical household appliance, use common sense and caution when
installing, operating and maintaining the cooktop.
• Power cord: Do not allow the power cord to come into contact with
areas on the cooktop that get hot. Check the cord regularly for damage.
Do not use the appliance if the cord, or any other part of the appliance,
has been damaged. If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly qualied person in
order to avoid a hazard.
• No space heater: Where this appliance is installed for use with LPG in
marine craft or in caravans, it shall not be used as a space heater.
• Usage restriction: This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Children and pets: Cooking appliances become very hot in use,
therefore ensure children and pets are kept away. If it is necessary for
younger family members to be in the kitchen, ensure that they are kept
under close supervision at all times. Do not allow children to operate or
play with any part of the appliance.

7
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
General Safety Instructions (Cont.)
• Pots and pans: Do not use unstable cookware, plastic cookware or
aluminium foil containers on the cooktop. Do not let large cookware
overlap the bench as this could deect heat onto the benchtop, which
could damage the surface. Pot and pan handles may become hot during
use; position handles away from the edge of the cooktop and out of
children’s reach.
• Frying food: When frying food on the cooktop, check constantly and
ensure the oil is not overheating and becoming a re hazard. Do not ll
deep frypans more than one third full of oil. Do not leave unattended.
• Combustible materials: Do not cover the cooktop or place combustible
materials on or near the surface even when the cooktop is not in use.
• After use: Switch off all controls and allow the cooktop surface to cool
before cleaning.
• Clean regularly: In the interests of safety and hygiene, ensure the
cooktop is kept clean as a build-up of grease could cause a re hazard.
• Cleaning precautions: Disconnect the appliance from the mains before
cleaning, if your setup allows and the plug is accessible. Do not immerse
the appliance or power cord in water or any other liquid. Do not use steam
cleaning equipment for cleaning the cooktop.
• Disconnect: Do not disconnect the appliance with wet hands. Grip by
the plug, do not pull by the cord when disconnecting.
• Damage/repair: Do not use the cooktop if any part has been damaged
or does not work properly. Only have it repaired by an authorised service
centre. Incorrect repair could expose you to the risk of electric shock, re
or injury. Prolonged use of the unit in such conditions could cause re
or electrocution. In case of damage, contact our after sales support
centre using the details at the bottom of this page.
• Do not modify: Do not attempt to modify the appliance.
• Do not use when faulty: Do not use the cooktop in the event of a
technical fault. Any faults must be xed by an appropriately qualied and
authorised person. Contact our after sales support line for advice.
• Liability: We assume no liability for any eventual damages to property or
injury to persons caused by misuse of the product or noncompliance with
these instructions.

8
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016

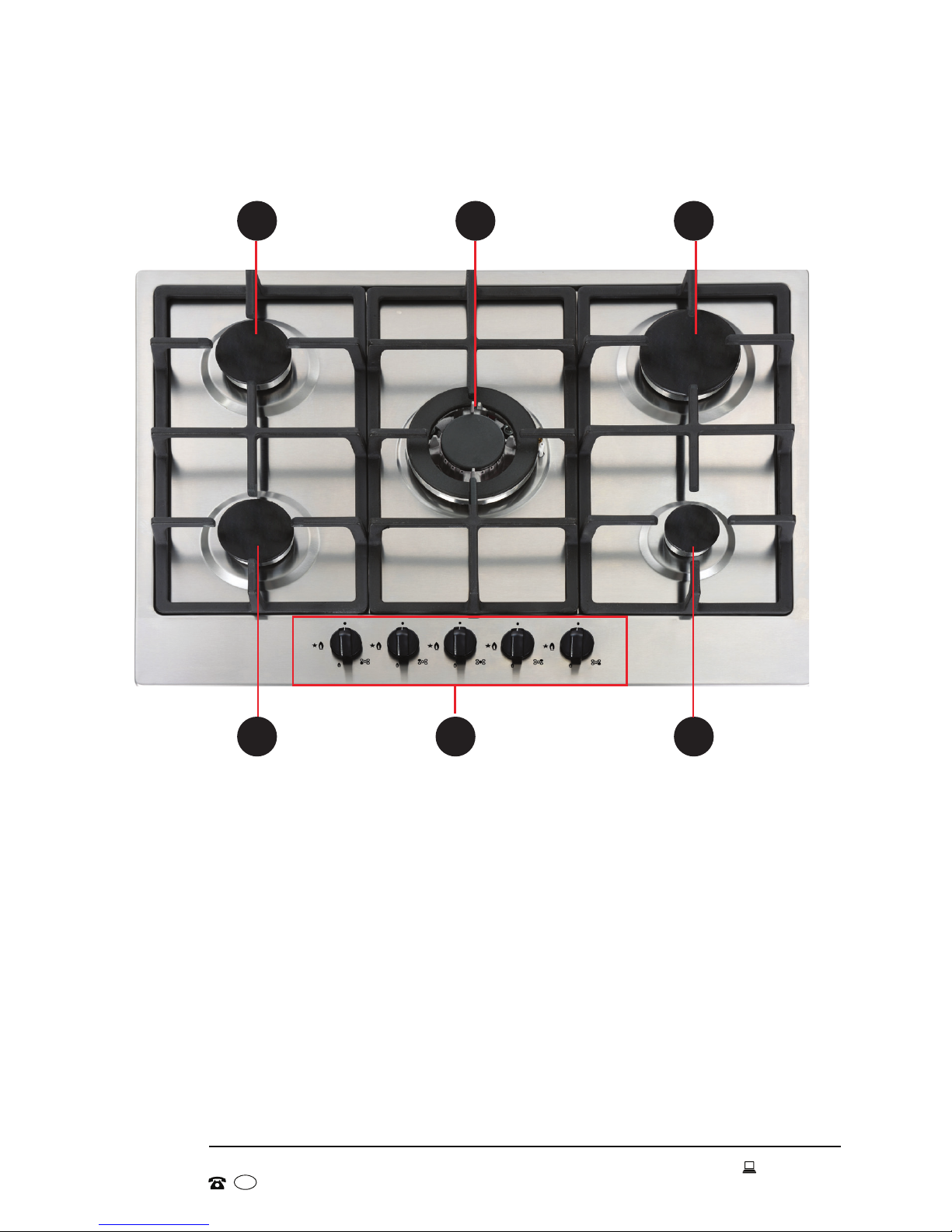

Product Overview
Gas cooktop
Scope of delivery
Gas cooktop
A Semirapid gas burner 1750W
B Wok (triple ame) gas burner 3800W
C Rapid gas burner 3000W
D Auxiliary gas burner (1000W)
E Control panel (see opposite for details)
A
E
B
D
C
A

9
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
Product Overview (Cont.)
4
321
Control knobs
5
Cooktop parts
6 Cast iron trivets (x3)
7 Enamelled burner caps (x5)
8 Burner (x5)
9 Cooktop surface
Also included, but not pictured:
Installation hardware
Cooktop xing brackets (x4)
Long screws (x4)
Sealing gasket
Gas regulator
Injectors (x5) for conversion to LPG
Documentation
Instruction manual
Quick start guide
Warranty certicate
Front
left-hand
burner
Rear
left-hand
burner
Middle
burner
Rear
right-hand
burner
Front
right-hand
burner
6
7
8
9

10
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
Installation
Unpacking the appliance
• This product has been packaged to protect it against transportation
damage. Unpack the appliance but keep all packaging materials until
you have made sure your new gas cooktop is undamaged and in perfect
condition. If you have any doubts, do not use the appliance and call our
after sales support centre for advice.
• The carton is recyclable. Whenever possible, reuse the carton and recycle
it when disposing of the packaging materials.
• Some parts on the appliance are protected by a plastic lm. This protec-
tive lm must be removed before the appliance is used. We recommend
carefully slitting the plastic lm along the edges with a sharp knife, but
take care not to damage the cooktop surface.
• Plastic wrapping can be a suffocation hazard for babies and young
children, so ensure all packaging materials are out of their reach and
disposed of safely.
WARNING: Professional installation only!
• This cooktop must be correctly installed by an authorised, licensed
gastter/plumber only, in accordance with Gas Installation Code
AS NZS 5601, all other applicable rules and regulations and all
instructions in this manual. It is in your interest and that of your safety
to ensure compliance.
• Do not try to install the cooktop yourself! Doing so will expose you
to danger and void the warranty. Improper installation, adjustment,
alteration or service can cause injury or damage. We decline any
responsibility for injury or damage, to persons or property, as a result of
improper use or installation.
• This appliance is not connected to a ue for discharge of the
combustion products; therefore, it must be connected in compliance
with the above mentioned installation rules. Particular attention must
be paid to the instructions given on the opposite page for ventilation.
• Any adjustments, conversions and maintenance of this product may
only be carried out by an appropriately authorised person, as mentioned
above.
• The safety and automatic adjustment devices of the appliance may
only be modied by an authorised service agent.

11
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
Important installation advice
• Natural gas / ULPG: This appliance is intended for use with natural gas. If
it is to be used with LPG, follow the conversions instructions on page 19.
• Location: The cooktop may be located in a kitchen, kitchen/dining room
or a bed-sitting room, but not in a room containing a bath or shower. The
cooktop must not be installed in a bed-sitting room of less than 20m3.
If used with LPG, the cooktop shall not be installed in a room or space
below ground level, such as in a basement.
• Other use: This appliance is unsuitable for use in marine craft, caravans
or mobile homes unless each burner is tted with a ame safeguard.
• Heat resistance of surrounding surfaces: Wall and bench surfaces
must be capable of sustaining temperatures of 95°C. All laminates,
xing adhesive and surfacing materials must be certied suitable for
this temperature. We assume no liability for any damage caused if the
appliance is installed contrary to this advice. Do not install the cooktop
near curtains or other ammable materials.
• Ventilation requirements: This appliance must only be used in rooms
equipped with adequate ventilation. The use of a gas cooking appliance
results in the production of heat and moisture in the room in which
it is installed. Always ensure that the kitchen is well ventilated; keep
natural ventilation holes open or install a mechanical ventilation device
(mechanical extractor hood).
Prolonged intensive use of the appliance may require additional or more
effective ventilation, for example, opening of a window or increasing the
level of mechanical ventilation, where present.
Important clearances: please note!
• Fire resistant materials (such as ceramic tiles) are required up to 450mm
above the burner top.
• Walls or vertical structures must be at least 200mm away from the burner.
• There must be a minimum clearance of 50mm between the base of the
appliance and a combustible surface.
• There must be no overhanging surfaces, and no rangehood or exhaust
system, within 750mm above the burner tops.
• If tting a 600mm bridging unit above the 700mm cooktop unit, the sides
of adjacent cabinets may be lower than 650mm down to 400mm, provided
that they are resistant to heat and steam.
Installation (Cont.)



12
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
Benchtop preparation
• Make sure the kitchen area is dry and there is sufcient ventilation and
easy access to all control elements.
• Do not install the cooktop near curtains or other ammable materials.
• The cooktop can be tted to any benchtop with a thickness of 40-50mm.
• If you have (or plan to have) a rangehood tted above the cooktop, check
in the rangehood instructions that you will have the required clearance
before starting with the installation.

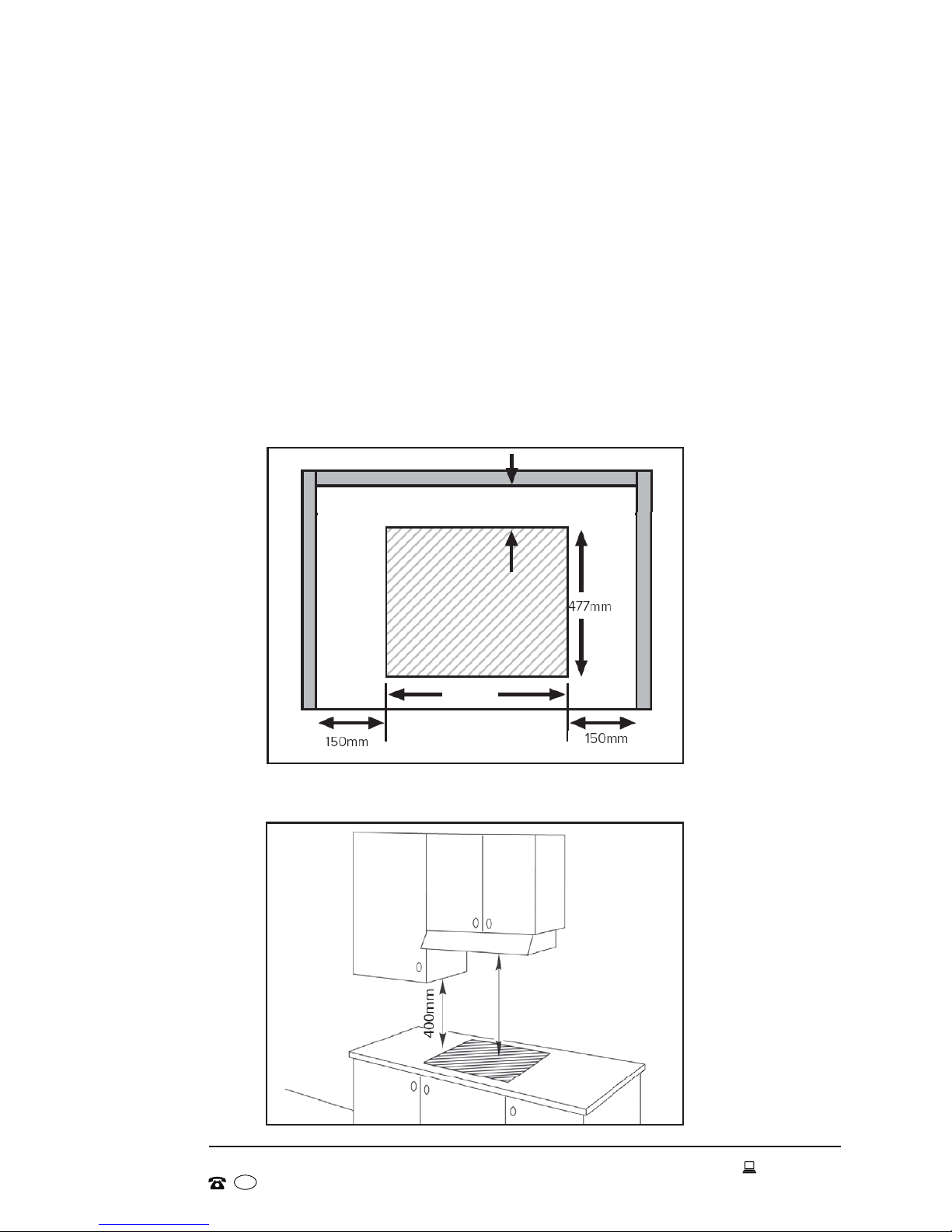

• The cut-out illustration (Fig. 1) shows the minimum distances to any vertical
structures around the cooktop.
• The required height clearances are illustrated below (Fig. 2).
Installation (Cont.)
Fig. 2
140mm
Fig. 1
61mm
557mm
650mm

13
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
A
B
D
C
E
E
GF
Fig. 3
A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm)
557 477 61 62 150 min. 90 min. 650min.
Installation (Cont.)
• To install the cooktop in your benchtop, make an opening with the
dimensions given below (Fig. 3).

14
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
Installation (Cont.)
Applying the seal
The installation hardware includes four lengths of sealing tape which when
applied around the cooktop prevents liquid from entering the cabinet.
Follow the instructions below in order to correctly apply this sealing tape
before inserting the cooktop into the work surface.
• Remove the enamelled trivets and the burner caps, then turn the cooktop
upside down, taking care not to damage the ignition plugs and the
thermocouples.
• Detach the backing strip from the sealing tape but ensure that the
transparent adhesive still adheres to the seal itself.
• Apply the sealing tape as illustrated below. Correctly position the sealing
tape (A) under the edge, ensuring that the outer part of the seal perfectly
matches the outer edge of the cooktop (Fig. 4). The ends of the strips
must t together without overlapping.
• Evenly and securely x the seal to the cooktop, pressing it rmly in place
at the underside of the cooktop.
• Do not use a silicon sealant to seal the appliance against the aperture.
This will make it difcult to remove the cooktop from the aperture in
future, particularly if it needs to be serviced.
Fig. 4
A
A

15
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
Installation (Cont.)
Inserting and fixing the cooktop
• After having afxed the sealing tape around the underside of the cooktop,
carefully turn it over and then gently lower it into the aperture hole that
you have cut out. Push it down gently so that the cooktop is resting rmly
on the cabinet/benchtop surface.
• Secure the cooktop in position using the mounting brackets supplied.
• There are four mounting slots on the base of the cooktop where you can
afx the brackets (Fig. 5).
Fig. 5
160mm

16
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
Fig. 6
4cm 5cm
Mounting bracket Benchtop
Cooktop
Fig. 7
• Place a bracket each in the slots and, using the screws provided, afx the
bracket to the cooktop and then tighten the screws securely (Fig. 6). This
is very important.
NOTE: Fig. 7 illustrates how to afx the brackets to the cooktop. At this
stage of the installation process the cooktop should be sitting securely
in the benchtop cut-out and the sealing tape should be tted around the
edge.
• The other end of the bracket should be located underneath the benchtop
to secure the cooktop in position (Fig. 7).
Installation (Cont.)

17
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
Installation (Cont.)
Electrical connection
• Connection: The appliance is equipped with an electrical cord and power
plug, which must be connected to the mains electricity supply in order
for the ignition to work. Insert the power plug rmly into an appropriate
electrical outlet and switch on power at the outlet.
• Wall socket: The electric wall outlet must be properly earthed and
accessible. It must be suitable for the power drawn by the appliance.
The outlet voltage and circuit frequency must correspond to the voltage
stated on the appliance rating label.
• Power cord: If the supply cord is damaged, it must be replaced by the
manufacturer or a similarly qualied person in order to avoid a hazard.
The power supply cord must not touch the hot parts of the cooktop.
• Electrical work: Should any electrical work be required associated with
the electrical outlet that is to be used for the cooktop, all such work must
be carried out by an appropriately qualied, licensed electrician.
Circuit diagram

18
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
Gas connection
• Accessibility: Make sure that it is possible to run gas lines to the gas
connection point of the appliance. The gas connection point must be
accessible without having to remove the cooktop. If a exible hose is
used, the connection point must also be accessible without having to
remove the cooktop.
• Natural gas connection: Using the supplied gas regulator (Fig. 8), remove
the dust seals on the inlet and outlet ports and position the “OUT” port
of the regulator towards the gas inlet pipe of the cooktop, as illustrated in
Fig. 9. Using a suitable thread sealant, screw the regulator on and ensure
that it is orientated with easy access to the test point (Fig.10). Connect the
appropriate Natural Gas supply to the “IN” port of the gas regulator.
Fig. 10Fig. 9
Gas
regulator
test point
Outlet port to
gas cooktop
Gas
supply
inlet
port
Fig. 8
Installation (Cont.)
Gas conversion
This 5 Burner Gas Cooktop is tted out for use with Natural Gas (NG). If it
is to be used with liqueed petroleum gas (ULPG), the burners have to be
converted. Before starting the conversion, make sure all gas is switched off
(and preferably disconnected from the appliance) and the electrical power has
been disconnected.

19
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
Installation (Cont.)
Fig. 11 A
B
Fig. 12
C
D
E
Burner
NG
4”WC / 1.00kPa
ULPG
11”WC / 2.75kPa
NGC Nozzle Size NGC Nozzle Size
Auxiliary
burner
3.6 MJ/h 0.87mm 3.3 MJ/h 0.51mm
Semirapid
burner (x2)
6.3 MJ/h 1.13mm 6.0 MJ/h 0.67mm
Rapid burner 10.8 MJ/h 1.45mm 10.2 MJ/h 0.87mm
Wok burner 13.7 MJ/h 1.65mm 12.7 MJ/h 0.95mm
• Adjust the correctly rated injectors
as illustrated in Fig. 12. Light the
burner and turn the knob to the LOW
position. To remove the knob (C),
simply lift it off the shaft (E). Insert
a small screwdriver (D) into the top
of the shaft (E) and turn the bypass
screw left or right until the ame of
the burner is properly regulated to the
Reduced Rate position.
Table 1: Injector replacement
NOTE: To convert the appliance back for use with Natural Gas, perform the
above steps but using the NG injectors.
• Remove the burner heads, caps and
rings from each burner as illustrated
in Fig. 11. Using a socket spanner
(A) undo the injector (B) from each
burner and replace the correctly rated
injector as shown in Table 1 below.

20
AFTER SALES SUPPORT
1300 886 649
[email protected]
AUS MODEL: STR-X70GH PRODUCT CODE: 53105 03/2016
Installation (Cont.)
Hose assembly
• The nal gas connection shall be made using a exible hose or annealed
copper tubing of sufcient length to permit the insertion and removal of the
appliance. For gas appliances connected using a exible hose, install with
a hose assembly that complies with AS/NZ1869 (AGA approved), 10mm ID
class B or D, and in accordance with AS5601. This hose must not exceed
1.2m in length.
• Ensure that the hose does not contact the hot surfaces of the hotplate,
oven, dishwasher or any other appliance that may be installed underneath
or next to the cooktop. The hose should be positioned so that it does not
interfere with drawers or other moving parts, and so that it is not subjected
to abrasion, kinking, or permanent deformation. The hose should be able
to be inspected along its entire length. Unions compatible with the ttings
must be used and all connections must be tested.
• A restraining wire or chain of adequate strength is to be xed to the
appliance and the wall within 50mm of each connection point. The
length of the chain or wire is not to exceed 80% of the length of the hose
assembly.
• It is recommended that a manual shut-off valve be installed in the gas
supply line, in an accessible position external to the appliance, so that the
gas supply to the appliance can be shut off in the event of an emergency or
for servicing without having to remove the appliance.
• For the connection of the electric cord and plug, the general purpose outlet
and switch must not be installed within the appliance recess and must be
readily accessible without having to remove the appliance.
