Stoelting E112-LJ User manual

Model E112-LJ / F112-LJ
OPERATORS MANUAL
Manual No. 513643 Feb. 2010

This manual provides basic information about the machine. Instructions and suggestions are
given covering its operation and care.
The illustrations and specifications are not binding in detail. We reserve the right to make
changes to the machine without notice, and without incurring any obligation to modify or pro-
vide new parts for machines built prior to date of change.
DO NOTATTEMPT to operate the machine until instructions and safety precautions in this
manual are read completely and are thoroughly understood. If problems develop or questions
arise in connection with installation, operation, or servicing of the machine, contact Stoelting.
Stoelting Foodservice Equipment
502 Highway 67
Kiel, WI 53042-1600
U.S.A.
Main Tel: [phone]
Fax: [phone]
Customer Service: 888.429.5920
Fax: [phone]
Email: [email protected]
© 2014 PW Stoelting, LLC
stoeltingfoodservice.com

Safety Alert Symbol:
This symbol Indicates danger, warning or caution.
Attention is required in order to avoid serious per-
sonal injury. The message that follows the symbol
contains important information about safety.
Signal Word:
Signal words are distinctive words used throughout
this manual that alert the reader to the existence and
relative degree of a hazard.
CAUTION
The signal word “CAUTION” indicates a potentially
hazardous situation, which, if not avoided, may result
in minor or moderate injury and equipment/property
damage.
A Few Words About Safety
Safety Information
Read and understand the entire manual before
operating or maintaining Stoelting equipment.
This manual provides the operator with information
for the safe operation and maintenance of Stoelting
equipment. As with any machine, there are hazards
associated with their operation. For this reason safety
is emphasized throughout the manual. To highlight
specific safety information, the following safety defini-
tions are provided to assist the reader.
The purpose of safety symbols is to attract your at-
tention to possible dangers. The safety symbols, and
their explanations, deserve your careful attention
and understanding. The safety warnings do not by
themselves eliminate any danger. The instructions
or warnings they give are not substitutes for proper
accident prevention measures.
If you need to replace a part, use genuine Stoelting
parts with the correct part number or an equivalent
part. We strongly recommend that you do not use
replacement parts of inferior quality.
WARNING
The signal word “WARNING” indicates a potentially
hazardous situation, which, if not avoided, may result
in death or serious injury and equipment/property
damage.
CAUTION
The signal word “CAUTION” not preceded by the
safety alert symbol indicates a potentially hazardous
situation, which, if not avoided, may result in equip-
ment/property damage.
NOTE (or NOTICE)
The signal word “NOTICE” indicates information or
procedures that relate directly or indirectly to the
safety of personnel or equipment/property.

Section Description Page
1 Description and Specifications
1.1 Description .................................................................................................1
1.2 Specifications.............................................................................................2
2 InstallationInstructions
2.1 SafetyPrecautions .....................................................................................5
2.2 ShipmentandTransit .................................................................................5
2.3 MachineInstallation....................................................................................5
2.4 Auto Fill Pump Installation..........................................................................6
3 Initial Set-Up and Operation
3.1 Operator’sSafetyPrecautions....................................................................7
3.2 OperatingControlsandIndicators...............................................................7
3.3 RemovingMixFromMachine .....................................................................8
3.4 Disassembly of Machine Parts ...................................................................8
3.5 Cleaningand Sanitzingthe Machine Parts .................................................9
3.6 Assembly of Machine .................................................................................10
3.7 Sanitizing ...................................................................................................11
3.8 FreezeDownandOperation .......................................................................11
3.9 MixInformation...........................................................................................12
3.10 RoutineCleaning ........................................................................................12
3.11 PreventativeMaintenance ...........................................................................12
3.12 ExtendedStorage.......................................................................................14
4 Troubleshooting
4.1 LightIndicators ...........................................................................................15
4.2 Troubleshooting ..........................................................................................15
4.3 Troubleshooting- Auto FillSystem .............................................................16
5 Replacement Parts
5.1 DecalsandLubrication ...............................................................................17
5.2 AugerShaftandFaceplateParts................................................................18
5.3 HopperParts ..............................................................................................20
5.4 Auto Fill Parts ............................................................................................21
TABLE OF
CONTENTS

1
SECTION 1
DESCRIPTION AND SPECIFICATIONS
1.1 DESCRIPTION
The Stoelting E112-LJ /F112-LJ counter machines are
gravityfed.Themachinesareequippedwithfullyautomatic
controls to provide a uniform product. This manual is
designedtohelpqualifiedservicepersonnelandoperators
with the installation, operation and maintenance of the
StoeltingE112-LJ/F112-LJgravitymachines.
Figure 1-1 Model F112-LJ
Figure 1-1 Model E112-LJ

2
Figure 1-2 Specifications
E112
F112
1.2 SPECIFICATIONS

3
1.2 SPECIFICATIONS - CONTINUED
Dimensions Machine with crate Machine with crate
width 15-1/4'' (38,7 cm) 17-1/2'' (44,5 cm) 17-1/4'' (43,8 cm) 29'' (73,7 cm)
height 30-1/2'' (77,5 cm) 35'' (88,9 cm) 33'' (83,8 cm) 44'' (111,8 cm)
depth 32'' (81,3 cm) 36-1/2'' (92,7 cm) 30-1/4'' (76,8 cm) 39'' (99,1 cm)
Weight 205 lbs (92,9 kg) 215 lbs (97,5 kg) 288 lbs (130,6 kg) 315 lbs (142,8 kg)
Electrical
running amps
connectiontype
International Option
Compressor
Drive Motor
Air Flow
Plumbing Fittings
Hopper Volume
Freezing Cylinder
Volume
Production
Capacity 18 GPH (68,15 liters) 24 GPH(90,87 liters)
6,000 Btu/hr 8,600 Btu/hr
1/3 hp 3/4 hp
Air cooled units require 3" (7,6 cm) air
space onbothsides or 4"
(10,2 cm) air space inback
for side-by-side installation
Air cooled units require 6" (15,24 cm)
air space on both sides
1.25 gallon(5 quart), 4,73 liters 2.125 gallon(8.5 quart),8,04 liters
3.625 gallon(13,73 liters) 5.375 gallon(20,35 liters)
approximately16A approximately 10A
N/A Water cooled units require 3/8" N.P.T.
water and drainfittings.
NEMA5-20P power cord provided NEMA6-15P power cord provided
1 Phase,220-240 VAC, 50Hz 1 Phase,220-240 VAC, 50Hz
Model E112 Model F112
1 Phase, 115 VAC, 60Hz 1 Phase, 208-240 VAC, 60Hz

4

5
SECTION 2
INSTALLATION INSTRUCTIONS
2.1SAFETYPRECAUTIONS
Do not attempt to operate the machine until the safety
precautions and operating instructions in this manual are
read completely and are thoroughly understood.
Take notice of all warning labels on the machine. The
labelshavebeenputtheretohelpmaintainasafeworking
environment.Thelabelshavebeendesignedtowithstand
washing and cleaning. All labels must remain legible for
thelifeofthemachine.Labelsshouldbecheckedperiodi-
callytobesuretheycanberecognizedaswarninglabels.
If danger, warning or caution labels are needed, indicate
the part number, type of label, location of label, and
quantityrequired along with your addressand mailto:
STOELTING
ATTENTION: Customer Service
502 Hwy. 67
Kiel, Wisconsin 53042
2.2 SHIPMENT AND TRANSIT
The machine has been assembled, operated and in-
spectedatthefactory.Uponarrivalatthefinaldestination,
the entire machine must be checked for any damage
which may have occurred during transit.
With the method of packaging used, the machine should
arriveinexcellentcondition.THECARRIERISRESPON-
SIBLE FOR ALL DAMAGE IN TRANSIT, WHETHER
VISIBLEORCONCEALED.Donotpaythefreightbilluntil
the machine has been checked for damage. Have the
carrier note any visible damage on the freight bill. If
concealeddamageand/orshortageisfound later, advise
the carrier within 10 days and request inspection. The
customermustplaceclaimfordamagesand/orshortages
in shipment with the carrier. Stoelting cannot make any
claims against the carrier.
2.3 MACHINE INSTALLATION
Installation of the machine involves moving the machine
close to its permanent location, removing all crating,
setting in place, assembling parts, and cleaning.
A. Uncratethemachine.
B. Determinethelocationofthemachine.Thelocation
must be able to hold 350 lbs.
C. Accuratelevelingisnecessaryforcorrectdrainage
of machine barrel and to insure correct overrun.
Placeabubblelevelontopofthemachineateach
corner to check for level condition. If adjustment
is necessary, level the machine by turning the
bottom part of each leg in or out.
D. The F112-LJ has a base gasket that must be
installed.Separatethegasketandinstallitwiththe
seamtotheback.Makesuretheangledsideofthe
gasket is facing up.
E. Correctventilationisrequired.TheE112-LJrequires
3”clearanceonbothsides.Ifthemachineisplaced
side-by-sidenexttootherequipment,thereneeds
to be at lease 4” clearance at the back of the
machine. The air-cooled F112-LJ requires 6”
clearanceonbothsidesforproperairflow.
F. Connectthedriptraybracketbylooseningthetwo
screws at the front of the machine. Install the
bracket so that it rests on the nylon washer
betweenthetwometalwashers.Tightenthescrews.
G. Place the CLEAN-ON-OFF switch in the OFF
position.
CAUTION
Failuretoprovide adequate ventilationwillvoid war-
ranty.
Figure 2-3 Drip Tray Bracket
Figure 2-2 Space and Ventilation Requirements

6
WARNING
Do not alter or deform electrical plug in any way.
Altering the plug to fit into an outlet of different con-
figuration may cause fire, risk of electrical shock,
product damage and will void warranty.
H. Connect the power cord to the proper power
supply. The plug on the E112 is designed for
115VAC/20ampdutyandtheplugontheF112is
designed for 208-240VAC / 15 amp duty. Check
thenameplateonyourmachineforpropersupply.
Theunitmustbeconnectedtoaproperlygrounded
receptacle.Theelectricalcordfurnishedaspartof
the machine has a three prong grounding type
plug. The use of an extension cord is not
recommended,ifnecessaryuseonewithasize12
gaugeorheavierwithgroundwire.Donotusean
adaptertogetaroundgroundingrequirement.
2.4AUTOFILLPUMP INSTALLATION
Theautofillpumpispoweredbywaterandhasafixedorifice
that delivers water and syrup to the machine at an exact
ratio. The auto fill kit is designed for use with Bag In Box
(BIB)concentratedsyrup.
Follow these instructions to properly install the brix pump
A. Route the clear tubing with the BIB connector to
the BIB. If there is excess tubing, trim it and
reconnect it to the BIB connector.
B. Routethewaterlinetubingtotheshutoffvalveofthe
watersupply.Trimexcesstubingandconnectitto
theshutoffvalve.
C. Route the water line and syrup line tubing (3/8”
braidedtubing)fromthepump to themachine.
to
machine
water
inlet
to
BIB
Figure 2-4 Auto Fill Pump Tubing Layout
water outlet
to machine
water inlet
fromshutoff
valve
syrupoutlet
to machine
syrup inlet
from BIB
this side of
pump is
mounted to
the BIB shelf
Figure 2-5 Top View of Pump
Figure 2-6 Auto Fill Pump Kit
D. Route the waterlinetubingtothe tube exitingthe
rearpanel. Trim excesstubing and connect.
E. Routethesyruplinetothetubingconnectedtothe
adapteron thehopper cover. Trim excess tubing
andconnect.
F. Checkthatthecleartubingcomingoutoftherear
panelisconnectedtothepluginthehoppercover.
If not, connect it using a clamp in the kit.
G. Check that all tubing connections are properly
clamped,fittingsaretightenedandthetubingisnot
kinked.

7
SECTION 3
INITIAL SET-UP AND OPERATION
3.1 OPERATOR’S SAFETY PRECAUTIONS
SAFE OPERATION IS NO ACCIDENT; observe these
rules:
A. Know the machine. Read and understand the
OperatingInstructions.
B. Notice all warning labels on the machine.
C. Wearproperclothing.Avoidloosefittinggarments,
and remove watches, rings or jewelry that could
cause a serious accident.
D. Maintain a clean work area. Avoid accidents by
cleaning up the area and keeping it clean.
E. Stay alert at all times. Know which switch, push
button or control you are about to use and what
effect it is going to have.
F. Disconnectelectricalcordformaintenance.Never
attempt to repair or perform maintenance on the
machineuntilthemainelectricalpowerhasbeen
disconnected.
G. Donotoperateunderunsafeoperatingconditions.
Neveroperatethemachineifunusualorexcessive
noise or vibration occurs.
3.2 OPERATING CONTROLS AND
INDICATORS
Before operating the machine, it is required that the
operatorknowthefunctionofeachoperatingcontrol.Refer
toFigure3-1forthelocationoftheoperatingcontrolsonthe
machine.
A. Spigot Switch
Thespigotswitchwillautomaticallystarttheauger
driveandrefrigerationsystemswhenthespigotis
opened to dispense product. When the spigot is
closed,thedrivemotorandcompressorwillremain
onuntiltheproductinthefreezingcylinderreaches
the proper consistency..
WARNING
High voltage will shock, burn or cause death. The
OFF-ONswitch mustbe placedin theOFF position
prior to disassembling for cleaning or servicing. Do
not operate machine with cabinet panels removed.
Figure 3-1 Controls
Consistency
Adjustment
Screw
Diagnostic
Light
Add Mix
Indicator
Clean/Off/On
Switch

8
B. CLEAN-OFF-ONSwitch
The CLEAN-OFF-ON switch is used to supply
powerto the control circuit. Whenthe switchis in
the OFF (middle) position, power will not be
supplied to the control board or refrigeration
system.WhentheswitchisintheONposition,the
machinewilloperateinthefreezingmode.When
theswitchisintheCLEANposition,allrefrigeration
will stop and the auger will start rotating.
C. ADD MIX Light
The ADD MIX light will flash to alert the operator
toalowmixcondition.Itdoessobymonitoringthe
mix level in the hopper. If the ADD MIX light is
flashing, check the auto fill system to determine
theissue.Refertothetroubleshootingsectionfor
details
D. DiagnosticLight
The Diagnostic Light will remain lit for defrost
mode. It will flash if an error occurs. The light will
flashonceifthereisacompressorerror.Therewill
betwoquickflashesifthereisanaugererror.And
there will be three quick flashes if the machine is
leftincleanmodeformorethan20minutes.Refer
to the troubleshooting section for details.
E. Consistency Adjustment Screw
TheConsistencyAdjustmentScrewincreasesor
decreasesproductconsistency.Atensionspring
isconnectedtothescrewandchangestheamount
oftorqueneededtocompletearefrigerationcycle.
Turn the knob clockwise to increase consistency
or counterclockwise to decrease consistency.
F. Front Door Safety Switch
The front door safety switch prevents the auger
fromturningwhenthefrontdoorisremoved.The
switch is open when the door is not in place and
closed when the door is properly installed.
G. HopperProbes
The mix level in the hopper is controlled by two
probes. When mix in the hopper gets below the
longprobe,thesolenoidopensandthehopperfills.
When the mix level reaches the short probe, the
solenoid closes.
3.3 REMOVING MIX FROM MACHINE
Toremovethemixfromthemachine,refertothefollowing
steps:
A. Wash,rinse,dryandsanitizehandsbeforestarting.
B. TurnthewaterlinelevertotheOffposition.
C. PlacetheClean/Off/OnswitchtoCleananddrain
the mix from the freezer into a utility bucket and
turnoffthemachine.Discardmixintothesecond
compartmentofa3-compartmentsink.
D. Fill the hopper with 2 gallons of clean, cold water
using the clean white utility bucket.
E. Place the Clean/Off/On switch to Clean. Run the
machine in Clean mode for approximately 5
minutes. Continue to the next step while the
machine is cleaning.
F. Prepare Stera-Sheen Green Label Sanitizer
accordingtomanufacturer’sinstructionstoprovide
a 100ppm strength solution. In the blue cleaner/
sanitizer bucket, mix 1 packet of sanitizer and 2
gallonsof coldwater. Checkthe chlorinecontent
with a test strip to ensure 100ppm strength.
G. After5minutes,drainthewaterfromthemachine
into the red utility bucket and discard the water.
NOTE
If the water does not drain clear, repeat the steps.
H. PlacetheClean/Off/OnswitchOff.
I. Fill the hopper with the 2 gallons of sanitizer
solution from the blue bucket.
J. Place the Clean/Off/On switch to Clean. Run the
machine in Clean mode for approximately 5
minutes.
K. After 5 minutes, drain the sanitizer solution from
themachineintotheredutilitybucketanddiscard
the solution.
3.4 DISASSEMBLY OF MACHINE PARTS
Inspectforwornorbrokenpartseachtimethemachineis
disassembled.Replaceanywornorbrokenpartstoensure
safety to both the operator and the customer and to
maintaingoodmachineperformanceandaqualityproduct.
Frequency of cleaning must comply with the local health
regulations.
Todisassemblethemachine, refertothefollowing steps:
CAUTION
Hazardous Moving Parts.
Revolving auger shaft can grab and cause injury.
Place the switch in the OFF (middle) position be-
fore disassembling for cleaning or servicing.

9
A. Pull out the spigot pin by its ring. Remove the
spigothandle. NOTE
Place all parts into the lemonade parts basket im-
mediately after removing from the machine. Place
small parts onto the small parts rod in the basket.
B. Remove front door by turning the circular knobs
andthen pullingdoor off the studs.
NOTE
When removing front door, entire door and stator
assembly will come out as well.
C. Removethetorquerodfromthestatorassembly.
D. Removethequadringfromthegrooveinfrontdoor.
E. Remove the stator bar. Remove the small white
bushing.
F. Remove the o-rings at the front and back of the
stator bar by first wiping off the lubricant using a
cleanpapertowel.Thensqueezetheo-ringupward
withadrycloth.Whenaloopisformed,rolltheo-
ringoutofthegroove.
G. Removetheaugersupportbushing.
H. Turn the spigotbodyuntiltheice breaker bar can
beremoved.Removebreakerbar.
I. Removethespigotbodyfromthefrontdoor.
J. Removetheo-rings(2)fromthespigot.
K. Remove the auger assembly from the freezing
cylinderandremovetheaugerblade.Removethe
rearsealando-ringfromtheauger.
L. Removethedraintray,driptrayanddriptraygrid.
M. Removethehoppercoveranddisconnecttheauto
filladapterfromthecoverbypullingouttheretaining
clip.
3.5 CLEANING AND SANITIZING THE
MACHINE PARTS
Place all loose parts in a pan or container and take to the
washsinkforcleaning.Localandstatehealthcodesdictate
theprocedurerequired.Somehealthcodesrequireafour-
sinkprocess(pre-wash,wash,rinse,sanitize,andair-dry),
whileothercodesrequireathree-sinkprocess(withoutthe
pre-wash step). The following procedures are a general
guidelineonly.Consultyourlocalandstatehealthcodesfor
proceduresrequiredinyourlocation.
A. Setupa3-compartmentsinkwithwash,rinseand
sanitize compartments. Use only Stera Sheen
Green Label or Kay-5 Green. Prepare sanitizer
accordingtomanufacturer’sinstructionstoprovide
a 100ppm strength solution. Set aside a small
amountofsanitizer
B. Cleanallpartsusingbrushesprovided.
C. After cleaning, removethe parts and let airdry.

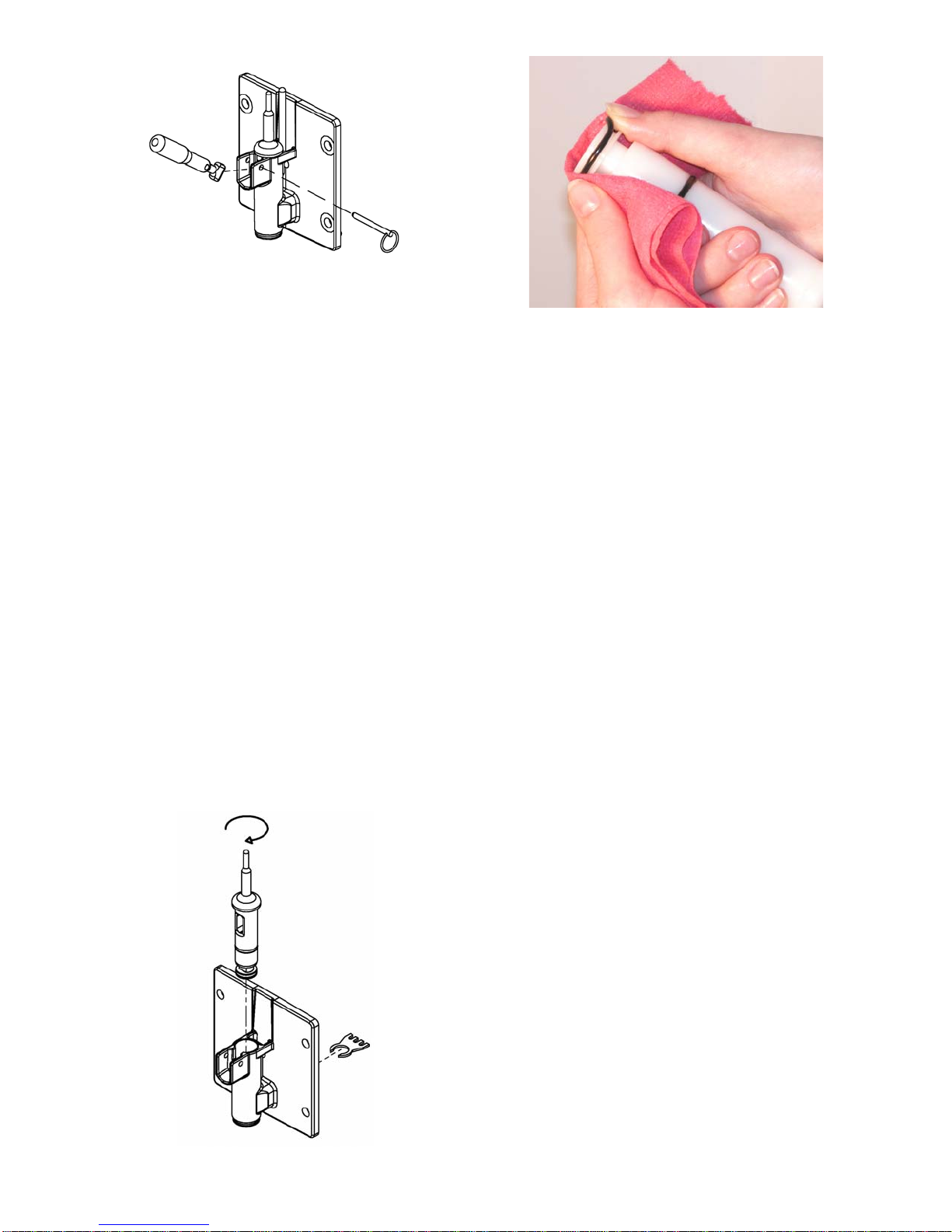

Figure 3-4 Removing O-Ring
Figure 3-3 Spigot and Ice Breaker Bar Removal
Figure 3-2 Remove Spigot Pin

10
D. Sanitize the hopper and freezing cylinder with
sanitizer. Be sure to clean the rear seal surfaces
insidethefreezingcylinder.
E. Wipe down the outside of the machine and table
with a yellow sanitized towel.
3.6 ASSEMBLY OF MACHINE
Toassemblethemachineparts,refertothefollowingsteps:
NOTE
Petrol Gel sanitary lubricant or equivalent must be
used when lubrication of parts is specified.
NOTE
The United States Department of Agriculture and
theFood and DrugAdministration require thatlubri-
cants used on food processing equipment be certi-
fied for this use. Use lubricants only in accordance
withthe manufacturer’s instructions.
A. Wash,rinse,dryandsanitizehandsbeforestarting.
B. Placetherearsealo-ringontotheaugerandapply
a thin film of Petrol-Gel to the o-ring.
C. Assemble the rear seal onto the auger with the
largeendofthesealtotherear.Lubricatethehex
end of the auger with a small amount of spline
lubricant.
D. Installtheplasticaugerbladeontotheauger.Push
the auger into the freezing cylinder and rotate it
slowlyuntiltheauger engages thedriveshaft.
E. Assemble the o-rings onto the spigot body and
apply a thin film of Petrol-Gel onto the o-rings.
F. Insert the spigot body into the front door.
NOTE
When inserting the spigot body, press the o-rings
againstthe spigotto preventdamage.

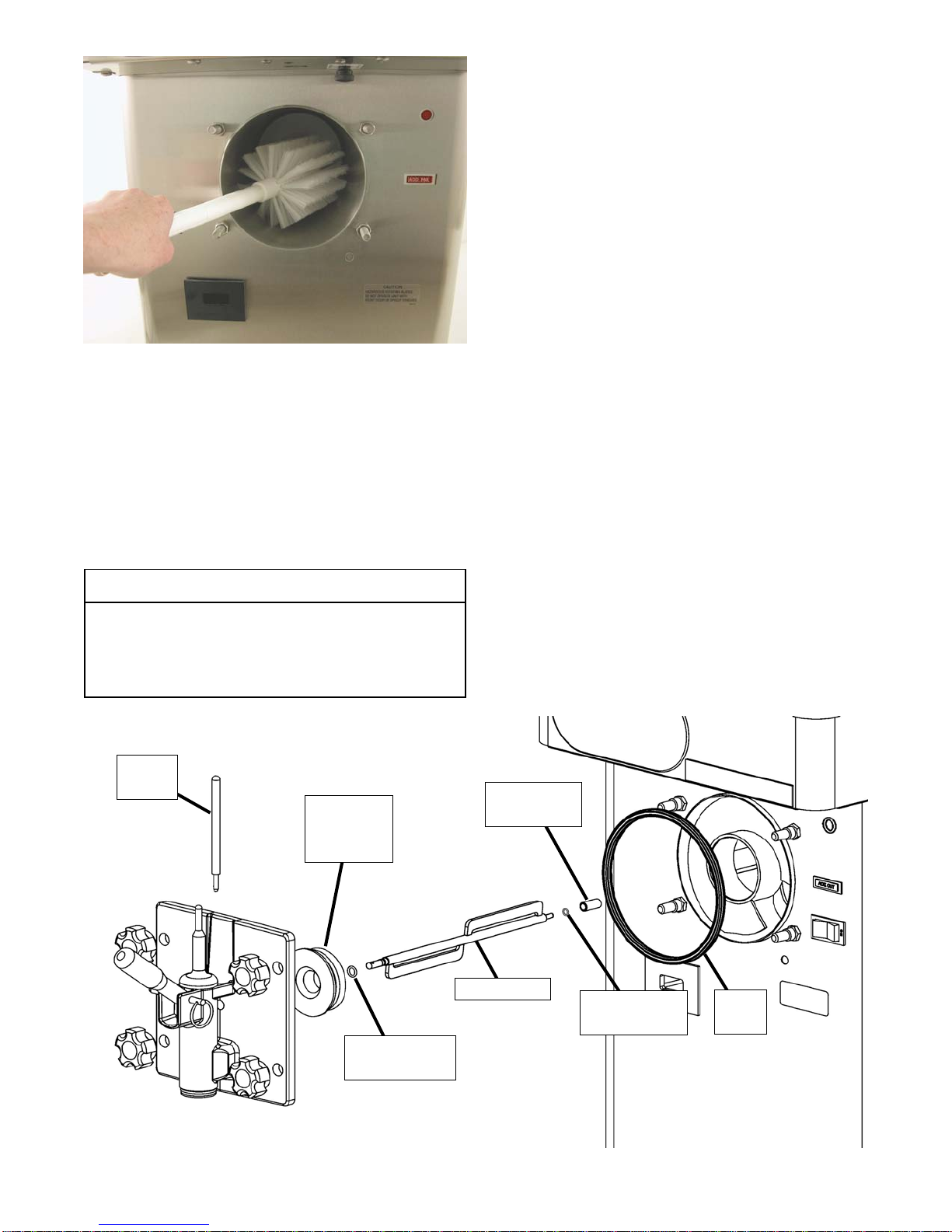

Figure 3-5 Cleaning Freezing Cylinder
CAUTION
Donotallowsanitizertoremain in contactwithstain-
less steel parts for prolonged periods. Prolonged
contact of sanitizer with machine may cause corro-
sion of stainless steel parts.
figure 3-6 Door and Stator Assembly
Torque
Rod Auger
Support
Bushing
Stator Bar
Front O-Ring
Stator Bar
Bushing
Quad
Ring
Stator Bar Stator Bar
Rear O-Ring

11
G. Turnthespigotbodyuntiltheicebreaker bar can
be inserted. Insert the ice breaker bar and rotate
spigot body 90°.
H. Apply Petrol-Gel to the inside and outside of the
front auger support bushing. Install the bushing
onto the front door so the beveled edge of the
bushing is against the door.
I. Installthelargequadringintothegrooveinthefront
door.
J. Installtheo-ringsatthefrontandbackofthestator
bar.ApplyathinfilmofPetrol-Gelontotheo-rings.
Install the small white bushing to the stator bar.
K. Insert the stator bar into the front door and insert
the torque rod through the hole in the stator bar.
L. Install the front door onto the freezer. Install the
knobs onto the studs.
NOTE
When installing the front door, the torque rod must
beplaced in the center notchof thetorque actuator
arm.
M. Insert the spigot handle so the hole lines up and
insert the spigot pin.
N. Install the drain tray, drip tray and drip tray grid.
3.7 SANITIZING
Sanitizingmustbedoneafterthemachineiscleaned and
justbeforethehopperisfilledwithmix.Sanitizingthenight
beforeisnoteffective.However,youshouldalwaysclean
the machine and parts after each use.
TheUnitedStatesDepartmentofAgricultureandtheFood
and Drug Administration require that all cleaning and
sanitizingsolutionsusedwithfoodprocessingequipment
be certified for this use.
Whensanitizingthemachine, refertolocalsanitary regu-
lationsforapplicablecodesandrecommendedsanitizing
productsandprocedures.Thefrequencyofsanitizingmust
comply with local health regulations.
Mix sanitizer according to manufacturer’s instructions to
providea100partspermillion(ppm)strengthsolutionand
checkthesolutionwithchlorineteststrips.Mixsanitizerin
quantities of no less than 2 gallons (7.5 liters) of 90° to
110°F (32° to 43°C) water. Allow sanitizer to contact the
surfacestobe sanitizedfor5 minutes. Anysanitizermust
beusedonlyinaccordancewiththemanufacturer’sinstruc-
tions.
In general, sanitizing may be conducted as follows:
A. Prepare Stera-Sheen Green Label Sanitizer
accordingtomanufacturer’sinstructionstoprovide
a 100ppm strength solution. In the blue cleaner/
sanitizer bucket, mix 1 packet of sanitizer and 2
gallonsof coldwater. Checkthe chlorinecontent
with a test strip to ensure 100ppm strength.
B. Pour the sanitizing solution into the hopper.
C. Place theClean/Off/On switchto Clean.
D. Useasanitizedbarrelbrushtosanitizethehopper
sidesandhoppercoverwiththesanitizersolution
inthehopper.
E. After 5 minutes, drain the sanitizer solution from
themachineintotheredutilitybucketanddiscard
the solution. Leave a small amount of sanitizer
solutionin the freezing cylinder.
F. PlacetheClean/Off/OnswitchOff.
G. Collecttheremainingsanitizerinacleancupand
check the chlorine content with a test strip. If the
chlorine content is less than 100ppm, repeat the
sanitizingprocedure.Iftheteststripdoesnotread
100ppm after the second test, repeat the
disassembly,cleaningandsanitizingprocedures.
H. Connect the auto fill adapter to the hopper cover
withtheretainingclipandplacethehoppercover
ontothehopper.
I. Turn thewater line leverto theOn position.
J. TurntheClean/Off/OnswitchOn.Openthespigot
to drain out any remaining sanitizer into the red
utility bucket. Close the spigot when mix begins
comingout.
3.8 FREEZE DOWN AND OPERATION
This section covers the recommended operating proce-
duresforthesafeoperationofthemachine.
A. Afterthefreezing cylinder isfilled,product willbe
ready to serve in 8 to 12 minutes.
B. Todispense,pullthespigothandledowntoopen
the spigot.
CAUTION
Donotallowsanitizertoremain in contactwithstain-
less steel parts for prolonged periods. Prolonged
contact of sanitizer with machine may cause corro-
sion of stainless steel parts.

12
C. Themachineisdesignedtodispensetheproduct
at a reasonable draw rate. If the machine is
overdrawn,theresultisawetproductoraproduct
that will not dispense at all. If this should occur,
allow the machine to run for approximately 30
secondsbeforedispensingadditionalproduct.
D. Do not operate the machine when the ADD MIX
lightison.Immediatelycheckiftheautofillsystem
isoperatingproperly.
NOTE
After 3 hours if the spigot is not opened, the ma-
chinewill go intodefrost mode.During this time,the
diagnosticlightwillbe lit andtheaugerwill runfor90
seconds every 7 minutes. Defrost mode maintains
consistency in the product and prevents large ice
crystalsfromforming.Toend defrostmode,turn the
Clean/Off/OnswitchOffthenbackOn.Defrostmode
will also end if the spigot is opened.
3.9 MIX INFORMATION
Mix can vary considerably from one manufacturer to an-
other.Differencesinthequantityandqualityofingredients
have a direct bearing on the finished frozen product. A
changeinmachineperformancethatcannotbeexplained
by a technical problem may be related to the mix.
Proper product serving temperature varies from one
manufacturer’s mix to another. Stackable slush mixes
providesatisfactoryproductfrom24°to28°F(-4°to-2°C).
When checking the temperature, stir the thermometer in
thefrozenproducttoobtainan accurate reading.
3.10 ROUTINE CLEANING
Toremovespilled ordried mix fromthe machine exterior,
wash in the direction of the finish with warm soapy water
andwipedry.Donotusehighlyabrasivematerialsasthey
will mar the finish.
3.11 PREVENTIVE MAINTENANCE
Stoelting recommends that a maintenance schedule be
followedtokeepthemachinecleanandoperatingproperly.
B. DAILY
1. The exterior should be kept clean at all times to
preserve the luster of the stainless steel. A mild
alkalinecleanerisrecommended.Useasoftcloth
or sponge to apply the cleaner.
C. WEEKLY
1. Checko-ringsandrearsealforexcessivewearand
replaceifnecessary.
2. Removethedriptraybygentlyliftinguptodisengage
fromthesupportandpullingout.Cleanbehindthe
drip tray and front of the machine with a soap
solution.
D. QUARTERLY
Air Cooled
Theair-cooledcondenserisacoppertubeandaluminumfin
type. Condensing is totally dependent upon airflow. A
pluggedcondenserfilter,condenser,orrestrictionsin the
louvered panel will restrict airflow. This will lower the
capacity of the system and damage the compressor.
Thecondensermustbekeptcleanofdirtandgrease.The
F112musthaveaminimumof6”(15.2cm)ofventilationon
therightandleftsidesoftheunitforfreeflowofair.TheE112
musthave3”(7.6cm)ofventilation.Makesurethemachine
isnotpullingover100°F(37°C)airfromotherequipment
in the area.
Thecondenserandcondenserfilterrequireperiodicclean-
ing.Toclean,refertothefollowingprocedures.
E112 Air Cooled Condenser Cleaning
A. Unscrewtheknoblocatedontheundersideofthe
machinetowardsthefront(Fig.3-7).
B. Removethefilterbracketandremovethefilter.
C. Visually inspect the condenser filter for dirt.
D. Ifthefilterisdirty,vacuumorbrushclean,rinsewith
cleanwaterandallowtodrybeforereplacingonthe
machine. NOTE
If the condenser is not kept clean, refrigeration effi-
ciency will be lost.
Figure 3-7 E112 Condenser Filter Removal

13
F112 Air Cooled Condenser Cleaning
A. RemovethePhillipsheadscrewsfromthebottom
oftheleftsidepanel,andthenslidethepaneldown
andout.
B. Toremovethecondenserfilter,graspthetopand
pulloff.Visuallyinspectfordirt.Ifthefilterisdirty,
shakeorbrushexcessdirtoffthefilterandwashin
warm, soapy water. Once the filter is clean rinse
thoroughly in warm, clear water and shake dry,
takingcarenottodamagethefilterinanyway(Fig.
3-8).
C. Visually inspect the condenser for dirt by shining
alightthroughthecoilfromtheback(inside)ofthe
condenser.
D. Ifthecondenserisdirty,placeawettoweloverthe
front(outside)ofthecondenser.
E. Usingavacuum,carefullycleanthecondensercoil
fromtheinsideandoutsideofthemachine.Astiff
bristled brush may help in releasing debris from
betweenthecondensercoils.
Water Cooled (F112 only)
Thewater-cooledcondenserisatubeandshelltype.The
condenserneedsacool,cleansupplyofwatertoproperly
coolthemachine,inletanddischargelinesmustbe3/8”I.D.
minimum. Make sure the machine is receiving an unre-
stricted supply of cold, clean water.
E. SEMI-ANNUALLY
1. Disconnectthemachinefromthe power source.
2. Check drive belt for proper tension. Push belt in
withone finger, beltshould deflect about 3/8".
3. Lubricate condenser fan motor with S.A.E. 20
weightoil. Three tosix dropsare required.
4. Sanitize the autofill system following the steps
below:
AUTOFILLSANITIZING
A. Ifnecessary,disassemble,cleanandsanitizethe
machine. NOTE
If the machine does not require cleaning and sani-
tizing, turn it off and dispense enough product so
that the mix level in the hopper is below the long
probe. If the mix level is above the long probe, the
solenoidwillnot activate andthepumpwill notoper-
ate.
B. Prepare Stera-Sheen Green Label Sanitizer
accordingtomanufacturer’sinstructionstoprovide
a 100ppm strength solution. In the blue cleaner/
sanitizer bucket, mix 1 packet of sanitizer and 2
gallonsof coldwater. Checkthe chlorinecontent
with a test strip to ensure 100ppm strength.
C. Cut an adapter from an empty bag of syrup.
Connect the adapter to the BIB connector of the
syrup line. Put the BIB connector into the bucket
ofsanitizer. NOTE
If you do not have an emtpy bag of syrup, remove
the plug from the top of the BIB connector. Do not
losetheplug; it isneededfor proper operationofthe
BIB.
D. Hold the hopper cover over a bucket and set the
machine to clean. The solenoid will activate and
thebrix pumpwill pump sanitizer into thebucket.
NOTE
Thesolenoidwill onlyactivatewhen there isnot any
liquidtouching thelonger mix probe in the hopper.
E. After all the sanitizer has run through the pump,
turnthemachineoff.
F. DisconnectthebagadapterfromtheBIBconnector
(orreinsert the pluginto theconnector). Connect
the BIB connector to the syrup BIB.
G. Setthemachinetocleanandholdthehoppercover
overabucket.Thiswillflushthesanitizeroutofthe
pumpandtubing. When puresyrupcomes out of
thetubing, turn the machine off.
H. The machineis now ready to operate. Place the
hoppercoveronthehopperandturnthemachine
on.

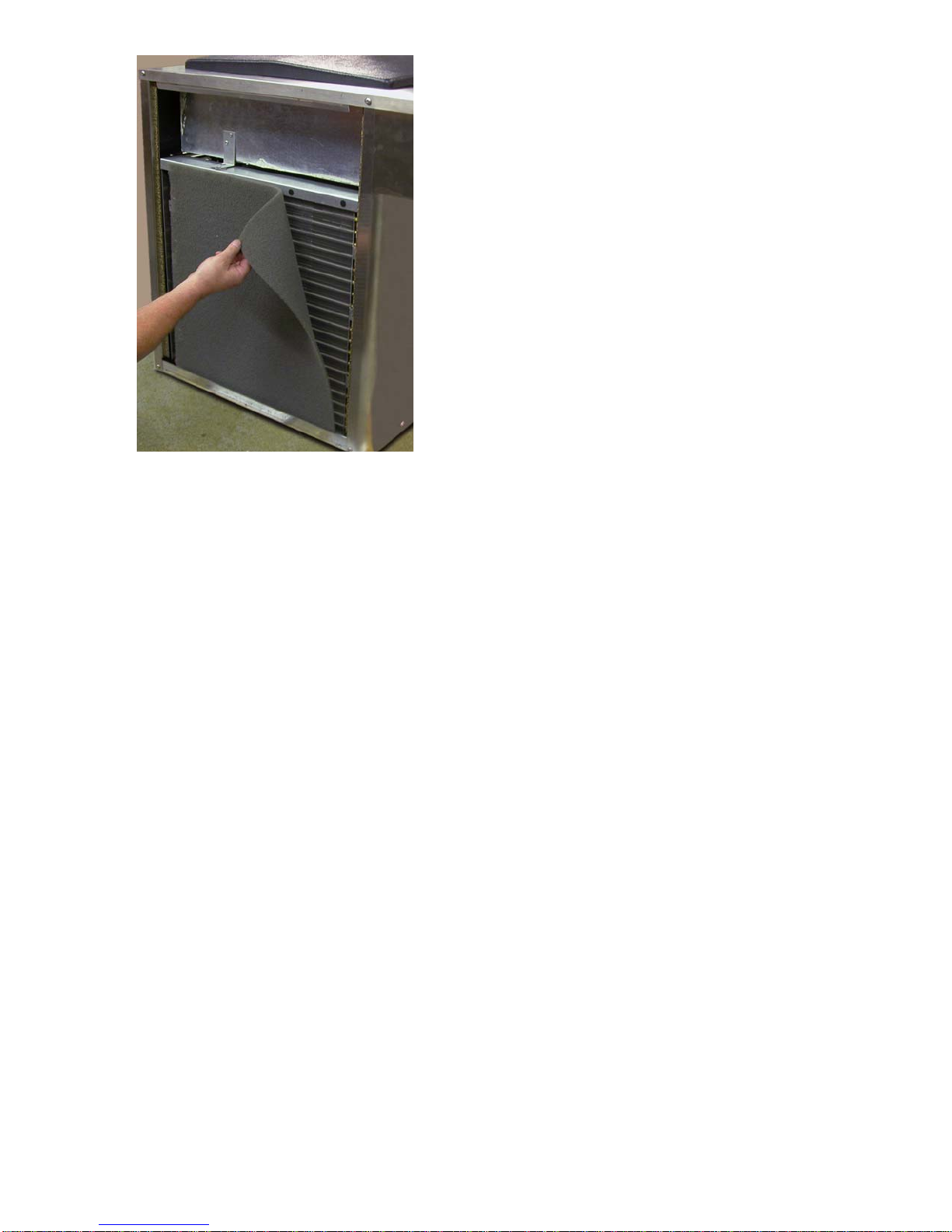

Figure 3-8 F112 Condenser Filter Removal

14
3.12 EXTENDED STORAGE
Refertothefollowingstepsforstorageofthemachineover
anylongperiodof shutdown time:
A. Followthecleaningandsanitizingproceduresfor
themachineandfollowthesemi-annualinstructions
to sanitize the auto fill system.
B. Place the CLEAN-OFF-ON switch in the OFF
(middle)position.
C. Disconnect (unplug) from the electrical supply
source.
D. Cleanthoroughlywithawarmwaterdetergentall
parts that come in contact with the mix. Rinse in
clean water and dry parts. Do not sanitize.
NOTE
Do not let the cleaning solution stand in the hopper
or in the freezing cylinder during the shutdown pe-
riod.
E. Remove, disassemble and clean the front door,
mixinlet regulator andauger parts.
F. Inawatercooledmachine,disconnectwaterlines
anddrainwater.Withaflatheadscrewdriver,hold
the water valve open and use compressed air to
clearthe lines of any remainingwater.
