Stone AIO PC M770 User manual

1

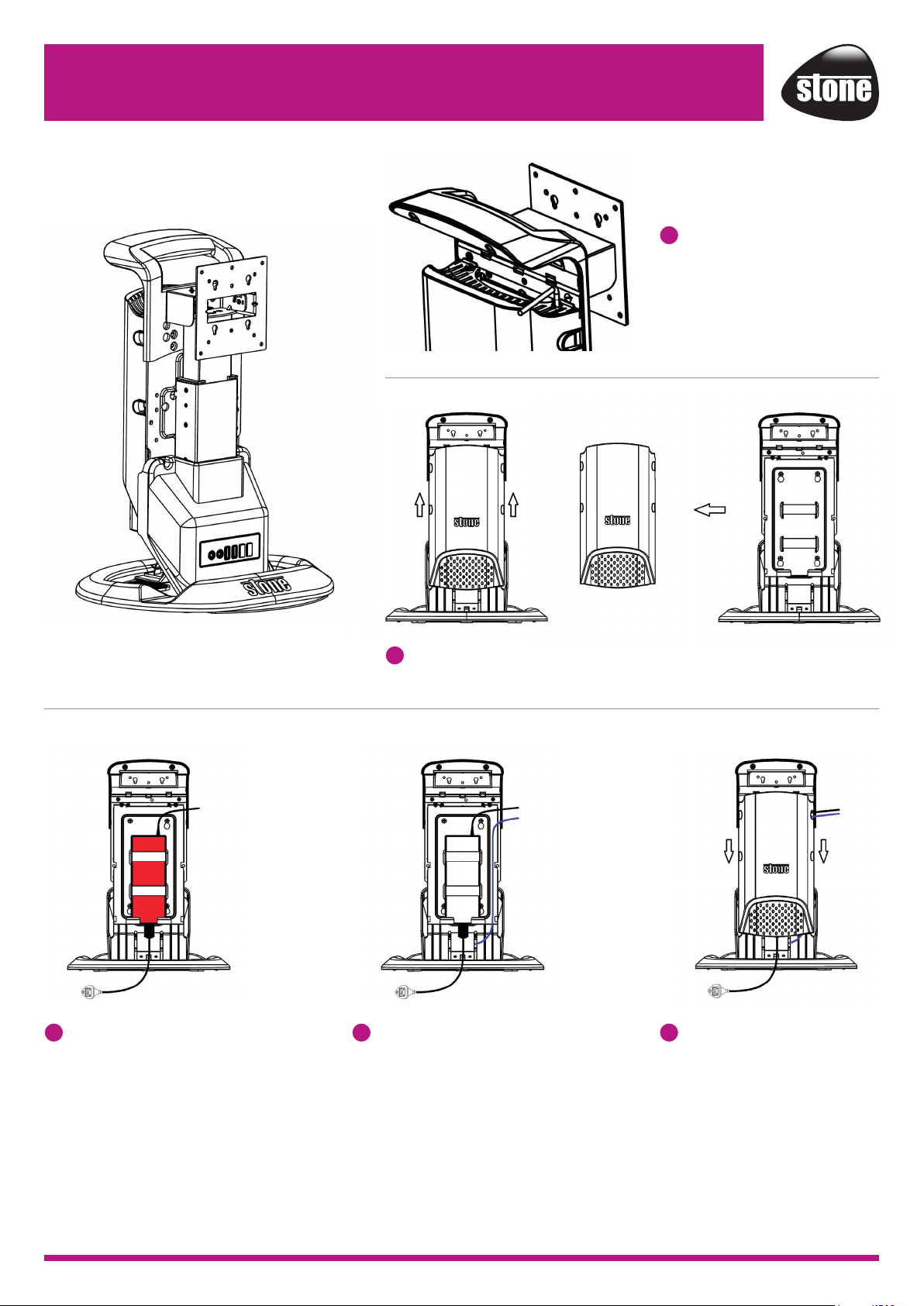

Using the tool provided remove the screw(s)
holding the rear panel in position, these are
located at the top.
2
Slide the rear panel upwards to release it then lift away from the unit.
3
Using the Velcro fasteners secure the power
supply unit onto the back of the height adjust
stand and connect the AC power cable.
4
Route the front panel USB and Audio
cables alongside the power supply unit as
demonstrated by the blue cable.
At this point you can also add any other
cables you require such as LAN or
peripherals (keyboard/mouse) to the cable
management system.
5
Now replace the rear panel ensuring that all
of the cables which you require are threaded
through one of the openings provided so that
you can connect them to the Stone AIO PC.
Stone height adjust stand for use
with Stone AIO PC M770/M780.
Call 08448 22 11 22 Email [e-mail] stonegroup.co.uk
ASSEMBLY GUIDE
STONE AIO HEIGHT ADJUST STAND

ASSEMBLY GUIDE
STONE AIO HEIGHT ADJUST STAND
Call 08448 22 11 22 Email [e-mail] stonegroup.co.uk
6
Replace the screws which hold the rear panel
in position using the tool provided.
7
Mount the PC unit onto the height adjust stand VESA bracket
ensuring the four T bolts slot into position correctly.
8
Using the tool and screw provided lock the AIO PC to the height
adjust stand via the opening marked in the image.
9
Connect the cables from the height adjust stand to the PC unit
(power, audio, USB, LAN, keyboard and mouse as required).
